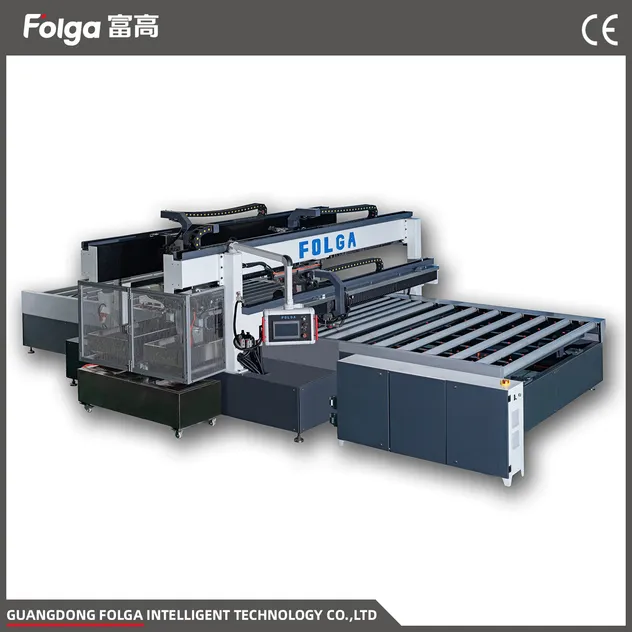

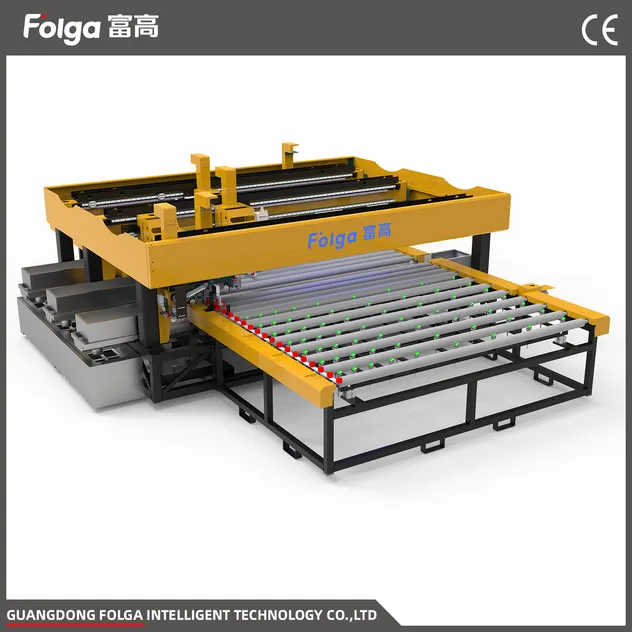

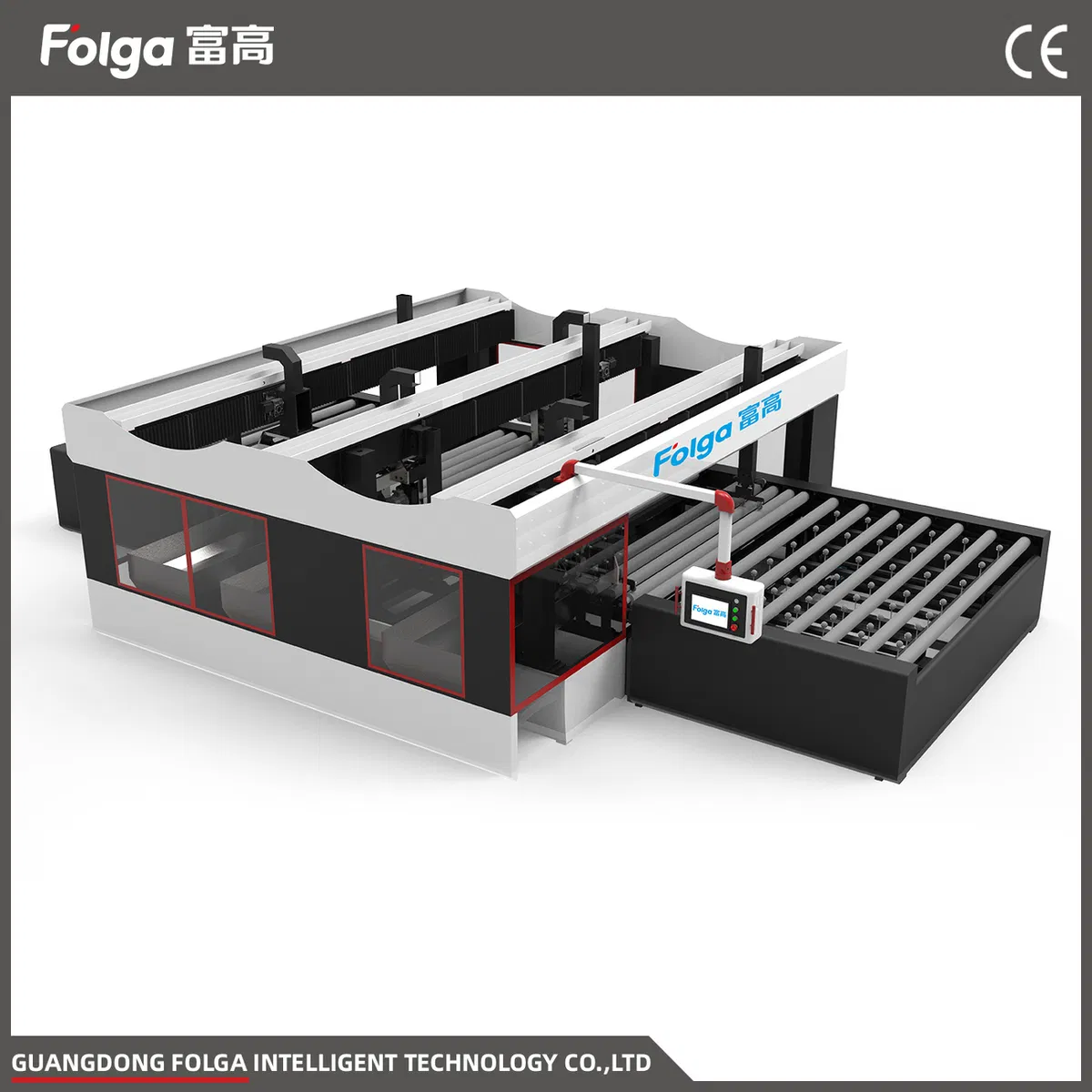

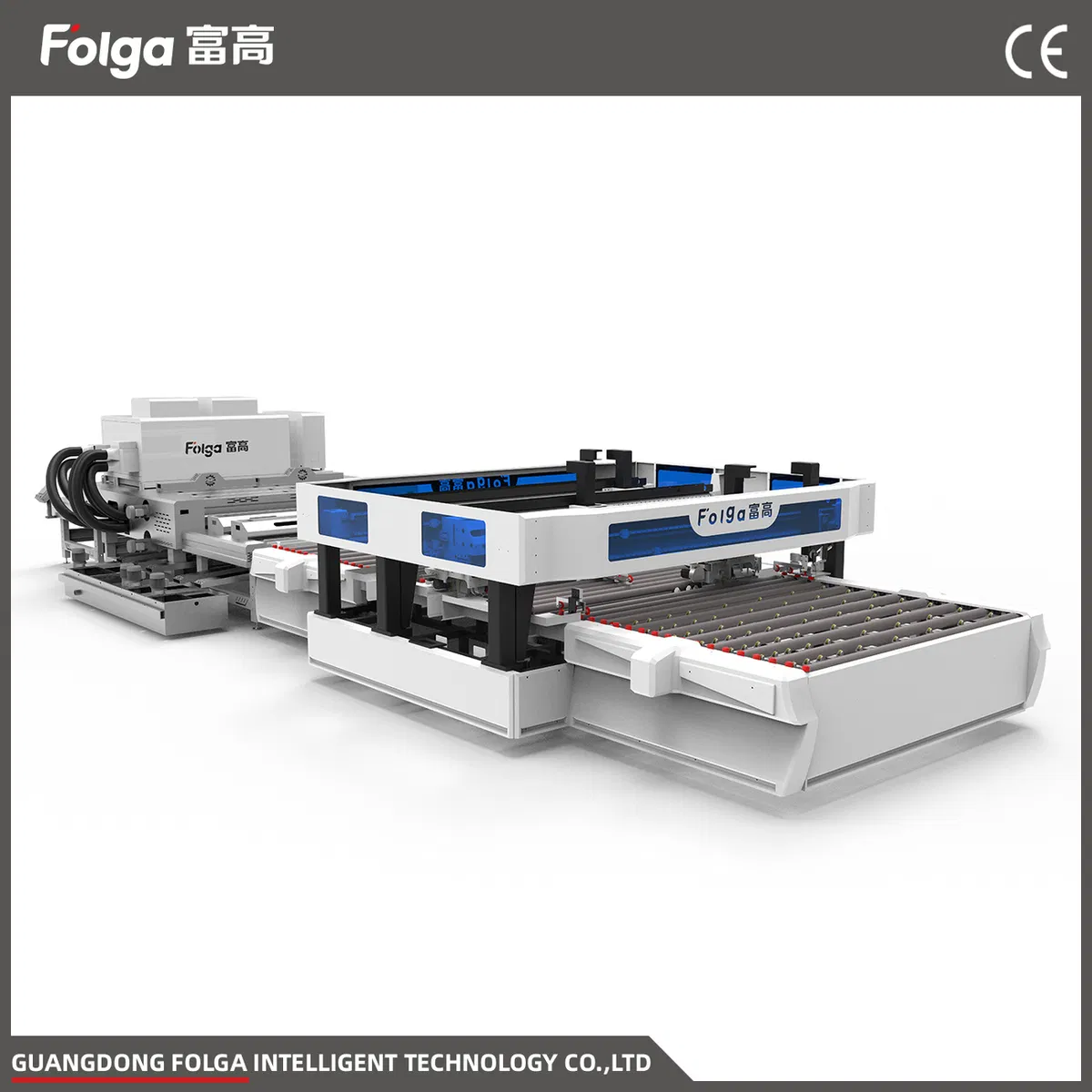

The Glass Seaming Machine (also known as Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets.
This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min. Equipped with a BUS PLC controlling system and full servo motors, this machine delivers exceptional precision and energy efficiency.
Innovative "three bridges" structure with 4 sets of grinding head mechanisms enables simultaneous up & down chamfering and bottom edge grinding.
Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches while ensuring easy operation.
Bottom edge grinding wheels feature a specialized "double edger bowl" structure that delivers flawless finishes for premium glass products.
| Parameter | Specification |
|---|---|
| Glass Thickness | 3-25mm |
| Max. Edge Grinding | 5mm |
| Max. Chamfer Grinding | 2mm |
| Working Speed | 1-30m /min |
| Size Changing Speed | 1-18m /min |
| Parallel Error | ≤0.2mm /m |
| Diagonal Error | ≤0.5mm /m |
| Control System | Full Servo & BUS PLC |
Movement powered by gear racks, gear reducers, and servo motors with linear guide transmission for exceptional positioning accuracy.
Outlet section equipped with spray nozzles and air blowers suitable for high-end household glass applications.
Compatible with MES and ERP software integration for real-time production tracking and quality control.
