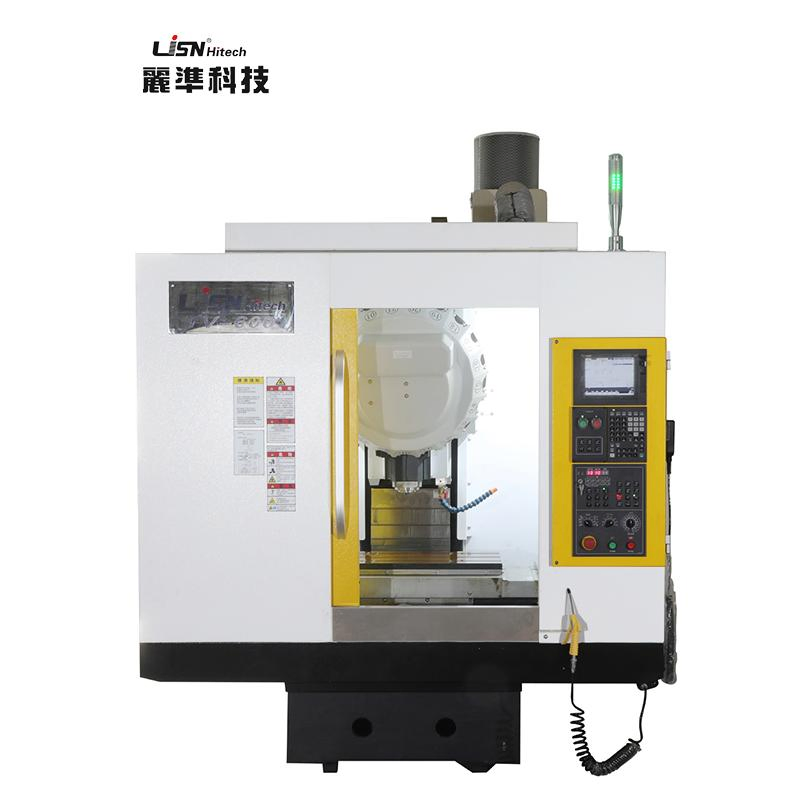

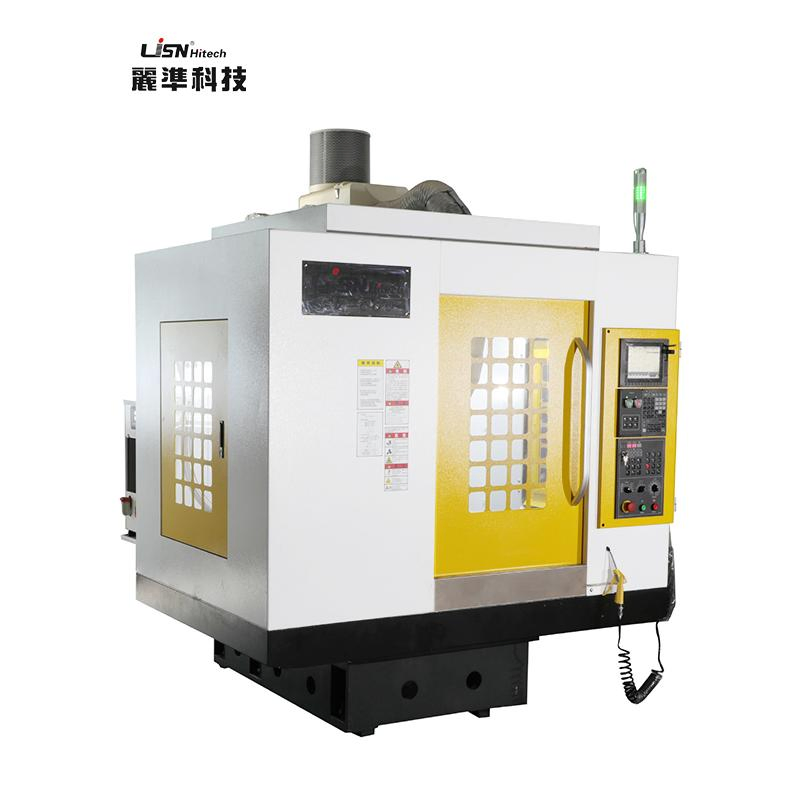

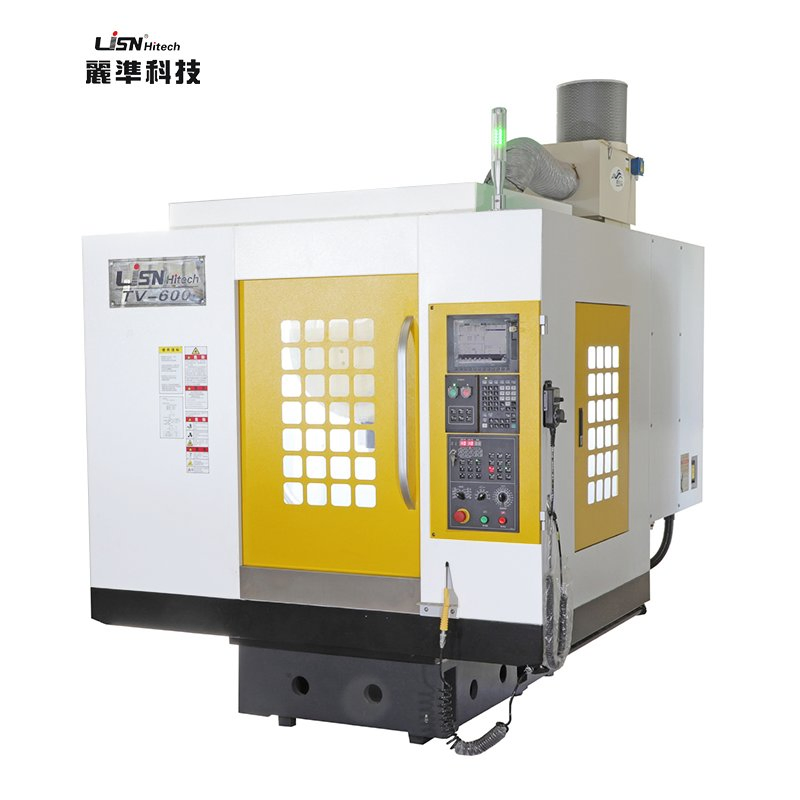

The machine features a safe and convenient operation design. The rear of the machine utilizes a box-shaped architecture and is equipped with a specialized tank collecting box. The humanized space design and wide operating door facilitate extremely convenient loading and unloading of workpieces. This machine also incorporates an intuitive operating panel, hand wheel, and a high-efficiency base chip washing system to maximize workflow efficiency.

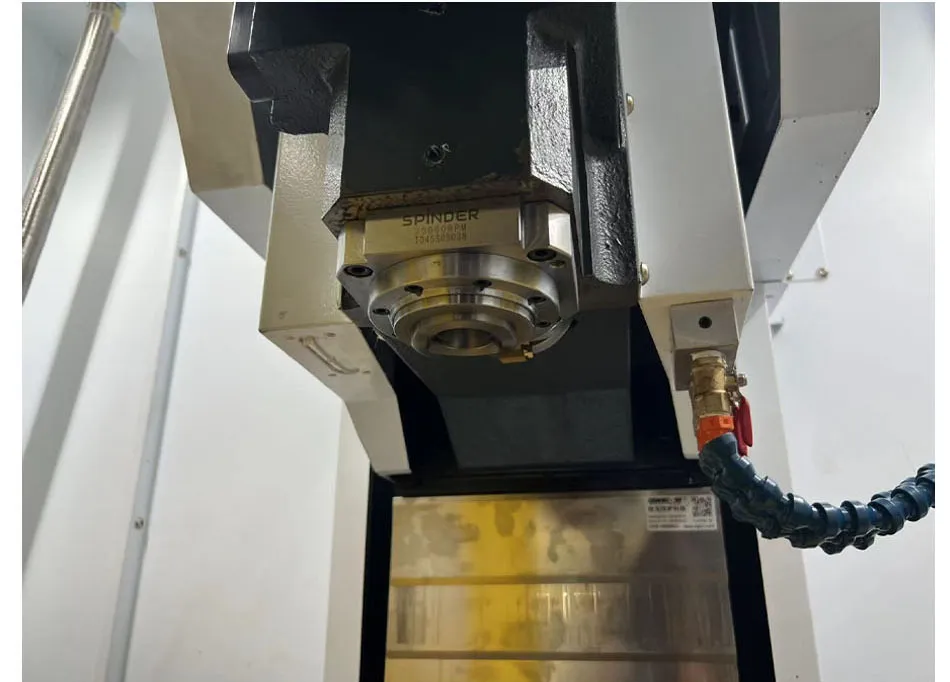

The spindle motor and spindle are directly connected to eliminate noise and vibration issues commonly associated with belt-driven systems. Equipped with a low-inertia spindle motor, the machine achieves rapid acceleration from 0 to 12000RPM in just one second. The Thermal Isolated Direct Drive System effectively blocks heat transmission from the motor to the spindle, significantly reducing thermal impact during operation.

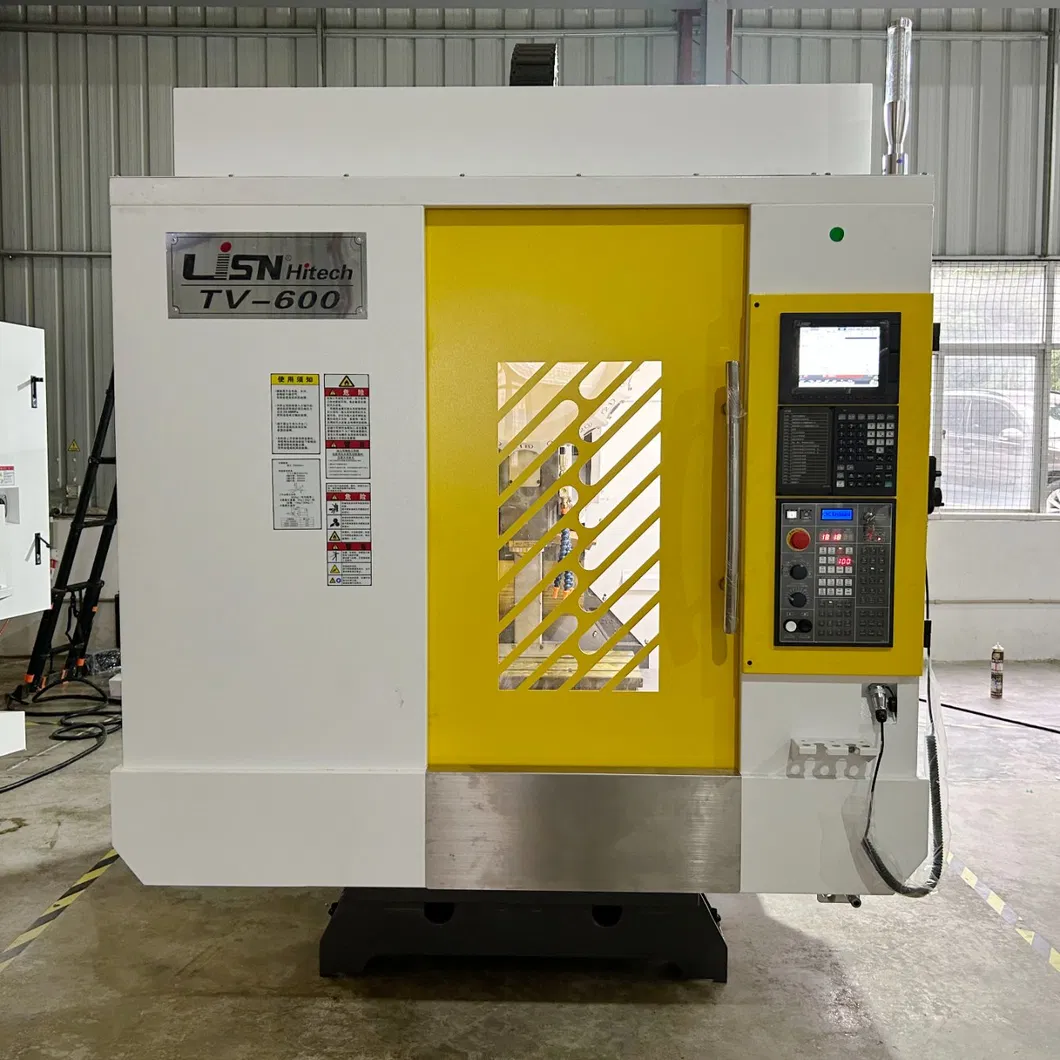

| ITEM | UNIT | TV600 |
|---|---|---|

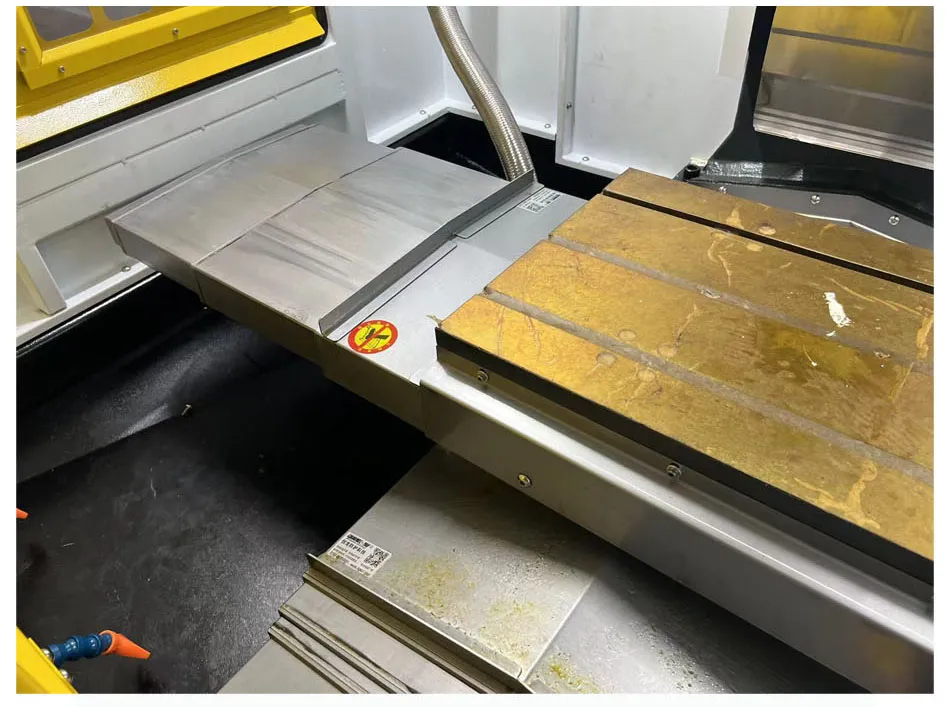

| Worktable (Width*Length) | mm | 720x400 |
| Max Load Bearing of Worktable | kg | 200 |
| X/Y/Z Axis Travel | mm | 600/400/300 |
| Spindle Hole Taper | - | BT30 |
| Spindle Speed Range | r/min | 20000 |
| Spindle Motor Power | kW | 3.7/5.5 (Mitsubishi) / 5.5/7.5 (Fanuc) |
| X/Y/Z Rapid Feed Speed | m/min | 48/48/48 |

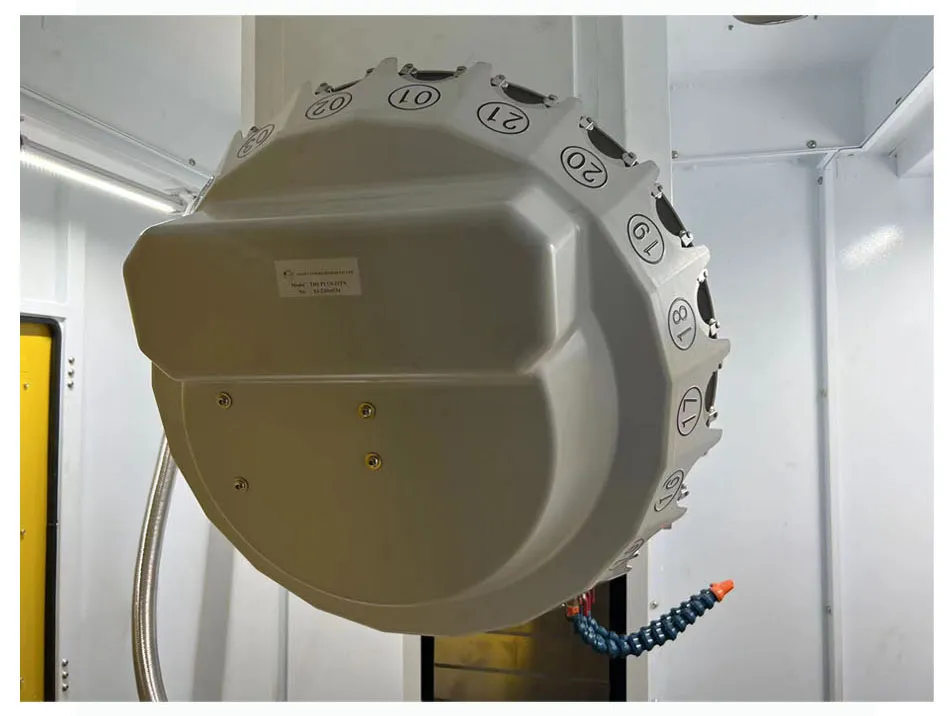

| Tools Magazine Capacity | pcs | 21 |
| Position Accuracy | mm | ±0.005 |
| Machine Weight | kg | 3000 |
Full Cover shield / Self-lubrication system / Working lights / Warning lights / Self-powered electrical shutoff system / Clean air gun / Water Tank / Transformer / Spindle air curtain and dust control system / Rigid Tapping / Worktable cleaning water gun
NC rotary table (4 Axis) / CTS / Tool detection system / Automatic tool length measurement / 3 Axis Linear Scale / Disc type oil-water separator / Crawler chips remover / Direct connection spindle / Spindle oil cooler
