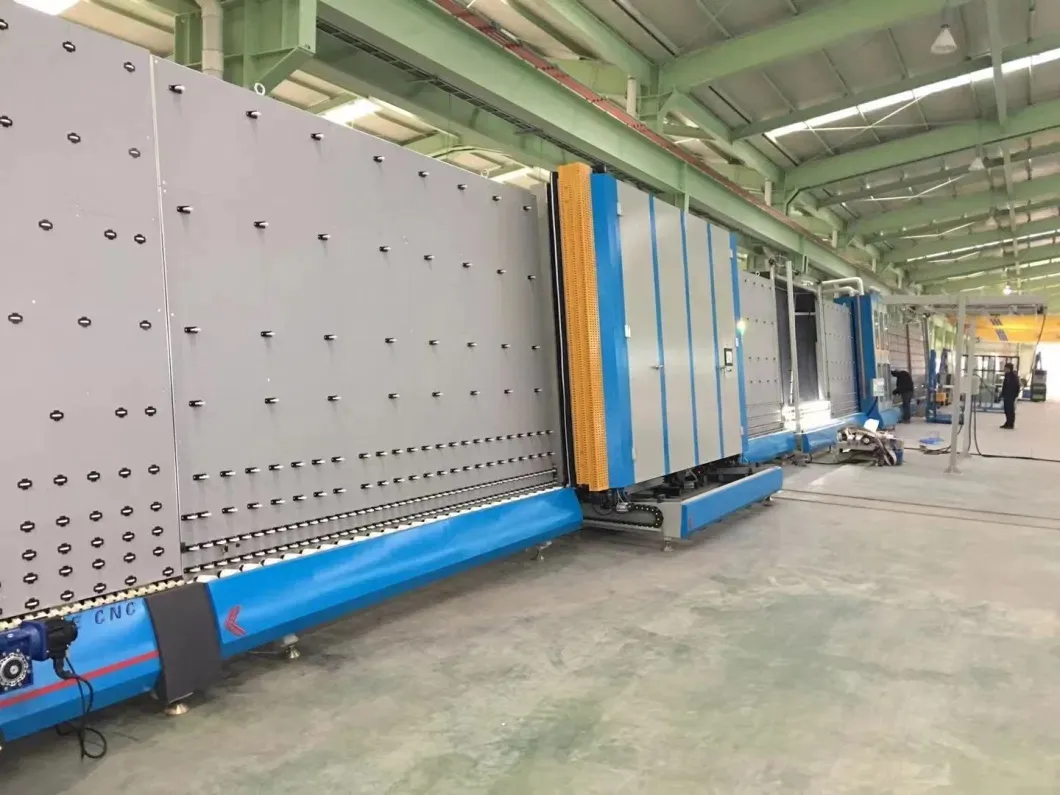

Quality Supplier Double Layer Auto Glass Making Machine Insulating Glass Production Line

Still deciding? Get samples of $ !
Order Sample

Product Description

📋Overview & Technical Parameters

ModelLB2500W / LB2200W / LB1800P
Max Glass Size2500 x 3000mm

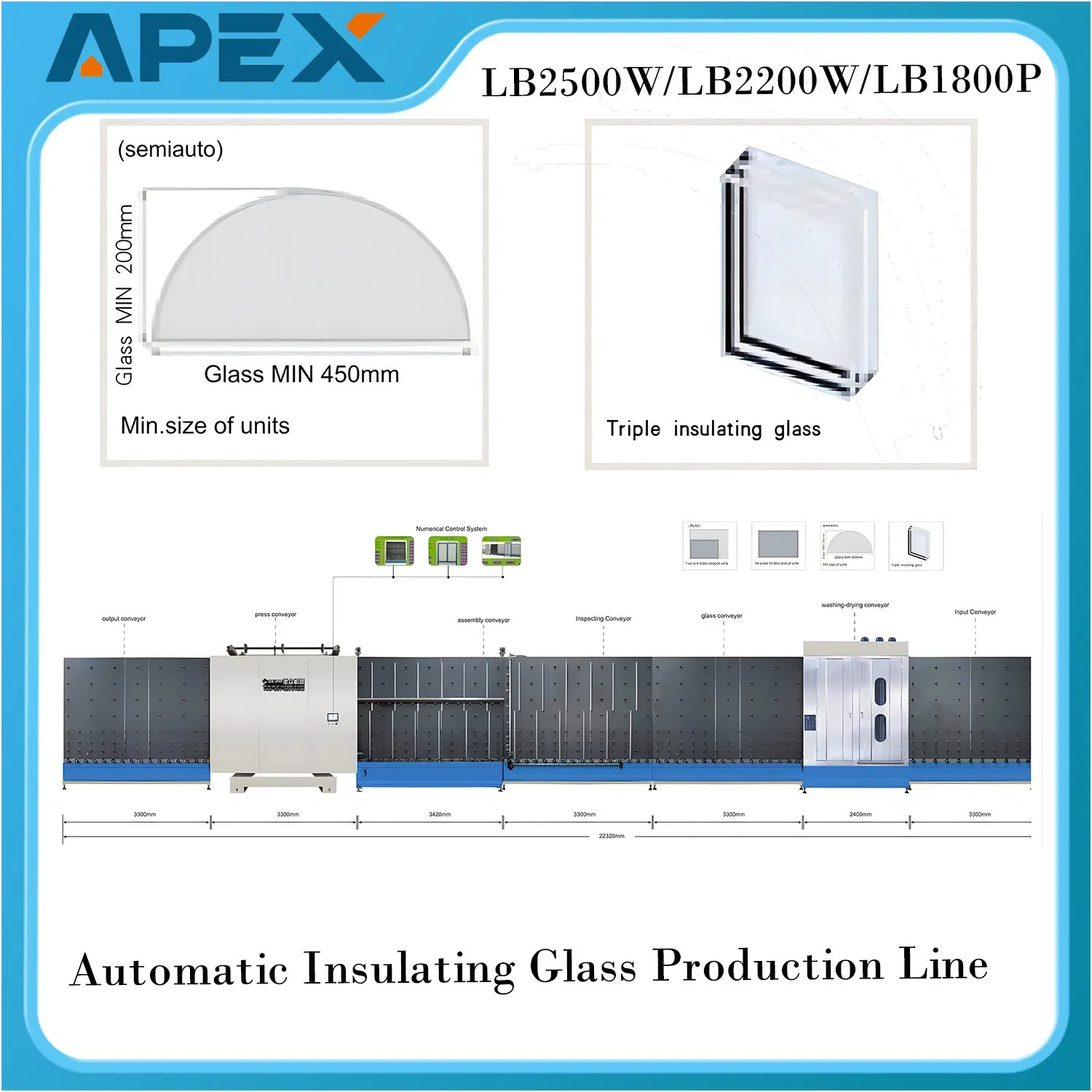

Min Glass Size200 x 450mm
Pane Glass Thickness3 - 15mm
Max Unit Thickness12 - 40mm
Washing Speed0 - 8m/min
Working Speed0 - 45m/min
Power21.95kw

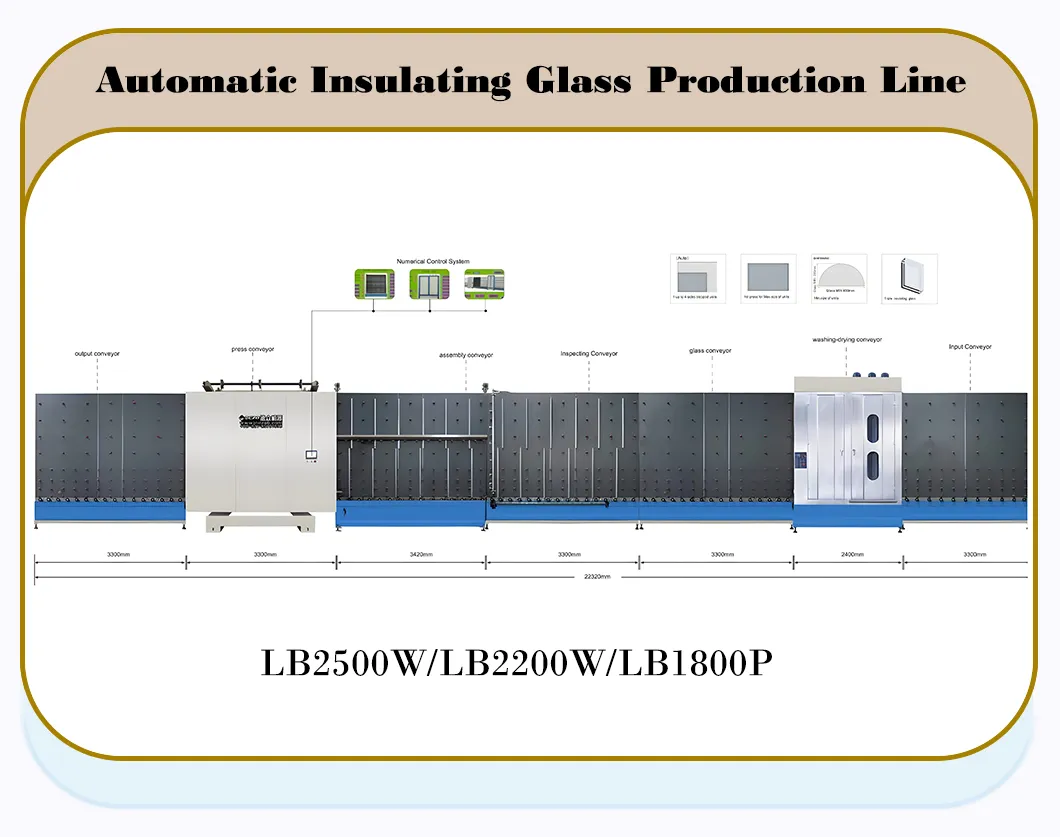

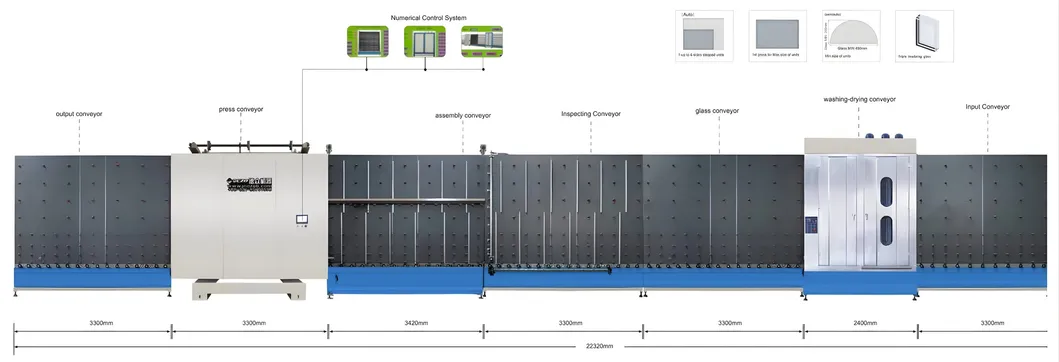

TypeInsulating Glass Production Line
Parameter LB2500W LB2200W LB1800P
Max glass size2500 x 3000mm2200 x 3000mm1800 x 2500mm
Min glass size200 x 450mm200 x 450mm200 x 450mm
Glass thickness3~15mm3~15mm3~12mm
Washing speed0~8m/min0~8m/min0~8m/min
Dimension22400×2300×3400mm21400×2100×3100mm18946×2100×2750mm

🚀Key Equipment Features

Universal Line Capabilities:

  • Automatically produces double-layer, three-layer, and curtain wall hollow glass.
  • Advanced PLC control system with intuitive touch screen operation.

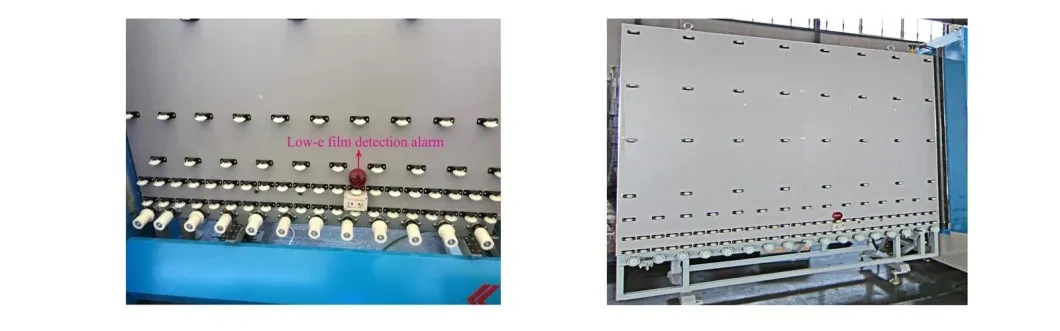

  • Automatic identification of coated and Low-E glass surfaces.
  • Suitable for high-standard, large-quantity industrial processing.
  • Gear and chain synchronous devices for precise panel pressing.
  • Frequency control for smooth glass transmission.
  • Efficiency: 800-1000 units per 8-hour shift.

🛠️Technical Configuration

⚙️ Servo Motor: High-precision YASKAWA servo-motors and drivers.
🇮🇹 Spindle: High-speed HSD spindle imported from Italy.
📏 Guides: HIWIN linear guides and YYC grinded gear racks.
💻 Software: Specialized CAD-CAM computer control systems.
⚡ Components: SIEMENS electrical and SMC pneumatic processors.
🛡️ Safety: Half-close safeguard devices for operator protection.

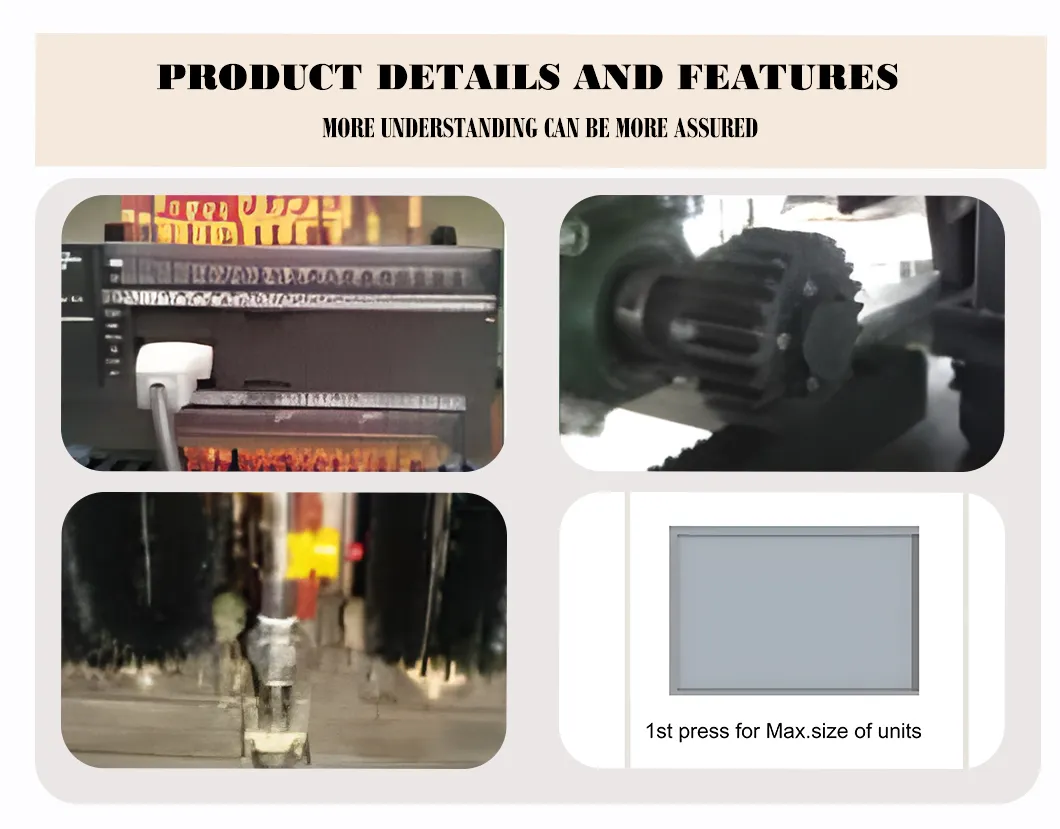

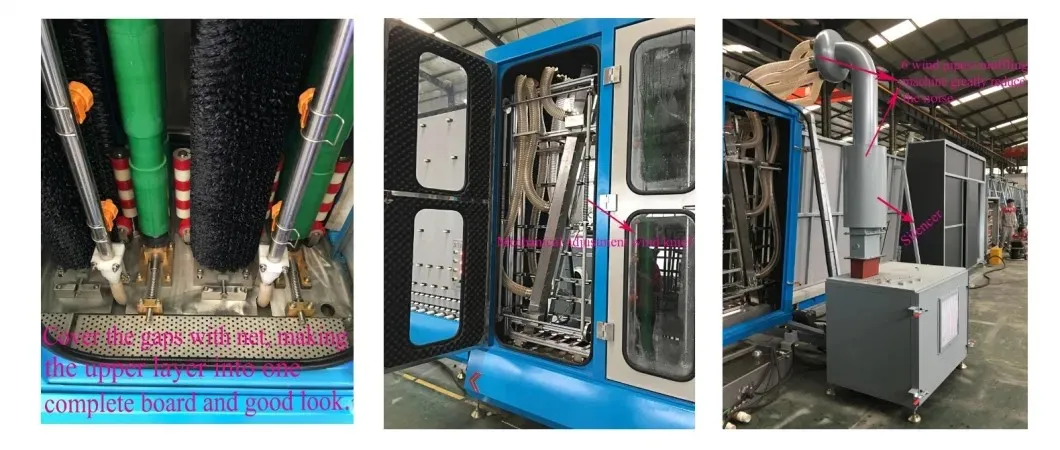

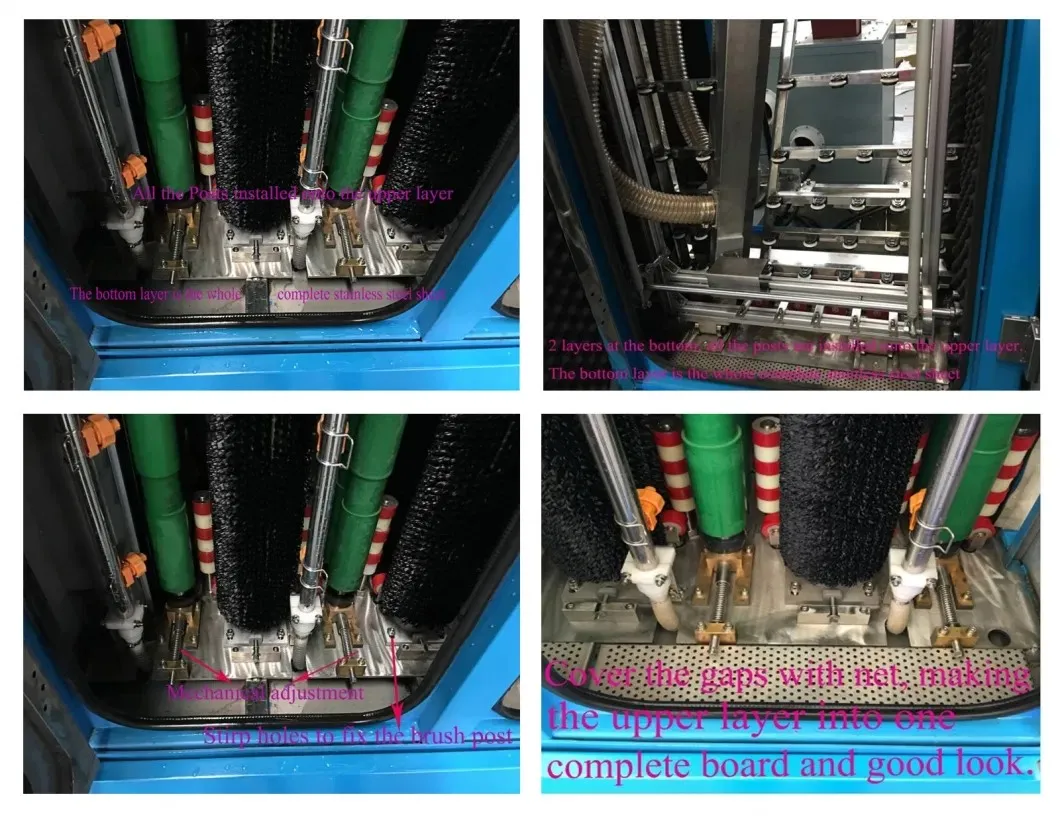

📸Production Details

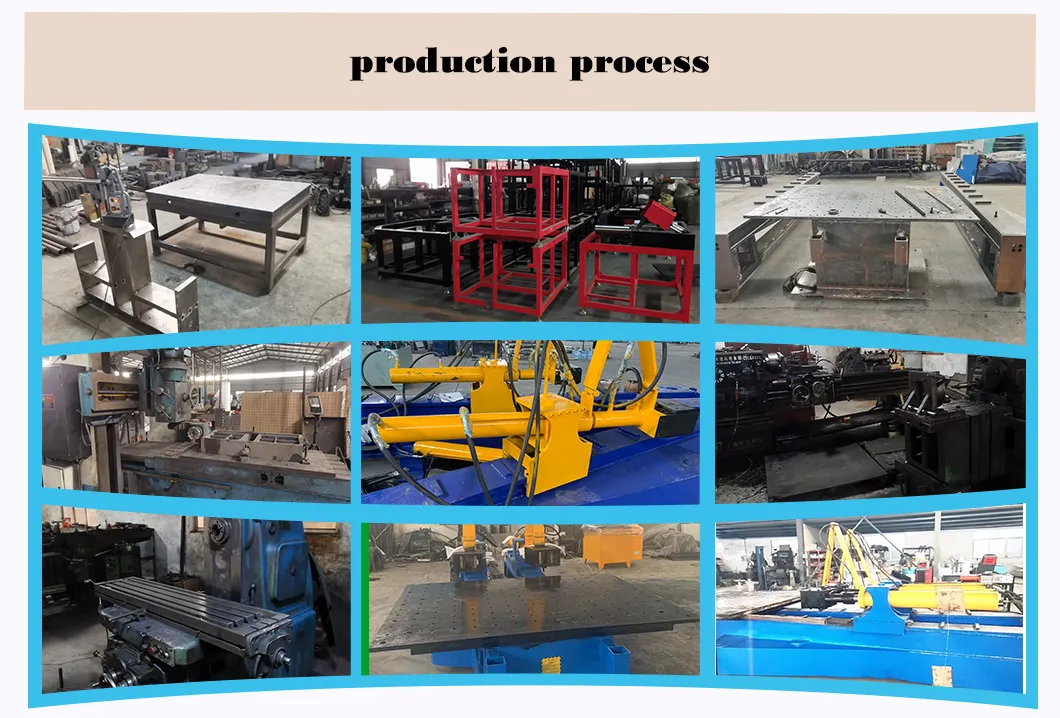

📦Production & Shipping

🏗️After Sales Service

  • One-year comprehensive warranty including free parts replacement.
  • 24-hour online technical support via E-mail and messaging platforms.
  • Life-time maintenance service and professional engineering support.
  • Free training courses for operators at the factory facility.
  • Consumable parts provided at agent prices for long-term maintenance.

Frequently Asked Questions

1. Are you a manufacturer or a trading company? We are a specialized manufacturer focusing on high-end glass processing and pipe/tube processing machinery production.
2. What kind of glass can this production line process? The line is designed for standard double-layer insulating glass, triple-layer glass, and specialized large/small curtain wall hollow glass, with automatic Low-E coating identification.
3. How do I choose the right machine model for my project? Selection depends on your maximum glass size requirements (e.g., 2500mm vs 1800mm), thickness needs, and desired production output per shift.
4. What quality certifications do your machines carry? Our equipment is fully certified with both ISO and CE standards, ensuring compliance with international safety and quality regulations.
5. What is included in your pre-sales service? We help customers confirm the correct model based on technical requirements and welcome factory visits to inspect the machines and workshops before order placement.
6. How is the technical support handled after purchase? We provide 24/7 online technical support and a one-year warranty on all parts, with life-time maintenance services available.
