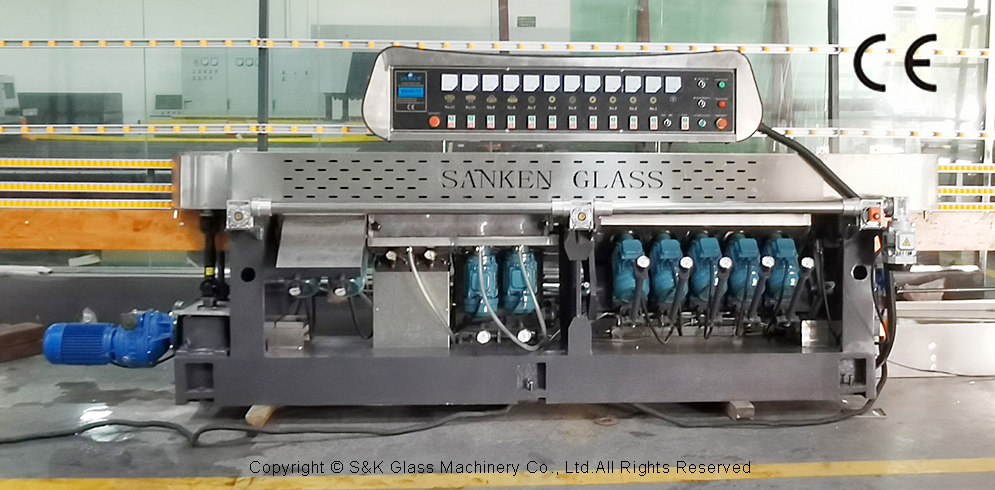

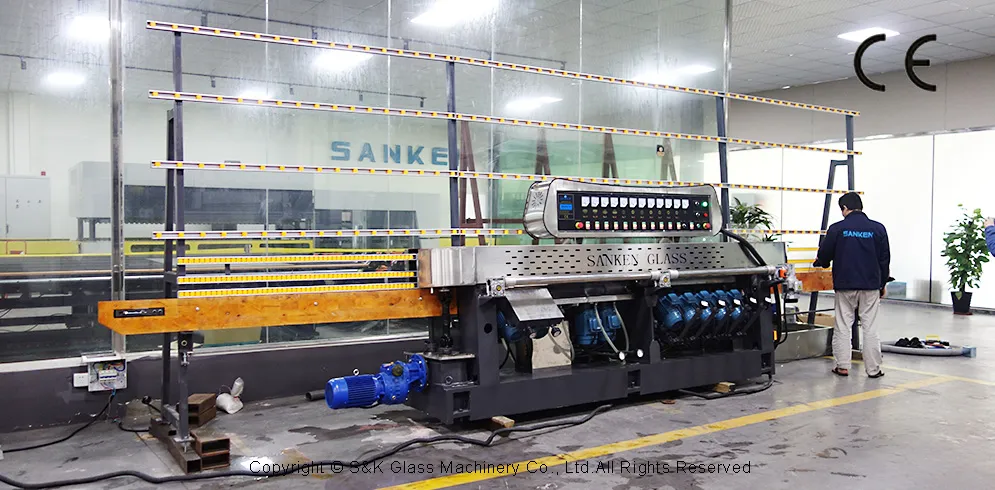

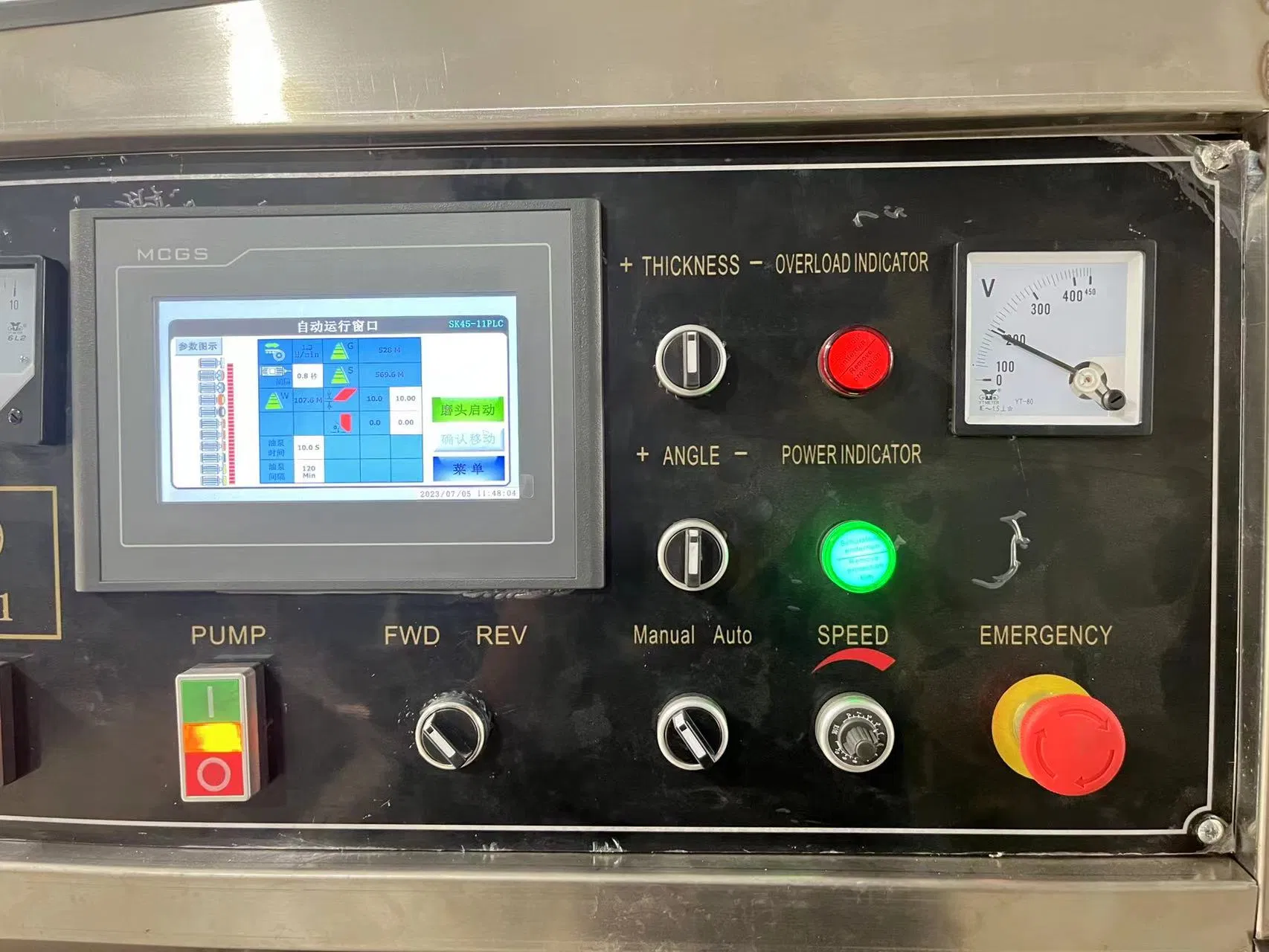

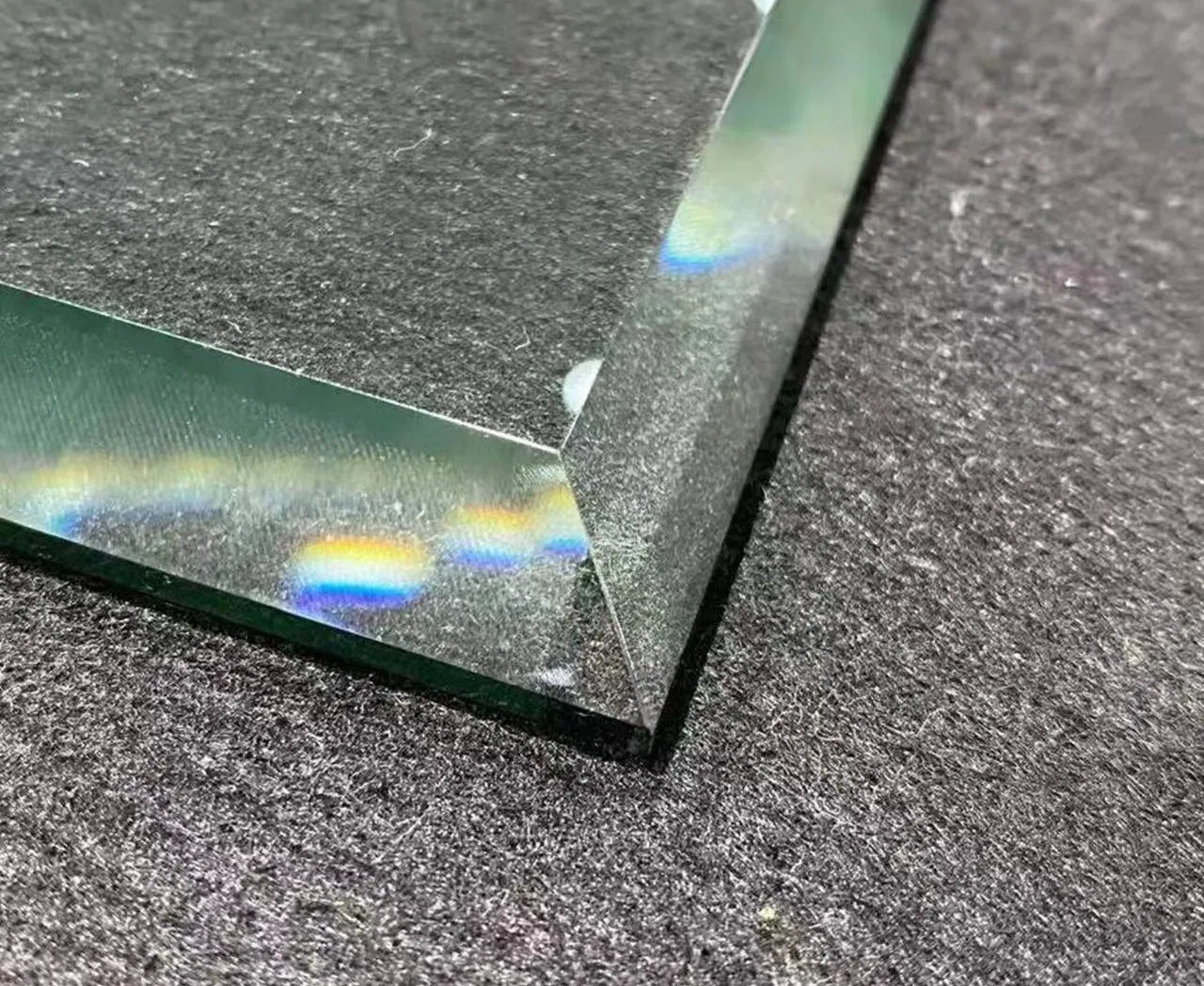

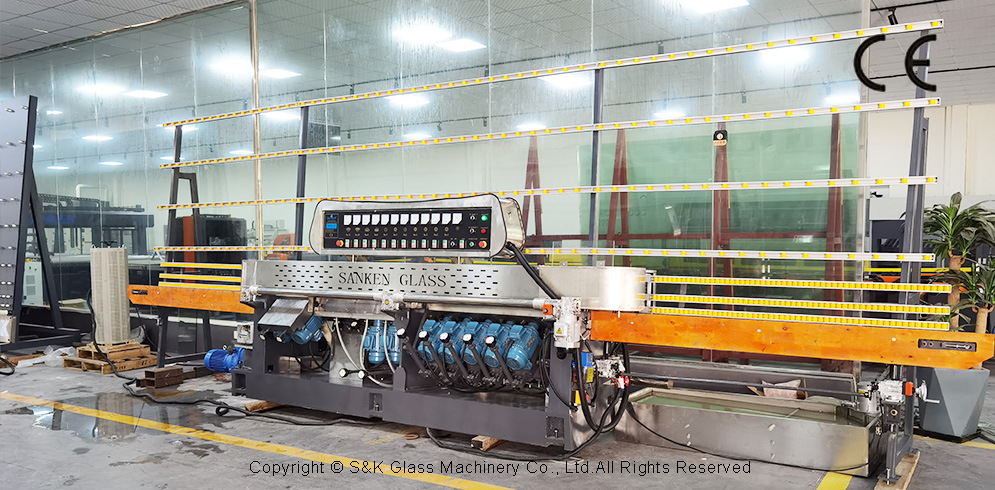

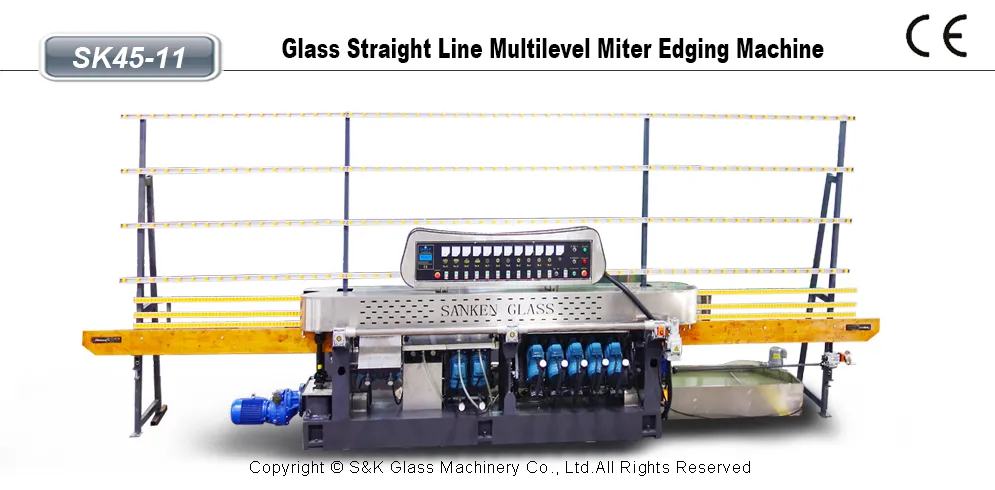

The Glass Straight Line Multilevel PLC Vertical Single Edger is designed for different thicknesses of flat glass. The coarse grinding, fine grinding, polishing, and chamfering can be completed nicely in one single process. Featuring easy installation and operation with high productive efficiency, this machine is an ideal choice for glass processing (SK45-series machines include both FLAT and 45-degree angle changing functions).
| Model | Speed | Min. Size | Max. Size | Thickness | Power | Weight | Occupation Area |
|---|---|---|---|---|---|---|---|
| SK45-9 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800x1200x2500 mm |
| SK45-10 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000x1200x2500 mm |
| SK45-11 | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500x1200x2500 mm |
| SK45-9PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 20 kw | 2800 kg | 6800x1200x2500 mm |
| SK45-10PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 23 kw | 3100 kg | 7000x1200x2500 mm |
| SK45-11PLC | 1~5 m/min | 60 x 60 mm | 1830 x 2440 mm | 3-19 mm | 26 kw | 3600 kg | 7500x1200x2500 mm |
