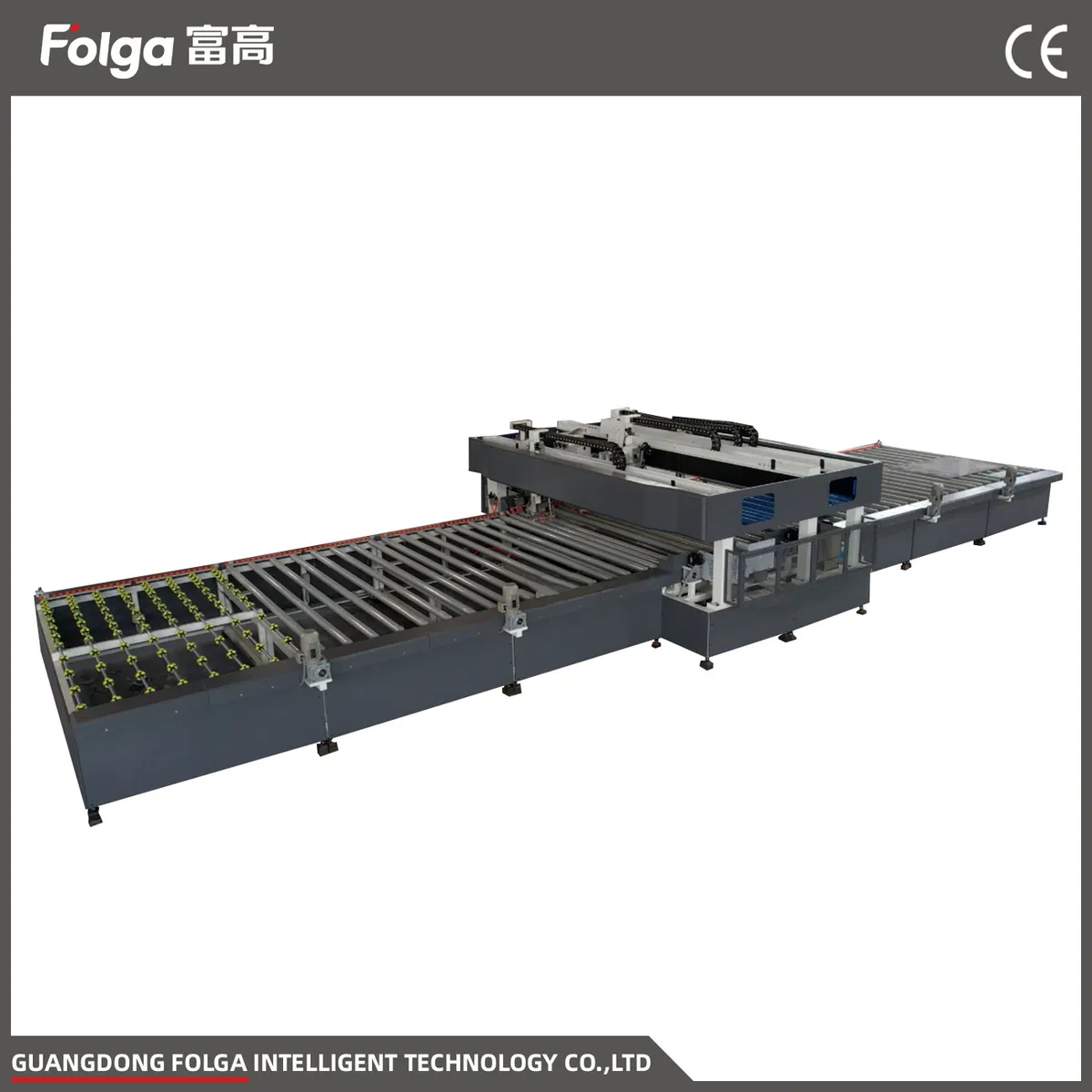

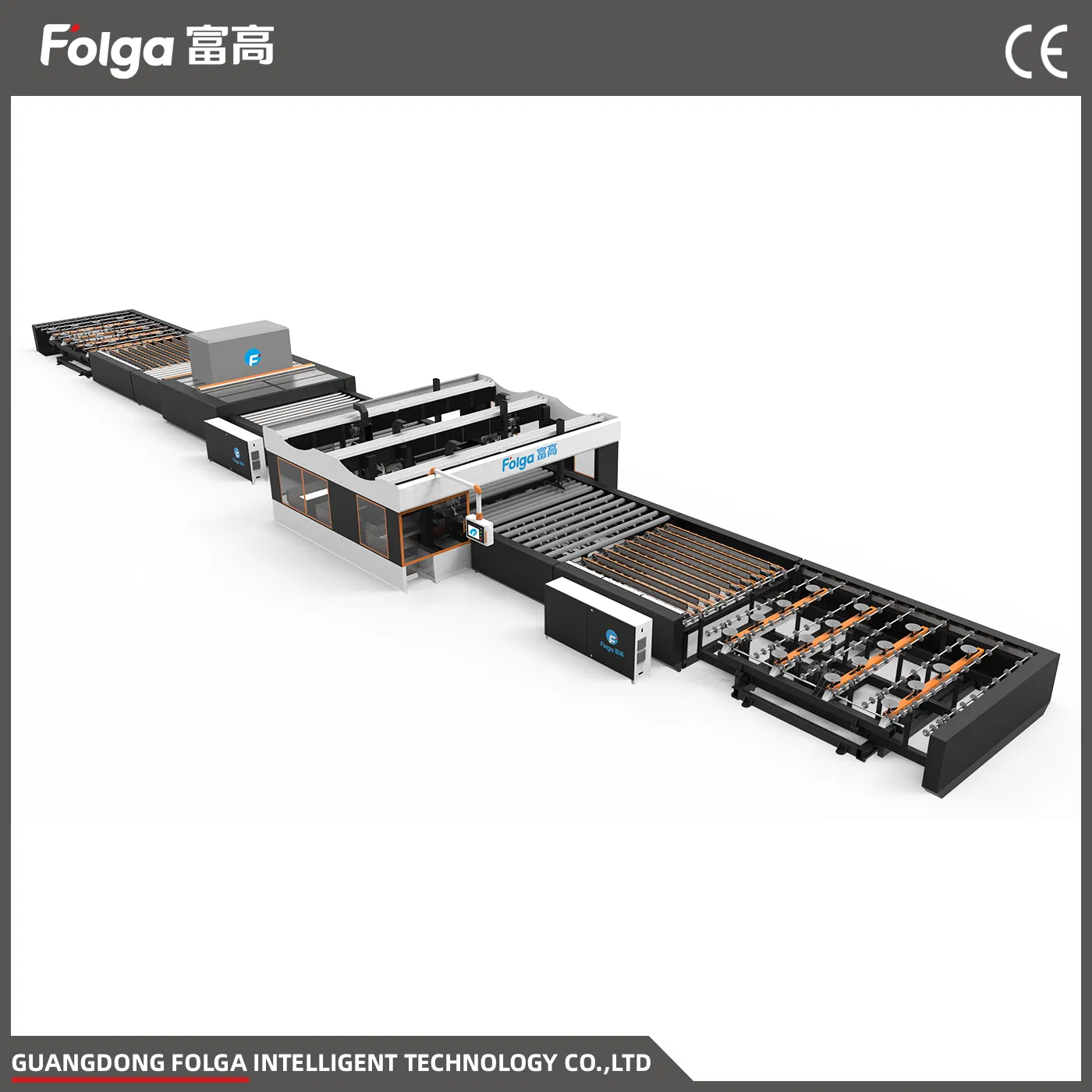

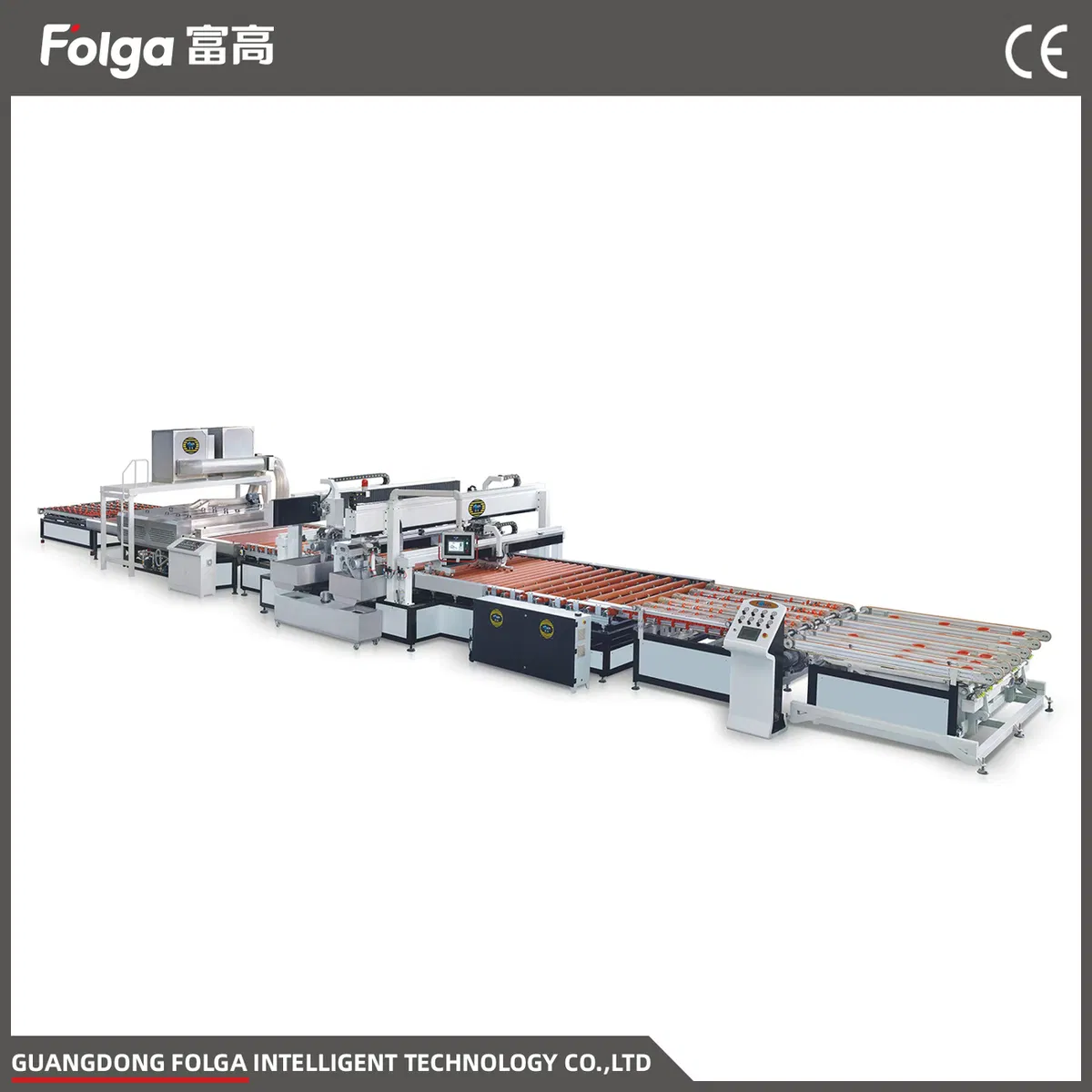

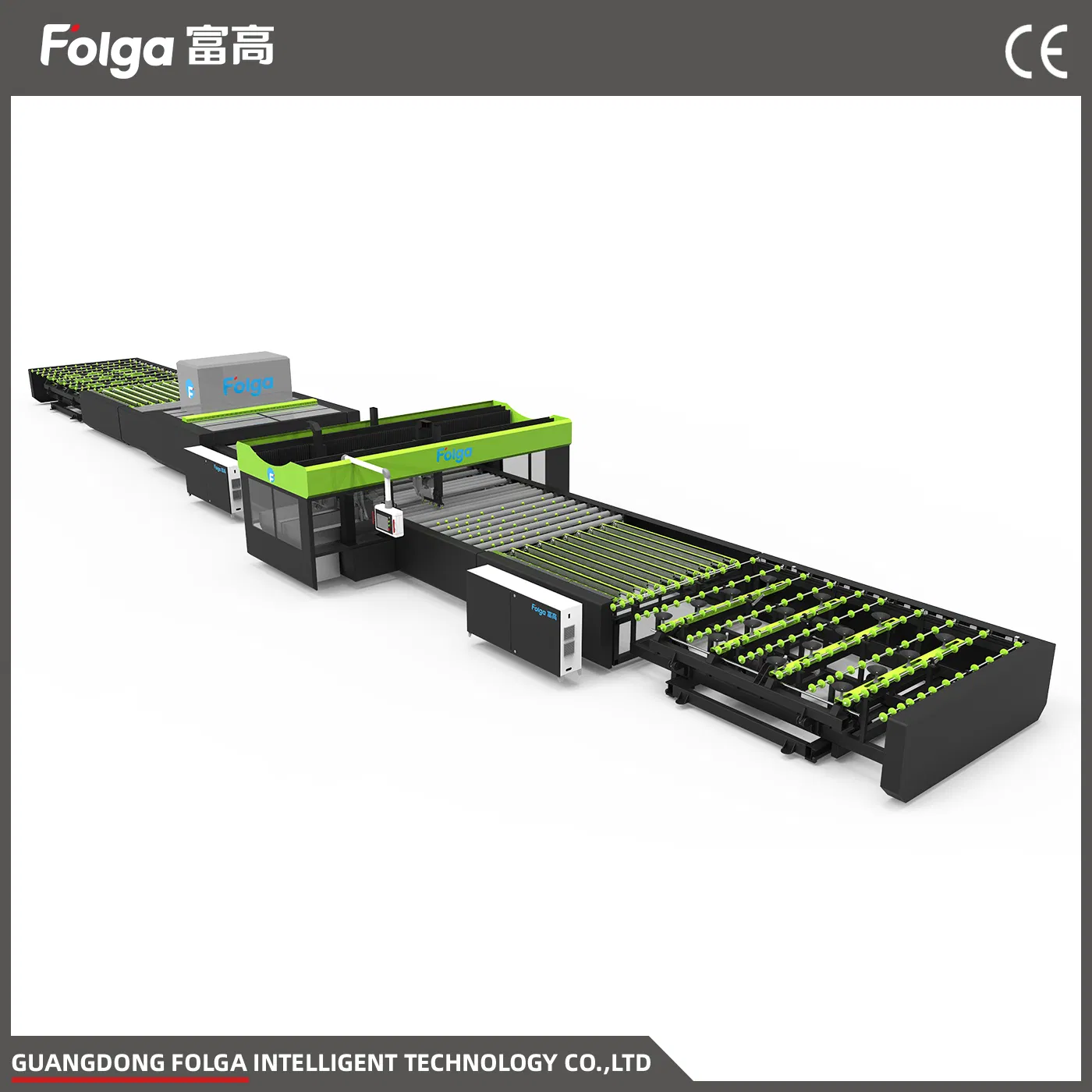

Premium Flat Glass Four Side Edging Machine Customized Production Line

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	25-30 m/min

Basic Information

Model NO.FGS0816DL

Processing Thickness3-12mm

Voltage380V

Product NameHigh Speed Glass Seaming Machine

Max.Edge Grinding2mm

Working Speed1-40m /Min

Air Pressure≥0.6MPa

Power28kw (12 motors)

Product Description

✓

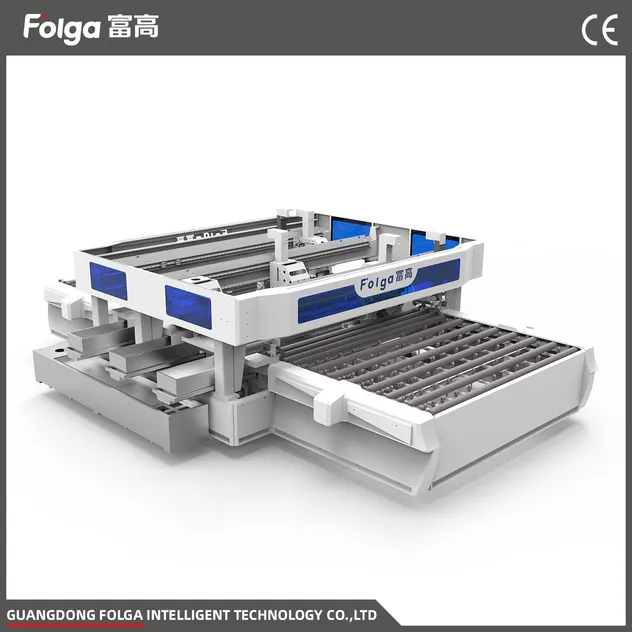

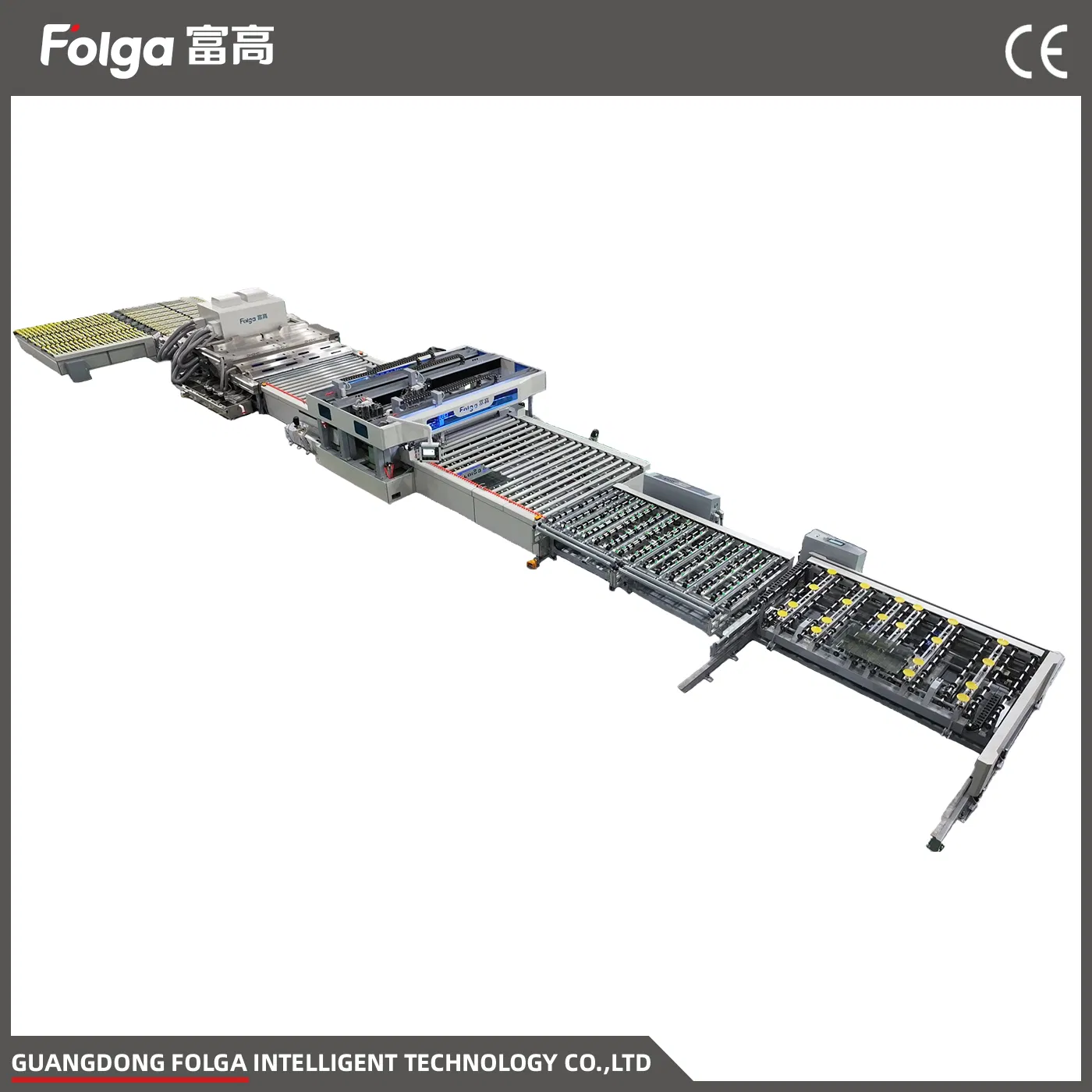

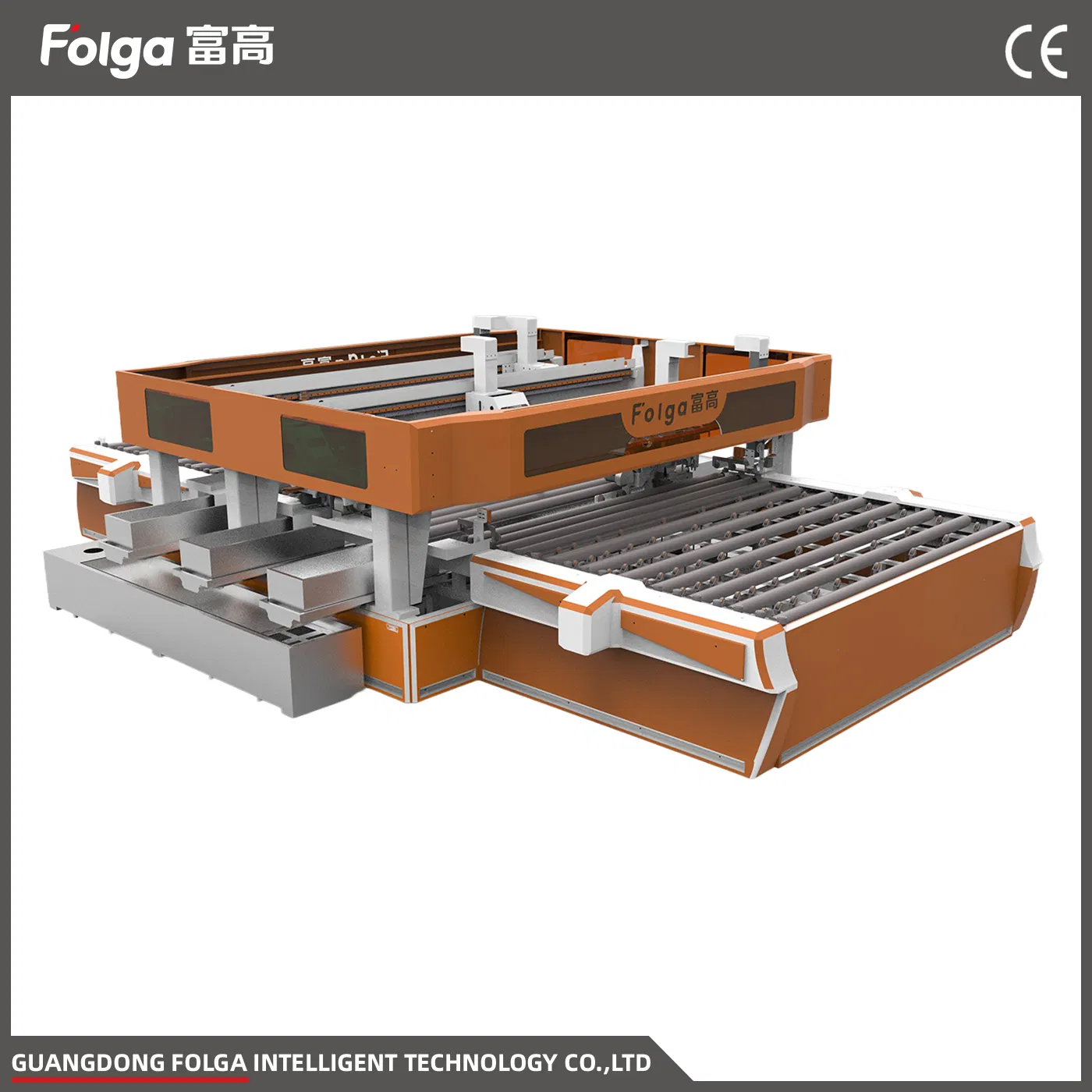

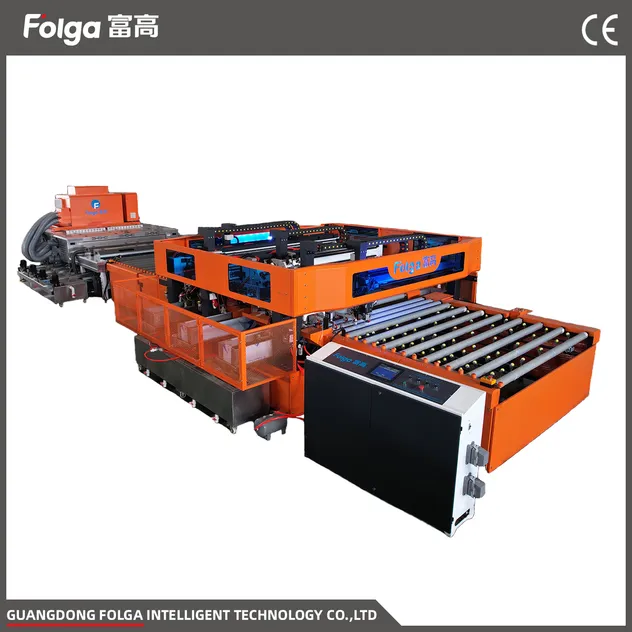

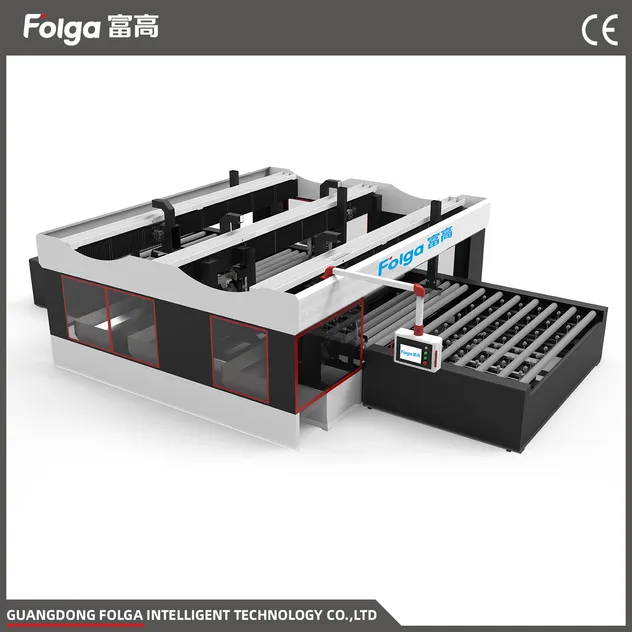

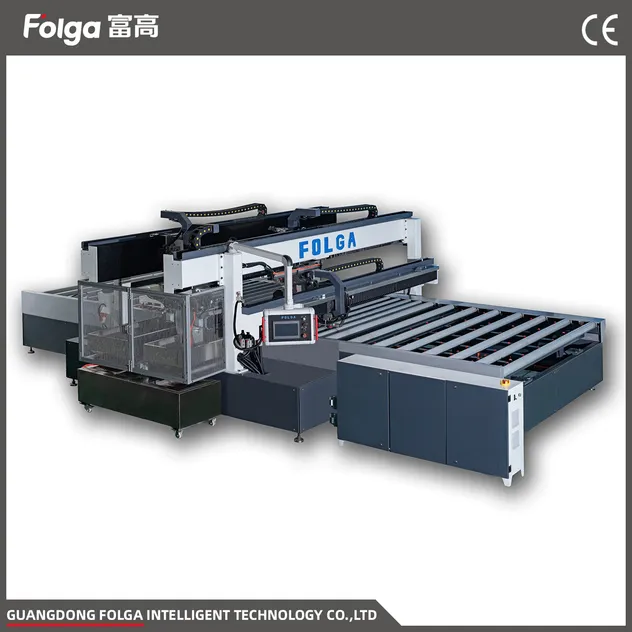

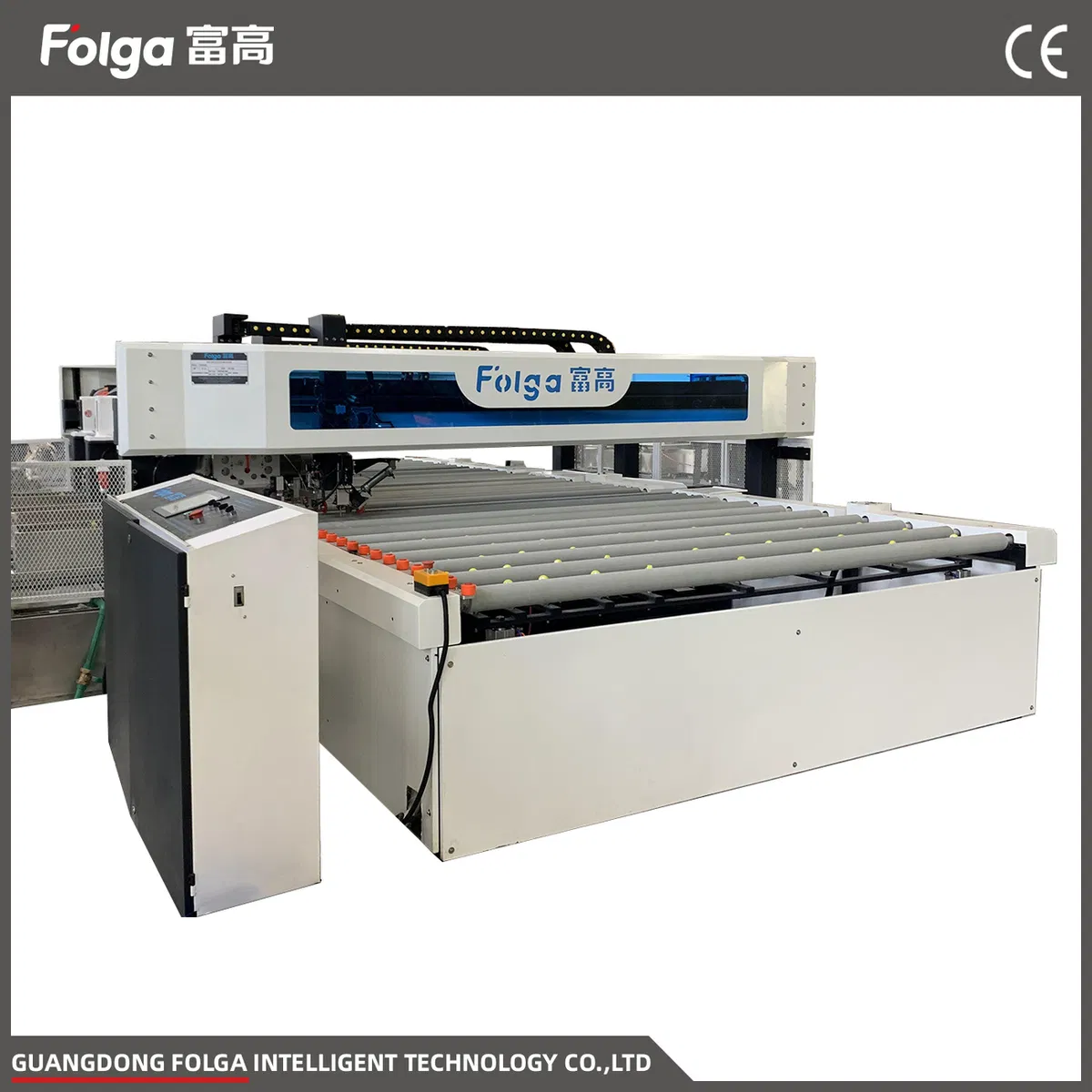

GLASS SEAMING MACHINE: The Glass Seaming Machine (Glass Four Side Edger) is an automatic solution designed for high-efficiency processing of rectangular and square flat glass sheets.

✓

High Speed Efficiency: Features advanced four-side simultaneous grinding technology. It completes chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min.

✓

Precision Control: Equipped with a BUS PLC controlling system and full servo motors, delivering exceptional precision and significant labor cost reduction.

Technical Parameters

Parameter Item	Standard Value
Glass Thickness	3-25mm
Max. Edge Grinding	5mm
Max. Chamfer Grinding	2mm
Working Speed	1-30m /min
Size Changing Speed	1-18m /min
Parallel Error	≤0.2mm /m
Diagonal Error	≤0.5mm /m
Air Pressure	≥0.6Mpa
Single Machine Power	42kw (12 motors)

Key Features & Technical Highlights

★

FULL SERVO & BUS PLC: Integrated control system provides exceptional stability and real-time production monitoring.

★

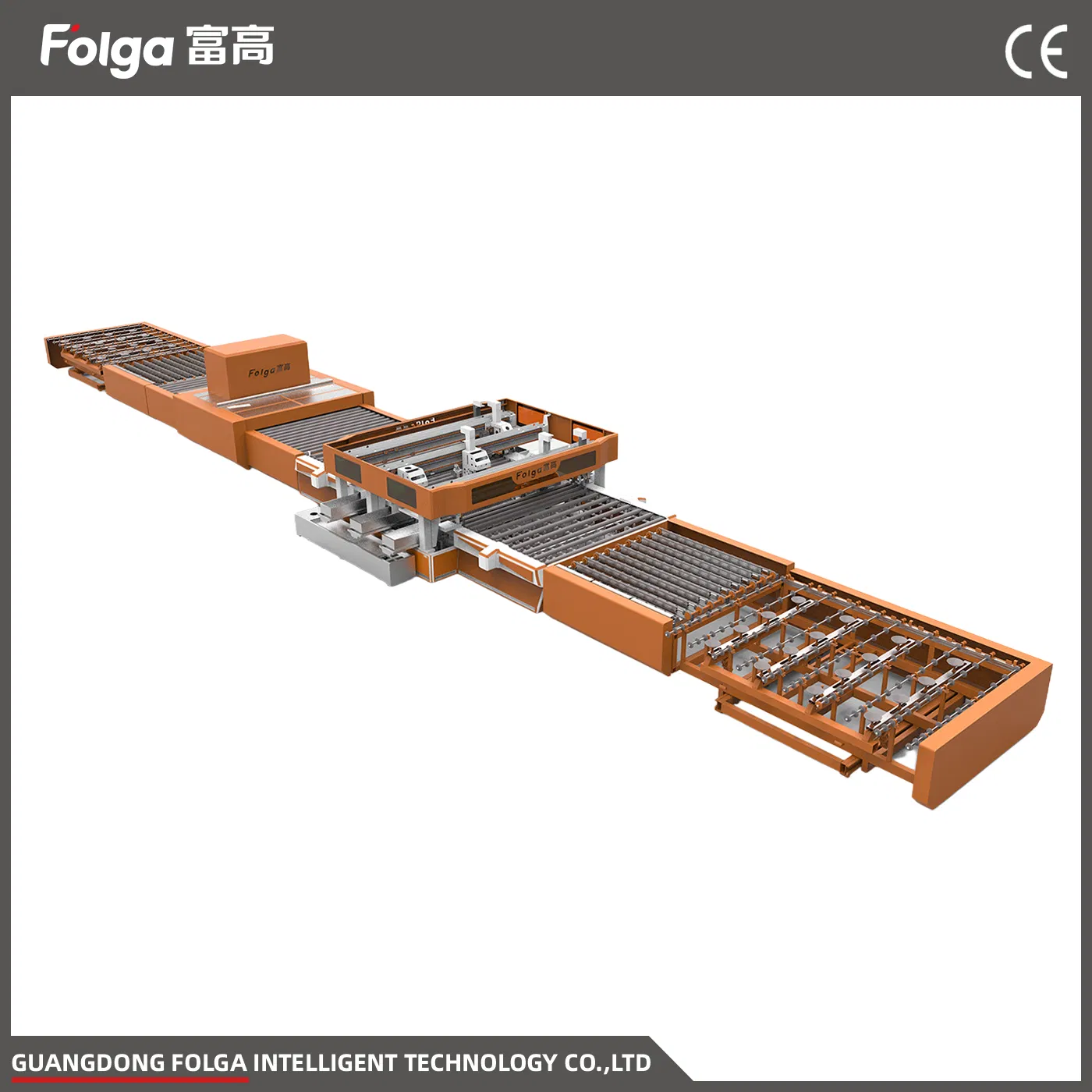

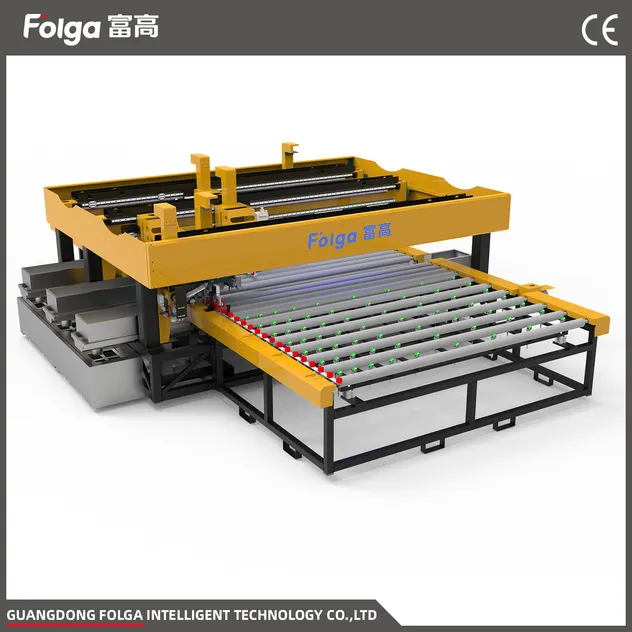

PRECISION TRANSMISSION: Powered by gear racks and linear guides to ensure positioning accuracy even at 40m/min.

★

SMART FACTORY READY: Compatible with MES and ERP software for data tracking and quality control.

Frequently Asked Questions

What are your main machinery products?

We specialize in glass single/double edging machines and glass seaming machines. We also provide washing machines, loading/unloading systems, and drilling machines.

Do you provide global installation services?

Yes, we dispatch engineers for on-site installation and training globally to ensure your team can operate the machines efficiently.

Can machines be customized for JUMBO glass sizes?

Absolutely. We can customize the machine dimensions and specifications based on your specific jumbo glass processing requirements.

What kind of glass finish can your machines achieve?

Our machines process all types of glass, offering both high-quality shiny polishing and standard matte grinding finishes.

What is your technical support response time?

We respond within 8 hours. Troubleshooting guidance is provided within 24 hours, and spare parts are dispatched via express courier (DHL) if needed.

How long has your company been in this industry?

We have over 21 years of experience (since 2004) in manufacturing stable and high-quality glass processing machinery.
