Customization:	Available
Warranty:	1 Year
Certificate:	CE

Send Inquiry

Product Description

📋

Basic Information

Model NO.

SXM261S

Min Glass Size

30X30mm

Max Glass Size

2500X2500mm

Max Bevel Width

30mm

Type

Glass Beveling Machine

Certification

CE, ISO

Structure

Vertical

Grinding Heads

9

Control System

Electric Control

Condition

New

Origin

China

HS Code

846420

🏗️

Product Description

Glass Straight Line Beveling Machine

Technical Specifications

Feeding Speed 1m/min ~ 6m/min

Width of Bevel 5mm ~ 30mm

Bevel Degree 0º ~ 30º

Min Processing Size 30mm × 30mm

Glass Thickness 3mm ~ 12mm

Total Power 21KW

Weight 3500KG

Introduction and Characteristics

The SXM261S is engineered with high precision, featuring two diamond wheels for processing, one wheel for base modification, four wheels for refining, and two wheels for polishing. The grinding and polishing speed is regulated by a frequency inverter for optimal control. The front beam can be adjusted vertically to accommodate both large and small glass sizes. This machine is designed for easy operation and maintenance, representing a significant improvement in vertical glass processing technology.

Machine Detail 1

Machine Detail 2

⚙️

Major Configuration & Features

✔ ABB high-efficiency motor

✔ Schneider electric components

✔ Frequency inverter for speed adjustment

✔ Integrated lubrication system

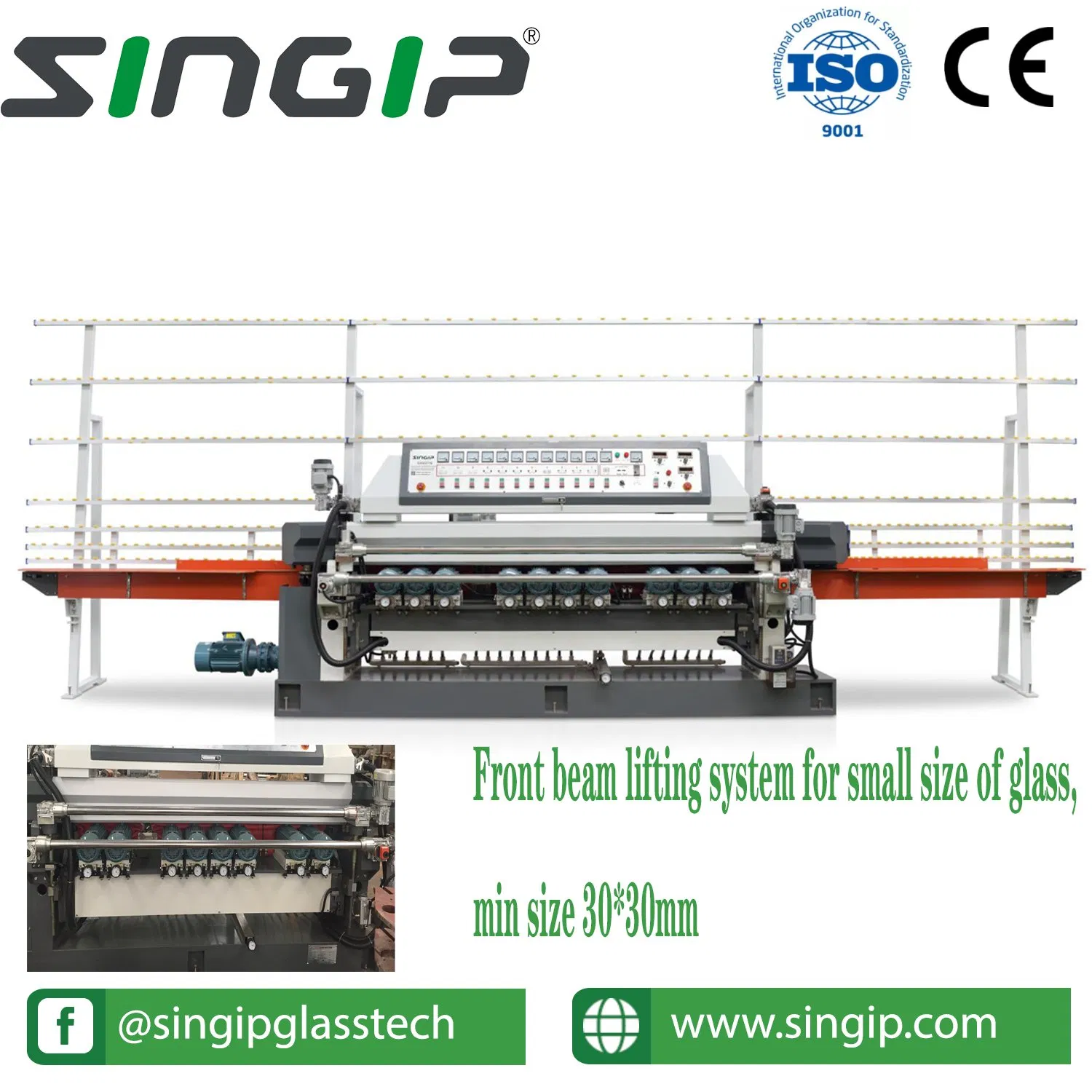

✔ Front beam lifting for 30x30mm glass

✔ Digital settings for thickness & angles

✔ Stainless steel water tanks

✔ Back pads washing system

✔ Aluminum glass support frame

🔍

Component Details

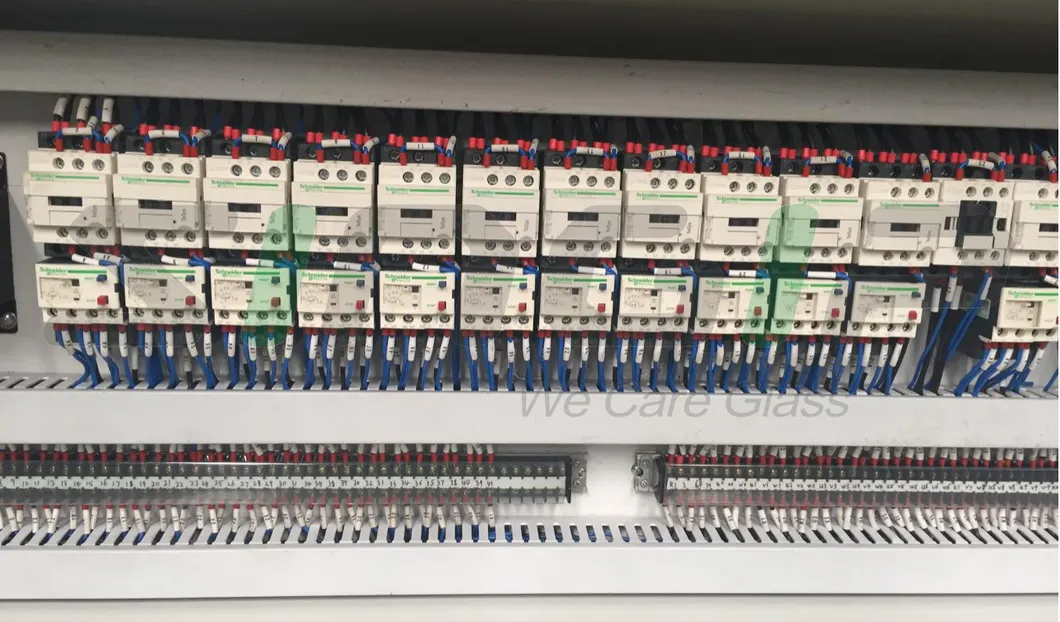

1. Schneider Electric Parts

Schneider electric part

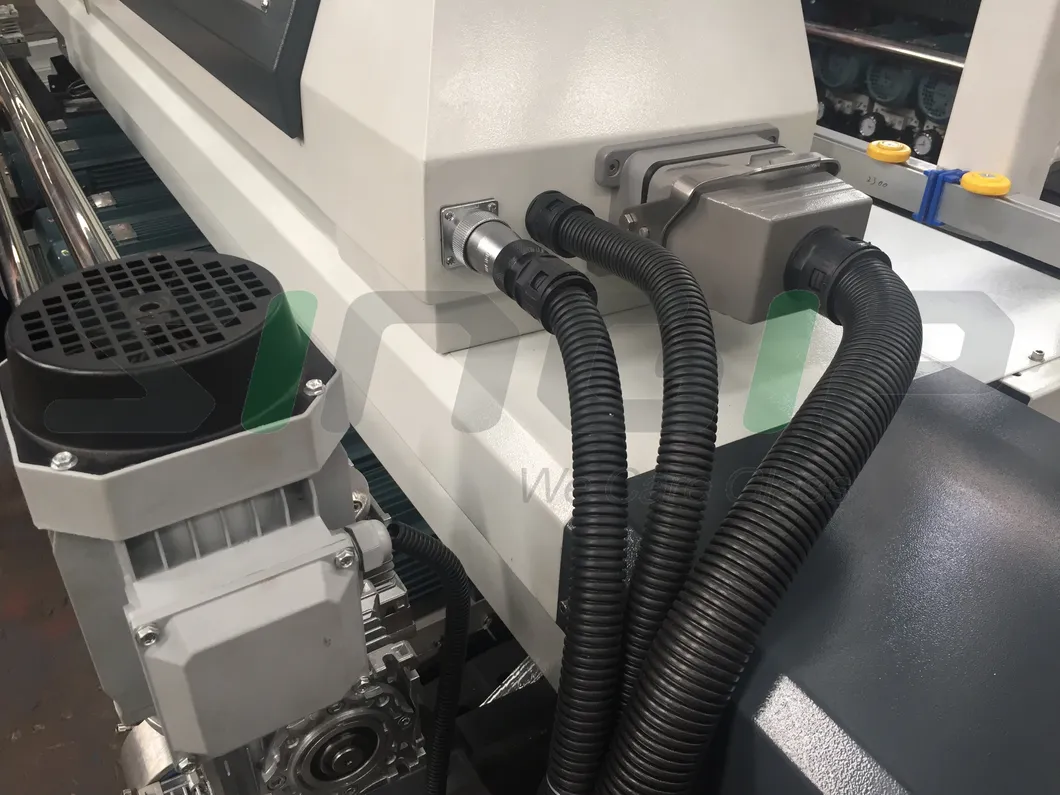

2. Heavy Duty Connector - Easy maintenance design.

Heavy duty connector

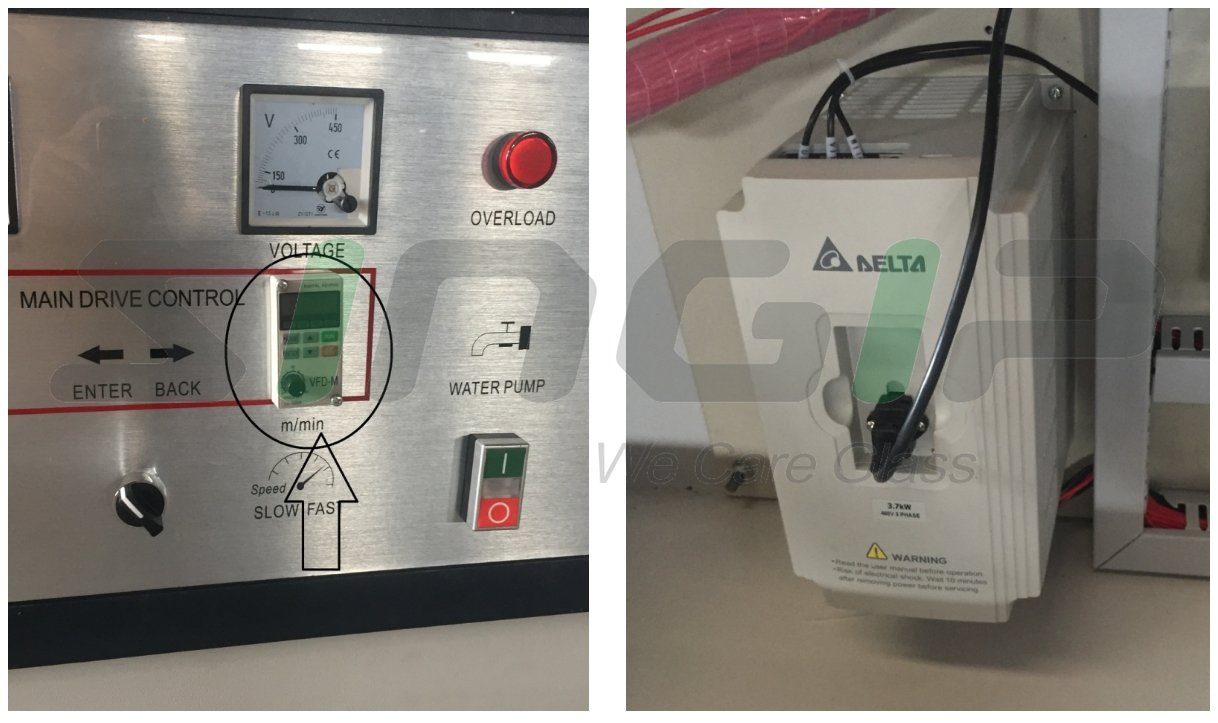

3. Frequency Inverter Control

Inverter 1

Inverter 2

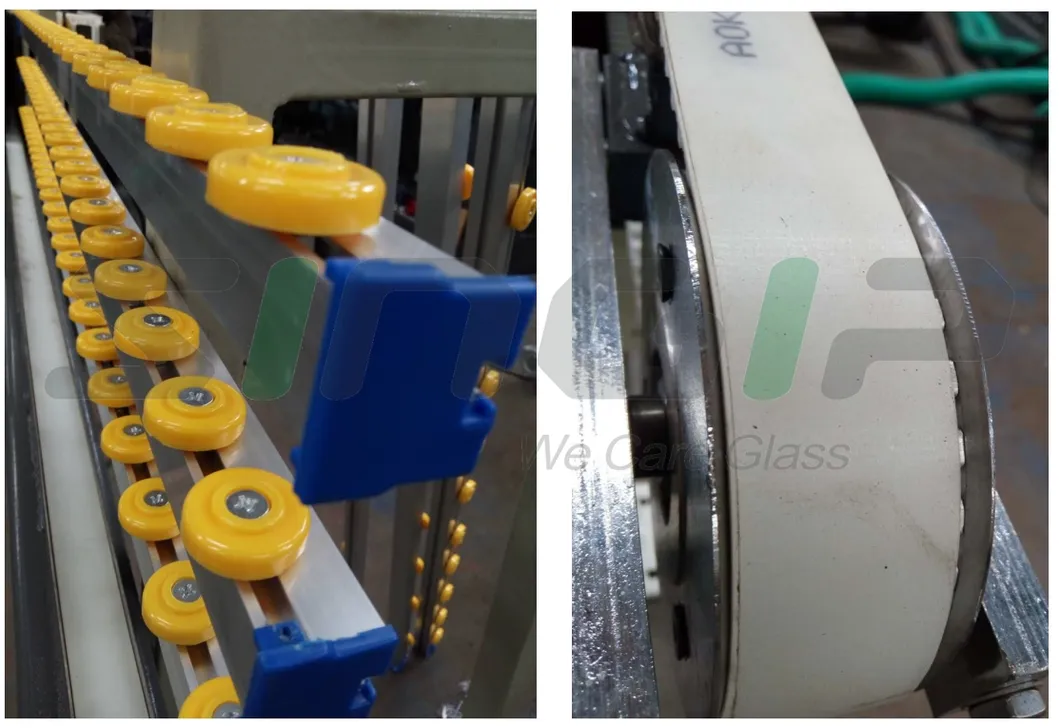

4. Support Frame & Timing Belt

Aluminum frame

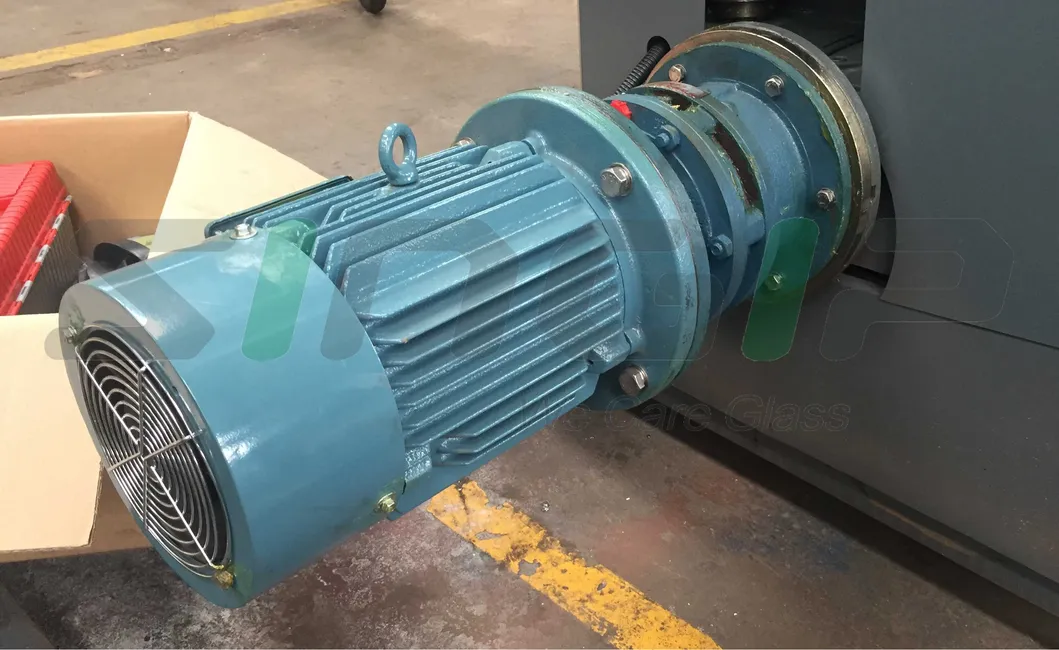

5. Back Pads Cleaning & ABB Motors

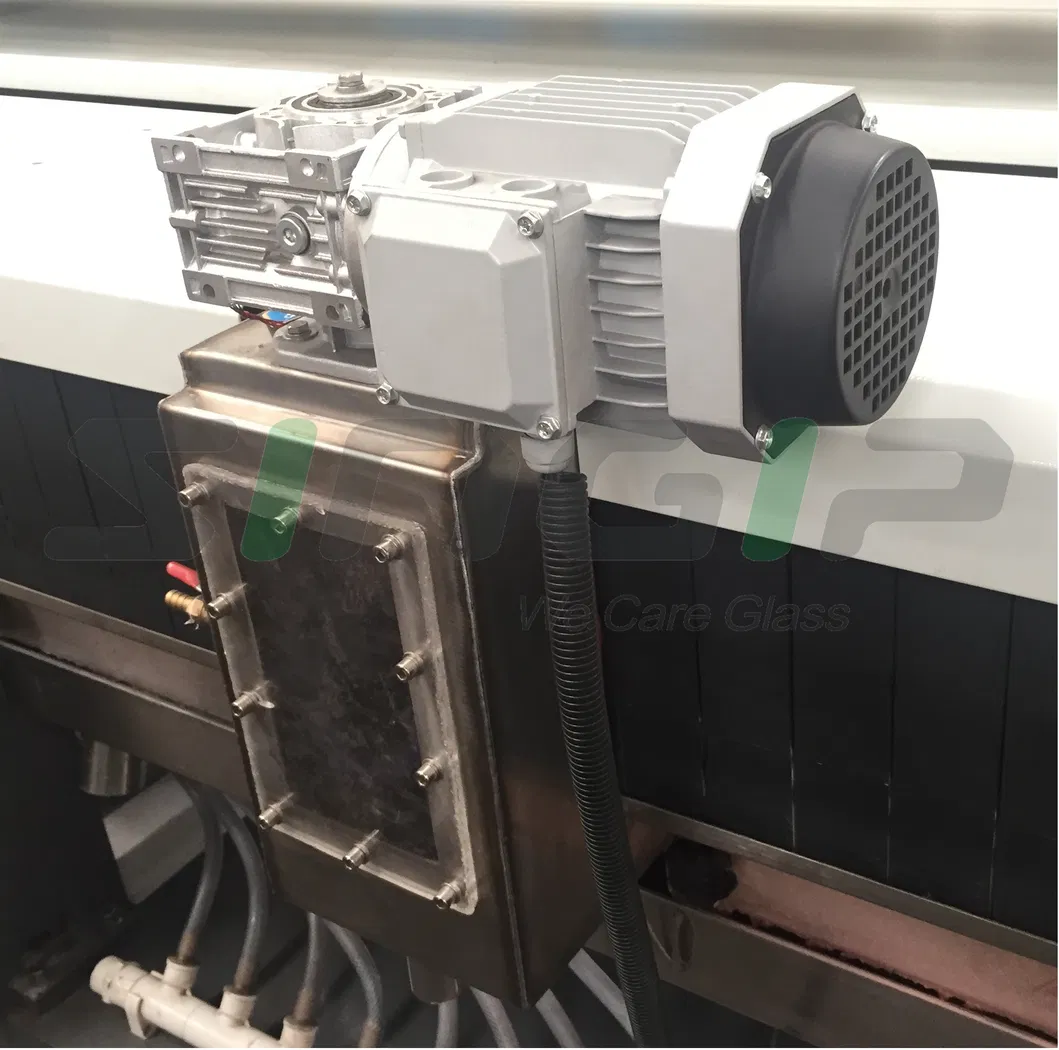

Cleaning system

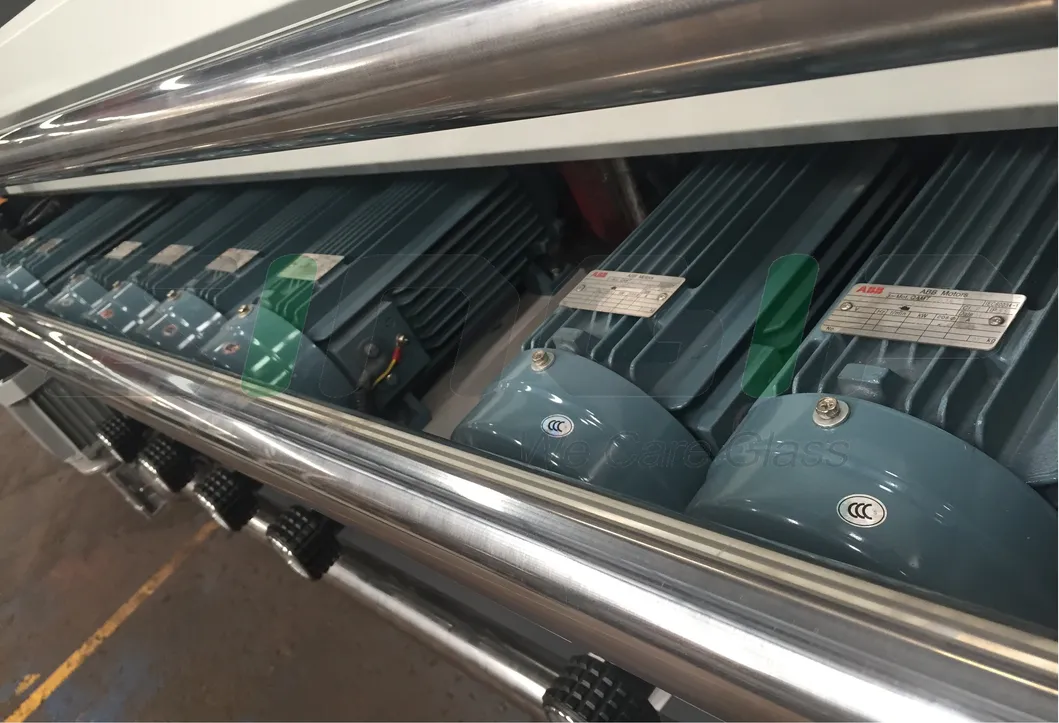

ABB Motor

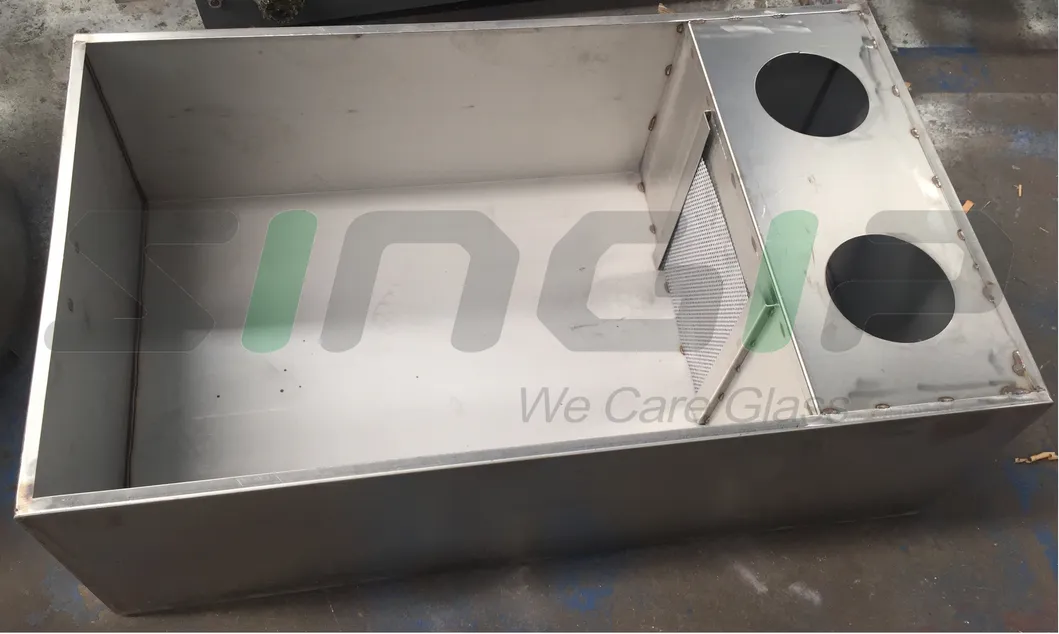

6. Stainless Steel Tanks & Structure

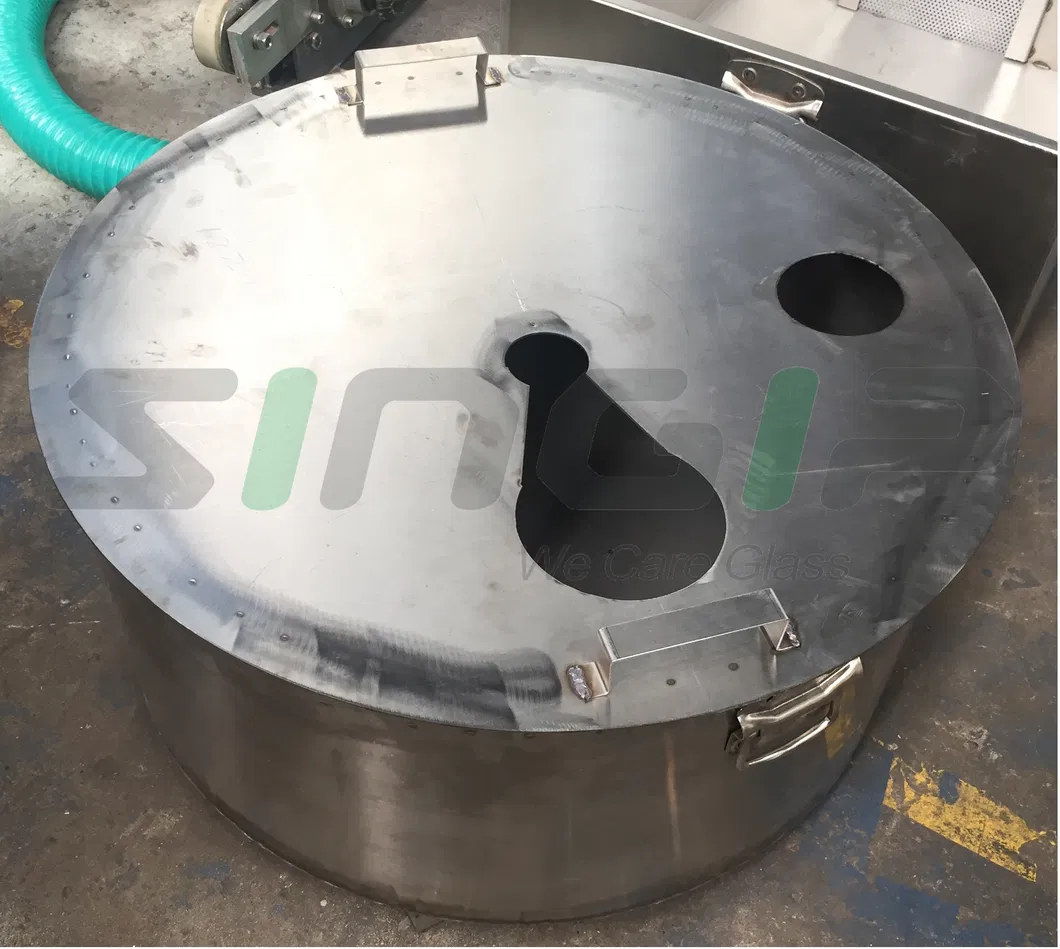

Water tank

Machine Structure

💡

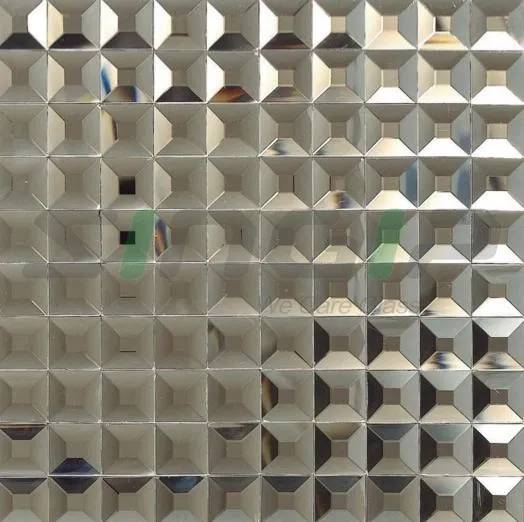

Applications

Application 1

Application 2

Application 3

❓

Frequently Asked Questions

What is the minimum glass size this machine can process?

The SXM261S can process glass as small as 30mm x 30mm thanks to its specialized front beam lifting system.

What brands of key components are used?

The machine is equipped with world-class components, including ABB motors and Schneider electrical parts, ensuring stability and long service life.

What is the maximum bevel width and degree?

The machine can produce a maximum bevel width of 30mm at a processing angle range of 0º to 30º.

How is the processing speed controlled?

The feeding speed ranges from 1m/min to 6m/min and is precisely regulated using a frequency inverter.

Is the machine resistant to corrosion?

Yes, it features stainless steel water tanks and an aluminum frame for glass support to prevent rust and corrosion in wet environments.

What type of glass thickness can be processed?

The machine is capable of processing glass thicknesses ranging from 3mm up to 12mm.
