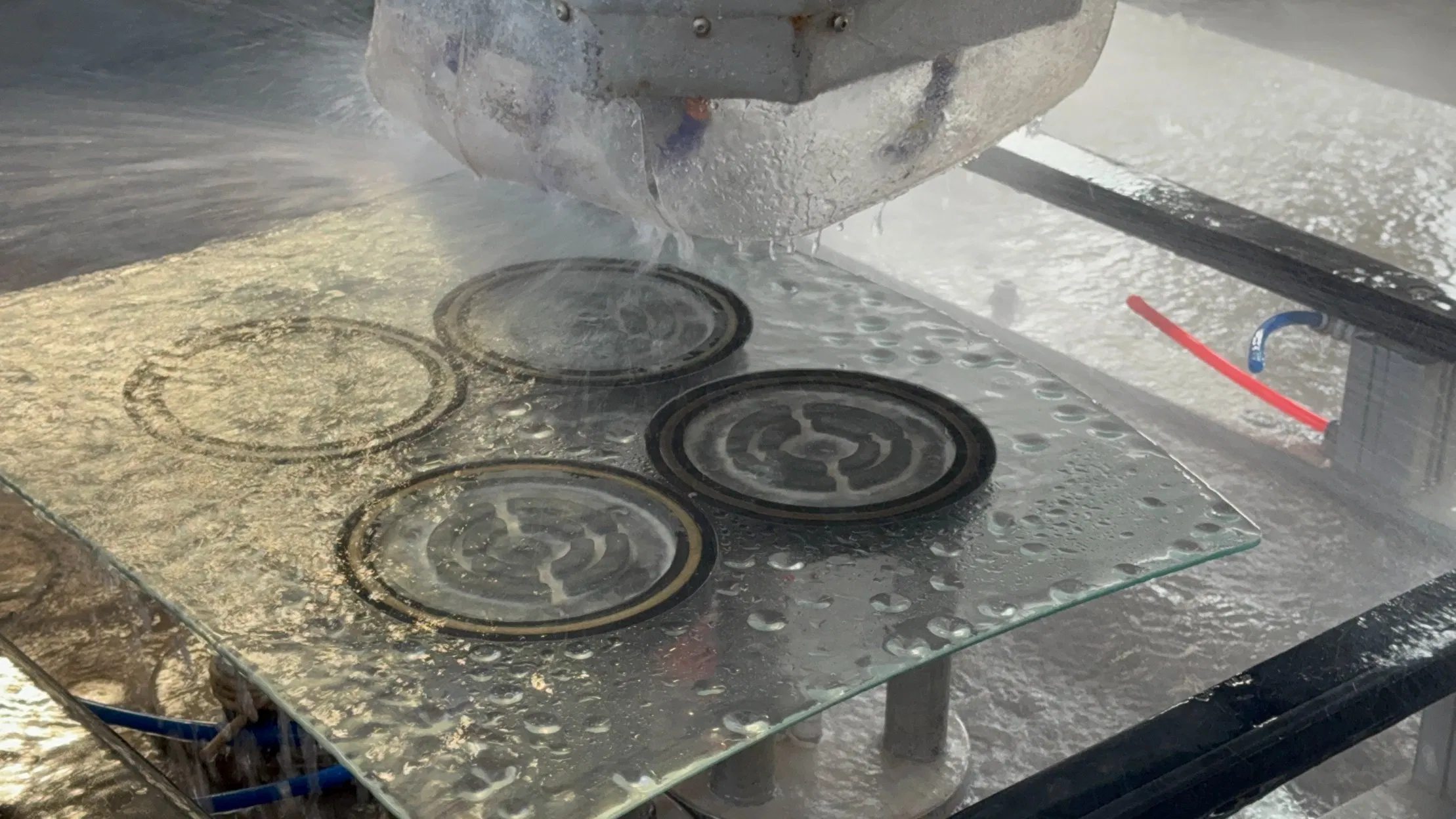

Precision CNC Glass Machine for Advanced Drilling, Cutting, and Grinding

1 / 5

Precision CNC Glass Machine for Advanced Drilling, Cutting, and Grinding

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	One Year

Send Inquiry

Product Description

ℹ️

Basic Info.

Model NO.

ZXX-C1610

Application

Glass

Process Usage

CNC Non-Conventional Machine Tools

Movement Method

Linear Control

Control Method

Semi-Closed Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.05-0.1(mm)

Certification

CE, ISO 9001

Condition

New

Structure

Horizontal

Type

CNC Machine

Control System

CNC, Servo

Grinding Head Number

Product

CNC Glass Machinning Center

Function

Drilling Cutting Grinding Milling Carving Engrave

Thickness

3-25mm

Process Speed

0-20m/Min

Machine Size

4000*2860*2200mm

Origin

China

Production Capacity

20sets/Month

📦

Packaging & Delivery

Package Size

380.00cm * 200.00cm * 200.00cm

Package Gross Weight

200.000kg

📋

Product Description

Description	Unit	Parameter
Model No.	1	ZXX - C3018
Column	Set	Heavy iron
Control System	set	LEETRO
Axis Type	PC	Cutter change: by hand, 24000 RPM, 7.5KW
Drive	set	YMPC
Invertor	kw	BEST: 11KW
Max Glass Size	mm	3000*1800mm (Length expandable)
Max Grinding Size	mm	2500*1450mm
Max Milling Size	mm	2700*1650mm
Positioning Accuracy	mm	0.01
Max Process Speed	M/MIN	3M/MIN
Lubrication System	set	Automatic thermostat cooler
Machine Weight	KG	2200

Sink Holes: Perfect for sink holes in glass countertops of cabinets, stove holes, and pipe holes.

Door Hardware: Precise processing for shower door clamps, hinge holes, handle holes, and cut outs.

Furniture Design: Invisible handle holes for kitchen cabinet doors.

Aluminum Profiles: Capable of handle and hinge hole processing in aluminum profiles.

Specialized Applications: Ideal for electric panels, aquarium stealthy covers, and fish tank manufacturing.

Mirror Processing: Bathroom mirror back processing, including sandblasting functions.

❓

Frequently Asked Questions

Q: What types of glass can this CNC machine process? A: The machine is designed for a wide range of glass applications including countertops, shower doors, mirrors, and electric panels, with a thickness capacity of 3mm to 25mm.

Q: What are the main functions of the CNC Glass Machining Center? A: It is a versatile center capable of drilling, cutting, grinding, milling, carving, and engraving with high precision.

Q: What is the processing precision and positioning accuracy? A: The machine offers a positioning accuracy of 0.01mm and a processing precision ranging from 0.05 to 0.1mm.

Q: Is the lubrication system manual or automatic? A: The machine is equipped with an automatic lubrication system (Origin: TAIRUN) to ensure smooth operation and low maintenance.

Q: Can the machine handle large glass sizes? A: Yes, the standard max glass size is 3000*1800mm, but the length can be expanded by adding additional tables.

Q: What control system does the equipment use? A: It uses high-end CNC/MNC control systems with semi-closed loop control for reliable and steady performance.
