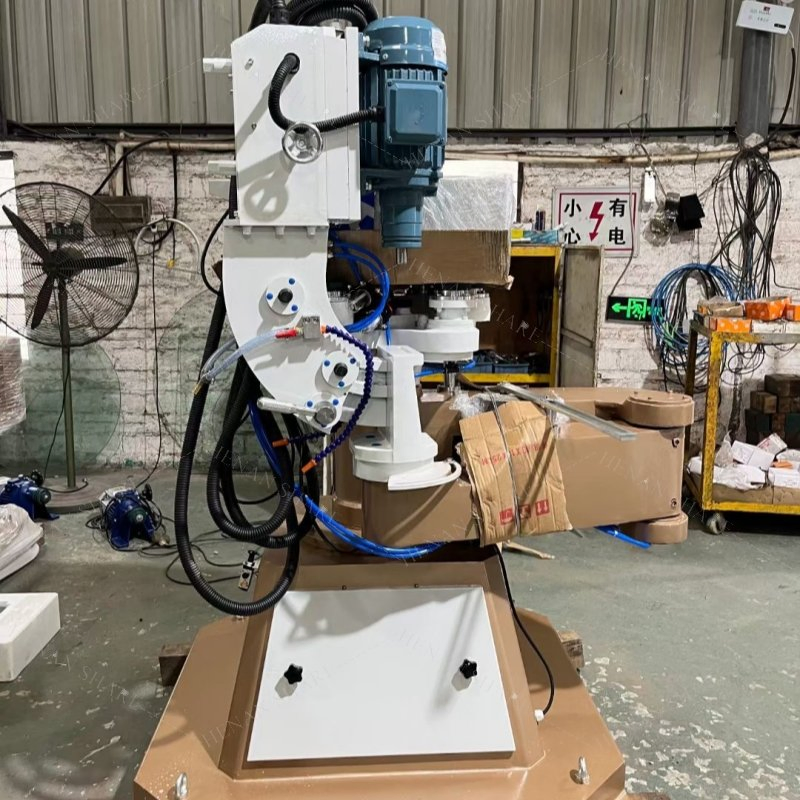

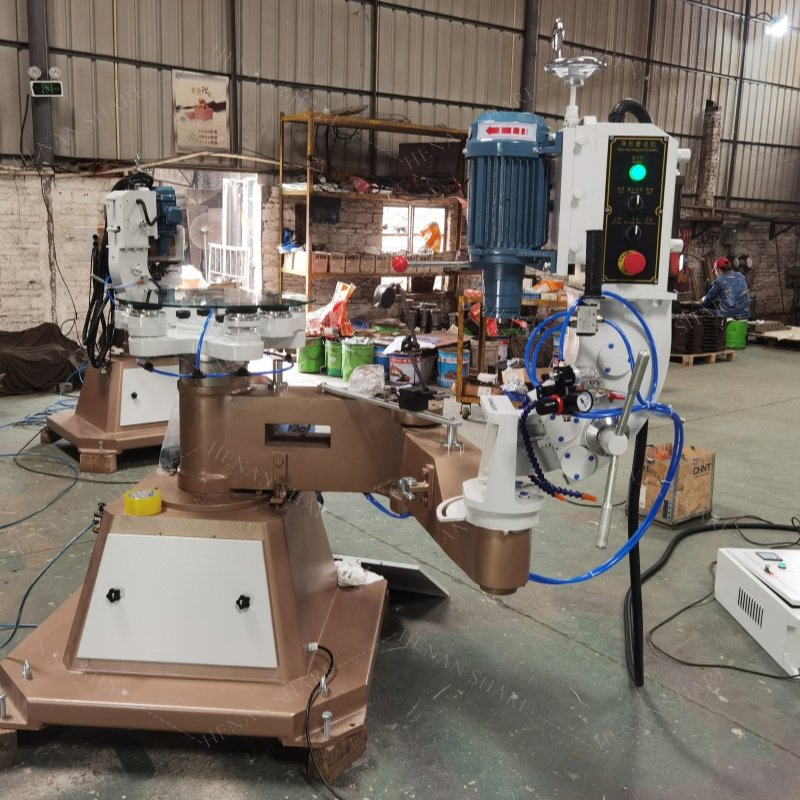

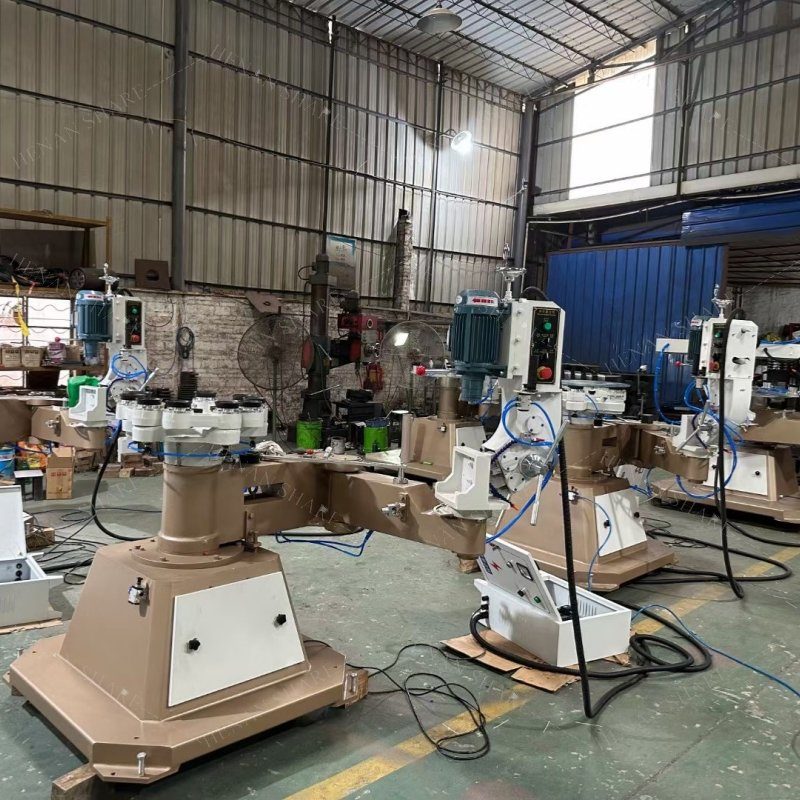

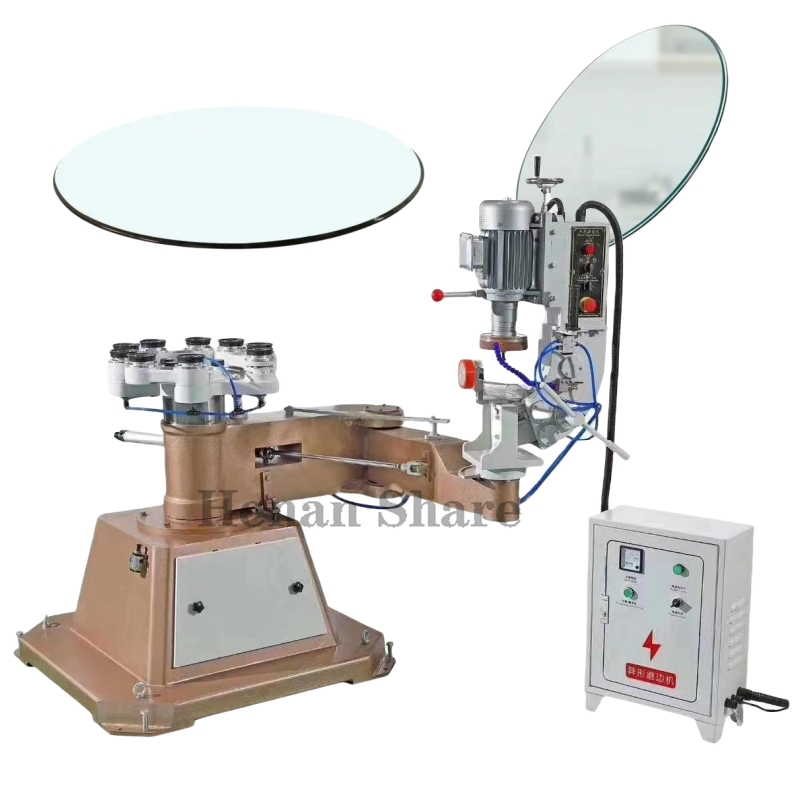

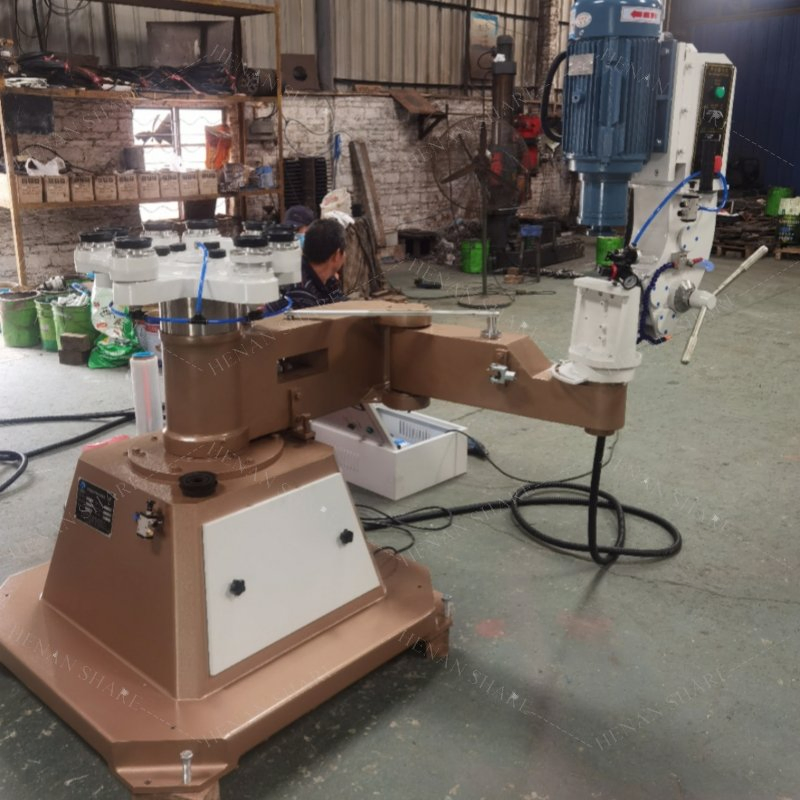

Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
1 / 5
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine
Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine

Portable Glass Edge Beveling Shape Edging and Polishing Machine Glass Corner Grinding Machine

Customization: Available
Certification: CE
Processing Thickness: 3-12mm
Send Inquiry

Product Description

Basic Info.

Model NO.
SRYX-MBJ
Voltage
380V
Warranty
1 Year
Product Name
Irregular Glass Edge Beveling Machine
Movable Diameter
100*2100mm
Oblique Angle
0-15
Power
3kw
Weight
750 Kg
Package Size
130.00cm * 170.00cm * 210.00cm

Product Description

Glass Edge Beveling Machine Header
ModelSRYX-MBJ
Movable diameter100*2100mm
Oblique angle0-15
Cutting thickness3-12mm
Power3kw
Size1200*1200*1600mm
Weight1000kg
Glass Corner Grinding Machine
⚙️ Suitable for processing the perimeter and bevel of round, elliptical and special-shaped glass.

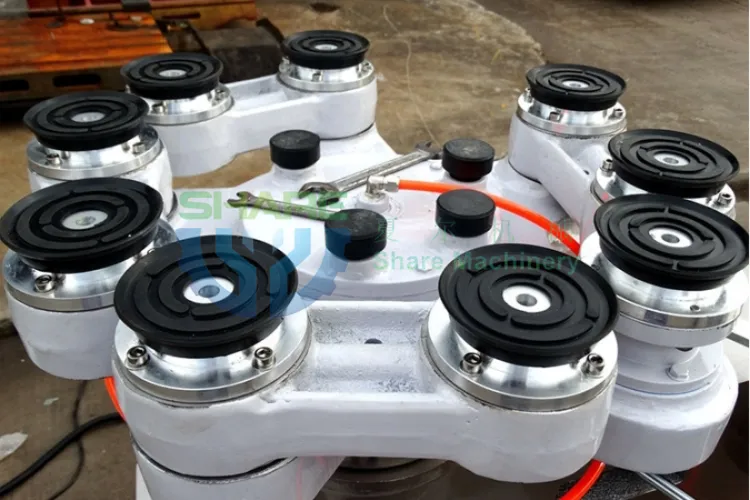

🔄 Using satellite turntable rotation, the turntable rotation speed can be adjusted at will during operation.
🛠️ Using cylinders can also semi-automatically grind simple shaped special-shaped glass.
📐 When grinding the bevel, install the bowl-shaped grinding wheel, tilt the grinding head backward, adjust the bevel angle, and grind the end face.

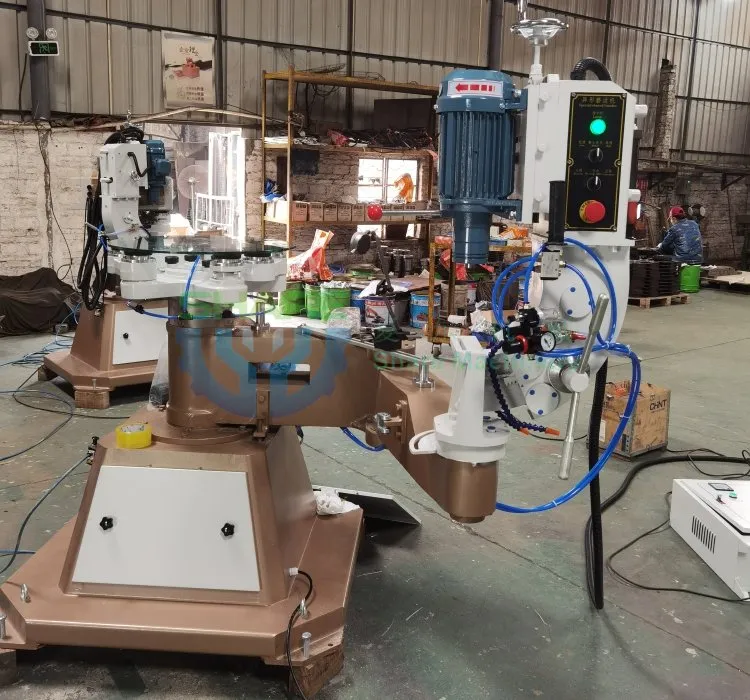

Processing Example 1
Processing Example 2

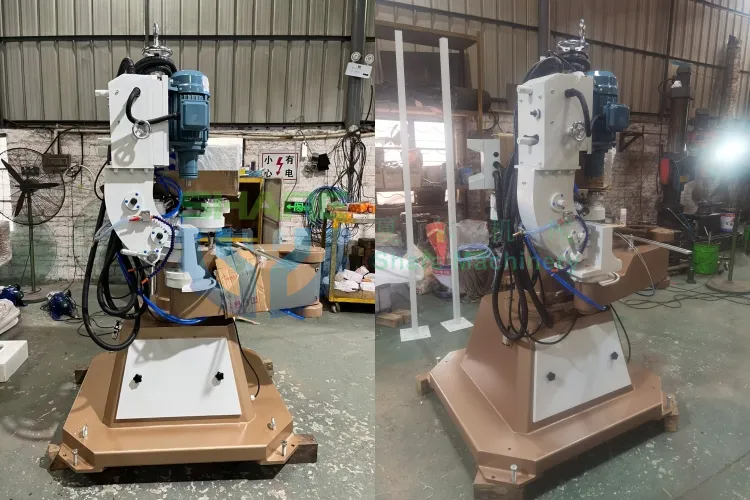

Processing Example 3

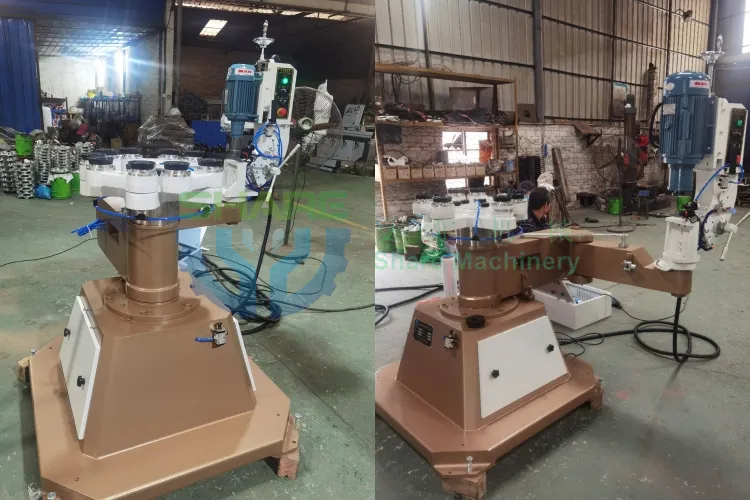

Machine Detail 1

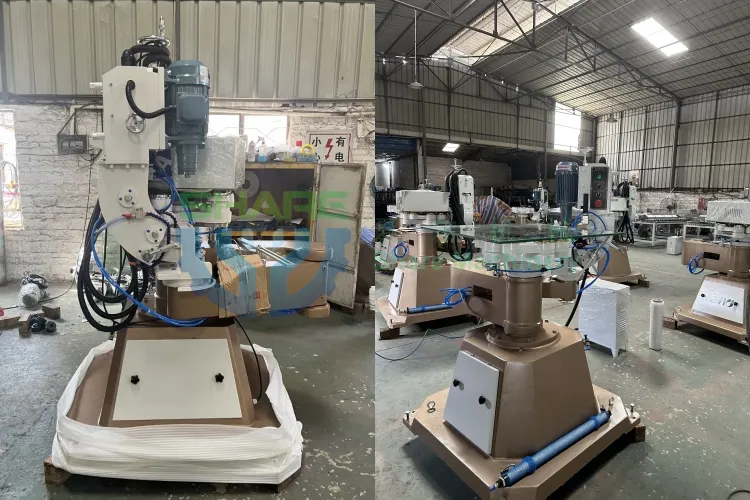

Machine Detail 2
Machine Detail 3
Glass Edge Detail
Operational View
Technical Layout
Special Shapes
Grinding Head
Final Product

Frequently Asked Questions

1. What shapes of glass can the SRYX-MBJ machine process?
The machine is designed for processing the perimeter and bevel of round, elliptical, and various irregular special-shaped glass.
2. Can the rotation speed be adjusted during operation?
Yes, the satellite turntable rotation speed can be adjusted at will during the operation to suit different processing requirements.
3. What is the range of the oblique angle for beveling?
The machine supports an adjustable oblique angle ranging from 0 to 15 degrees for beveling applications.
4. Does this machine support semi-automatic grinding?
Yes, by utilizing cylinders, the machine can semi-automatically grind simple special-shaped glass.
5. What thickness of glass is suitable for this machine?
The SRYX-MBJ is suitable for cutting and processing glass with a thickness between 3mm and 12mm.
6. How is the machine packaged for international shipping?

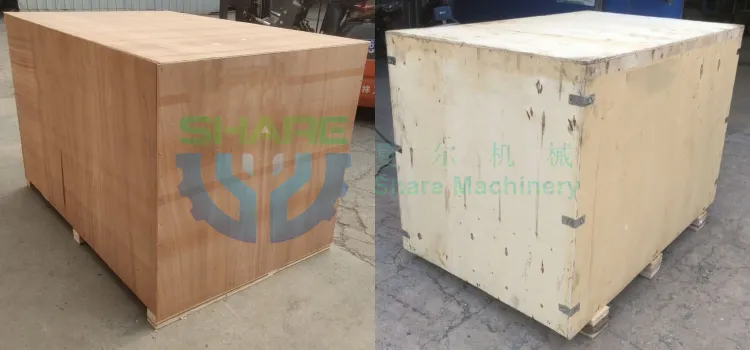

The machine is packed in a Standard Export Wooden Package to ensure safety during transport, with dimensions of approximately 130cm x 170cm x 210cm.
