Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
1 / 5
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types
Original Glass Cutting Machines Line for Different Shapes Types

Original Glass Cutting Machines Line for Different Shapes Types

Customization: Available
Certification: CE
Cutting Method: Oil Cutter Cutting
Send Inquiry

Product Description

📋 Basic Information
Model NO.
YD-CNC-4228
Max Cutting Thickness
15 mm
Power Supply
As Required
Safety Features
Emergency Stop Button
Structure
Horizontal
Glass Thickness
3-19mm
Control System
PLC / Automatic
Total Power
8kw
Package Size
500cm * 220cm * 200cm
Gross Weight
3000.000kg
🔍 Product Description
Original Glass Cutting Machines Line

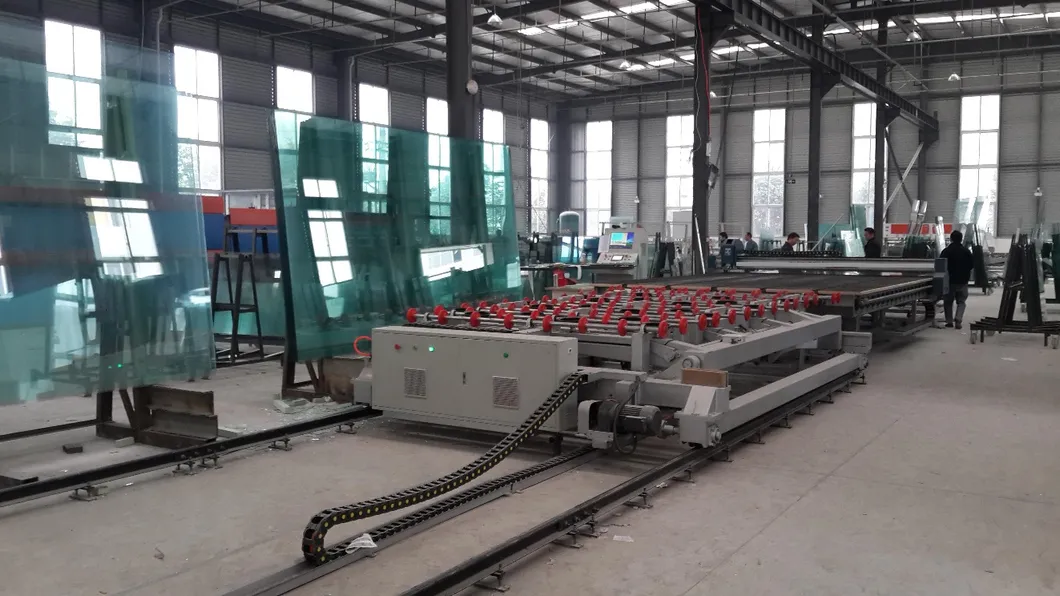

Glass Cutting Shapes

CNC Glass Cutting Machine Production Line

  • Automatic loading table with double side single station
  • Loading arms equipped with 4pcs suckers each
  • PC computer control with Microsoft Windows interface
  • America GALI Controller and Japan KHK Rack/Gear
  • Belgium Cutter wheel and wheel clamp
  • Optimize software and air float table for easy movement
  • Integrated breaking table for post-cutting processing
The Line Components:
  1. YD-SP-4228 Automatic Glass Loading Machine
  2. YD-CNC-4228 Automatic Shaped Glass Cutting Machine
  3. YD-QP-4228 Glass Breaking Table
📊 Technical Parameters
Model YD-CTL-4228 YD-CTL-5133 YD-CTL-6133
Max. Glass Size (mm) 4200*2800 5100*3300 6100*3300
Min. Cutting Size (mm) 100*100 100*100 100*100
Glass Thickness (mm) 3-19 3-19 3-19
Cutting Precision (mm/m) ≤±0.20 ≤±0.20 ≤±0.20
Cutting Speed (m/min) 120 120 120
Power (KW) 8 8 8
Outer Dimension (m) 13.4*5.3*1.5 16.7*5.3*1.5 19.5*5.3*1.5
Weight (KG) 8000 10000 12000
📸 Detailed Photos & Performance

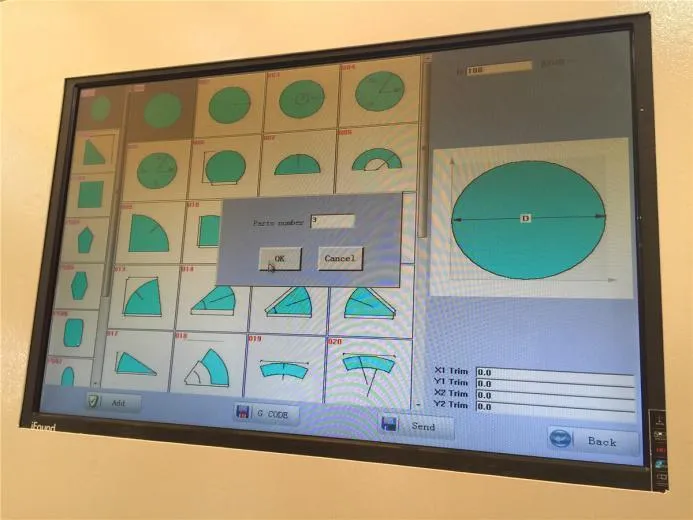

Detailed Photo 1

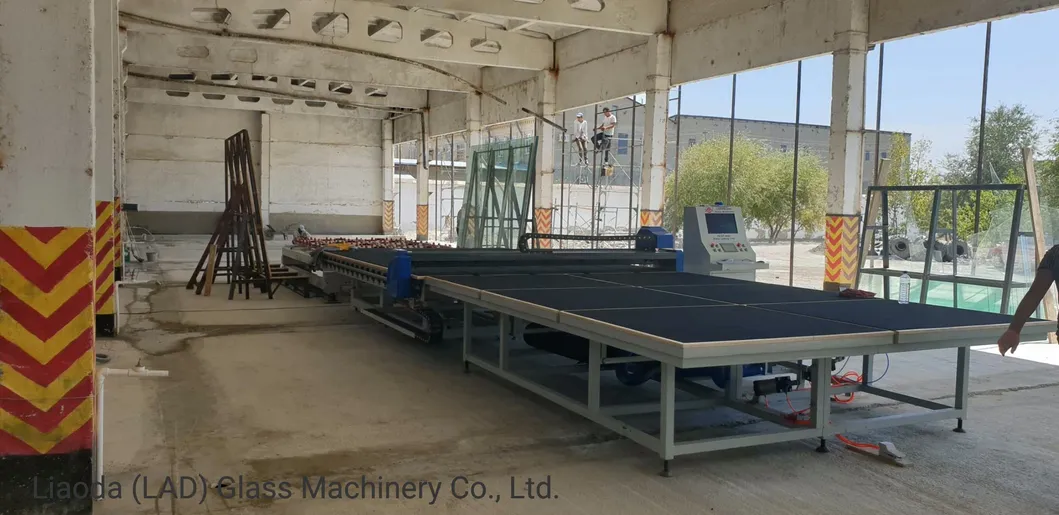

Detailed Photo 2

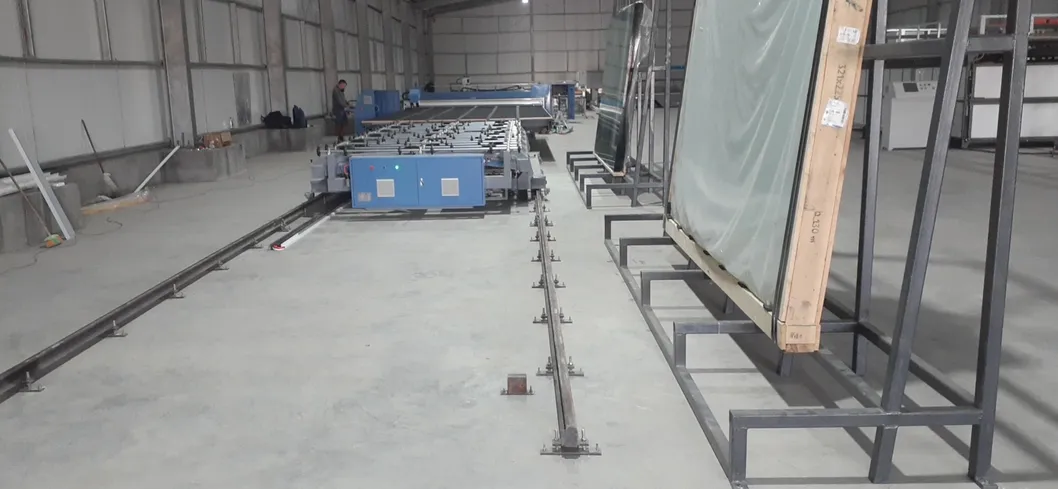

Detailed Photo 3

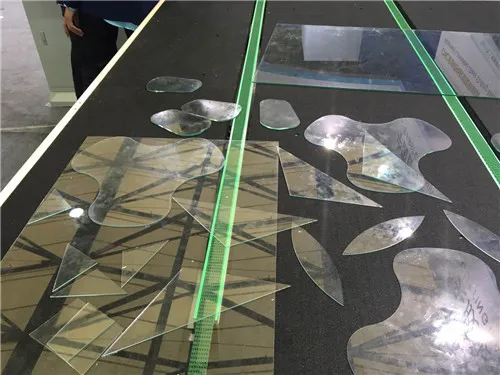

Performance View 1

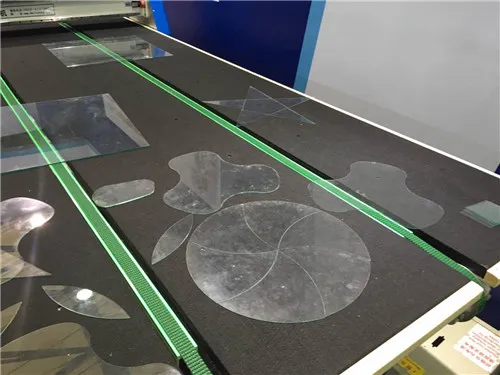

Performance View 2

The equipment can be customized as required.

🛠️ After-Sales Service & Advantages
  • One year guarantee for the whole machine.
  • 24 hours technical support available.
  • User-friendly English software, manuals, and detailed video guides.
  • Full provision of spare parts for maintenance.
  • Professional technical team for installation and training.
Why Choose Our Solutions?
  • Widely used in various industries
  • High precision and strong reputation
  • CE Certified high-quality parts
  • Competitive pricing
  • Fast delivery times
  • Superior service support
❓ Frequently Asked Questions
Q1: What is the maximum glass thickness this machine can cut?
A: The YD-CNC series can cut glass thicknesses ranging from 3mm up to 19mm, with a maximum cutting thickness capability of 15mm for standard operations.
Q2: What core components are used in the control system?
A: The machine utilizes high-end international components including the America GALI controller, Japan KHK racks and gears, and Belgium cutter wheels for high precision.
Q3: Does the machine support automatic loading?
A: Yes, the production line includes an automatic glass loading machine with 3 arms and 4 suckers per arm, featuring a fastest cycle time of 40-50 seconds.
Q4: What is the cutting accuracy of the equipment?
A: The machine offers excellent precision with linear parallel accuracy of ≤±0.25mm/m and diagonal accuracy of ≤±0.30mm/m.
Q5: Is the software easy to operate for English speakers?
A: Absolutely. The system runs on a Microsoft Windows interface and provides standard English language support, along with English manuals and videos.
Q6: Can the machine size be customized for my factory?
A: Yes, we offer different models like YD-CTL-4228, 5133, and 6133 to suit different space requirements, and further customization is available upon request.
