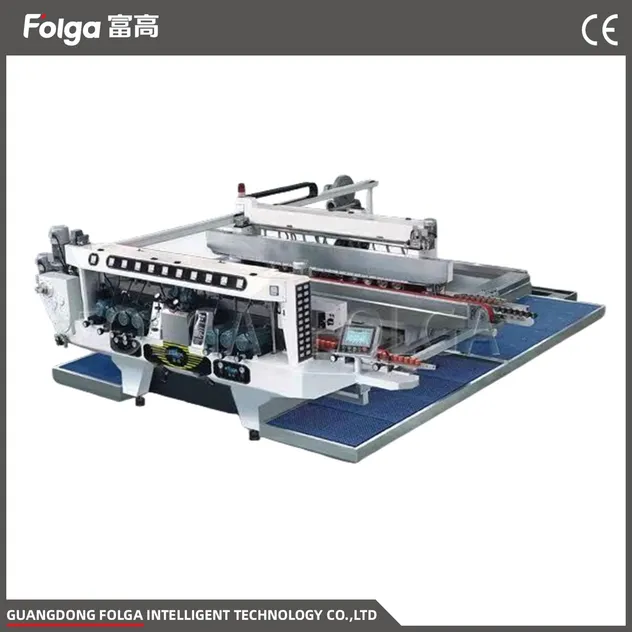

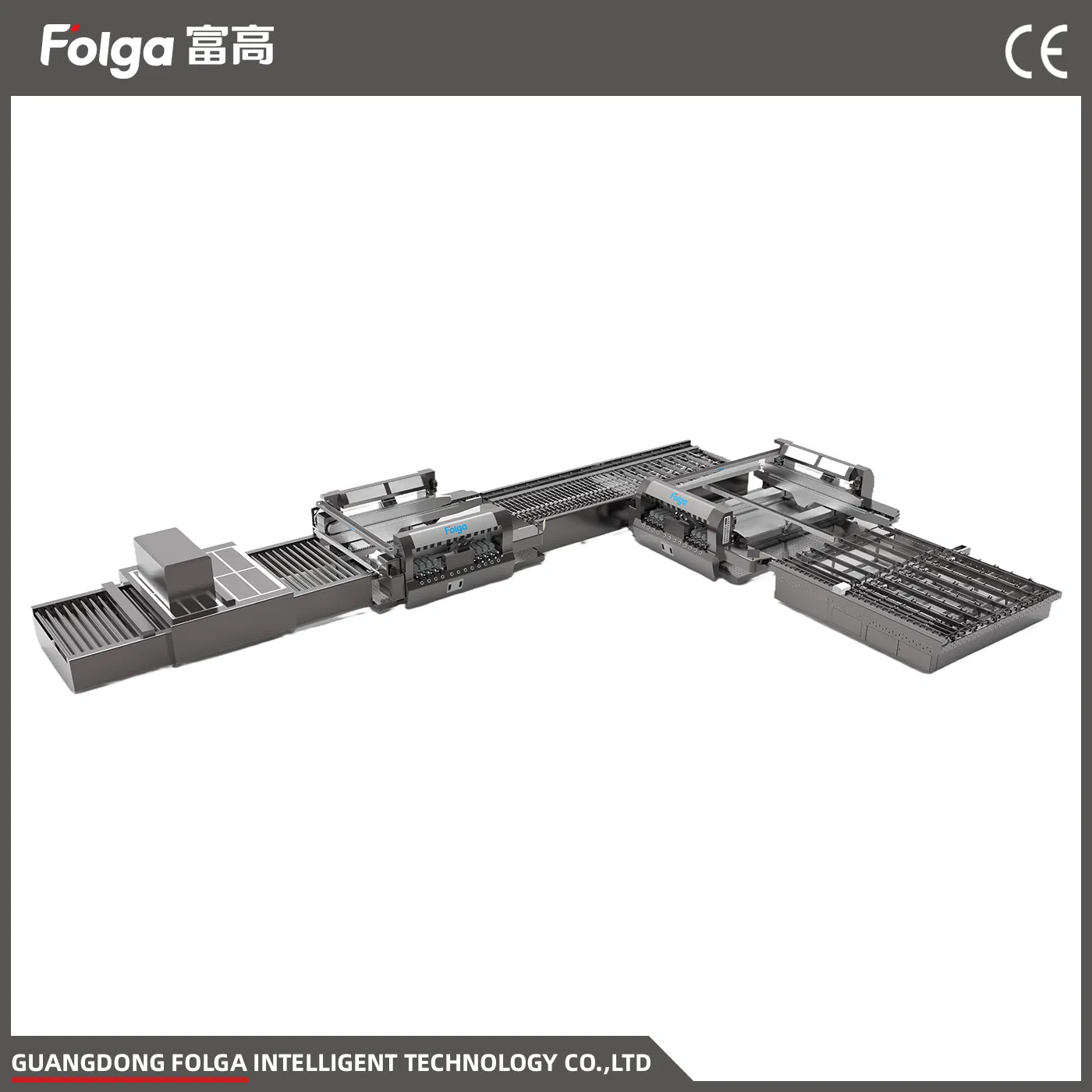

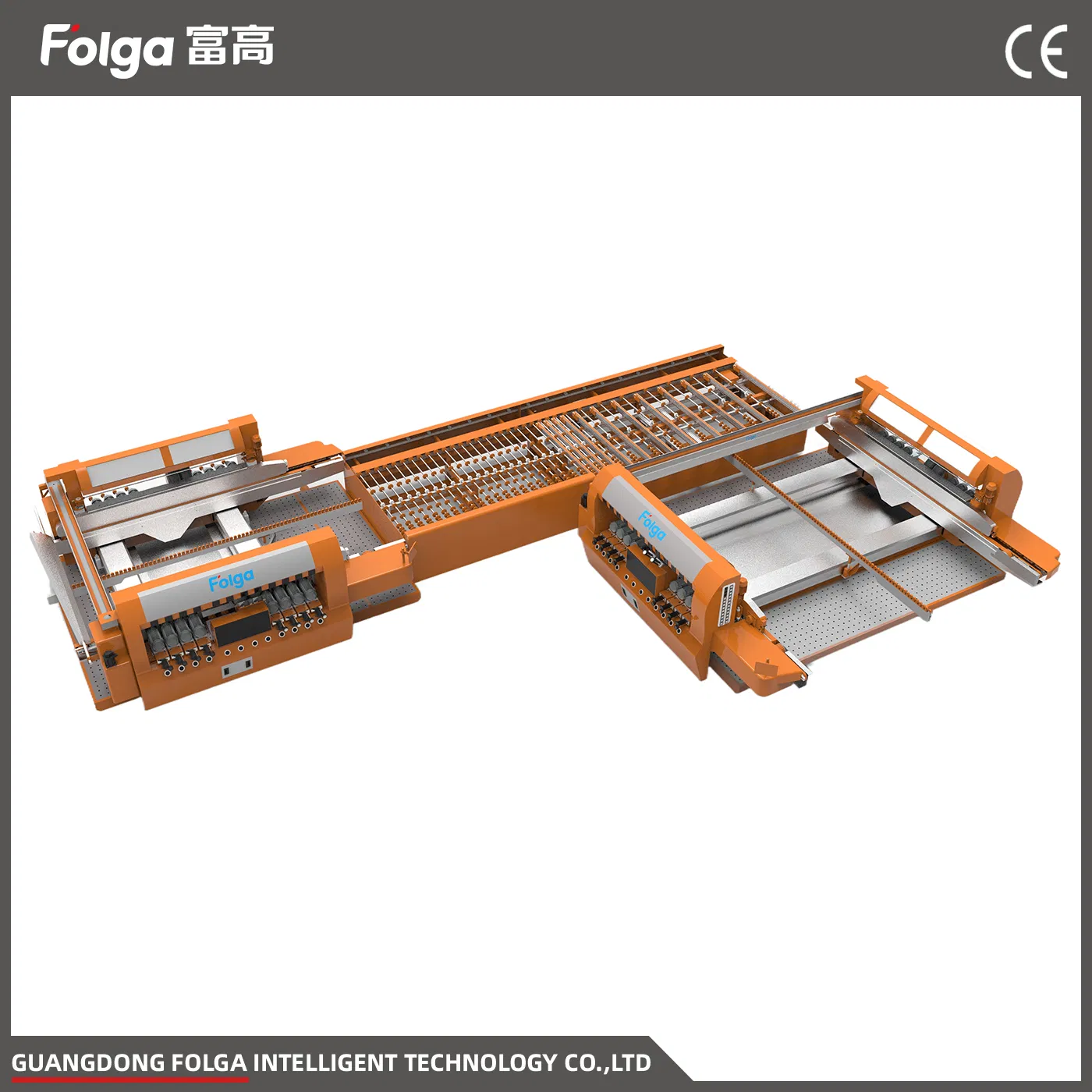

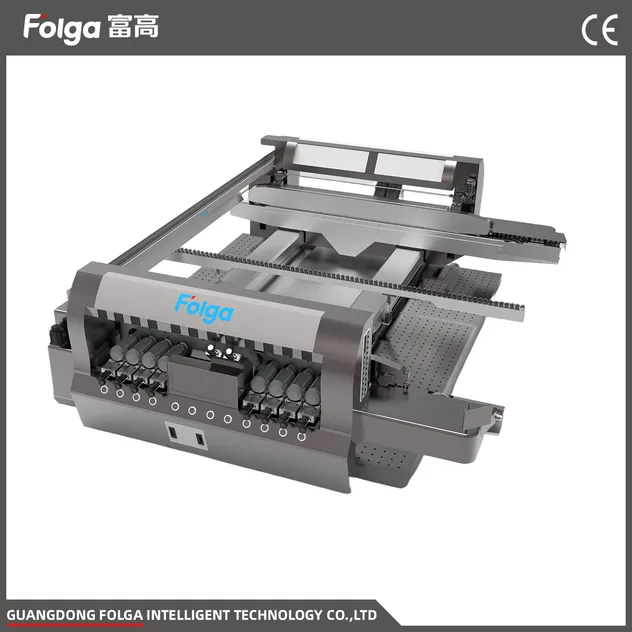

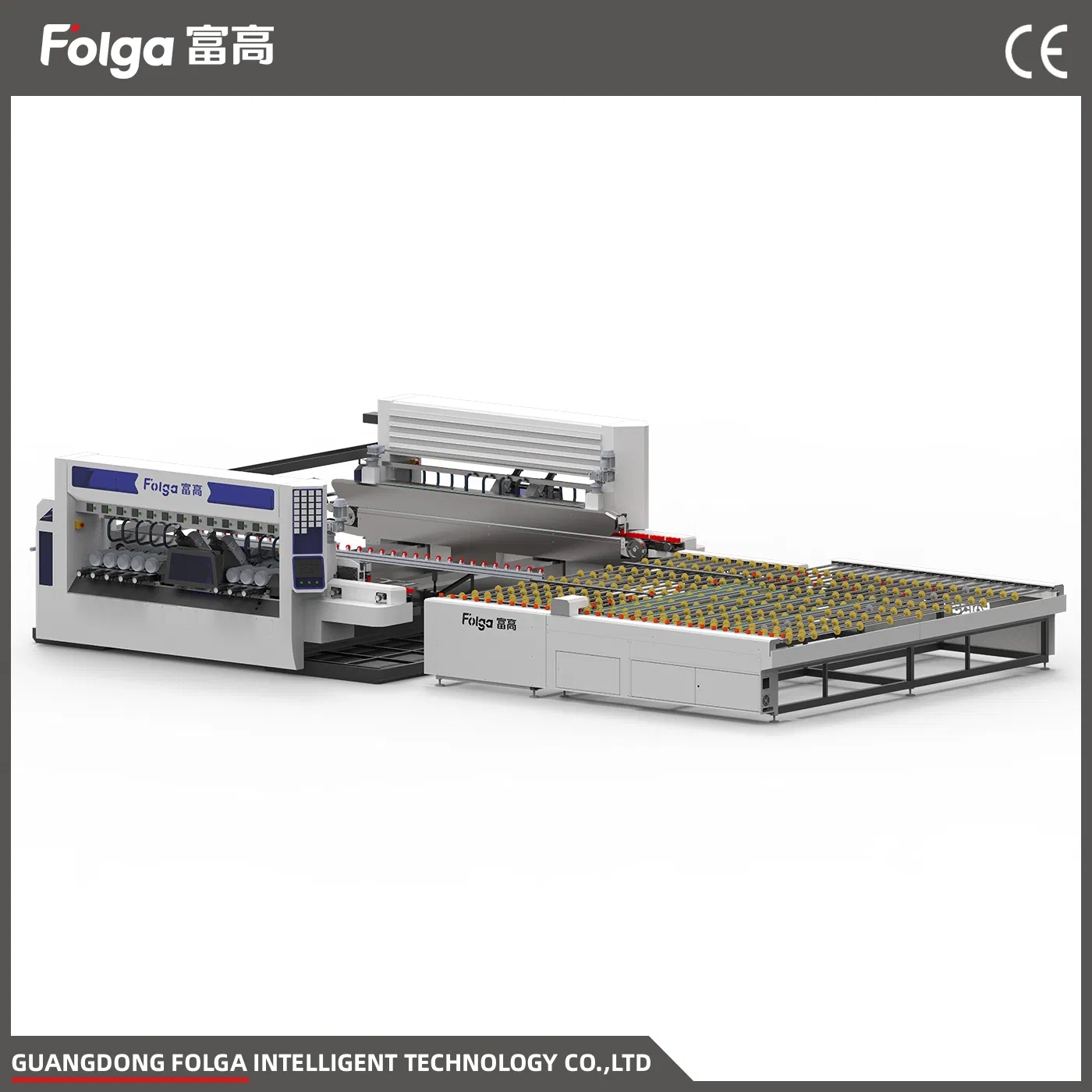

GLASS DOUBLE EDGING MACHINE

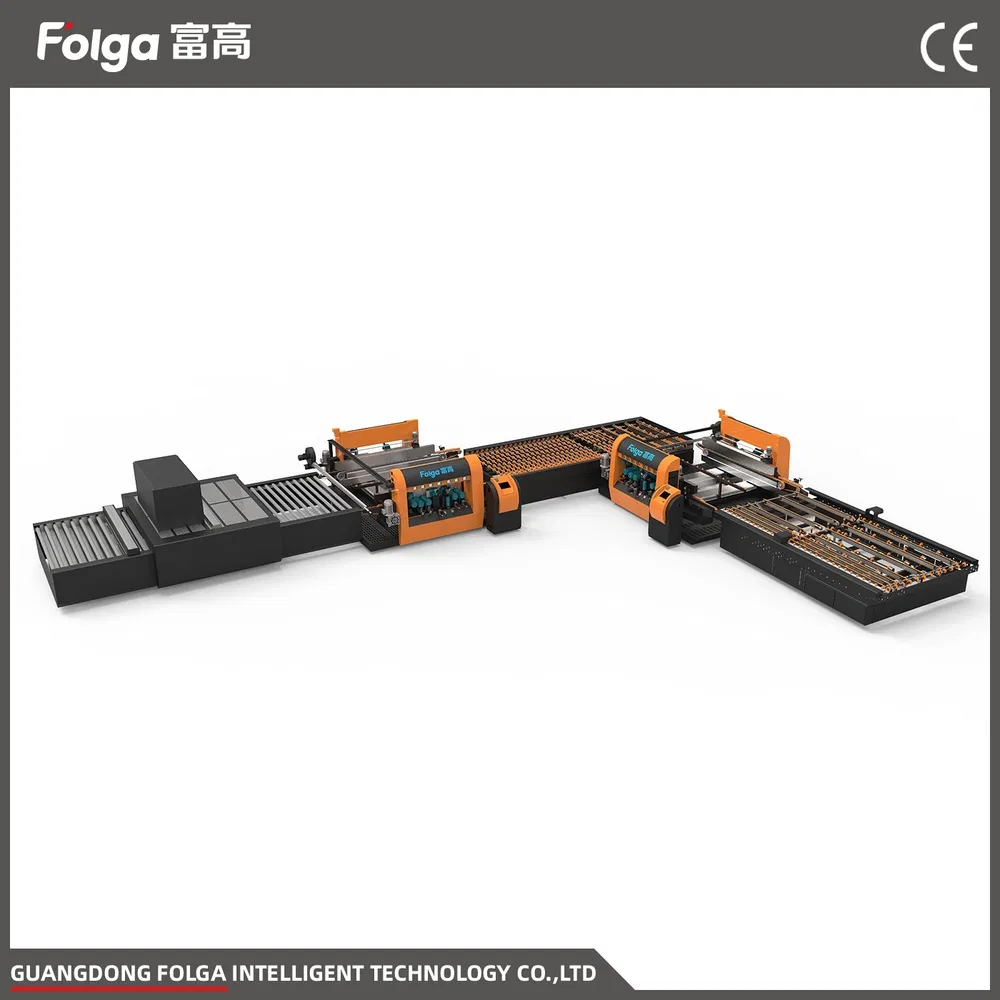

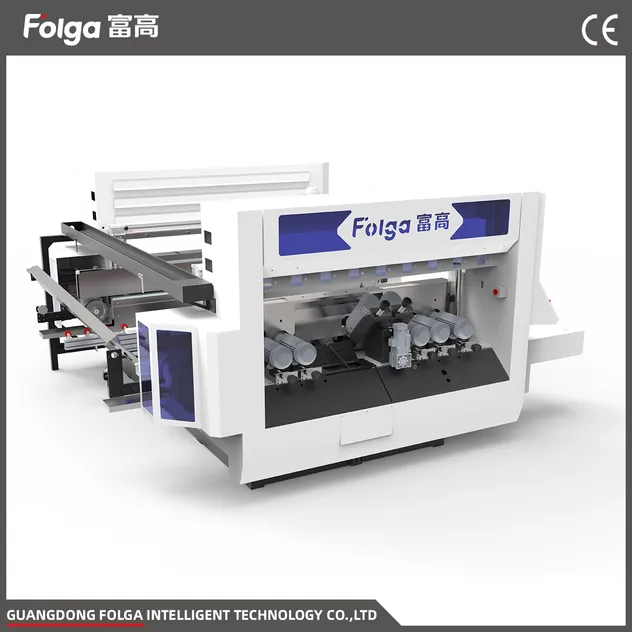

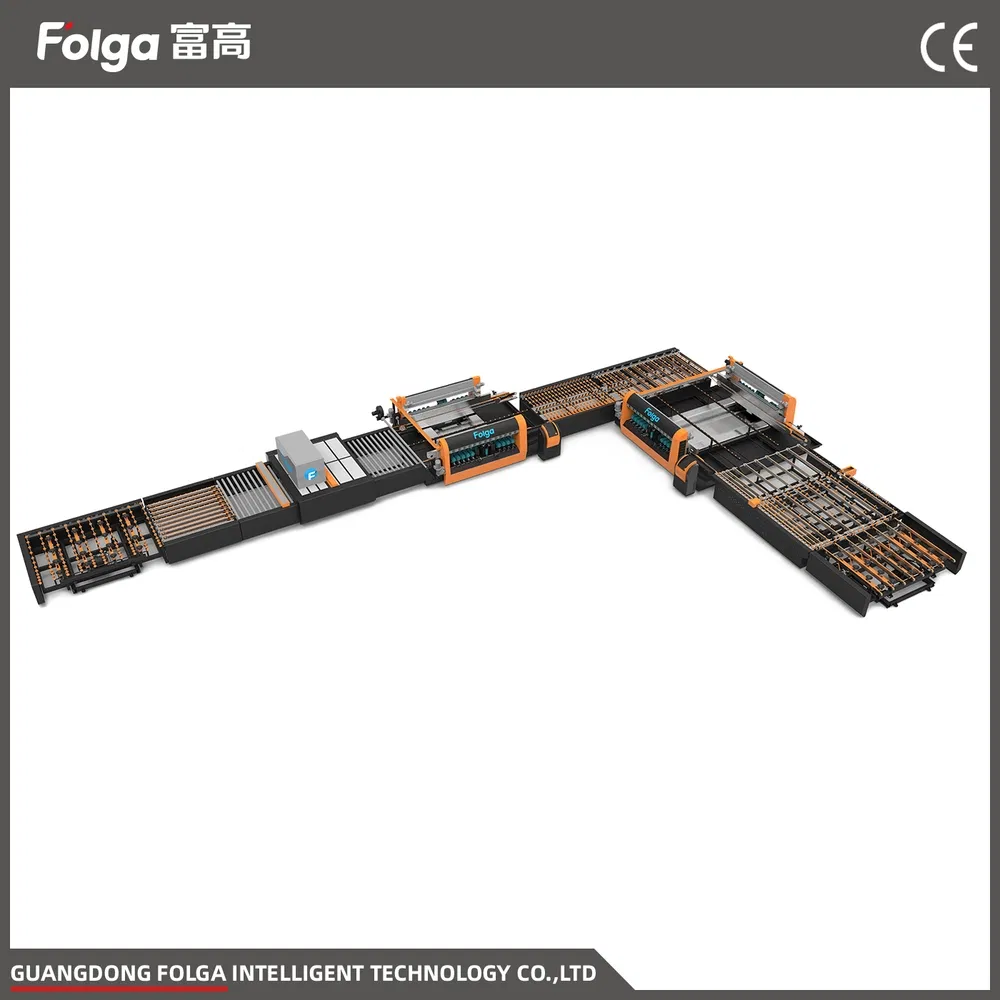

The FSM Series Glass Double Edging Machine is a high-performance automatic double edger line engineered for precision glass processing in industrial applications. This straight line double-edge grinding machine combines economy, high efficiency, and exceptional accuracy for building glass, furniture glass, and window & door glass.
Featuring advanced servo system control and PLC automation, this equipment automatically measures glass dimensions and adjusts processing parameters for mixed or uniform size production.
Equipped with an intelligent measuring table that automatically measures glass length, width, and thickness without manual input.
Features a double screw rod and a linear guide rail structure with a servo system drive for automatic opening/closing.
Double dovetail guide rail base for coarse grinding motor ensures stability with manual-automatic servo compensation.
| Parameter | Specification Details |
|---|---|
| Glass Thickness | 3-25mm |
| Max. Edge Grinding | 5mm |
| Max. Chamfer Grinding | 2mm |
| Working Speed | 1-30m /min |
| Size Changing Speed | 1-18m /min |
| Parallel Error | ≤0.2mm /m |
| Diagonal Error | ≤0.5mm /m |
| Air Pressure | ≥0.6Mpa |
| Power | 74kw (24 motors) |
Integrated automatic lifting device for upper chamfering with accurate positioning for beveled edge applications.
150mm vertical travel range for rapid grinding wheel replacement, minimizing maintenance downtime.
User-friendly human-computer interface with PLC control system delivers intuitive operation for all skill levels.
A: We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer washing machines, loading/unloading systems, and drilling machines.
A: We have over 21 years of history in making glass machines, ensuring stable technology, high quality, and prompt after-sales service.
A: Yes, global installation and training services are available for all our machinery.
A: Yes, we can customize the machine dimensions based on your specific glass processing requirements.
A: Our machines process all types of glass with options for shiny polishing or matte grinding depending on your needs.
A: We respond within 8 hours. Within 24 hours, our engineers provide step-by-step troubleshooting, and spare parts are dispatched via DHL/Express if needed.
