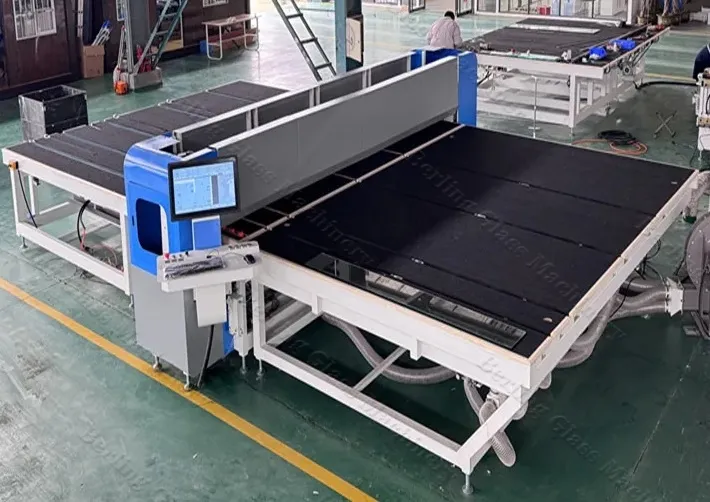

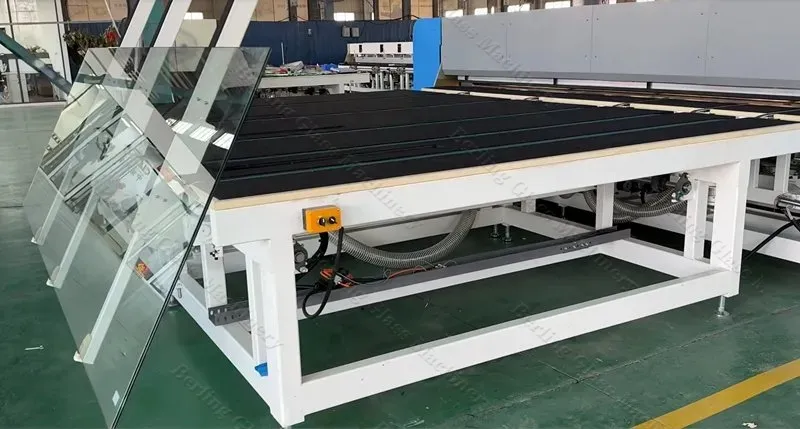

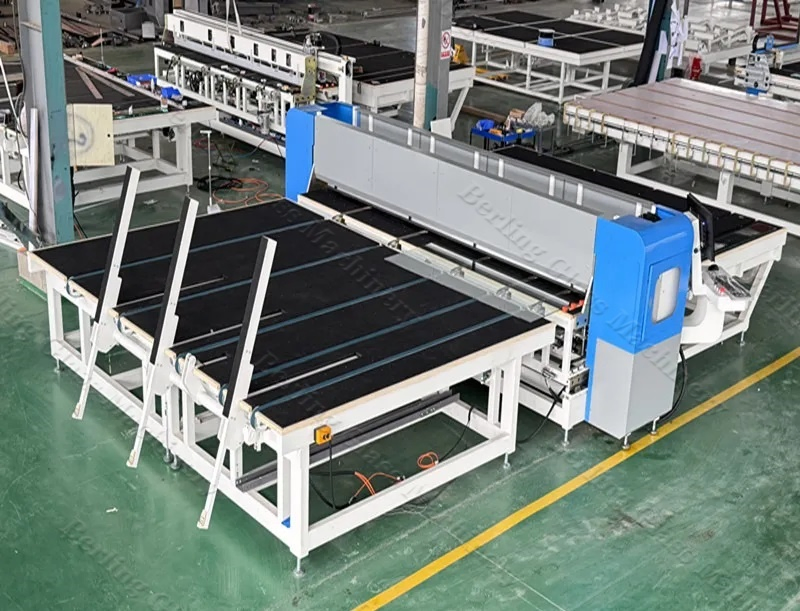

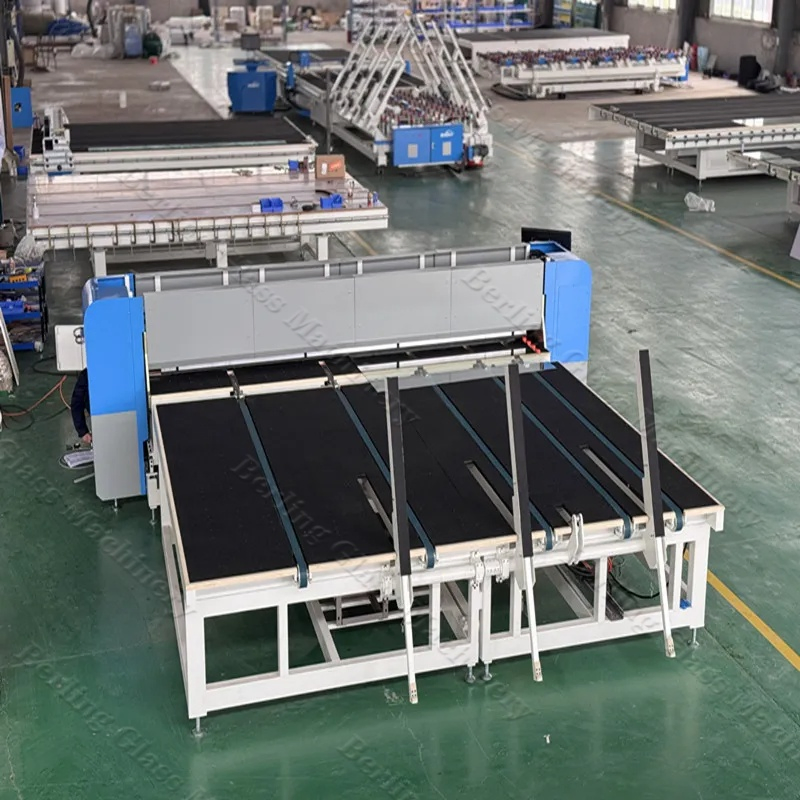

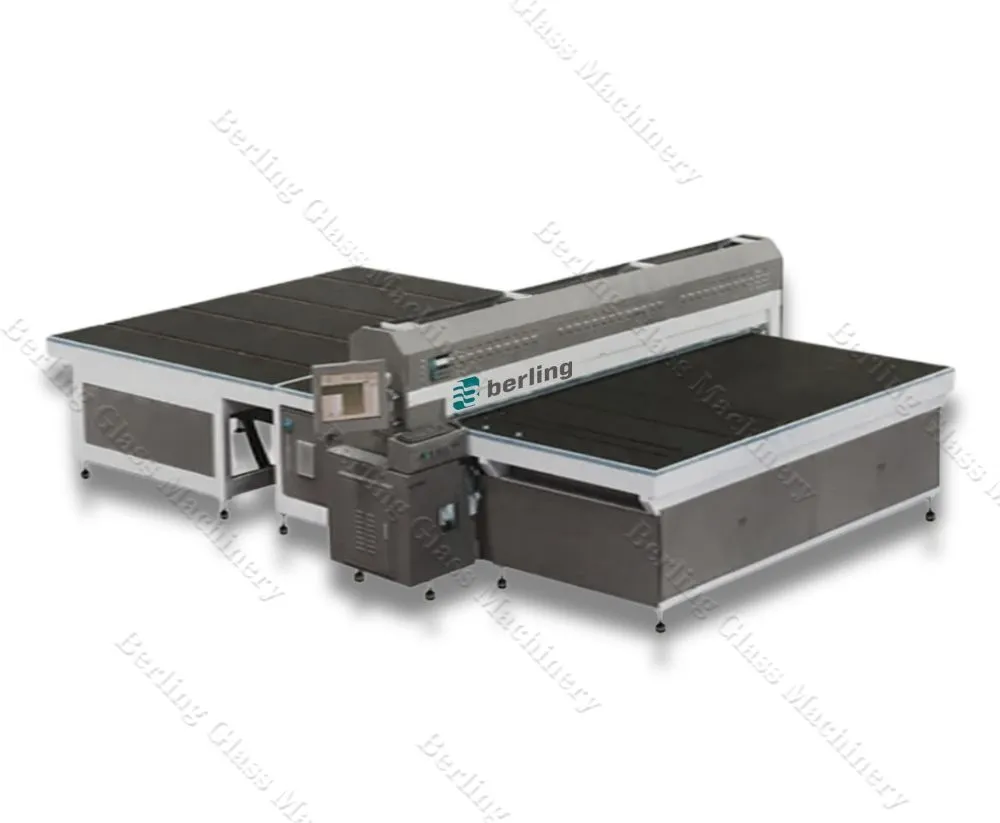

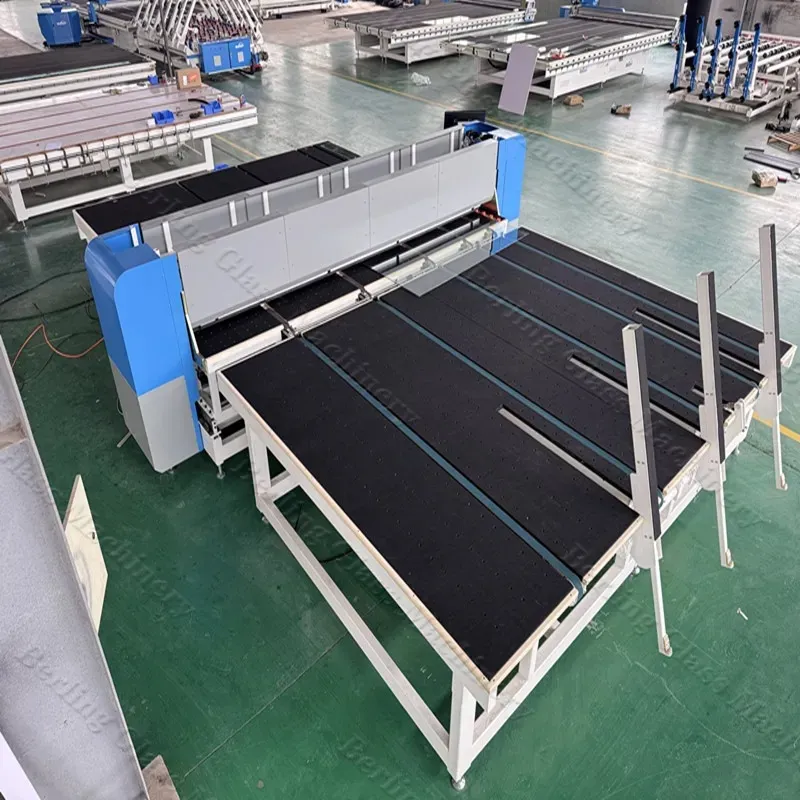

The automatic glass cutting all-in-one machine absorbs a single piece of glass through a suction cup, carries large and thick pieces of glass placed vertically on a shelf, and converts them to a horizontal state via mechanical transmission for precise cutting. It effectively addresses challenges such as safety risks and low efficiency associated with manual handling of thick glass.
Equipped with a PLC programmable controller for the loading mechanism and a CNC numerical control system for cutting, the machine ensures high automation, reliability, and labor savings.
| Item | Unit | BL-L2621 | BL-L3826 | BL-L3829 |
|---|---|---|---|---|
| Size of Machine | mm | 3100*3600*1400 | 3630*4700*1400 | 3900*4700*1400 |
| Max Cutting Size | mm | 2440*2000 | 3660*2440 | 3660*2800 |
| Glass Thickness | mm | 3-19 | 3-19 | 3-19 |
| Max Cutting Speed | m/min | 120 | 120 | 120 |
| Power | kw | 11.8 | 11.8 | 11.8 |
| Control System | - | PLC | PLC | PLC |
Easy Operation & Adaptability: The frame is welded with international square steel tubes and box iron, annealed and gantry milled for maximum stability. It features an air floating system with over 100 air holes for smooth glass movement.
