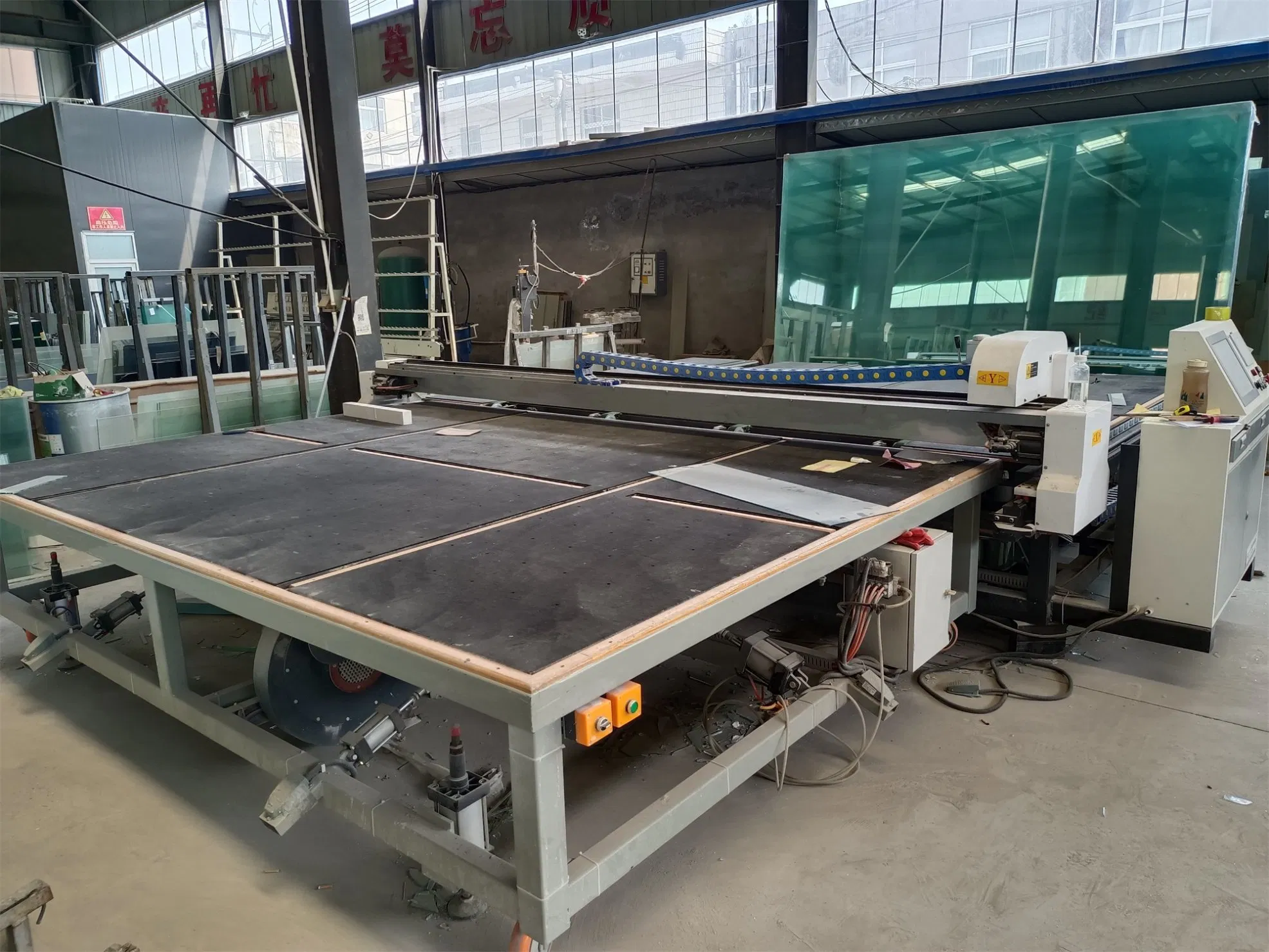

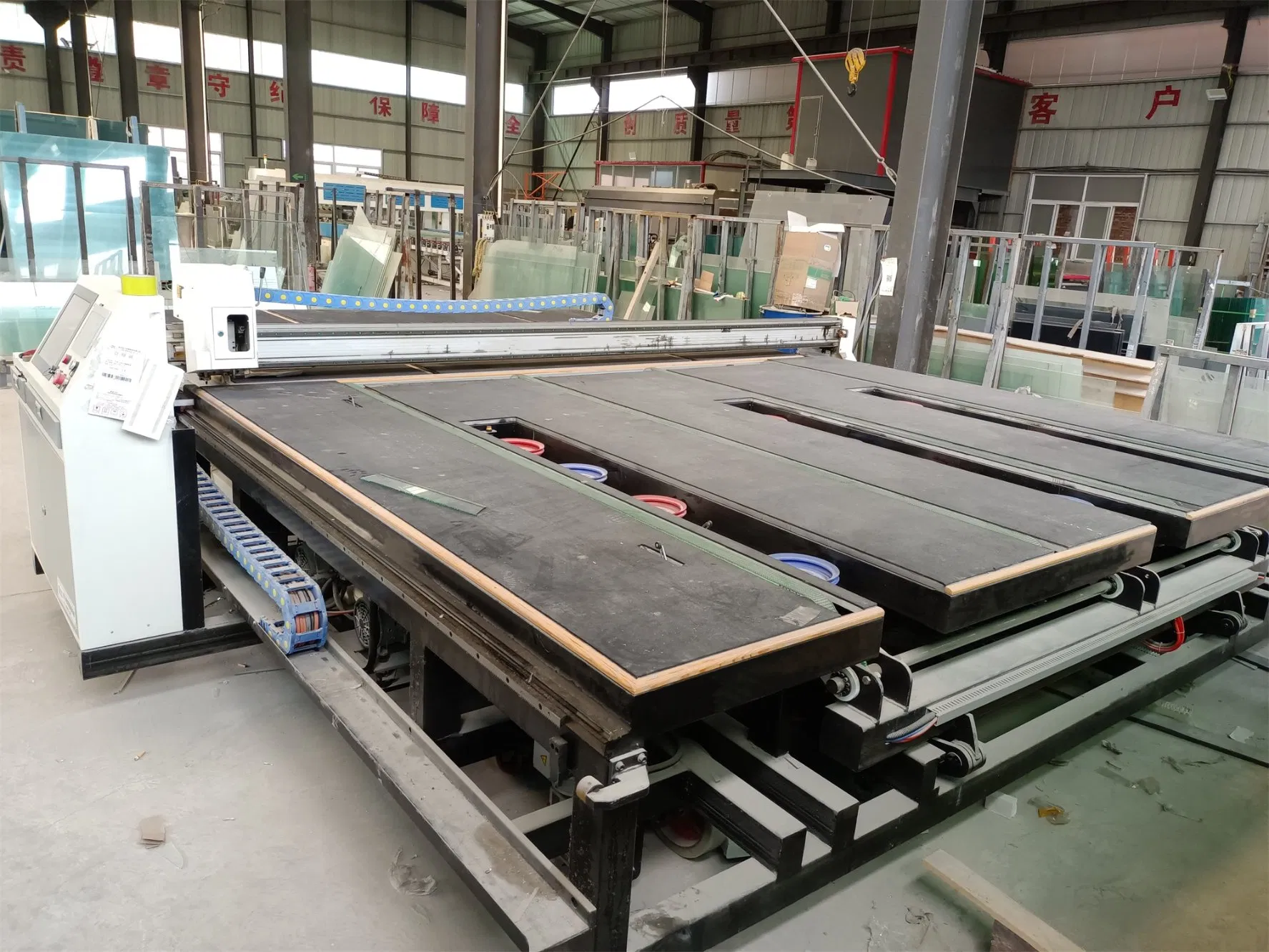

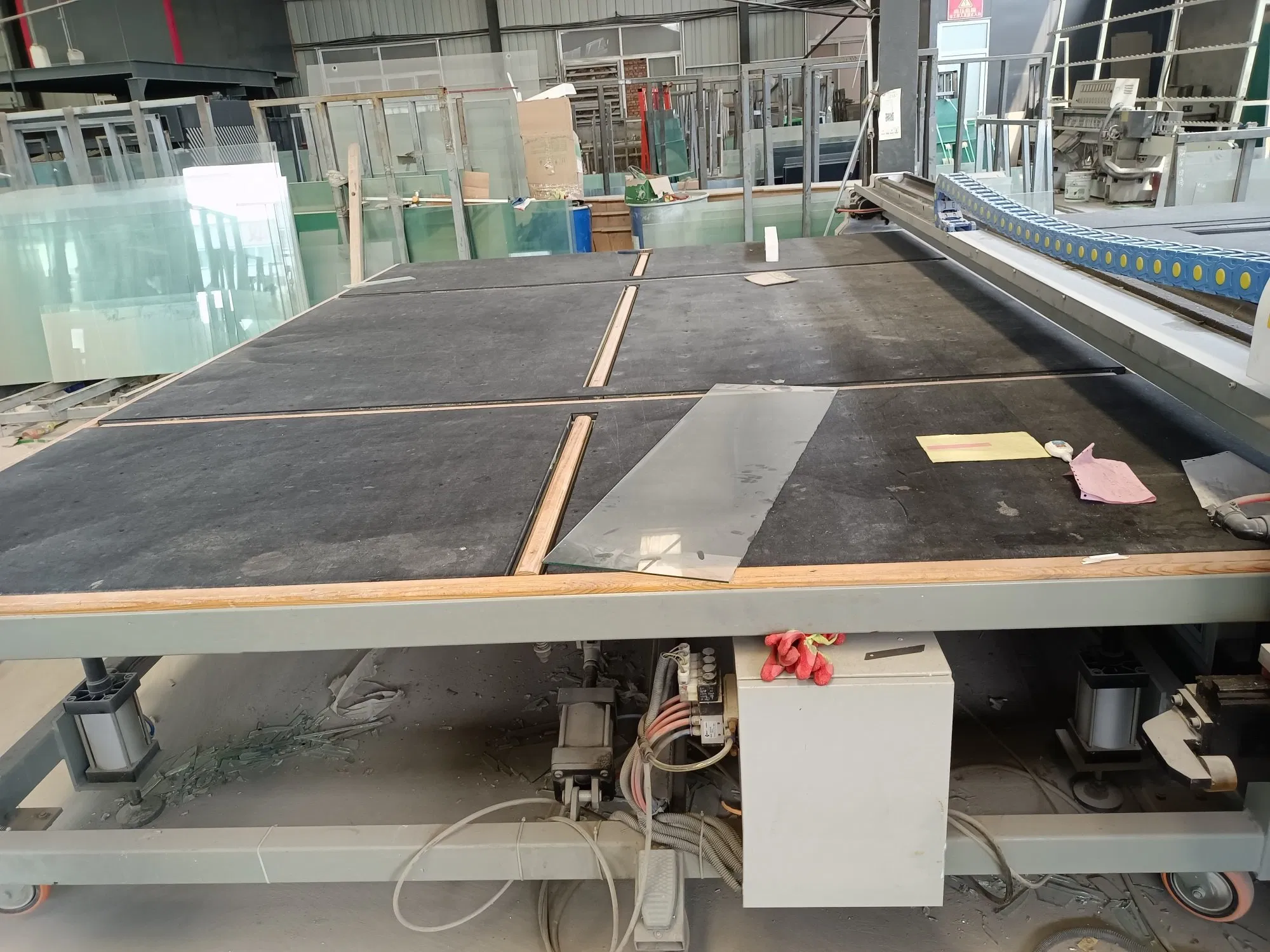

Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
1 / 5
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt
Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt

Mutli-Functional Loading Arms Cutting Breaking CNC Glass Cutting Machine with Belt

Customization: Available
Certification: CE
Product Name: Automatic CNC Glass Cutting Machine
Send Inquiry

Product Description

Basic Information

Model NO.
CNC-SP-3826
Type
Glass Cutting Machine
Structure
Horizontal
Control System
PLC
Washing Machine Type
Horizontal
Edging Machine Type
Straight Edging
Grinding Heads
9
Condition
New
Warranty
1 Year
Production Capacity
30 Sets/Month

Product Description

Multi-functional Loading Cutting Breaking CNC Glass Cutting Machine with Belt

CNC Glass Cutting Machine

This multifunction CNC glass cutting machine integrates loading, glass handling, straight cutting, shape cutting, air flotation, breaking, automatic movement, and remote control into one unit. It represents a highly advanced automatic glass cutting system, replacing traditional lines that require separate loading tables, cutting machines, and breaking tables.

💰
Economy: Traditional lines require at least 4 people. This equipment requires only one operator to complete loading, cutting, and breaking. Remote control operation eliminates high-security risks by avoiding direct contact with glass.
⚙️
Flexibility: Features an internal mobile device, allowing the machine to be moved to any glass location. Includes a remote control device for enhanced operational freedom.

Equipment Details

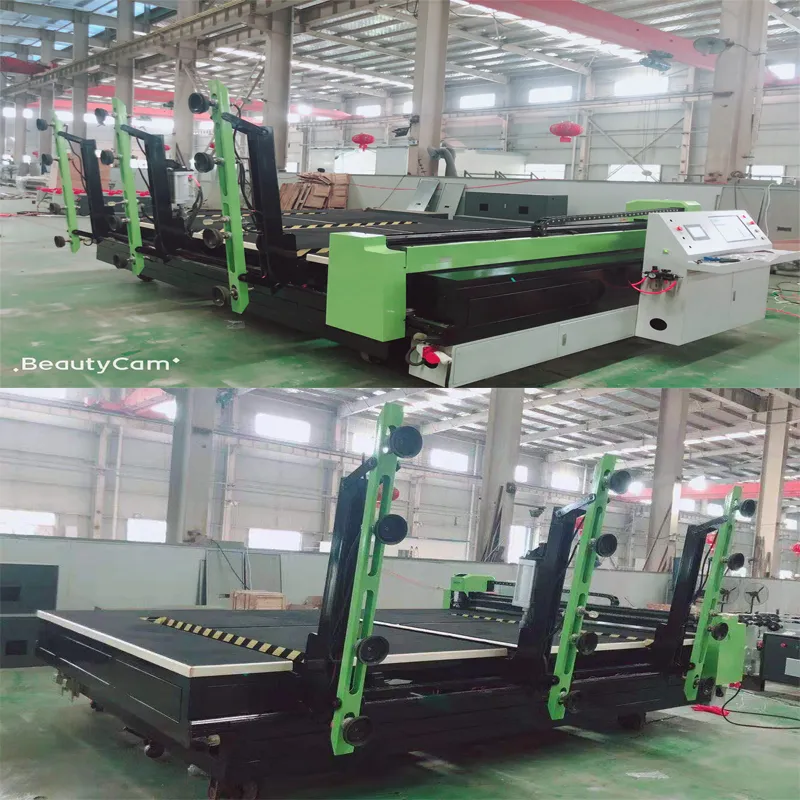

Machine Detail 1

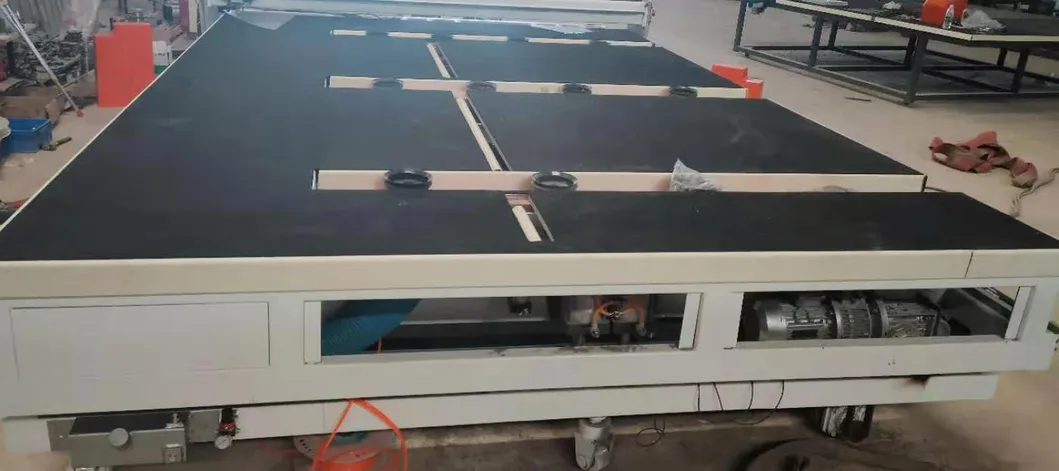

Machine Detail 2
🚀

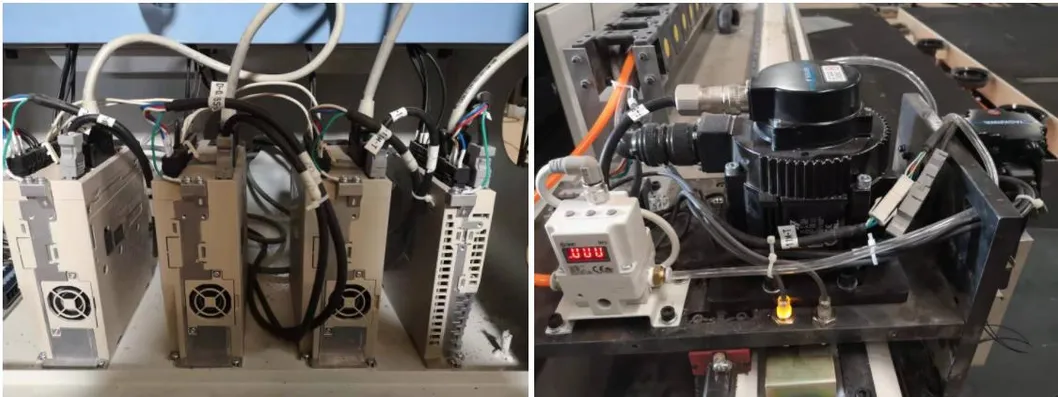

Drive System: Double Japan Yaskawa drive motor system ensures faster speed and higher stability.
Combo System

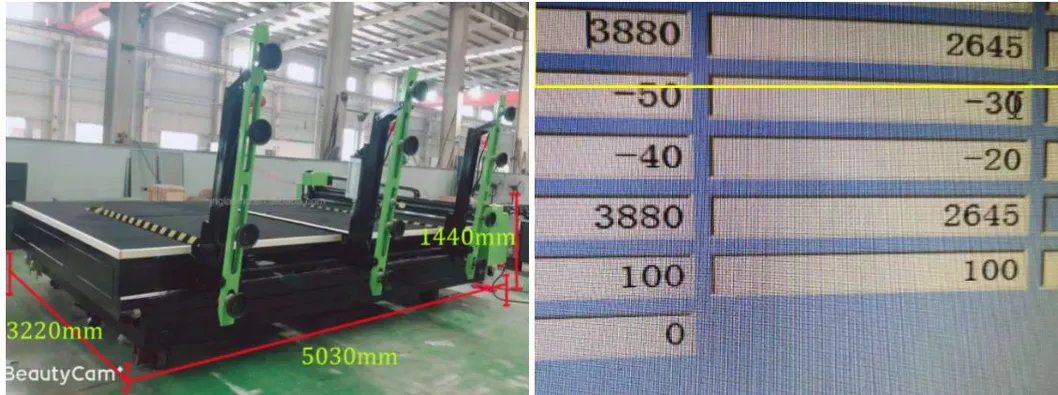

Space Saving: Glass loading, cutting, and breaking combo. Occupies a small floor area (5030*3220*1440mm) with a Max. Cutting Size of 3800x2600mm.

Edge Finding

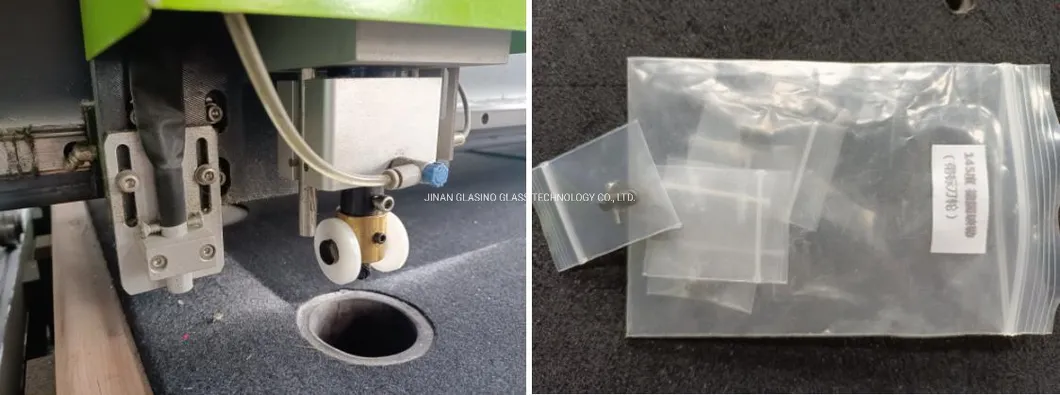

Precision Components: Photoelectric automatic edge finding and positioning. Equipped with imported Germany Bolhe high hardness cutting wheels.

Control System
Typesetting Software

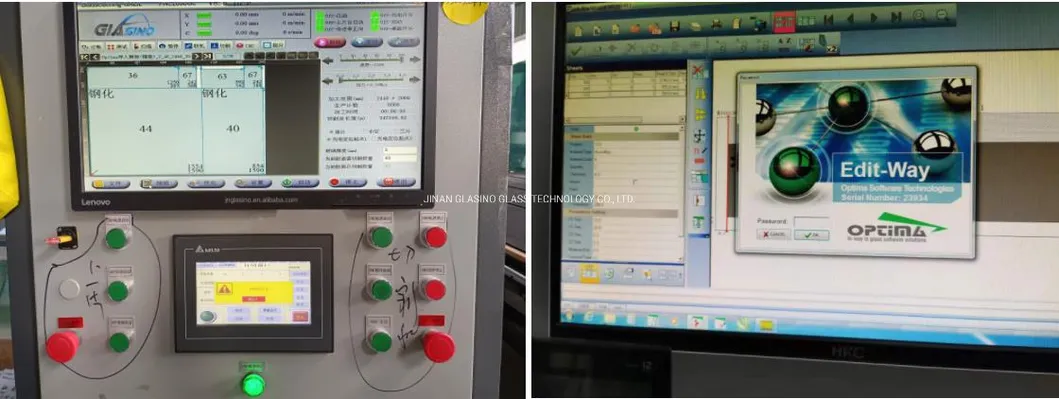

Advanced Software: Utilizes USA Galil controlling system and Italy OPTIMA typesetting optimization software for maximum efficiency.

Technical Parameters

Model Max. Glass Size Thickness Dimensions (L*W*H) Max. Speed Air Pressure
CNC-SP-3826 3800*2600mm 3~19mm 5030*3230*1440mm 160m/min 0.6~0.8MPa

Working Samples & Workshop

Working Samples
Product Packaging
Workshop

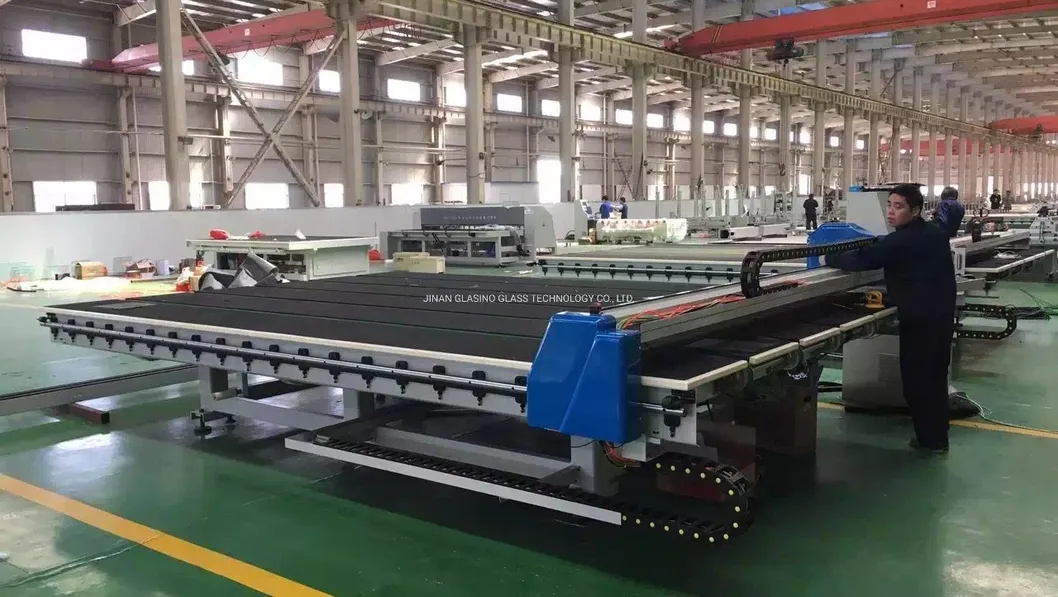

Exhibition
Display

Frequently Asked Questions

Are you a factory or a trading company?
We are a specialized manufacturing factory.
How long is the equipment warranty?
The warranty period is one year from the date of purchase.
What after-sales services do you provide?
We provide on-site installation, commissioning, and training. We offer free accessories within the first year, as well as remote service and video guidance.
What is the typical delivery time?
Delivery usually takes 20-30 days after receiving the deposit.
What glass thickness can this machine handle?
This CNC machine is designed to cut glass with a thickness ranging from 3mm to 19mm.
What is the maximum cutting speed?
The machine can reach a maximum cutting speed of 160 meters per minute.
