Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
1 / 5
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making
Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making

Mars Woodworking CNC Router 5 Aixs CNC Machining Center with Atc for Wood Foam Sculpture Model Mold Making

Customization: Available
After-sales Service: in Time
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
HGS12
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Function
Processing Complicated Products
Material
Acrylic, PVC, Artificial Stone, Organic Glass
Transport Package
Plastic Paper /Wooden Carton
Specification
3000*2500*300mm
Production Capacity
10 Set/Month
💻 Product Description

HGS12 5 Axis Composite Machining Center

Machining Center Overview
Basic Specs X/Y/Z Axis Working Area 1500*2000*600mm
  Working Table GB Standard A3 square tube bed, wall thickness 10mm
  Machine Structure National standard high strength T-slot aluminum profile countertop
Main System Control System Taiwan Syntec Five-axis Control System (with RTCP function)
  Drive System Japan Yaskawa servo motor, X, Y, Z axis servo power 3.0KW
  Spindle Power Imported five-axis oscillating head, Italy 10KW tool change spindle
  Spindle Speed Adjustable 100-24000 rpm/min
Components Linear Guide Rail Taiwan imported linear guide Y-axis 45mm, XZ30mm
  Ball Screw Taiwan imported precision screw, Z-axis 32 Guide 5
  A C Axis Range A-axis: 0-210 degrees; C-axis: 0-360 degrees
  Working Voltage AC380V 3PH 50HZ
📷 Detailed Photos

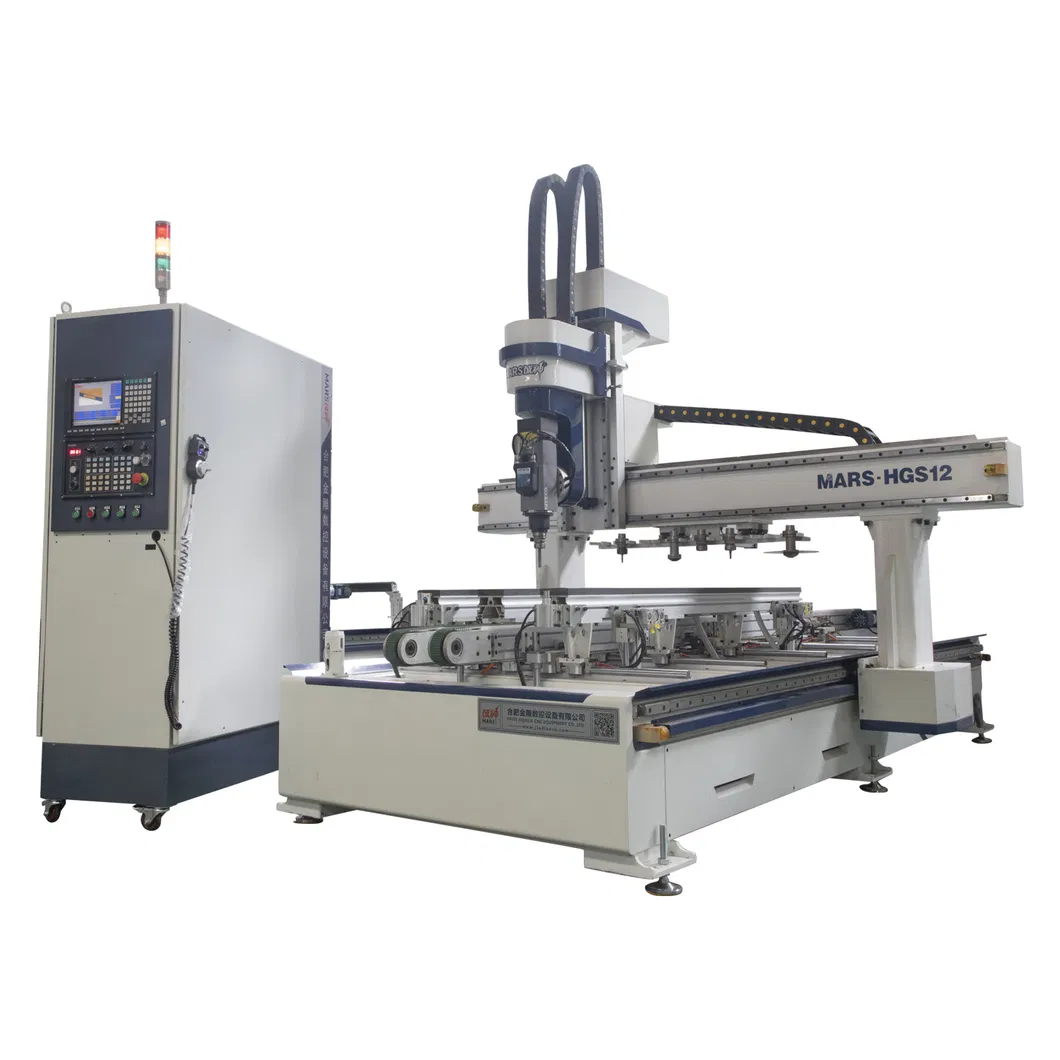

Detail 1
Detail 2

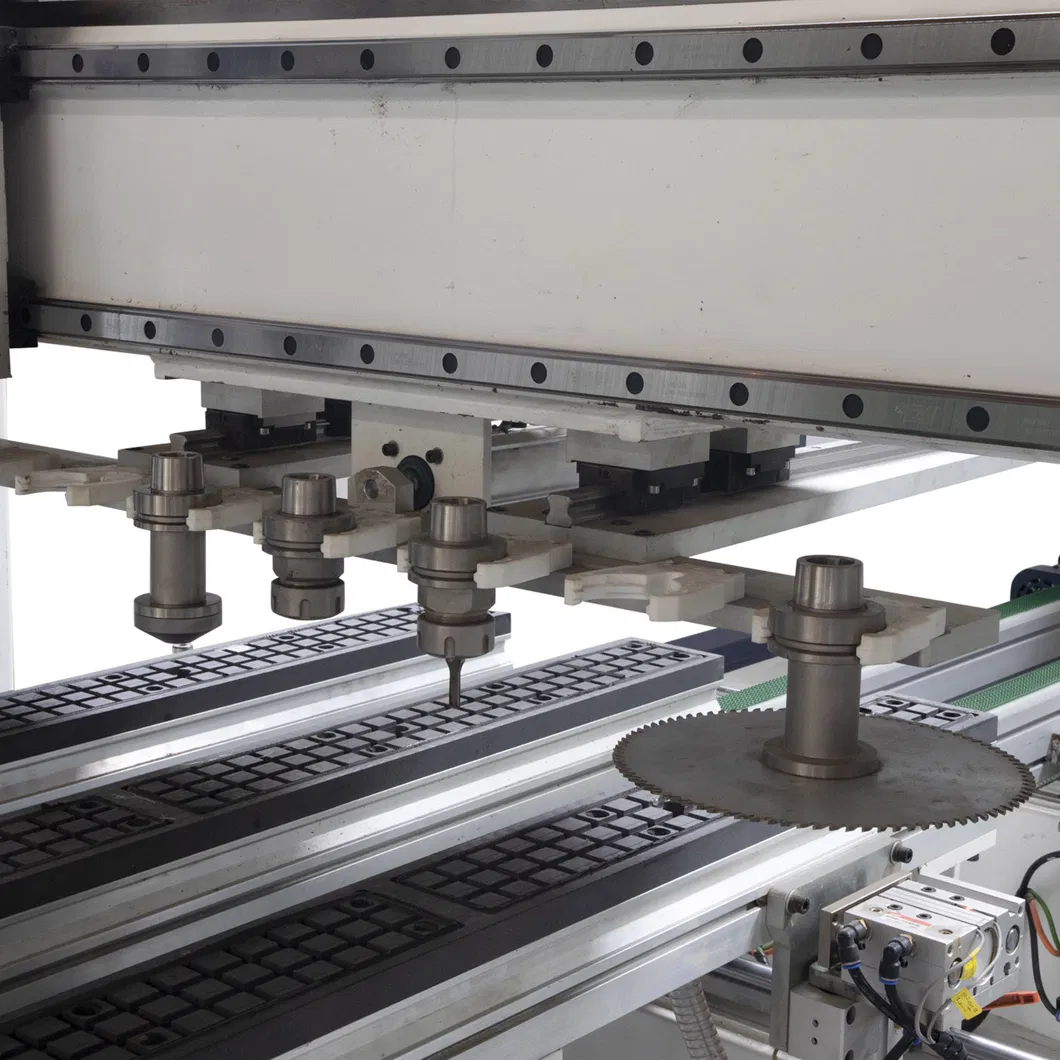

Detail 3

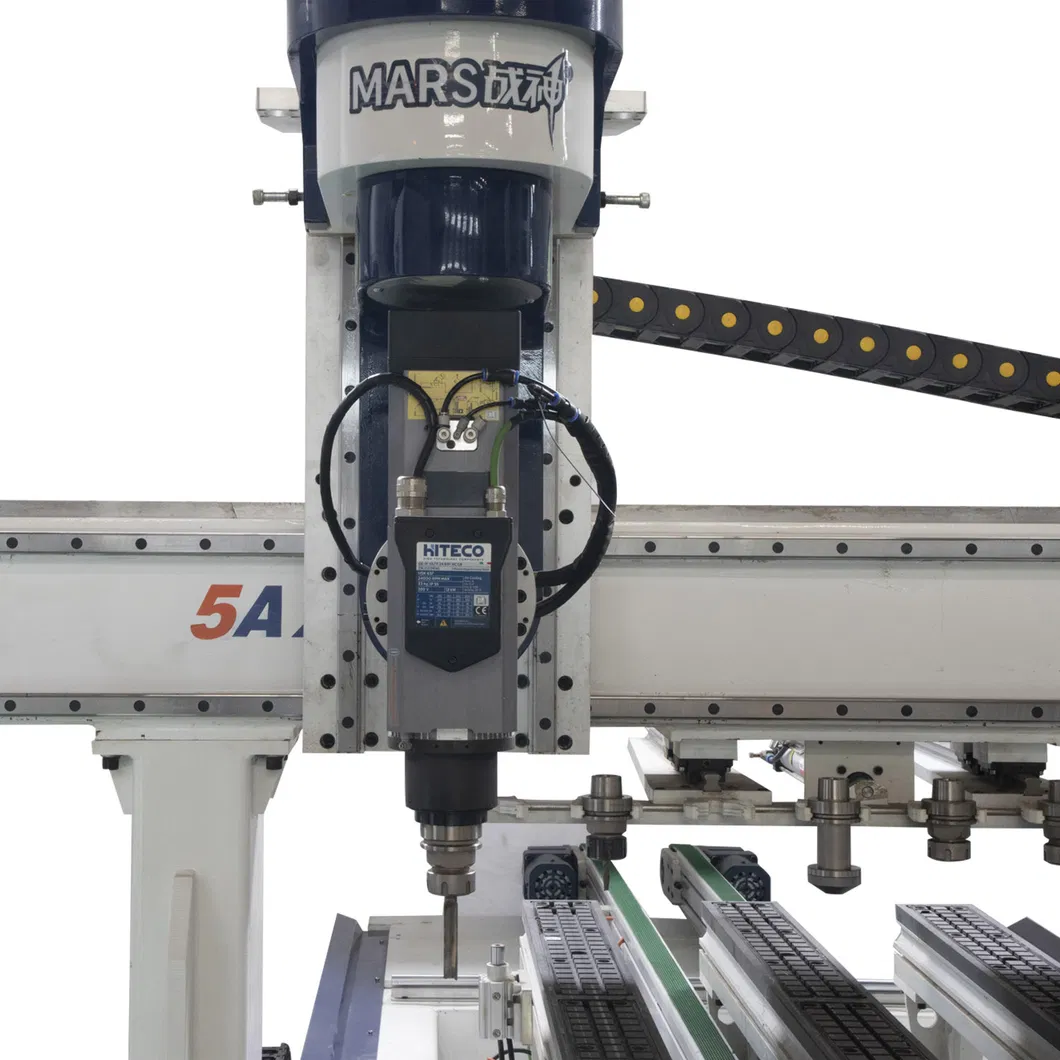

Detail 4

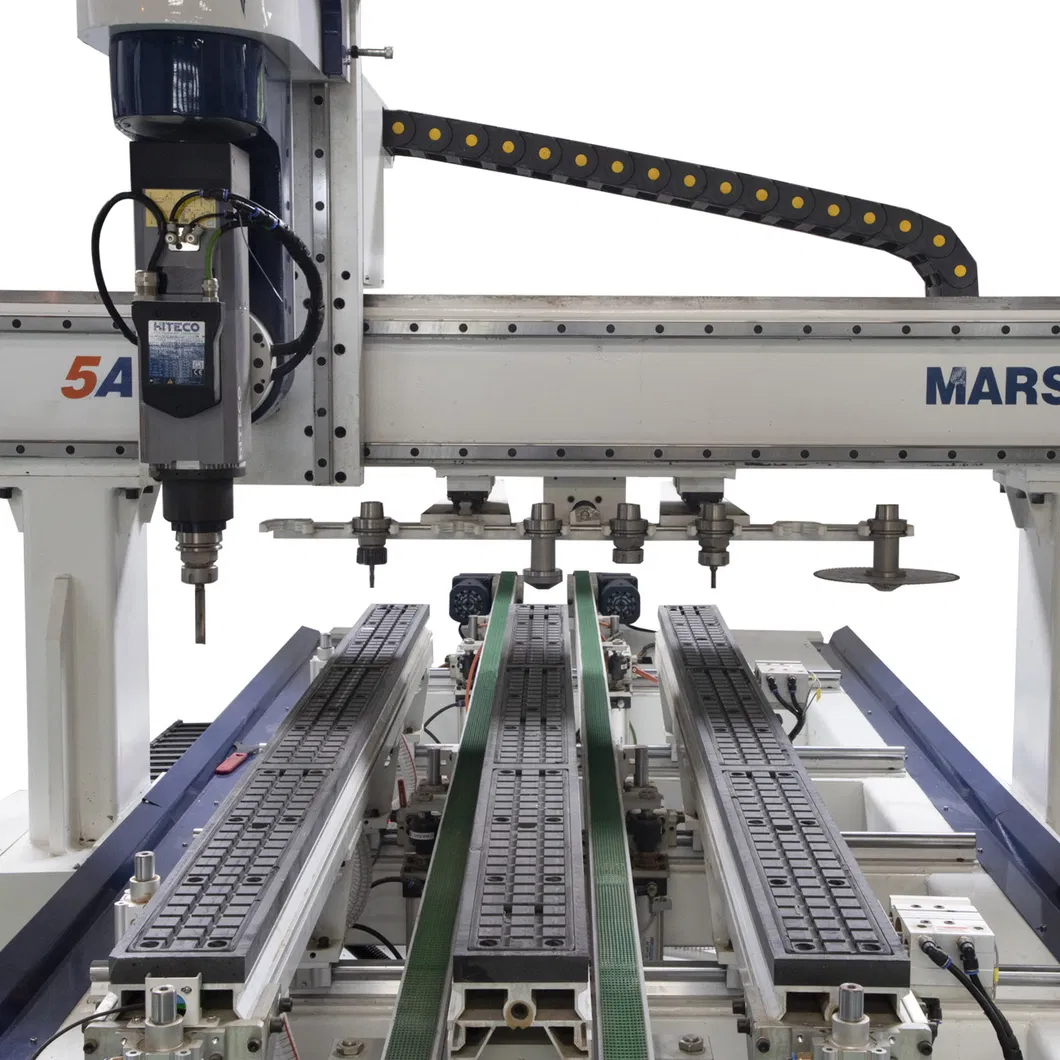

Detail 5

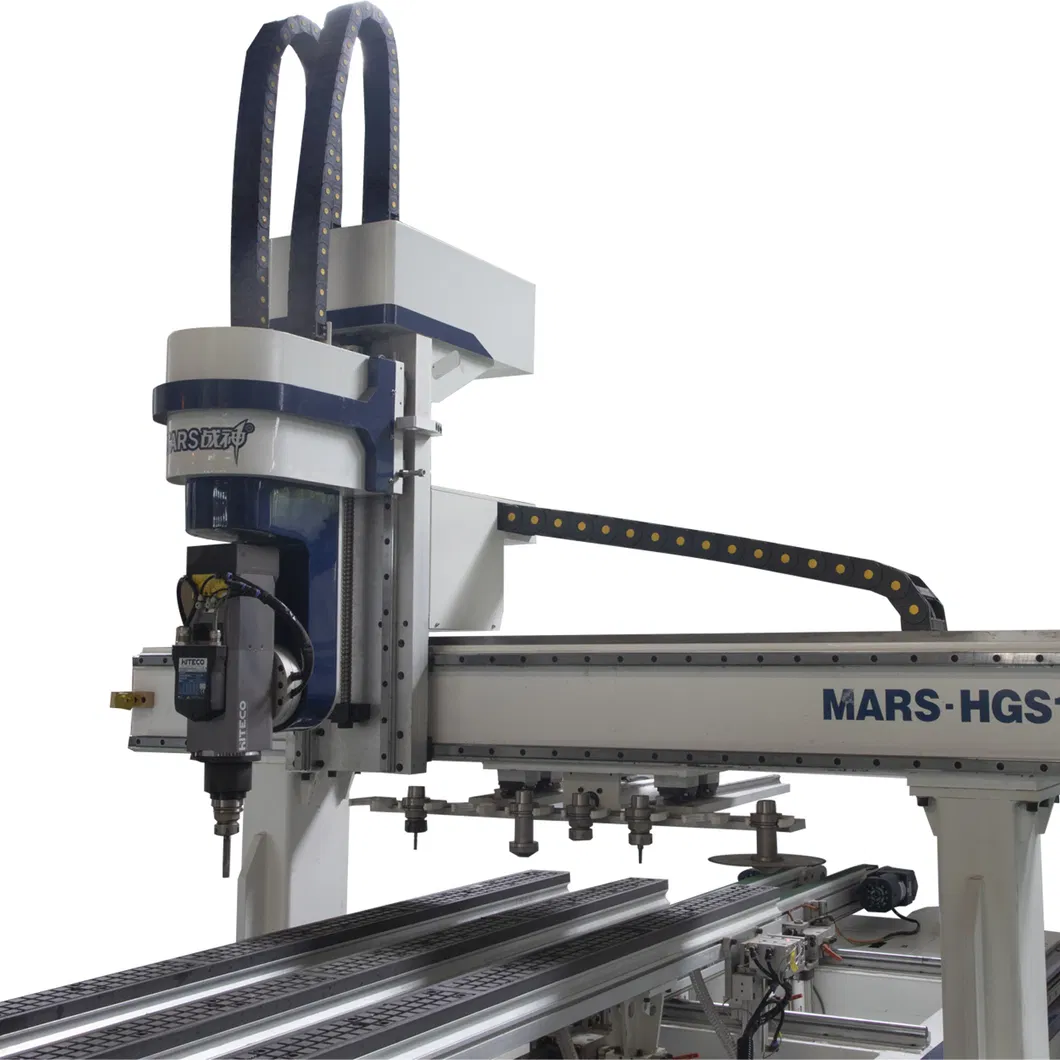

Detail 6
Banner 1 Process View
📈 Technical Capability
Cap 1
Cap 2
Cap 3
❓ Frequently Asked Questions
What is the primary application for the HGS12 machining center?
It is widely used for engraving complicated sculptures and processing materials like acrylic, PVC, artificial stone, and organic glass, making it ideal for mold making and model production.
What control system does the machine use?
The machine is equipped with the Taiwan Syntec Five-axis Control System, which includes the RTCP (Rotational Tool Center Point) function for high-precision 5-axis machining.
What are the traveling ranges for the A and C axes?
The A-axis has a machining range of 0 to 210 degrees, while the C-axis features a full 0 to 360-degree rotation range, both driven by Yaskawa servo motors.
What is the spindle specification?
The machine uses an imported Italy 10KW tool change spindle with an adjustable rotational speed ranging from 100 to 24,000 rpm/min.
Is the machine compatible with standard industrial power?
Yes, it operates on a standard industrial working voltage of AC380V, 3 Phase, at 50Hz.
How is the machine protected against dust during woodworking?
The XY shafts are equipped with dust covers and mechanical hard dust protection to ensure the longevity of the linear guides and ball screws.
