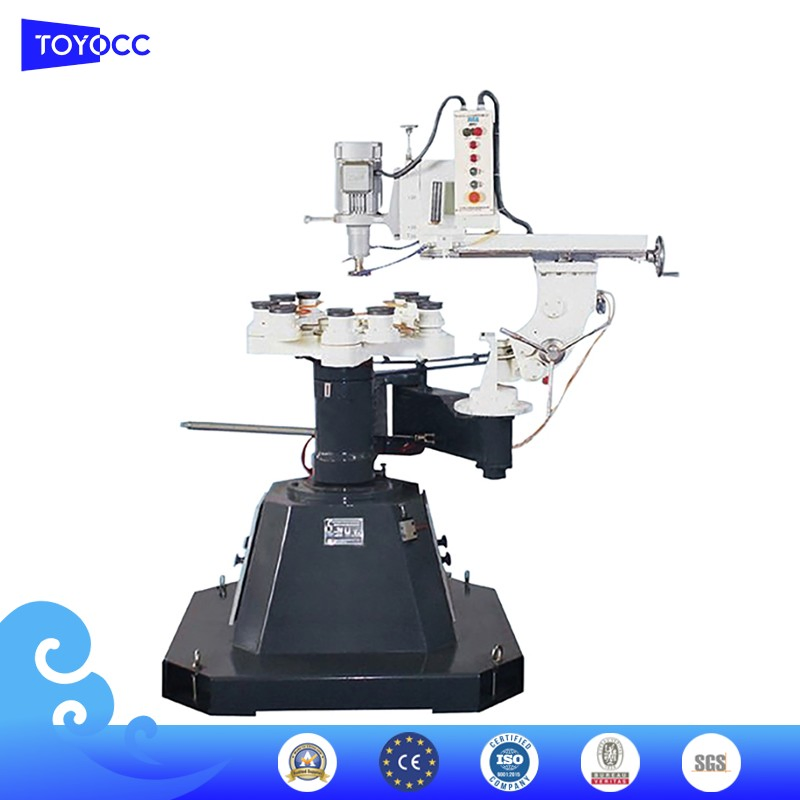

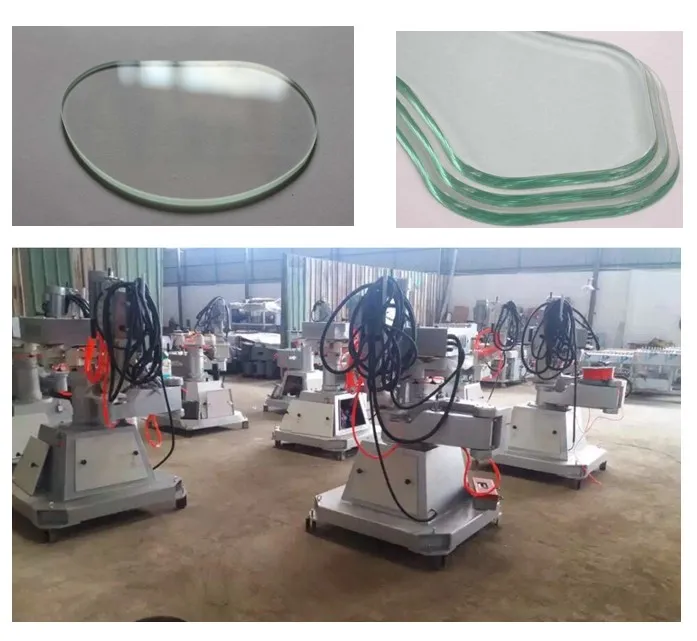

Manual Round & Shape Edging Machine
The single-arm special-shaped edging machine is designed for versatile glass processing. It efficiently grinds straight, rounded, duckbill, and beveled edges. Beyond standard shapes, it handles round and oval glass with precision. By installing a master mold on a single suction cup, the machine can process various irregularly shaped glass pieces.

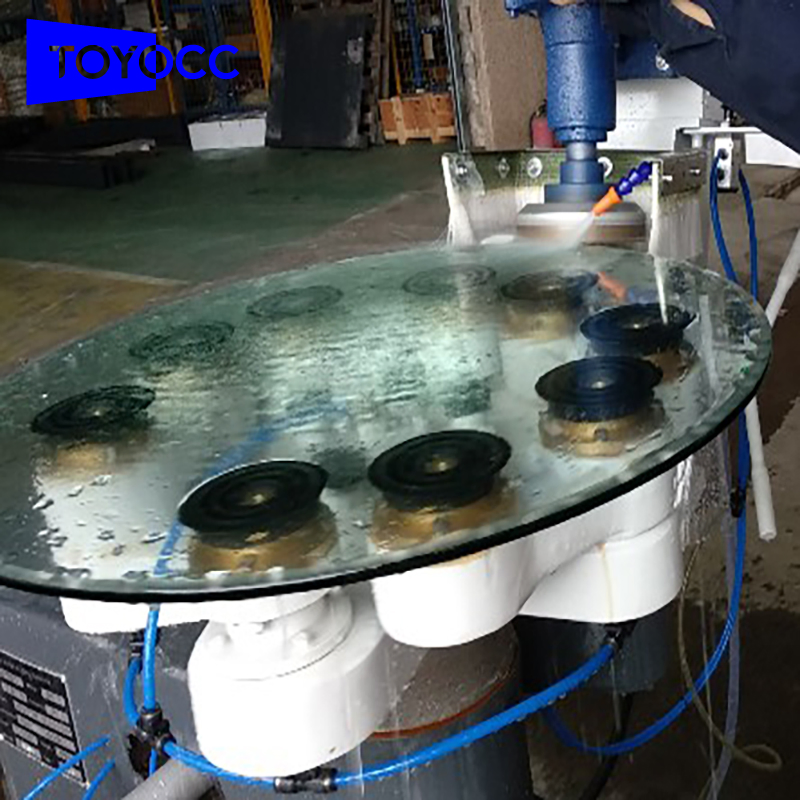

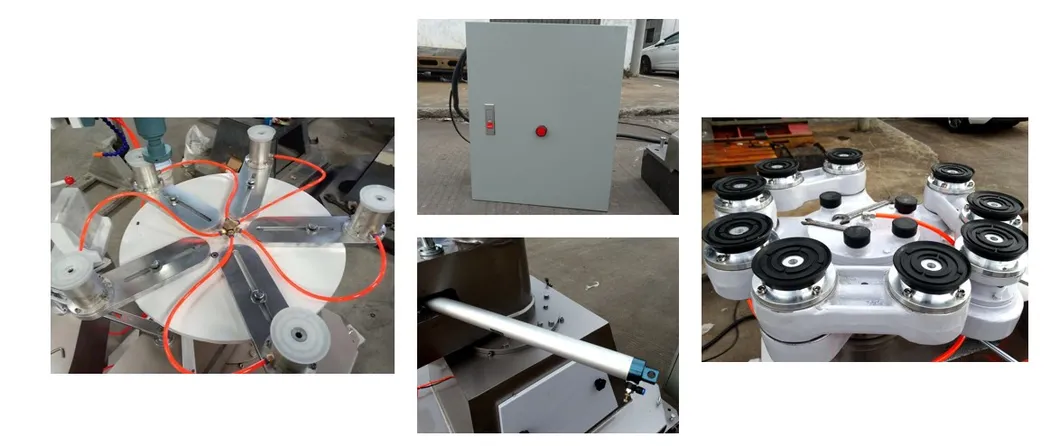

Utilizing the vacuum principle to secure glass, the machine operates with a motor-driven satellite turntable. It supports processing diameters from 100mm up to 2100mm. The rotation speed is fully adjustable, and the integrated brake system ensures stable, vibration-free grinding, significantly improving edging quality and work efficiency.
📐
Edging Machine Technical Parameters
| Rotation Diameter |
Thickness |
Bevel Angle |
Bevel Wheel |
Voltage |
Power |
Weight |
| 100-2100mm |
3-30mm |
0°-20° |
Ø150 |
380V 50HZ |
3KW |
1000kg |
🌟 Performance Highlights
- Accurate transmission mechanism with zero sliding or vibration.
- Reliable vacuum suction range: -0.05~-0.1MPa.
- Advanced cooling and air pressure system to prevent blockage.
- High-precision rotating shaft with runout under 0.03mm.
🔵

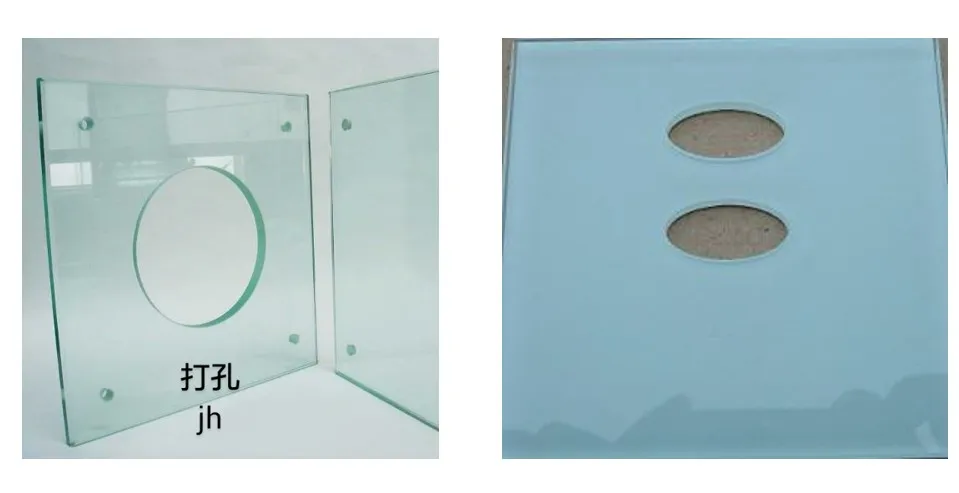

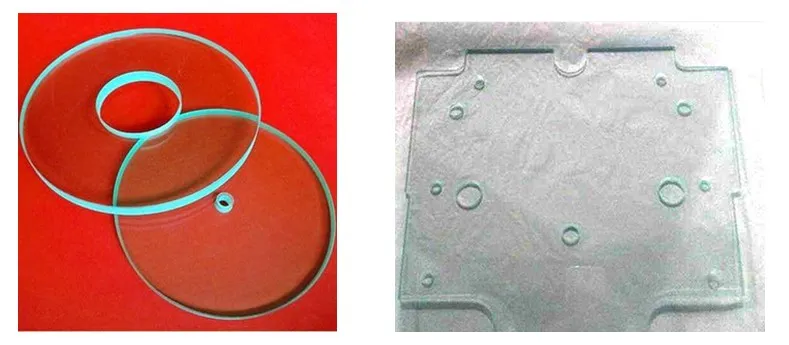

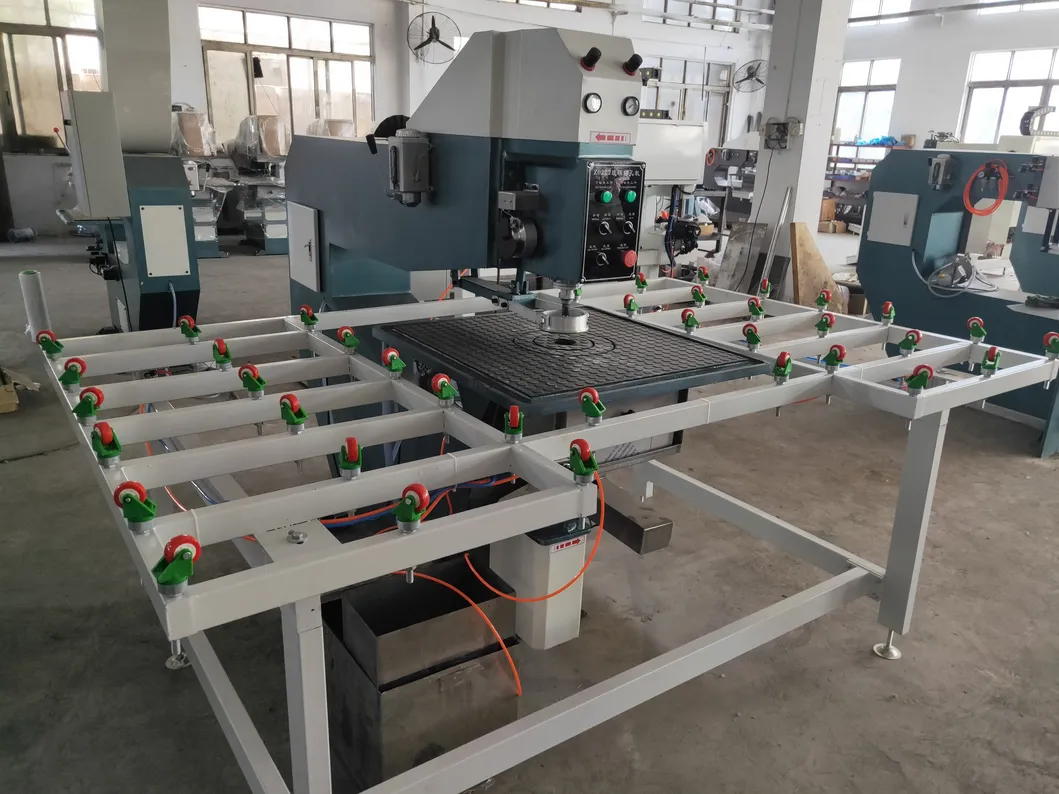

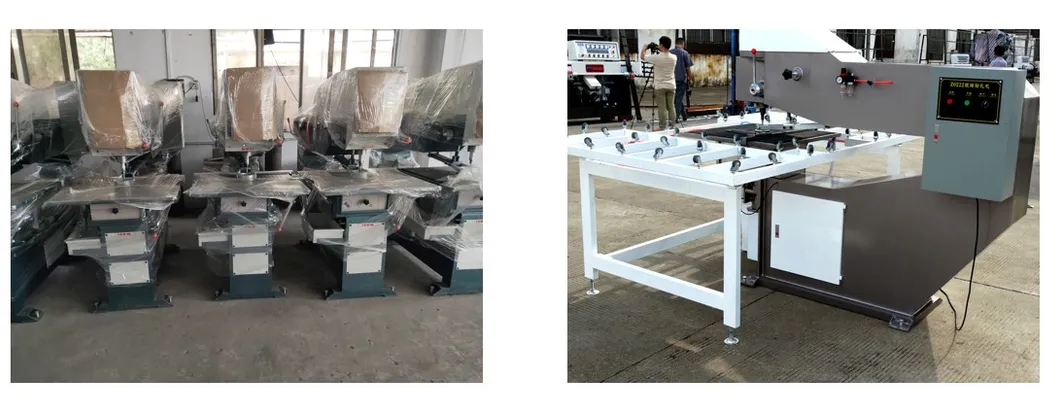

Glass Drilling Machine Introduction
Our glass drilling machine features an automatic control design with pneumatic clamping and oil pressure buffer technology. It allows for free adjustment of drilling time and speed for both upper and lower drills. The worktable includes pneumatic lifting and automatic material receiving, making it ideal for batch processing.
📋
Drilling Technical Specifications
| Drilling Diameter: ø4-ø220mm |
Worktable Height: 850mm/1000mm |
| Glass Thickness: 3mm-20mm |
Min Glass Size: φ100*100mm |
| Max Glass Size: 2600*2400mm |
Machine Weight: 1000kg |
❓
Frequently Asked Questions
What types of glass edges can the machine process?
The machine is capable of grinding straight edges, rounded edges, duckbill edges, and beveled edges. It can also handle circular and oval glass shapes.
What is the supported glass thickness range?
For the edging machine, the processing thickness ranges from 3mm to 30mm. The drilling machine supports thickness from 3mm to 20mm.
How is the glass secured during the edging process?
The machine uses a vacuum suction cup system with a normal working range of -0.05 to -0.1MPa to ensure the glass stays firmly in place.
What is the maximum drilling diameter for the drilling machine?
The glass drilling machine can achieve a drilling diameter ranging from ø4mm up to ø220mm.
How often does the machine require lubrication?
It is recommended to add lubricant to the equipment every half month to maintain smooth operation and precision.
Does the machine support batch processing for drilling?
Yes, the drilling machine is equipped with movable positioning and automatic material receiving devices specifically designed for fast and accurate batch processing.
