| Customization: | Available |
|---|---|
| After-sales Service: | Three-Year Free Warranty |
| Warranty: | Three-Year Free Warranty |

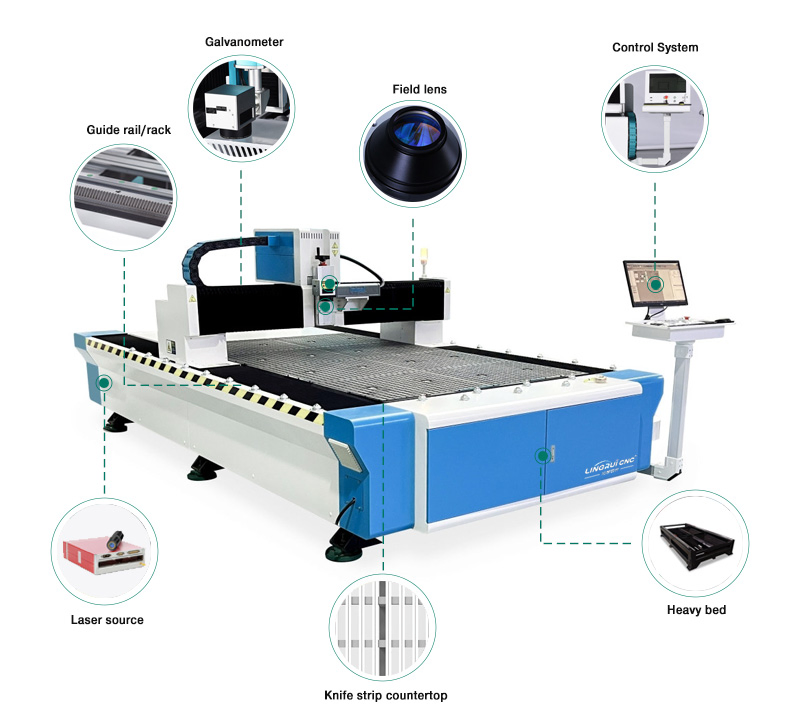

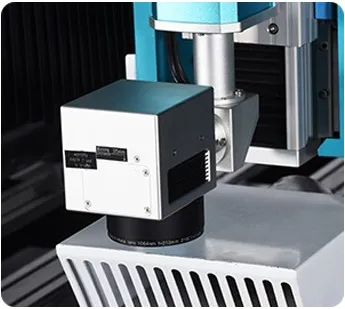

High-speed galvanometer
Supports assembly line marking speed 10000mm/min.

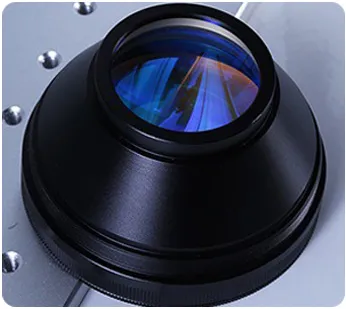

Scanning Lens
Quartz material, ensure uniform distribution of high-quality light spots.

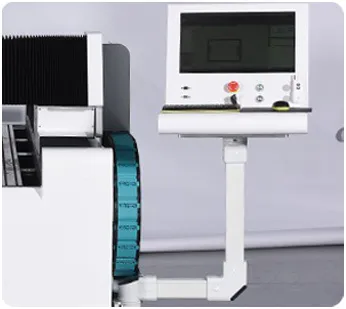

Computer & Bracket
Win 10 system. Human mechanics design, rotates 180°.

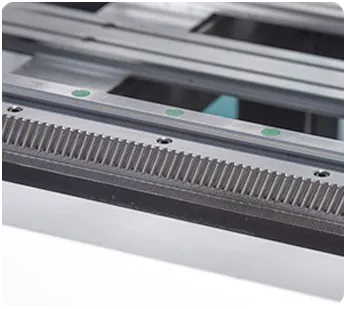

Grinding Level Guide Rail
High precision running accuracy of 0.02 mm, dustproof and rust proof.

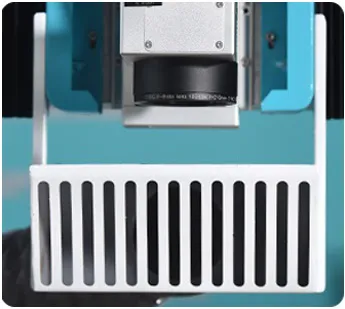

Smoke Exhaust Outlet
Efficient removal of smoke generated during marking.

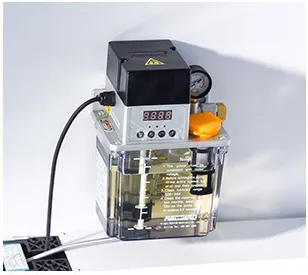

Automatic oiler
Automatic oil supply at fixed times, high efficiency.

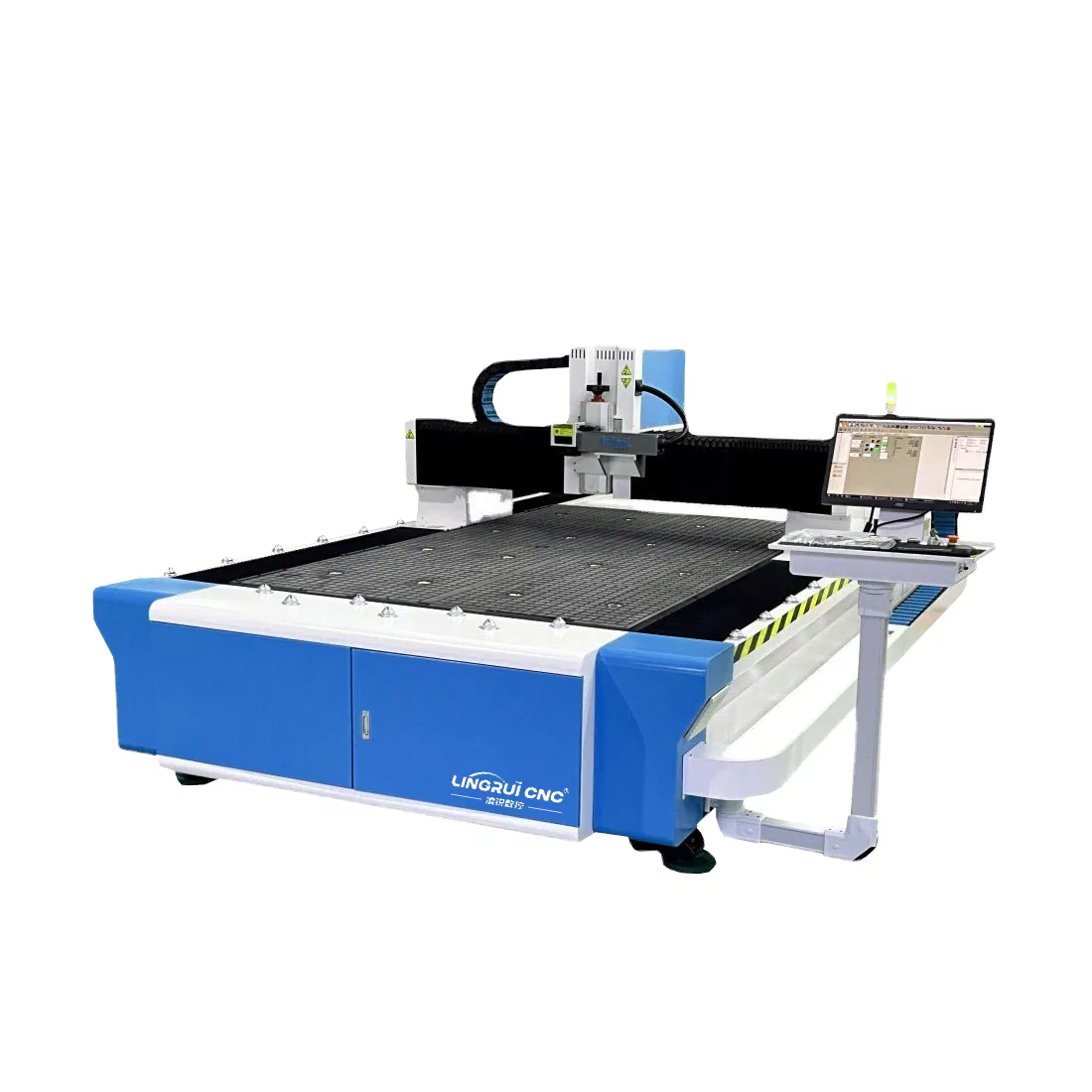

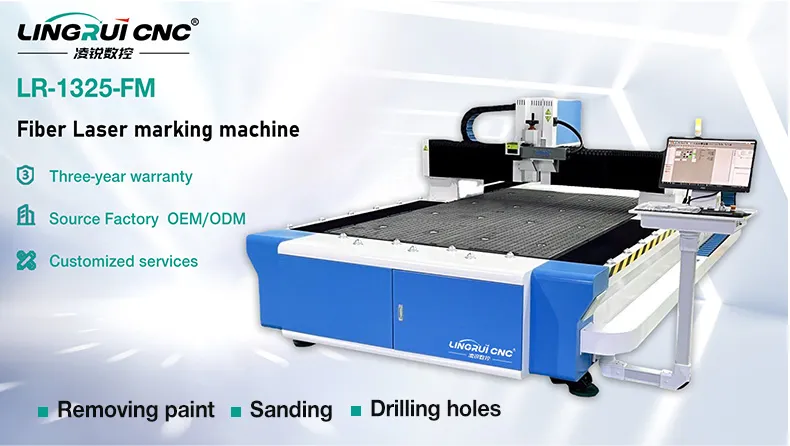

| Model Name | LR-1325/1530FM Fiber Laser Marking Machine |

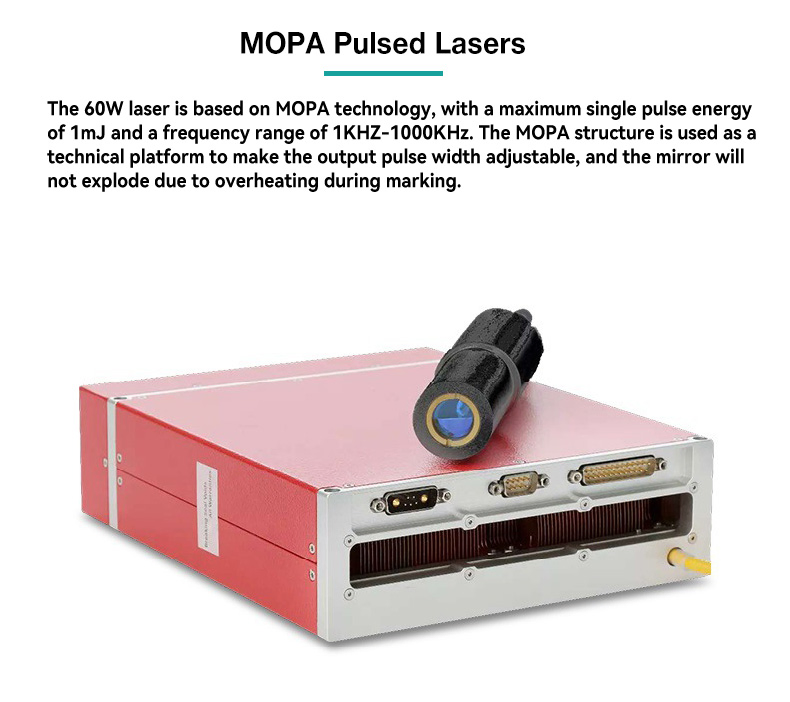

| Laser light source | MOPA Pulsed Laser |
| Laser power | 60W, 100W, 200W |
| Wavelength | 1064nm |

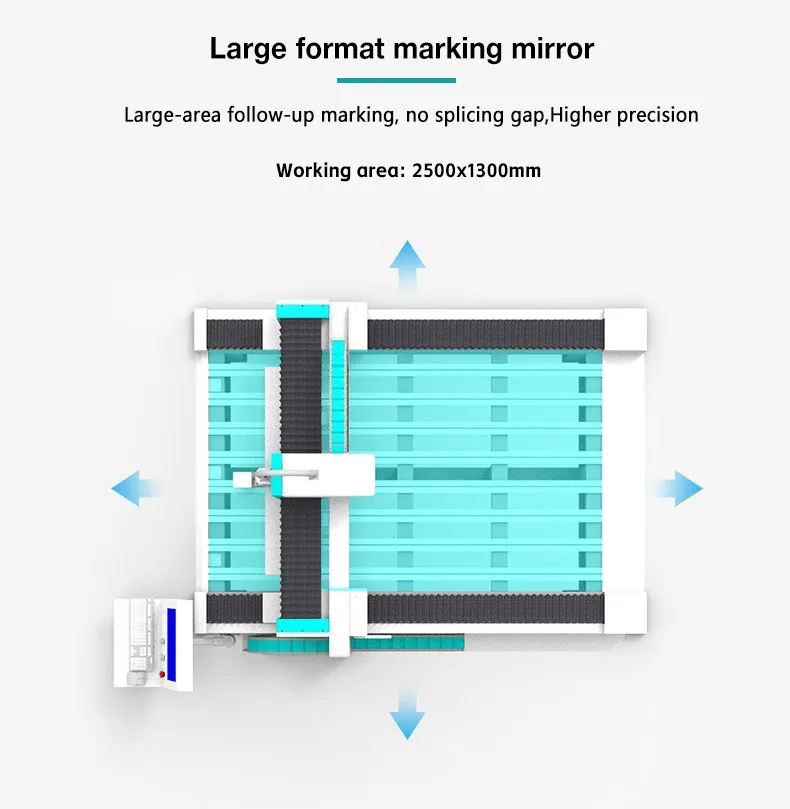

| Standard marking area | 1300*2500mm, 1500*3000mm |
| Marking depth | ≤2mm |
| Repeat positioning accuracy | ±0.01mm |
| Marking speed | 600-1000 characters/second |
| Cooling system | Water Cooling |
| Power consumption | <1kw |
| Supported formats | CDR, Al, DXF, PLT and other vector formats |
| Applicable Materials | Metals, high-hardness alloys, oxides, glass, mirrors, plastics, etc. |
