Basic Information
Machine Name:

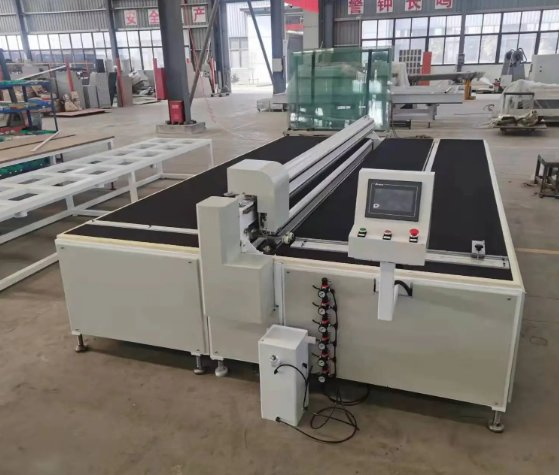

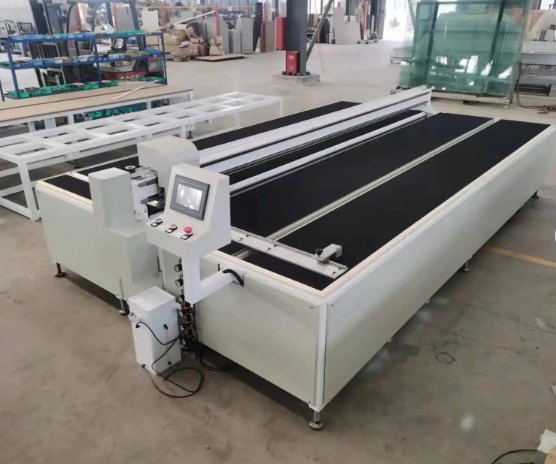

Automatic Laminated Glass Cutting Machine
Max. Sheet Size:
3700*2500mm
Min. Cutting Size:
400*250mm
Glass Thickness:
3+3mm - 12+12mm
Max. Cutting Speed:
120m/Min

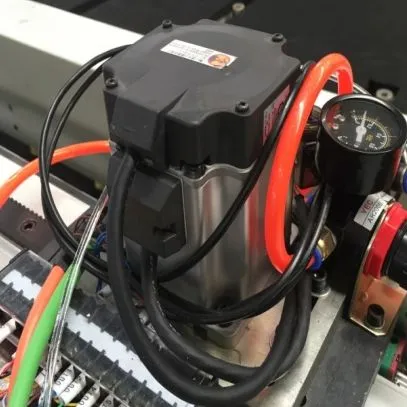

Servo Motor:
Nmh (Germany)

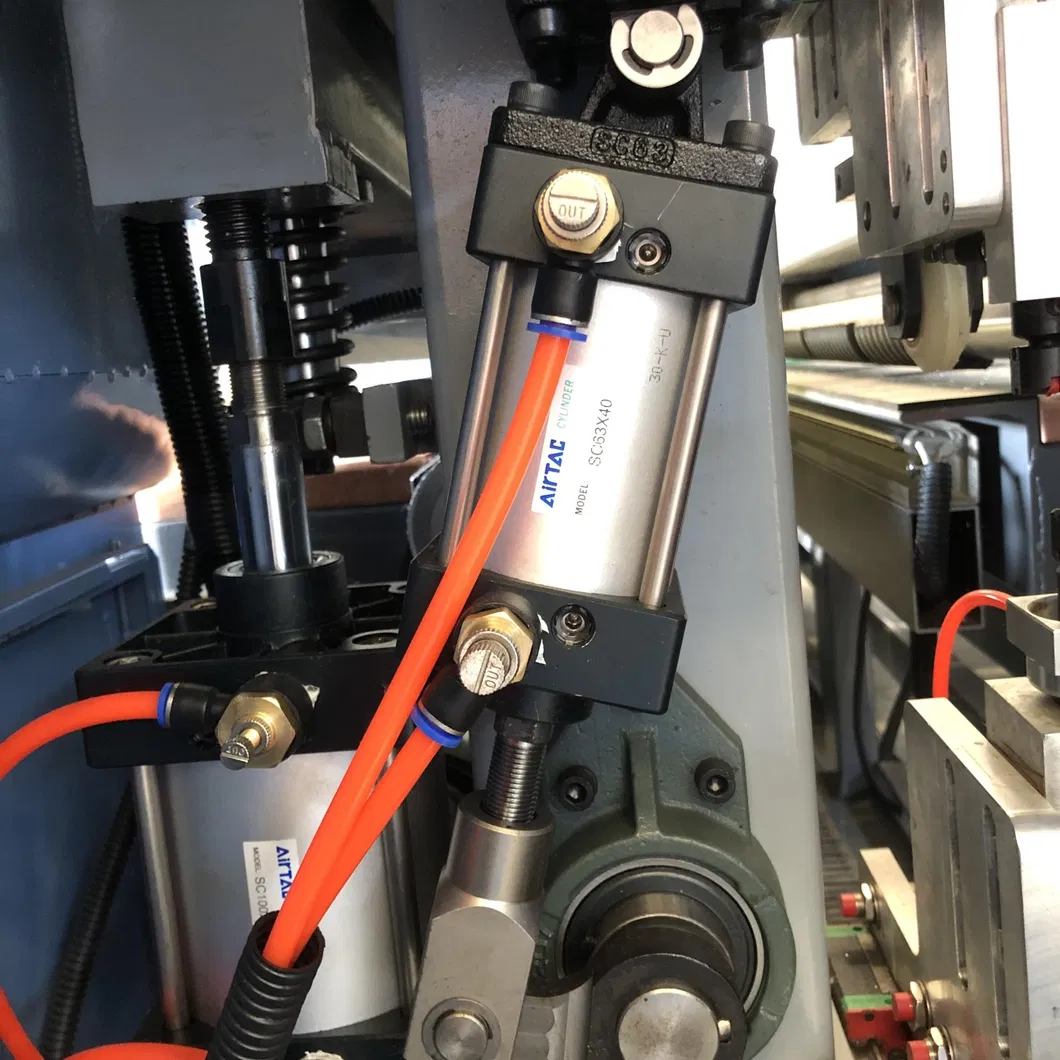

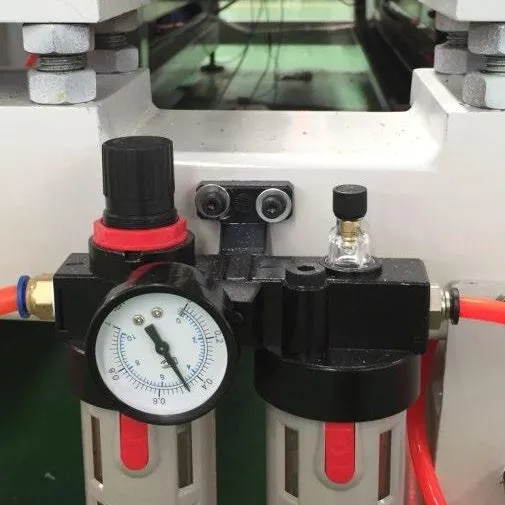

Pneumatic Parts:
Airtec (Taiwan)
Safety Features:
Emergency Stop, Overload Protection, Safety Sensor
Product Description
⚙️
Precision & Stability: International standard steel with perfect surface treatment. Key areas are annealed and milled to ensure high stability and intensity.
📏
Adjustable Control: Cutting and breaking pressure, as well as far-infrared heating temperature and time, are fully adjustable for different glass types.
🚀

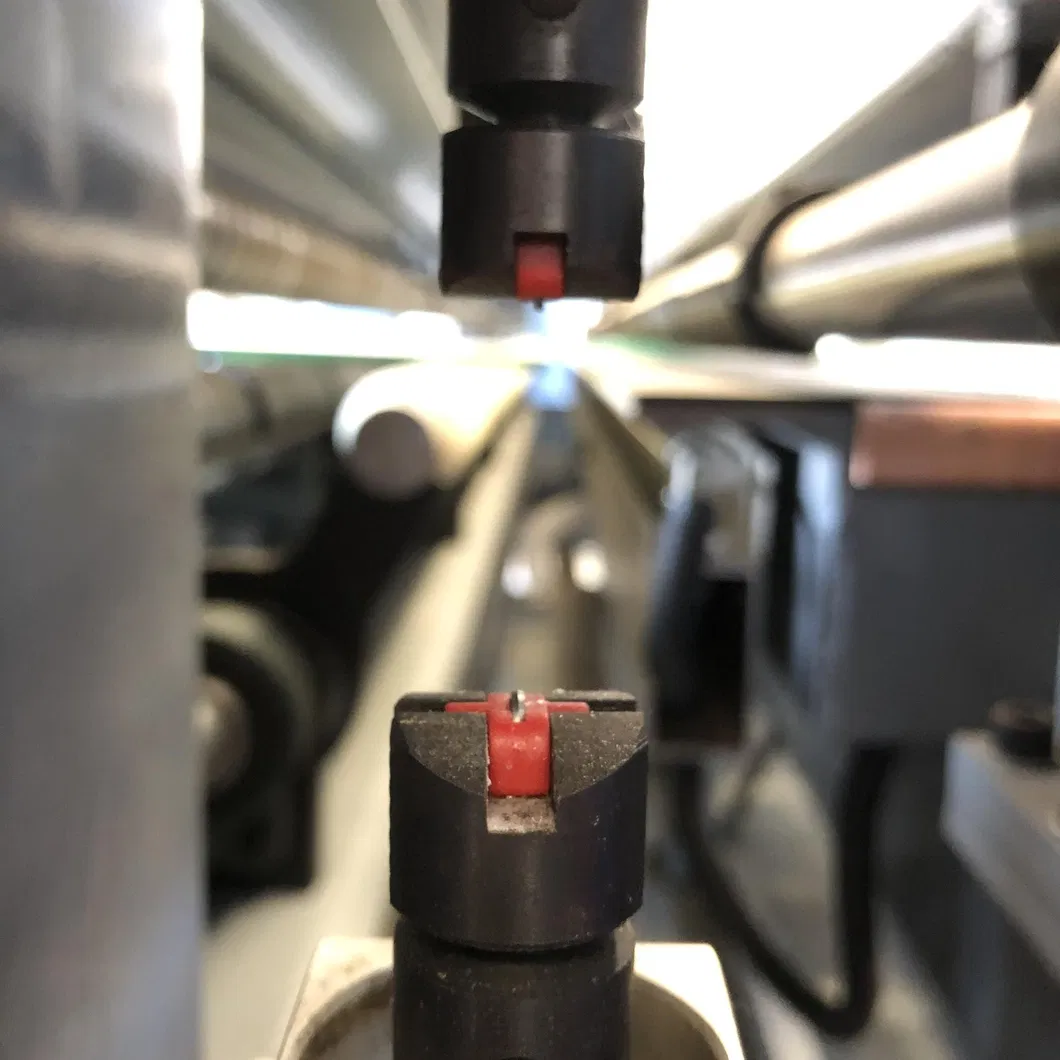

Advanced System: Includes three sections and a bridge frame. Features auto-location, glass stretch, glass break, and up/down double cutters.
Technical Parameters
| Parameter |
Specification |
| Model | HHXC-LM3826 |
| Max. Glass Sheet Size | 3700*2500mm |
| Min. Glass Cutting Size | 400*250mm |
| Glass Thickness Range | 3+3mm to 12+12mm |
| Max. Cutting Speed | 120m/min |
| Overall Dimensions | 7100*4500*1500mm |
| Rack and Rail | KHK Japan |
| Guide Rail | Hiwin Taiwan |
| Cutter Wheel & Holder | Bolhe Germany |
| Cutting Pressure Valve | SMC Japan |
Core Functions
• Optimized layout software
• Automatic stripping capability
• Integrated production database
• High-speed quartz tube heating
• Efficient belt conveyor system
• Multi-language interface (Chinese/English)

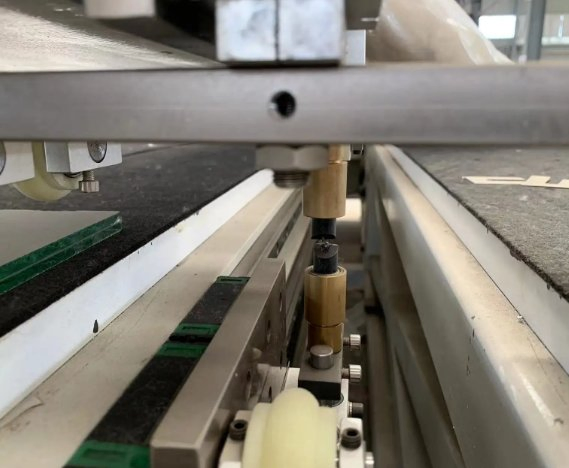

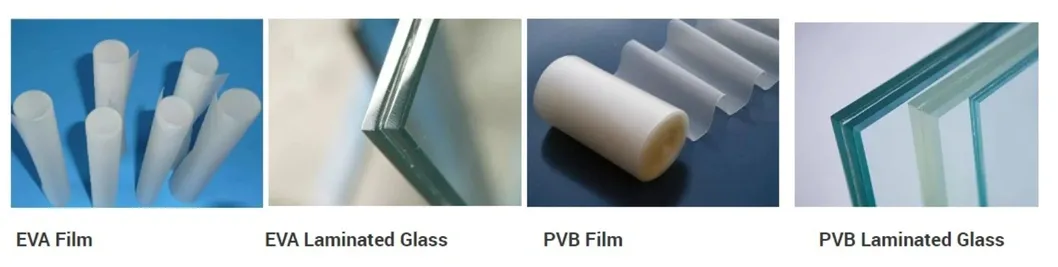

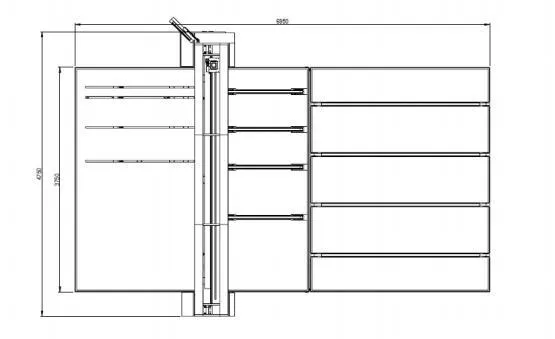

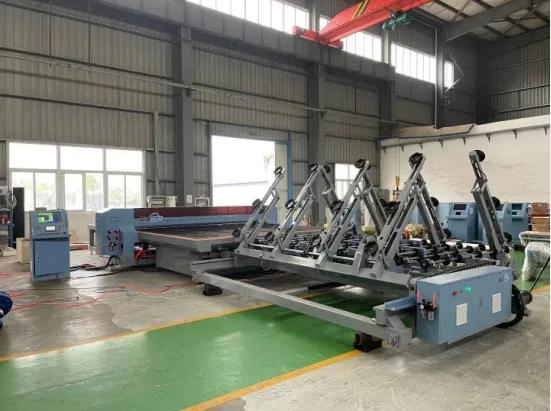

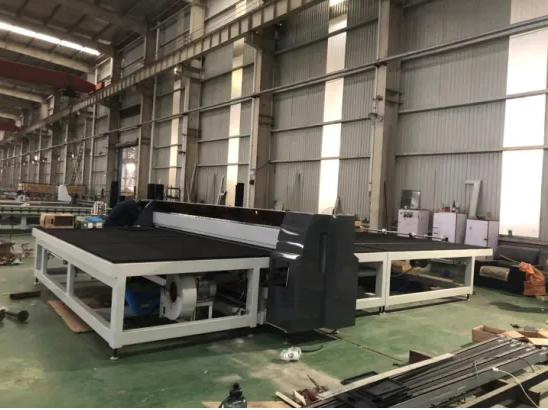

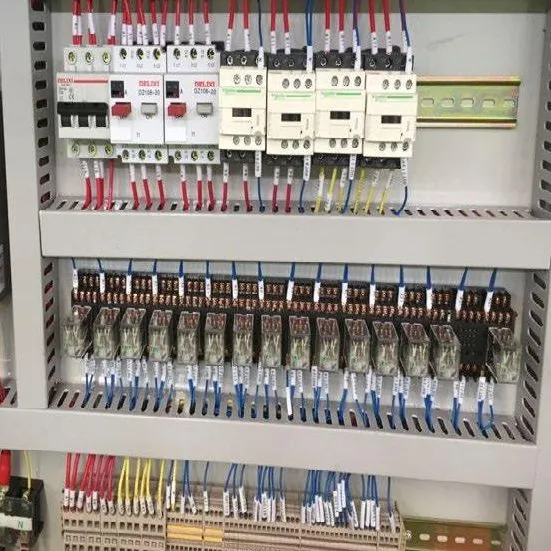

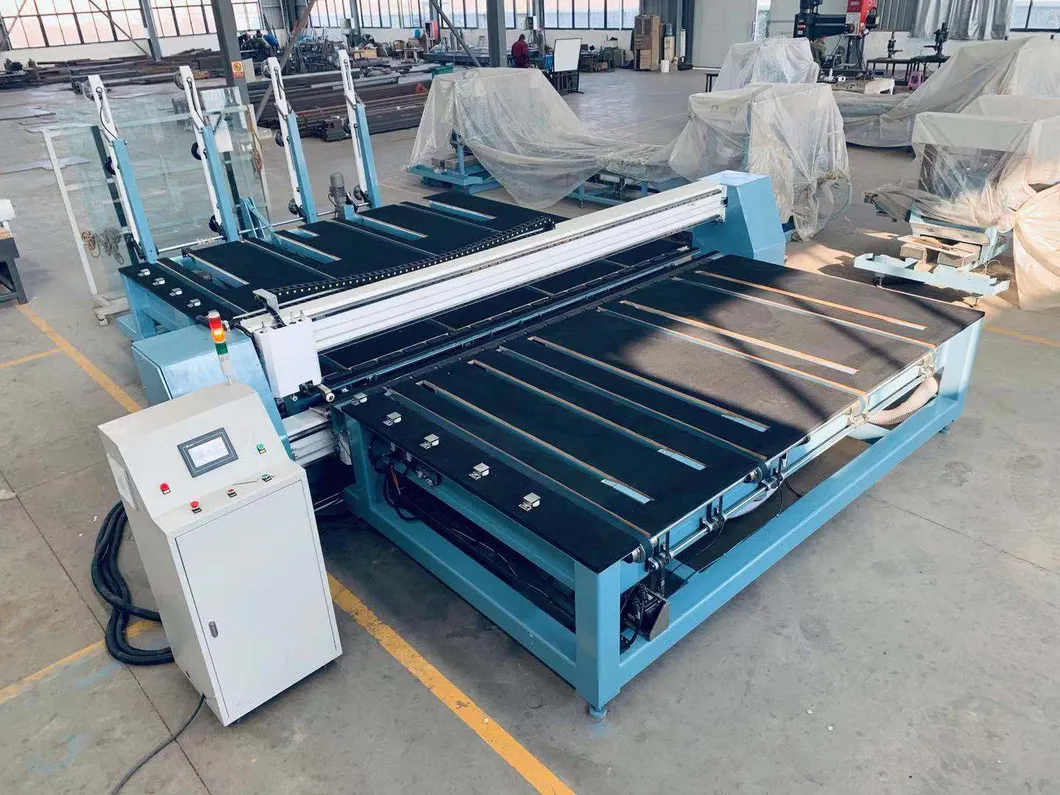

Application & Detailed Photos
Laminated Glass Cut Flow Chart
📍 Set cutting glass length and width
🏗️ Load glass on air float table
💨 Air blower start / Move to location area

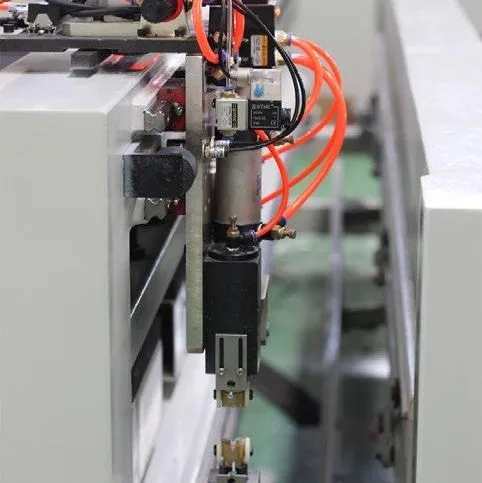

🔪 Cutting head drops to glass surface (Pneumatic control)
🔥 Heating start / Sucking disc stretch
🎞️ Film knife start to cut film

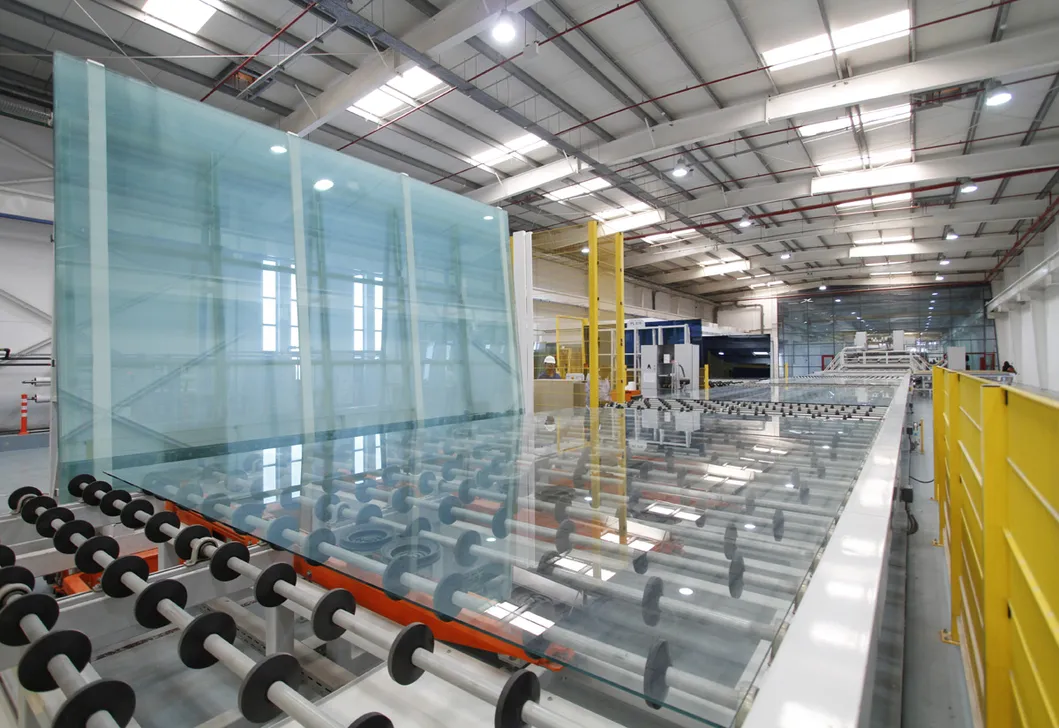

Manufacturing Excellence
Our solution focuses on high-quality flat glass processing. Each manufacturer we represent specializes in specific machinery types, characterized by innovative features, long-lasting durability, and high reliability. We provide complete turnkey solutions, from production line planning to technical factory layout recommendations.
Frequently Asked Questions
What is the maximum glass thickness this machine can cut?
The automatic laminated glass cutting machine can handle thickness ranges from 3+3mm up to 12+12mm.
What is the maximum speed and accuracy of the machine?
The machine offers a maximum cutting speed of 120m/min, utilizing a high-precision CNC system from Galil (USA) and servo motors from NMH (Germany).
Does the machine support custom heating settings?
Yes, the far-infrared heating temperature and heating time are fully adjustable to accommodate different interlayer materials and glass thicknesses.
What safety features are integrated into the system?
The machine is equipped with an emergency stop button, overload protection, and safety sensors to ensure a secure operating environment.
What kind of technical support is available?
We offer end-to-end technical service including on-site or remote installation, commissioning, training support, and a guaranteed supply of spare parts.
What are the power requirements and dimensions?
The machine operates on a 380V power supply and has overall dimensions of 7100*4500*1500mm with a weight of 3000kg.
