Customization: Available
Certification: CE
Control System: PLC
Send Inquiry

Product Description

📋 Basic Information
⚙️Model: GS-LM-3826
🚀Cutting Speed: 0 ~ 100m / Min
📏Max Cut Size: 3700mm
📐Min Cut Size: 200X200mm
💎Thickness: 3+3mm - 10+10mm
🛠️Structure: Horizontal
🛡️Warranty: 1 Year
📍Origin: China
🔍 Product Description

EVA/PVB Laminated Glass Cutting Line & Cutting Table

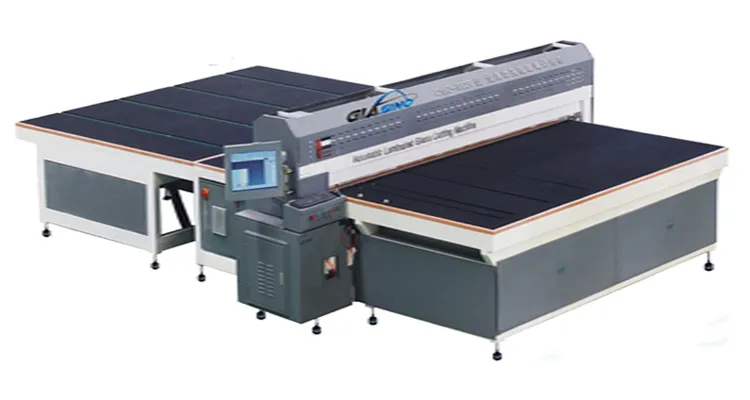

Laminated Glass Cutting Machine

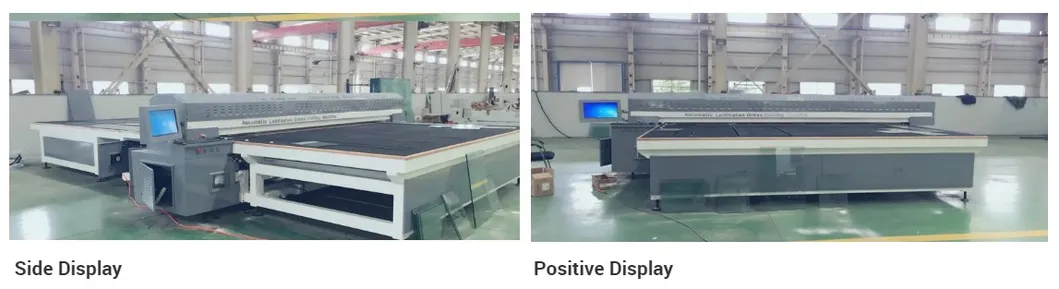

Laminated Glass Cutter
✨ Main Characteristics
  • Easy operation with high cutting precision.
  • International standard steel with perfect surface treatment.
  • Annealed and milled key areas ensuring high stability and intensity.
  • Adjustable cutting and breaking pressure.
  • Far-infrared heating with adjustable temperature and time.
  • Three-section structure with an auto-location system.
  • Bridge frame center with up and down double cutters and upper clamp.
📊 Technical Parameters
Technical Parameters
Specifications Details
ModelGS-LM3826
Max. Glass Sheet Size3700x2600mm
Min. Glass Cutting Size200x200mm
Cutting Thickness3+3mm - 10+10mm (Film 0.38-1.52mm PVB/EVA)
Straight Line Parallelism≤±0.20mm/m
Cutting Speed0 ~ 100m / min
Equipment Weight4000kg
Dimensions7100x4500x1500mm

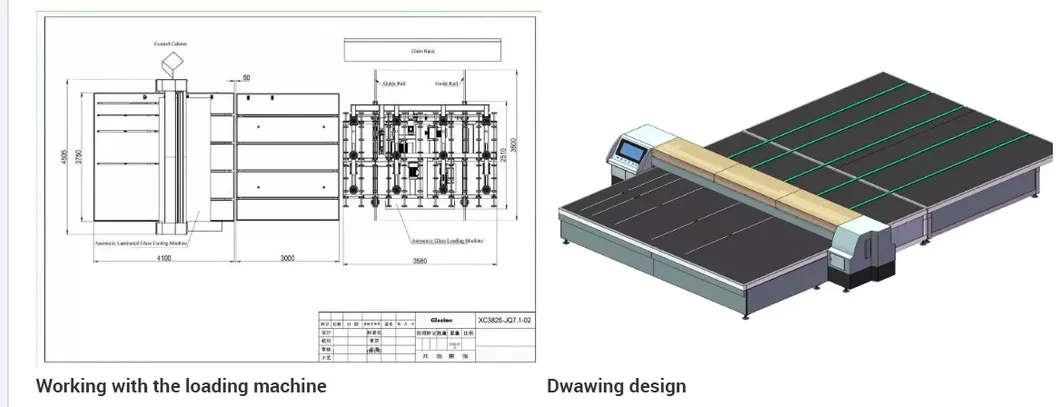

Dimension Layout
🔌 Main Electrical Components

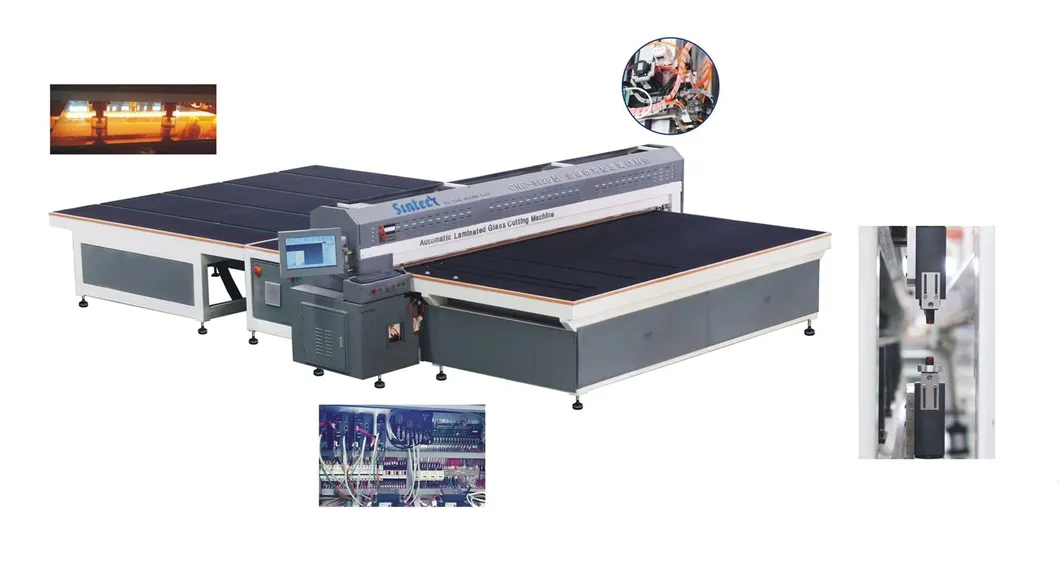

Main Parts

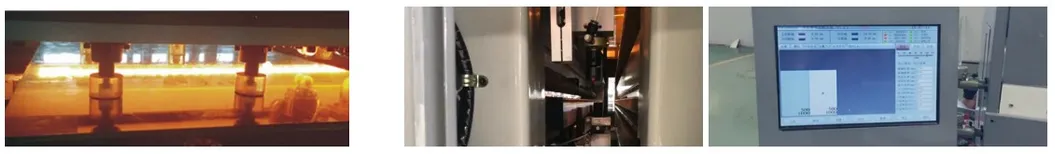

Electrical Parts
  • Control: PC computer based on Microsoft Windows interface.
  • Power: 415V/380V/50HZ with integrated voltage regulator.
  • Motor & Encoder: Yaskawa servo motor and Omron encoder.
  • Controller: High-performance American industrial computer.
  • Heating: Short-wave gold-plated infrared heating tube (5000H lifetime).
  • Pneumatics: Japanese SMC proportional valve.
🚢 Packaging & Shipping

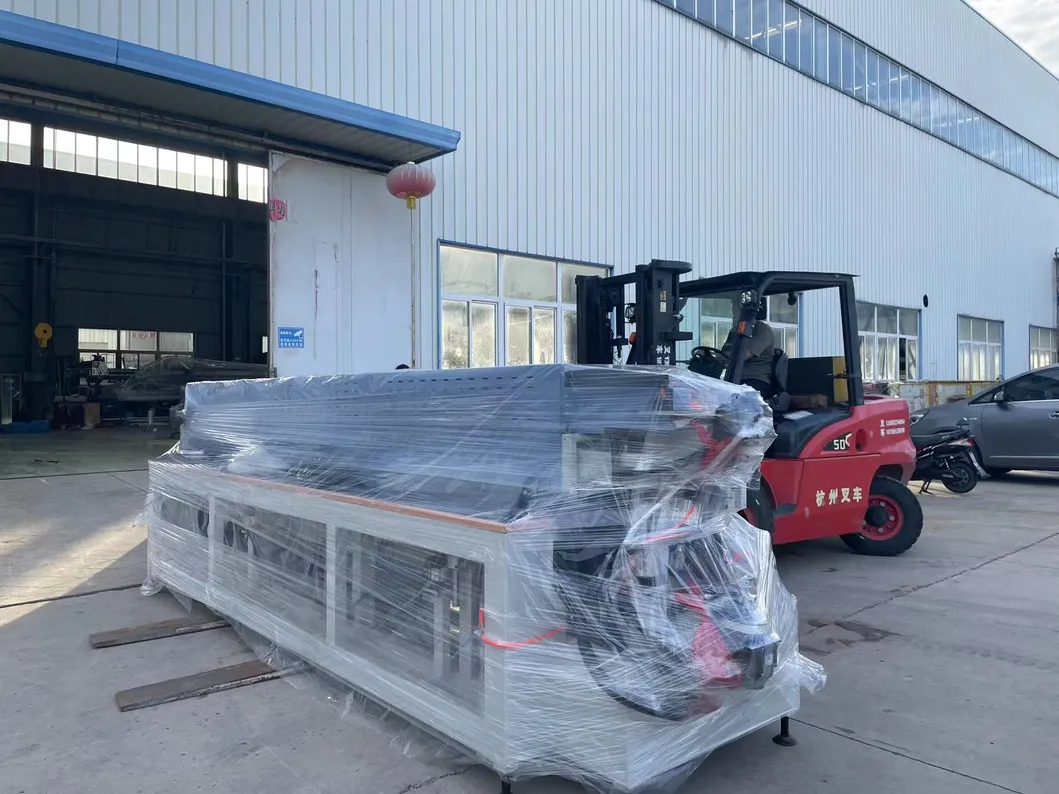

Packing 1
Packing 2
🌍 Global Presence & Exhibitions

Participating in major international events: Italy VITRUM, Mexico Machine Exhibition, India Exhibition, and China Exhibition.

Exhibition
🏢 Industry Expertise

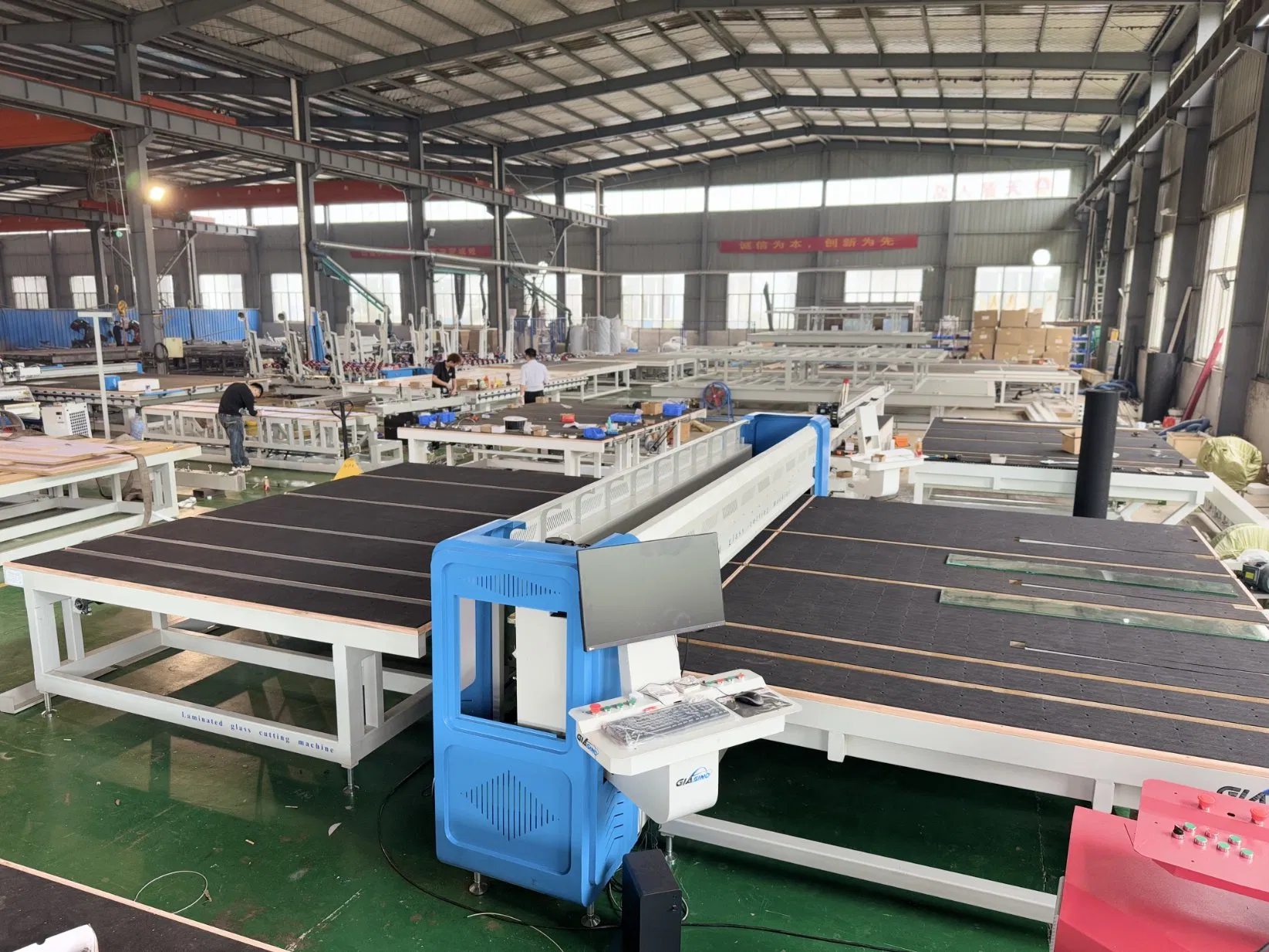

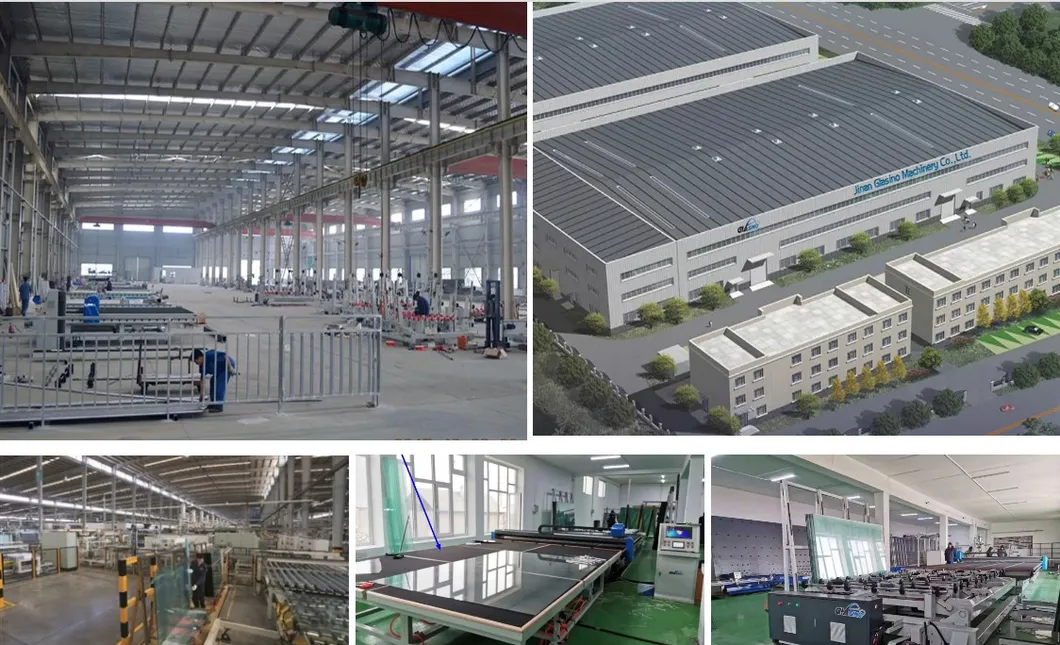

Factory Profile

Founded in 2003, we are a high-tech enterprise specializing in CNC glass cutting machines, insulating glass machines, and curtain wall glass machinery. Our product range includes automatic glass cutting lines, multifunctional glass cutters, and full processing machines for insulating glass.

Certified with European CE, Switzerland SGS, and ISO 9001:2008, we maintain a commitment to outstanding quality and continuous innovation to meet global market needs.

💡 Fully Intelligent System
Intelligent System
  • Positioning: Servo motor precision control.
  • Edge-finding: Fiber-optic sensor for automatic detection of cutting position.
  • Cutting: Simultaneous upper and lower cutters with automatic oil filling.
  • Bracts: Fully automatic mechanism for upper and lower cymbal completion.
  • Separation: Glass shards are completed via automated heating and separation.
⭐ Recommended Products
Other Machines
❓ Frequently Asked Questions
What is the maximum glass size this machine can handle?
The maximum glass sheet size for the GS-LM3826 model is 3700 x 2600mm.
What thickness of laminated glass can be cut?
The machine supports laminated glass thickness from 3+3mm up to 10+10mm, with film thickness (PVB/EVA) ranging from 0.38mm to 1.52mm.
How does the machine heat the laminated film?
It uses short-wave gold-plated infrared heating tubes, which are far-infrared heating elements with adjustable temperature and time settings.
What is the precision level of the cutting?
The machine offers high precision with a straight line parallelism of ≤±0.20mm per meter.
Does the machine require manual measurement?
No, the machine features an intelligent edge-finding system with fiber-optic sensors that automatically detect glass position and cutting distance.
What control system is used for operation?
The system is controlled by a high-performance industrial PC with a Microsoft Windows interface for easy and intuitive operation.
