Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
1 / 5
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine
Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine

Jfe-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine

Customization: Available
Certification: CE
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
JFE-9540
Max Glass Size
2000mm
Min Glass Size
100X100mm
Thickness
3-25mm
Glass Drive Speed
0.5-5m/Min
Weight
3300kg
Angle
0-45 Degree
Machine Size
8000X1700X2200mm
Type
Glass Edging Machine
Grinding Head Number
9
Control System
Manual
Production Capacity
30sets/ Month
⚙️ Product Description

JFE-9540 Glass Straight Line Bevel Multilevel Edging Grinding Machine

🎯
It is suitable for processing different thickness and sizes for flat glass straight line and 45 degree line edging. The First five head can be adjusted and rotate 0-45 degree in angle, in the meantime, the wheels can move forward and backward as a whole part.
💎
Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It's 11 grinding heads have a powerful function to eliminate lines of glass, which can strongly improve the polishing brightness of glass.
🏗️
The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performances.
🛠️
The front and rear beams, beds and grinding heads are of 40 Cr forged materials, whose surfaces is much more durable with high-frequency quenching treatment after fine grinding.
⚡
Special head motor and high-quality electric components are utilized. This machine offers flexible operation, high working efficiency and wide range of application. It's the preferred equipment especially for furniture and building industry.
🖼️ Visual Display

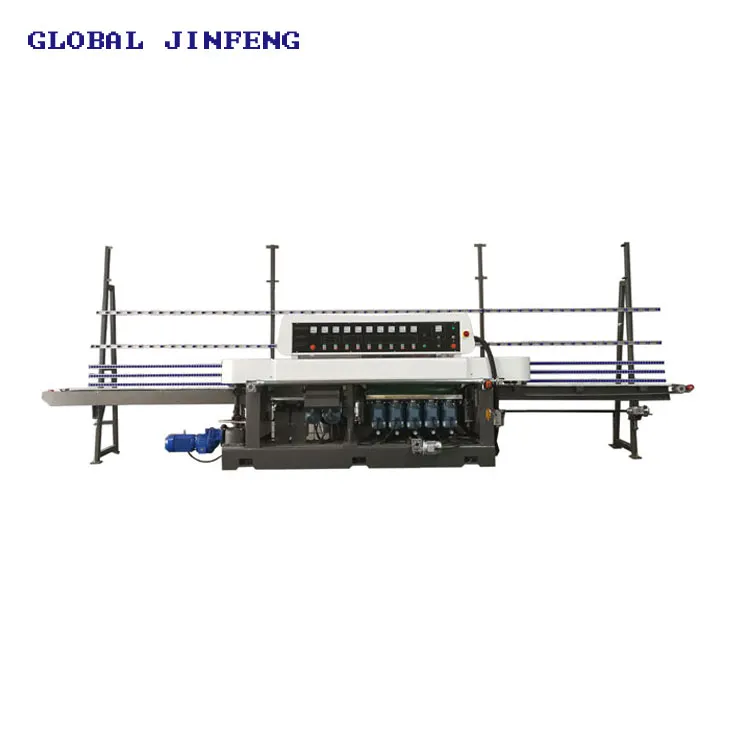

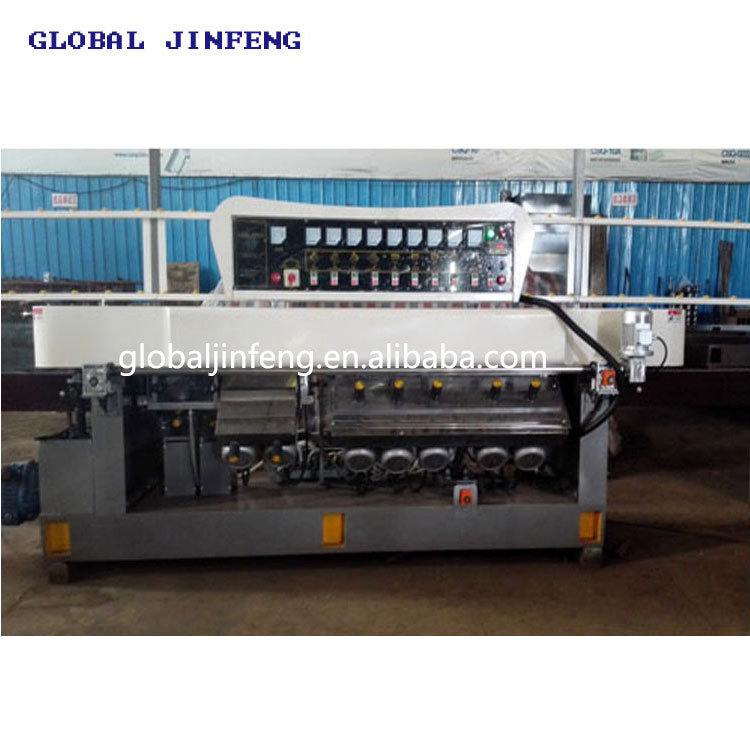

Glass Edging Machine View 1

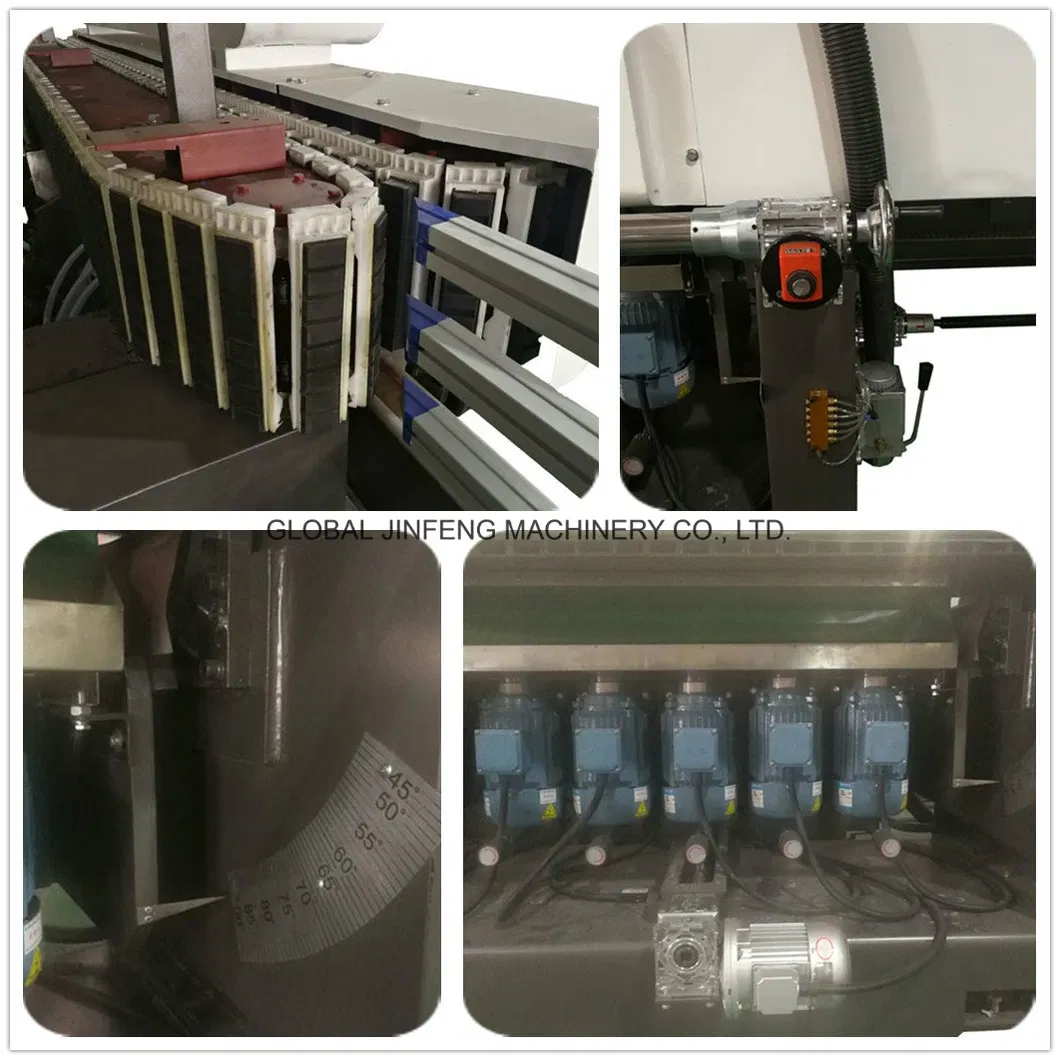

Glass Edging Machine View 2

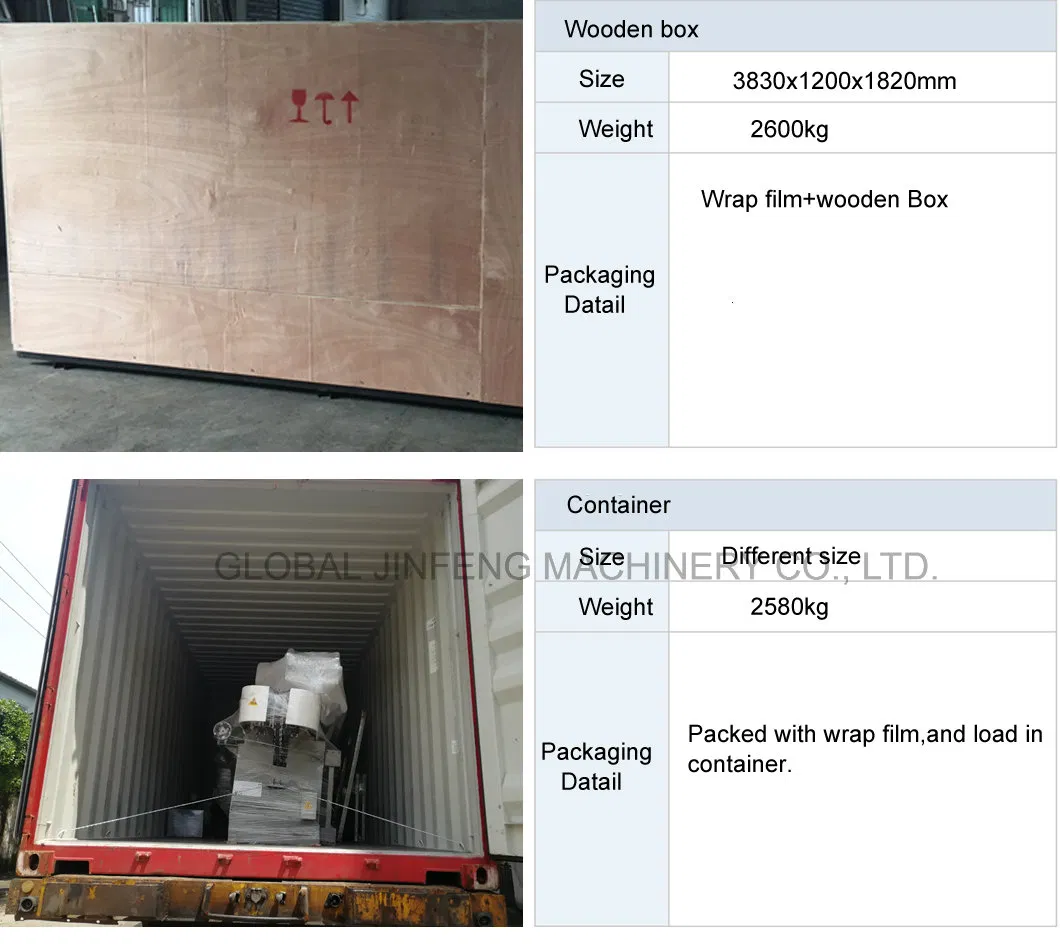

Glass Edging Machine View 3
Glass Edging Machine View 4
Glass Edging Machine Factory View
📊 Technical Parameters
Max glass size2000mm
Min glass size100x100mm
Thickness3-25mm
Power20kw
Weight3300kg
Dimension8000x1700x2200mm
❓ Frequently Asked Questions
Q1: What types of glass can the JFE-9540 process?
A: The machine is designed for flat glass processing, specifically for straight-line beveling and multi-level edging. It is ideal for furniture and architectural glass applications.
Q2: Can the grinding angle be adjusted for different projects?
A: Yes, the first five grinding heads can be adjusted and rotated from 0 to 45 degrees, allowing for versatile beveling and edge profiles.
Q3: What is the maximum thickness of glass the machine can handle?
A: This machine can process glass with a thickness range from 3mm up to 25mm.
Q4: Does the machine require multiple passes for polishing?
A: No, the JFE-9540 is designed to complete coarse grinding, fine grinding, polishing, and chamfering all in one single pass.
Q5: How does the machine ensure long-term durability?
A: The machine base and key components are made of high-quality casting materials that are annealed to prevent deformation, ensuring stability under heavy loads.
Q6: What is the production capacity of this model?
A: The production capacity is approximately 30 sets per month, with a glass drive speed adjustable between 0.5 to 5 meters per minute.
