Product Description

i

Basic Information

Model NO.
YX-30L
Type
Desktop Beveling Machine
Style
Desktop
Layout
Horizontal
Automatic Grade
Automatic
Power Source
Electric
Certification
CE, ISO
Power Supply
380V/50Hz
Spindle Speed
1440r/Min
Clamping Plate Thickness
3-40mm
Groove Angle
30°-60° (Adjustable)
Blade Diameter
80mm
Production Capacity
1000 Sets/Month
⚙

Product Description

Product Banner

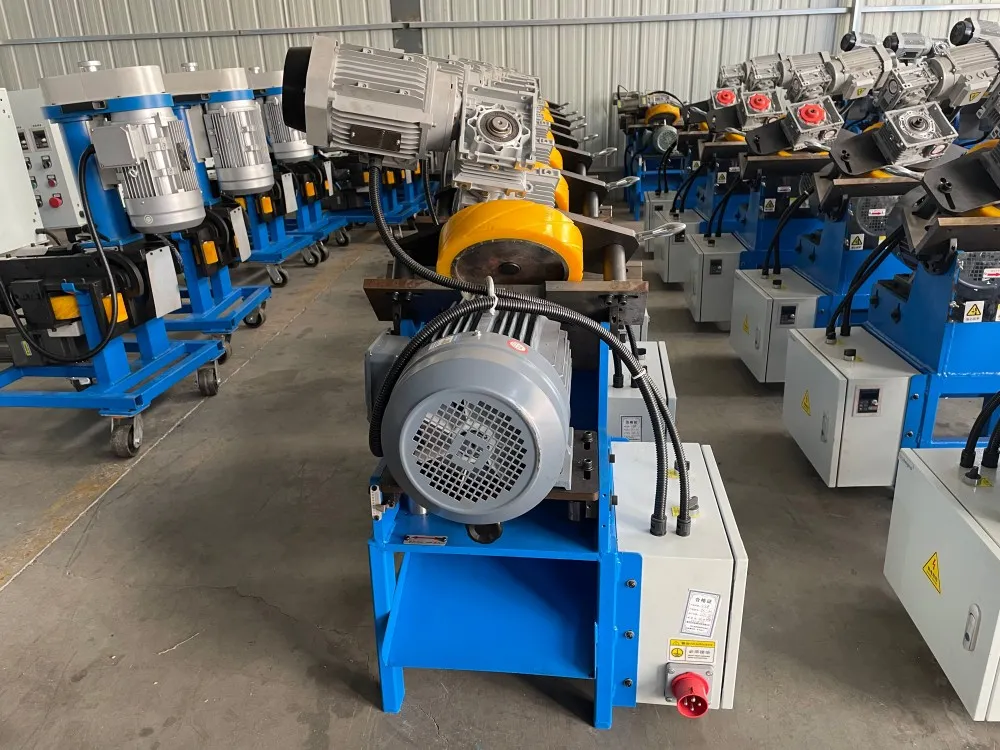

Product Feature View

Main Features

  • High flexibility in small piece processing, significantly improving efficiency.
  • Complete cold cutting processing ensures no oxidation deformation on the surface.
  • Meets strict welding technology requirements for non-destructive testing.
  • Adjustable processing speeds (fast or slow) for various applications.
  • Superior efficiency compared to manual chamfering methods.
  • Versatile application across a wide range of bevel objects.
📋

Technical Parameters

Parameter Specification
Power Supply380V/50Hz
Motor PowerTotal: 6.6KW (Main: 5.5KW, Traveling: 1.1KW)
Spindle Speed1440r/min
Groove Speed0-1.5 m/min (Variable frequency adjustable)
Clamping Plate Thickness3-40mm
Groove Angle30°-60° (Adjustable at will)
Blade Diameter80mm
Number of Inserts20pcs
Workbench Height800mm
Single Groove Width20mm
Product Dimensions960 * 810 * 1150 mm
Product Weight250kg
Processing MaterialCarbon steel, stainless steel, alloy steel, cast iron, aluminum, etc.
Groove SmoothnessRa3.2-6.3

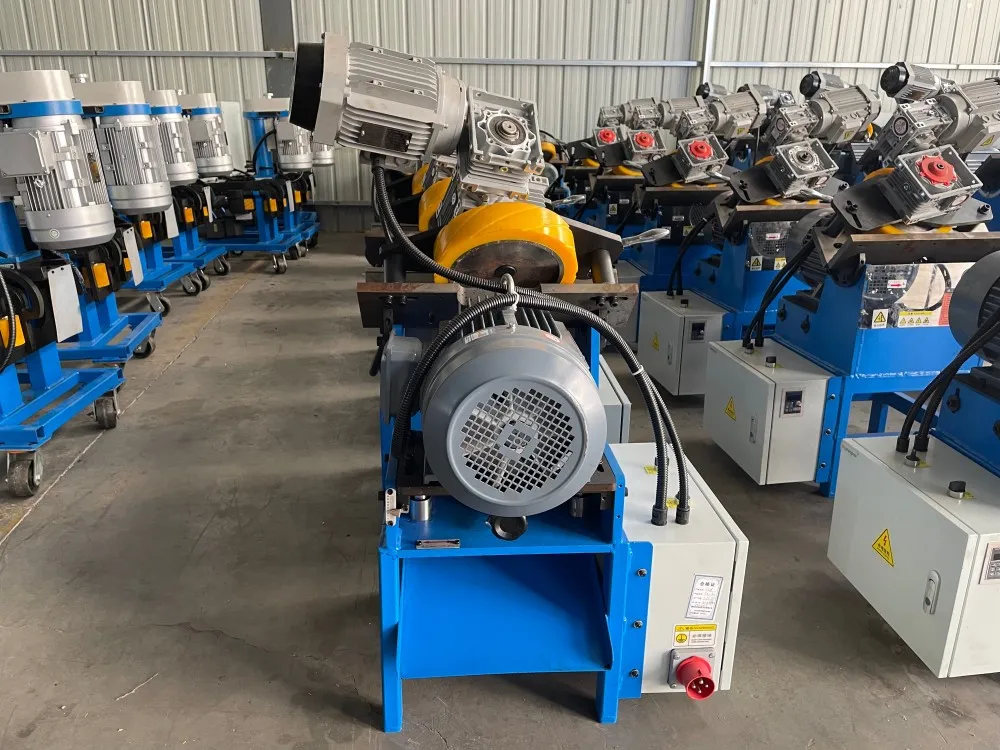

Machine Detail 1

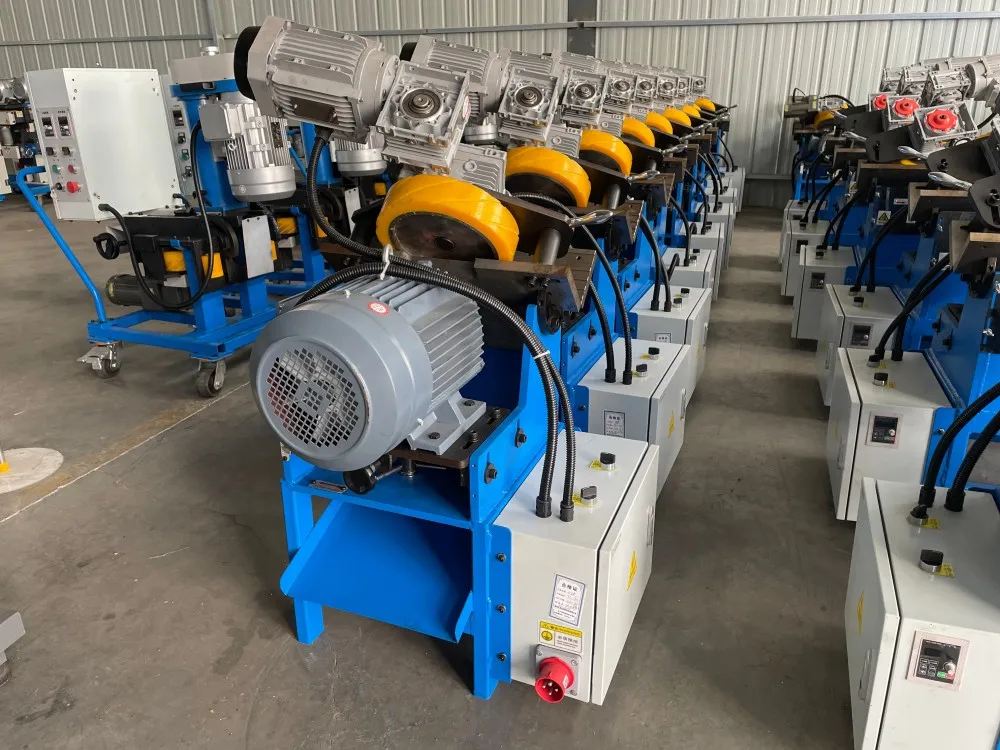

Machine Detail 2

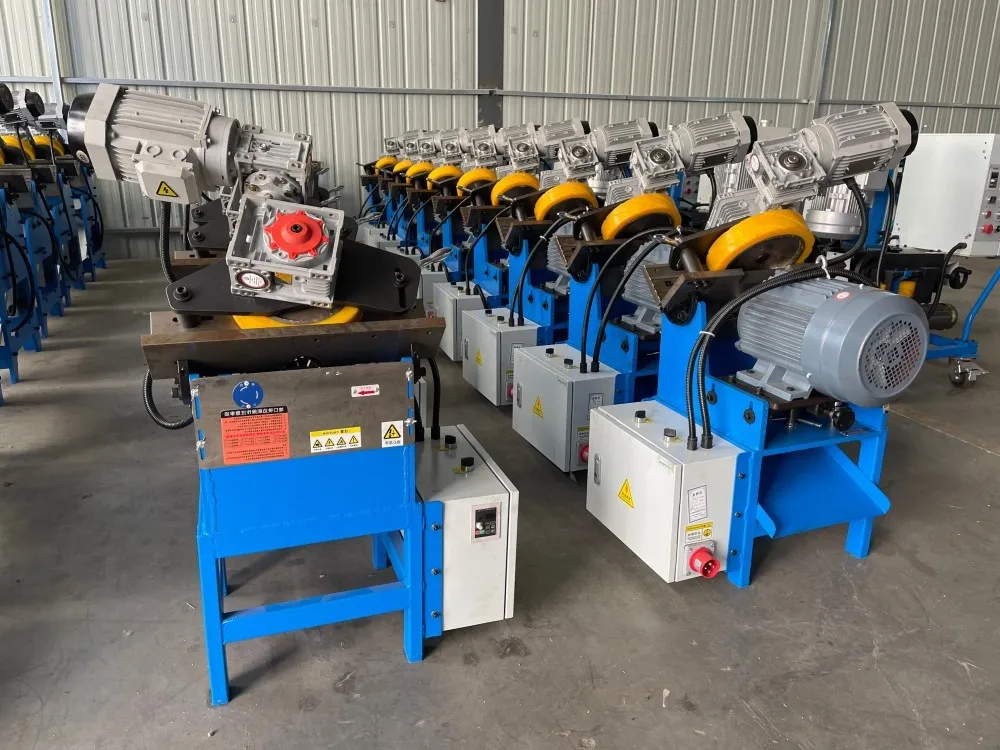

Machine Detail 3
📦

Packaging & Operations

Operation Showcase Packaging and Shipping
?

Frequently Asked Questions

Q: Are you a trading company or a real manufacturer?
A: We are a professional manufacturer of beveling machines, established in 2012. Our facility covers production, R&D, and after-sales service under one roof.
Q: How fast can you deliver after payment?
A: Most standard models are in stock and can be shipped within 3-5 working days. For customized models, the lead time is usually 10-15 days.
Q: What about your after-sales service?
A: We provide a one-year warranty for all machines, lifelong technical support, and free online training. Professional engineers are available for remote or on-site guidance.
Q: How can I be sure of your product quality?
A: All machines are manufactured under ISO9001 management with CE certification. Every machine undergoes strict testing before delivery to ensure reliability.
Q: Do you provide customized machines according to project needs?
A: Yes. Our R&D team can design and manufacture tailor-made beveling solutions based on specific requirements like plate size, angle, and material integration.
Q: What materials can the machine process?
A: Our beveling machines are designed to process a wide range of materials including carbon steel, stainless steel, alloy steel, cast iron, and aluminum plates.
