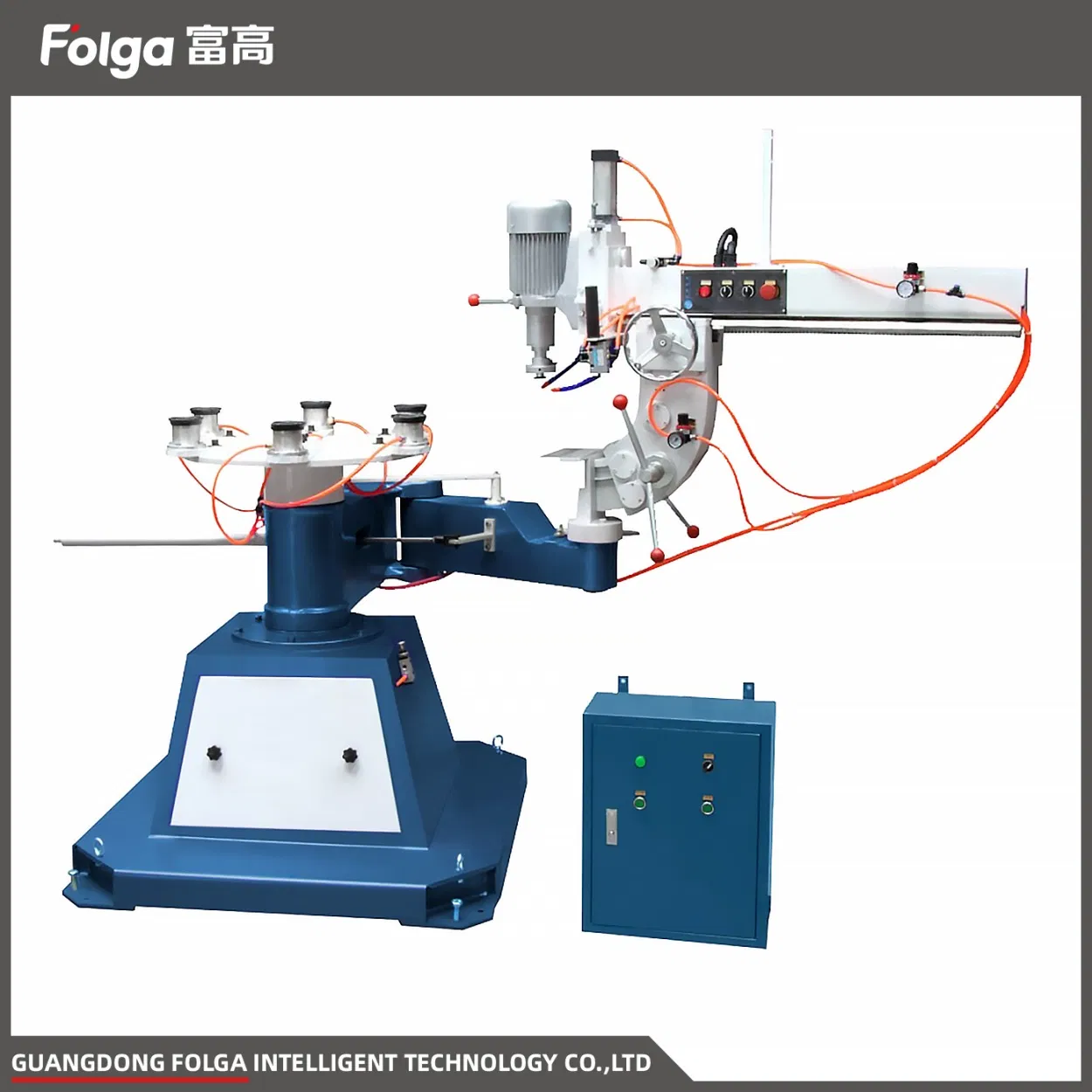

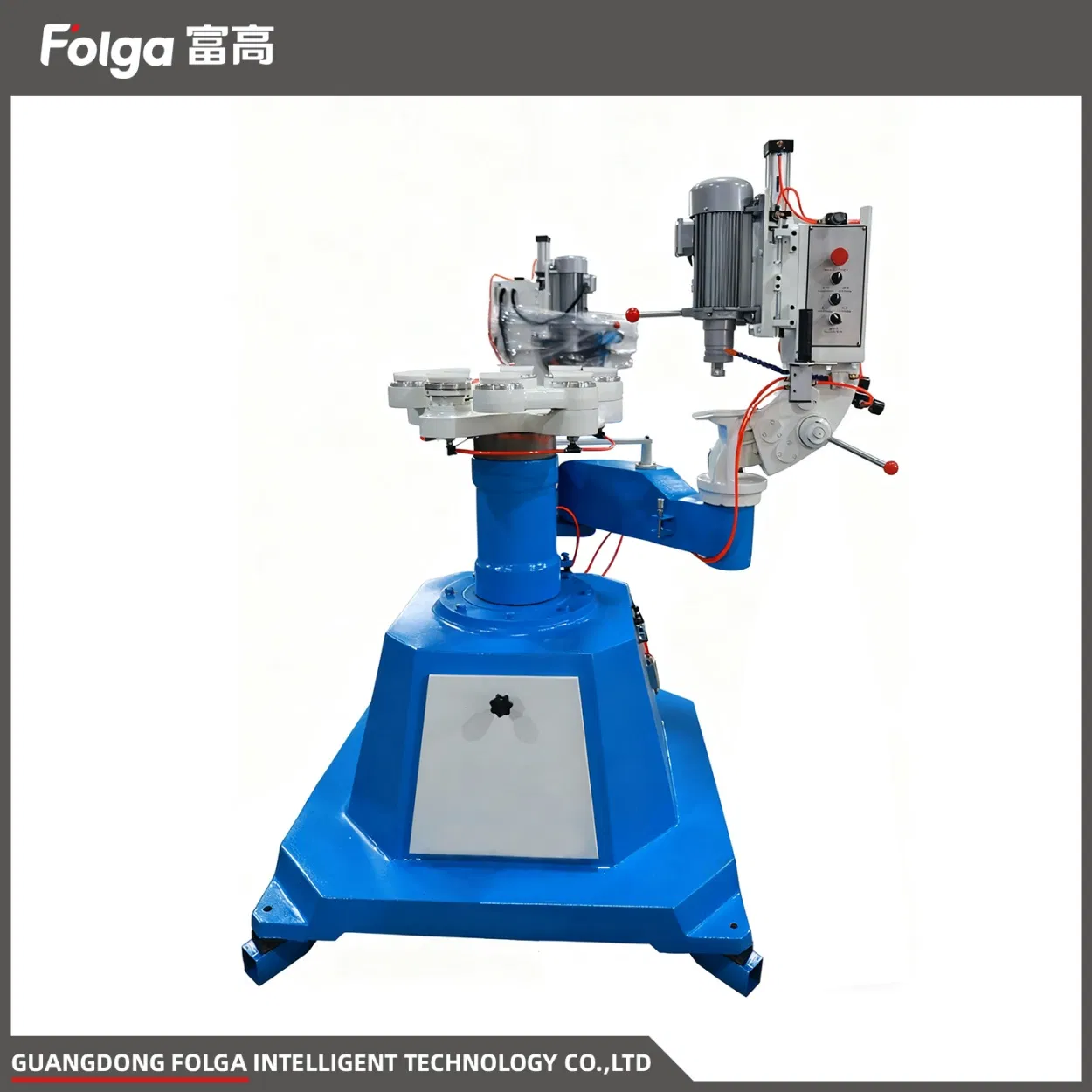

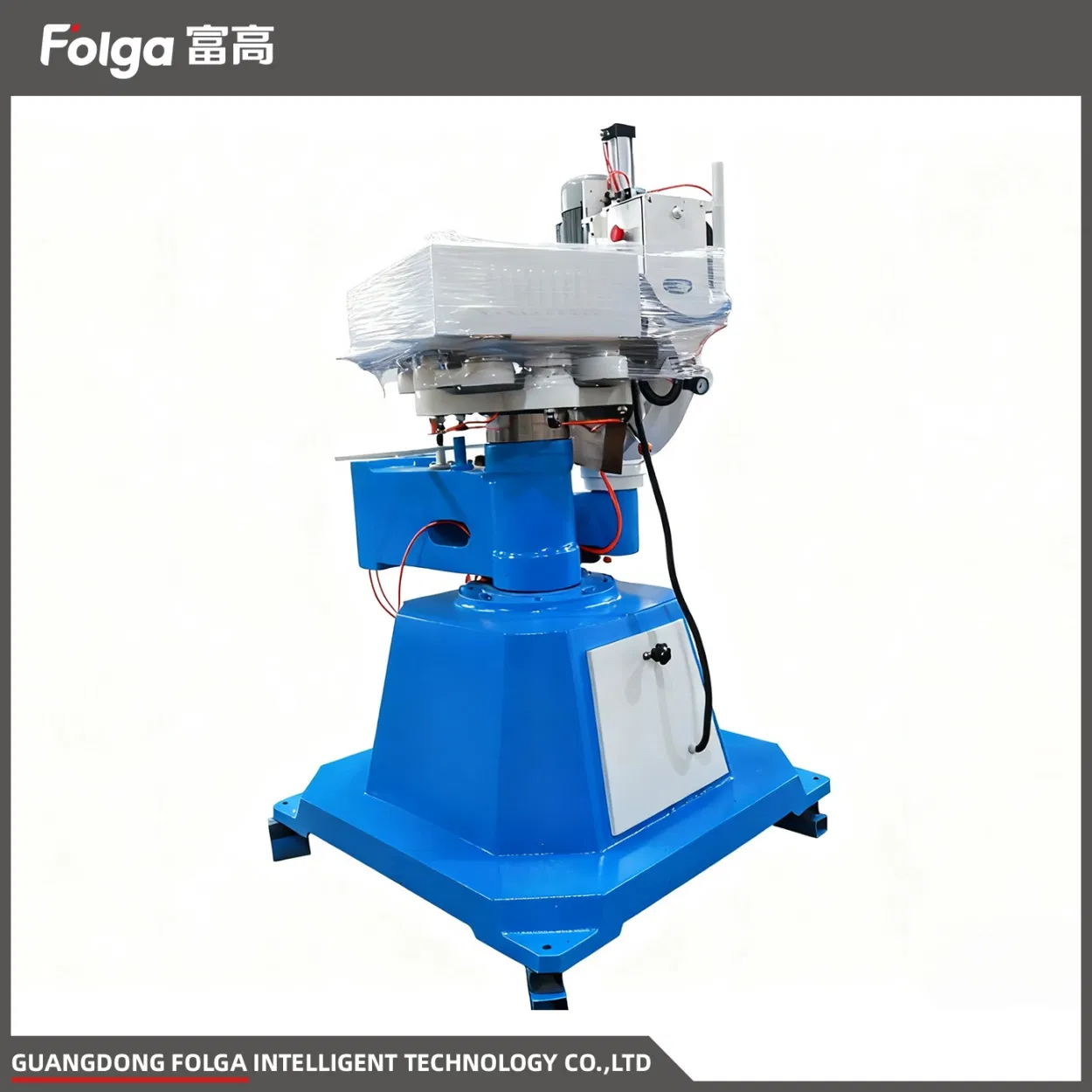

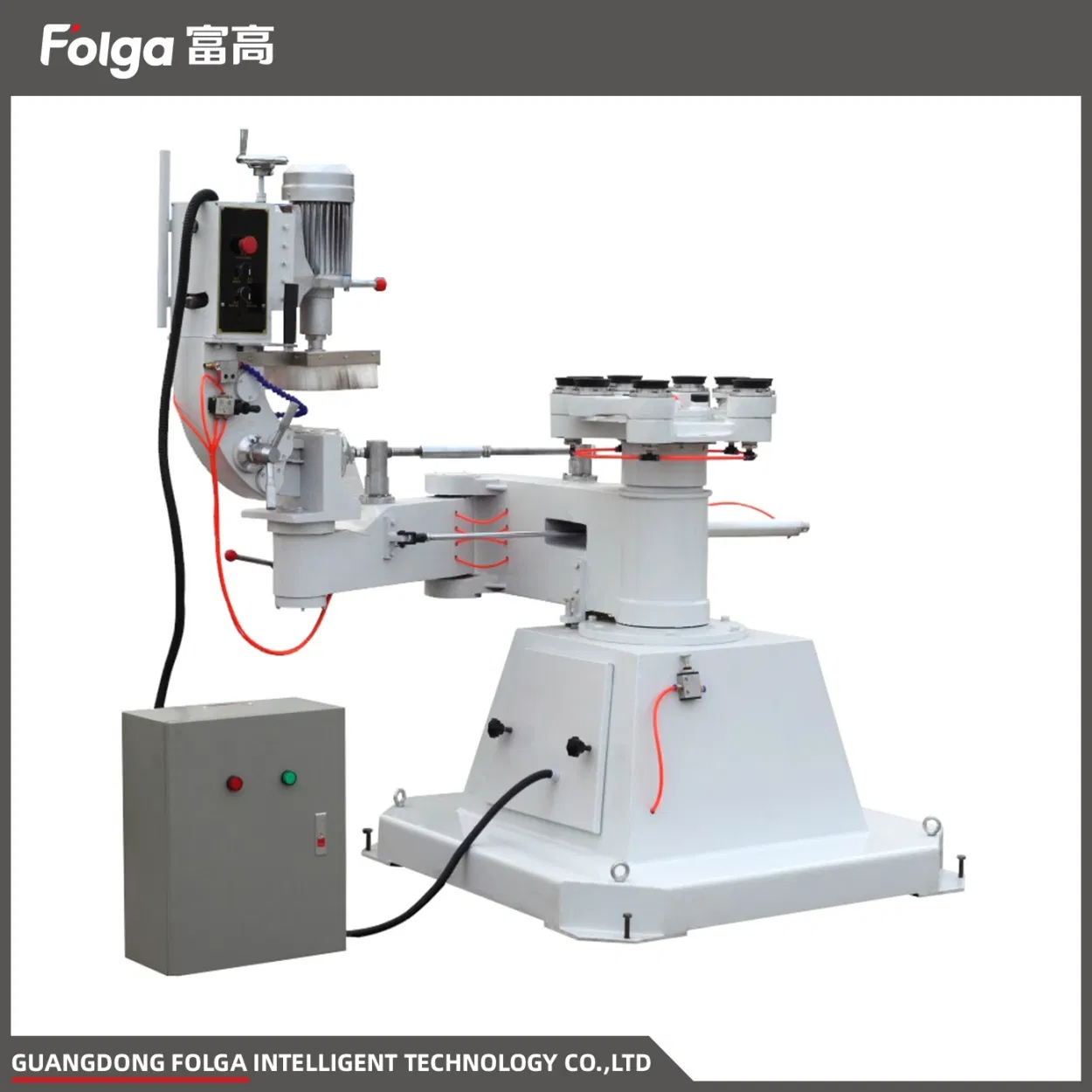

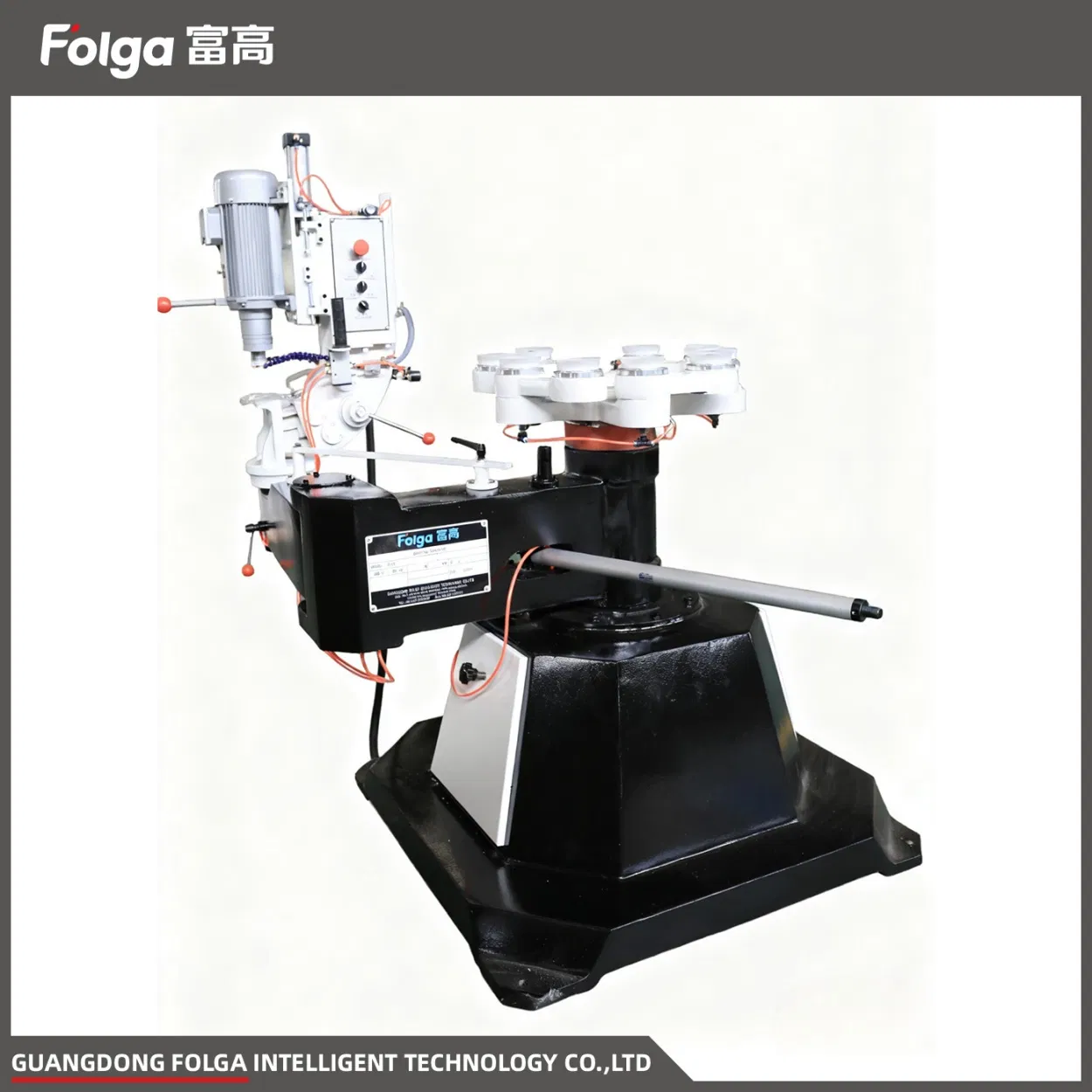

Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
1 / 5
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass
Irregular Glass Edging Unique Machine for Round Shape Glass

Irregular Glass Edging Unique Machine for Round Shape Glass

Customization: Available
Processing Thickness: 3-21mm
Voltage: 380V
Send Inquiry

Product Description

📊

Basic Information

Model NO.
FA1-6
Max Width of Bevel
35mm
Bevel Degree
0-20°
Rotating Speed Bevel
0.8-4r/MIM
Power
2.6kw
Weight
1000kg
Transport Package
Wood Box/Container
Specification
1300x1300x1700mm
Origin
China
⚙️

Product Description & Functions

Irregular Glass Processing: The machine is suitable for grinding and polishing the flat edge, bevel edge, and ogee edge of circular, oval, and other irregular glass sheets.
Steady Operation: When the machine is running, the glass will be adhered to the vacuum suction cup steadily. The rotation working table powered by the motors will spin at a specified speed with a wide range to choose from.
Versatile Grinding: The machine can achieve rough grinding, refined grinding, and polishing functions with the installation of 3 grinding wheels. To process the bevel edge, adopt a bowl-shaped wheel and adjust the angle of the motor.
Irregular Glass Edging Machine 1

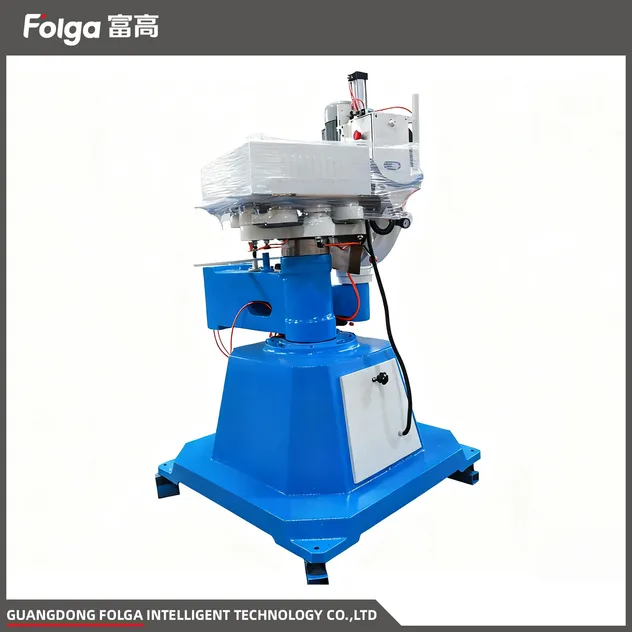

Irregular Glass Edging Machine 2
Irregular Glass Edging Machine 3
📋

Technical Specifications

Glass thickness3-21mm
Max. glass diameter100x2100mm
Bevel angle0-20°
Max. width of bevel35mm
Rotating speed of turntable0.8-4r/mim
Rotating speed of sucker1.2-6r/min
Total power2.6KW
Total weight1000kg
Dimension1300x1300x1700mm
Glass Edging Machine Detail
Glass Edging Machine Process
❓

Frequently Asked Questions

What are your main products?
We mainly produce glass single edging machines, glass double edging machines, and glass seaming machines. We also offer washing machines, loading & unloading machines, irregular glass shaping machines, and drill machines.
How many years of manufacturing experience do you have?
We have over 21 years of history since 2004, providing stable technology, quality assurance, and prompt after-sales service.
Do you provide on-site installation and training?
Yes, global installation and training services are available to ensure your equipment is set up correctly.
Can you customize machines for JUMBO glass?
Yes, we can customize the machine size based on your specific requirements for jumbo-sized glass processing.
What kind of glass can your machines process?
Our machines process all kinds of glass with options for shiny polishing or matte grinding. We recommend the optimum machine based on your specific needs.
What is the troubleshooting process if a machine has a problem?
We respond within 8 hours. Within 24 hours, engineers provide step-by-step troubleshooting. If parts are needed, we dispatch them via DHL or other express services immediately.
