Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
1 / 5
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation
Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation

Irregular Glass Edging Round and Oval Beveling Shape Grinding Machine with Automatic Operation

Customization: Available
Certification: CE, ISO, UR
Processing Speed: 1-5 m/min
Send Inquiry

Product Description

Overview & Basic Information
Model NO.HHJGYM
Processing Thickness6-30 mm
Voltage380V
WarrantyOne Year
Transmission Speed0.75-3.5m/Min
Max Glass SizeUnlimited
Bevel Edge Angle0°-20°
Weight800kg
OriginChina
Production Capacity500 Sets/Month
Product Description

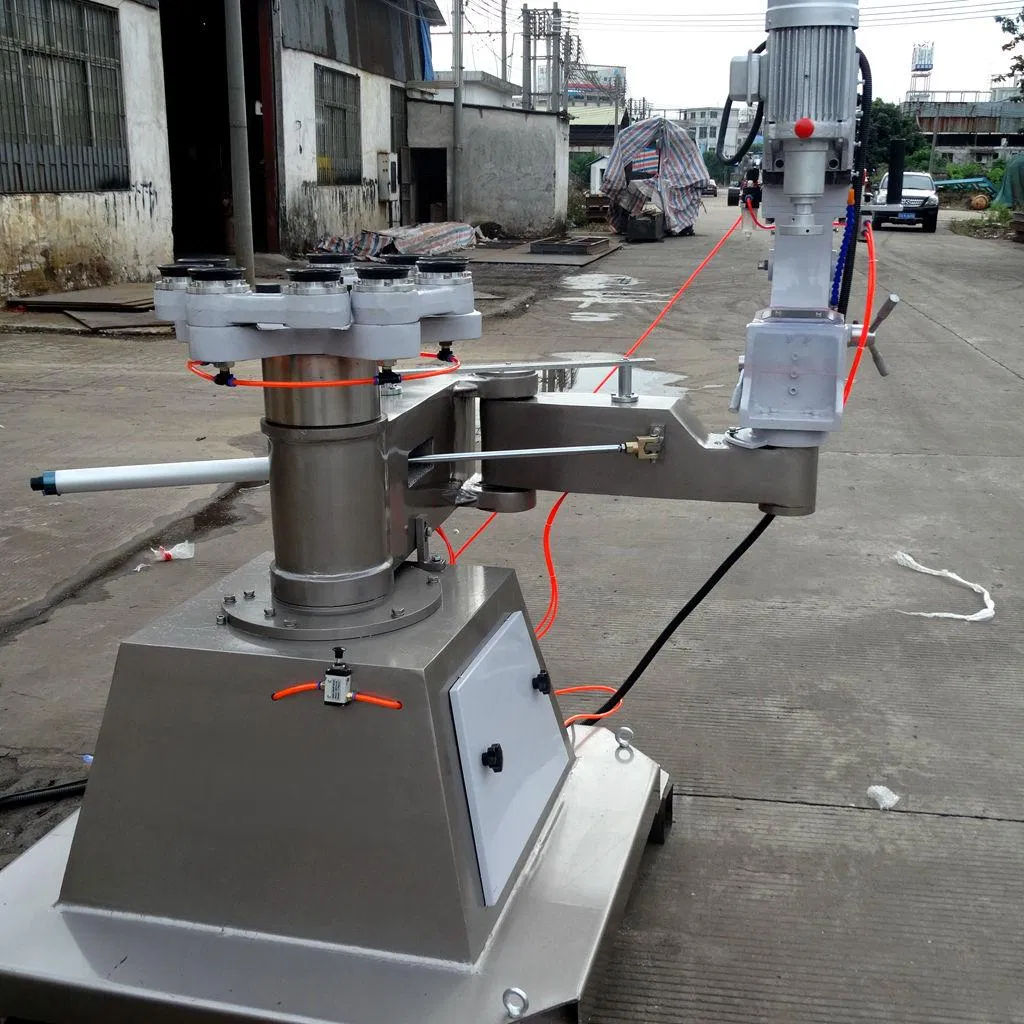

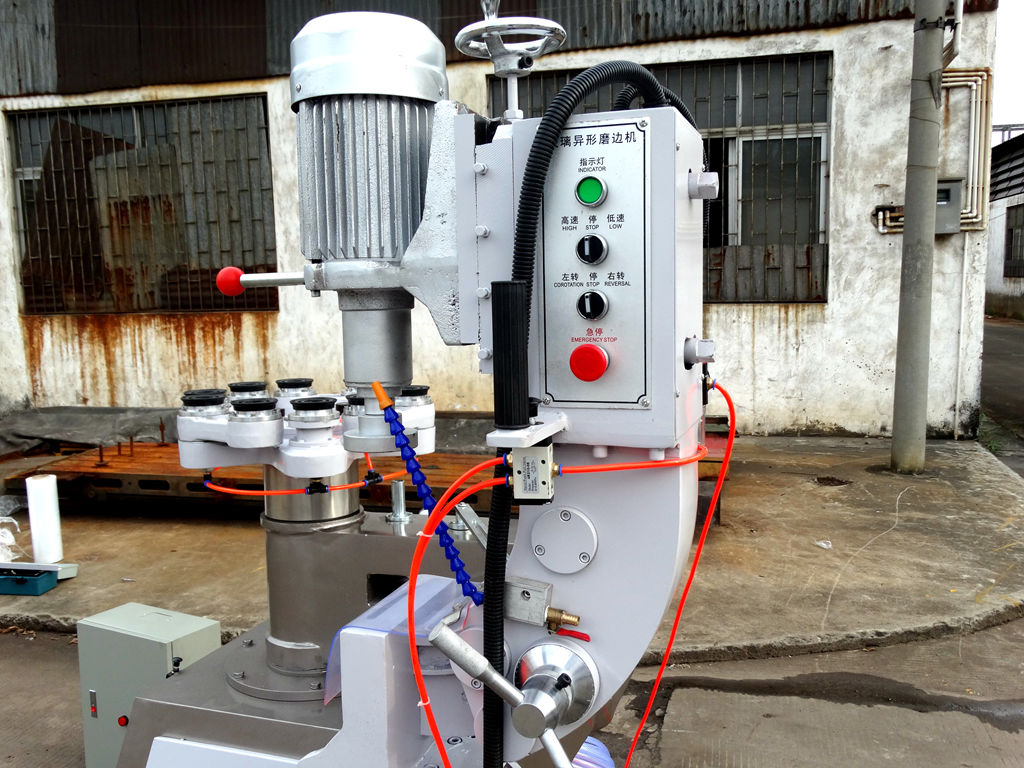

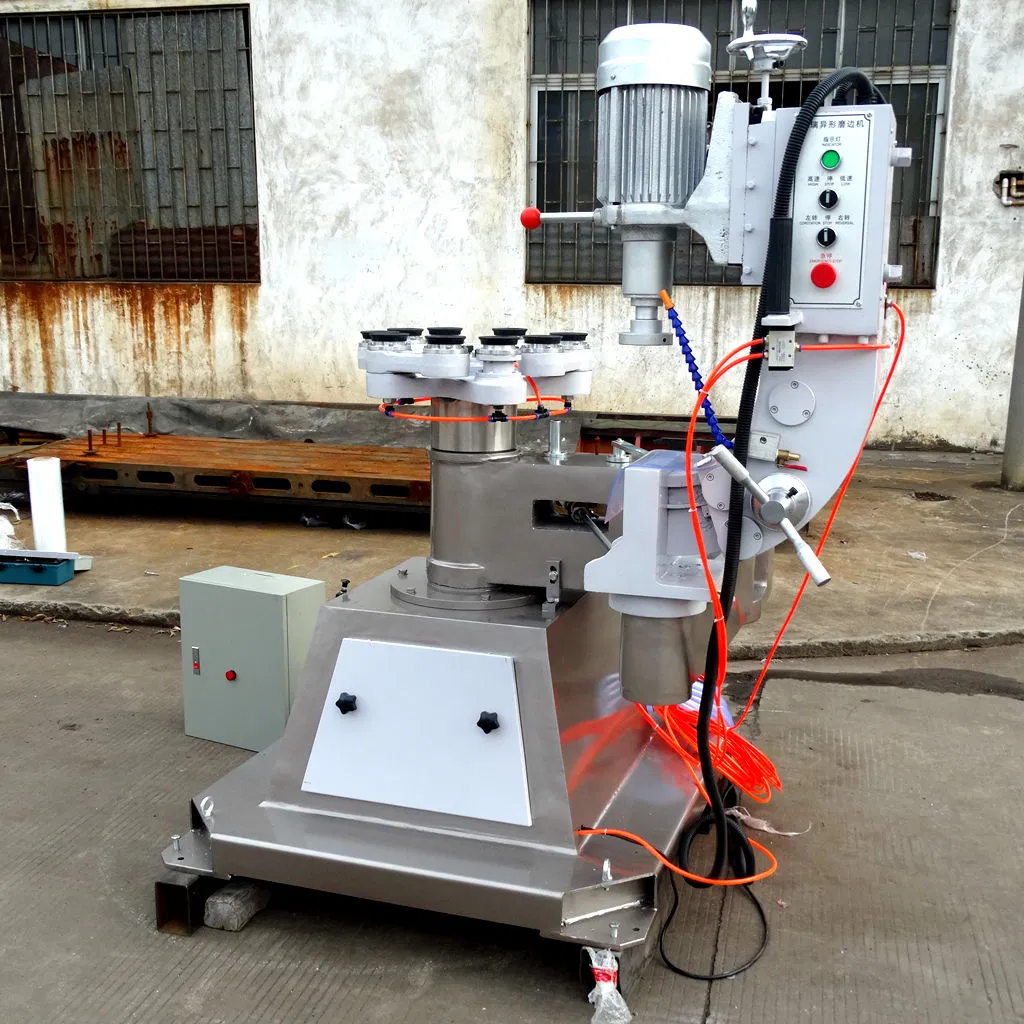

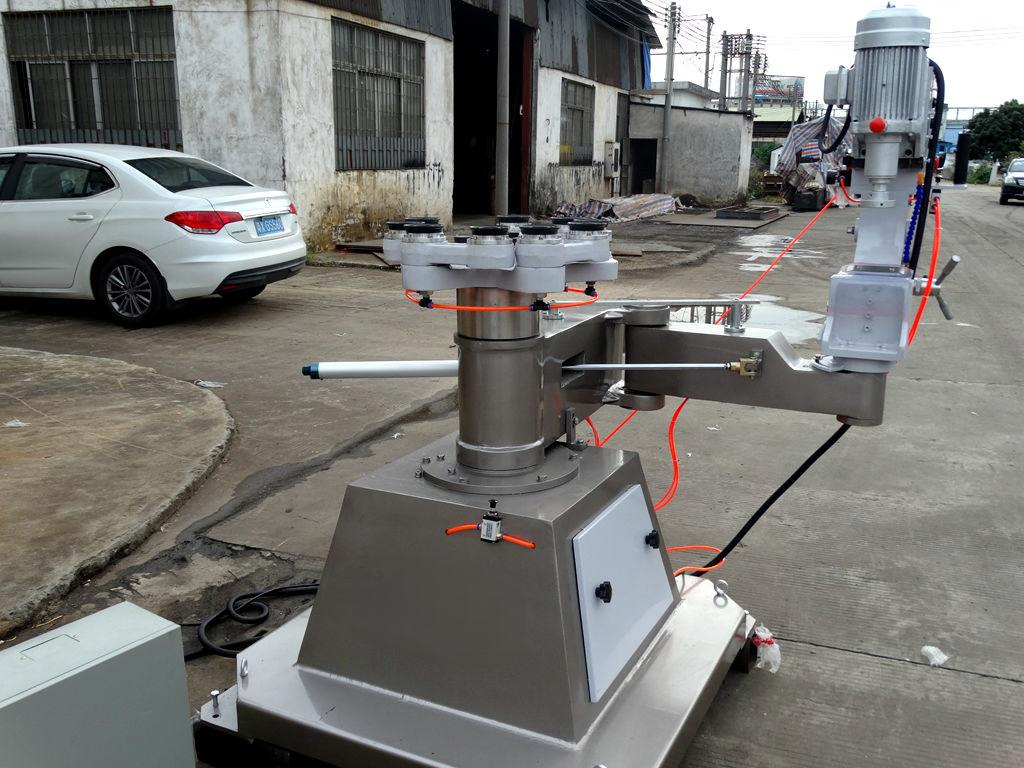

One-armed Irregular Edging Machine

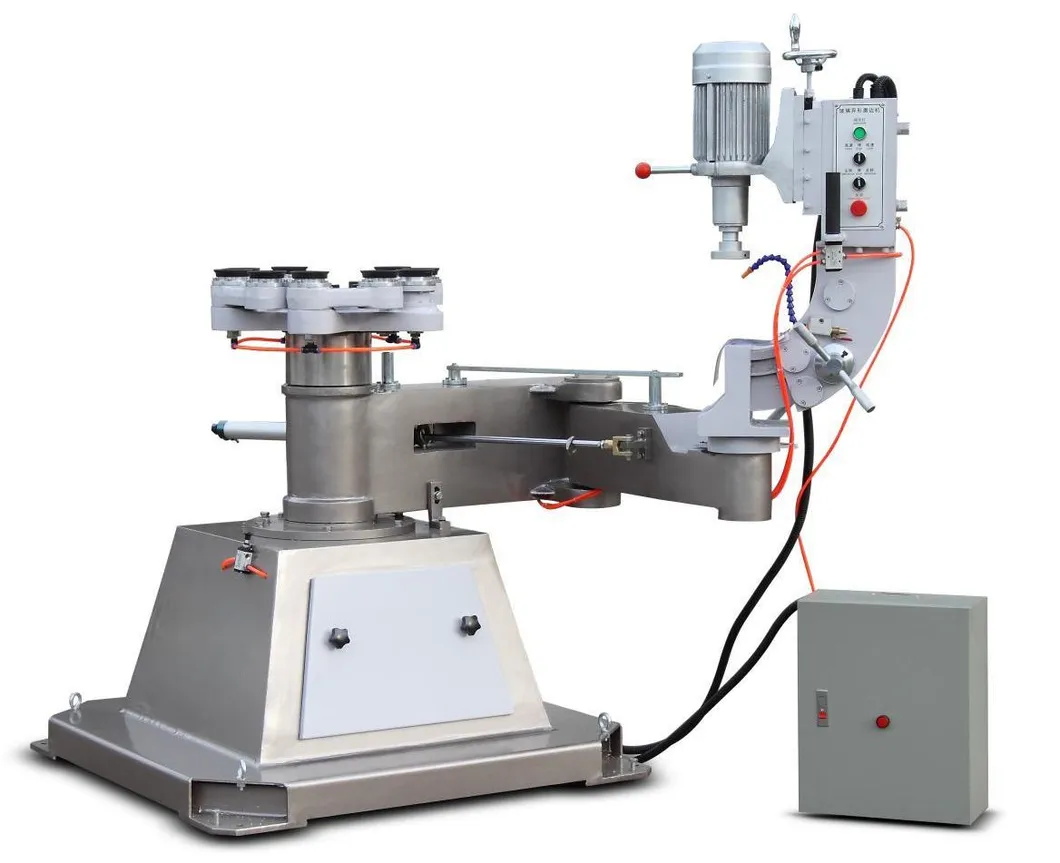

Irregular Glass Edging Machine

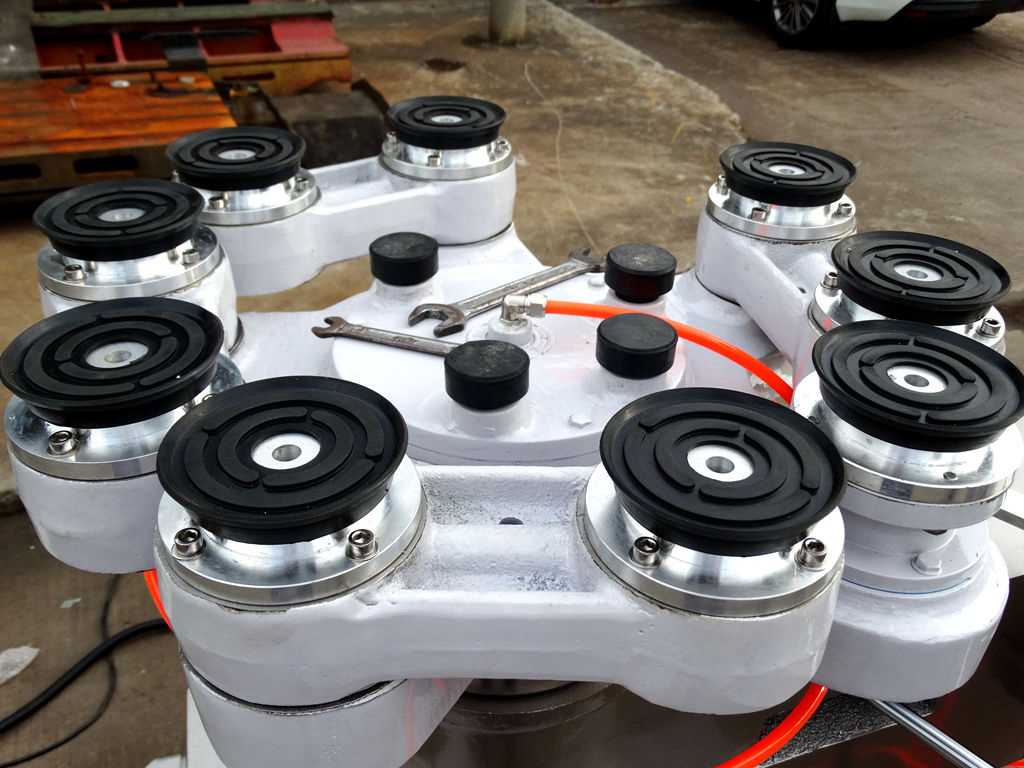

This machine is suitable for processing circular arc edges, duckbilled edges, and other shape deformations of various kinds of flat glass. Depending on the grinding wheels used, simple shapes can be implemented via semi-automatic grinding. We have specifically improved the accuracy of the rotary table to ensure precision on bevel edges. The added brake system eliminates movement clearance and exerts an adjustable moderate load to ensure long-term stability, reducing vibration and increasing efficiency.
Technical Parameters
Parameter Specification Parameter Specification
Model HHJGYM1320 Transmission Speed 0.75-3.5m/min
Max Glass Size Unlimited Glass Thickness 3-30mm
Parallel Error ±0.2mm/m Bevel Error ±0.2mm/m
Diagonal Error ±0.3mm/m2 Bevel Angle 0°-20°
Turning Diameter 100-2100mm Power Supply 380V/50Hz/3P
Overall Size 1770*900*1690mm Weight 800kg
Processing Results

Multiple edge types can be machined with various grinding wheels

Result 1

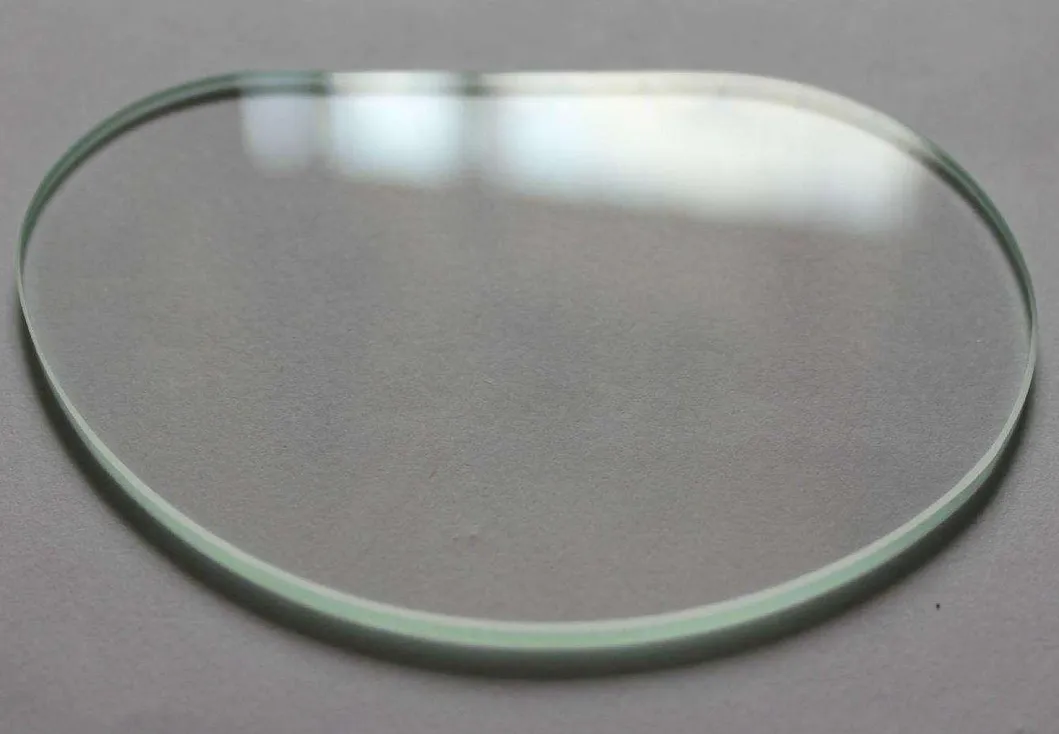

Result 2

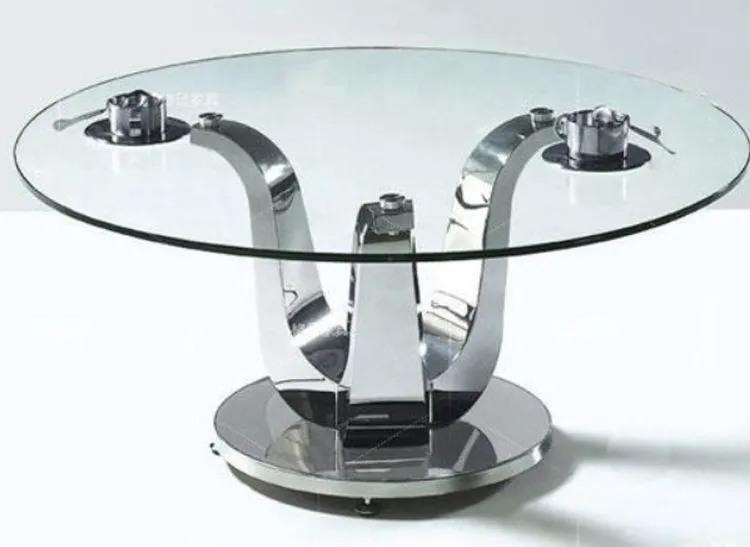

Result 3

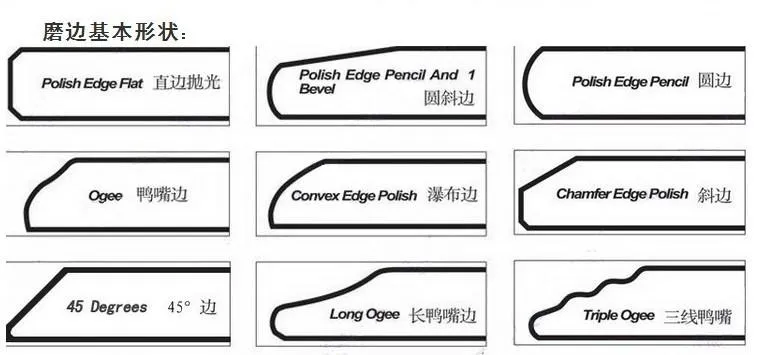

Edge Types
Detailed Components
Component Name Unit Qty Preview

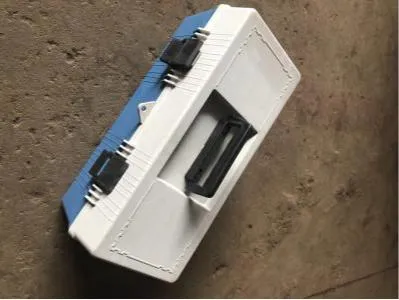

Toolbox Set Set 1 Toolbox

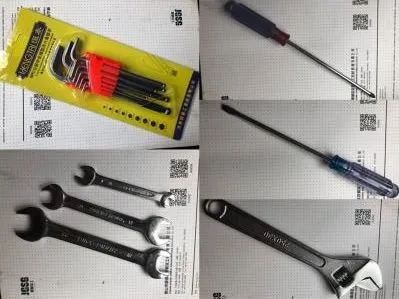

Hardware Tools Set 1 Tools
Universal Hose Pcs 2 Hose
Fabrication & Expertise

We are a leading provider of high-quality flat glass processing machinery and supplies. Our focus is on innovative and reliable equipment for fabricating, handling, and processing flat glass. Each system is specialized for specific machinery needs, characterized by long-lasting durability and high precision. We provide integrated solutions for glass units, insulated glass, window fabrication, and facade manufacturing.

Machinery Production
Frequently Asked Questions
What shapes of glass can this machine process?
The machine is highly versatile and can process circular arc edges, duckbilled edges, and various irregular deformations depending on the type of grinding wheel installed.
Is the beveling angle adjustable for glass edging?
Yes, the machine supports a bevel edge angle range from 0° to 20°, making it suitable for a wide variety of decorative glass applications.
What is the maximum glass thickness supported?
The machine can handle glass thicknesses ranging from 3mm up to 30mm, covering most standard and heavy-duty industrial glass requirements.
How does the machine ensure grinding precision?
It features an improved rotary table accuracy and an integrated brake system that eliminates movement clearance, significantly reducing vibration during operation.
Can the machine operate semi-automatically?
Yes, for glass with simple shapes, semi-automatic grinding can be implemented to increase production speed and consistency.
Is there a size limit for the glass being processed?
While the turning diameter is optimized for 100-2100mm, the machine is designed to handle "unlimited" maximum glass sizes for general edging tasks.
