Intelligent High Speed Full Automatic Glass Double Edging Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Basic Information

Parameter	Specification
Model NO.	SSZM4525L
Maximum Processing Size	4500*2500mm
Minimum Processing Size	330*300mm
Chamfering Size	1~3mm
Max Glass Removal (Bottom Edge)	5mm
Glass Diagonal Error	≤±0.5mm/m
Chamfer Width Error	≤±0.2mm/m
Glass Parallel Error	≤±0.2mm/m
Power	380V/50Hz
Pneumatic Working Pressure	0.5~0.8Mpa
Installed Power	≈132KW
Working Table Height	900±30 mm
Grinding Head Number	18
Structure	Vertical
HS Code	846420

Product Description

Intelligent High Speed Full Automatic Glass Double Edging Production Line

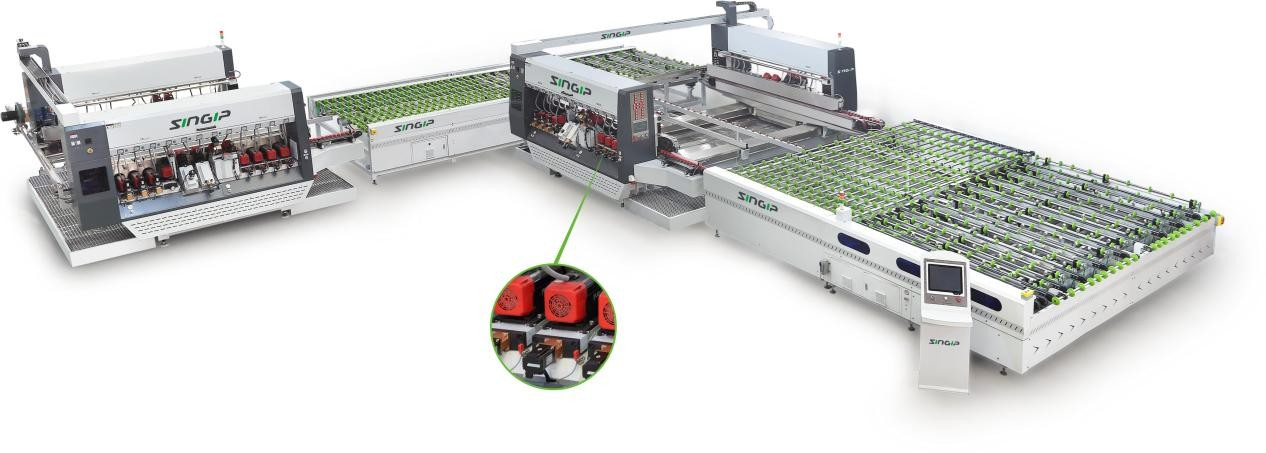

This 18-grinding-head production line features a testing platform, two intelligent double-edging machines, and an L-shaped turning platform, optimized for construction and furniture glass industries.

Key Features & Configuration

Intelligent & Efficient Standard industrial IoT system for remote monitoring, maintenance, and system upgrades. High-precision servo width adjustment.

Automatic Wheel Compensation Servo motors control diamond and resin wheels, automatically adjusting for wear based on processed meters.

Grinding Distribution Automatic switching of wheel positions based on glass thickness to maintain proportional grinding allowance.

Servo Polishing Compensation Flexible compensation ensures constant pressure on glass for superior polishing quality.

Servo Film Removal Maintains uniform quality for coated glass, reducing dependency on operator skill levels.

Energy Efficiency Permanent magnet synchronous motors with frequency conversion reduce no-load current by 50%.

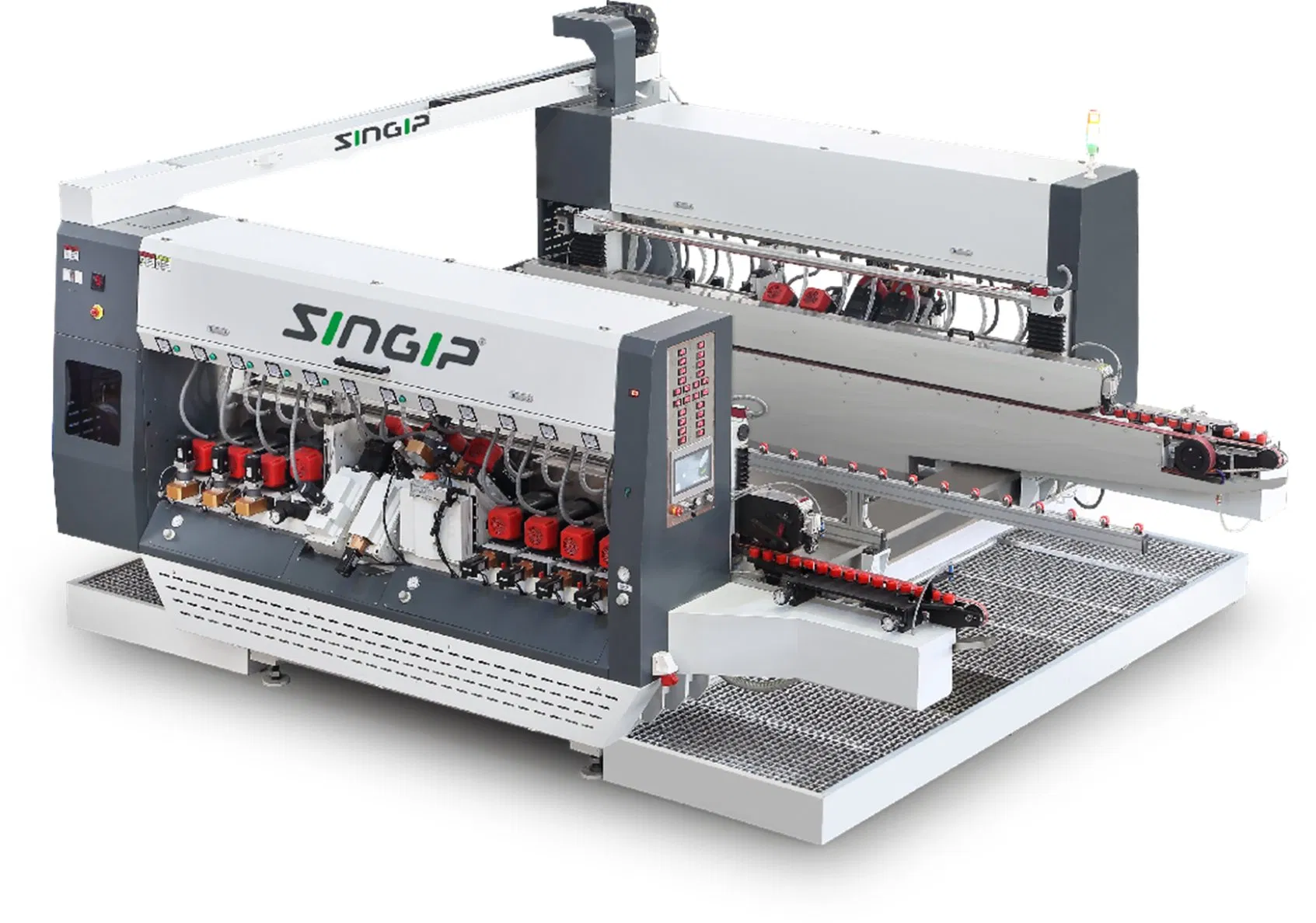

Glass Double Edging Machine

Technical Parameters

Model	Min Size	Max Size	Speed (Load)
SSZM-G18AC-3025L	300*300mm	3000*2500mm	0~20m/min
SSZM-G18AC-3725L	300*300mm	3700*2500mm	0~20m/min
SSZM-G18AC-4525L	330*300mm	4500*2500mm	0~20m/min
SSZM-G18AC-5030L	450*300mm	5000*3000mm	0~20m/min
SSZM-G18AC-6030L	450*300mm	6000*3000mm	0~20m/min

Core Components

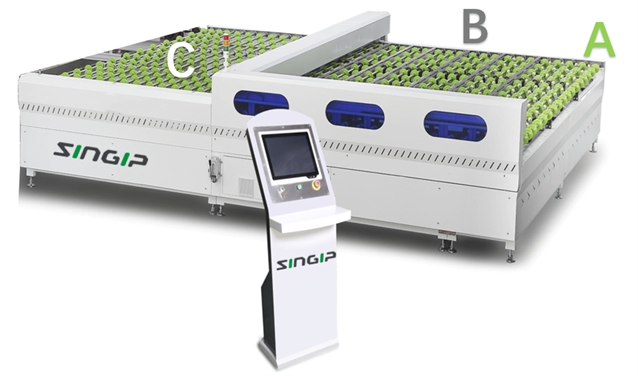

Dimension Detecting Table

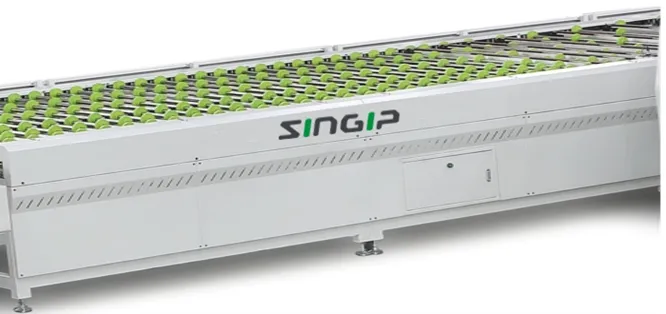

L-type Transfer Station

Structural Highlights

PLC Control: Automatic code scanning and size synchronization.
Robust Base: 12mm thick square tube structure with aging treatment to prevent deformation.
Precision Drive: Taiwan-brand helical gear racks and dual servo transmission.
Superior Guides: Double V-shaped slides for minimal vibration.

Company Profile & Certifications

Specializing in industrial machinery, our products reflect a commitment to quality and innovation. We provide affordable solutions for glass edging, beveling, drilling, and washing since 2012.

Global Presence

Actively participating in international exhibitions, we showcase advanced glass machinery to global enterprise managers and small business owners.

Frequently Asked Questions

Do you provide on-site installation and training?

Yes, we offer global installation services and operator training programs.

How are your glass machines packaged for shipping?

Machines are packed in containers with shock-absorbing materials like pearl cotton and film. Optional wooden box upgrades are available for long-distance ocean transport.

How do you ensure long-term operational stability?

We conduct rigorous endurance tests on all units before dispatch and use high-quality, durable components.

Can I request a custom order for specific machinery?

Yes, most of our machinery can be custom-configured to match your specific production requirements.

Where can I obtain spare parts?

We maintain a full array of spare parts in stock for all machinery models.

What is the warranty period for the equipment?

The warranty period is 12 months (excluding standard wear and tear parts).
