Glass vertical edge grinding line is automated equipment for glass processing, mainly used for glass edge grinding, chamfering, polishing and other processes. The equipment adopts an automated control system, which can operate continuously, reduce manual intervention, and improve production efficiency.

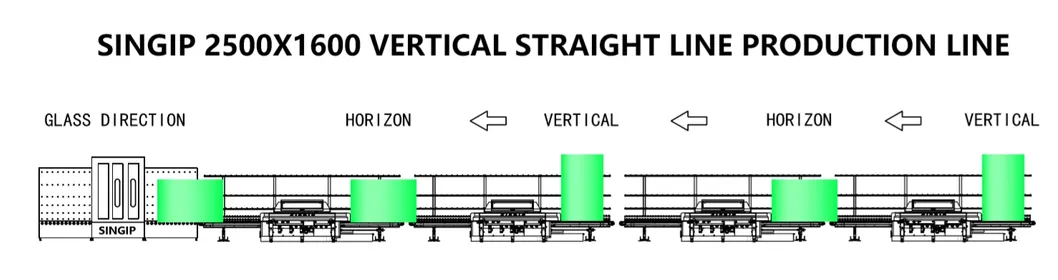

1. The whole line includes 4 sets of SZM-9SP intelligent polishing machines, 3 sets of SFZT2516 robot arms, and one set of SX-2500L vertical washing machine.
2. The whole line efficiency is controlled by Robotics arm SFZT2516 (3-4 pcs per min).
3. All edging machines adopt extended feeding and output guideways.

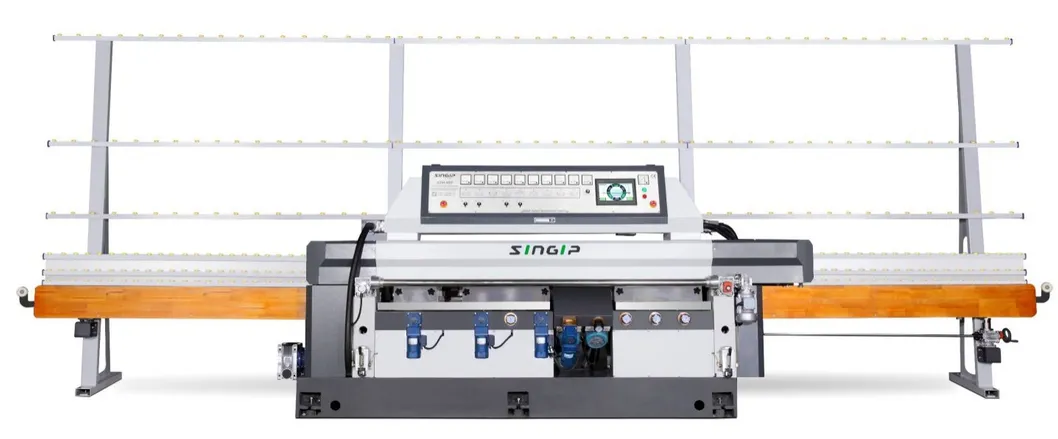

| Model | Thickness | Loading Weight | Key Features |
|---|---|---|---|
| SZM-9SP | 3-19mm | Within 150kg | Intelligent polish system; Automatic wheel wear recovery |

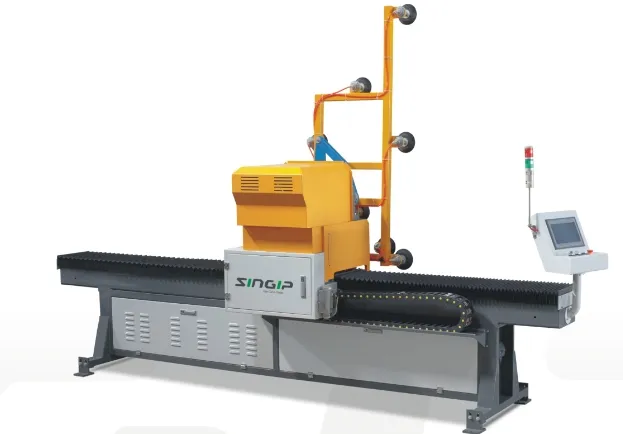

| Parameter | Specification |
|---|---|
| Max. Glass Size | 2500X2000mm (Customized) |
| Min. Glass Size | 400X400mm |
| Max. Loading Weight | 125kgs |
| Turning cycle | 12-15 seconds / cycle |
| Power | 3.75kw |

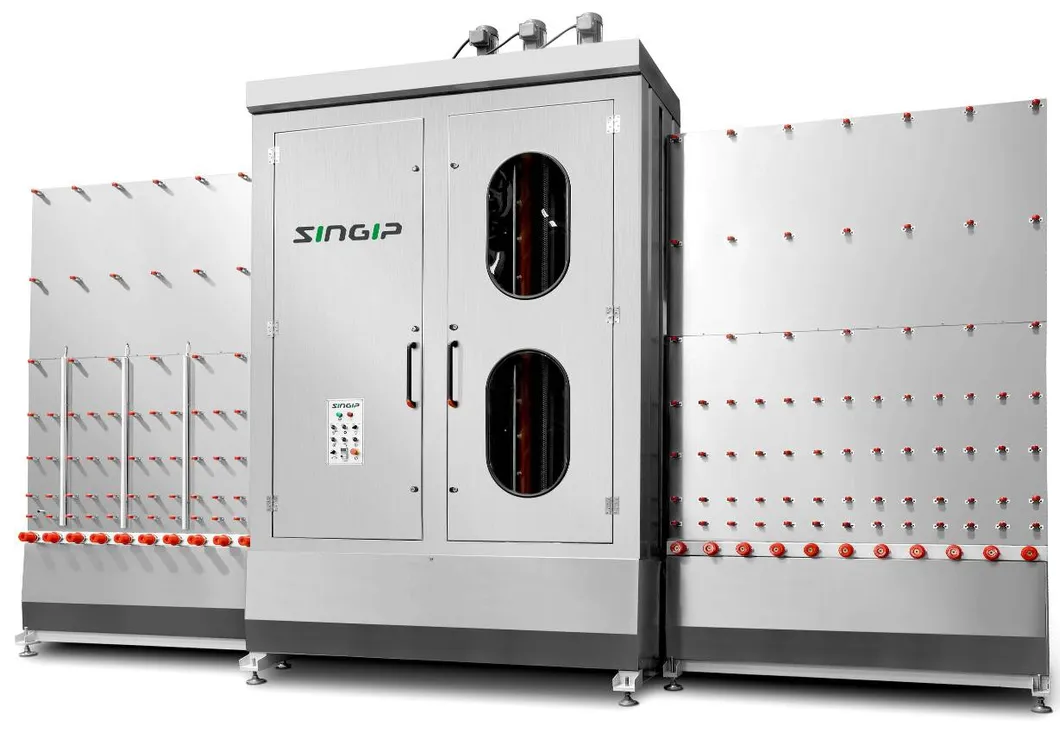

Vertical glass washing machines are configured with separate areas dedicated to washing and drying. Common in factories with limited space, they ensure high-quality cleaning before insulated glass production.
| Model | Thickness | Feeding Speed | Total Power |
|---|---|---|---|
| SX2500L | 3-12mm | 0.5m/min - 8m/min | 18.5kw |
The I Shape Glass Vertical Edging Production Line is highly versatile. It processes glass for shower enclosures, glass railings, and commercial doors. It ensures a refined finish for both residential and commercial use.
