Advanced Intelligent Glass Double Edging Production Line Solutions

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

Overview

Basic Info.
Model NO.	SSZM4525L
Glass Thickness	3-25mm
Chamfering Size	1~3mm
Max Glass Removal of Bottom Edge	5mm
Glass Diagonal Error	≤±0.5mm/M
Chamfer Width Error	≤±0.2mm/M
Glass Parallel Error	≤±0.2mm/M
Power	380V/50Hz
Pneumatic Working Pressure	0.5~0.8MPa
Installed Power	≈132kw
Working Table Height	900±30 mm
Grinding Head Number	18
Structure	Vertical
Transport Package	Wooden Pallet+Film

Product Description

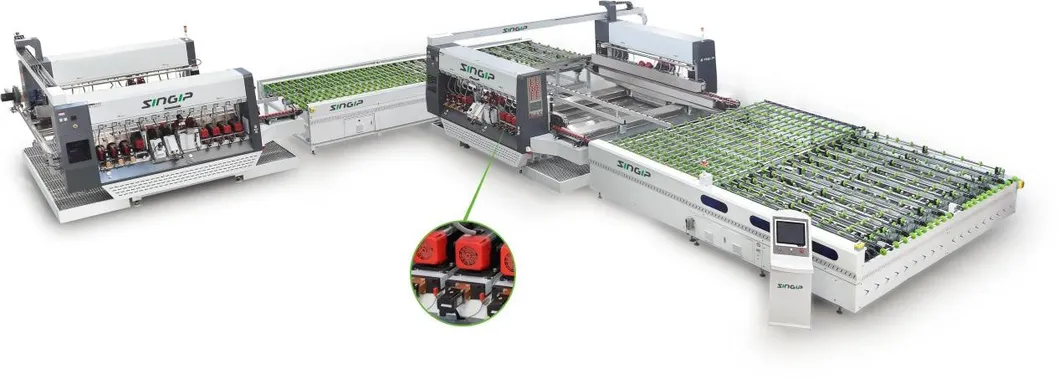

Intelligent High Speed Full Automatic Glass Double Edging Production Line

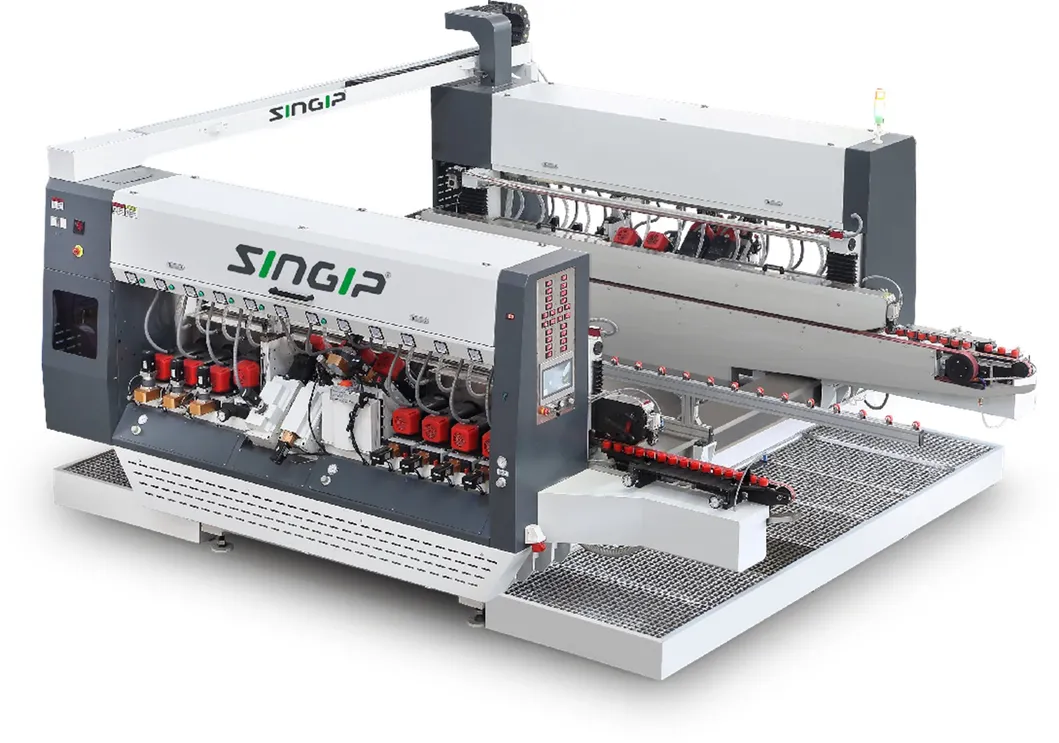

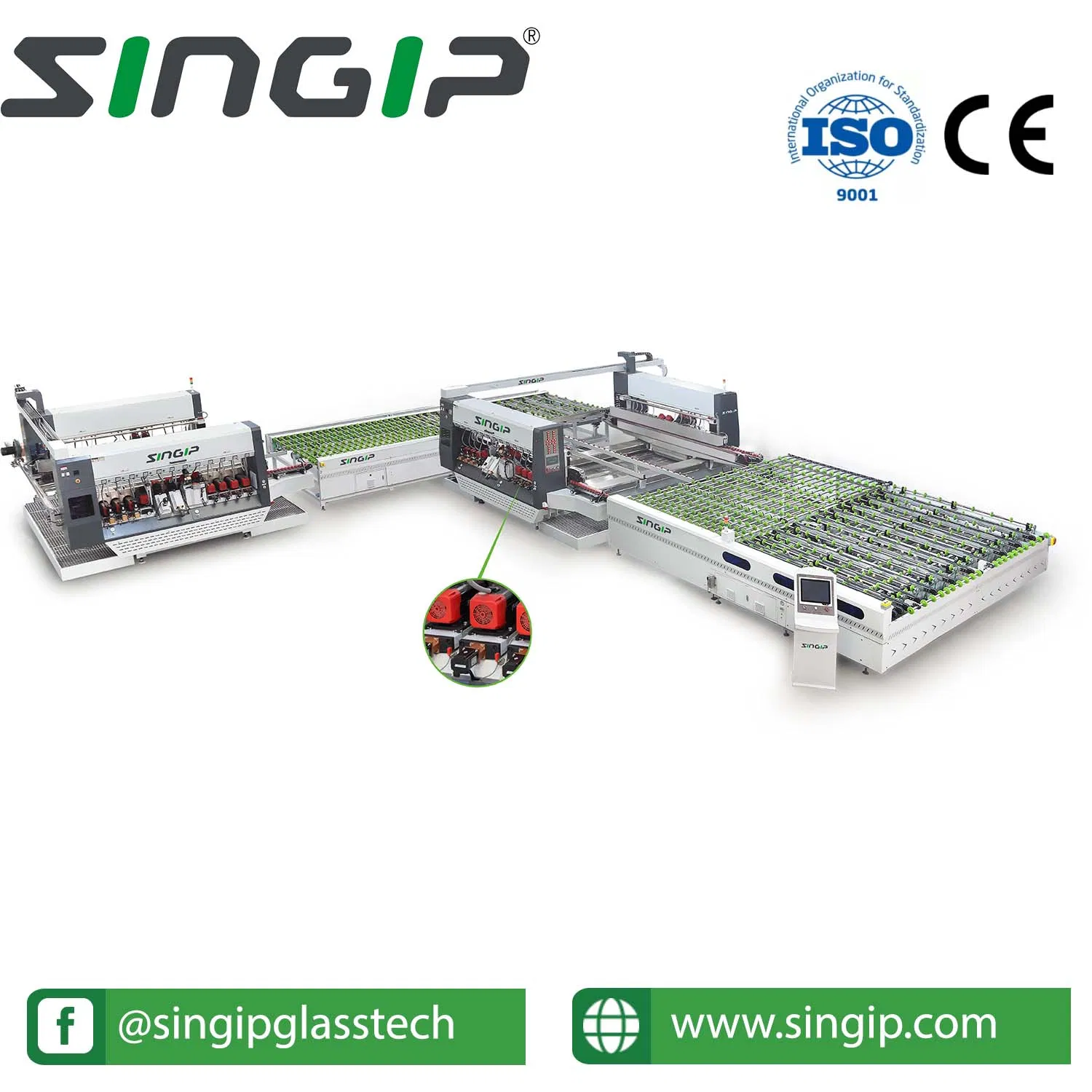

This 18-grinding-head glass high-speed intelligent double-edging production line consists of a testing platform, two glass high-speed intelligent double-edging machines, and an L-shaped turning platform. It is specifically designed for processing double straight edges of flat glass, suitable for deep processing in construction, furniture, and other industrial sectors.

Line Specifications

Model	Min Processing Size	Max Processing Size
SSZM-G18AC(P)-3025L	300*300mm	3000*2500mm
SSZM-G18AC(P)-3725L	300*300mm	3700*2500mm
SSZM-G18AC(P)-4525L	330*300mm	4500*2500mm
SSZM-G18AC(P)-4530L	330*300mm	4500*3000mm
SSZM-G18AC(P)-5030L	450*300mm	5000*3000mm
SSZM-G18AC(P)-6030L	450*300mm	6000*3000mm

Main Features & Intelligent Configuration

🌐

IoT Integration Equipped with an industrial Internet of Things system for remote monitoring, assisted maintenance, and system upgrades.

📏

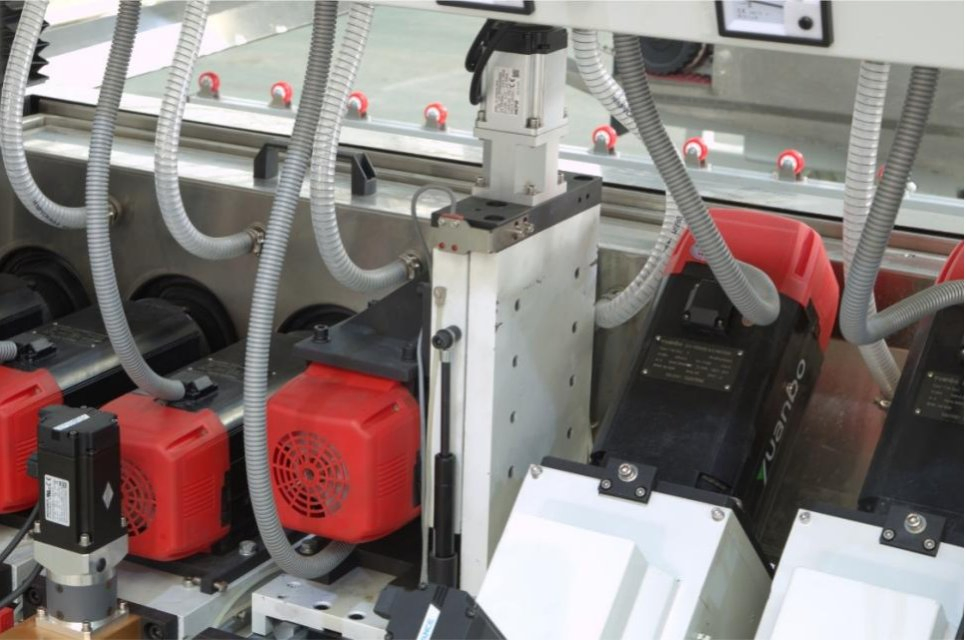

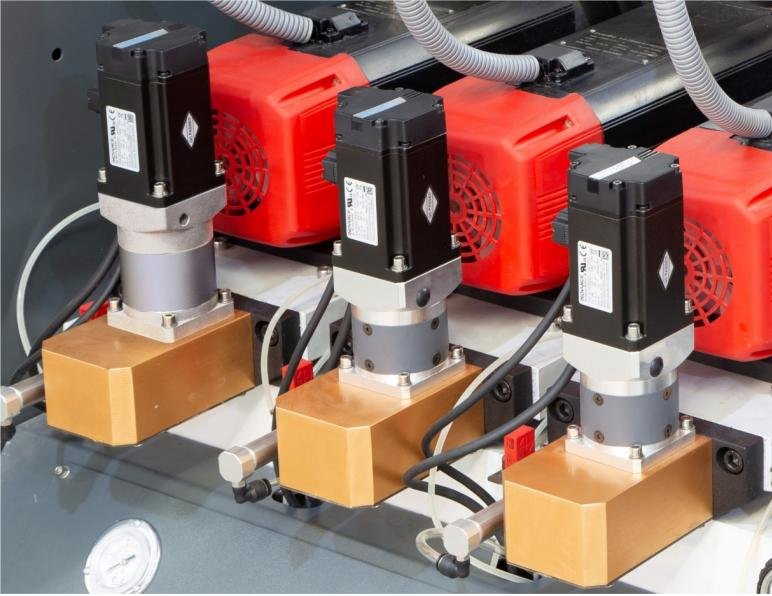

Auto-Compensation Diamond and resin wheels use servo motors to automatically compensate for wear based on processed meters.

🔄

Grinding Distribution Automatic switching of grinding positions based on preset glass thickness, distributing grinding amount proportionally.

✨

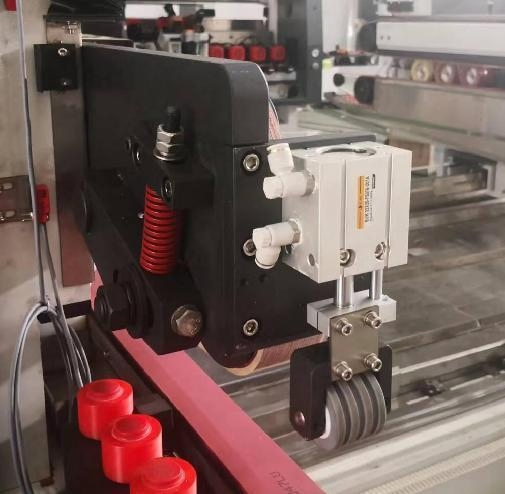

Polishing Servo Control Flexible automatic compensation for polishing wheels ensuring constant pressure acting on the glass.

⚡

Energy Efficiency Uses 1-level energy-efficient permanent magnet synchronous motors with individual frequency conversion control.

🛠️

Self-Maintenance Intermittent lubrication for guide rails and racks during the origin return process upon startup.

Grinding Wheel Configuration

No.	Use	Power/Speed	Wheel Type	Feed Method
1#	Bottom Rough	4KW 5500RPM	Diamond	Servo
2#	Bottom Rough	4KW 5500RPM	Diamond	Servo
3#	Upper Chamfer	2.2KW 4500RPM	Resin	Servo
4#	Upper Polishing	2.2KW 3000RPM	10S40	Servo
5#	Lower Chamfer	2.2KW 4500RPM	Resin	Servo
6#	Lower Polishing	2.2KW 3000RPM	10S40	Servo
7#	Bottom Fine	3KW 5500RPM	Resin	Servo
8#	Bottom Polishing	2.2KW 3000RPM	Italy 10S40	Servo
9#	Film Removal	2.2KW 3000RPM	Custom Wheel	Servo

Auxiliary Equipment

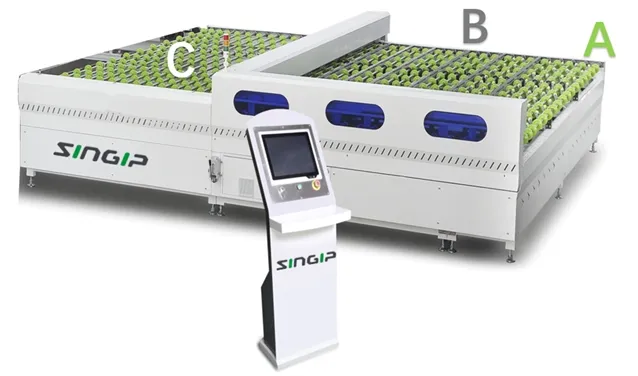

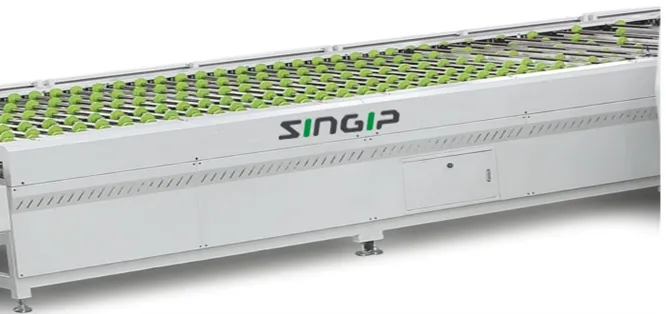

Left: Dimension Detecting Table | Right: L-type Transfer Station

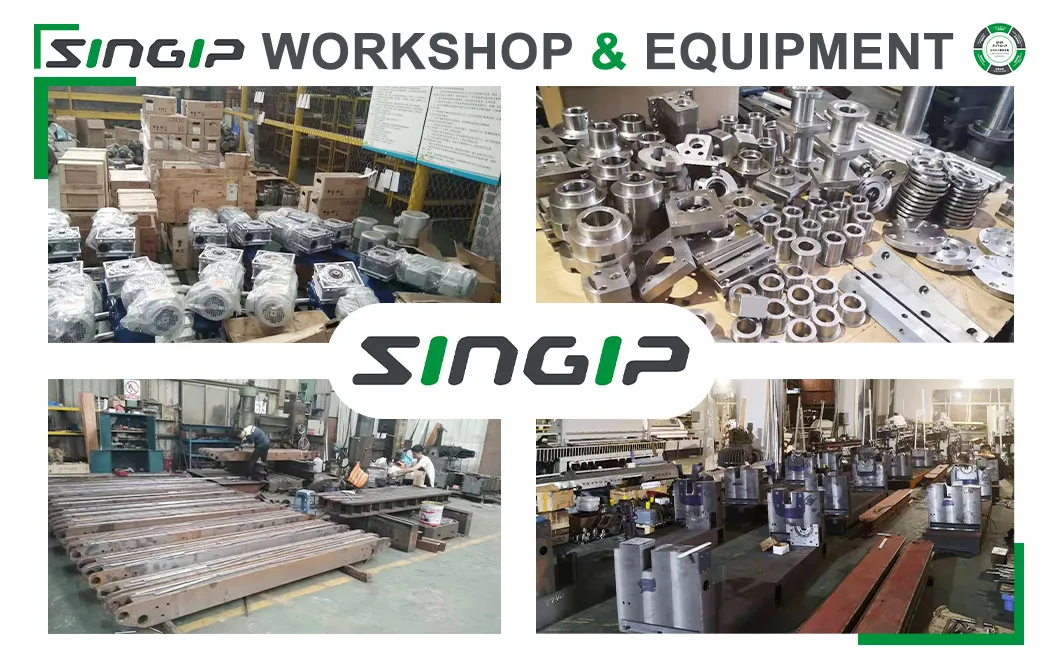

Main Products & Workshop

Specializing in industrial machinery including various processing lines and single-unit machines. Our workshop is equipped with diverse precision tools and advanced equipment focusing on quality and efficient production.

Certifications & Global Presence

Frequently Asked Questions

Do you provide on-site installation and training?

Yes, we offer global installation services and operator training programs to ensure smooth machine operation.

How are the glass machines packaged for shipping?

Machines are packed in containers suitable for long-distance ocean transportation, filled with shock-absorbing materials like pearl cotton and film. Wooden box packaging is available as an upgrade.

How is long-term operational stability ensured?

We conduct rigorous endurance tests on all machines before they leave the factory. We use high-quality, durable components to ensure longevity.

Can machinery be custom ordered?

Yes, most of our machinery can be custom configured to match your specific production needs and facility constraints.

Where can I obtain spare parts?

We maintain a full array of spare parts in stock for all machinery models to minimize potential downtime.

What is the standard warranty period?

The warranty period is 12 months, excluding standard wear and tear parts.
