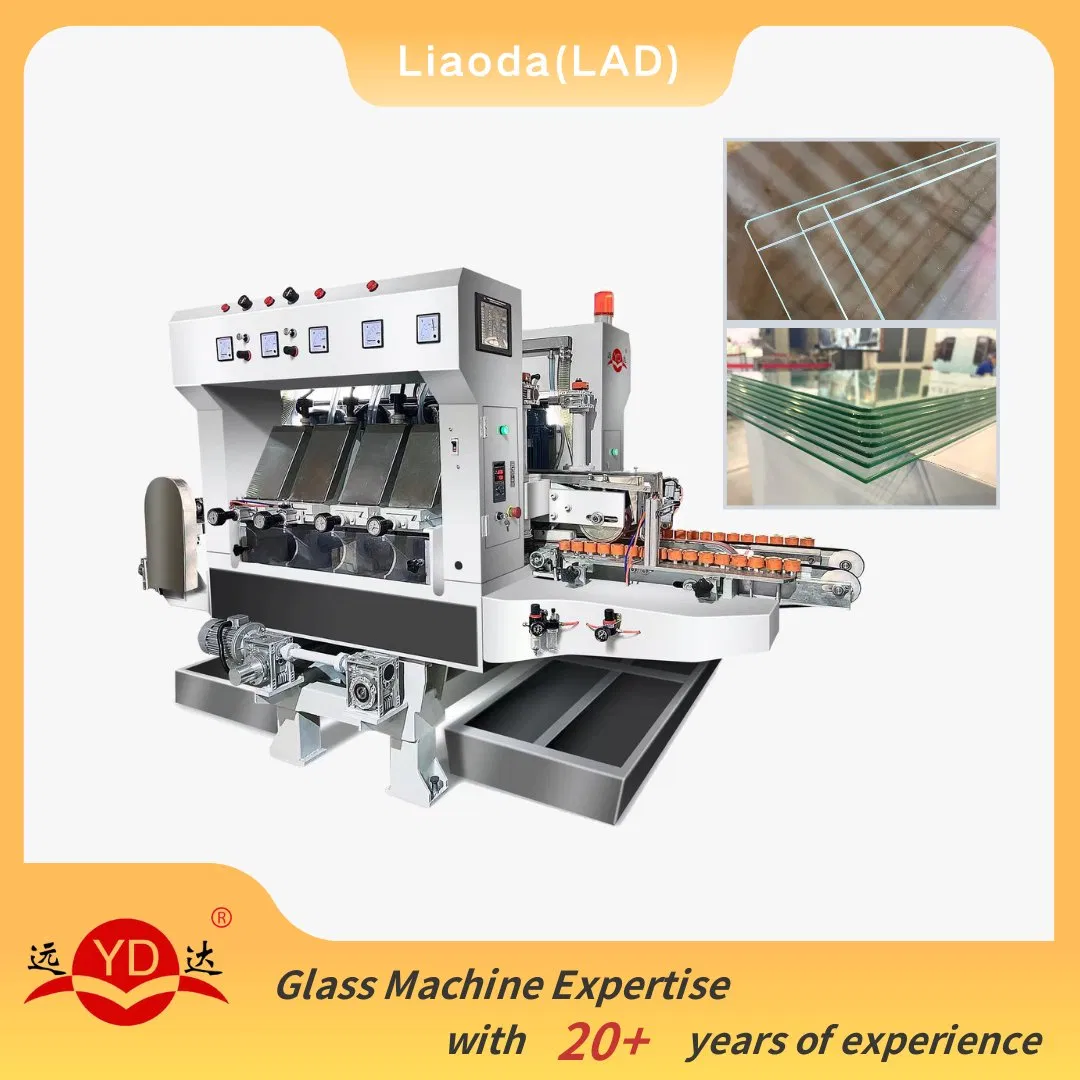

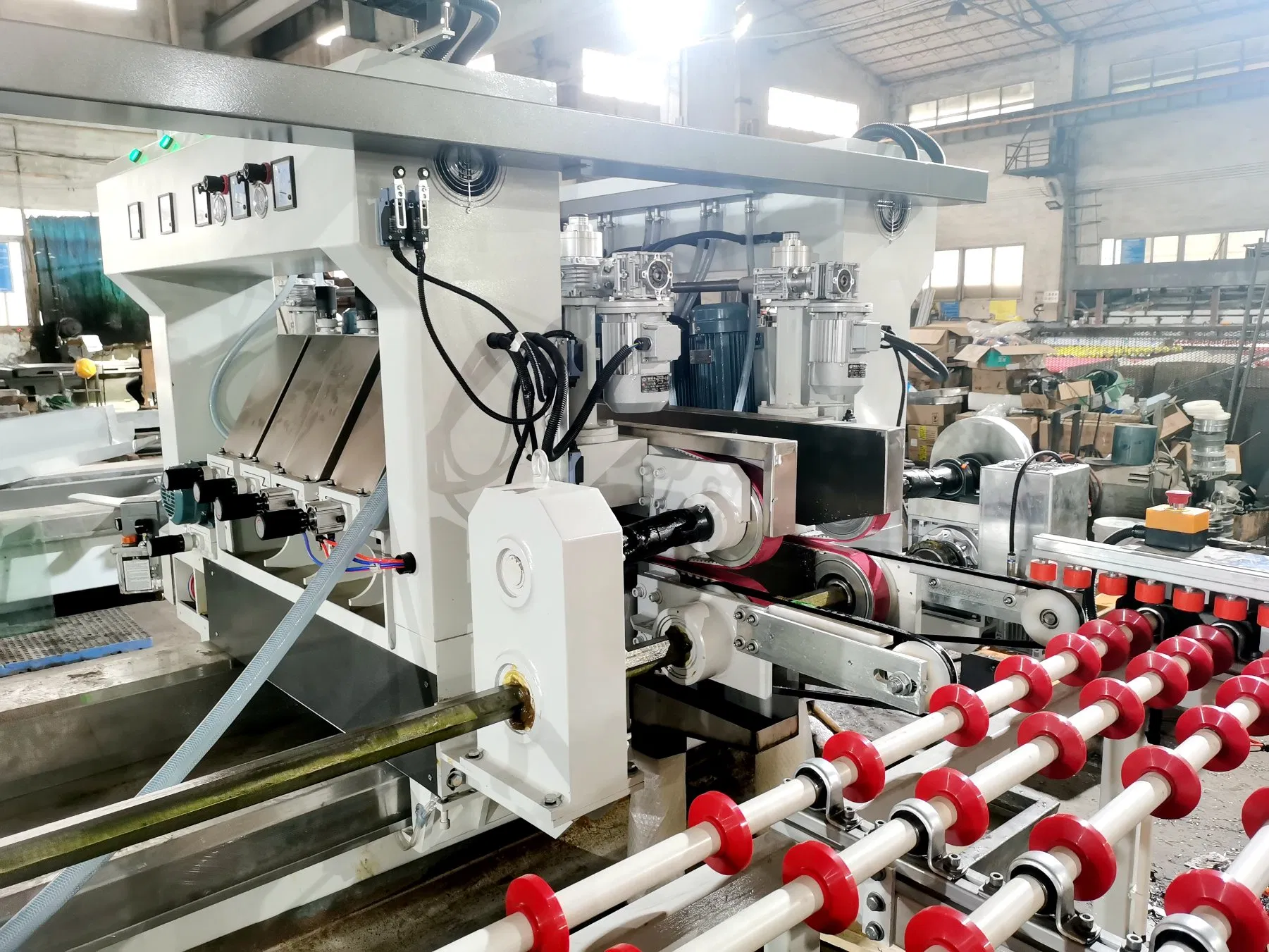

Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
1 / 5
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine
Intelligent and Automatic Glass Double Round Edging Machine

Intelligent and Automatic Glass Double Round Edging Machine

Customization: Available
Certification: CE
Processing Speed: 10-15 m/min
Send Inquiry

Product Description

📊

Basic Information

Model NO.:YD-DR-1208
Processing Thickness:3-19 mm
Voltage:220/240/380/415/480V
Warranty:1 Year
After-Sales Service:24hour Online
Condition:New
Color:Creamy-White & Blue / Optional
Machine Type:Horizontal
Speed:0.8~8 m/min
PLC:Control System
Production Capacity:20 Sets Per Month
Certification:CE
⚙️

Product Description

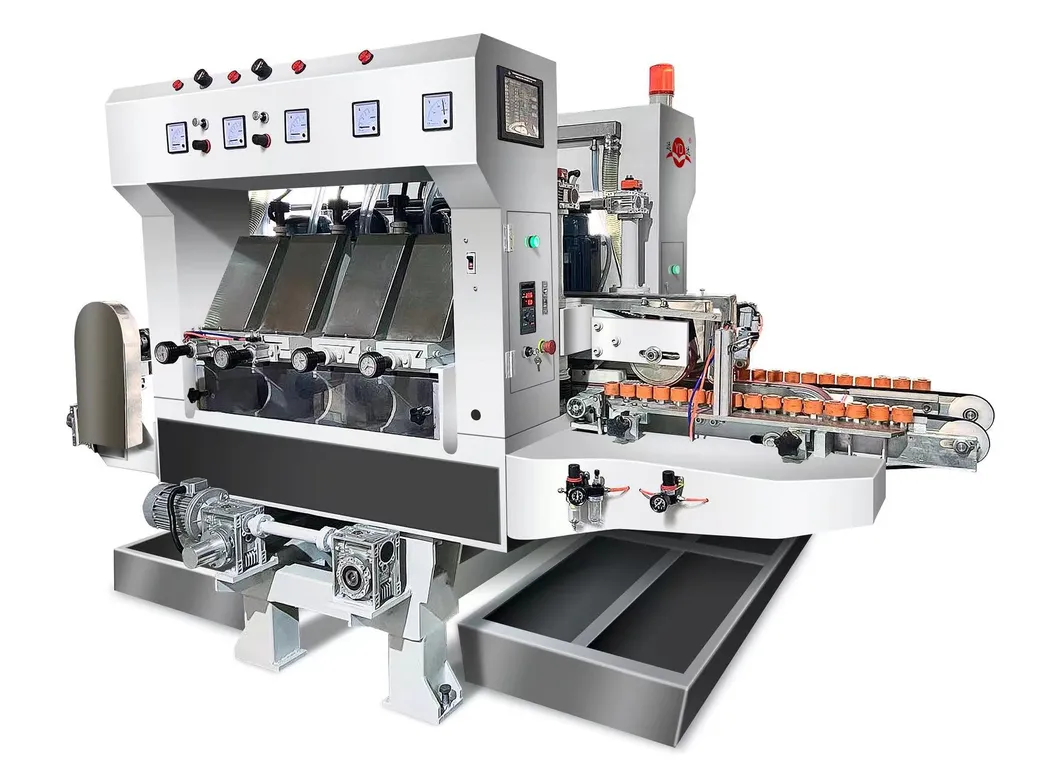

Horizontal Glass Double Round Edging Machine

Glass Double Round Edging Machine

Main Features:

  • Gear rack width opening system, fast and stable
  • Self-designed PLC control system (multiple languages available)
  • Fast running speed up to 12m/min
  • ABB motors or high-quality options available
  • Servo motors for precision width control
  • Optional production line integration
  • Safety corner grinding function available
  • Film removing motor option
📋

Technical Specifications

Model Number YD-DR-1006 YD-DR-1008 YD-DR-1512 YD-DR-2014 YD-DR-2018
Max. glass width (mm)10001000150020002000
Min. glass size (mm)120*120120*120120*120120*120120*120
Total nr. of spindle68121418
Glass thickness (mm)3~193~193~193~193~19
Glass speed (m/min)0.8~80.8~80.8~80.8~80.8~8
Power (kw)1321275030
Weight (kg)26002800350040004500
🖼️

Machine Details & Factory

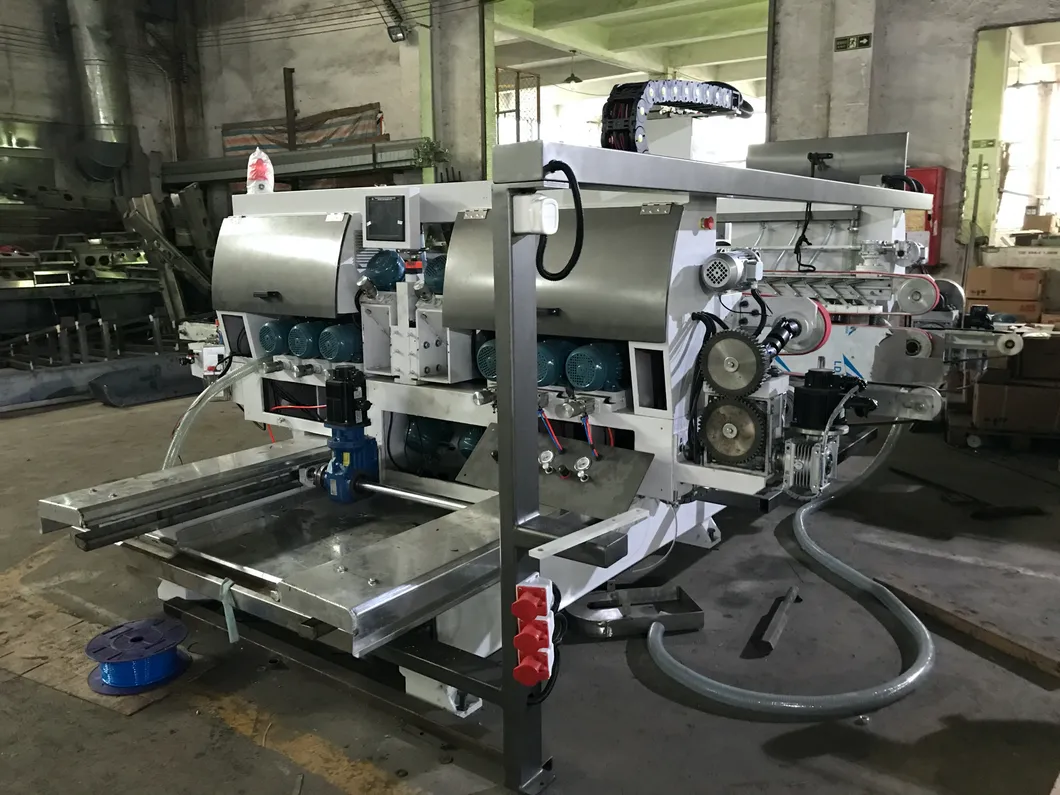

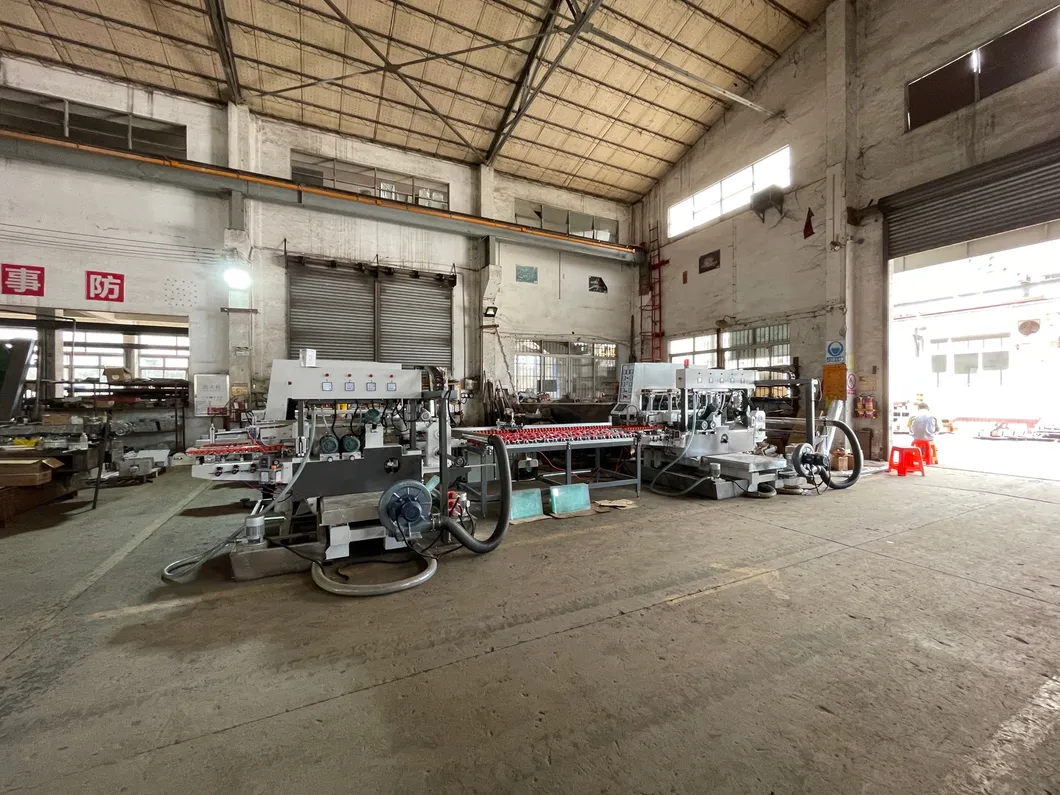

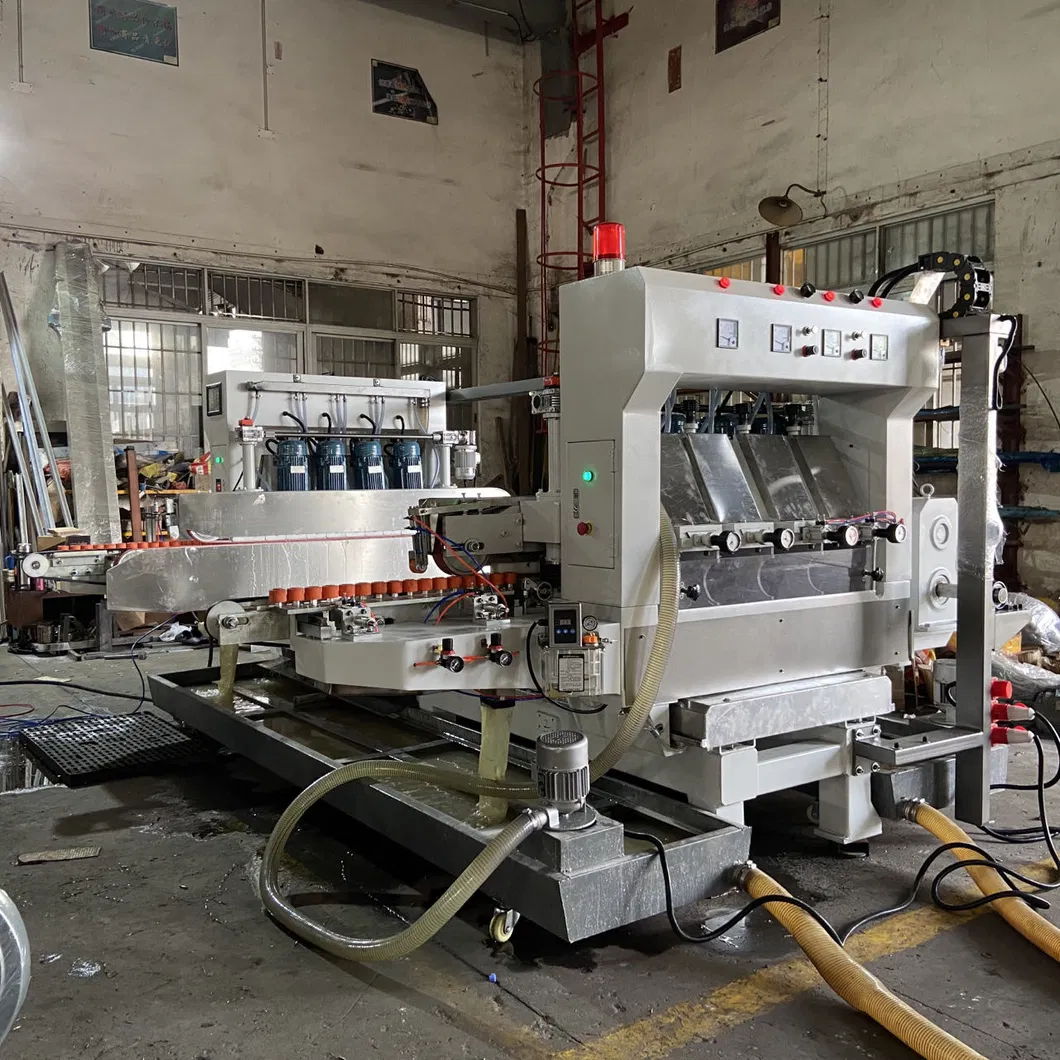

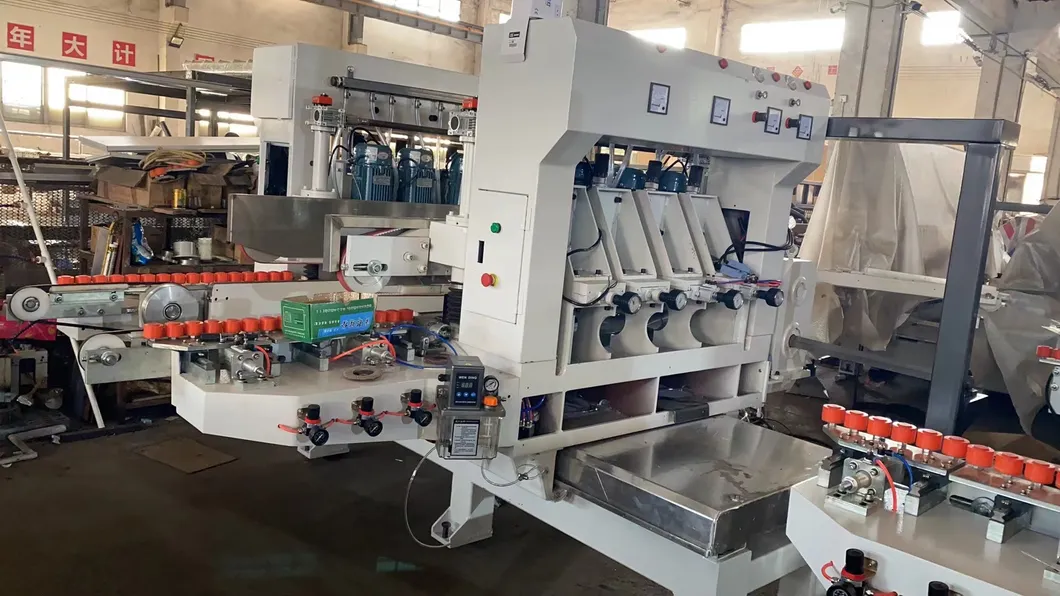

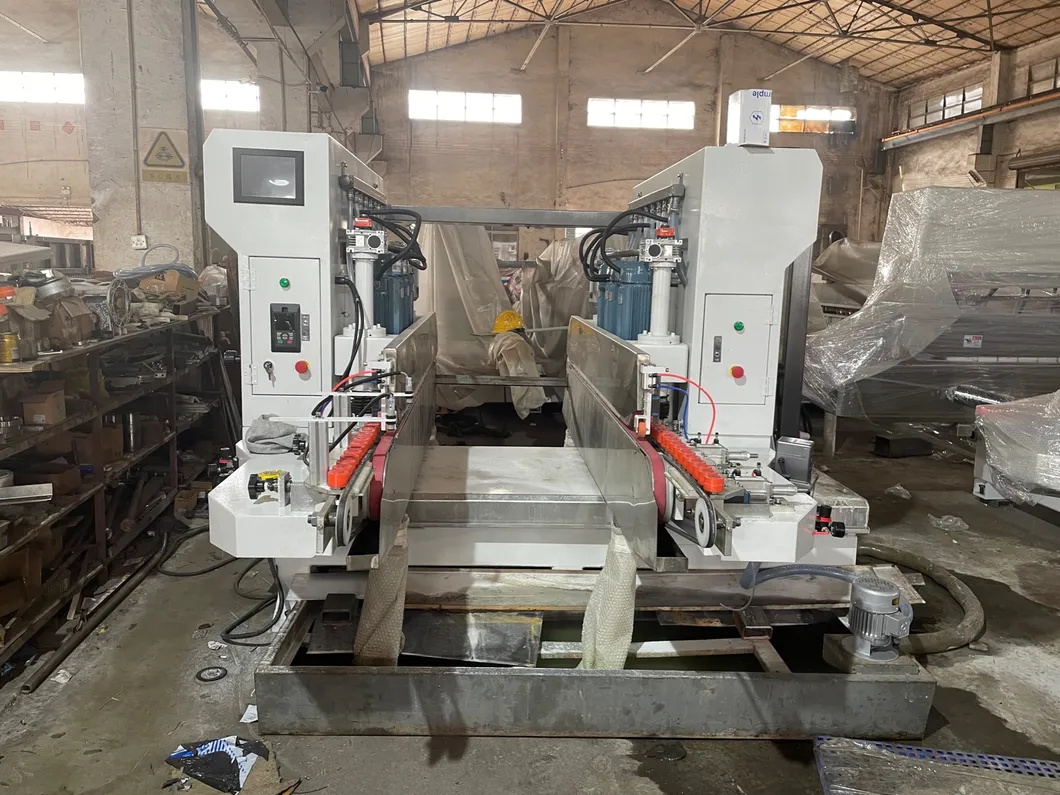

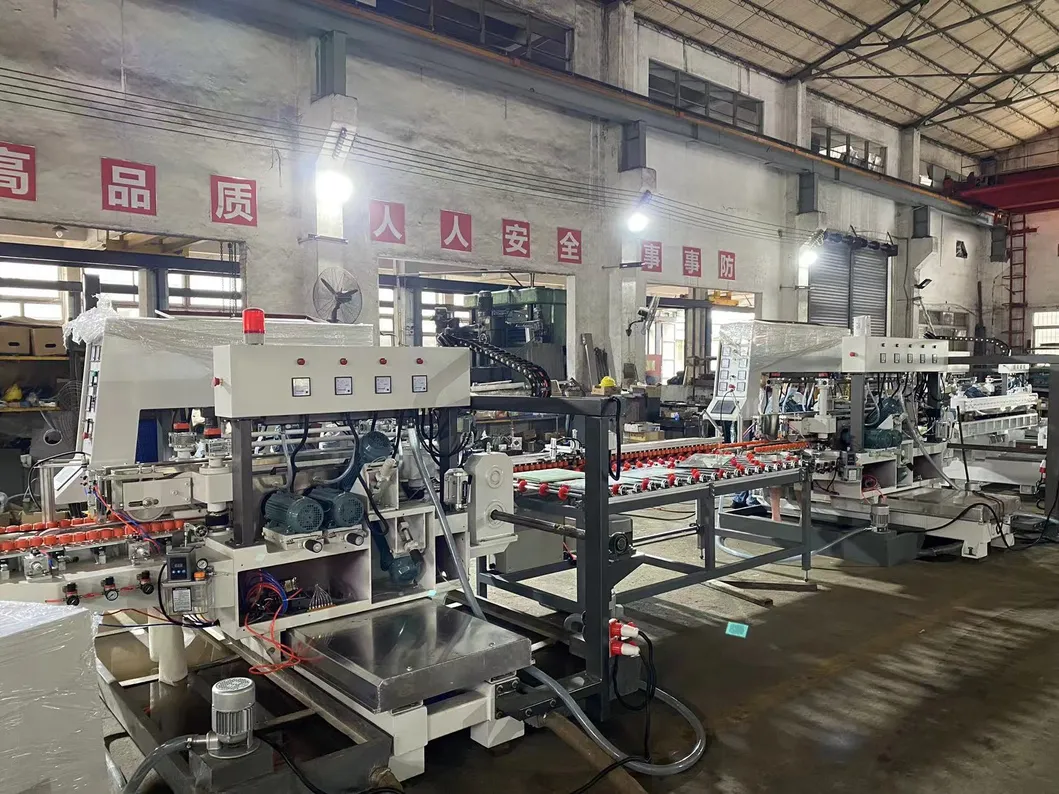

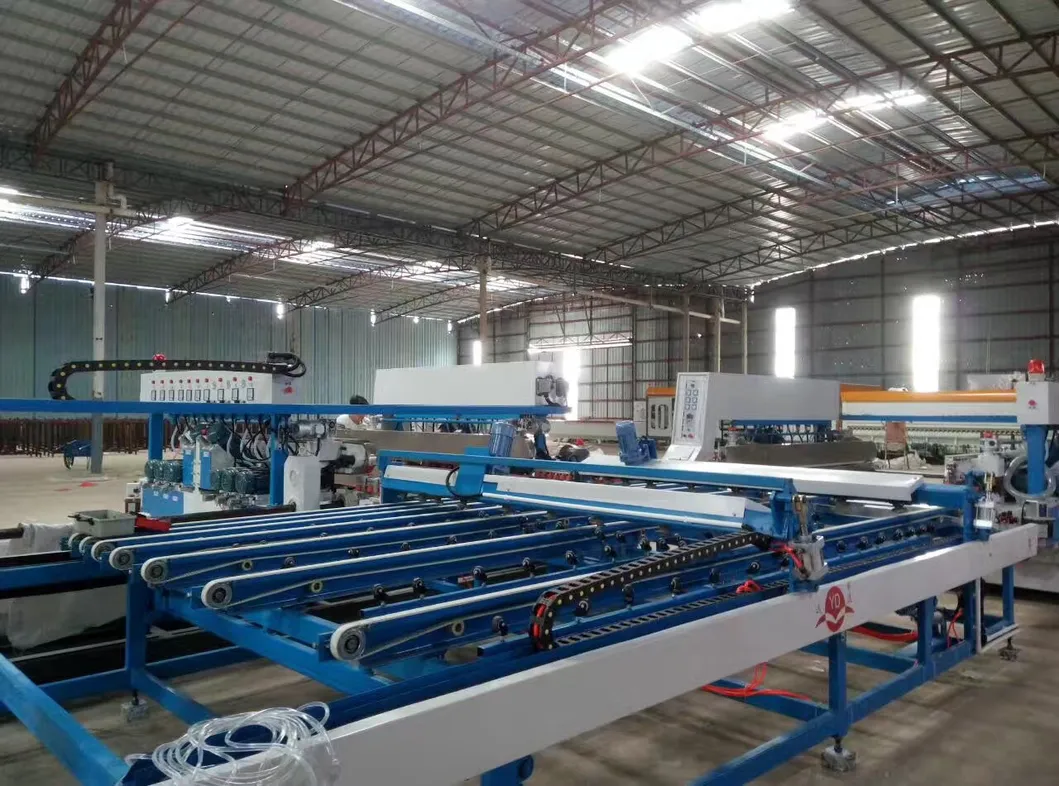

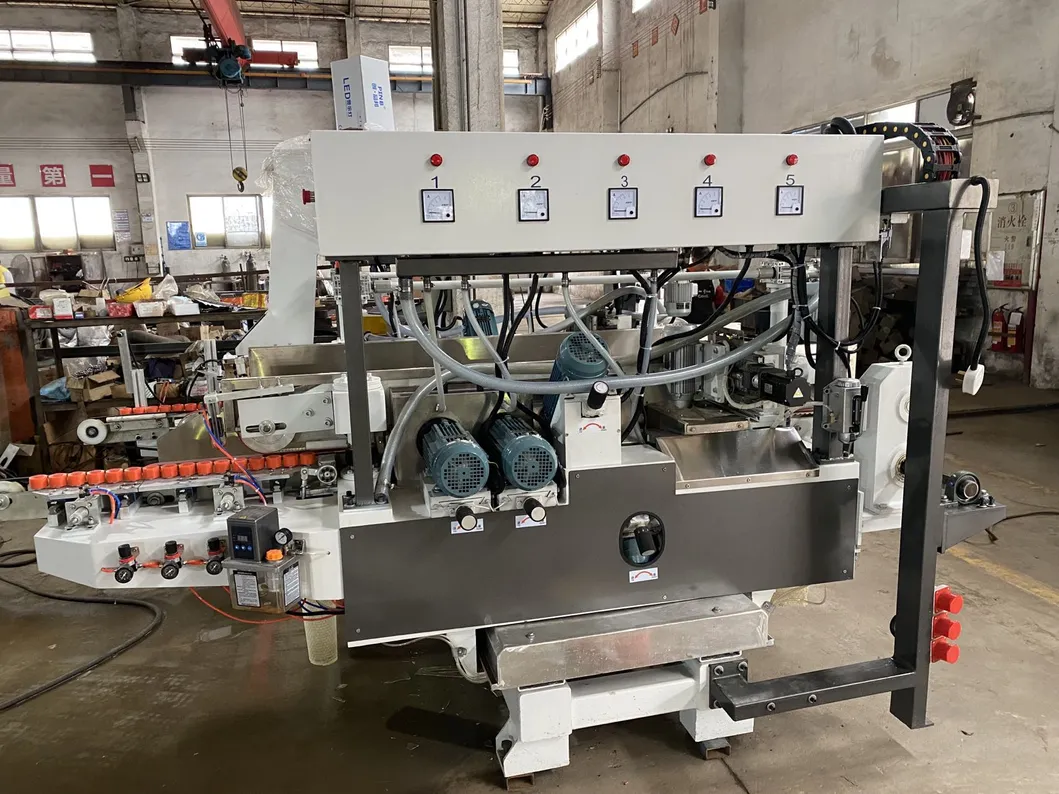

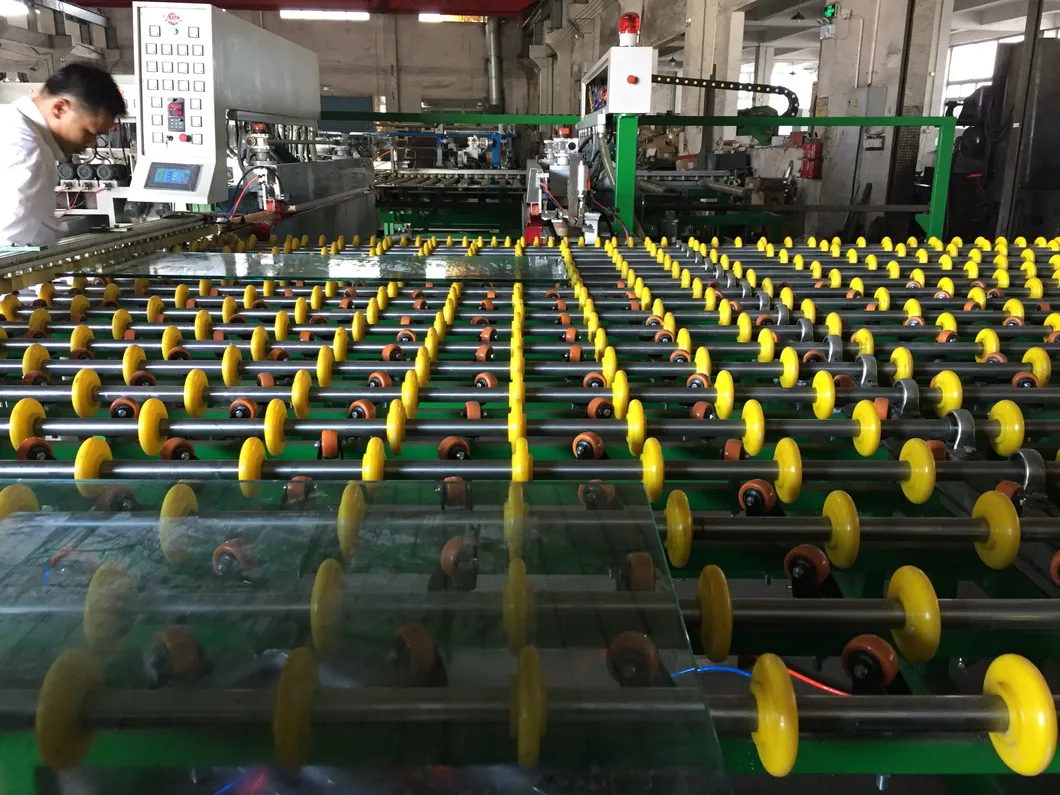

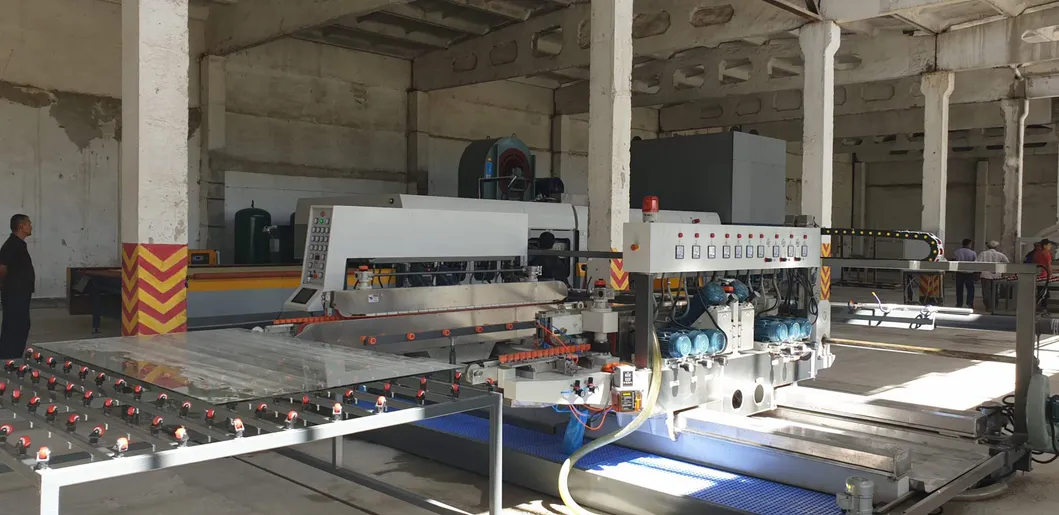

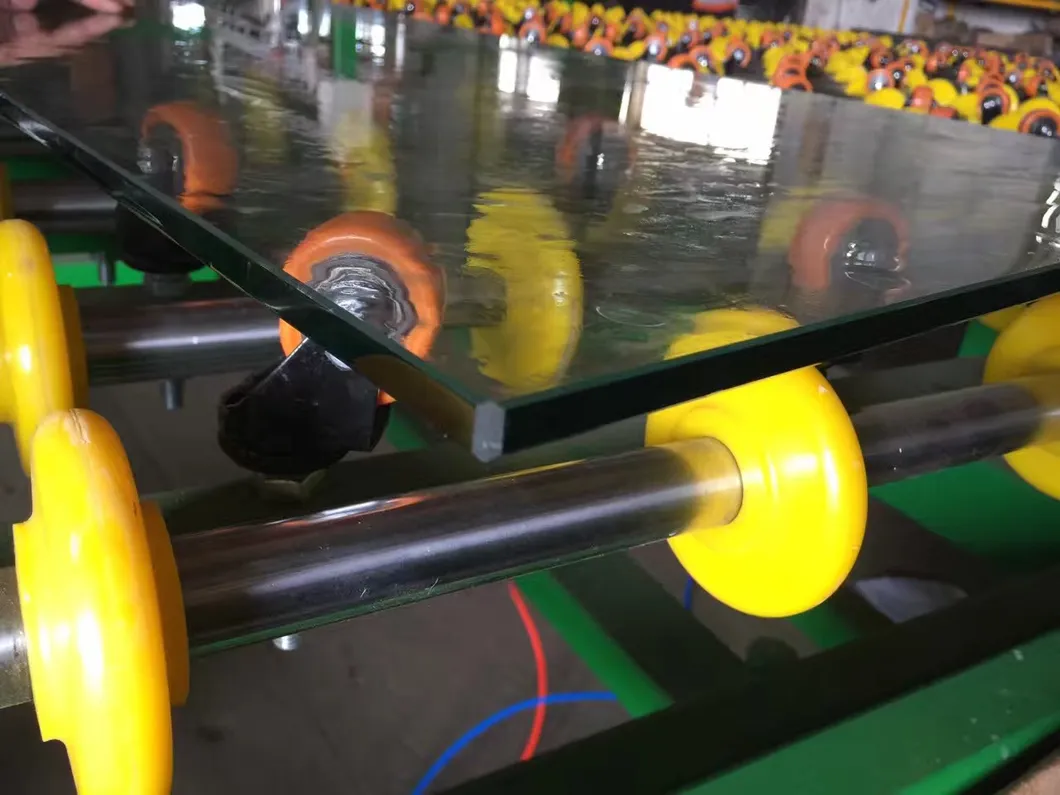

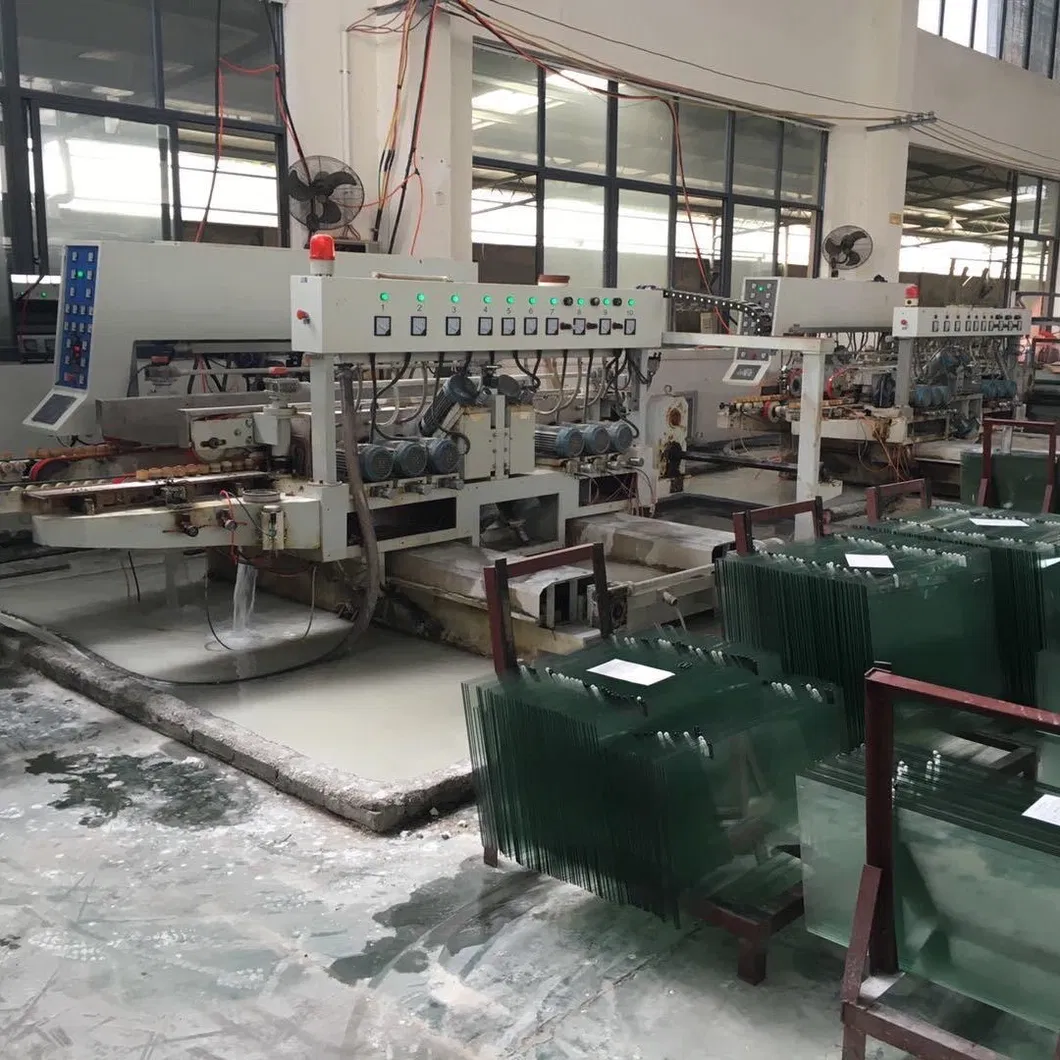

Machine Detail 1 Machine Detail 2 Machine Detail 3 Machine Detail 4 Machine Detail 5 Machine Detail 6 Machine Detail 7 Machine Detail 8 Machine Detail 9 Machine Detail 10 Machine Detail 11 Machine Detail 12

Factory & Production:

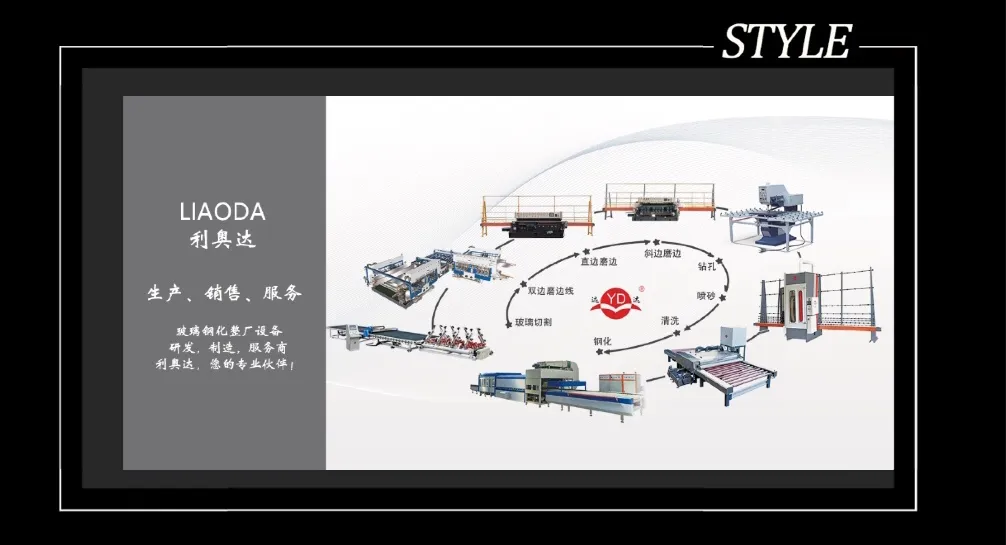

Factory Overview Production Process Finished Products
🛠️

After-Sales & Service

  • One year guarantee for the whole machine
  • 24 hours technical support via digital channels
  • User-friendly English software and detailed manuals/videos
  • Supply of all spare parts needed for maintenance
  • Professional team for installation and training
❓

Frequently Asked Questions

What is the range of glass thickness this machine can process?
The machine is capable of processing glass with a thickness ranging from 3mm to 19mm.
Is the PLC control system available in different languages?
Yes, our self-designed PLC control system supports various language versions to suit global requirements.
What is the maximum working speed of the edging machine?
The working speed is highly efficient, reaching up to 12 meters per minute depending on the configuration.
What kind of after-sales support do you provide?
We offer a 1-year warranty, 24-hour technical support, English manuals, and professional on-site training if required.
Can this machine be integrated into an automatic production line?
Absolutely. The machine is designed to be compatible with automatic scanning, loading tables, and washing machines for a full production line setup.
Are there options for the machine motors?
Yes, customers can choose between high-performance ABB motors or reliable Chinese brand motors based on their preference.
