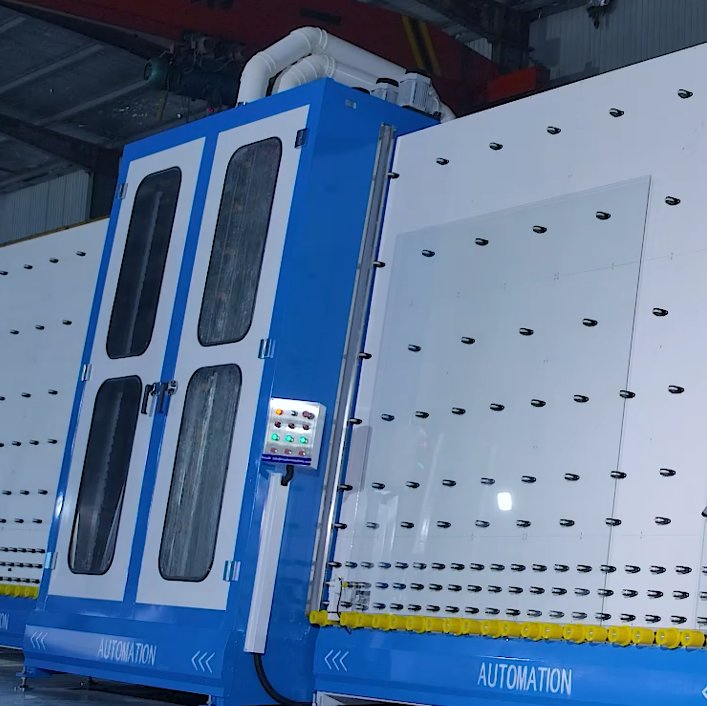

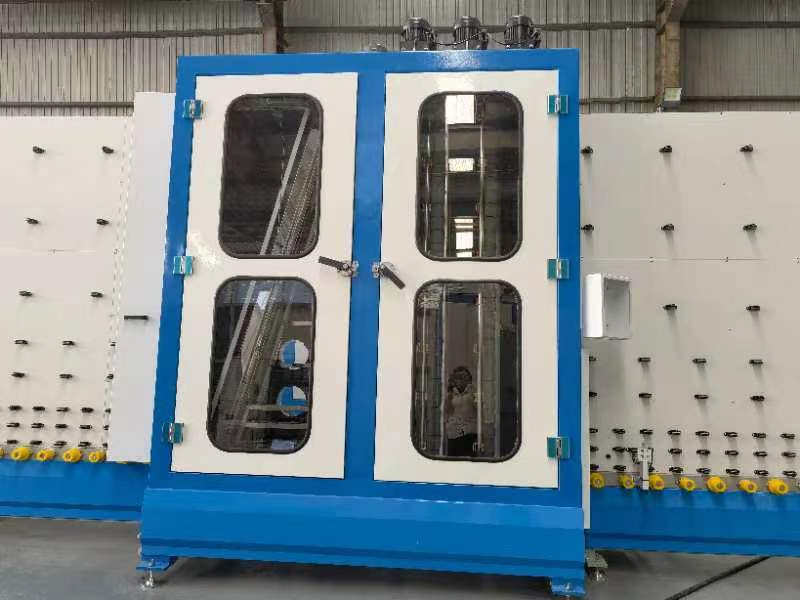

Insulating Glass Production Machines-Automatic Vertical Glass Washing Machine

1 / 5

Insulating Glass Production Machines-Automatic Vertical Glass Washing Machine

Customization:	Available
Certification:	CE
Glass conveyor speed:	2-12ms/Minute

Send Inquiry

Product Description

📋 Basic Information

Model NO.

3060

Glass Thickness

3-30mm

Power Supply

380V/50Hz

Total Power

30kws

Max.Glass Size

3000*6000mm

Min. Glass Size

280*450mm

Washing Speed

2-12m/Minute

Working Speed

2-45m/Minute

Package

Plastic Wrap

Production Capacity

500

🔍 Product Overview

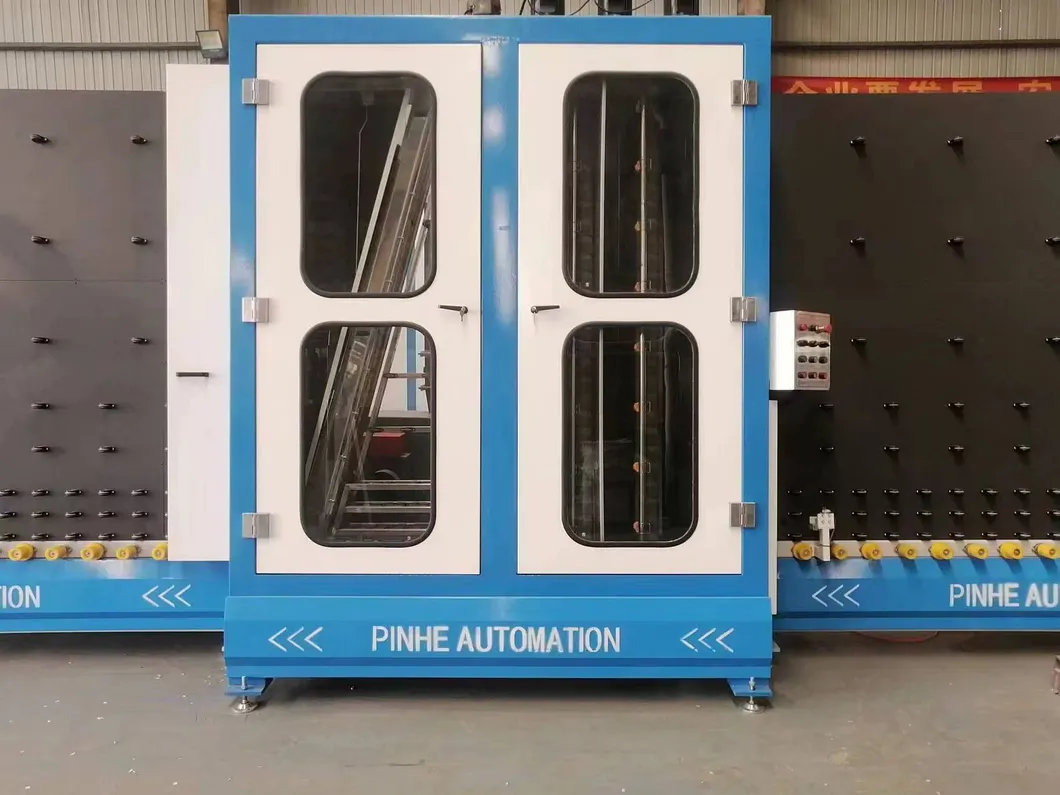

Automatic Vertical Glass Washing Machine

The LBW PC series Vertical Automatic Insulating Glass Gas filling inside Flat Press Production Line consists of the following components: feeding section, washing and drying section, storage section, light inspection section and spacer bar put section, outside assembly section, Inflatable board press and gas filling section, and output section.

⚙️ Technical Parameters

Specification Item	Data Details
TOTAL POWER	30KWS
MAX. GLASS SIZE	3000X6000MMS
MIN. GLASS SIZE	280X450MMS
THICKNESS	3-30MMS
MAX. IG UNIT THICKNESS	12-40MMS
GLASS WASHING SPEED	2-12MS/MINUTE
WORKING SPEED	2-45M/MINUTE
AIR FLOW (AIR PRESSURE)	0.8M3/MINUTE (1 MPA)
WATER ELECTRICAL CONDUCTIVITY	< 40US/CM
OVERALL DIMENSION	17000X1600X2010MMS

⭐ Key Features & Advantages

✔

Advanced Control: Adopt PLC to control the working condition automatically.

✔

Versatile Production: Capable of producing Low-e glass, double glazing, and triple glazing.

✔

Premium Material: Washing and drying section is made of 304 stainless steel (nickel-containing, iron-free) for superior rust resistance.

✔

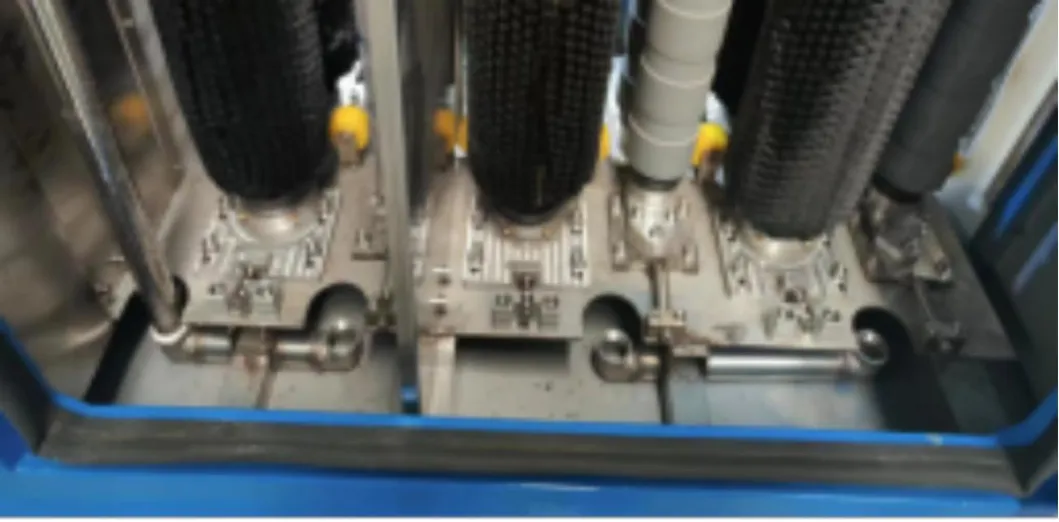

Smart Adjustment: Cylinders automatically adjust brush distance based on glass thickness to ensure optimal cleaning.

✔

Precision Engineering: High-precision pressing section driven by a dedicated servo motor.

✔

Gas Efficiency: High and low-pressure valves automatically calculate glass volume; flow meters control heavy gas to prevent argon waste.

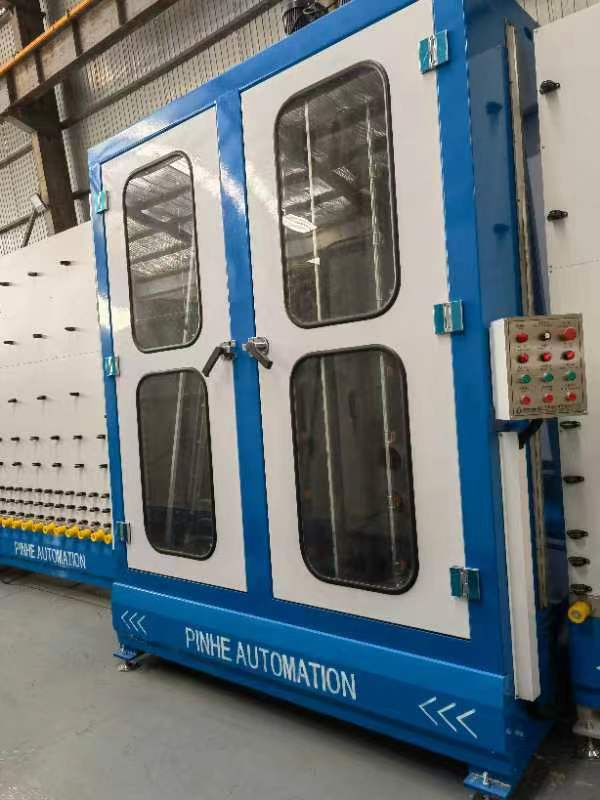

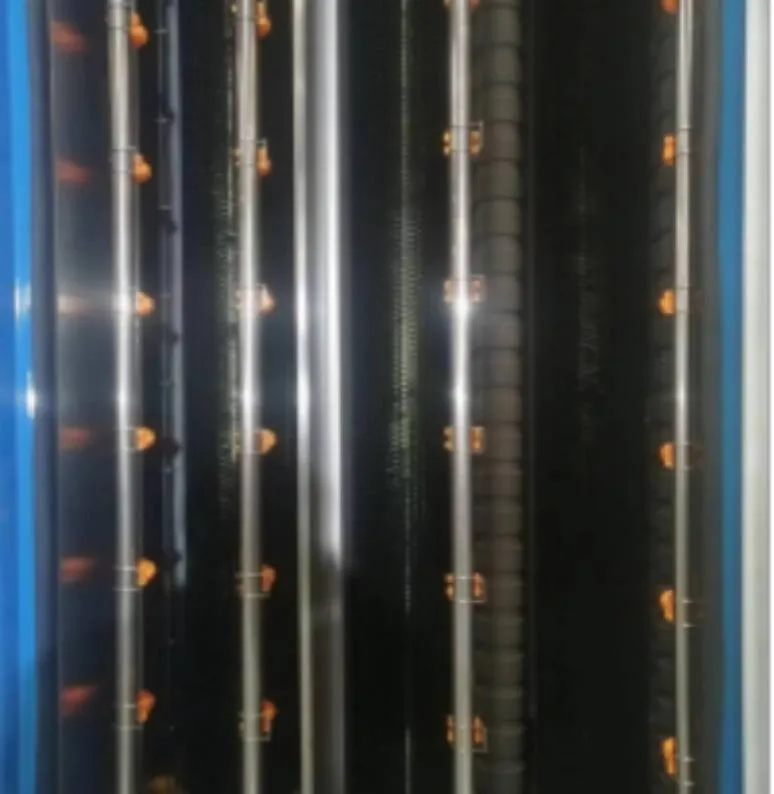

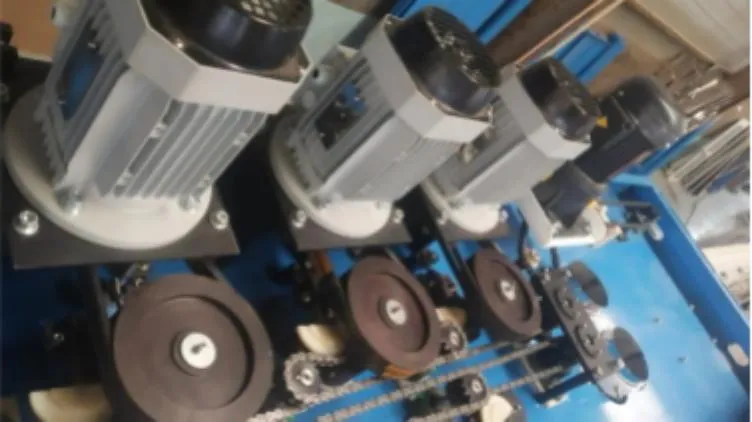

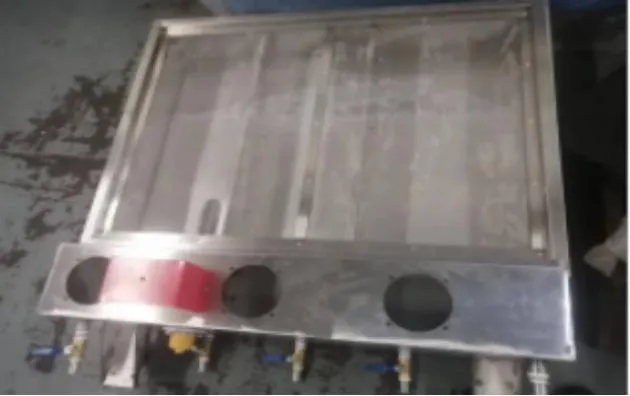

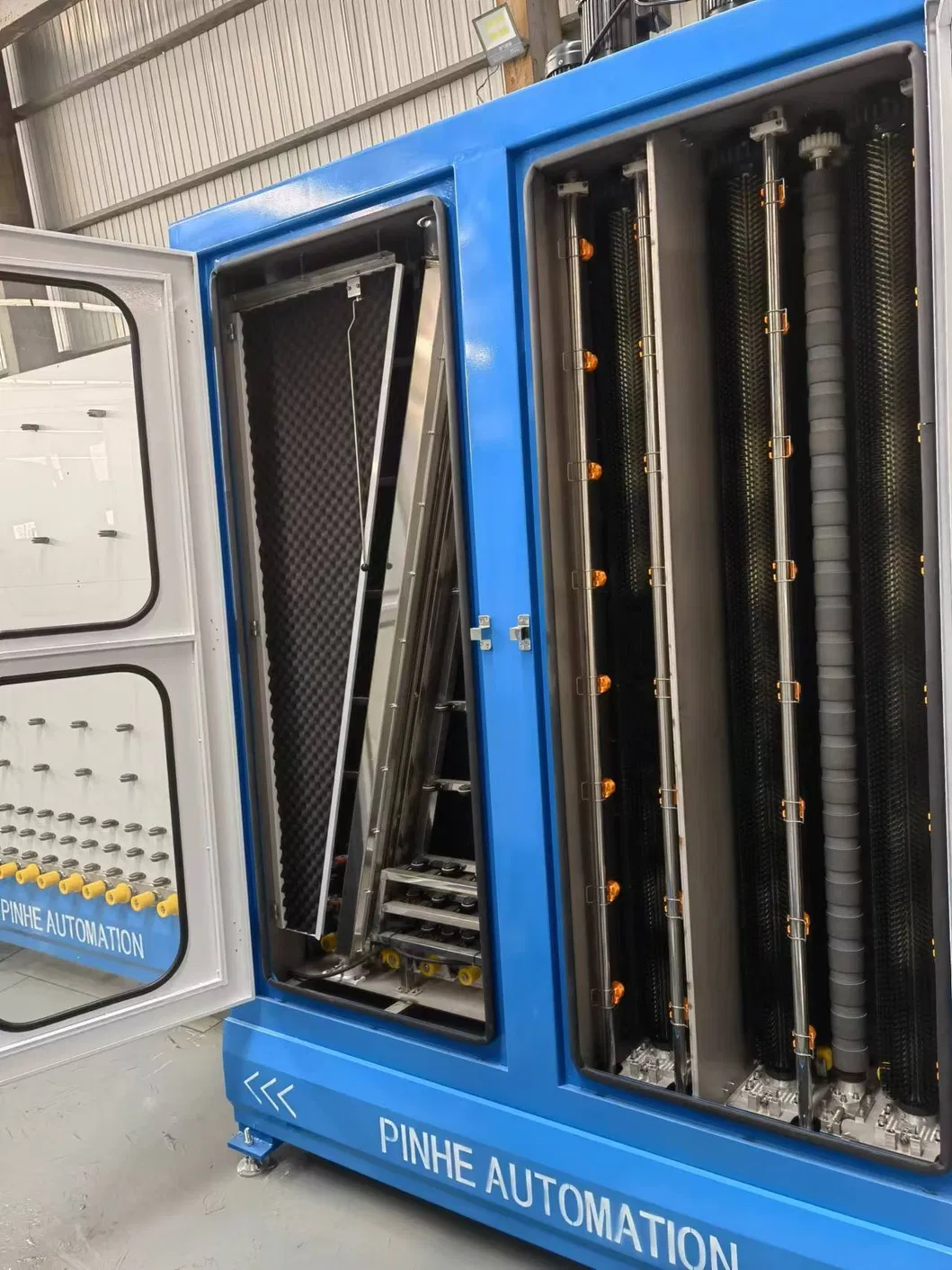

📸 Detailed Equipment Photos

Frequently Asked Questions

What types of glass can this production line process?

The production line is highly versatile and can produce standard double glazing, triple glazing, and specialized Low-E glass units.

How does the machine handle different glass thicknesses?

The machine features an automatic adjustment system where the cylinder modifies the brush distance according to the specific thickness of the glass (from 3mm up to 30mm) to ensure a perfect clean.

What material is used for the washing and drying sections?

These sections are constructed from high-grade 304 stainless steel. This material contains nickel and is iron-free, providing excellent resistance to rust and corrosion.

Is there a gas filling feature for insulating glass?

Yes, the line includes an inflatable board press and gas filling section. It uses high and low-pressure valves along with flow meters to calculate volume accurately and prevent argon gas waste.

What is the maximum glass size this machine can accommodate?

The machine is designed for large-scale production, supporting a maximum glass size of 3000mm x 6000mm.

How is the quality and durability of the machine ensured?

All raw material processing—including plate cutting, welding, sandblasting, and spraying—is done in-house. A dedicated quality inspection department strictly controls every stage of production.
