Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
1 / 5
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine
Insulated Glass Production Machine with Sand Belt Edging Machine

Insulated Glass Production Machine with Sand Belt Edging Machine

Customization: Available
Certification: CE, ISO, FDA, UR, PCI, PDA
Power(W): 2.2kw
Send Inquiry

Product Description

Technical Specifications

Model NO.JYM-01
Weight350kg
Size of Belt1890X95mm
Motor Speed1400r/Min
Thickness of Glass3-19mm
Max Polishing Size2000*1200mm
Min Polishing Size400X400mm
Power Supply380V 50Hz
Control SystemPLC
Grinding Head Number16

Product Overview

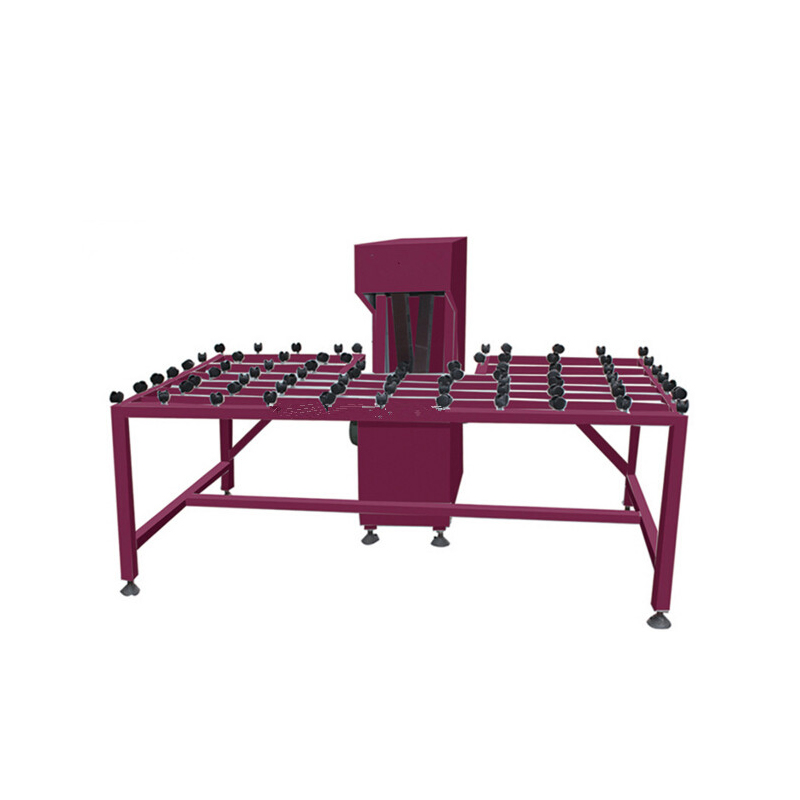

Insulated Glass Production Machine with Sand Belt Edging Machine

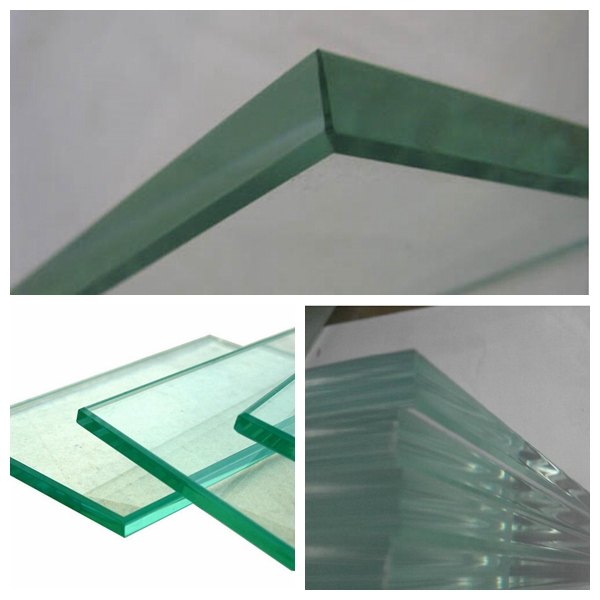

  • Specially designed for insulating glass border processing.
  • Capable of rough grinding and polishing for single glass sheets.
  • Equipped with two abrasive belts to simultaneously grind upper and lower edges.
  • User-friendly operation: easily change belts via the rear hand wheel.
  • Efficient horizontal structure ensuring stability and precision.

Main Parameters

FeatureDetails
ModelJYM-01
Total Power2.2Kw
Motor Running Speed1400r/min
Thickness of Glass3-19mm
Max Polishing Size2000*1200mm
Size of Belt1890x95mm
Dimension780*386*1270mm

Product Display

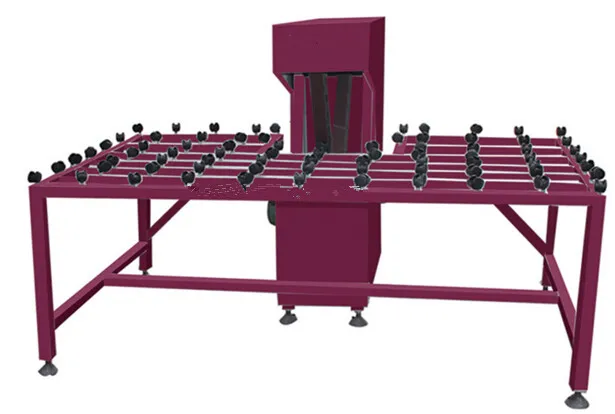

Glass Edging Machine
Insulated Glass Machine Detail
Sand Belt Edging System
Glass Processing Operation
Abrasive Belt Components

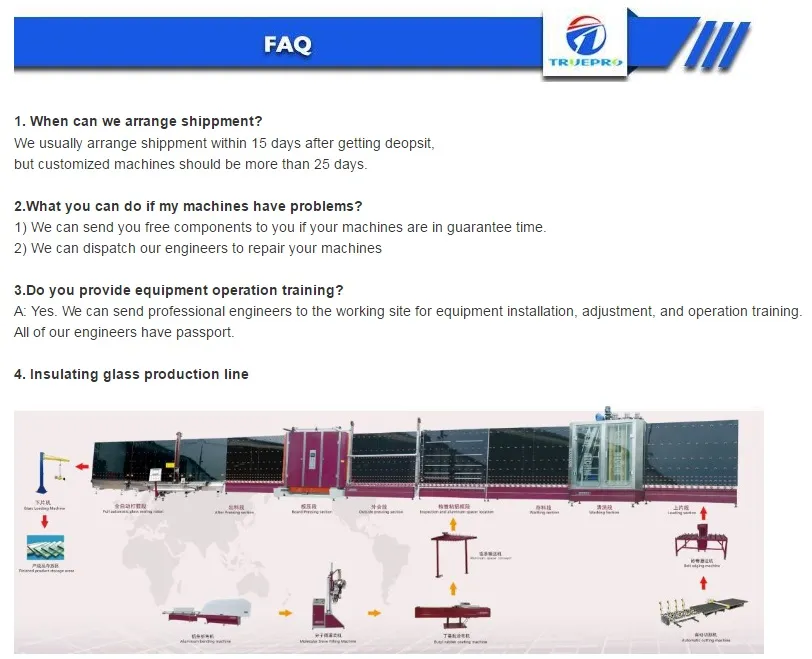

Glass Production Line

Frequently Asked Questions

Q1: What is the main application of this machine? A: It is primarily used for the rough grinding and polishing of single glass borders, specifically designed as part of an insulated glass production line.
Q2: Can it process art glass or specialty decorative glass? A: No, this machine is specifically designed for standard edge grinding and polishing and is not intended for art glass processing.
Q3: How difficult is it to change the abrasive belts? A: It is very simple. You can change the belts by turning the hand wheel located at the back of the machine, which saves time and effort.
Q4: What glass thicknesses are compatible with this model? A: The machine supports glass thicknesses ranging from 3mm up to 19mm.
Q5: What is the maximum glass size it can handle? A: The maximum polishing size for this machine is 2000*1200mm.
Q6: What kind of packaging is used for transport? A: The unit is typically packed with simple stretch film or professional-grade protective packaging to ensure safety during delivery.
