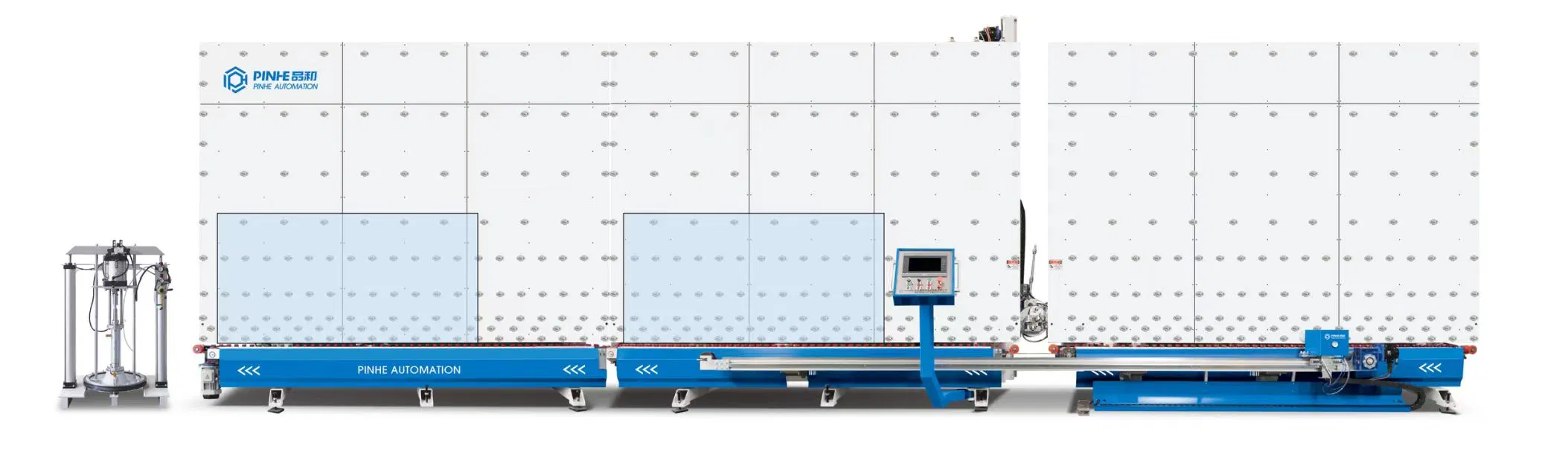

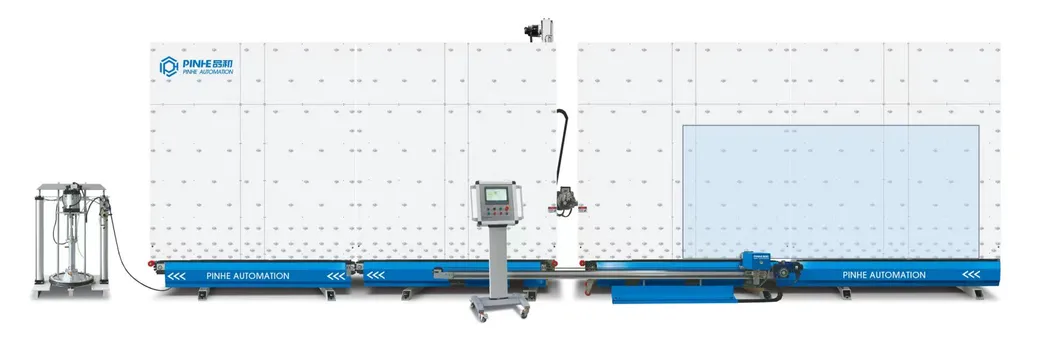

2540 Insulated Glass Line Sealing Robot Double Glazing

1 / 5

2540 Insulated Glass Line Sealing Robot Double Glazing

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Specifications

Model NO.

UZNJ2540

Type

Insulating Glass Production Line

Structure

Vertical

Glass Washing

Ultrasonic Glass Washing Machine

Glass Edging

Glass Double Edging Machine

Grinding Heads

Condition

New

Warranty

12 Months

After-Sales

12 Months

Package

Container

Specification

2500X4000MMS

Capacity

2000 sets/Year

Product Gallery

Product Features

High sealing performance and high automation to reduce labor and manpower costs while improving production efficiency.
Fully intelligent HMI touchscreen with memory function for easy and intuitive operation.
Superior sealing quality without air bubbles, providing a smooth surface and avoiding time spent on corner correction.
Dual sealant supply systems with fast switching and one-button operation functionality.
Compact design with a machine width of 12.4m, optimizing floor area and saving workspace.
Production line section capable of prestoring three pieces of glass to maximize throughput.
Capable of processing insulating glass with a minimum size of 300x300mms.
Equipped with an anti-blocking device in the mixer for easy cleaning and maintenance.
Servo control system utilizing world-famous brands for stable and reliable performance.
Fast counting speed and high-precision sealant output for high surface smoothness.
Shaft transmission ensures smooth glass transfer with accurate positioning.

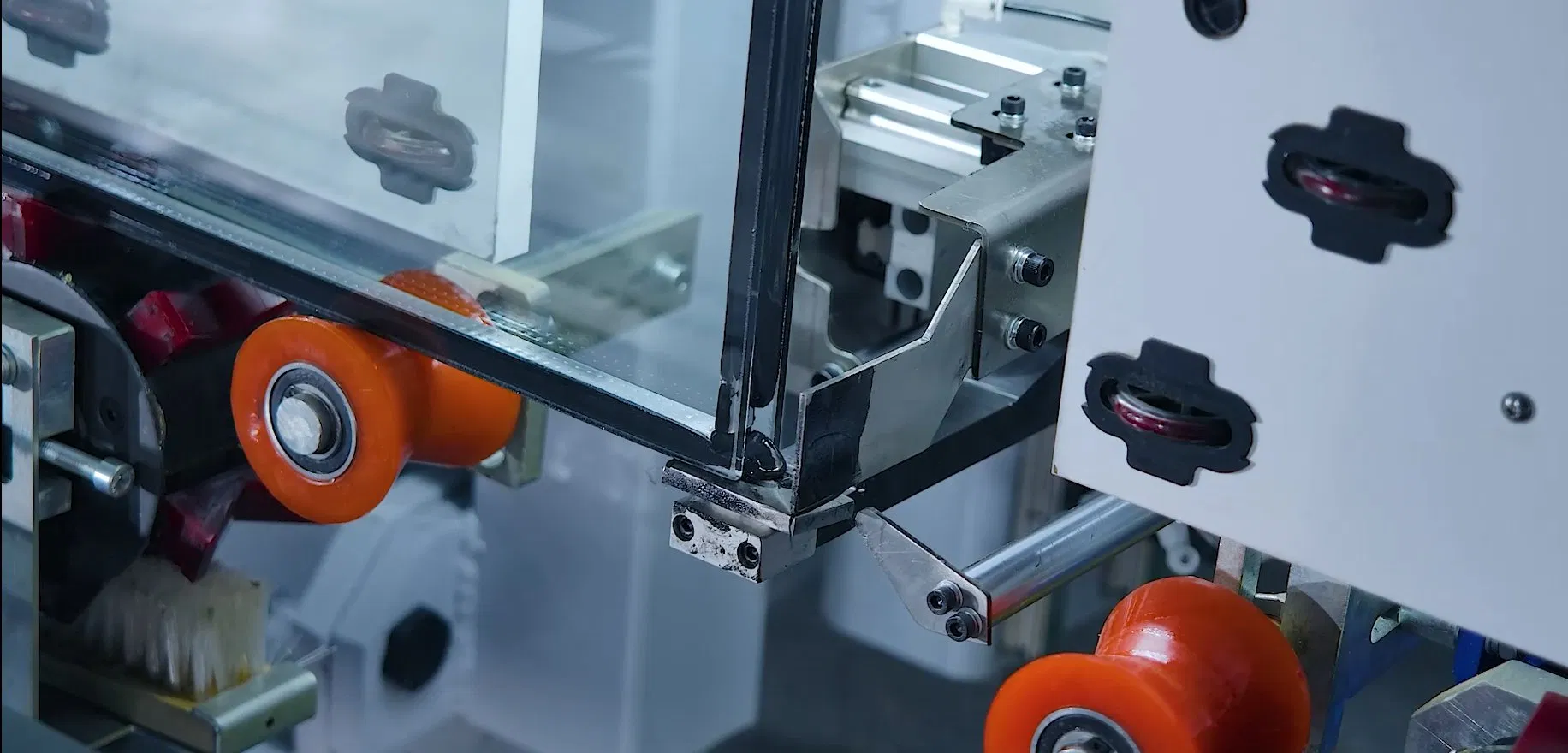

Special V-type transmission belt prevents sealant sticking, ensuring clean glass edges; V-type blocks are changeable.
Spare parts produced with high standards and precision for long-term machine stability.

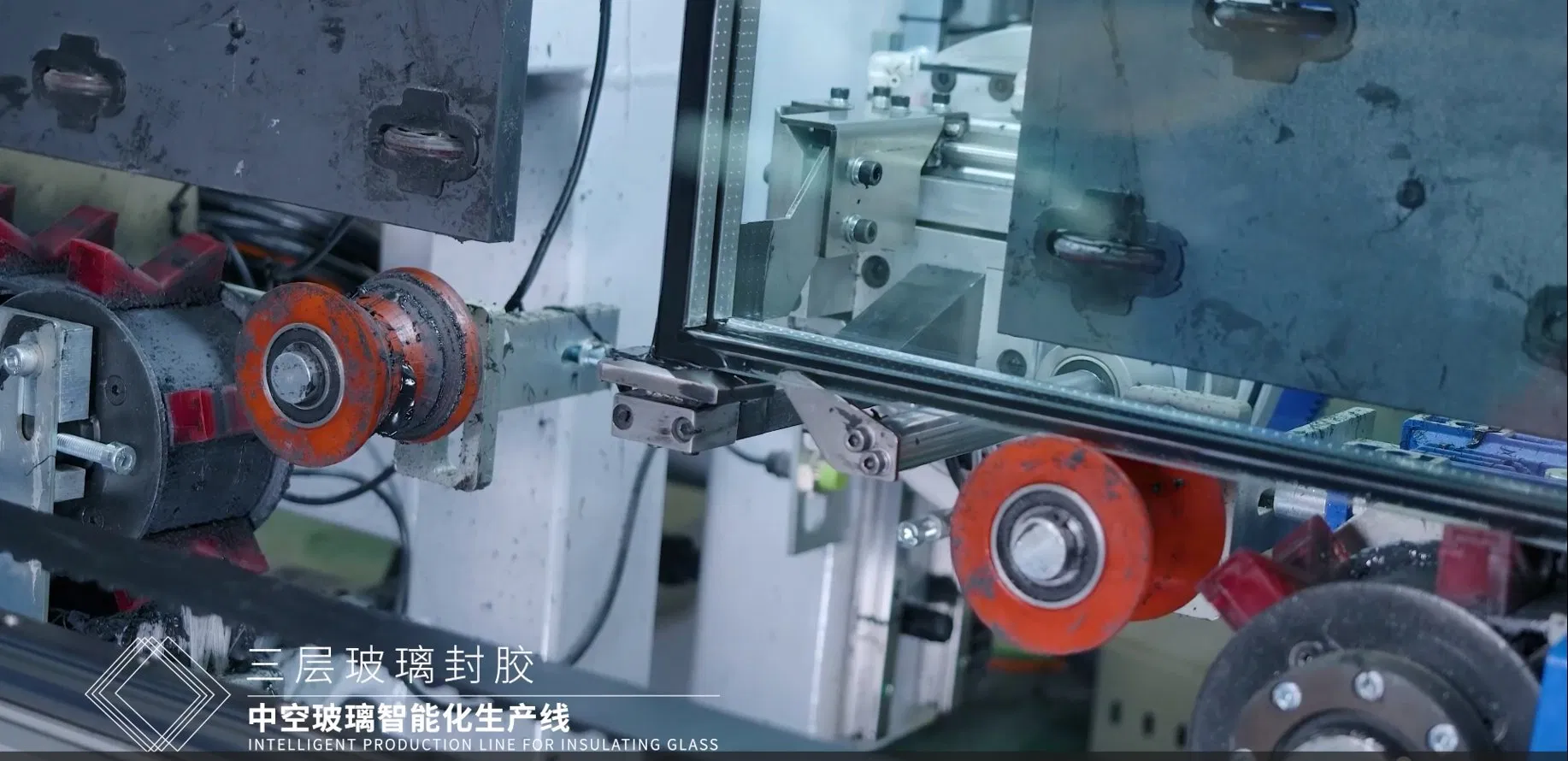

Fully suitable for triple glazing production requirements.

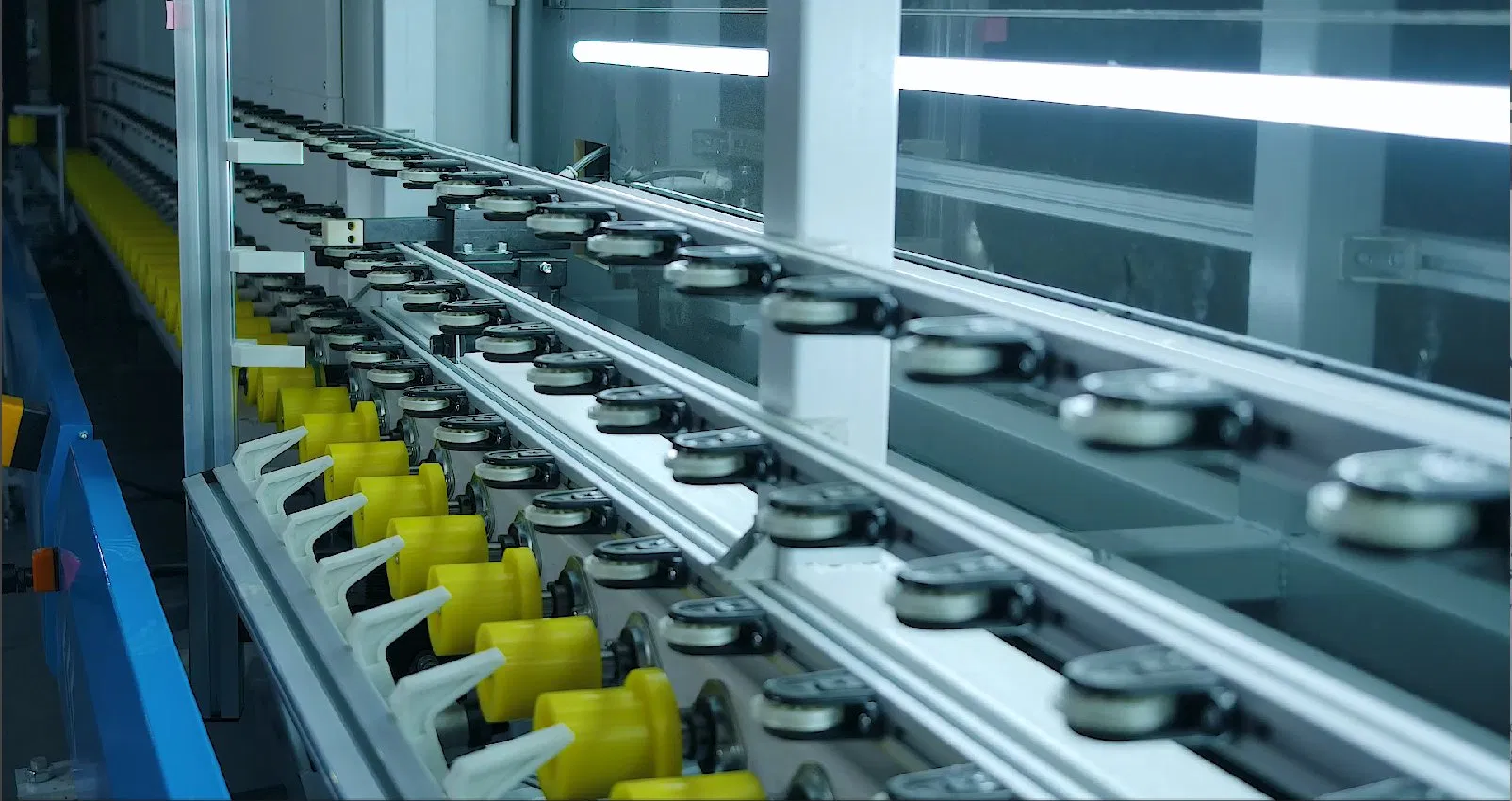

Embedded conveying wheels on the backboard ensure smooth transport of the glass units.
High-speed positioning function for accurate glass location during fast transport.
Touchscreen utilizes Ethernet communication for sensitive and popular operation standards.

Technical Parameters

Total Power 7.0KW

Max. Glass Size 2500 x 4000mms

Min. Glass Size 300 x 300mms

Max. IG UNIT Thickness 12 - 56mms

Coating Speed 5 - 40ms/min

Squeeze Pressure 32mpa

Air Pressure 0.60 - 0.8Mpa

Frequently Asked Questions

1. What is the maximum glass processing size for this line?

This production line can handle a maximum glass size of 2500x4000mms, making it ideal for large-scale architectural glass projects.

2. Can this machine produce triple-glazed units?

Yes, the machine is specifically designed to be suitable for triple glazing production with high efficiency.

3. How does the system ensure the quality of the sealant application?

The machine uses a world-famous brand servo control system and high-precision sealant output to ensure a smooth surface without air bubbles, eliminating the need for manual corner correction.

4. What is the minimum glass size that can be processed?

The system is versatile enough to handle small glass pieces, with a minimum processing size of 300x300mms.

5. Is the machine easy to clean and maintain?

Yes, it is equipped with an anti-blocking device in the mixer and uses special V-type belts that prevent sealant sticking, making cleaning and maintenance very straightforward.

6. What kind of after-sales support is provided?

The machine comes with a 12-month warranty and 12 months of dedicated after-sales service to ensure long-term operational stability.
