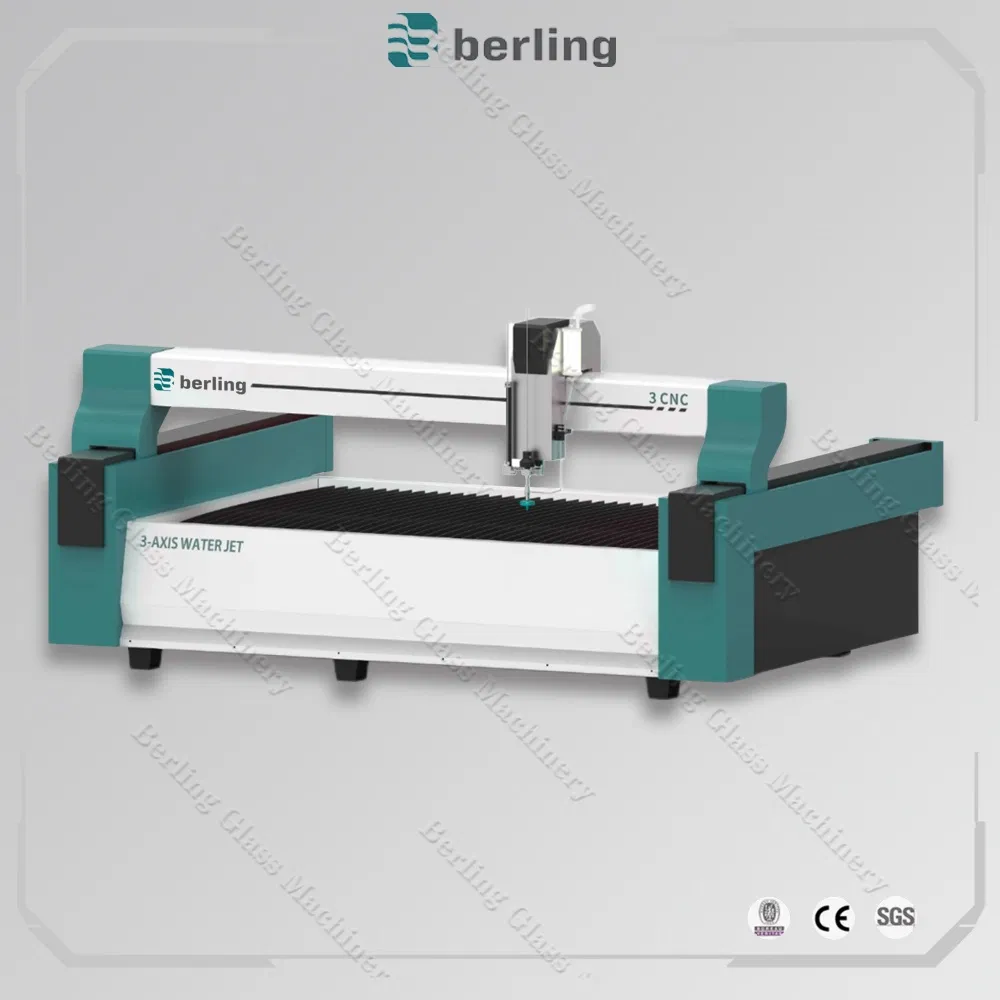

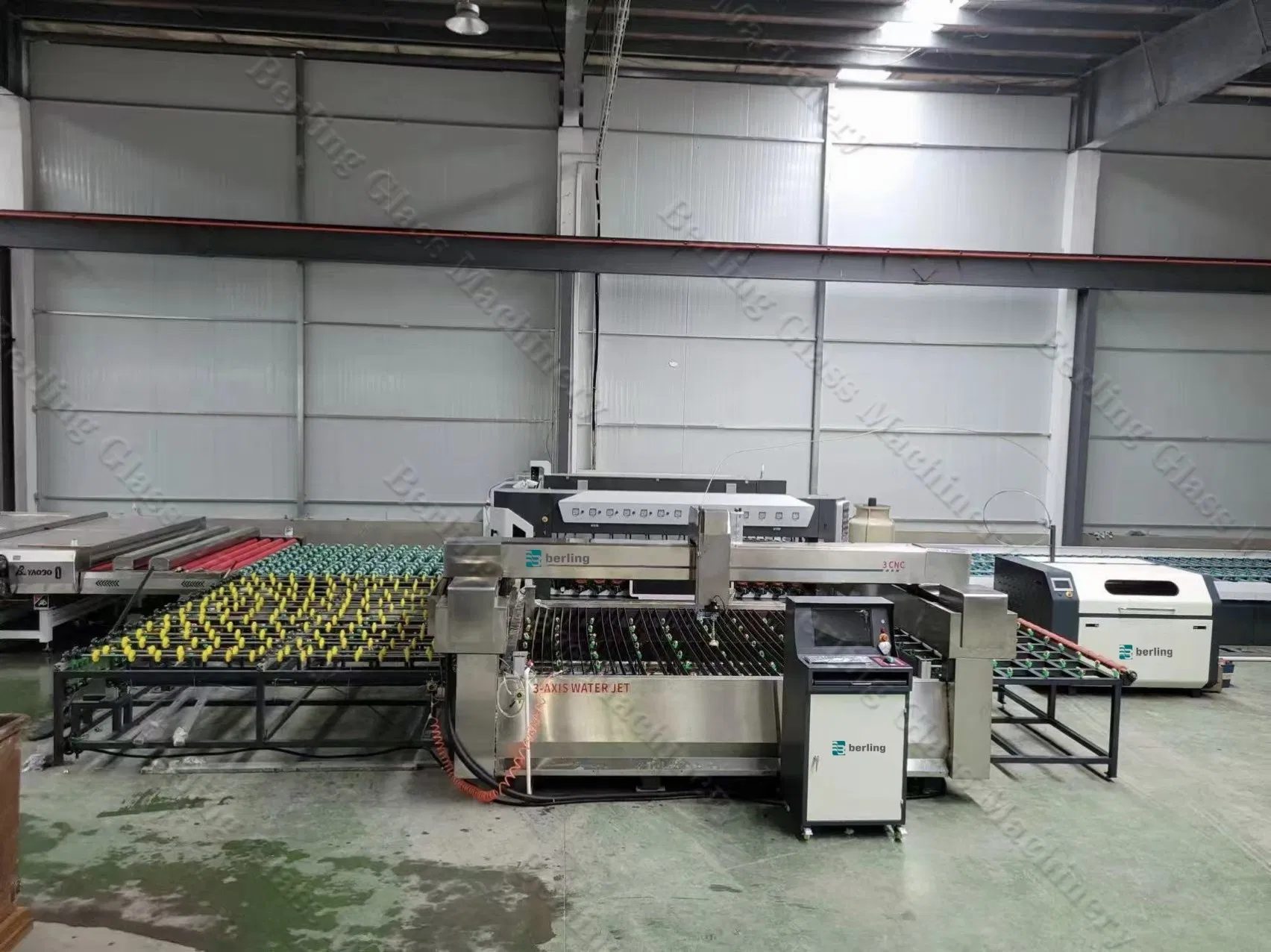

Industrial Waterjet Cutter for Glass Stone Materials Drilling Shower Door CNC Automatic

Customization: Available
Control System: Fully Automatic
Coolant System: Yes

Product Description

🔹

Basic Specifications

Model NO.BLWJ-3015
Drilling DiameterCustomized
Glass Thickness80mm
Power Supply380V/50Hz
Max. Nozzle Dia.0.33mm
Maximum Pressure420MPa(60000psi)
Main Motor Power37kw
Processing Speed0.02 ~ 3 M / Min
Max.Cutting Range3000*1500mm
Travel of Z Axis150mm
Control Accuracy±0.01mm
Cutting Accuracy±0.1-0.2mm
Bevel Cutting Angle±45°
Transport PackageCling Film/Wooden Case
📦

Packaging & Delivery

Package Size350.00cm * 180.00cm * 140.00cm
Package Gross Weight6000.000kg
⚙️

Product Description

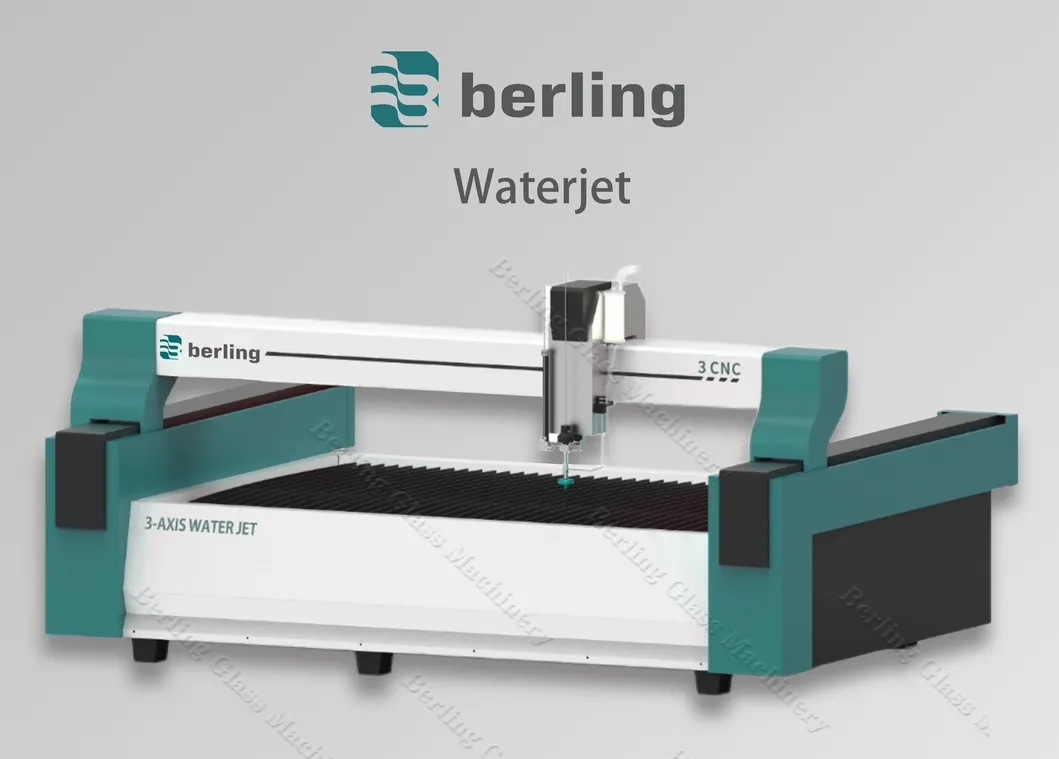

Industrial Waterjet Cutter Overview

The 3-Axis Glass Waterjet Cutting Machine is a high-performance, CNC-controlled cutting system designed for precision machining of glass and other brittle materials. It combines a robust gantry structure, intelligent sand and water control systems, and a reliable high-pressure pump to deliver efficient, clean, and accurate cuts - even for complex shapes or thick panels.

📸

Detailed Photos

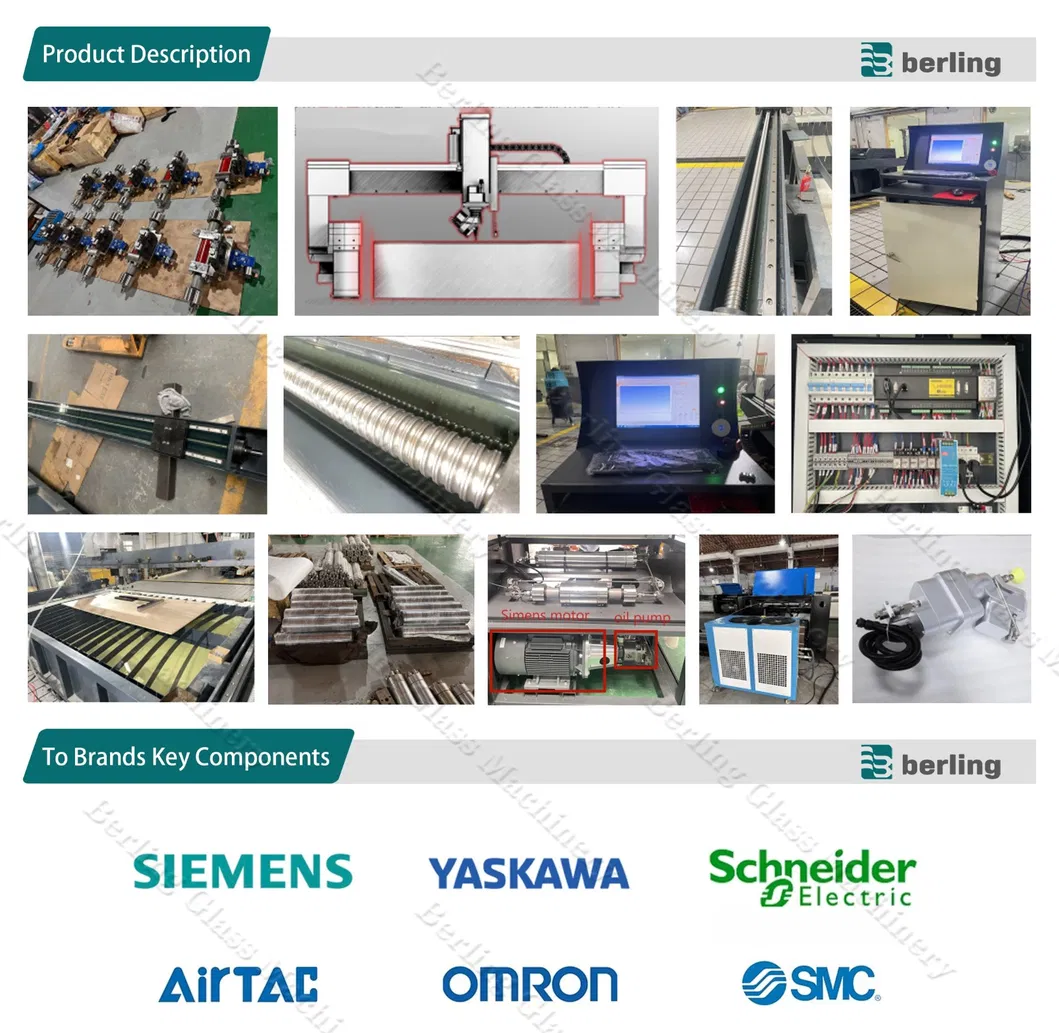

Detailed Component View

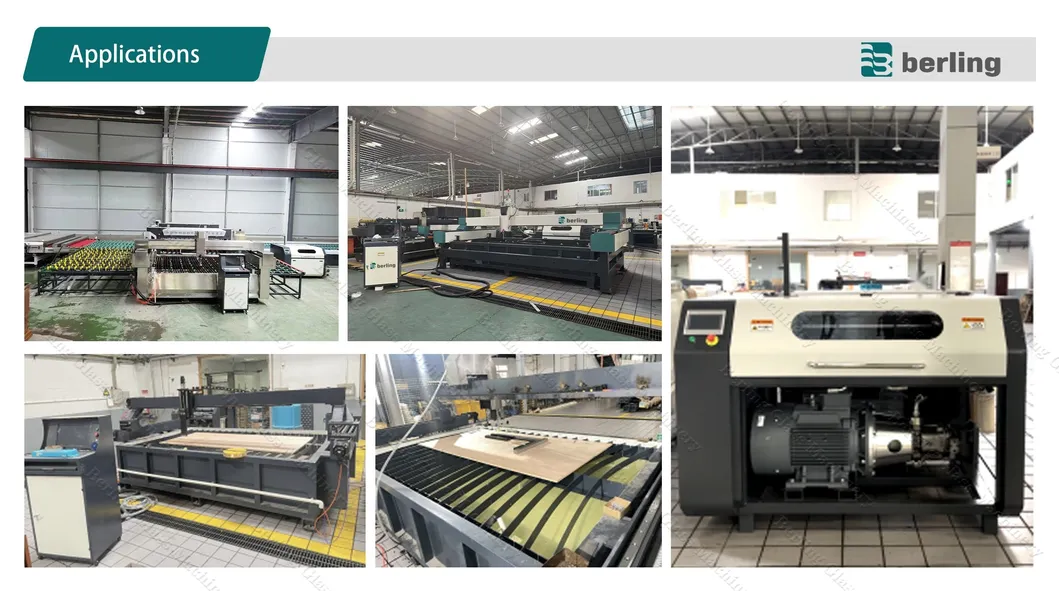

Machine Working Table

Core Advantages

01High cutting precision: Smooth and accurate cuts on glass, ceramics, and more.
02Stable structure: Gantry design offers rigidity, balance, and low vibration.
03Reliable sand control: Prevents clogging and reduces abrasive waste.
04Advanced high-pressure pump: Strong cutting force with long-term stability.
05Automatic sand supply: Maintenance-free system ensures continuous operation.
06Safe and eco-friendly: Cold cutting process avoids thermal deformation or fumes.
🛠️

Main Applications

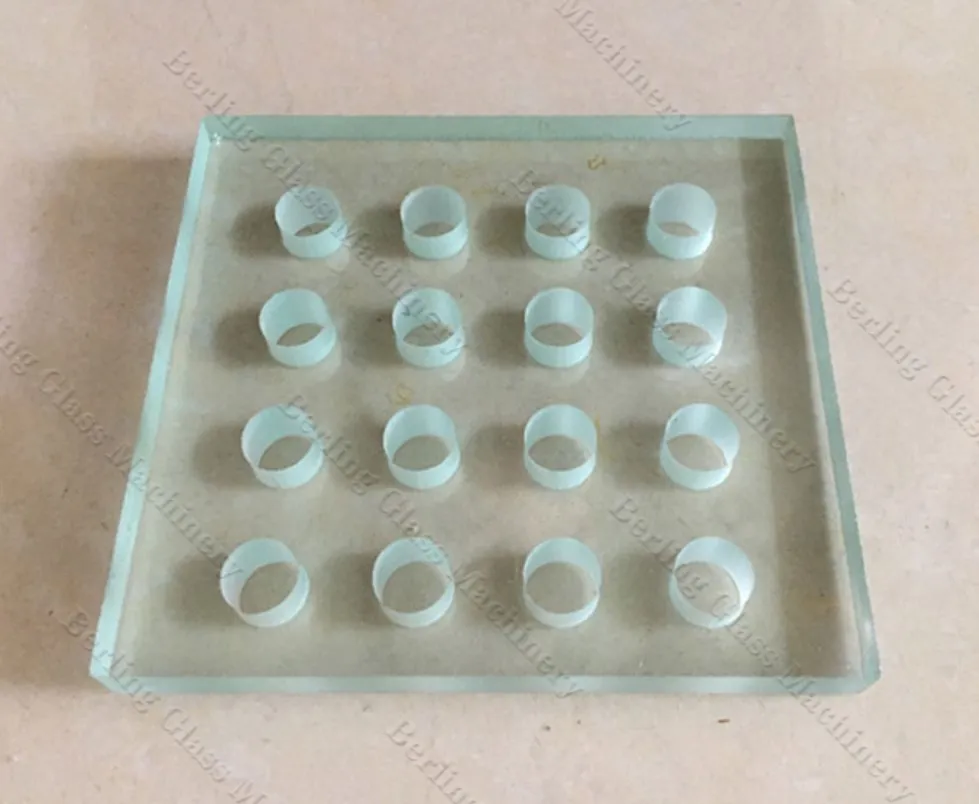

Application Samples
  • Architectural Glass (Curtain walls, windows, doors)
  • Decorative Glass (Art panels, signage, custom designs)
  • Furniture Glass (Table tops, cabinet inserts)
  • Appliances & Displays (Control panels, protective screens)
  • Industrial Parts & Stone/Ceramic Machining
📊

Product Parameters

Model BLWJ-3015 BLWJ-3020 BLWJ-4020
Working table size (mm)3000*15003000*21004000*2100
Max. cutting range (mm)3000*15003000*19004000*1900
Servo systemWEIHONG
Travel of Z axis150mm
Max. moving speed6000mm/min
Control accuracy±0.01mm
Cutting accuracy±0.1-0.2mm
Re-positioning accuracy±0.05mm
📜

Certifications & Shipping

Certification Documents

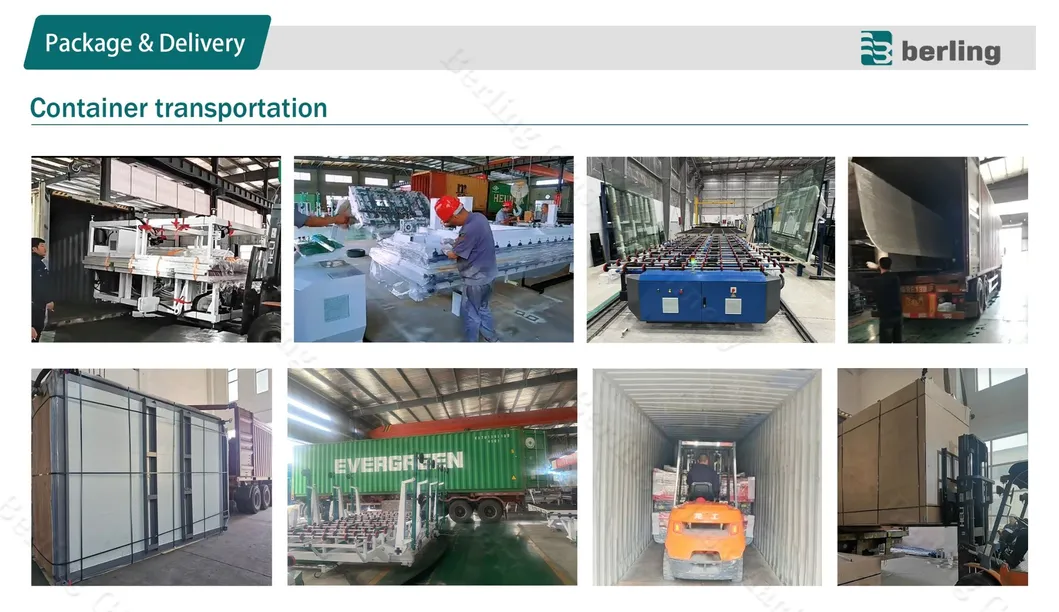

Logistics and Packaging
🏢

Profile & Service

Workplace View 1
Workplace View 2
After Sales Service

Frequently Asked Questions

1. How is product quality guaranteed?
We always provide a pre-production sample before bulk production and conduct a strict final inspection before shipment to ensure high standards.
2. What types of glass machinery do you offer?
We provide a full range including Insulated Glass Production Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Production Lines.
3. Why choose your equipment over other suppliers?
With over 20 years of production experience, we boast an excellent engineering team, professional after-sales service, and stable product quality exported globally.
4. What delivery terms are accepted?
We accept various terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery.
5. What are the accepted payment methods?
Payment can be made via T/T, L/C, Credit Card, PayPal, and Western Union in currencies such as USD, EUR, and CNY.
6. Which languages does your support team speak?
Our team is multilingual, speaking English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
