| Model NO. | HSL-BYTJ3826 |
| Power | About 12 Kw |
| Dimension | 3300mm*4400mm*1600mm |
| Glass Size | Max.3660*2440 |
| Glass Thickness | 3-18mm |
| Cutting Speed | 0-200m/Min |
| Cutting Accuracy | <=+-0.2mm/M |
| Table Height | 880±30mm (Adjustable Feet) |
| Color | Orange |
| Voltage | 380V 50Hz |
| Key Selling Points | High-Accuracy |
| Applicable Industries | Building Material Shops, Manufacturing Plant |
| Structure | Horizontal |
| Control System | PLC |
| Condition | New |
| Warranty | 1 Year |
| Table size | 3900 mm *3000 mm |
| Compressed air | 0.6 -0.8 Mpa exhaust volume 0.6-1m3/min |
| Blade speed | 0-200M/min (adjustable) |
| Cutting acceleration | ≥8m/s² |
| Cutting knife holder | 360 degrees rotation (precisely cutting straight lines and special shapes) |

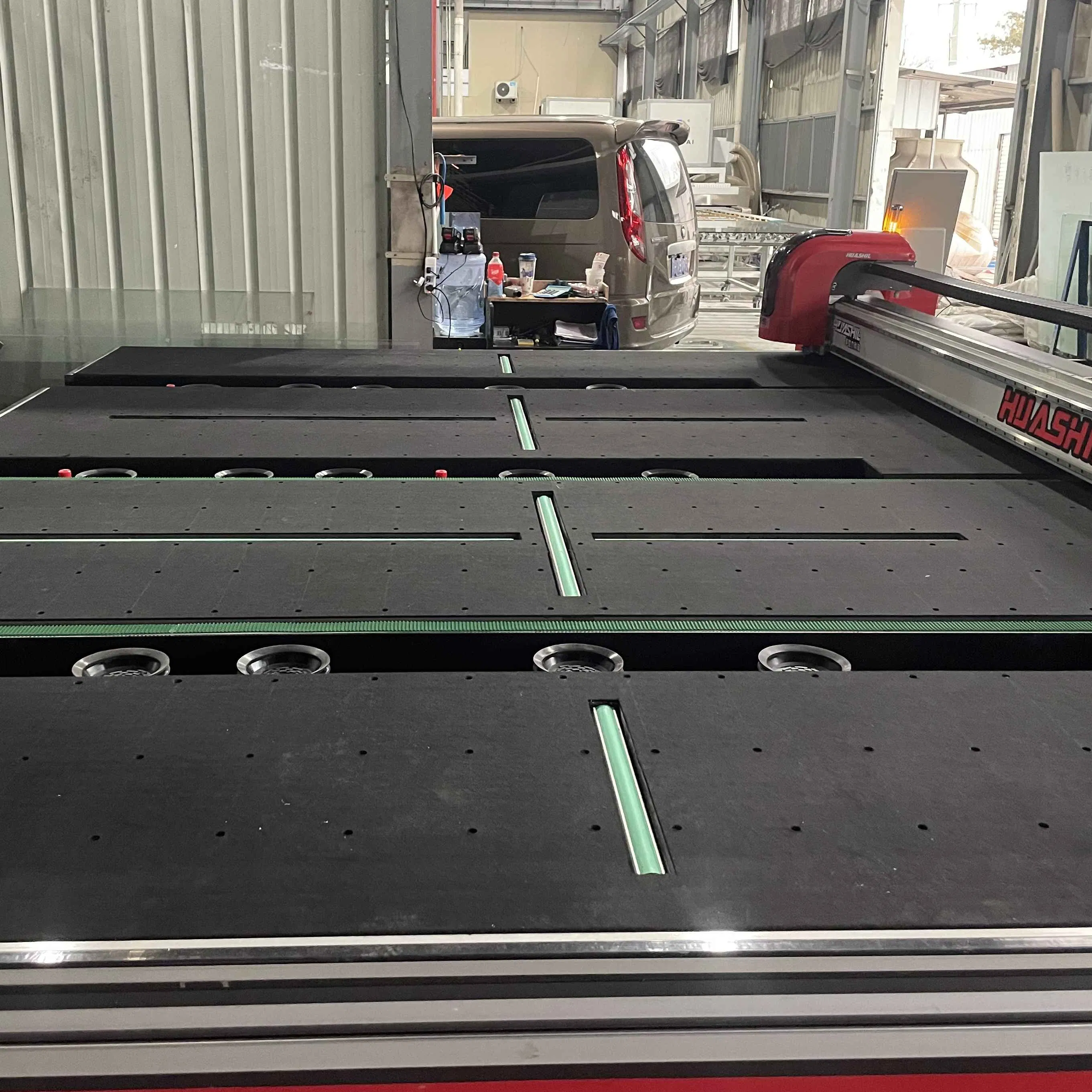

| Air flotation system | 4mm air flotation holes with high-pressure fan for easy glass movement |

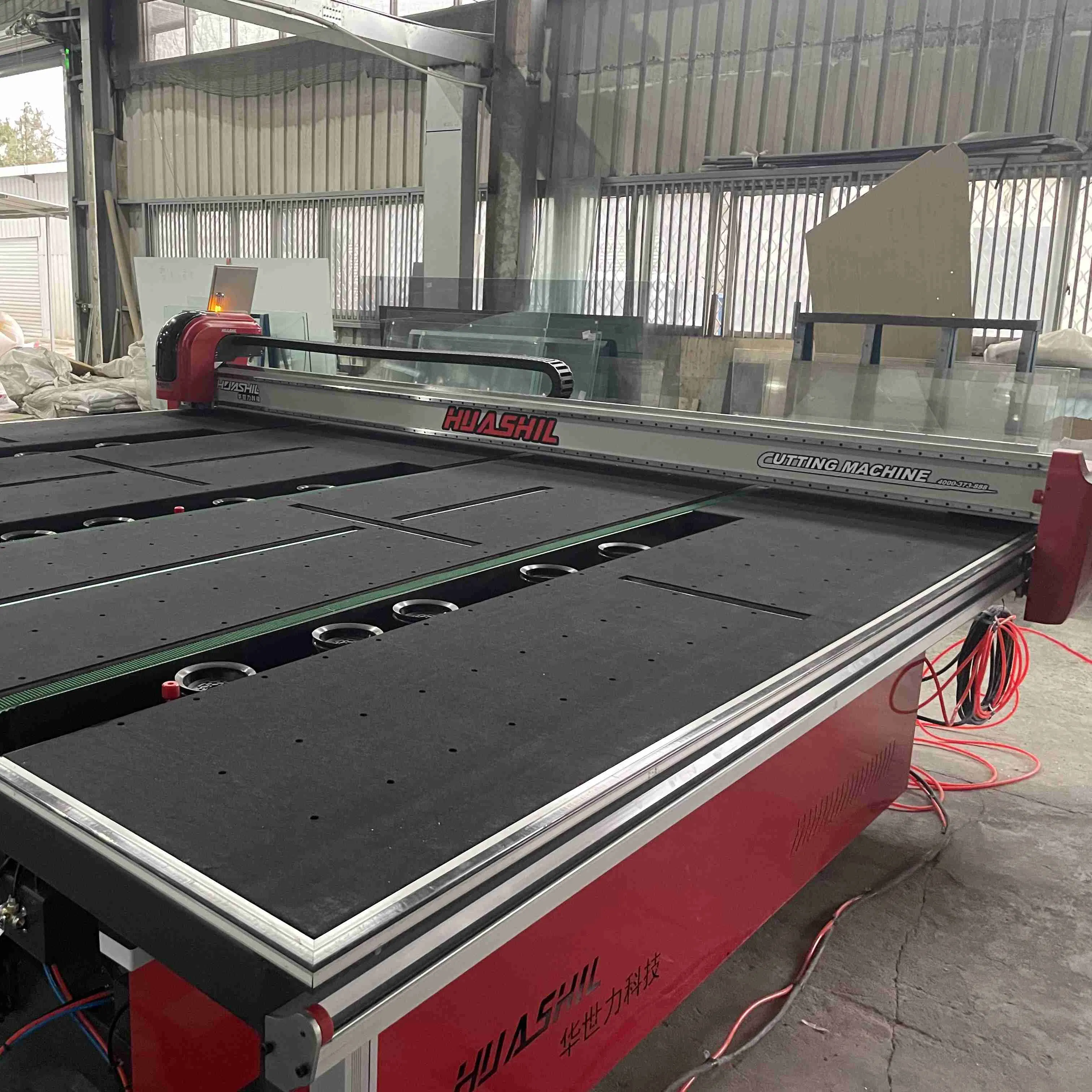

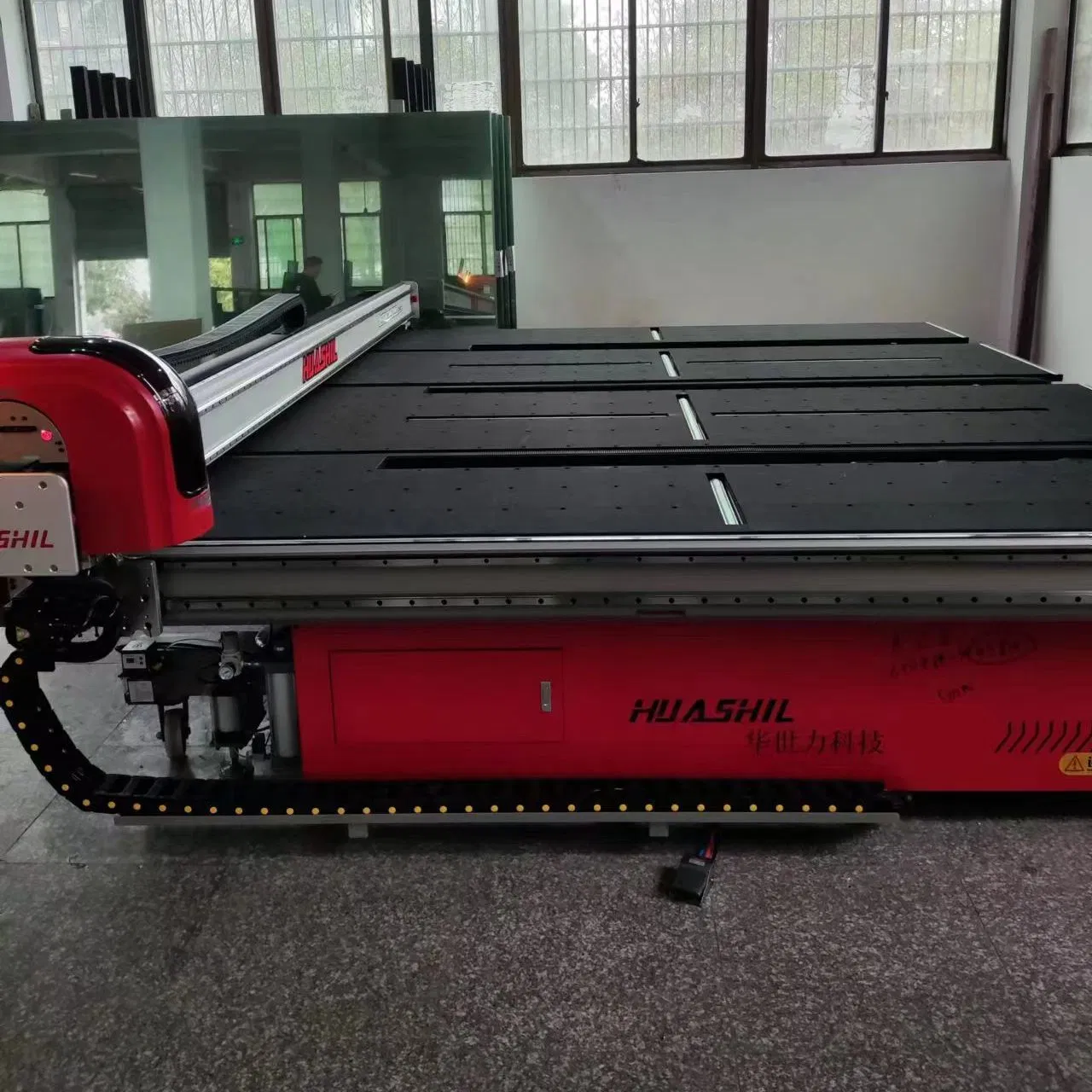

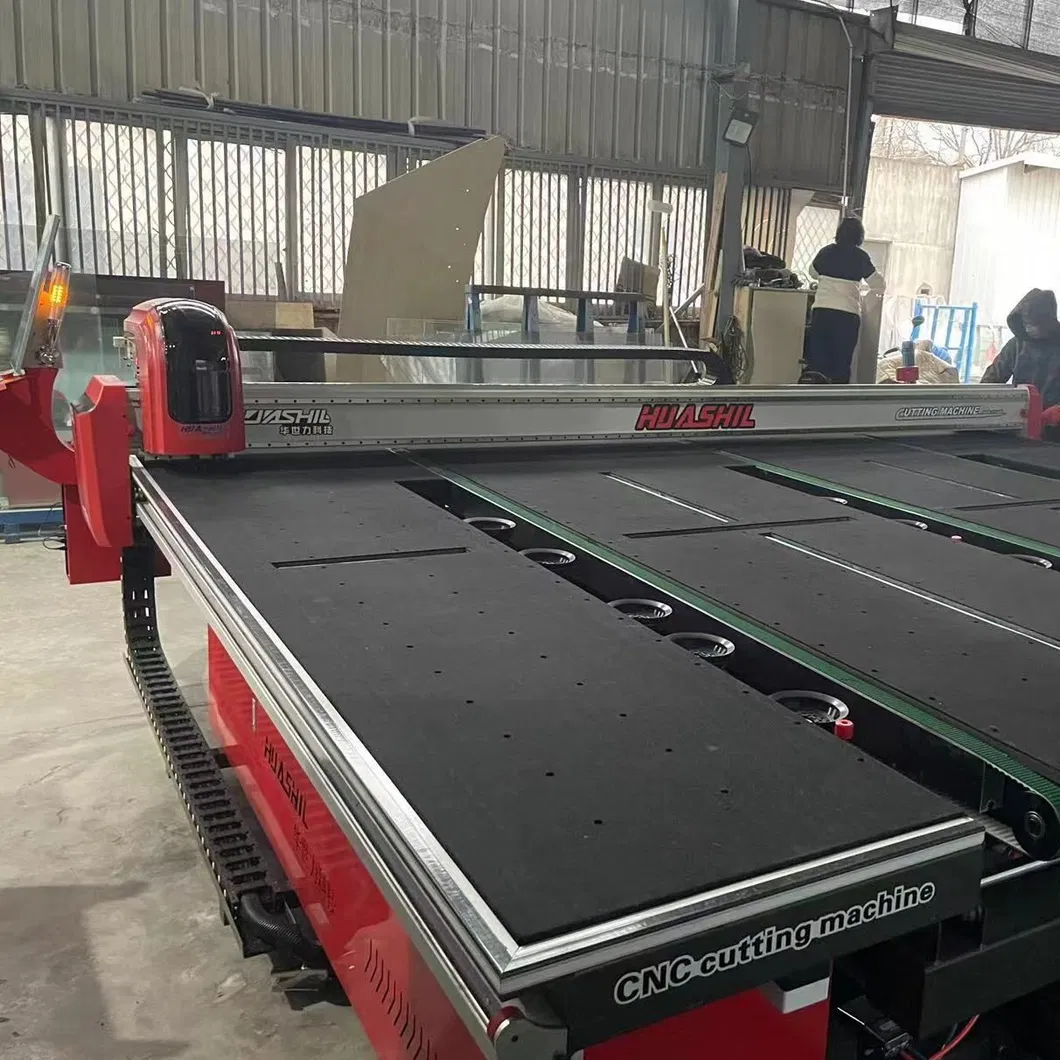

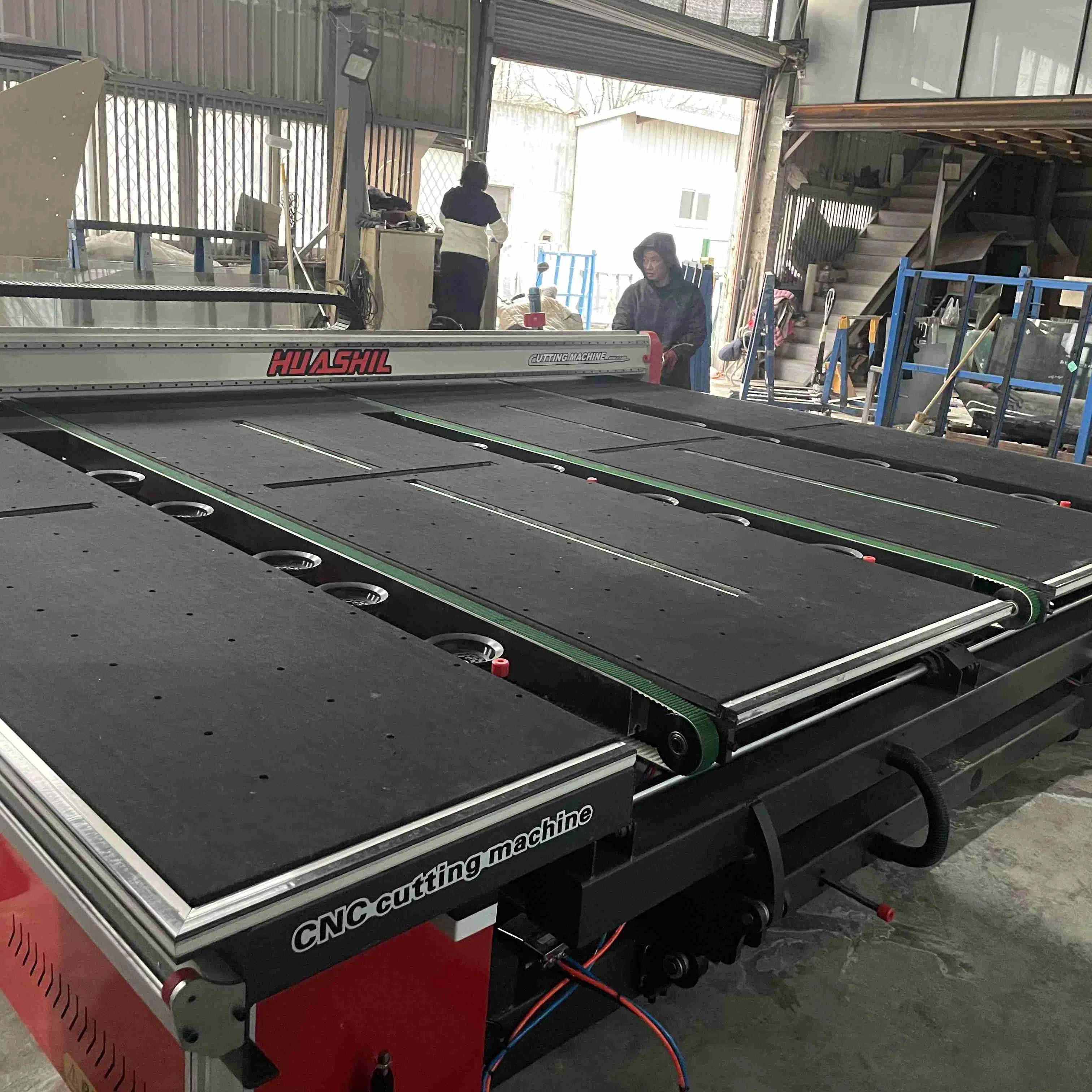

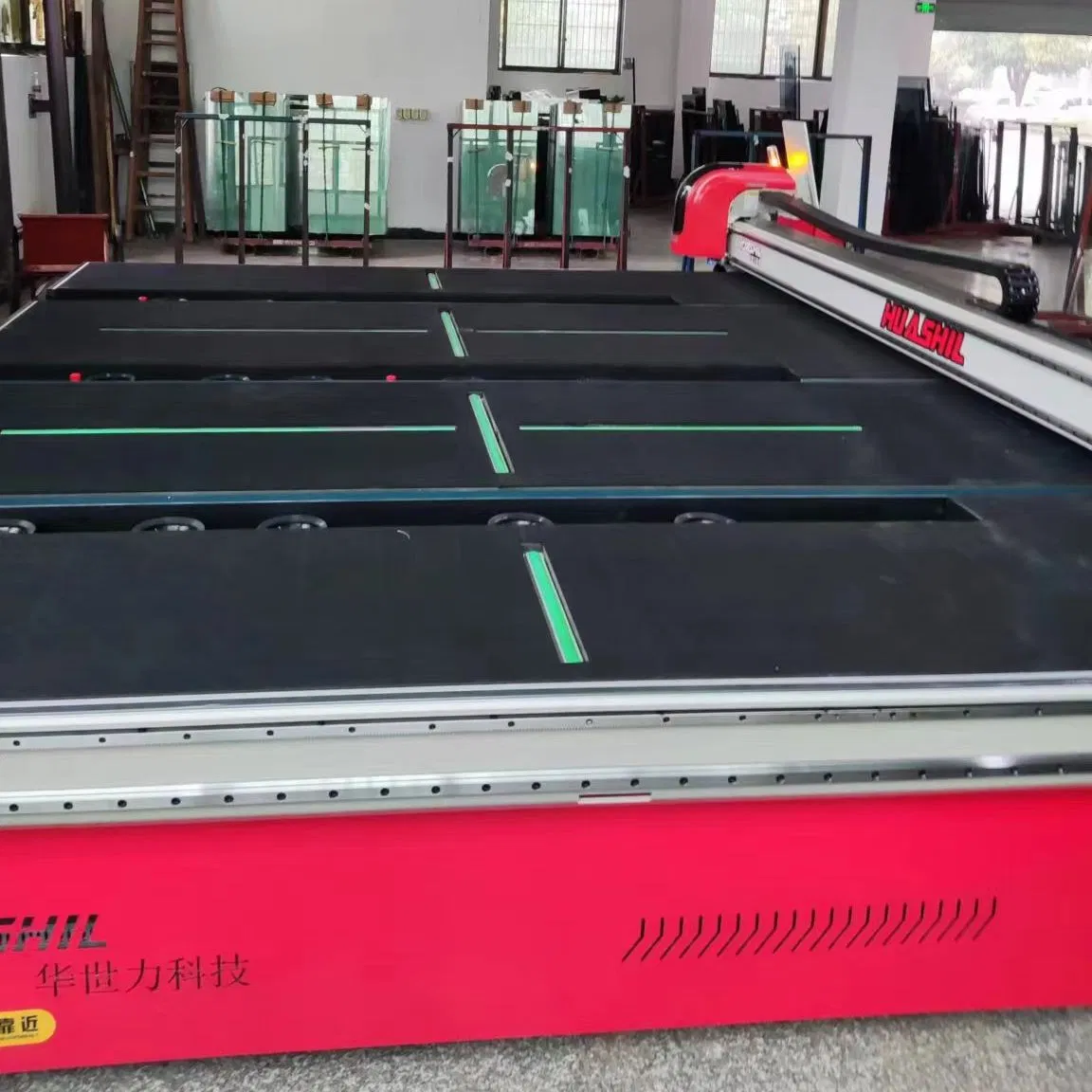

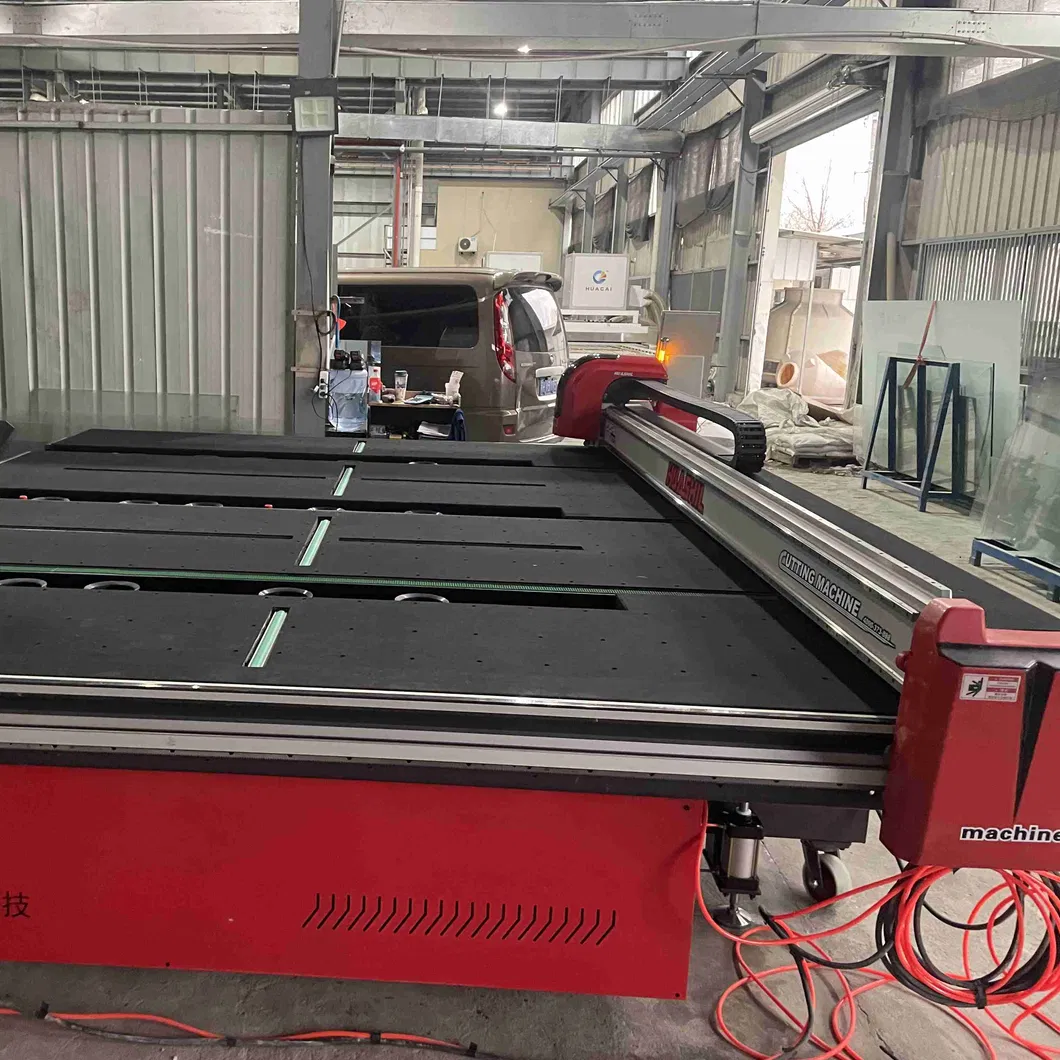

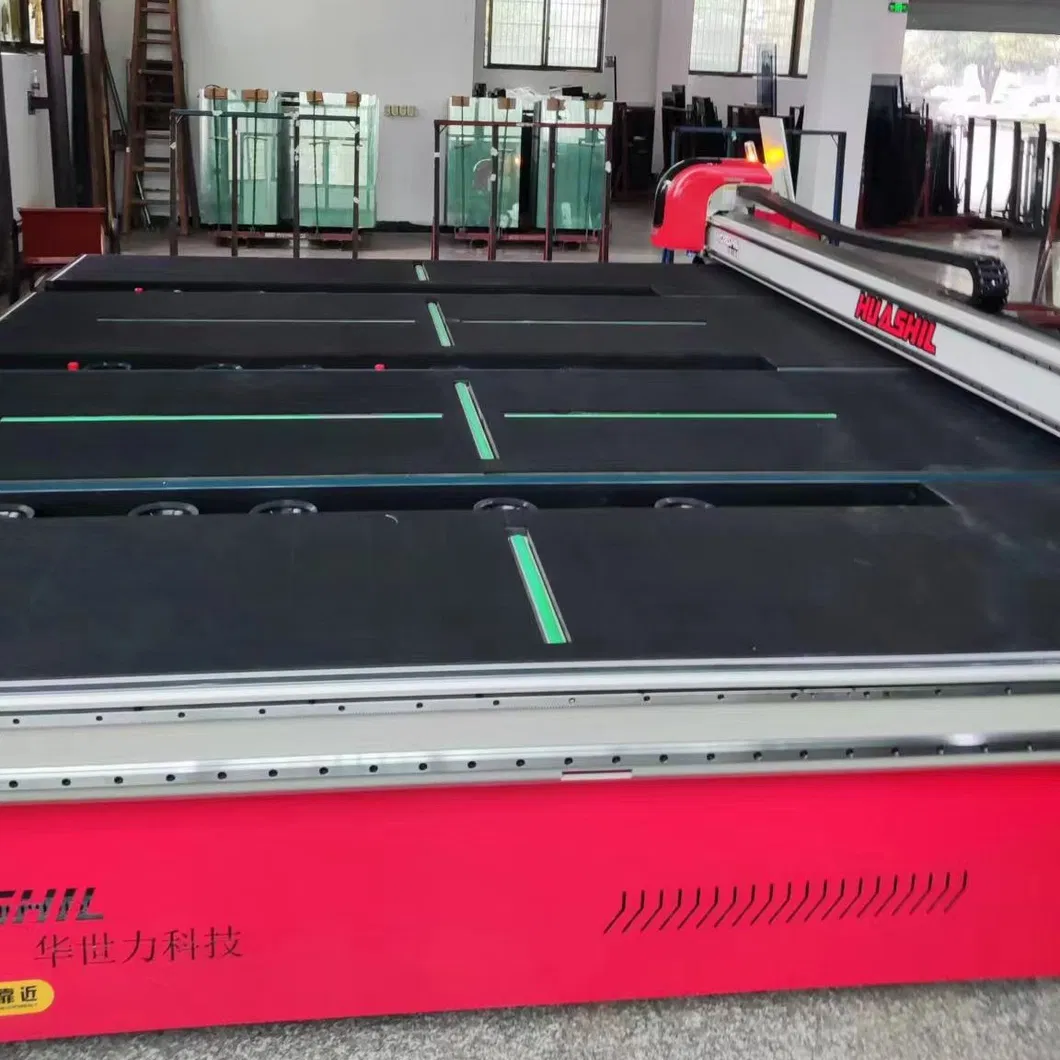

This advanced automatic glass cutting system integrates loading, glass taking, straight cutting, shape cutting, air flotation, breaking, and automatic movement. It serves as a highly efficient alternative to traditional cutting lines, significantly reducing labor intensity while maintaining low investment and high benefit advantages.

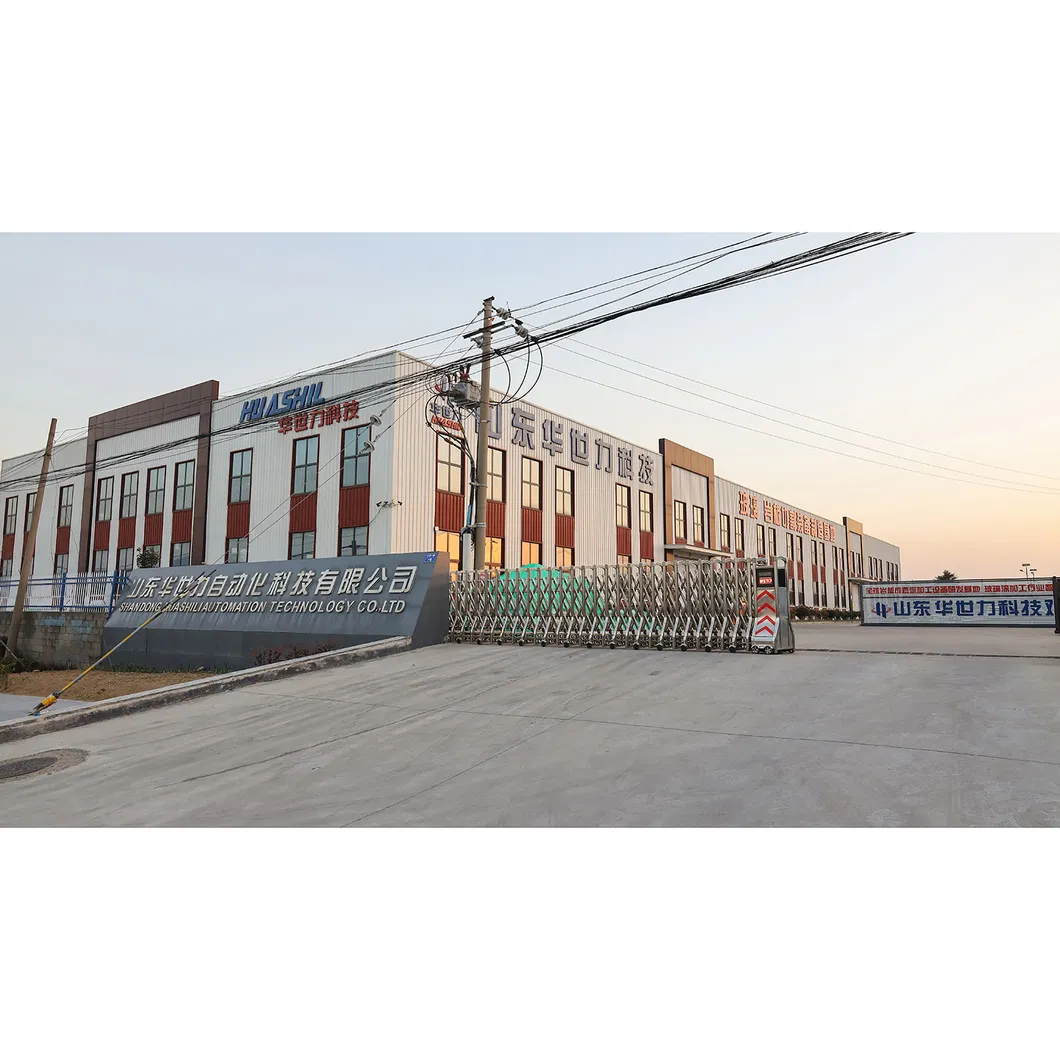

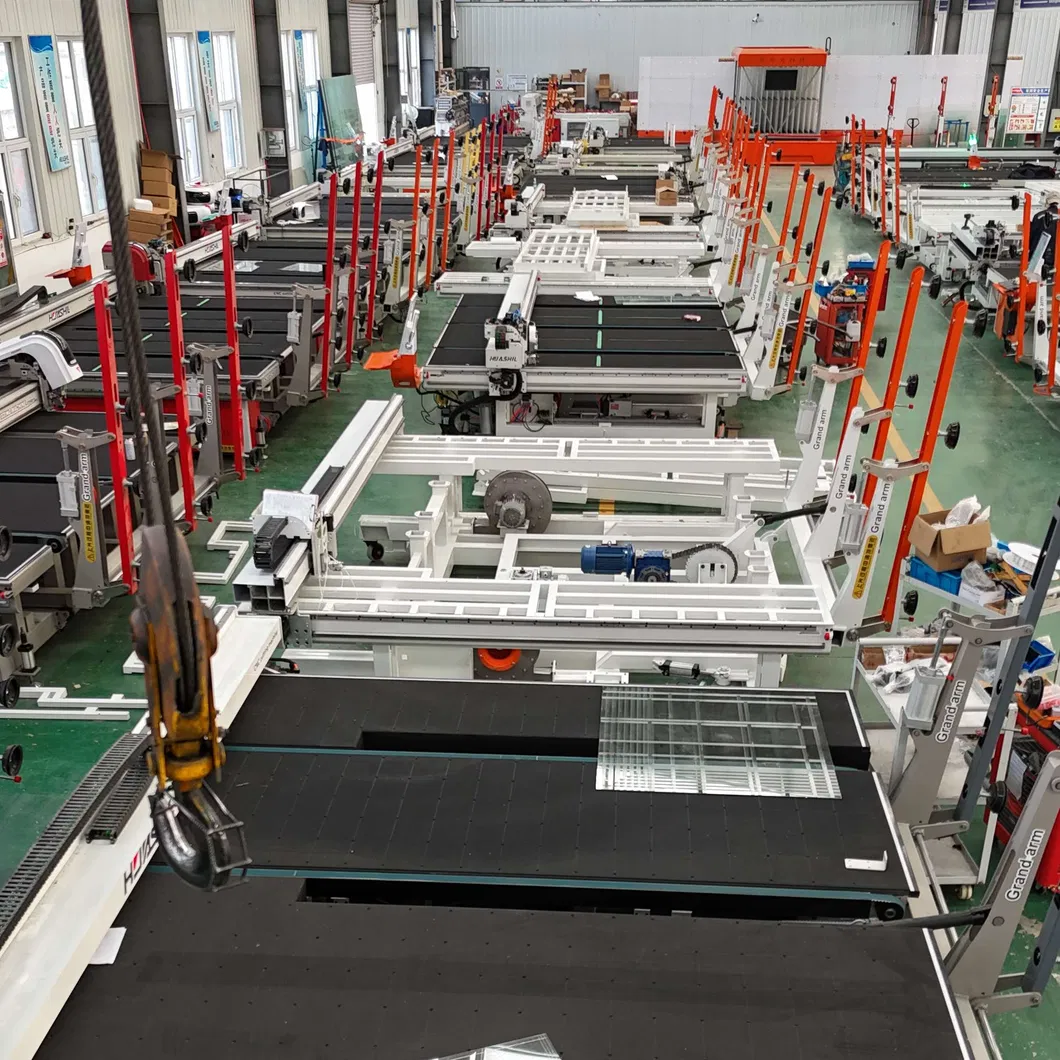

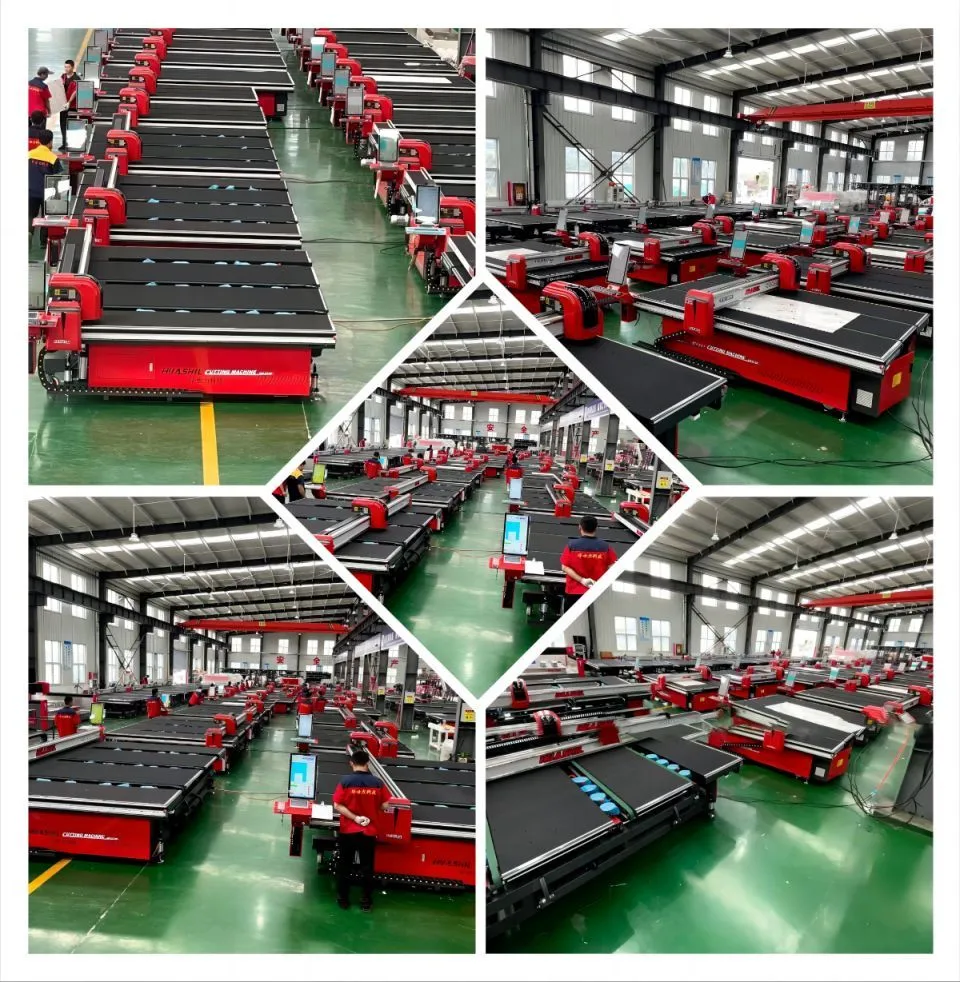

The company is a high-tech manufacturing enterprise specializing in mechanical equipment automation research, development, and production. We provide a full set of intelligent glass deep processing equipment, including loading and cutting machines, shuttle warehouse systems, and edging machines.
With extensive experience in automation, our technological level and equipment performance lead the domestic industry. We adhere to the principle of "customer satisfaction" and have established long-term cooperation with numerous global enterprises.
