📝 Product Description

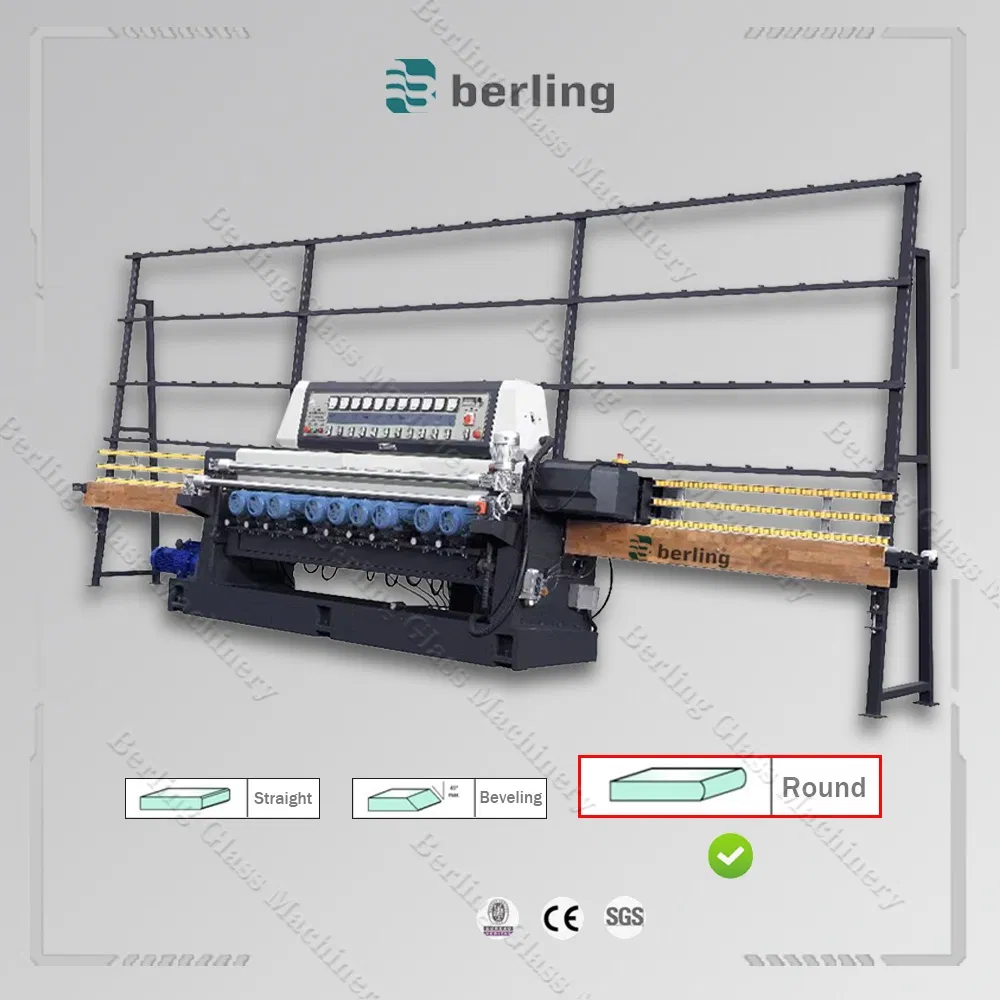

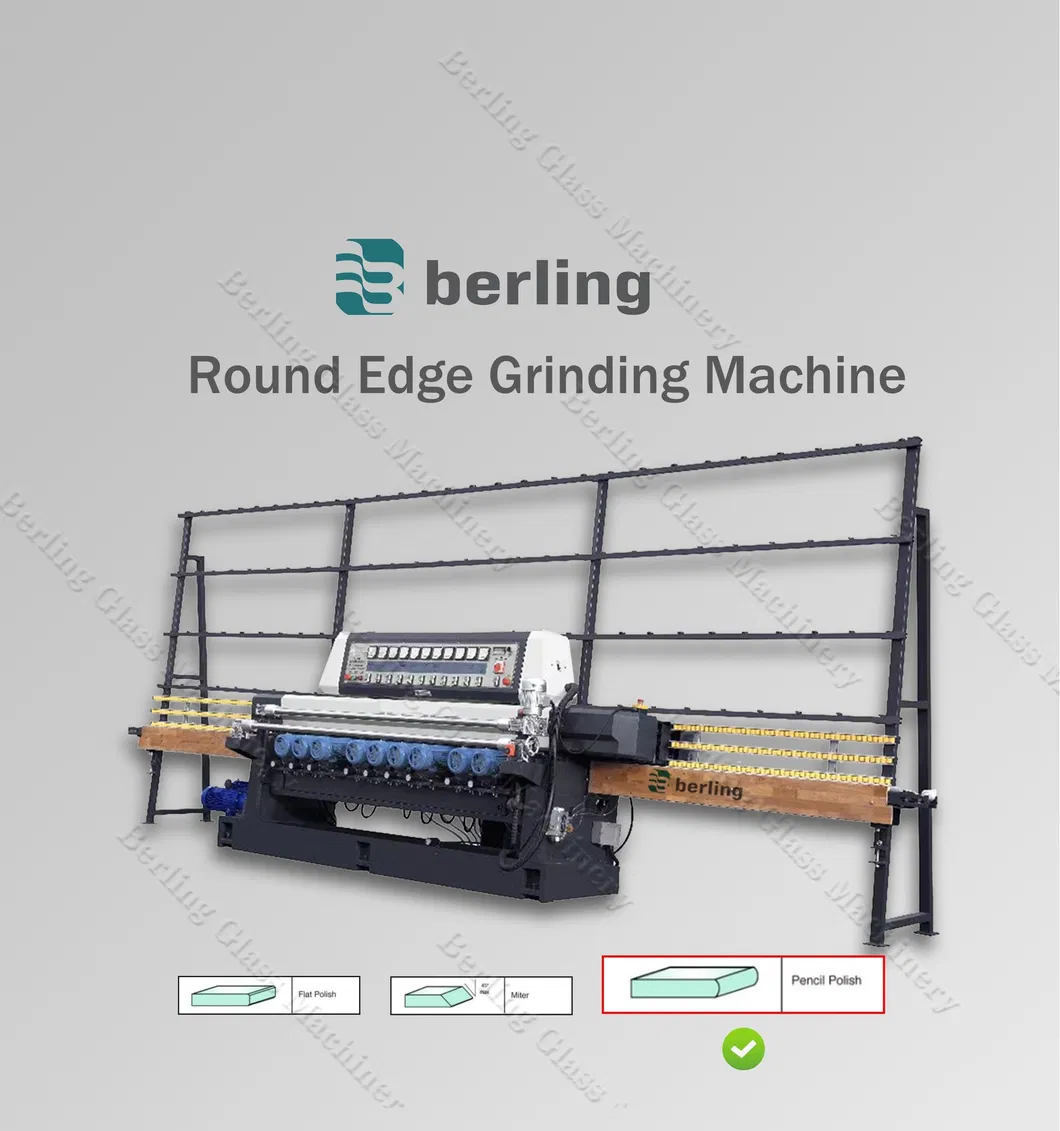

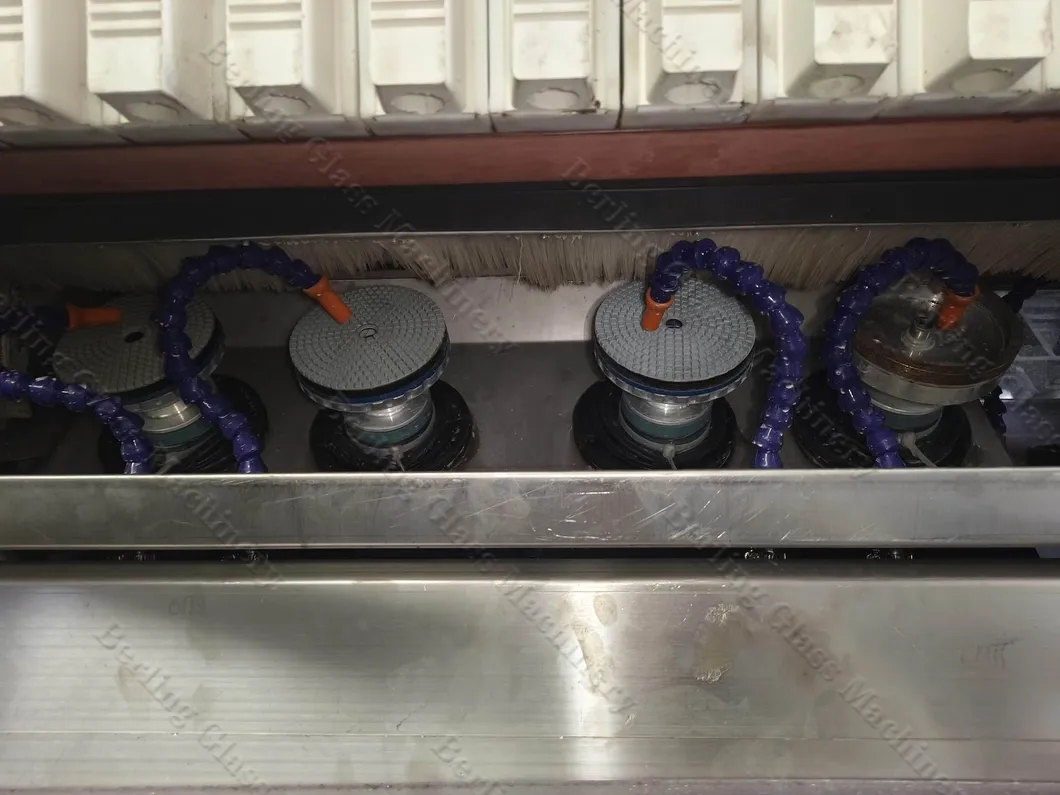

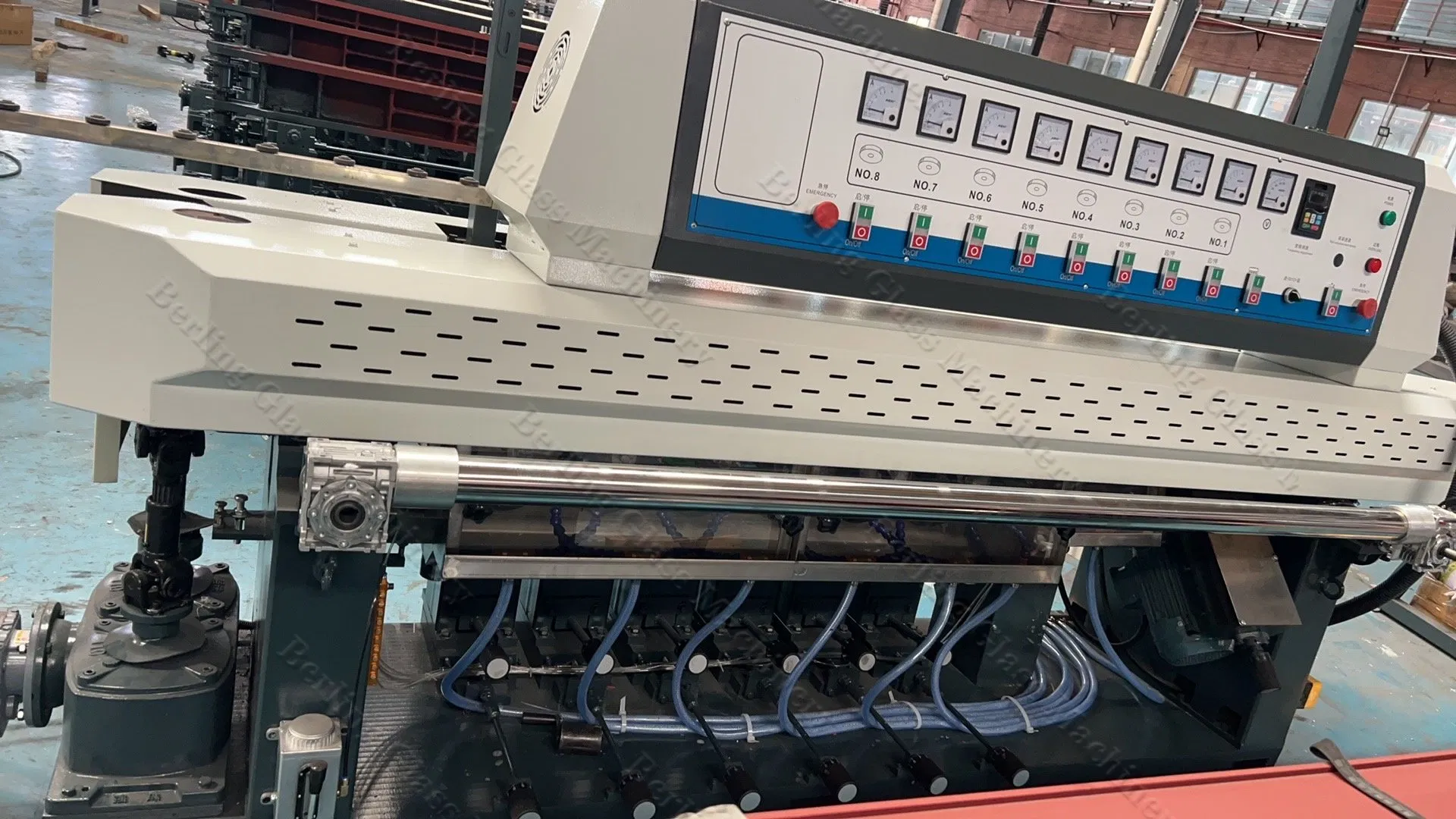

This industrial glass machine is suitable for edging straight lines and chamfer angles of various flat glass sizes. It combines coarse grinding, fine edging, and polishing into one seamless process. Featuring mechanical stepless adjustment, it ensures steady speed changes and high precision for two-side corner processing.

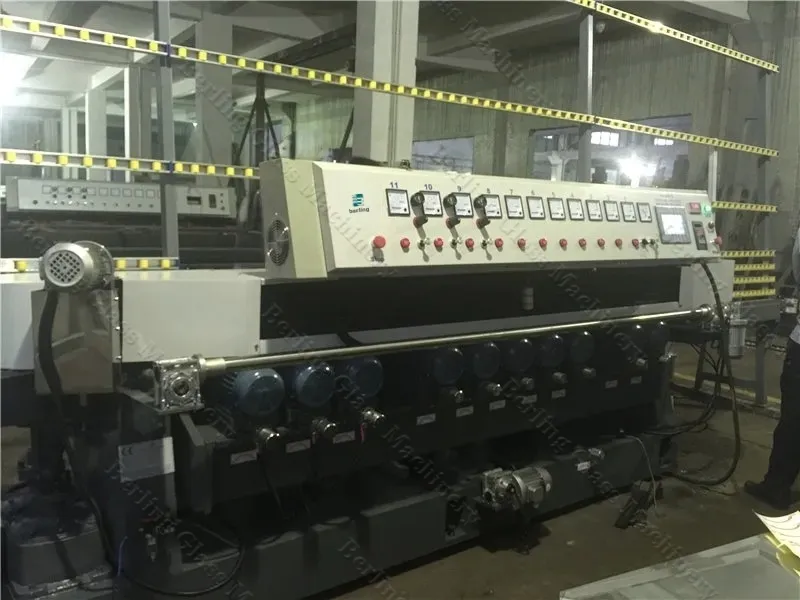

Utilizing a three-phase high-speed motor and the latest technology in grinding wheels, this system is ideal for long-term use in handicraft manufacturing. The transmission mechanism uses a synchronous belt to prevent surface scratches, highlighting a humanized design that coordinates control and working parts effectively.

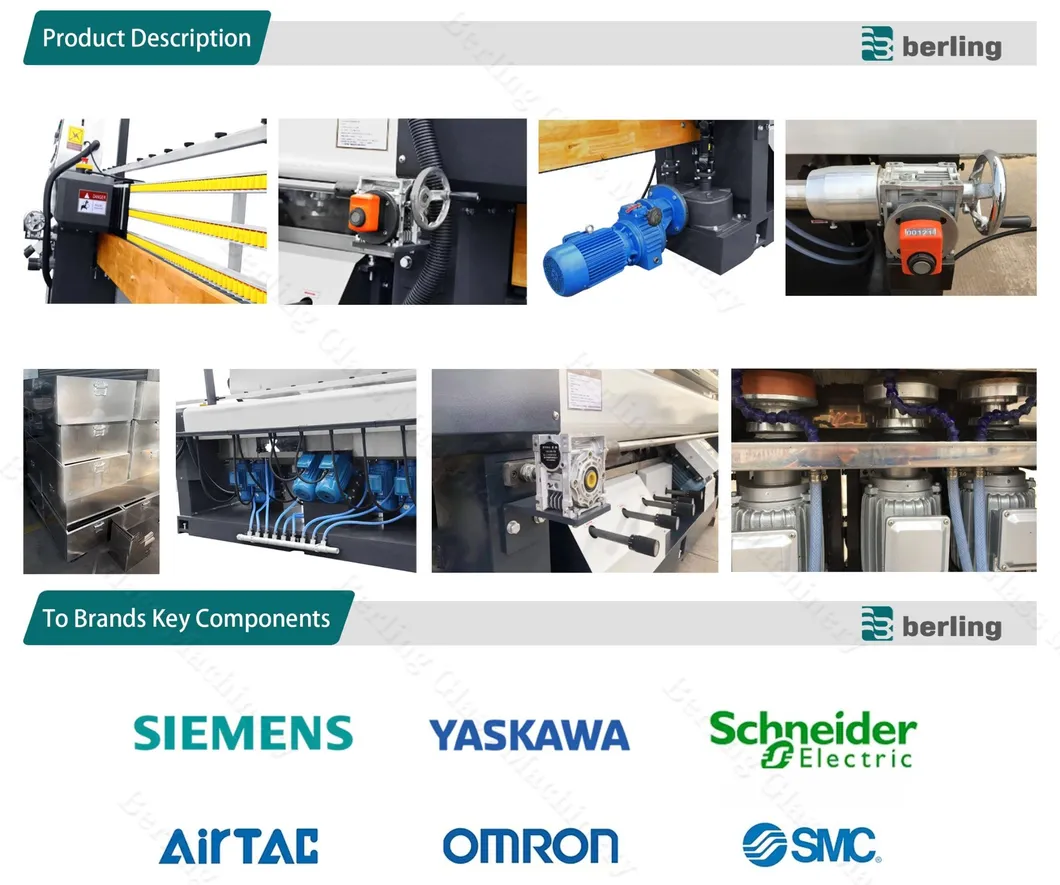

📷 Detailed Photos

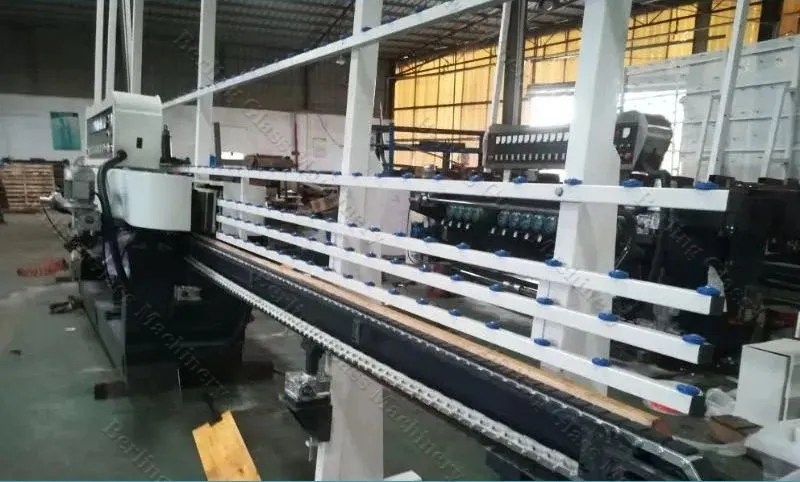

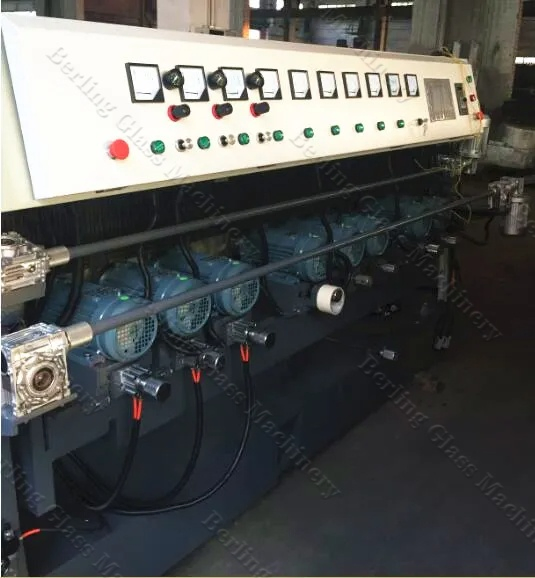

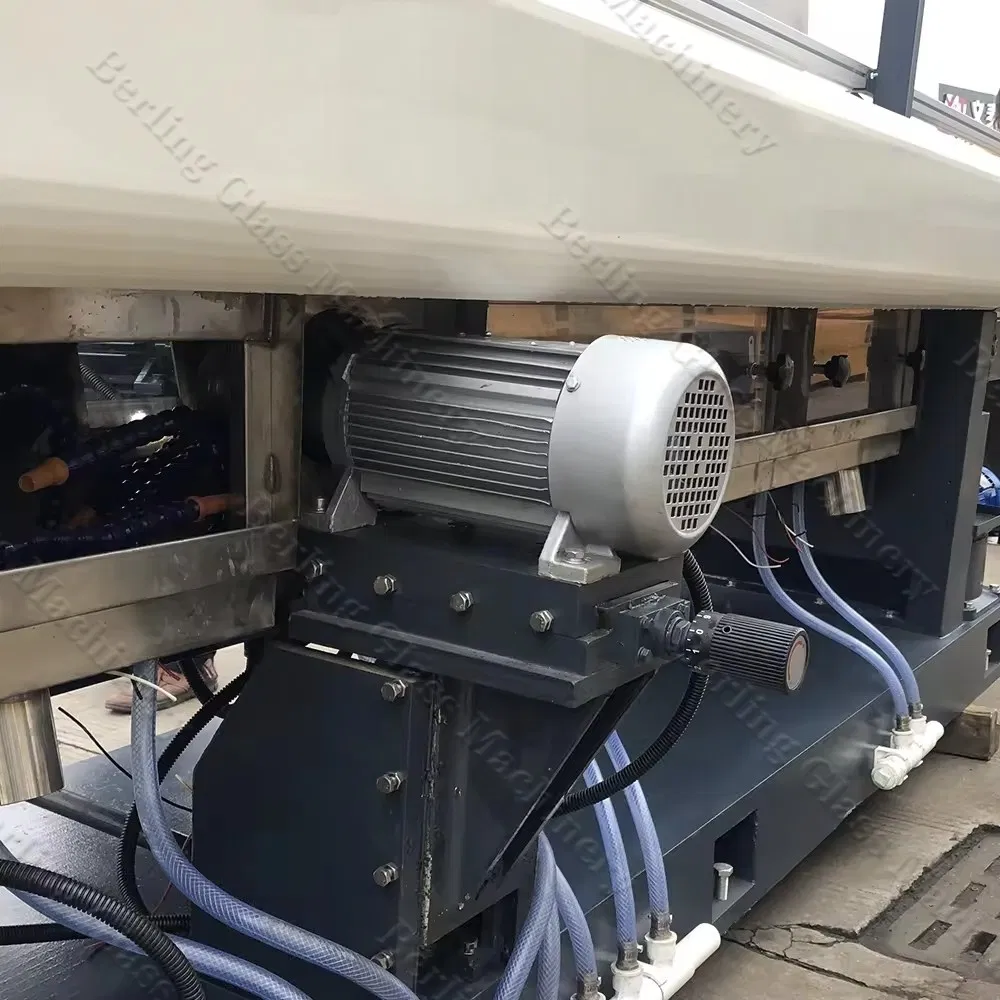

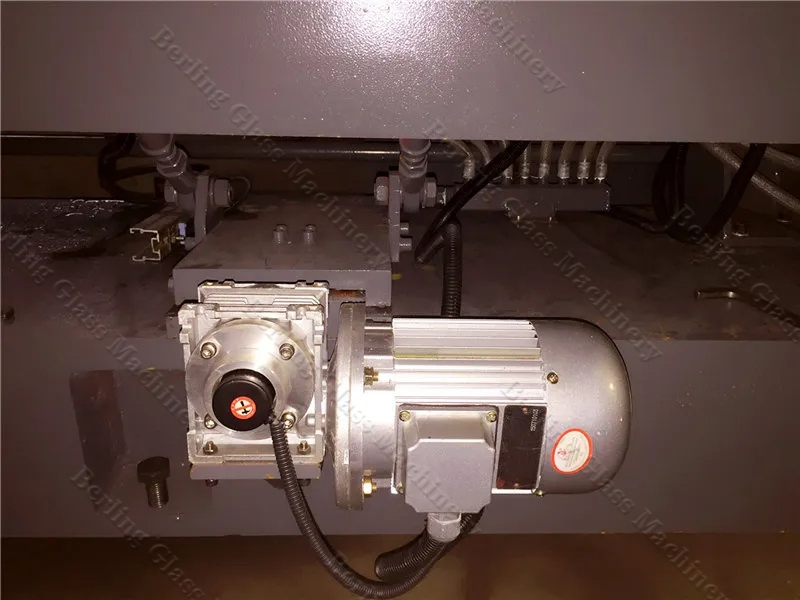

The water tank is constructed from high-quality stainless steel with specially treated edges for operator safety. The stepless speed regulation motor allows for flexible control over processing speed, enhancing stability and efficiency.

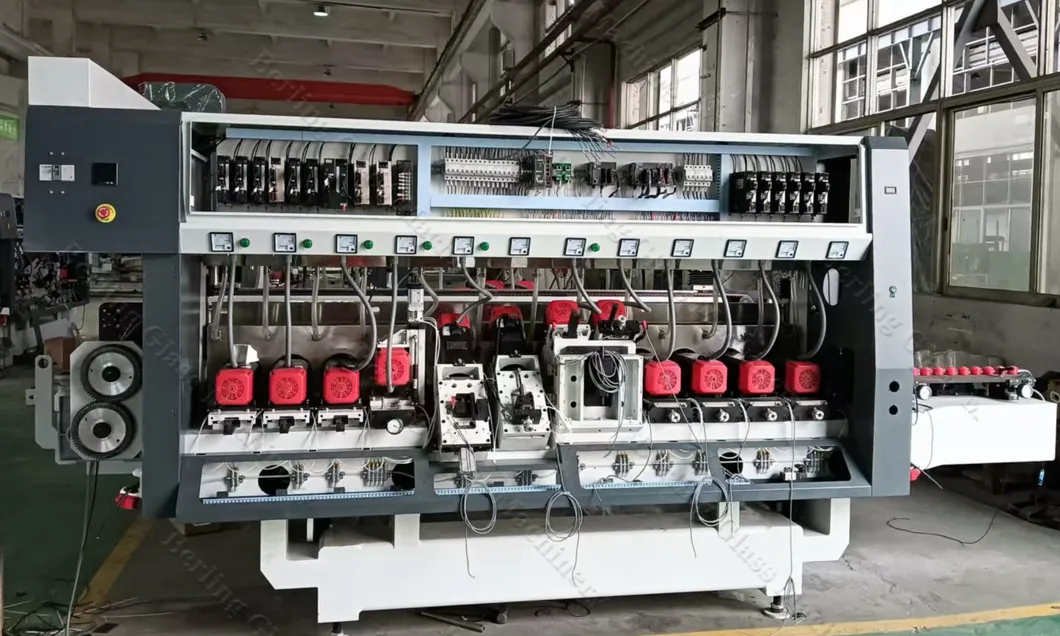

The electrical box features a 3D industrial design with a pneumatic cylinder for smooth opening. A safety lock is integrated to ensure maximum protection for the operator during maintenance or operation.
🏢 Industry Expertise
Our focus is on providing top-tier Glass-Processing Machinery and mechanical services. From tempering furnaces to handling equipment, we support individual machine selection and the planning of full production lines to make your business successful.
❓ Frequently Asked Questions
What range of glass thickness can this machine process?
The machine is designed to handle flat glass with a thickness ranging from 3mm to 25mm.
What is the minimum glass size for processing?
The standard minimum size is 80x80mm, while high-end models like the 11-motor version can handle pieces as small as 30x30mm.
How is the processing speed controlled?
The machine utilizes a stepless speed regulation motor, allowing operators to flexibly adjust the feeding speed between 0.5m/min to 7m/min depending on the model.
Does the machine prevent glass surface scratches?
Yes, the transmission mechanism uses a synchronous belt specifically designed to avoid scratches on the glass surface during operation.
What processes are included in one single pass?
It combines coarse grinding, fine edging, polishing of the straight line, and edge corner processing in one continuous procession.
Is the water tank durable for industrial use?
The water tank is made of high-quality stainless steel with treated edges to ensure durability and operator safety.
