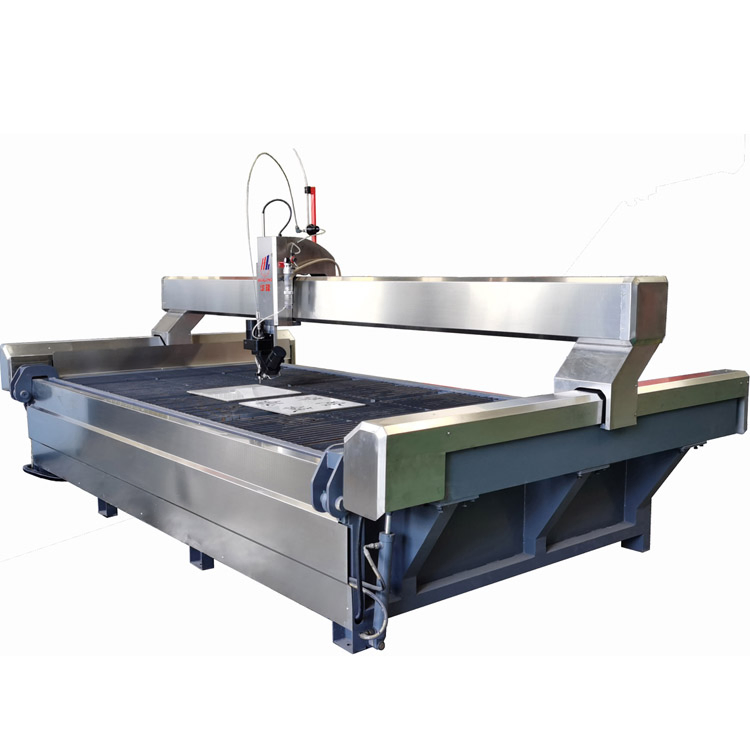

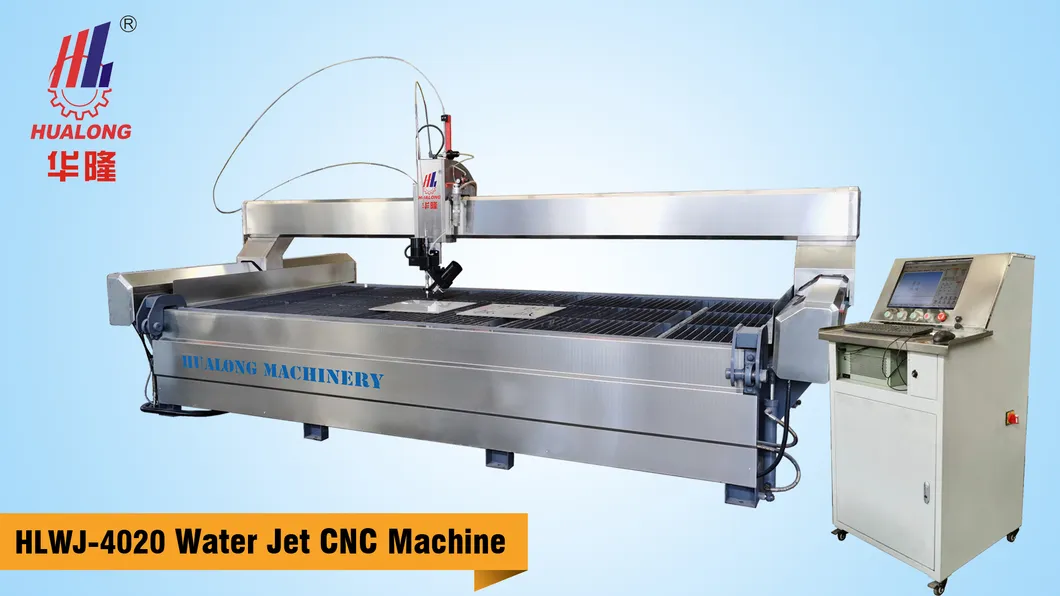

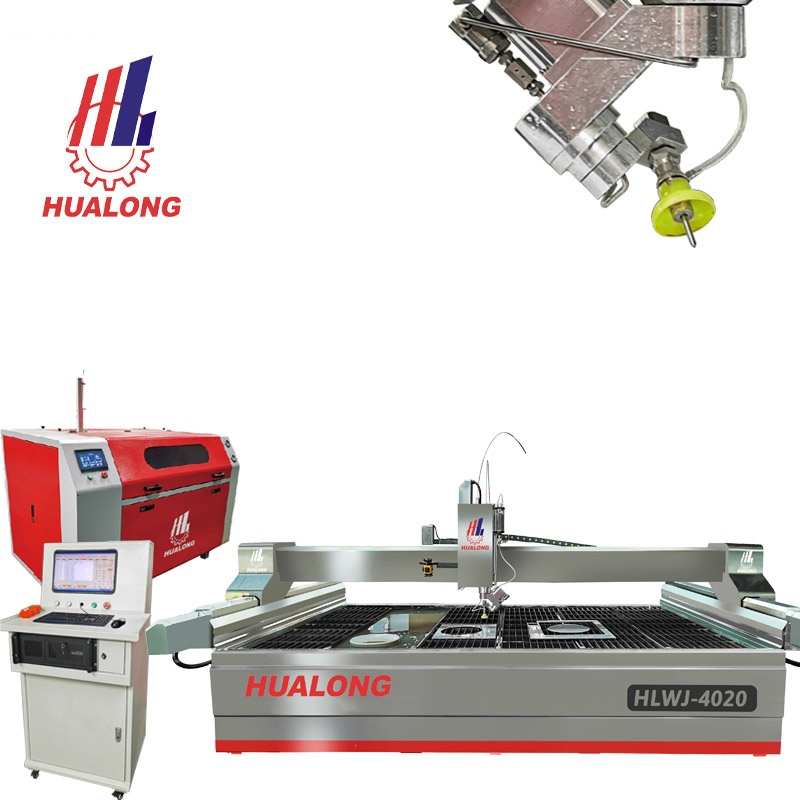

HLWJ-4020 utilizes a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material. It is an industrial tool capable of cutting almost any material while maintaining high precision.

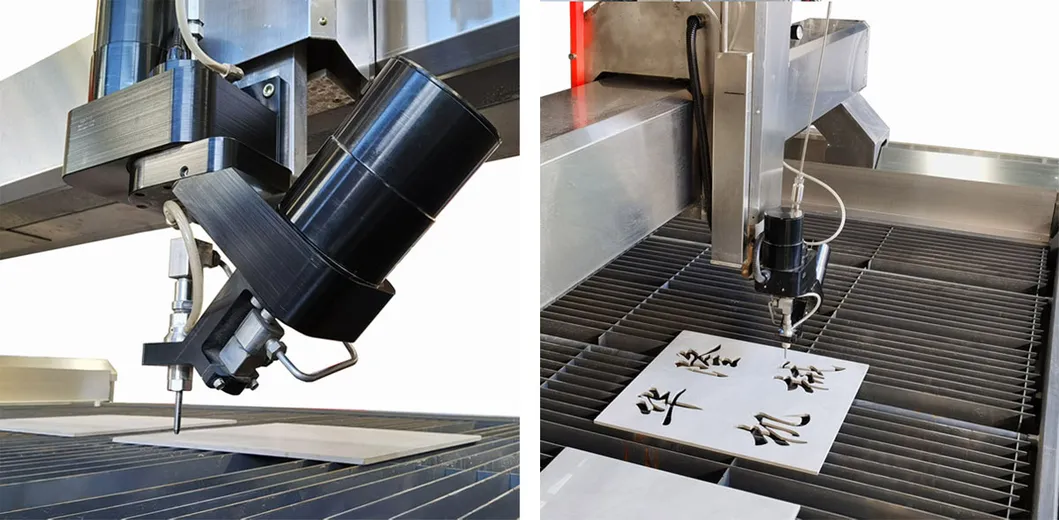

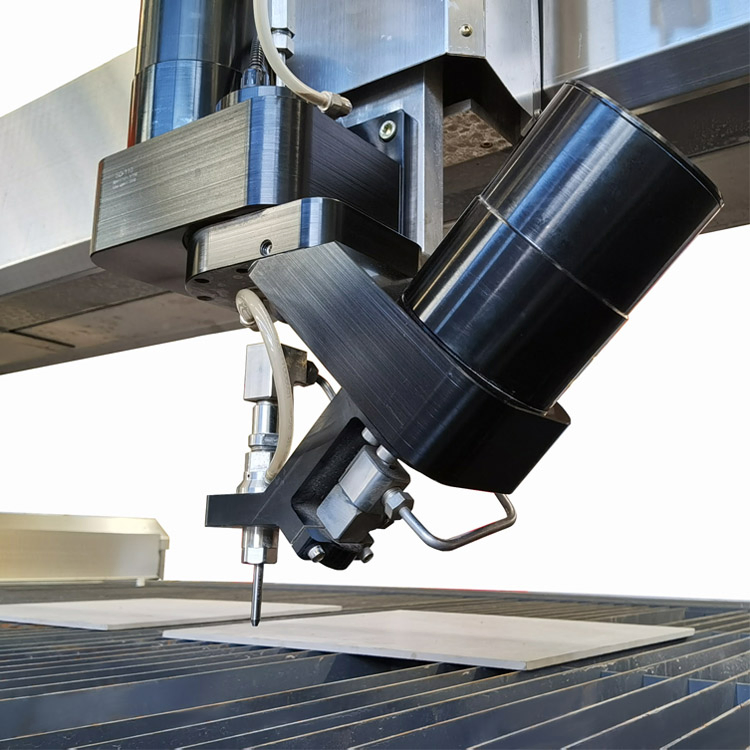

This 5-axis waterjet cutter can cut any angle within +60°, solving the traditional problem of water cutting inclination and achieving 2D/3D cutting easily. The line cutting accuracy is +0.1mm, and the angle cutting accuracy is +0.1°.

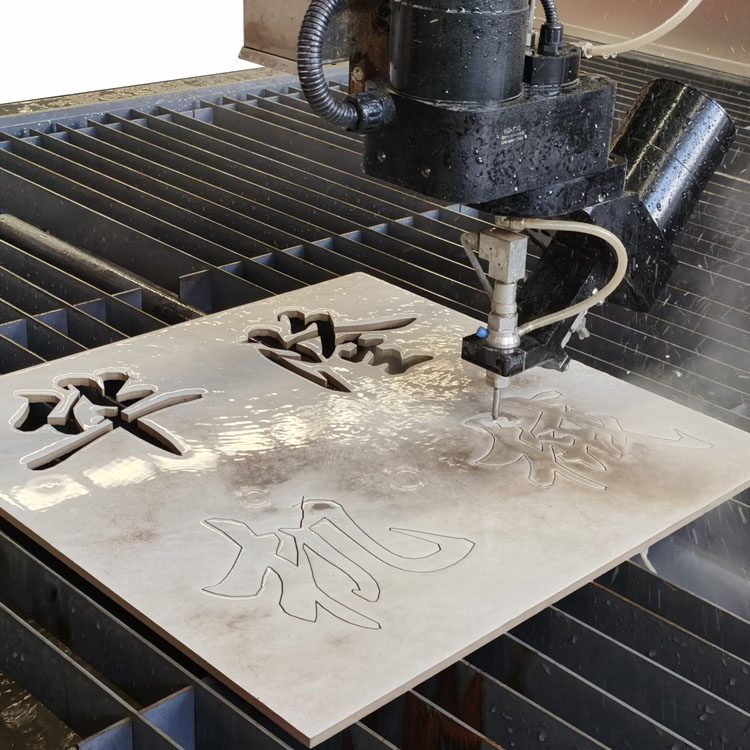

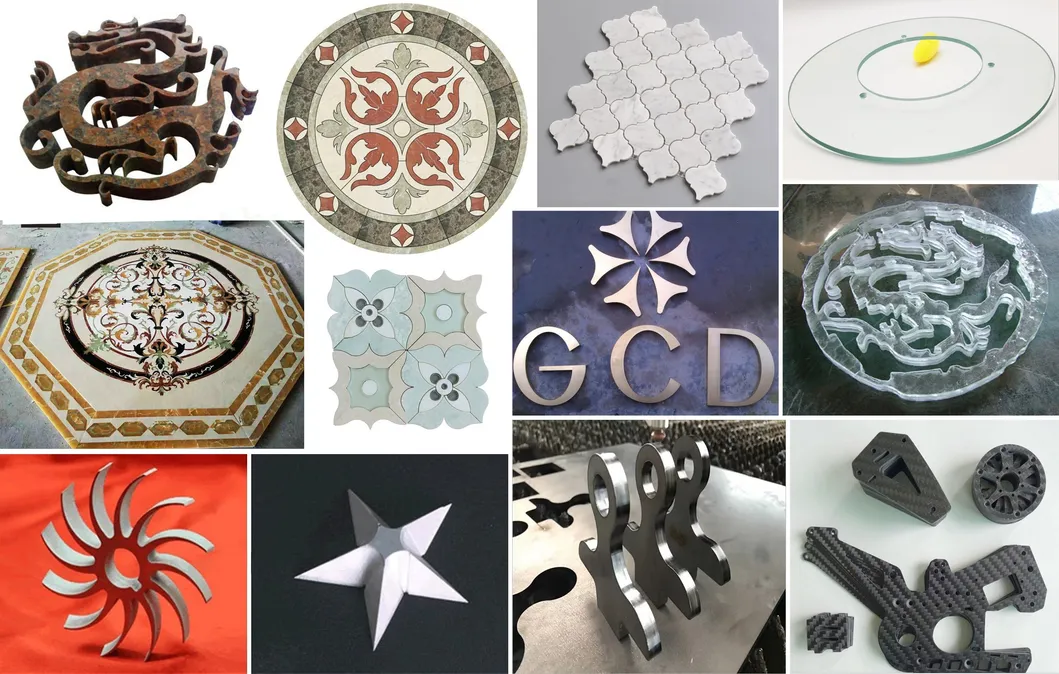

The machine is applied to cut bevel surfaces, straight surfaces, conical surfaces, circular surfaces, rotating surfaces, grooves, chamfers, and arbitrary surfaces. It is compatible with steel, stainless steel, aluminum, titanium, marble, granite, ceramic, glass, rubber, foam, and many other materials.
| Parameter Item | Unit | HLRC-3020 | HLRC-4020 |
|---|---|---|---|
| Working area | mm | 3300*2100 | 4100*2100 |
| X-axis stroke | mm | 3200 | 4000 |
| Y-axis stroke | mm | 2000 | 2000 |
| Z-axis stroke | mm | 80-130 | 80-130 |
| Max. angle of C axis rotation | ° | +/- 360 | +/- 360 |
| Max. angle of A axis swing | ° | +/- 60 | +/- 60 |
| Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
| Repeatable accuracy | mm | +/- 0.05 | +/- 0.05 |
| Traverse speed | mm/min | 5000/15000 | 5000/15000 |
| Main motor power | kw | 37 | 37 |
| Dimension (L x W x H) | mm | 443x278x220 | 494x280x222 |

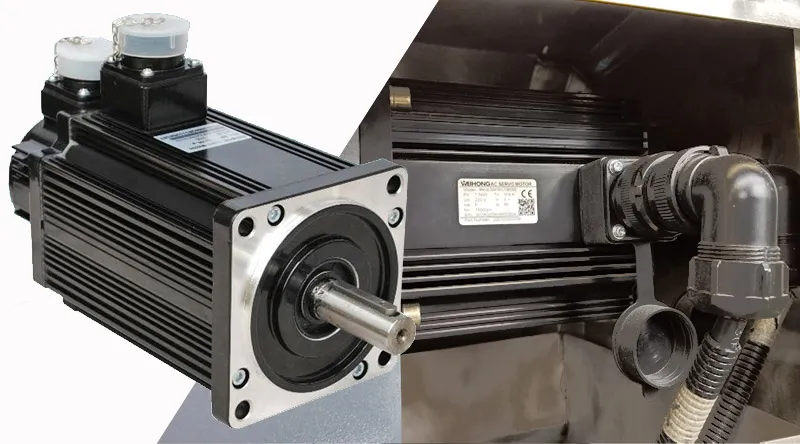

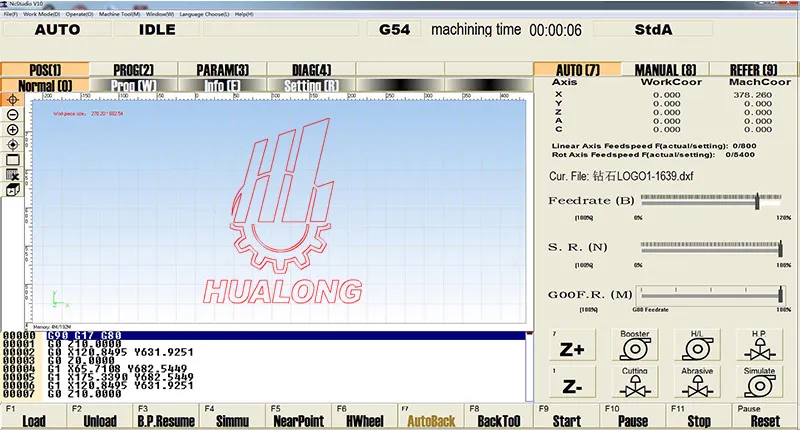

Brand: Weihong
A mature motion control solution to solve taper and towing issues, realizing perfect dynamic five-axis cutting.

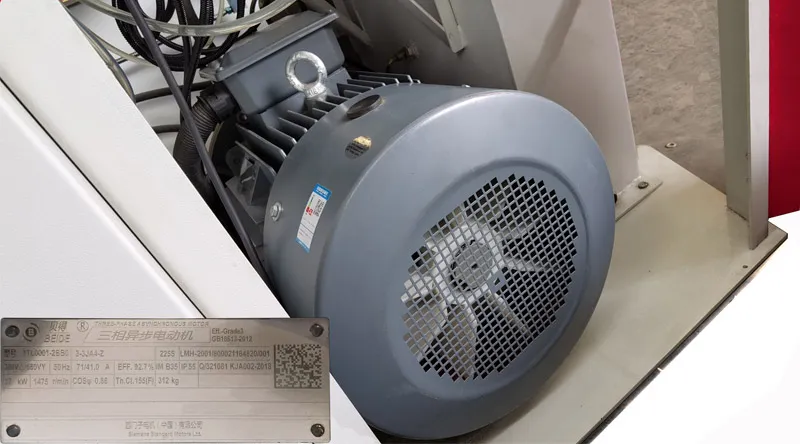

Brand: Siemens
High efficiency (92.7%) motor generating motion energy for the high-pressure pump system.

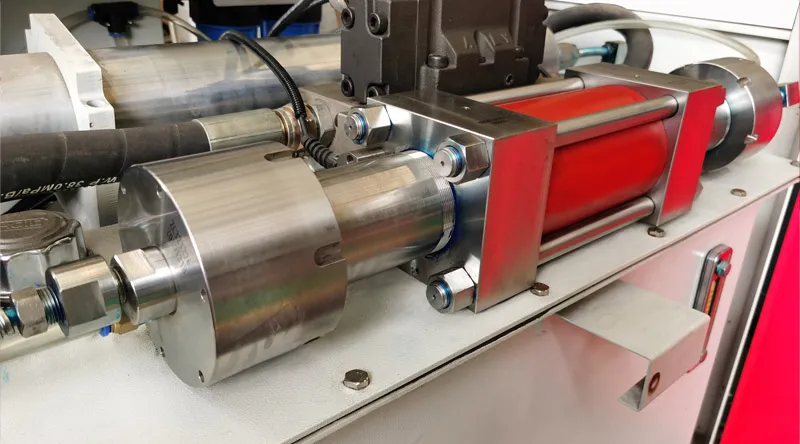

Origin: USA Parts (Ashcroft)
Produces high pressure water continuously with stable performance and operation.

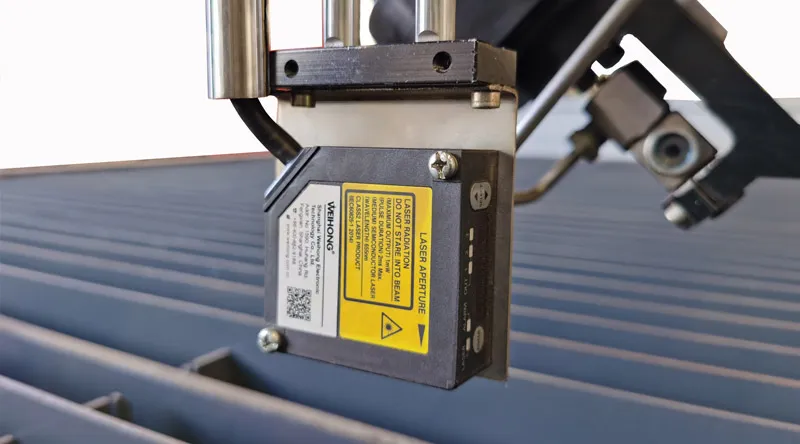

Brand: Weihong
Automatic scanning precision altimeter function ensures constant distance from workpiece surface.
