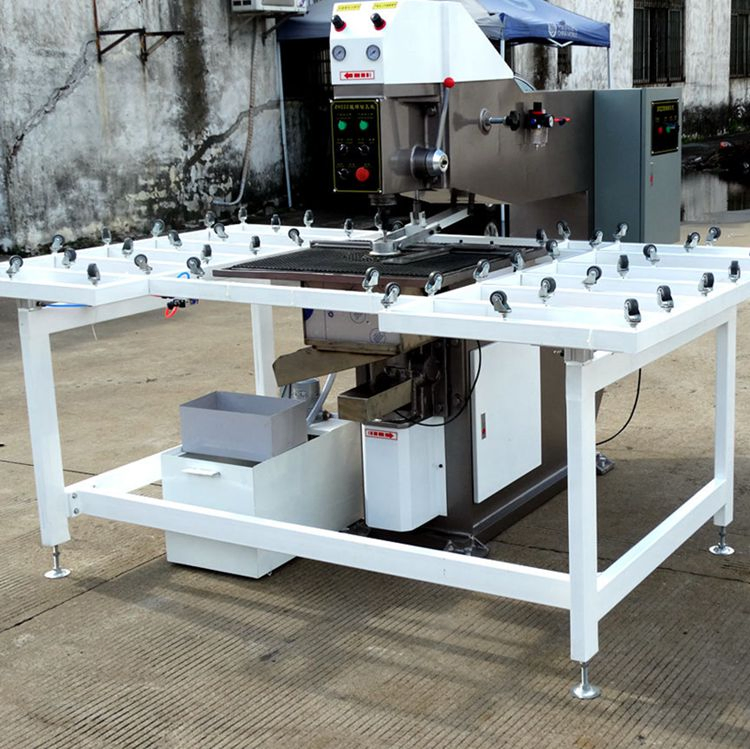

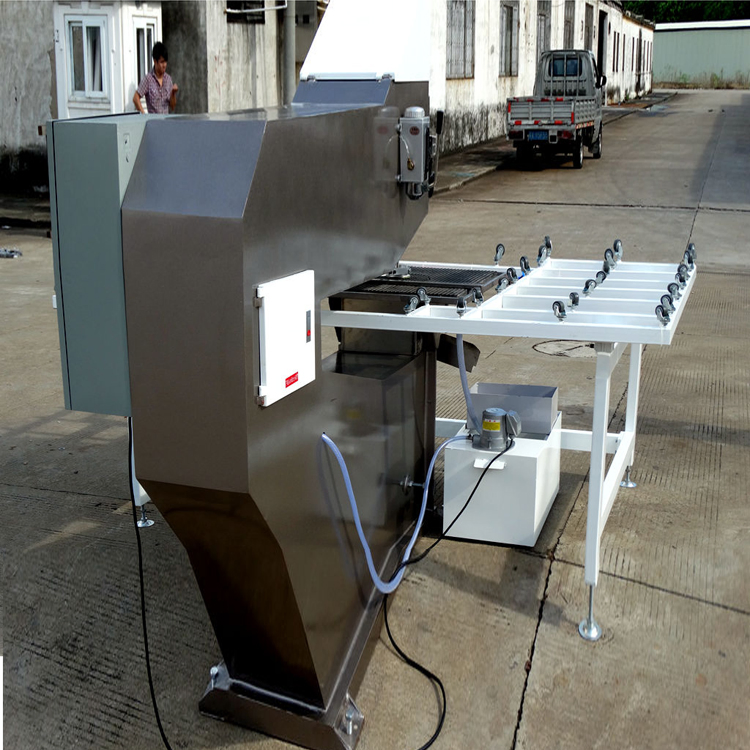

Advanced Glass Drilling Machine

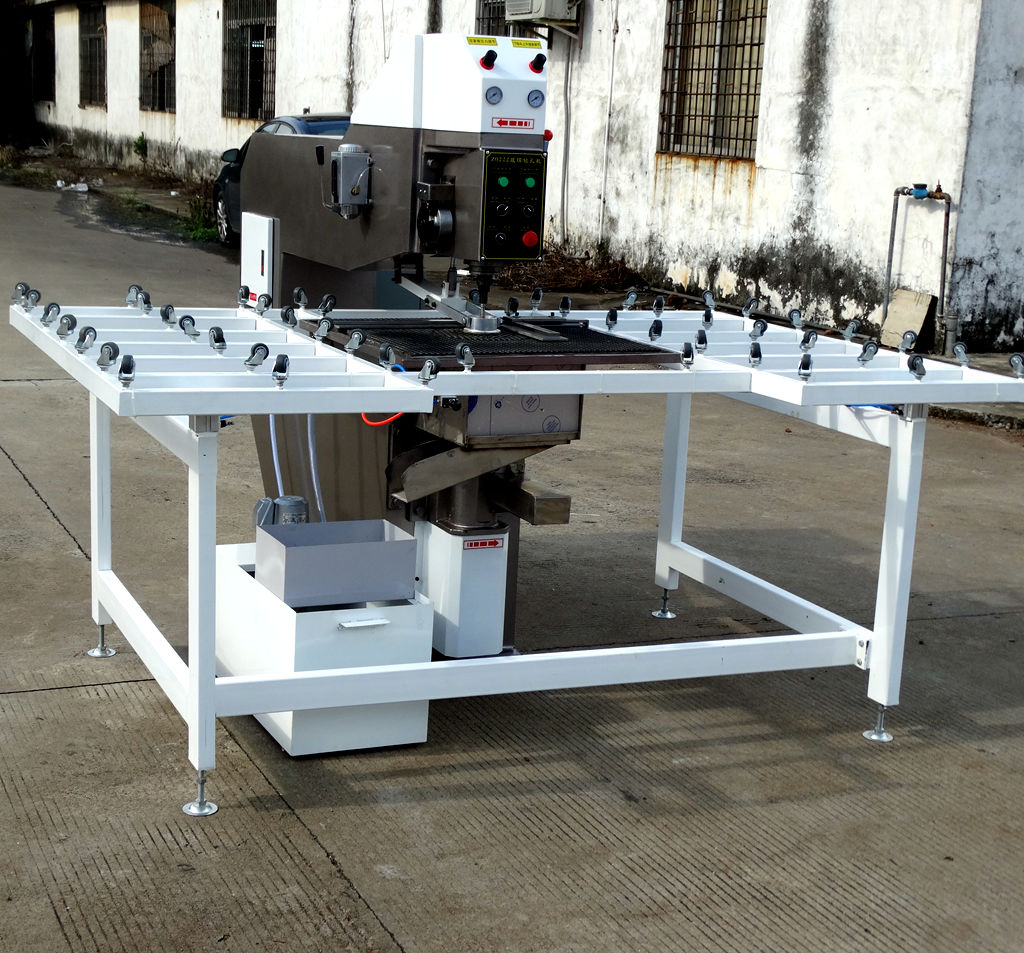

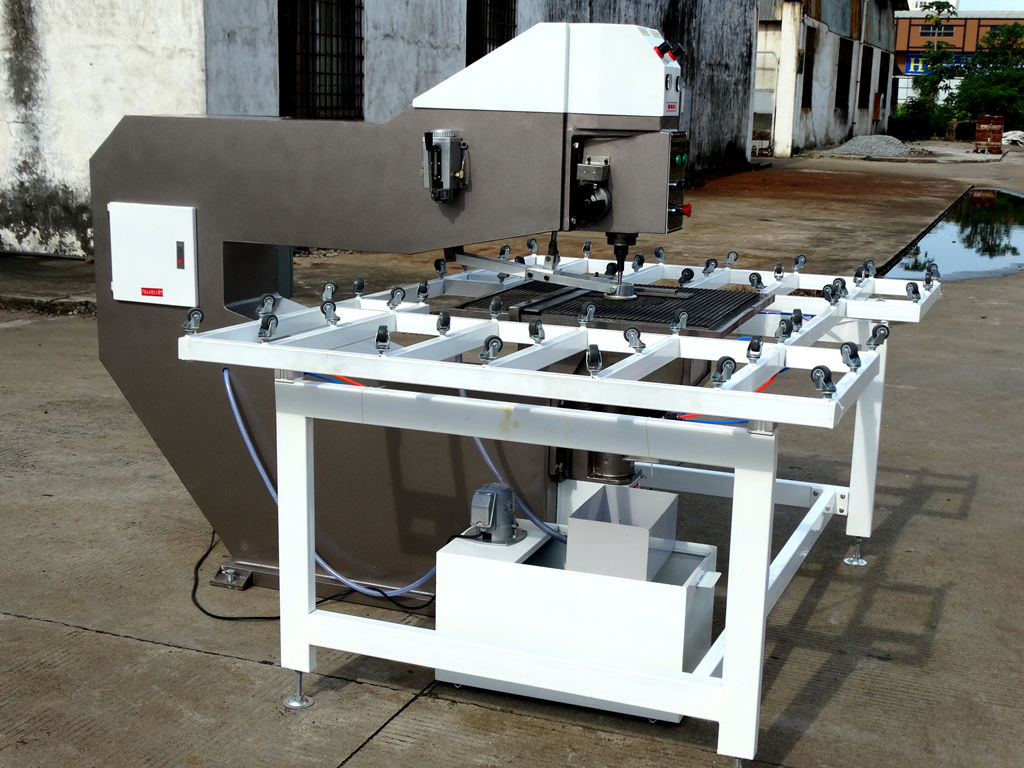

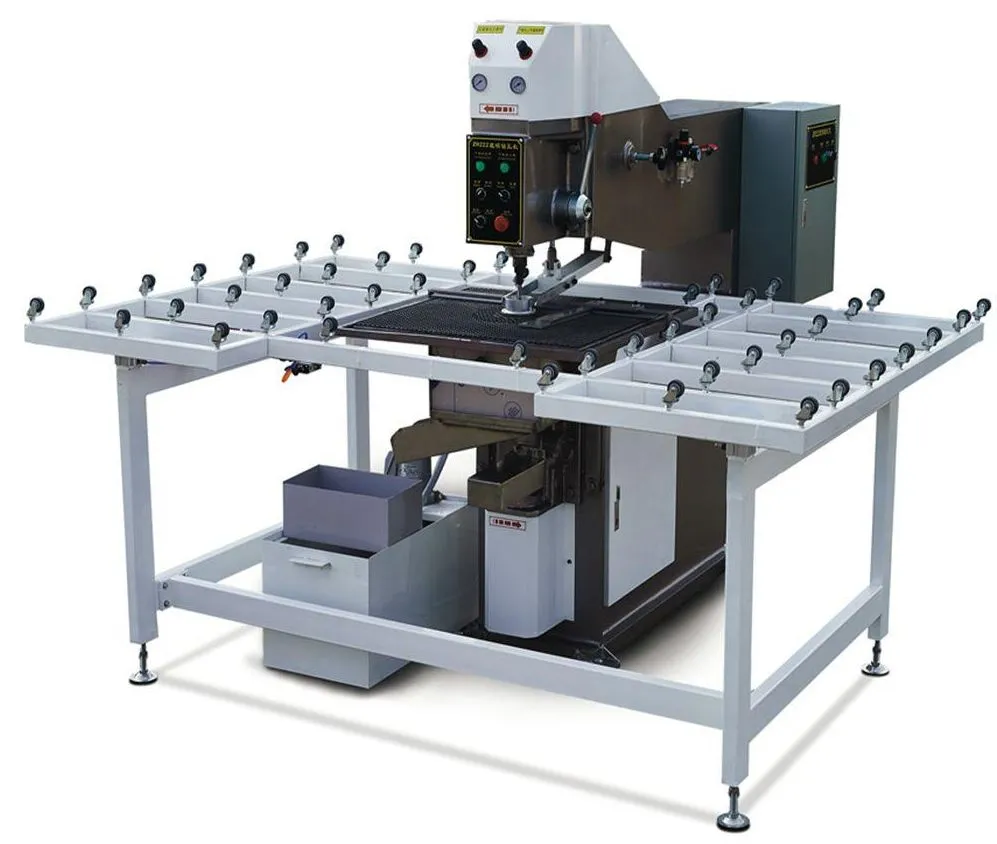

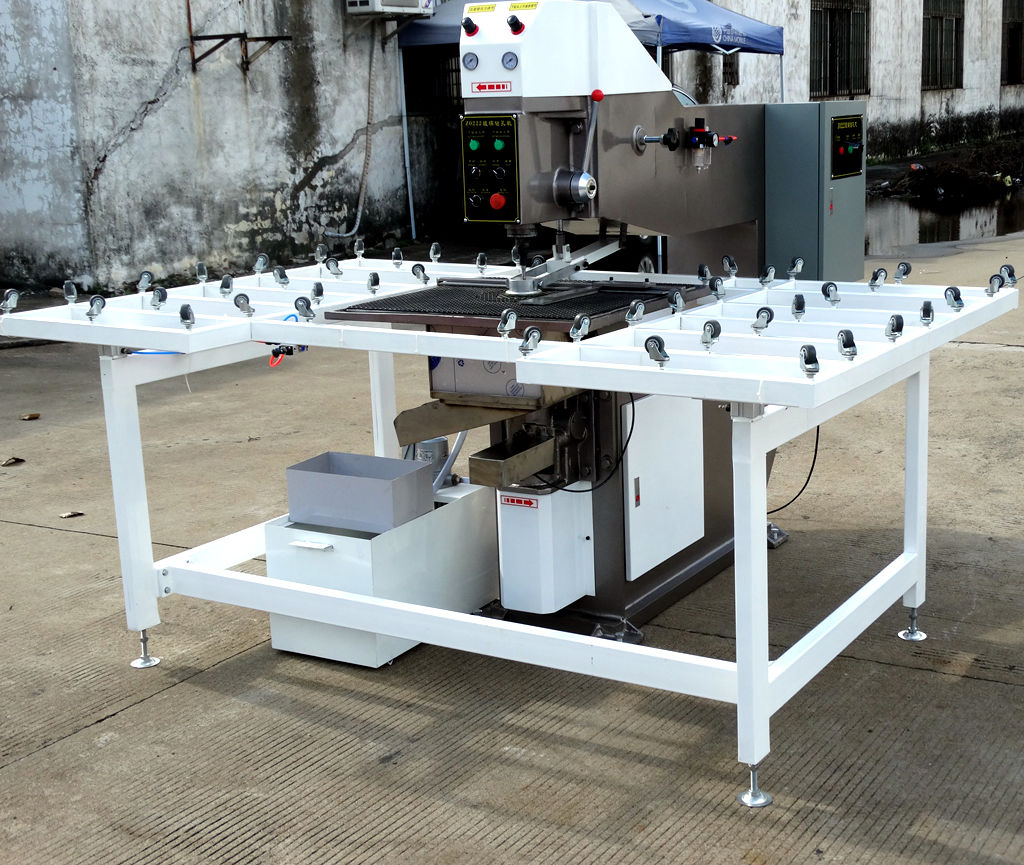

The Model HHJGZK0222 nesting glass drilling machine utilizes a pneumatic system for glass clamping. The upper and lower drills perform successive drilling operations, with the lower drill capable of rising automatically. Both the position and speed are fully adjustable. Automatic feeding and the pneumatic elevation of the workbench ensure the feasibility of high-volume, continuous production.
| Parameter Item | Specification Details |
|---|---|
| Model | HHJGZK0222 |
| Power Supply | 380V / 50HZ / 3P |
| Total Power | 2.45KW |
| Max Glass Size | 2600mm * 2400mm |
| Min Glass Size | φ100 * 100mm |
| Glass Thickness Range | 3 - 20mm |
| Hole Diameter Range | φ4 - 120mm |
| Working Table Height | 850mm |
| Machine Dimensions | 2200 * 2700 * 1700mm |
💡 Note: Drill bit speeds are adjustable in multiple stages. The positioning plate allows for highly efficient batch processing.
| Component | Brand / Model | Quantity |
|---|---|---|
| AC Contactor | Zhengtai 0910 | 3 Units |
| Thermal Relay | Zhengtai 4-6A | 2 Units |
| Air Switch | Zhengtai DZ473P16A | 1 Unit |
| Transformer | Zhengtai BK100VA | 1 Unit |
| Limit Switch | Oumulong D4MC3030 | 1 Unit |
| Micro Switch | Qiaoer LX19K | 1 Unit |
| Emergency Stop | BS542 / Zhengtai | 1 Unit |
