Horizontal Low-E Glass Double Edging Machine with Film Removing Function

Customization:	Available
Certification:	CE
Processing Speed:	5-10 m/min

Basic Info.

Model NO.

YD-DE-1808+2

Thickness

3-19 mm

Voltage

220-480V, 50/60Hz

Warranty

1 Year

Function

Automatic Glass Edging and Polishing

Max. Glass Size

1800*800 mm

Max. Speed

10m/Min

Control System

PLC with Touchscreen

Power

28kw

Features

Film Remove Function

Product Description

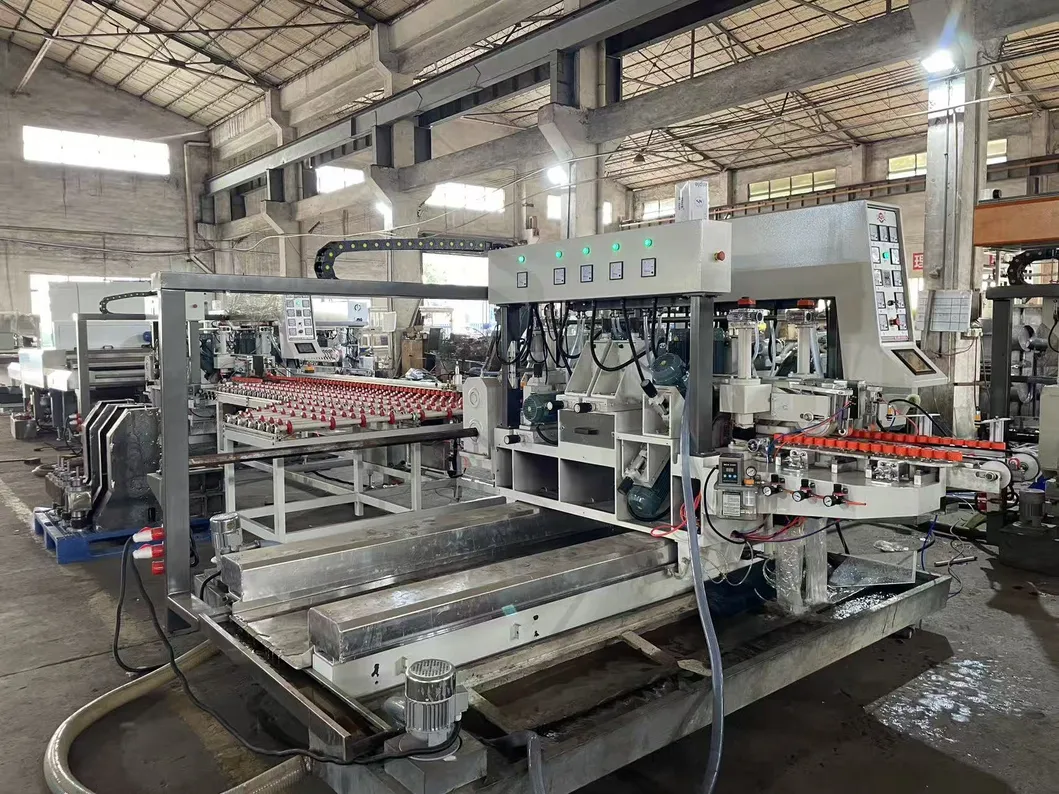

Glass Double Edging and Washing Production Line

Models: YD-DE-1808+2 , YD-DE-0808+2, YD-HWB-1200

✓ 1 set of automatic glass loading arm

✓ 2 sets of glass double edging machines

✓ 1 set of linear type glass transferring table

✓ 1 set of glass washing and drying machine

Core Advantages:

⭐ LOW-E glass applicable

⭐ Multi-function for FA or PE edge

⭐ Higher productivity & Labor-saving

⭐ High level of automation

Product Parameters

1. Glass Double Edging Machine Specifications

Model	1st YD-DE-1808+2	2nd YD-DE-0808+2
Function	Pencil/Flat edge; film-removing	Pencil/Flat edge; film-removing
Glass Width	400~1800 mm	300~800 mm
Glass Thickness	3-19 mm	3-19 mm
Processing Speed	0.8~10 m/min	0.8~10 m/min
Power	28 kw	28 kw
Outer Dimension	3.8x3.5x1.8 m	2.0x3.5x1.8 m

2. Wheel Arrangement

Position	Wheel Type
NO.1	Resin wheel, up arris
NO.2	Resin wheel, down arris
NO.3	Diamond wheel, rough
NO.4	Diamond wheel, rough
NO.5	Film removing wheel

Detailed Photos

Strong machine base: steel pipe and plates

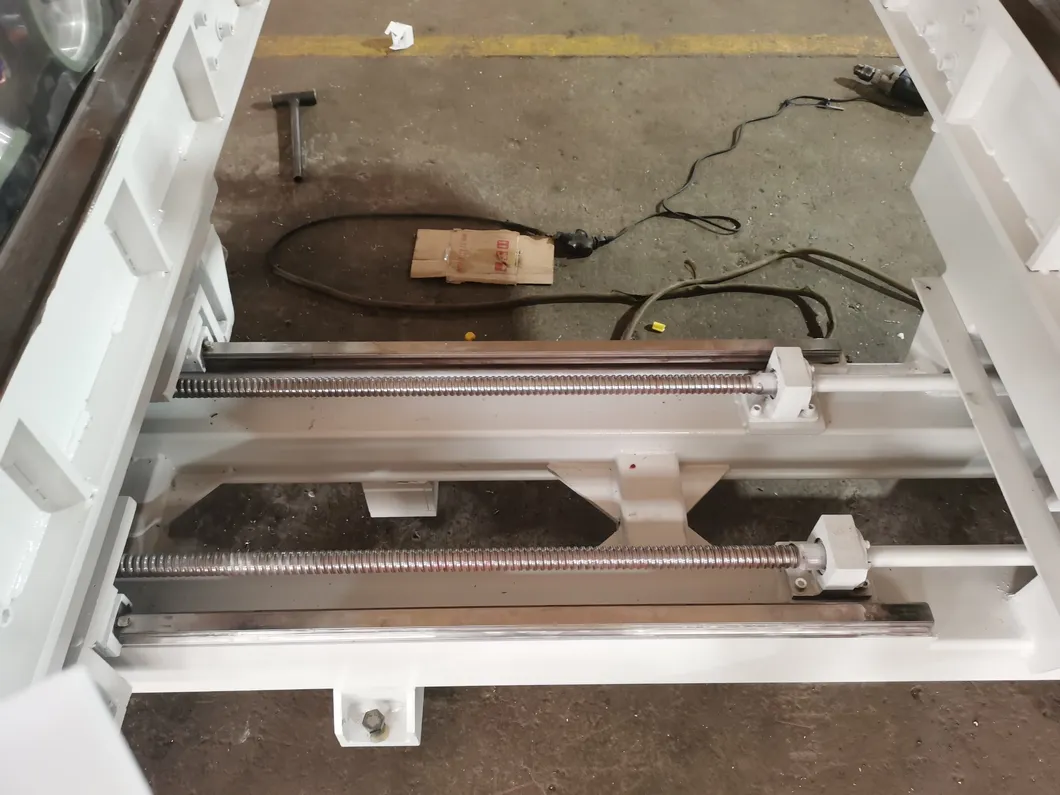

Smooth moving carriage: TBI ball screw

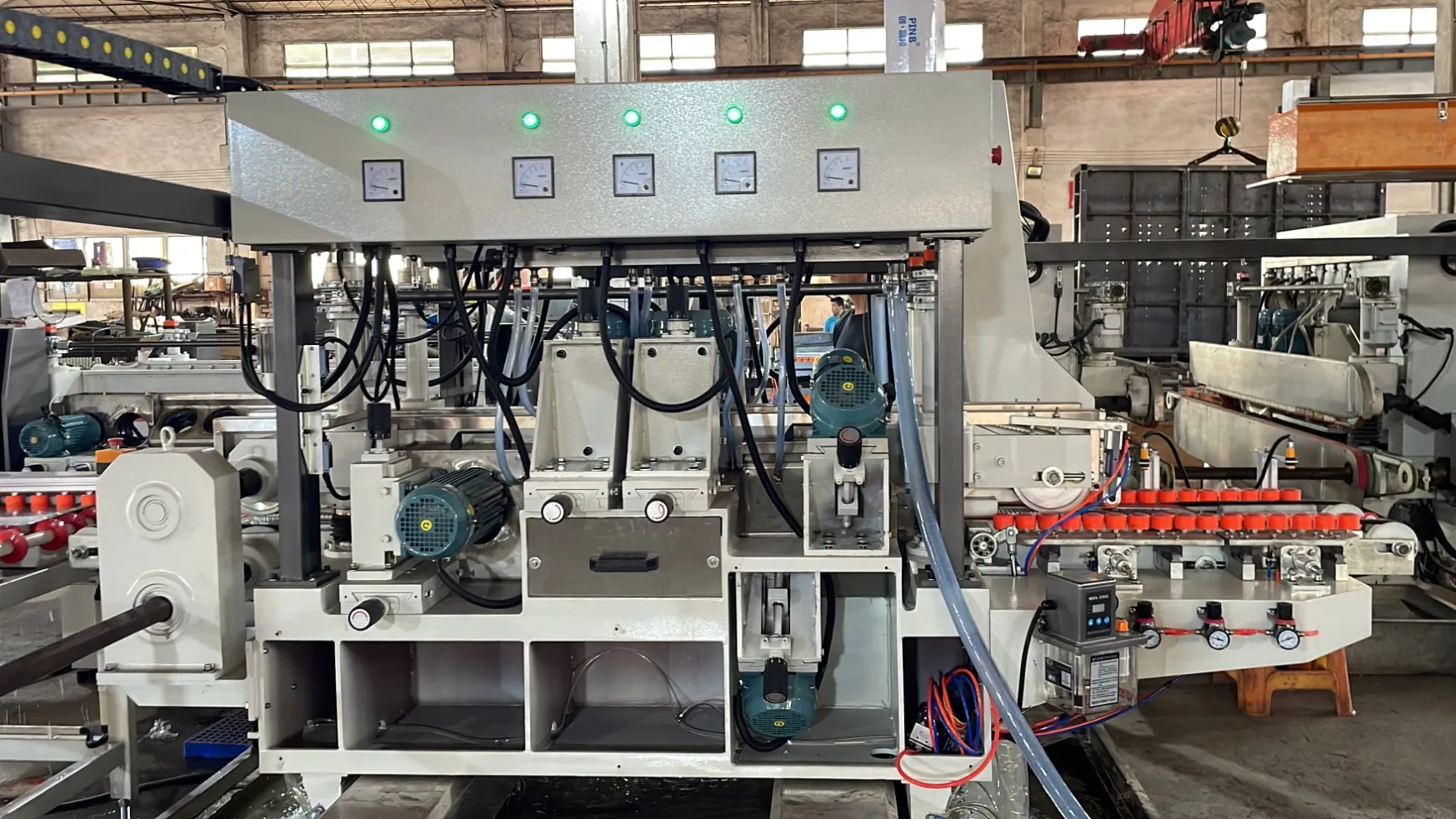

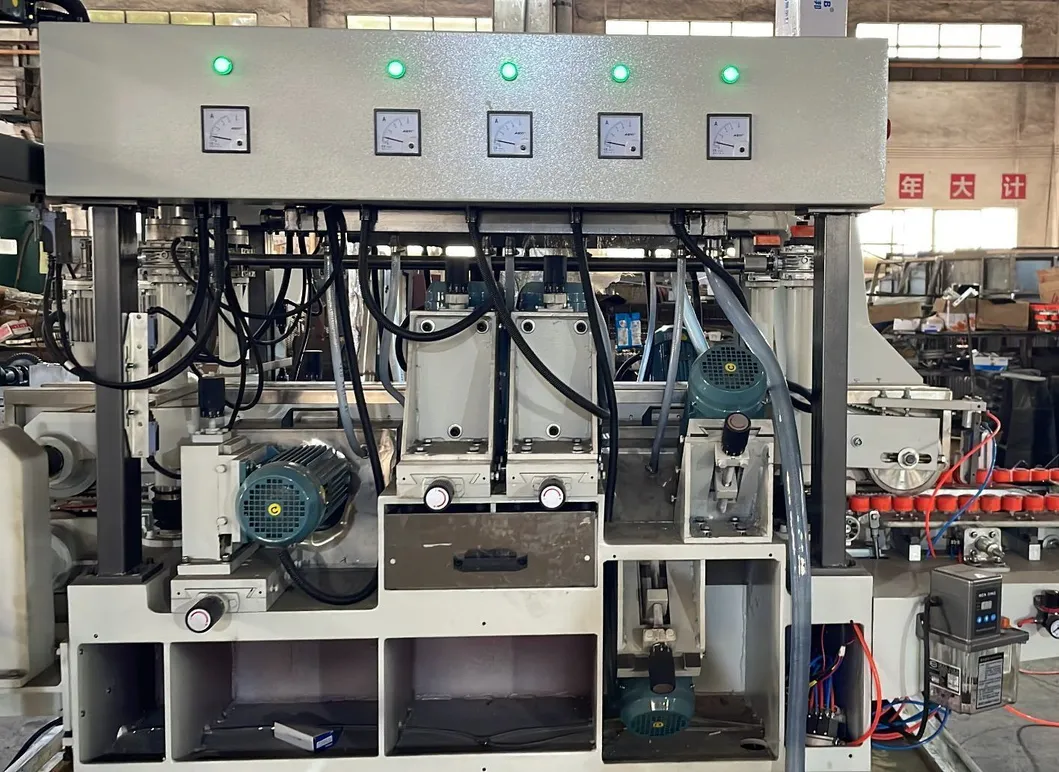

Multi-functional grinding design

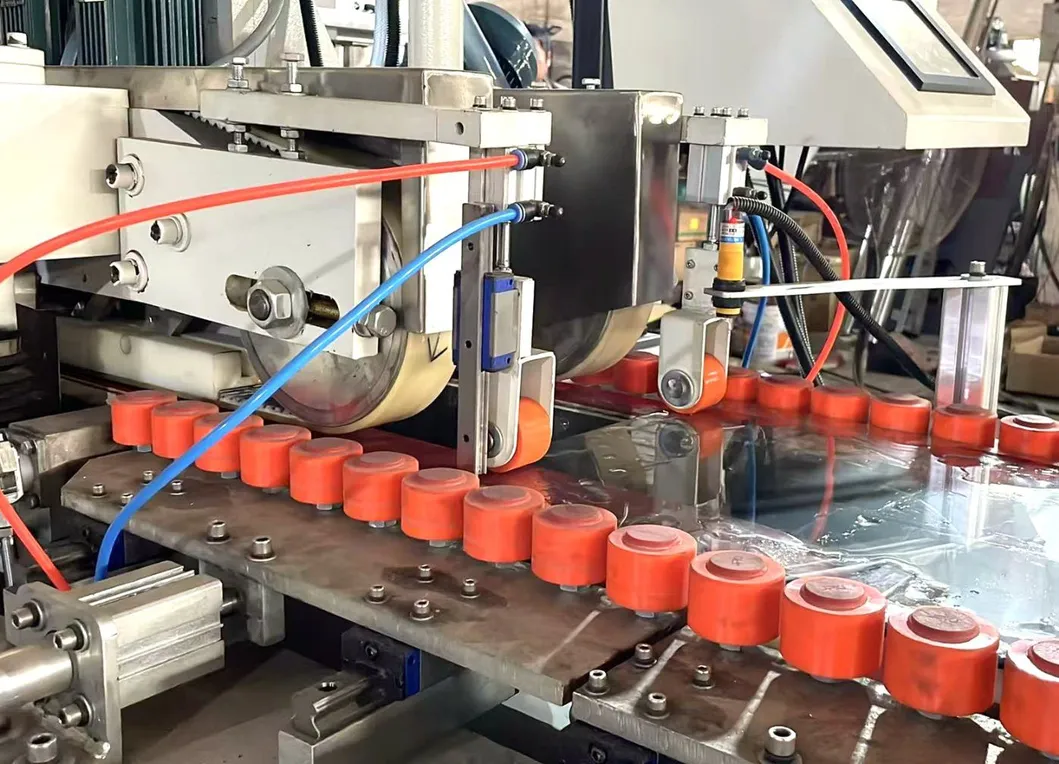

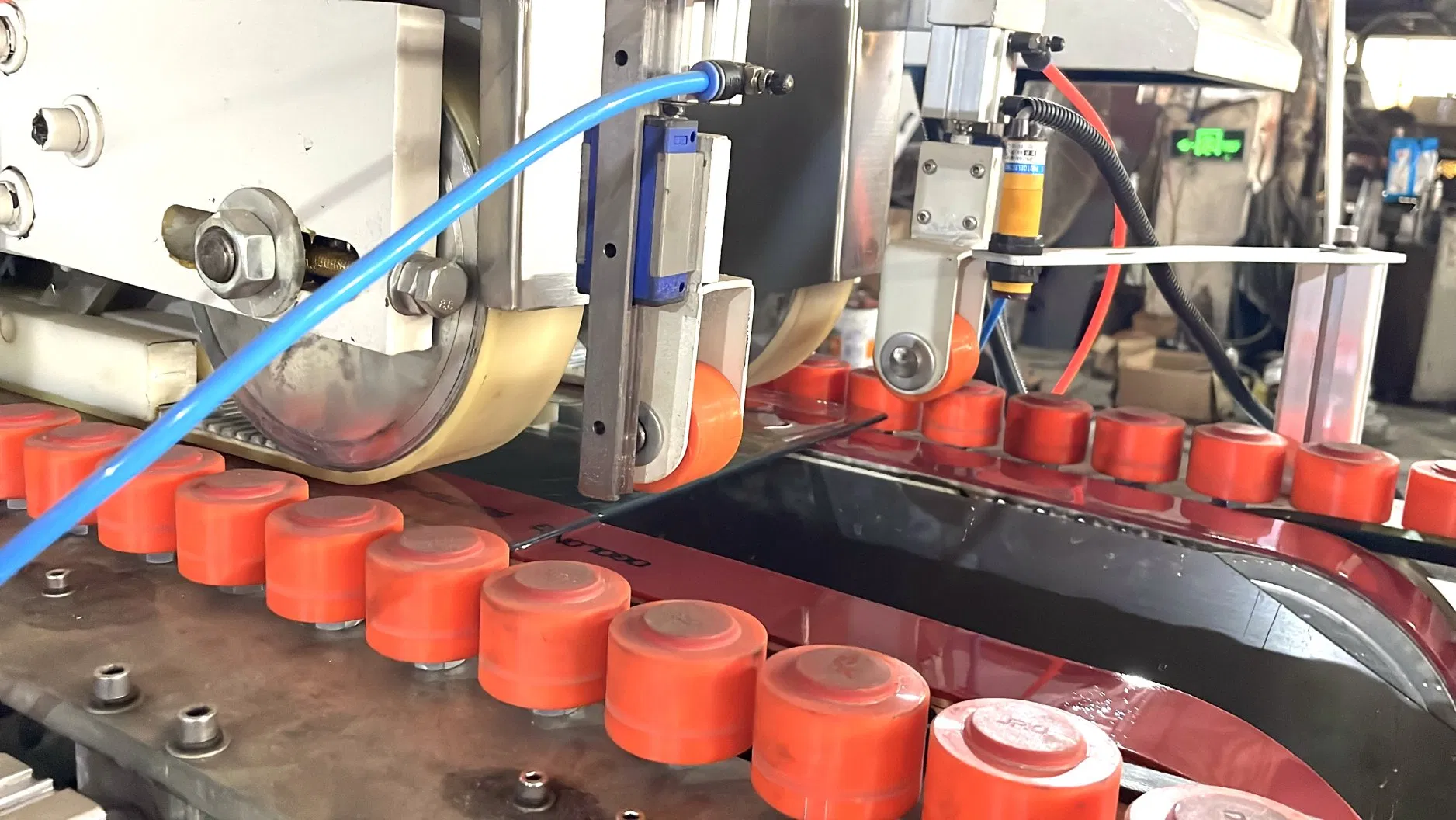

Special upper timing belt for LOW-E

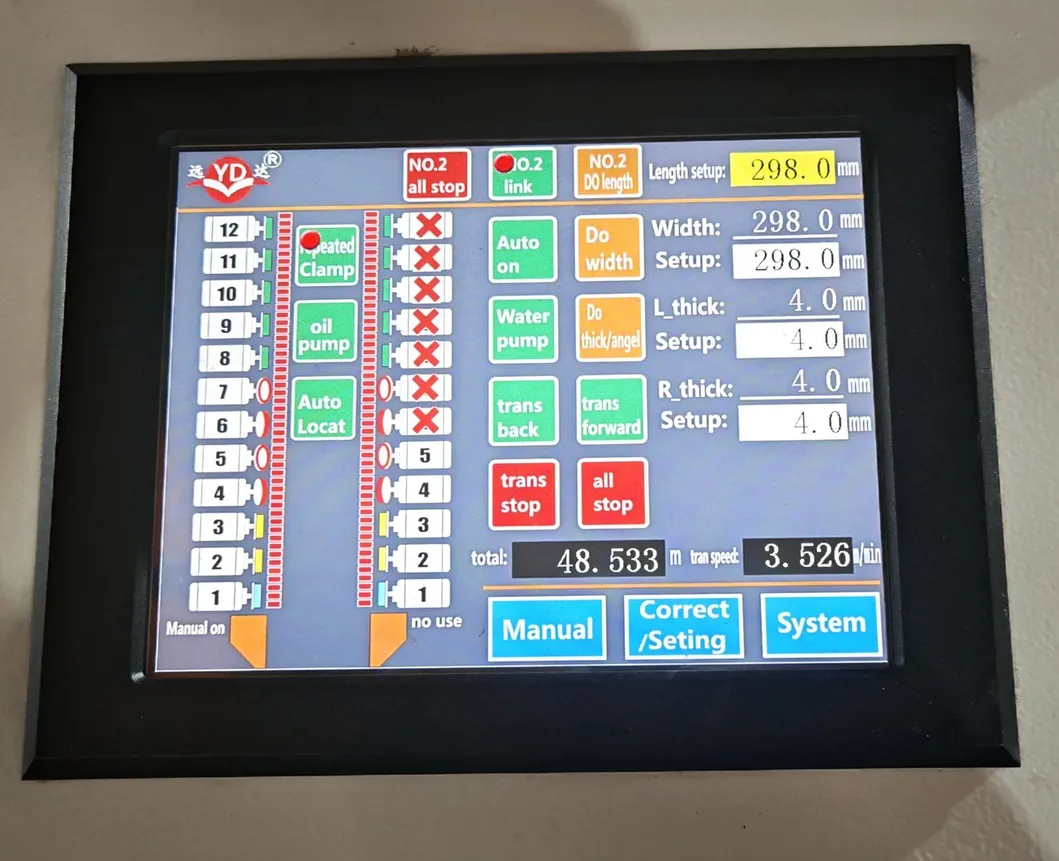

PLC system with touchscreen control

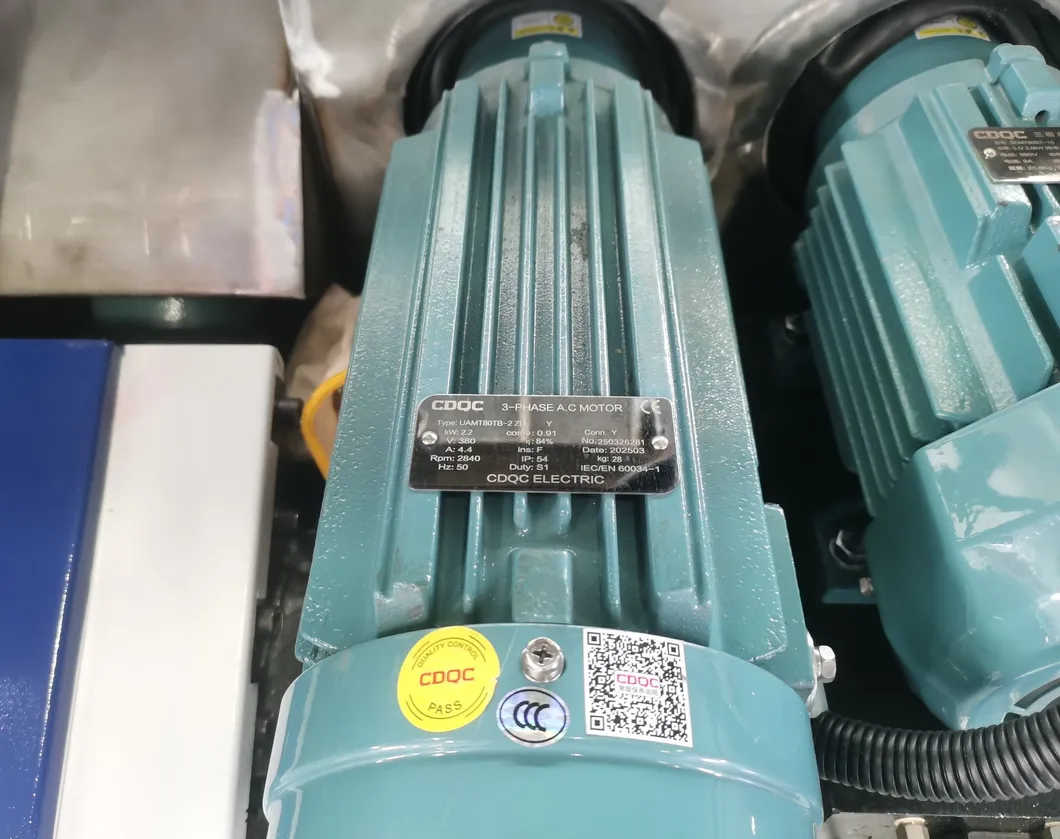

Quality and reliable CDQC motors

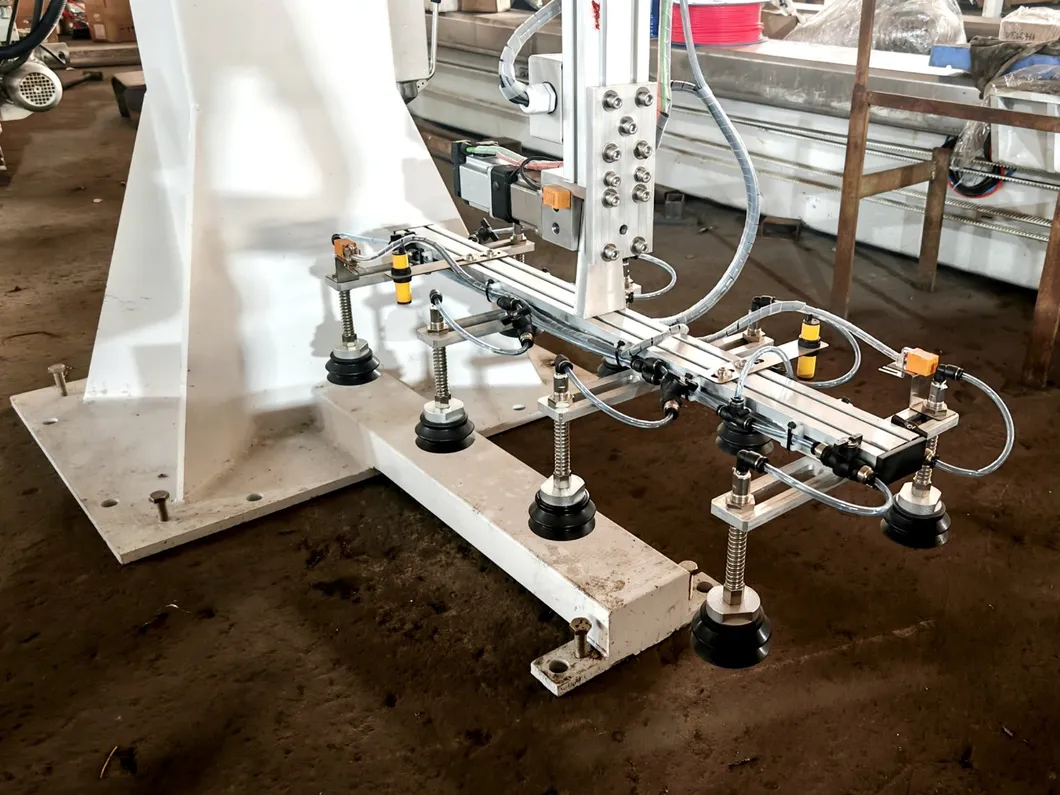

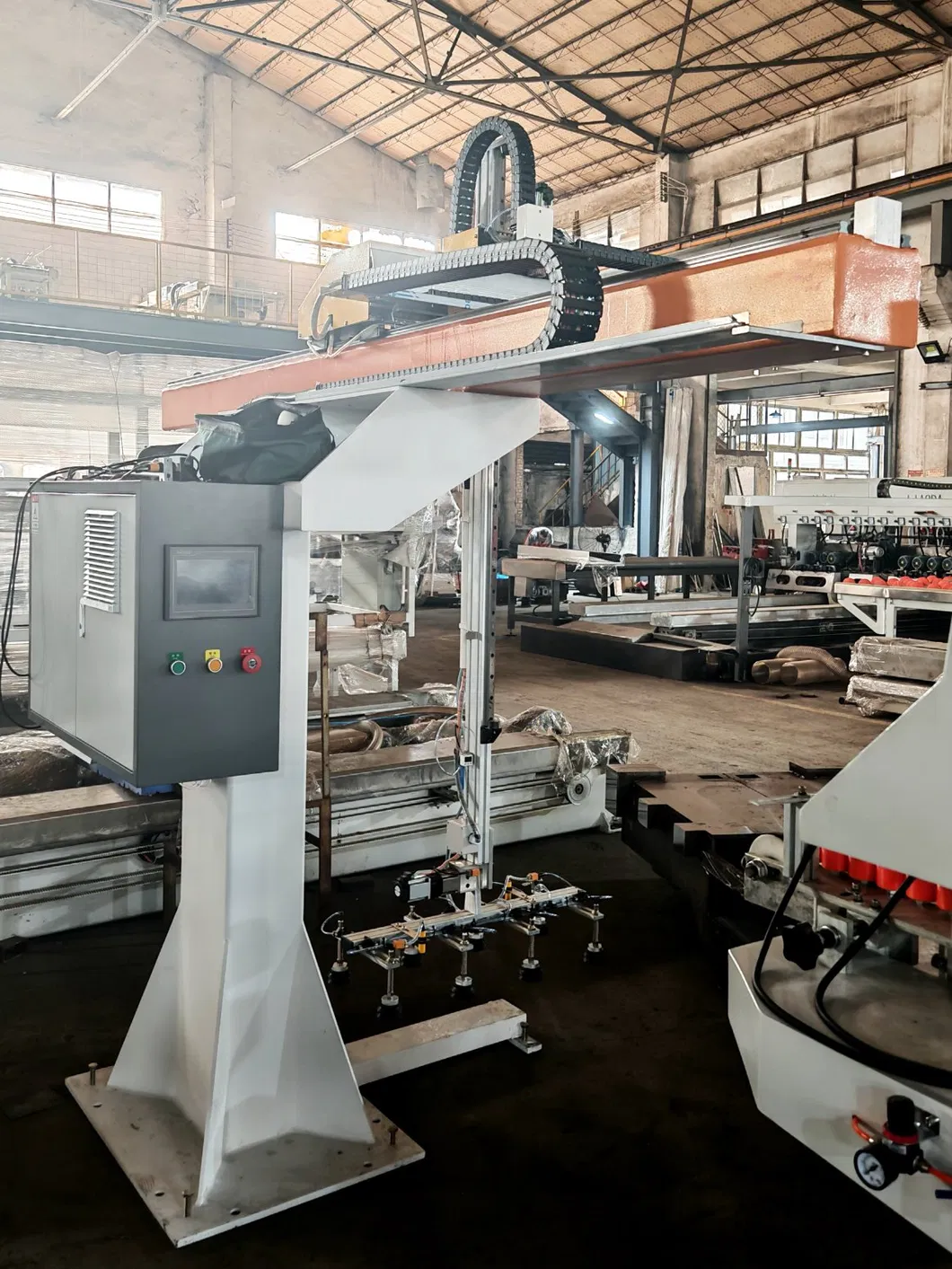

Automatic glass loading arm

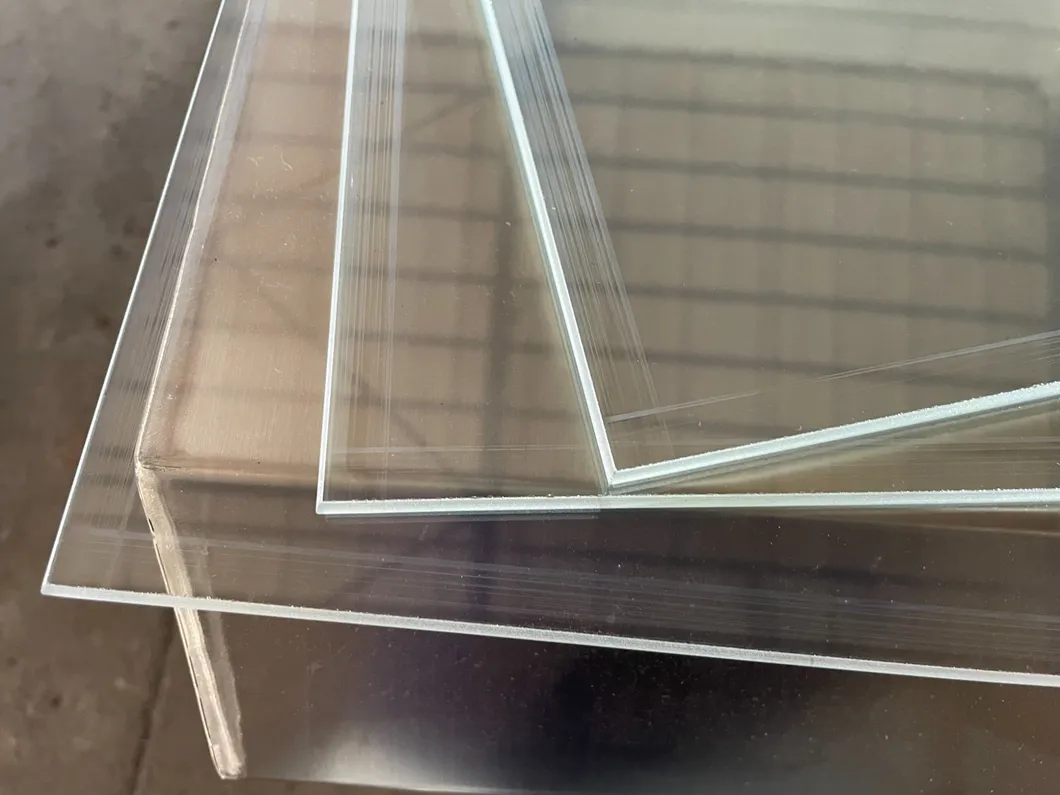

Low-E glass film removed performance

Packaging & After Sales

FAQ

What are the primary functions of this machine?

This machine can grind parallel edges for pencil edges and remove film for LOW-E glass. By changing the wheels, it can also produce a flat edge with arris.

Why choose a double edging machine over a vertical edging machine?

The double edging machine is more productive as it doubles the grinding motors. It can reach speeds of 8~10 m/min, twice as fast as vertical models, and is essential for removing Low-E film in the insulating window industry.

Is the operation fully automatic?

Yes, the machine uses a PLC system and touchscreen. Users simply input the desired width and thickness, and the machine adjusts automatically. Full servo-control options are also available for even higher automation.

Can this production line be customized?

Absolutely. The machine size, number of grinding motors, and voltage can all be customized according to your specific production requirements.

Do you provide on-site installation services?

Yes, on-site installation and training services are available to ensure your team can operate the machine smoothly and efficiently.

What makes these machines stable and reliable?

Our designs are based on over 20 years of experience, focusing on high-rigidity steel frames and quality components like CDQC motors and TBI ball screws, ensuring long-term operation with minimal maintenance.
