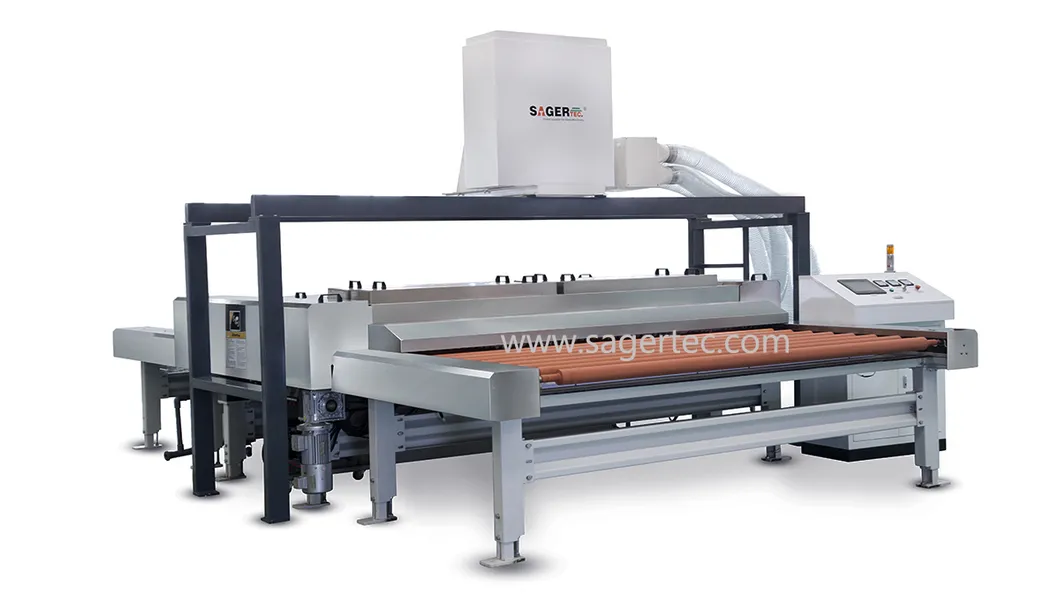

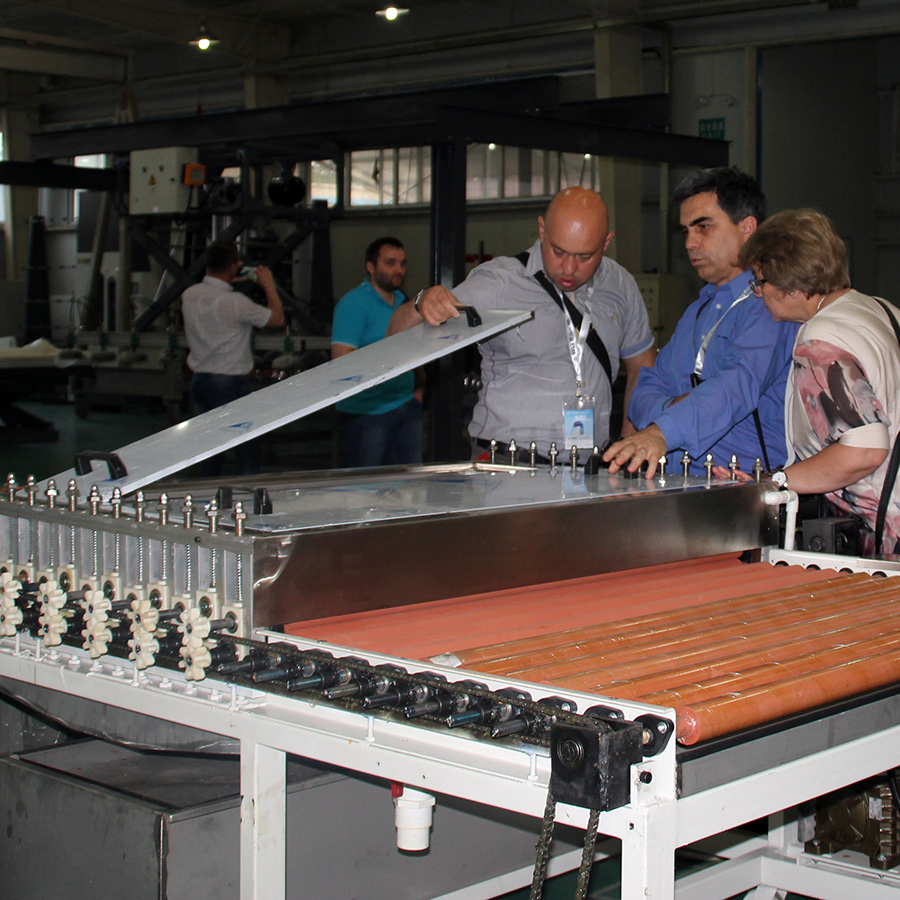

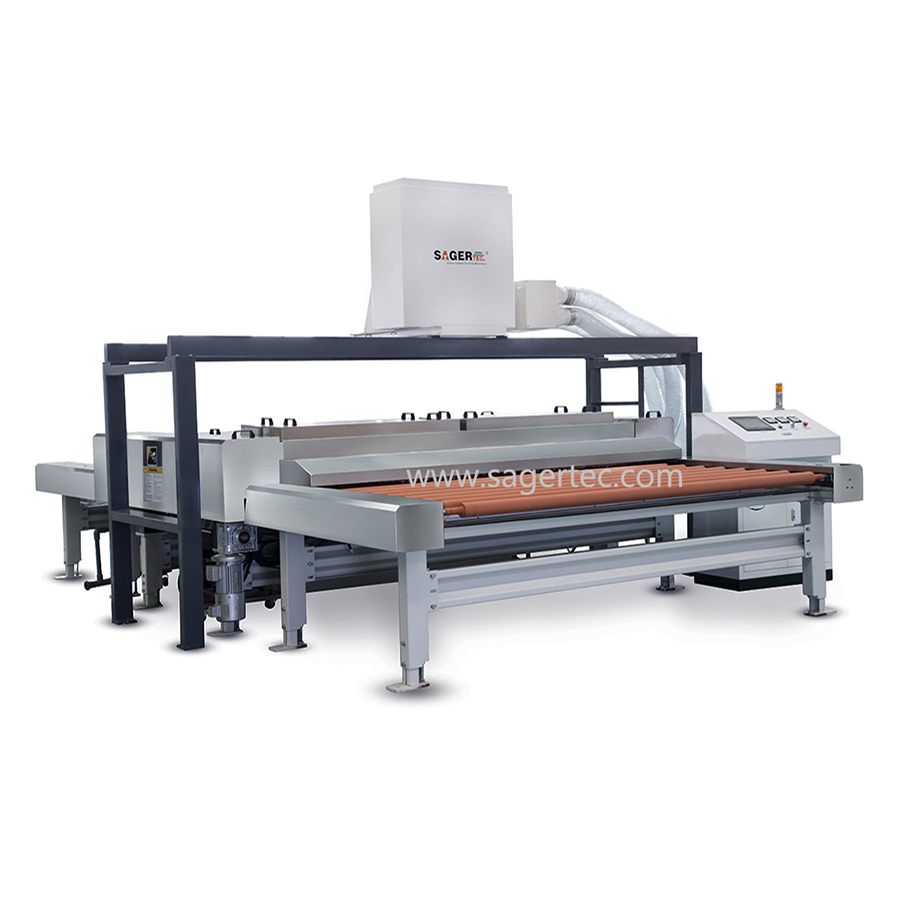

Horizontal Glass Washing & Drying Machine
Glass washing machine is the most common and important equipment in glass processing industry. It is adopted in many fields of glass processing, such as tempered glass, laminated glass, insulating glass, coated glass, mirror and other applications. The quality of cleaning directly affects the quality of final products.
📊
Technical Specifications
Structure: Horizontal
Control System: PLC
Type: Horizontal Glass Washing
Condition: New
Warranty: 400 Days
After-sales: 400 Days
Capacity: 10 set/Month
Origin: China
| Model | SZ-W25 |
| Max. glass width | 2500mm |
| Low-e glass | Available |
| Min. glass size | 400*400mm |
| Glass thickness | 3-25mm |
| Weight | 4500kg |
⚙️
Features & Construction

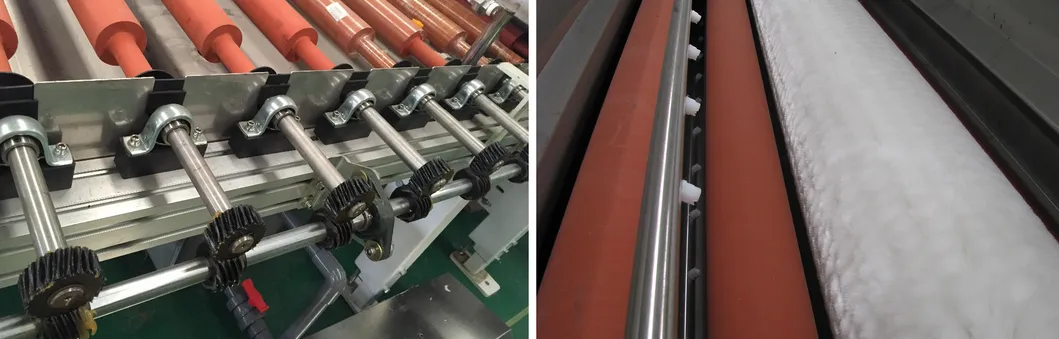

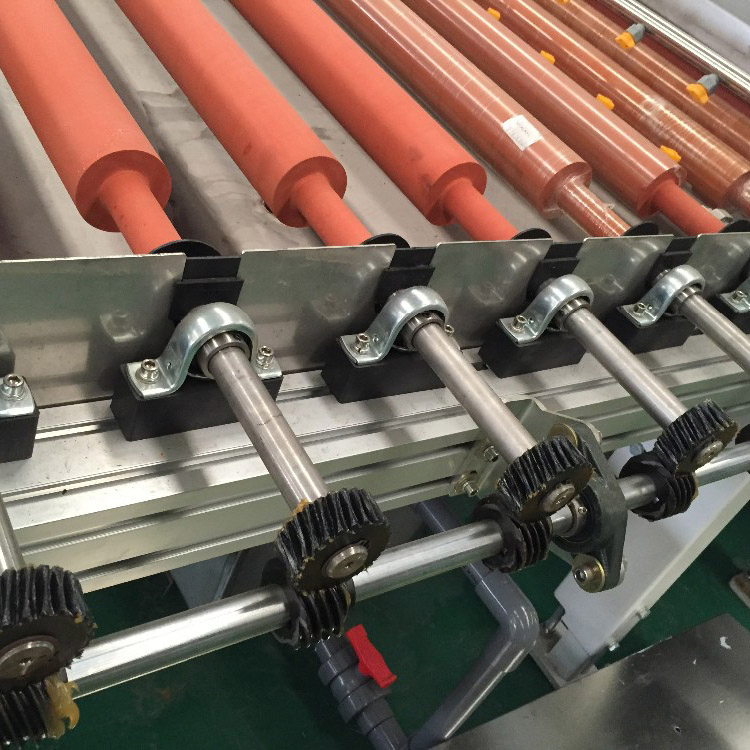

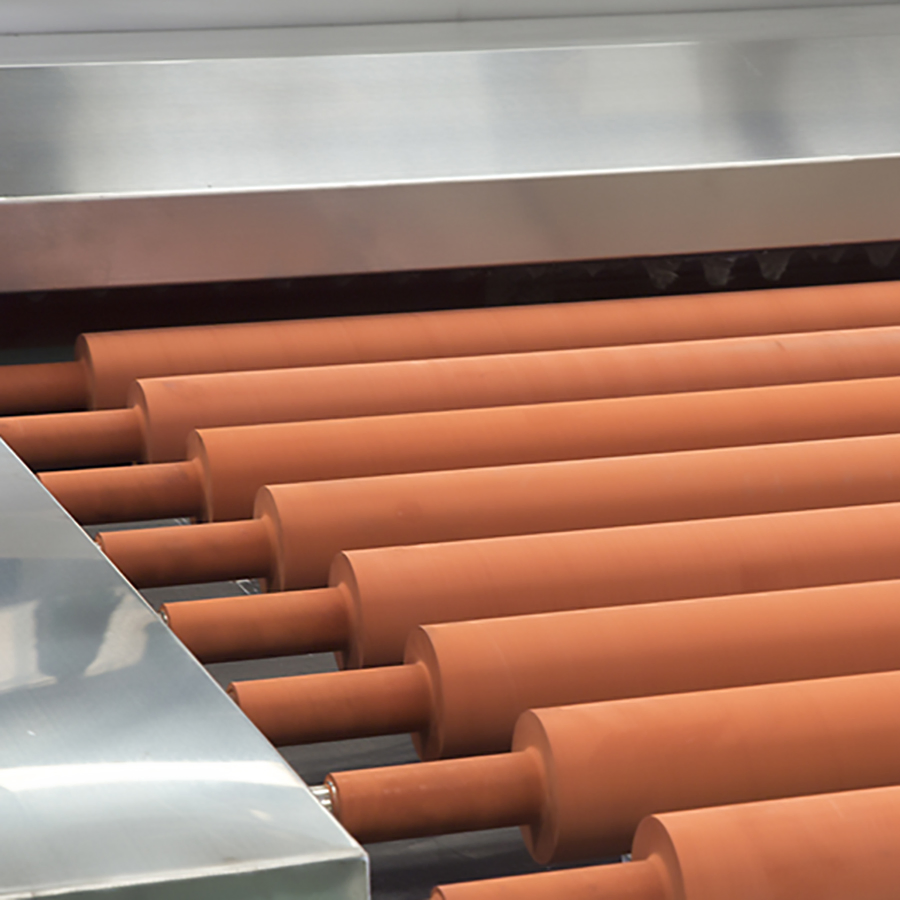

The machine adopts gear drive with variable frequency speed control. The frame is made of high-quality powder-coated steel and aluminum alloy, providing durability, waterproof, and rust-free performance. Transmission rollers are coated by high-quality vulcanized rubber with stainless steel shaft ends.

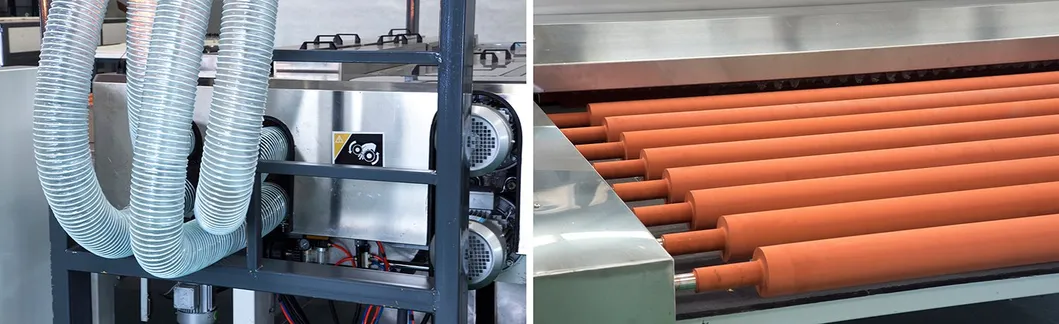

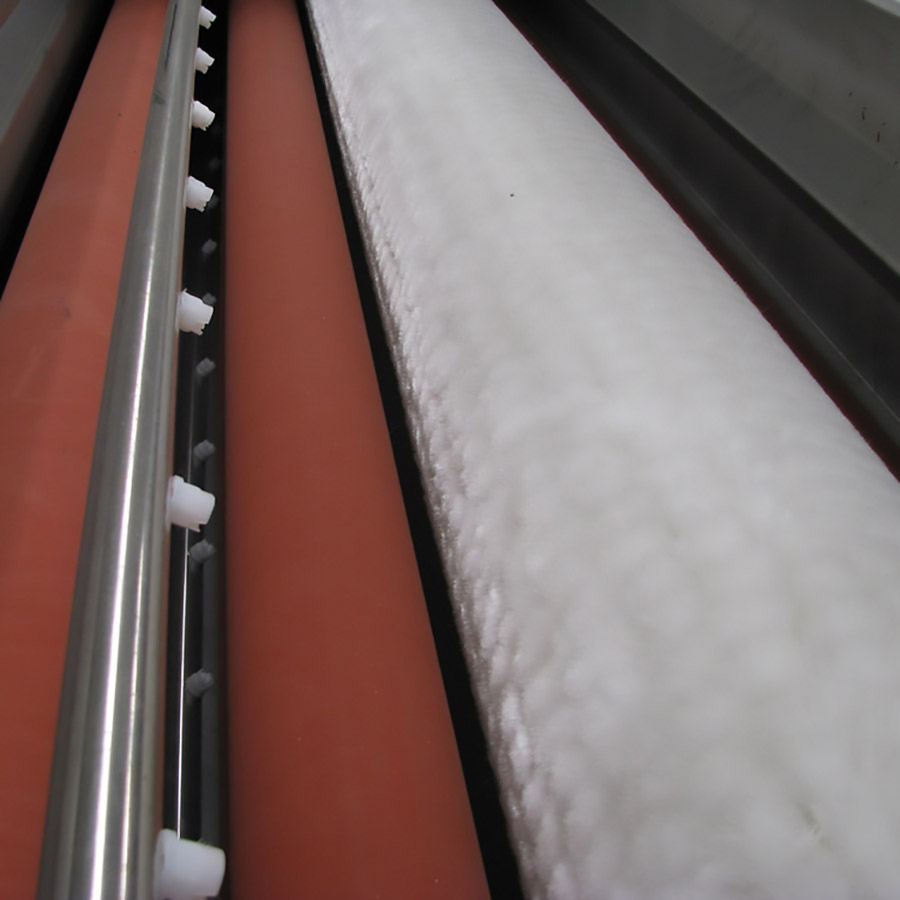

Equipped with 3 pairs of brushes and 2 pairs of air knives. The brush speed and air volume can be adjusted by frequency conversion. The top brushes consist of 2 hard brushes and 1 soft brush. The two hard brushes can be lifted up pneumatically to provide capacity for Low-E glass processing.
All metal covers and water tanks are made of stainless steel. All parts in contact with water are made of waterproof materials. The temperature of dry air and cleaning water can be heated. The top of the machine can be raised by 350mm, which is convenient for maintenance.
🛠️
Advanced Manufacturing
CNC Machining Center
All metal sheets used on the equipment are processed by laser cutting. The main body of the machine is welded with high-quality steel and processed by CNC gantry milling, ensuring high precision and stability. Mechanical parts are processed by CNC machining centers.

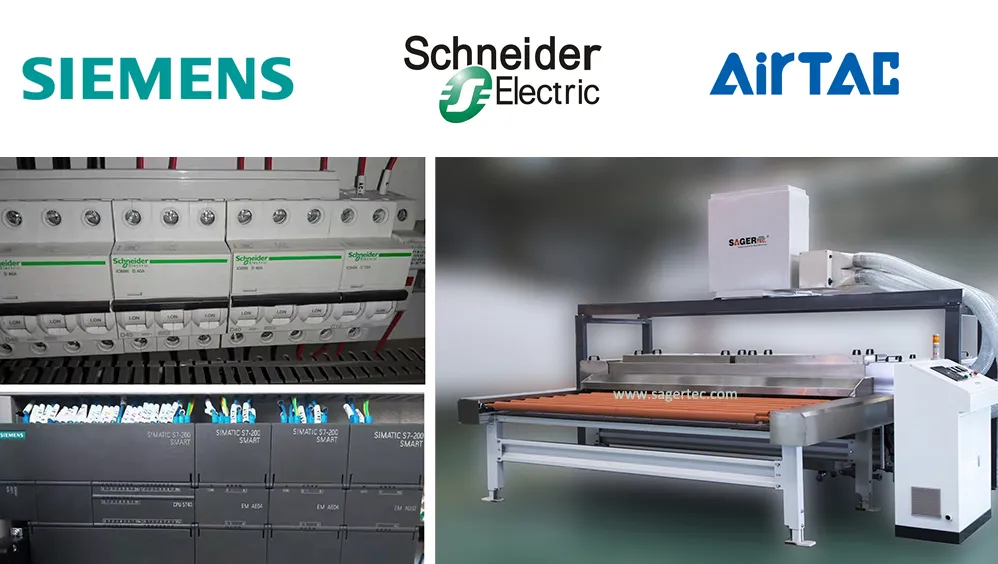

The machine is equipped with reliable components from world-renowned brands, ensuring long-term stable operation and ease of global maintenance.
🚢

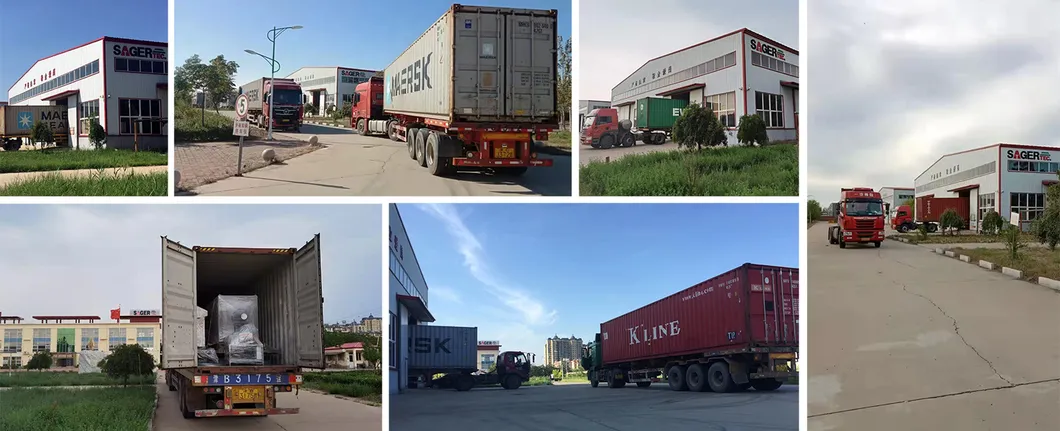

Packaging & Shipping
The facility is strategically located 80km away from a major ocean port, providing convenient access for global shipment and efficient logistics handling.
🏢
Manufacturing Capability
Focusing on the design, development, and production of glass processing machinery. Product range includes PVB glass laminating machines, EVA glass lamination furnaces, glass edge polishing machines, and glass drilling machines.
Supported by a professional R&D team and experienced after-sales service. Qualified and advanced solutions are provided for clients in the glass industry worldwide across more than 60 countries.
❓
Frequently Asked Questions
What is the maximum glass width this washing machine can handle?
The SZ-W25 model can process glass with a maximum width of 2500mm.
Can this machine wash Low-E glass?
Yes, it is specifically designed for Low-E glass. Two of the hard brushes can be lifted up pneumatically to protect the Low-E coating during the process.
What materials are used for the parts in contact with water?
All water tanks and covers are made of high-quality stainless steel, and all components in contact with water are made of waterproof and rust-resistant materials.
Is the machine easy to maintain?
Yes, the top part of the machine can be raised by 350mm, providing ample space for cleaning brushes and performing routine maintenance.
What is the glass thickness range for this equipment?
The machine is capable of processing glass thicknesses ranging from 3mm to 25mm.
How is the speed of the washing process controlled?
The machine utilizes a gear drive system paired with variable frequency speed control, allowing for precise adjustment of transmission speed and air volume.
