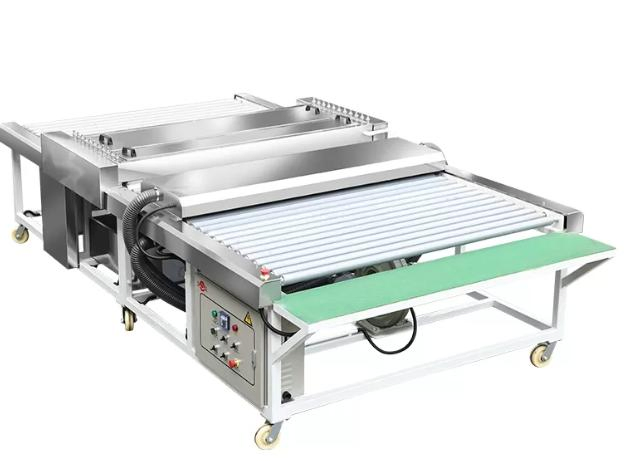

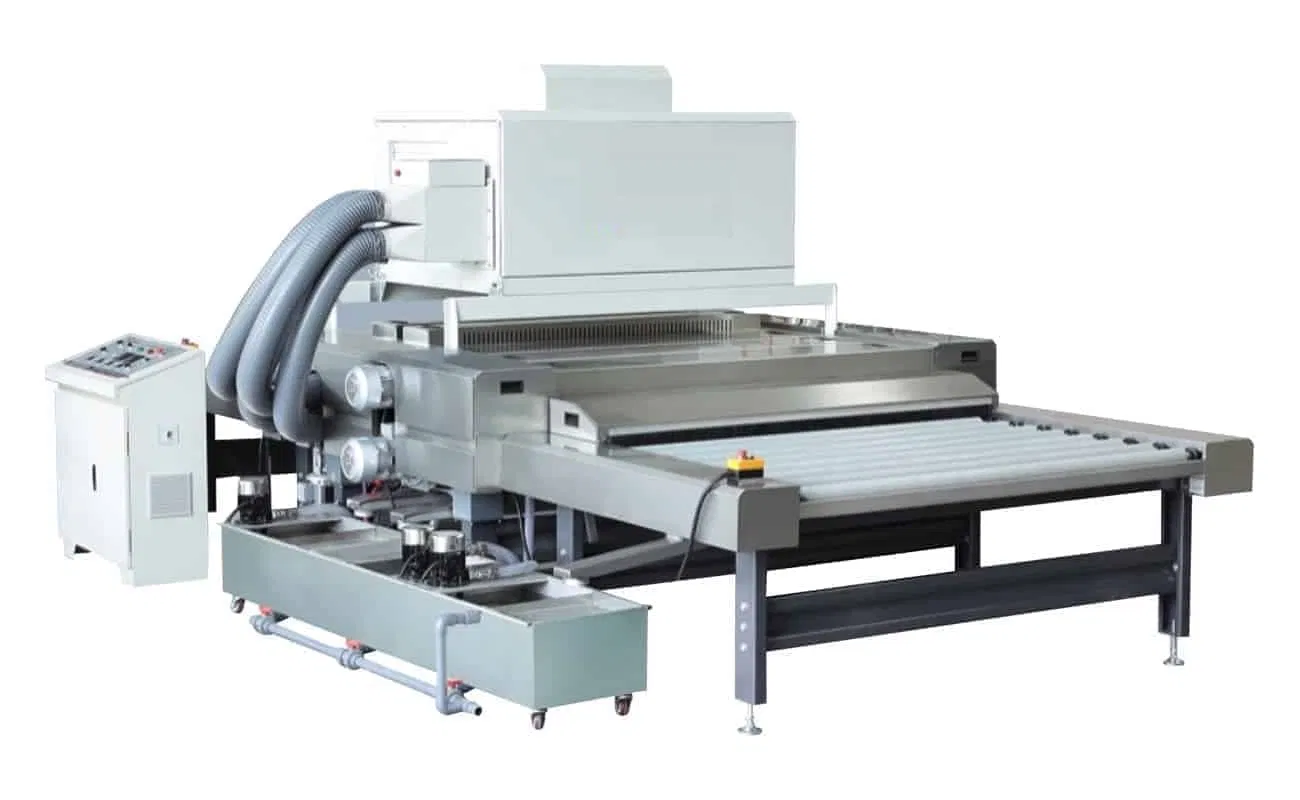

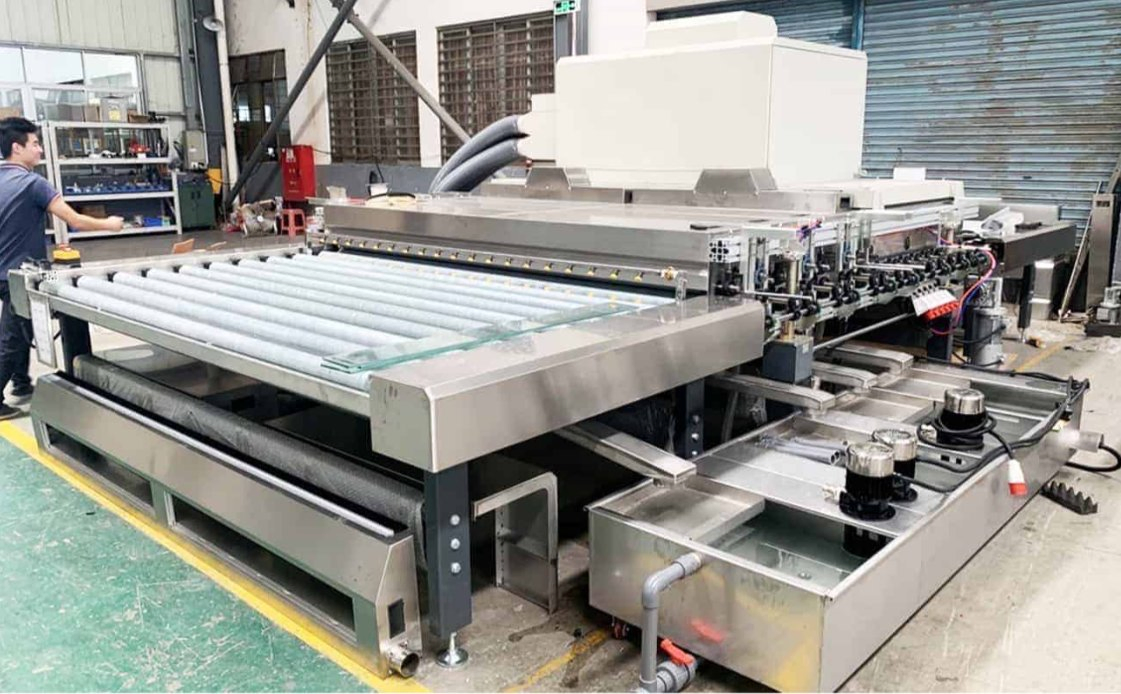

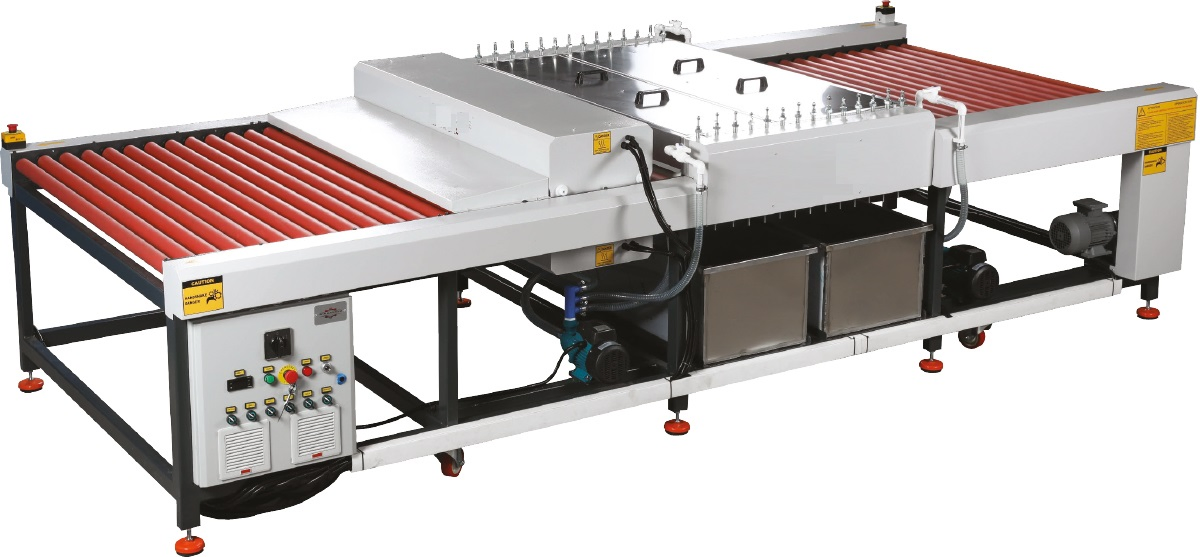

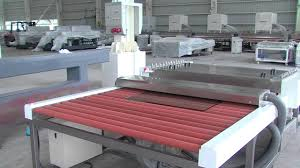

Horizontal Flat Glass Washing And Drying Machine

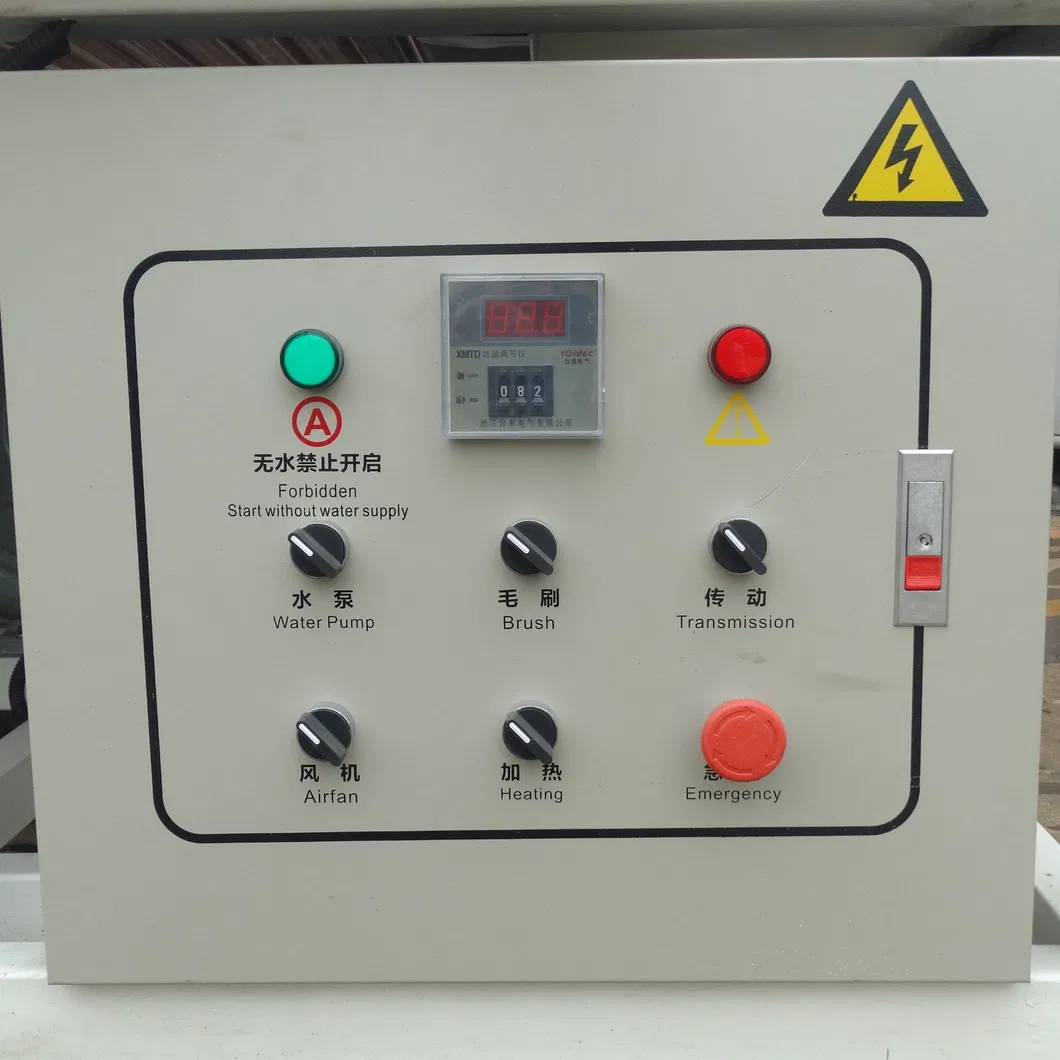

This glass washing machine features a main driver with gear drive, frequency control, and a digital display. The cleaning brush roller rotation is independently driven by upper and lower sets of electrical belts, ensuring smooth rotation speeds and an extended service life.

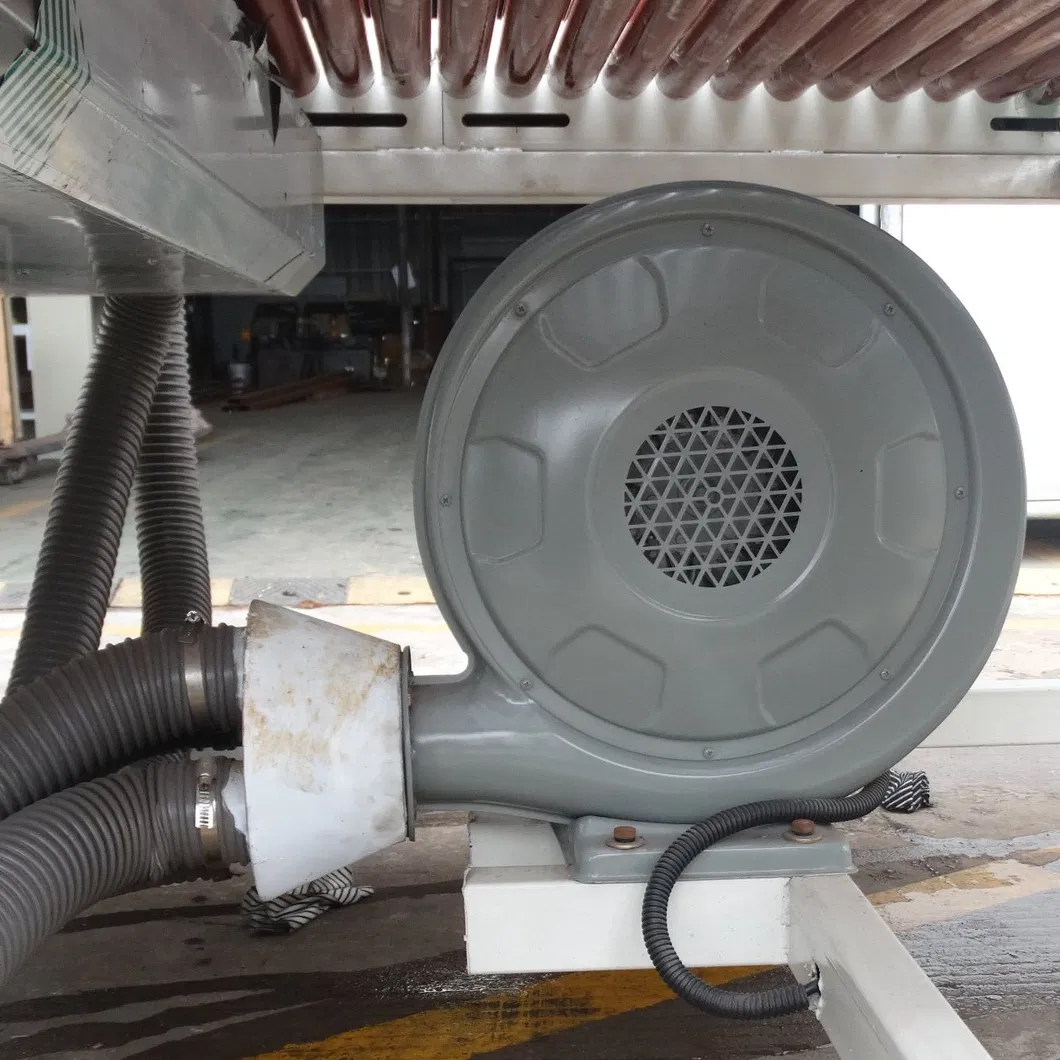

The cleaning and drying departments can be raised and lowered with a maximum lift of 350mm, allowing for easy cleaning and maintenance. Equipped with three pairs of brushes, it can wash ordinary coated glass and solar coated glass effectively. Two pairs of specially-made air knives with a heating system provide powerful wind and excellent drying performance. The machine adopts a high-strength aluminum alloy truss structure.
| Main Technical Specification | |
|---|---|
| Power Supply | 380V/50HZ |
| Power | 15KW |
| Max. Glass Size | 2000mm |
| Min. Glass Size | 200*200mm |
| Glass Thickness | 3-10mm or customized |
| Transmission | Stepless speed regulation |
| Number of Brushes | 8pcs |
| Number of Sponge Rolls | 6pcs |
| Process Speed | 0.5-4m/min |
