Customization:	Available
Certification:	CE
Glass conveyor speed:	10-15m/Min, 5-10m/min

Send Inquiry

Product Description

📋 Overview & Basic Info

Model NO.	YD-HWB-3300
Glass Thickness	3-25 mm
Power Supply	220/240/380/415/480V
Suitable for	Flat Glass / Low-E Glass
Control System	PLC
Feature	High Speed Washing
Structure	Horizontal
HS Code	84642010
Production Capacity	20 Sets Per Month

⚙️ Product Description

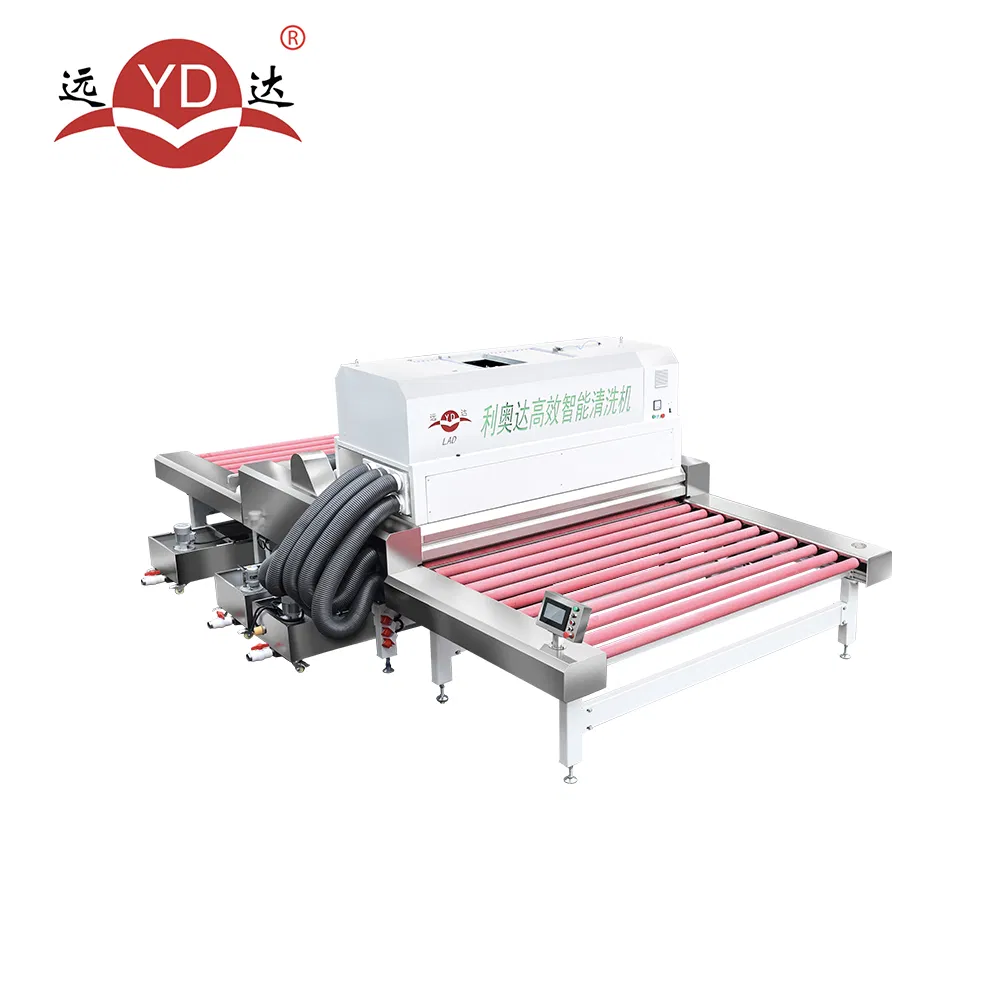

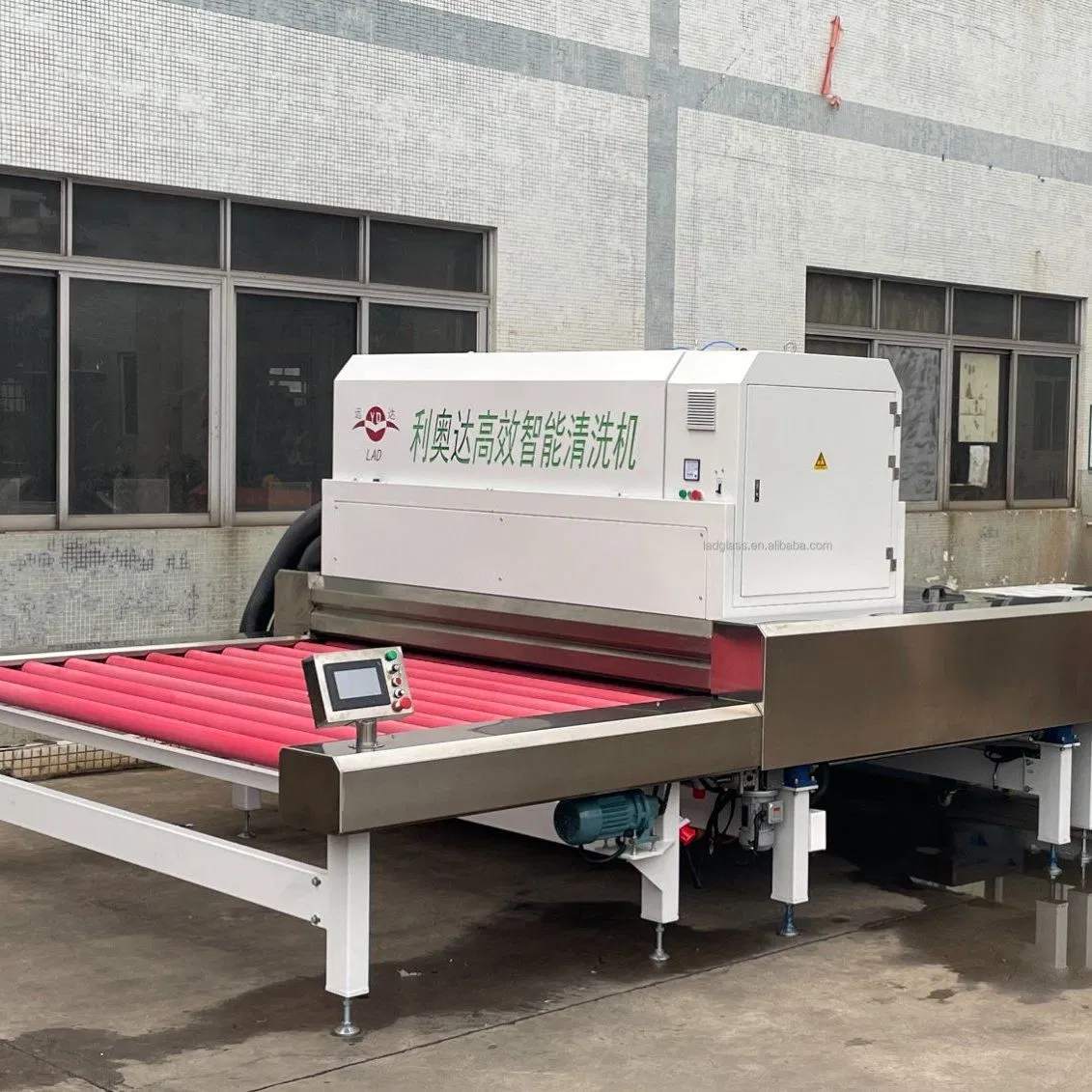

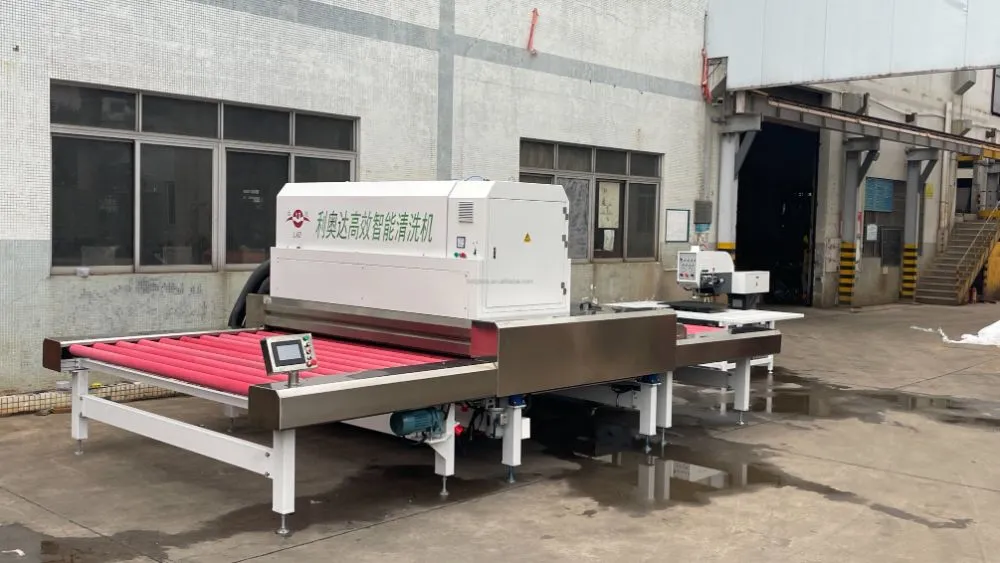

Horizontal Glass Washing and Dry Machine

✔

Cleaning and drying flat glass and Low-e glass.

✔

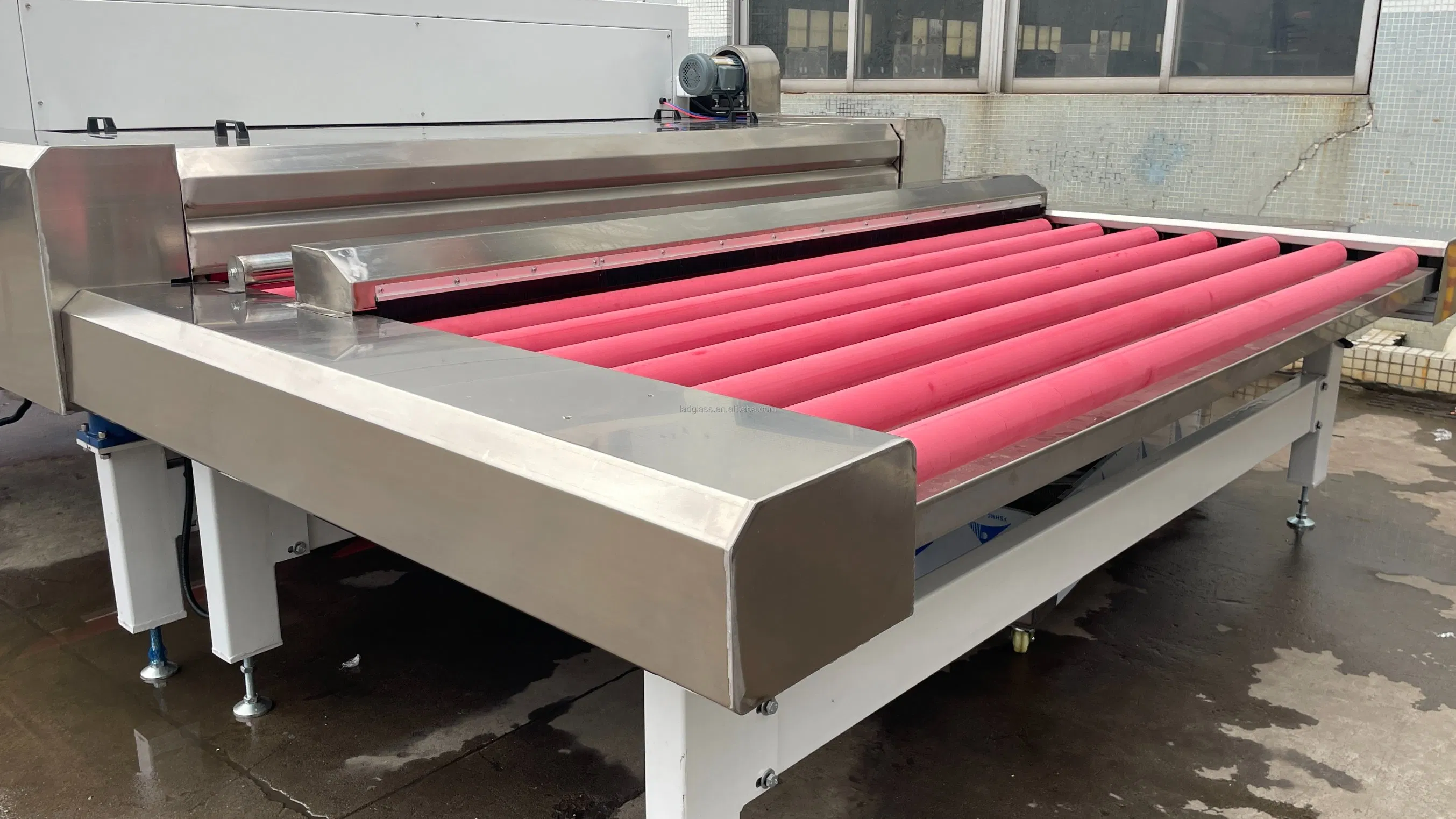

Conveying roll shafts use rubber shafts with gear transmission and stepless speed regulator.

✔

Three pairs (6pcs) of rotary brushes (Φ150mm) with height adjustable disc brushes (0-250mm).

✔

Three pairs (6pcs) high-pressure air blades powered by a 26kw fan in a sound insulation box.

✔

Stainless steel sparge pipes and 2 sets of pull-out stainless steel water tanks.

✔

Independent control cabinet with Schneider and Chint components for safety protection.

📊 Product Parameters

Max. Glass Width	3200 mm
Min. Glass Size	600 x 600 mm
Transport Speed	0.8 - 15 m/min (Adjustable)
Total Power	50 Kw
Outer Dimension	8.9 * 4 * 2.4 m
Weight	6000 kg

🛠 After Sales Service & Shipping

Warranty & Service:

1 year warranty for the machine.
Lifetime service for parts and malfunctions.
24-hour online technical support.
English operation manual and installation videos provided.

Shipping & Payment:

T/T: 30% deposit, balance paid before delivery.
Production lead time: 30-45 days.
Loading in container or LCL cargo permitted.
CE and SGS certification standard.

📷 Detailed Workshop Photos

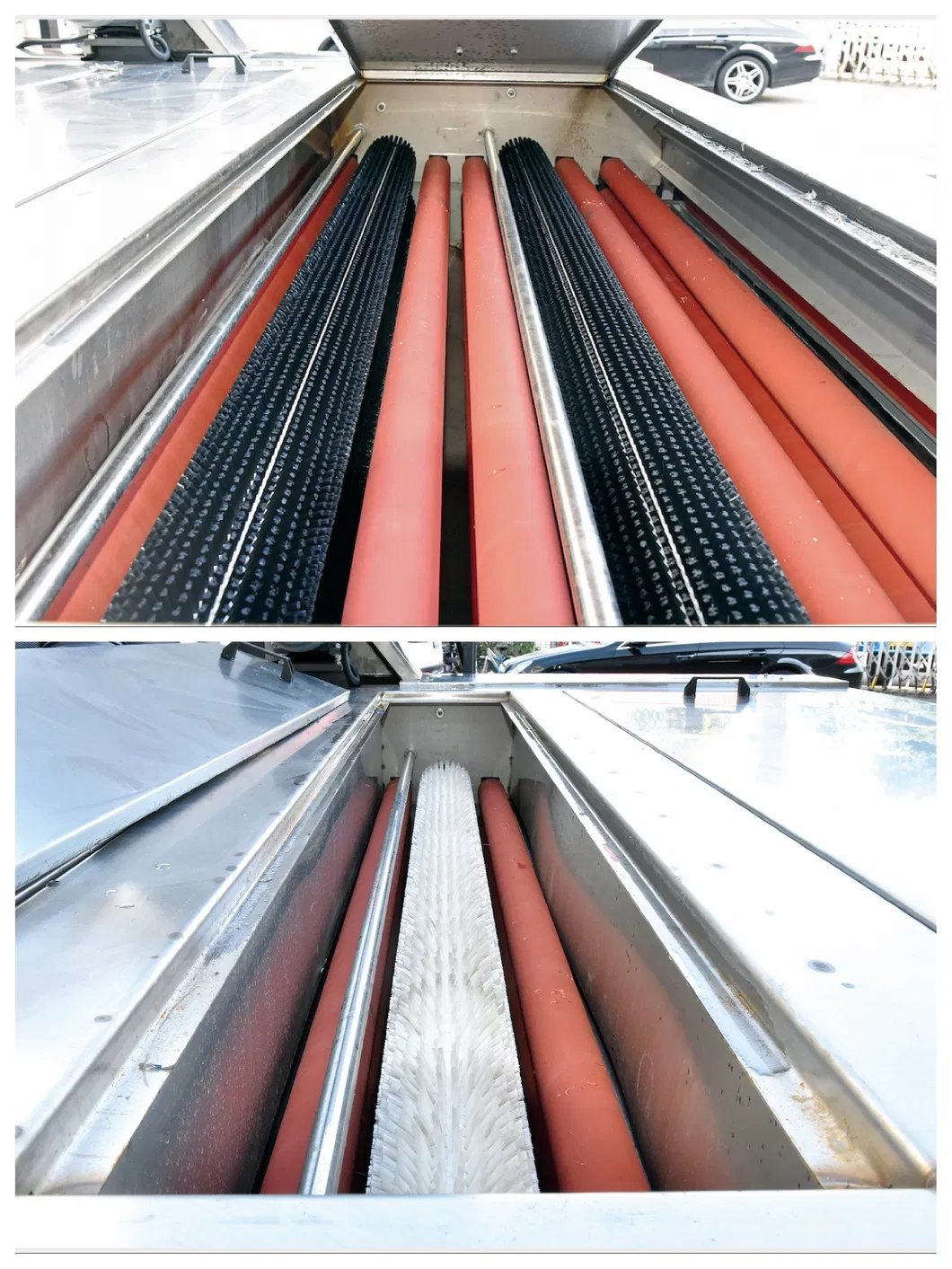

Workshop Photo 1

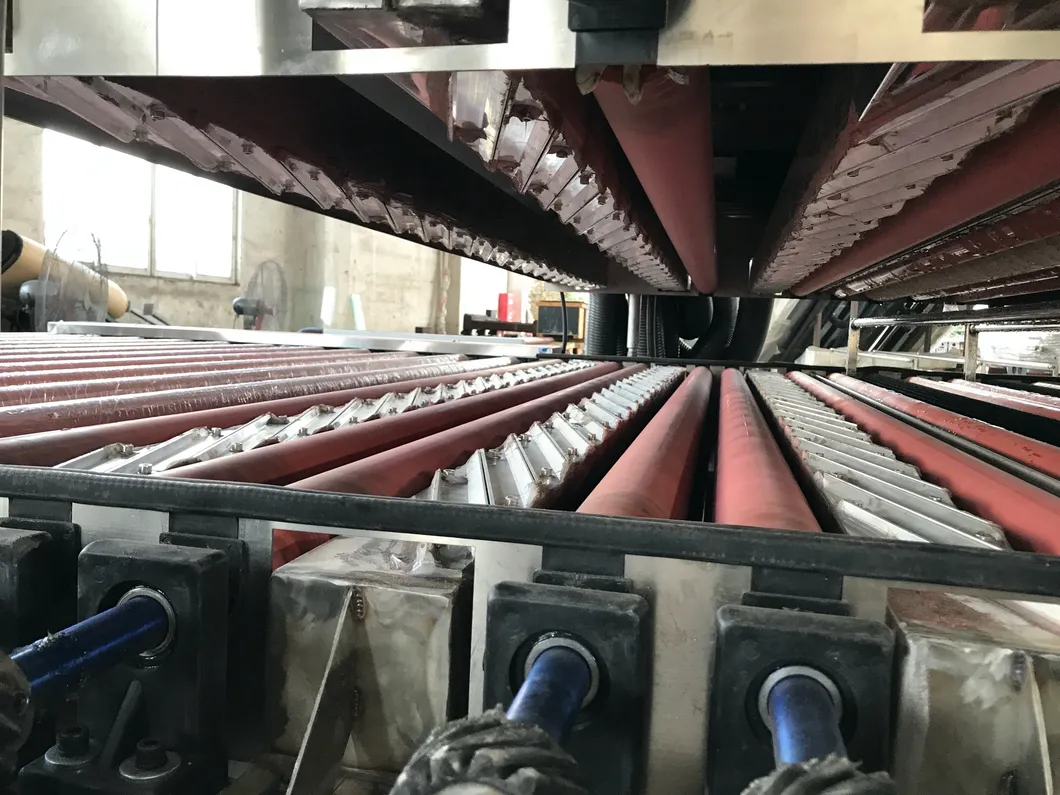

Workshop Photo 2

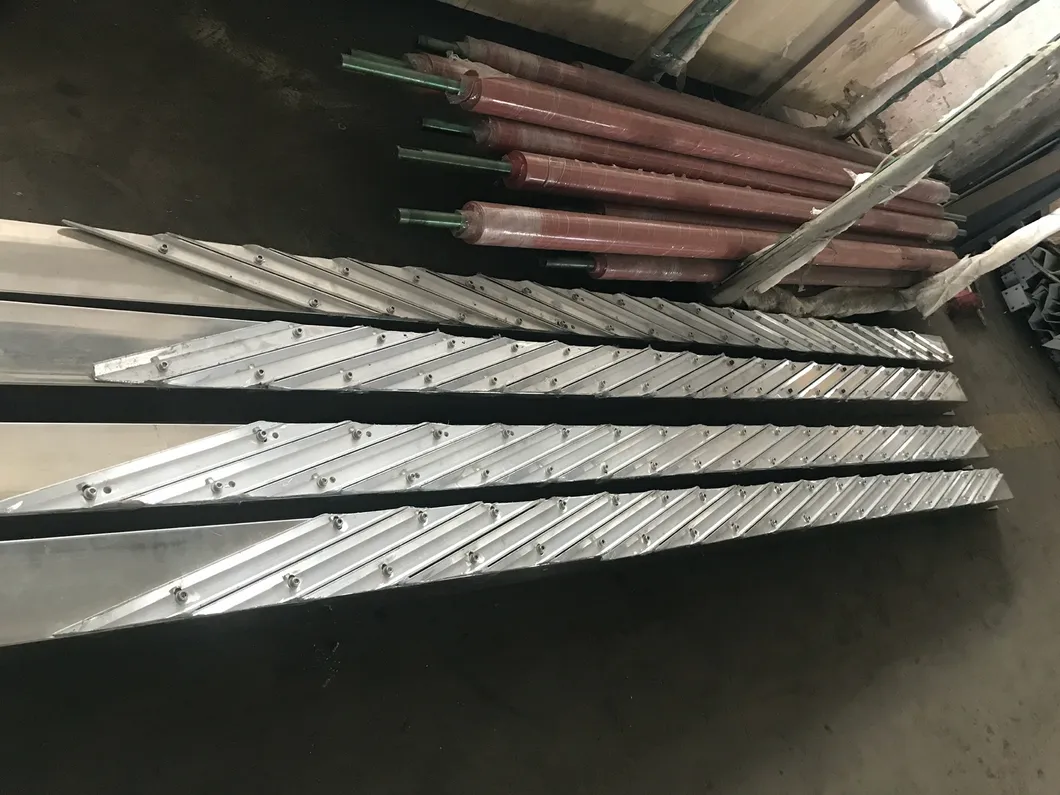

Workshop Photo 3

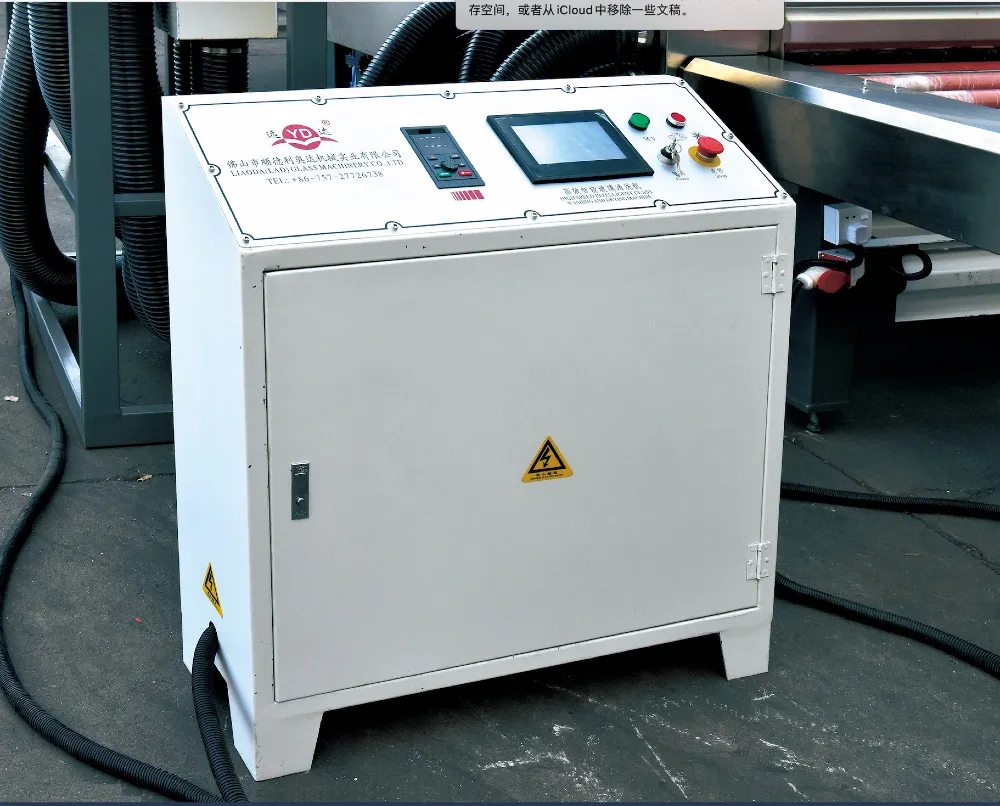

Workshop Photo 4

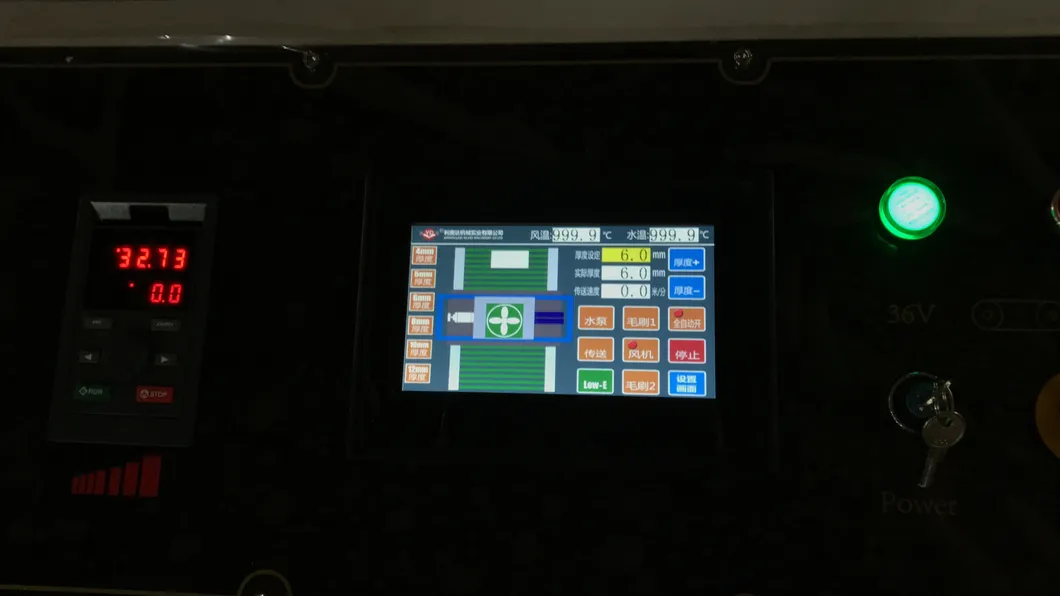

Workshop Photo 5

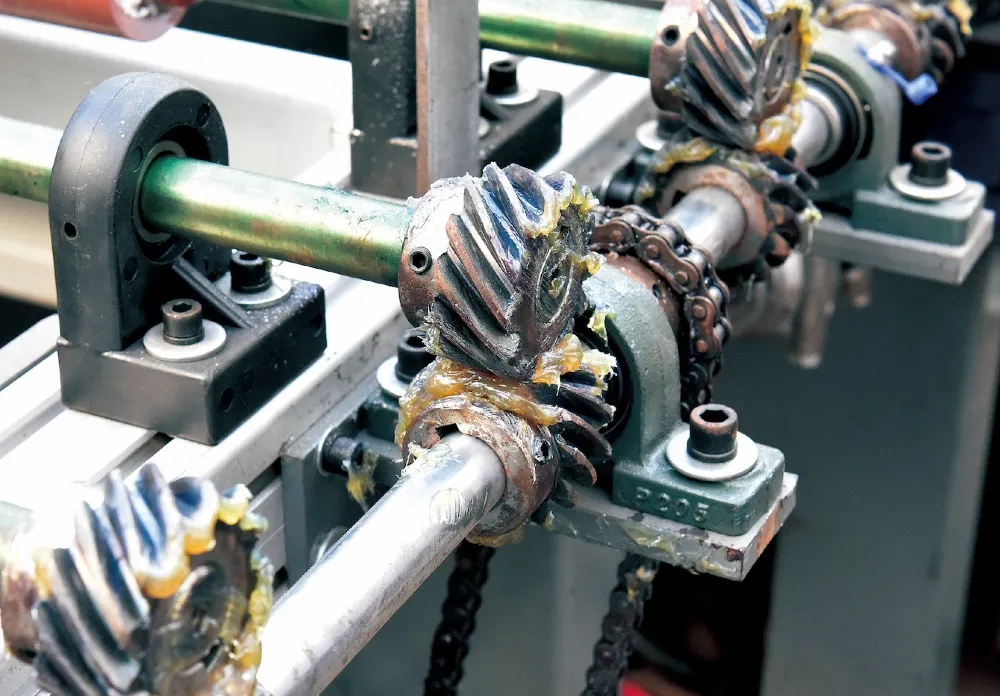

Workshop Photo 6

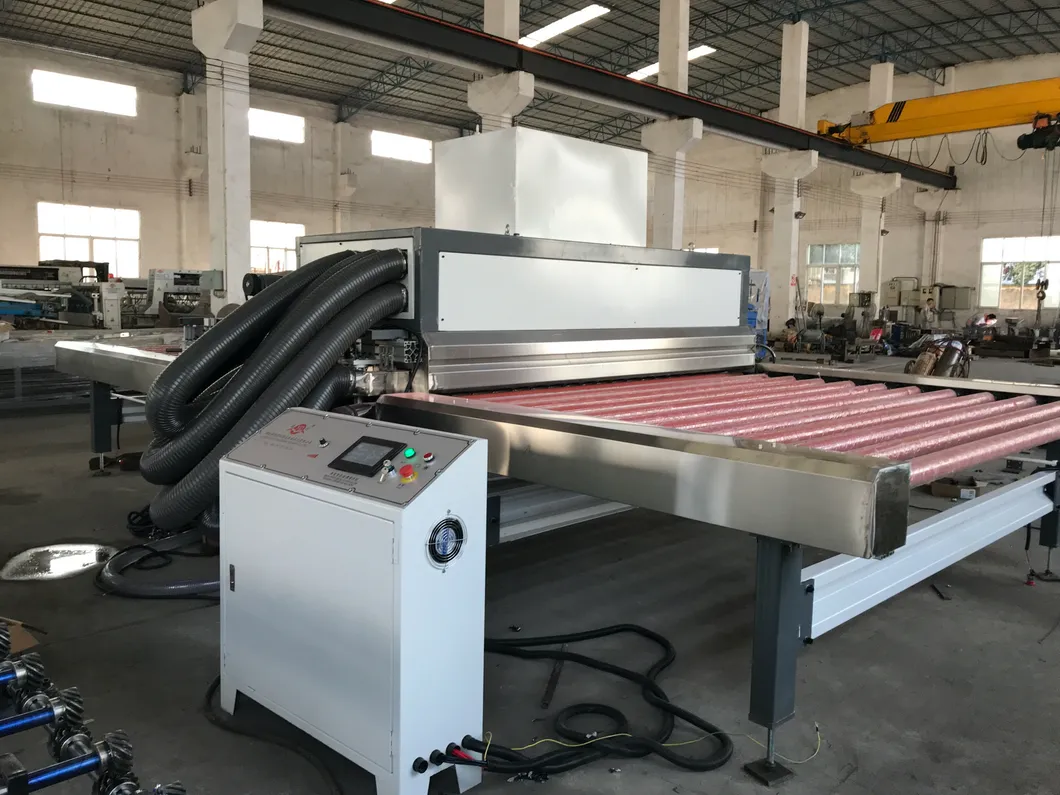

Workshop Photo 7

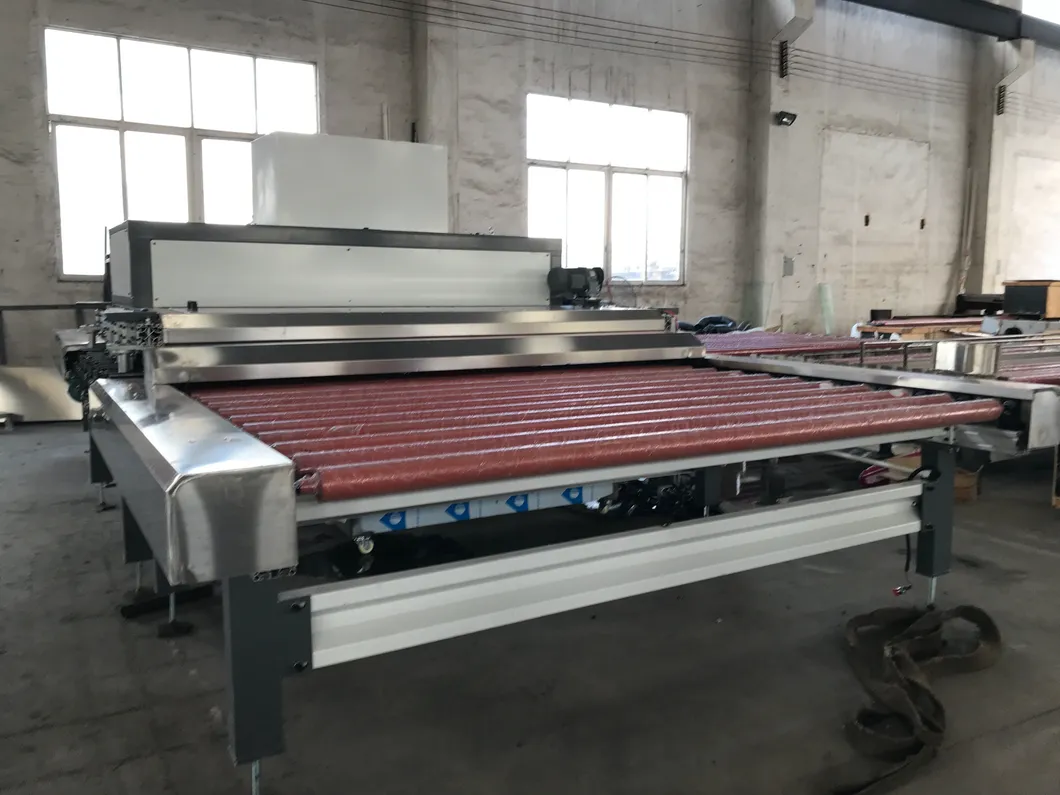

Workshop Photo 8

Workshop Photo 9

❓ Frequently Asked Questions

How long is the production lead time for the machine?

The standard production lead time is approximately 40-45 days.

What is the minimum order quantity (MOQ)?

The MOQ for our glass washing and drying machine is 1 set.

What kind of certificates do the products have?

Our machines are compliant with European Union CE and SGS standards.

How long is the machine guarantee period?

We provide a 1-year warranty for the machine, along with lifetime service for parts.

Can the machine size be customized for specific requirements?

Yes, the machine size can be customized to fit your specific production needs.

What types of glass are suitable for this equipment?

It is designed for cleaning and drying both regular flat glass and Low-E glass with thicknesses ranging from 3mm to 25mm.
