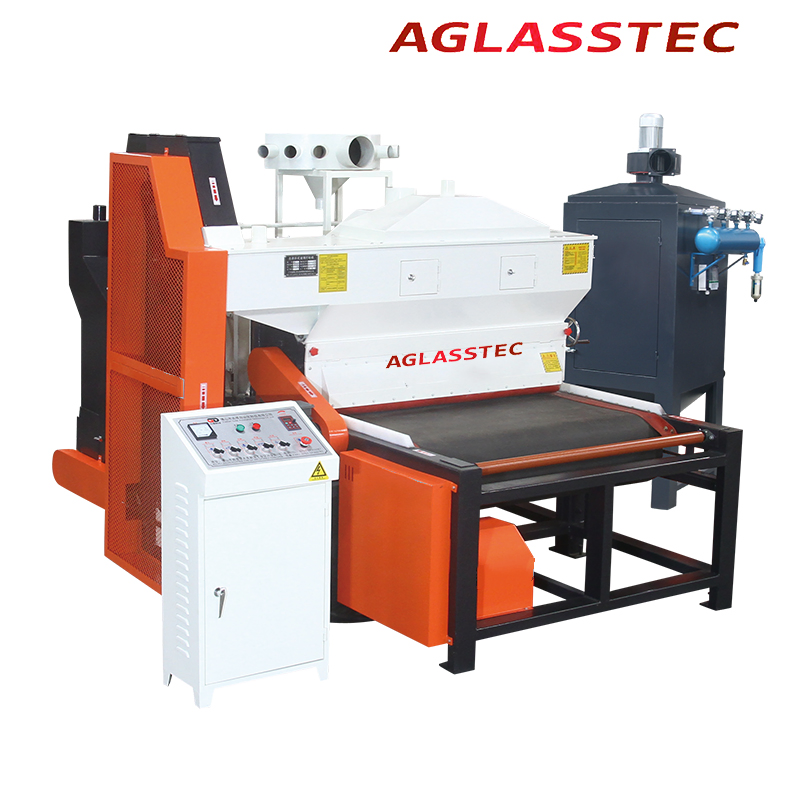

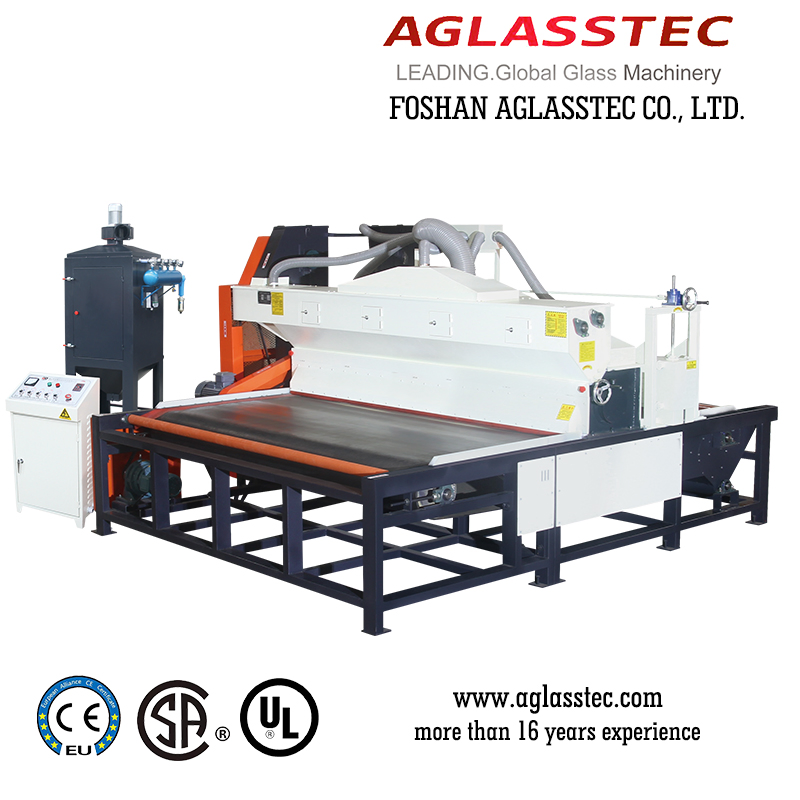

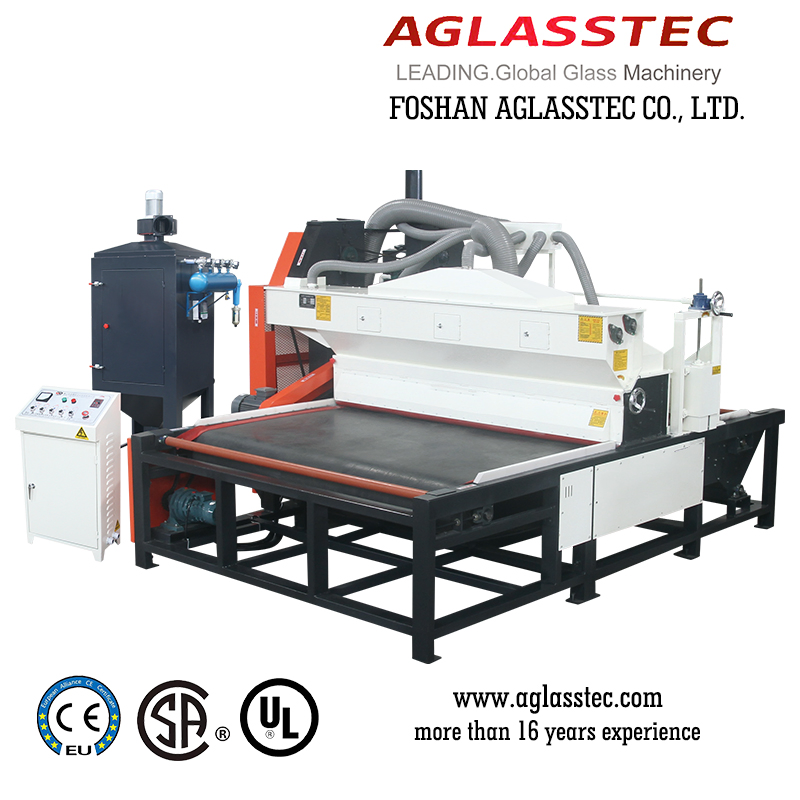

Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
1 / 5
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

Customization: Available
Control System: Button Switch
Min.Glass Size: 200*200mm
Send Inquiry

Product Description

📊
Basic Information
Model NO.
FGS-HS2600
Blades
8PCS Frosting/Sandblasting
Production Time
30 Days or Negotiable
Voltage
220V/380V/415V/440V/480V/600V (Customizable)
Application
Large Scale Sand Blasted Glass Processing
Type
Glass Sandblasting Machine
Certification
CE, CCC
Structure
Horizontal
Specification
Max. Glass Width: 2500mm
Production Capacity
900 Set/Year
HS Code
8424300000
Condition
New
⚙️
Product Features & Description
🔵
The electric box and machine body are separate. Independent electric box effectively protects electrical components, finished with a fingerprint-free aluminum panel for durability and aesthetics.
🔵
Utilizes reliable Delixi and Siemens electrical components with a reasonable layout for easy installation and maintenance.
🔵
Equipped with a solid 40Cr main shaft (diameters ranging from 70mm to 110mm), processed via heat treatment, straightening, and dynamic balance.
🔵
Screw conveyor made of 3.5mm professional mine wear-resistant materials, ensuring a long service life of 5-8 years.
🔵
Advanced sand lifting system with double lifting sand towers and three-layer protection to prevent bearing burnout.
📋
Main Parameters
Item Unit Parameter (FGS-HS2600)
Thickness to be processedmm2-21
Max width of glassmm2500
Side column spacingmm2600
Loading speed frequencymm/min200-1200
Sand rotating bladespc8
Height of working platformmm800
Power of main motorKW9.9
Overall dimension (L×W×H)mm4100*3500*2000
Machine weightkg3100
Max processing speedM²/h180 (Theoretical) / 90 (Actual max)
🖼️
Product Display
Glass Sandblasting Machine View 1
Glass Sandblasting Machine View 2
Glass Sandblasting Machine Detail 1
Glass Sandblasting Machine Detail 2
Frequently Asked Questions
What is the maximum glass width this machine can handle?
The FGS-HS2600 model can process glass with a maximum width of up to 2500mm.
What brands of electrical components are used in the machine?
The machine is equipped with high-quality components from international and domestic leading brands, including Siemens for the main motor and Delixi for electrical elements.
How long is the expected lifespan of the screw conveyor?
The screw conveyor is built with 3.5mm thick professional wear-resistant materials, typically lasting between 5 to 8 years depending on usage.
Does the machine support custom voltage requirements?
Yes, we can customize the machine to support various voltage standards including 220V, 380V, 415V, 440V, 480V, and 600V according to customer requirements.
What is the processing speed of the sandblasting machine?
The machine has a theoretical maximum processing speed of 180 M²/h, with a practical calculated high-efficiency speed of approximately 90 M²/h.
How is the dust managed during the sandblasting process?

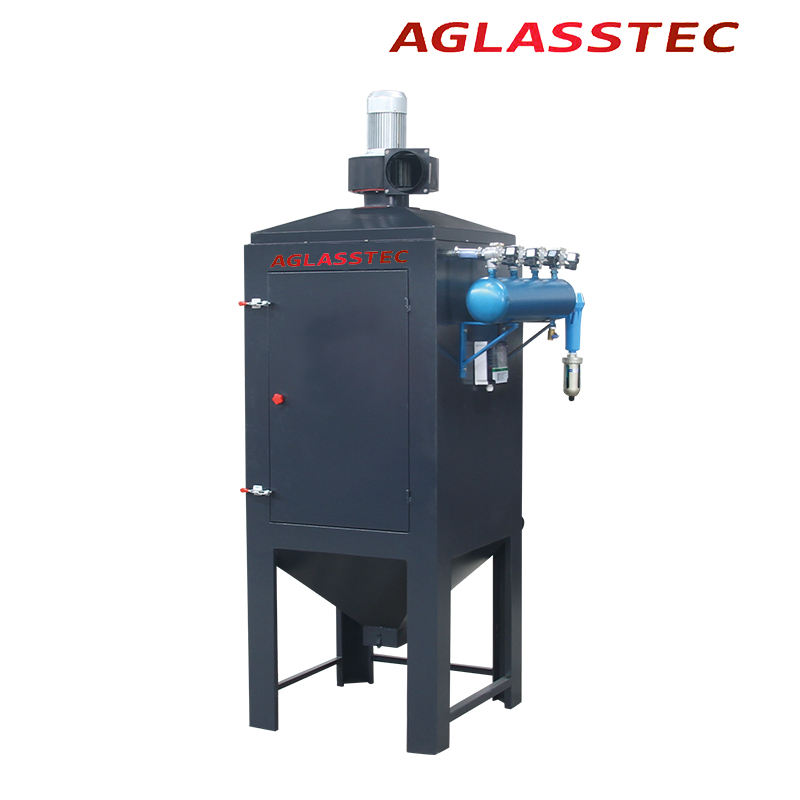

The machine features a pulse dust remover function and a specialized vacuum cleaner (800*800*2200mm) to ensure a clean working environment.
