Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
1 / 5
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass
Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass

Flat Glass Production Line High Speed Smart Double Edging Machine for Making Glass

Customization: Available
Certification: CE, ISO
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information

Name
Double Edging Machine for Making Glass
Function
Edging Glass Side
Use
Glass Edging Machine for Glass
Type
Glass Edging Machine
Structure
Horizontal
Control System
PLC
Grinding Head Number
9
Condition
New
After-sales Service
24 Hours in Line
Transport Package
Wooden Case
Production Capacity
30 Sets/Month

Product Description

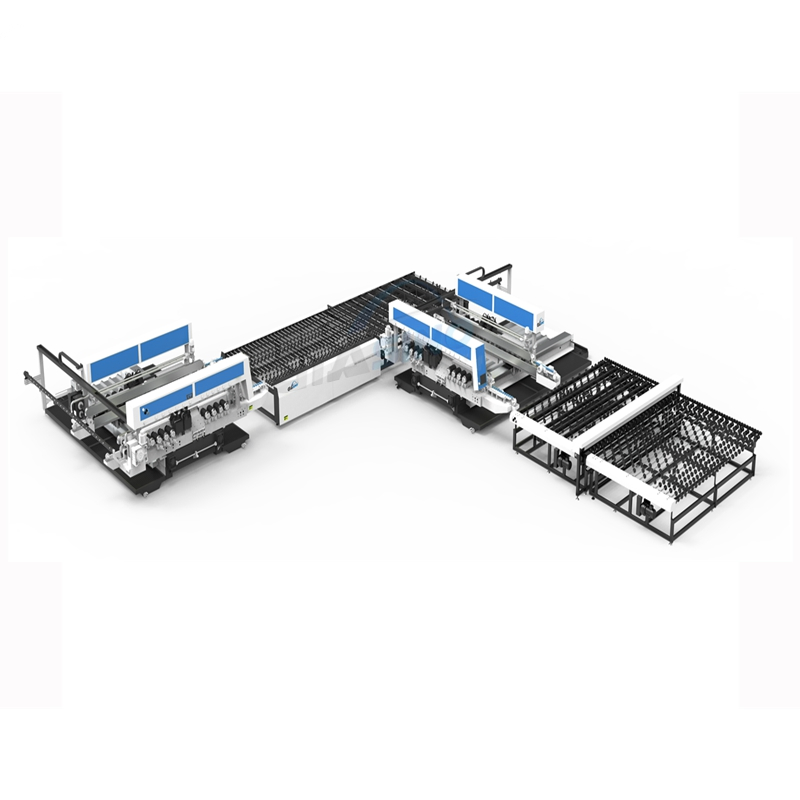

Double Edging Machine Production Line

GSZM2042+GSTL4225+GSZM2025 Glass Straight Line Double Edging Machine production line is an economic, high efficiency, high precise, reliable product for all size of flat glass, laminated glass and Low-E glass on mass production.

  • Opening and closing of structure adopt ball screw and straight line lead rail.
  • Grinding wheel adopts double V type guide rail with high precision, smooth operation and small vibration.
  • Semi-automatic for polishing.
  • Upper angle chamfer adopts ball screw and linear guide, precise orientation.
  • Automatically lifted for cleating bracket, which can be reached to 120mm.
  • Main transmission drive adopts mechanical frequency conversion to adjust the speed.
  • Adopt annular synchronous belt and pneumatic positioning device for conveying glass.
  • Adopt human-computer interface and PLC controlling system, easy operation.

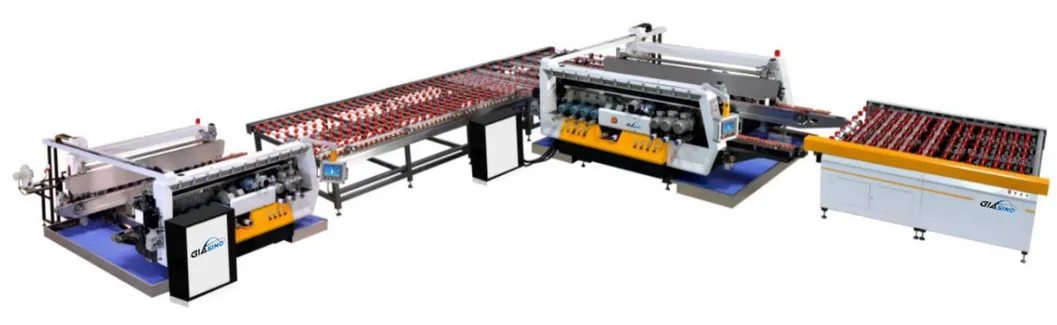

Double Edging Machine Details 1

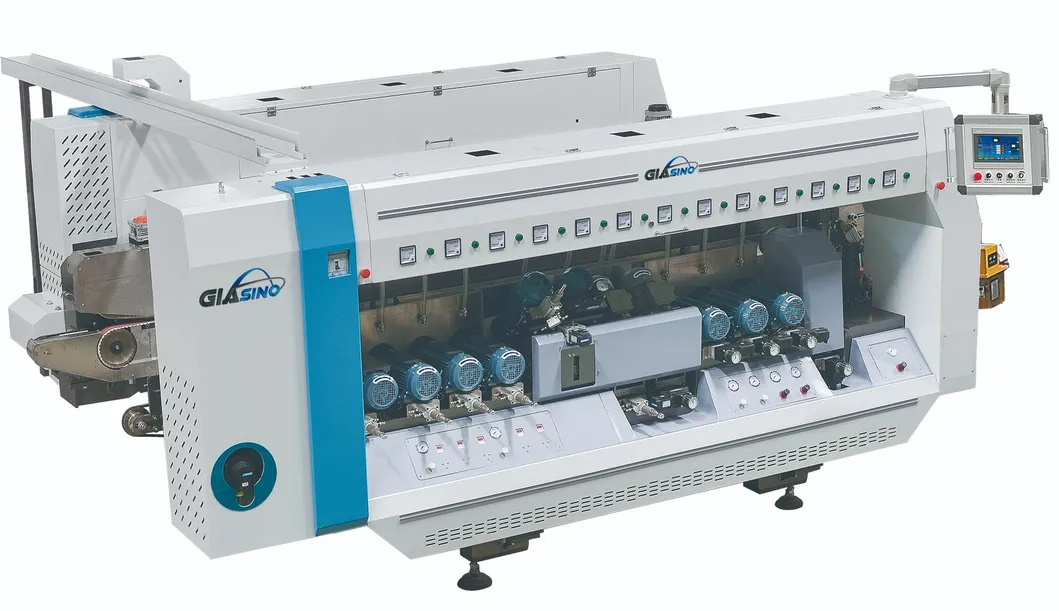

Double Edging Machine Details 2

Technical Parameters

Parameter Specification Parameter Specification
Voltage (V/Hz) 380/50 Installed power (KW) 81.2
Compressed air (kg/cm2) 6 Processing width (mm) 350-4500 / 350-2500
Conveying speed (m/min) 0.5-15 Glass thickness (mm) 3-25
Parallel difference ≤0.2 mm Diagonal difference ≤0.5/1000 mm
Working Surface Height 920±20 mm Total Weight (kg) 4800

Detailed Photos

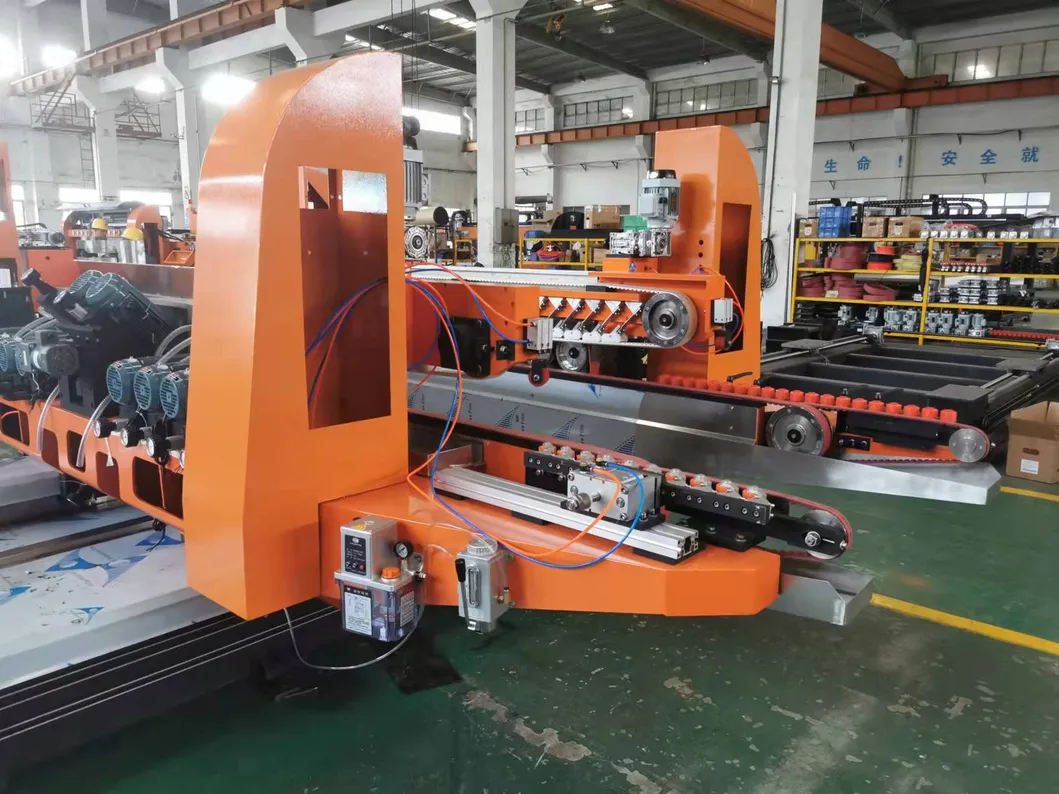

Machine Overview

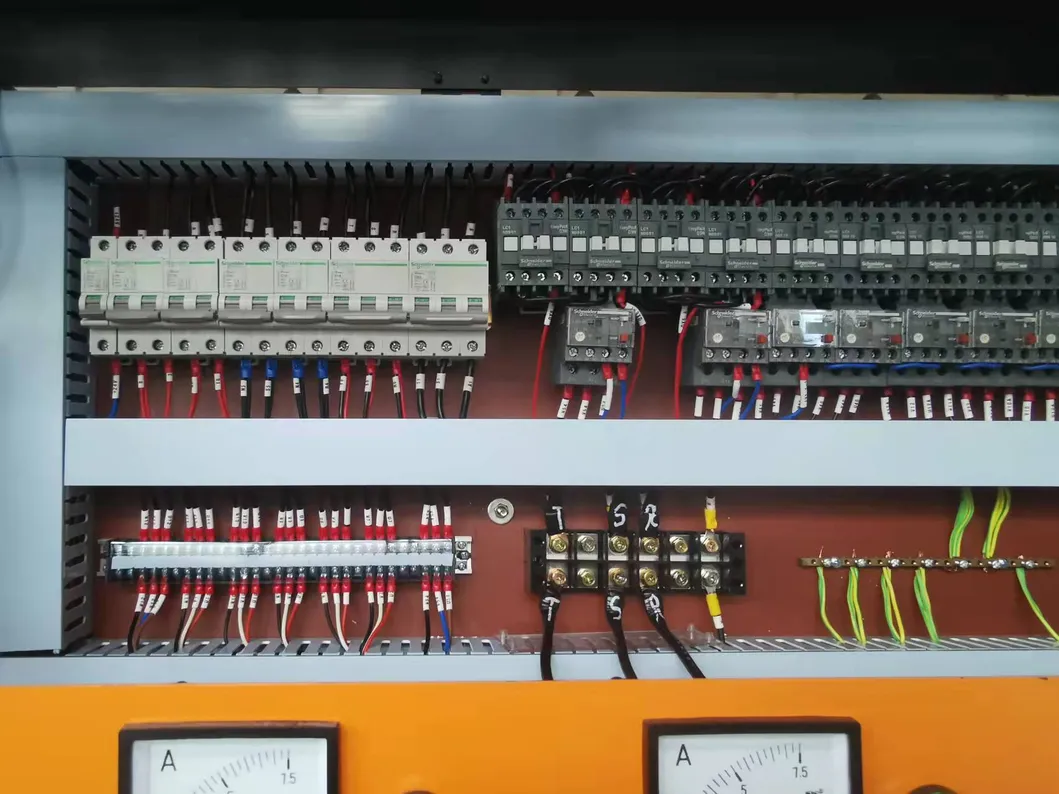

Component Detail 1

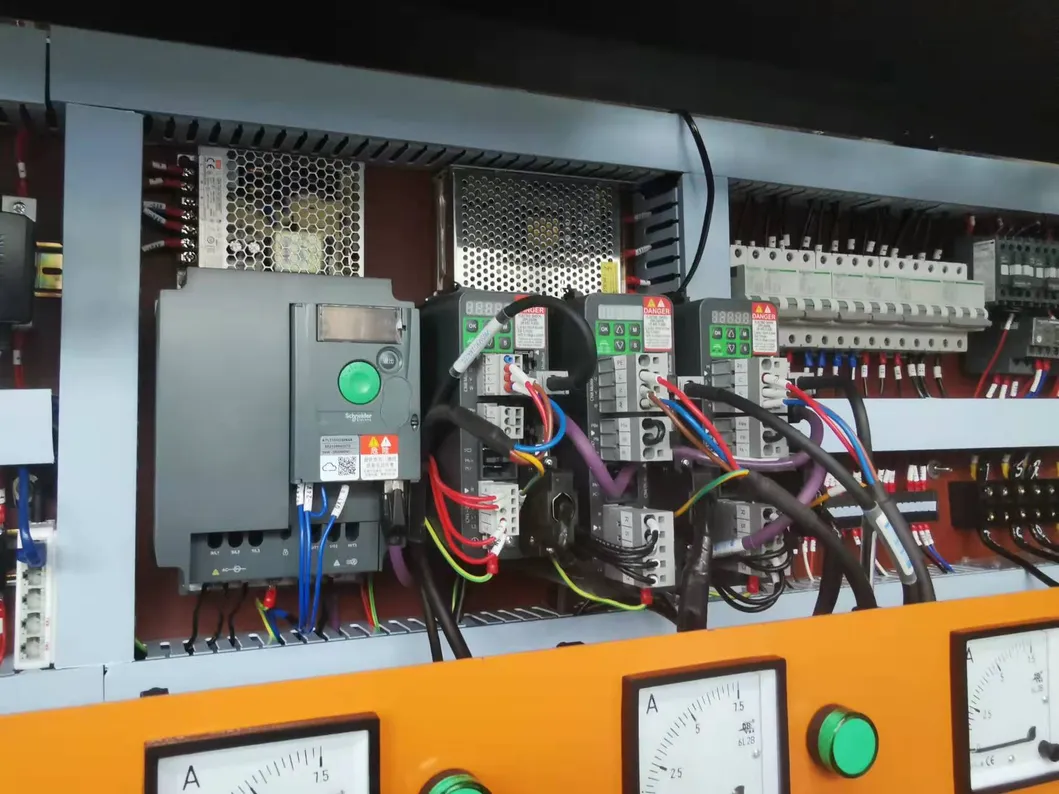

Component Detail 2

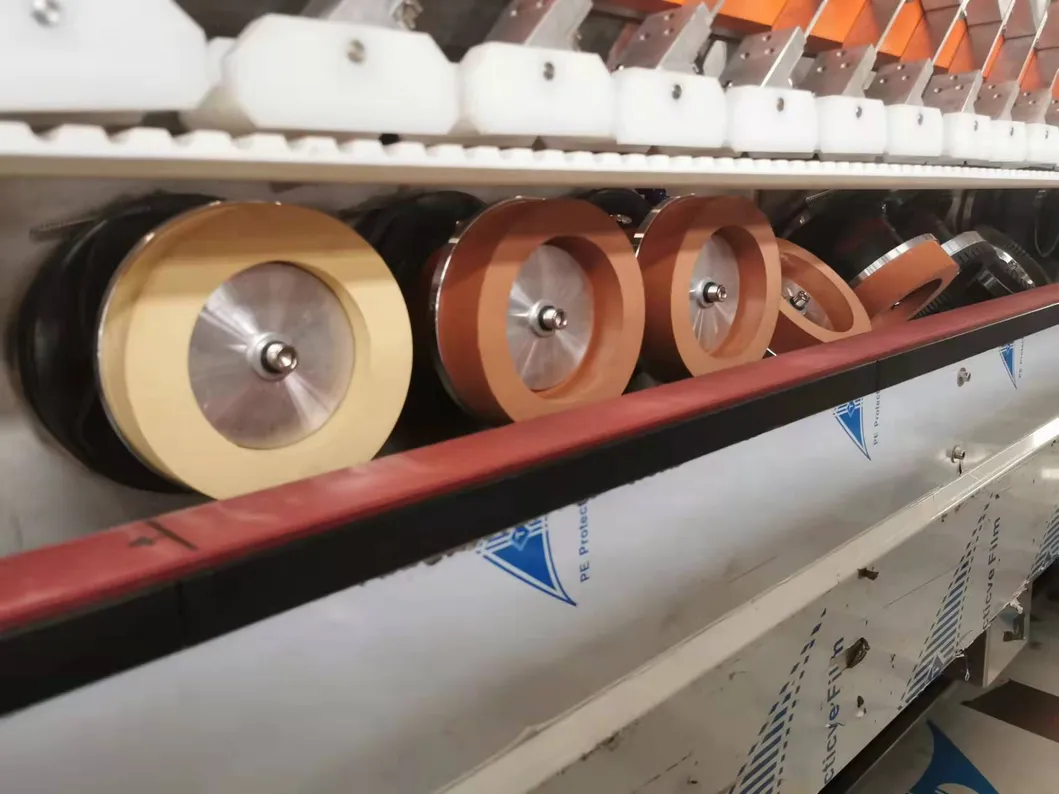

Machine Side View

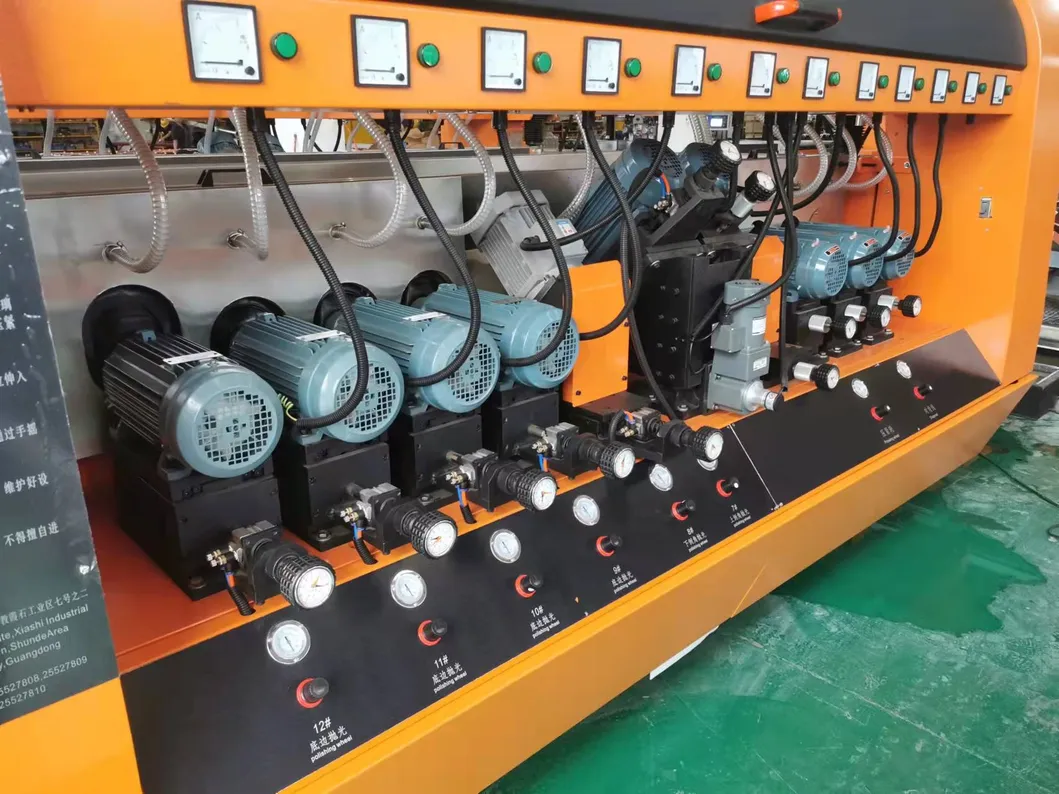

Internal Structure

Our Advantages

About Service

  • Quick response within 12 hours via email.
  • Efficient delivery within 15 days.
  • 24/7 dedicated after-sales service.
  • Over 12 years of industry experience.
  • Fluent English communication for seamless support.

About Guarantee

  • 18-month standard warranty.
  • Continuous technical support by email or call.
  • Complete English manuals and video tutorials.
  • 2-year quality guaranty for core components.
  • Consumable parts provided at agency price.

Only quality processes market, and improvement gets progress.

Frequently Asked Questions
Q1: What materials can the double edging machine process? A1: It is designed for various types of flat glass, including laminated glass and Low-E glass, making it ideal for mass production.
Q2: What is the maximum thickness of glass the machine can handle? A2: The machine can process glass with a thickness ranging from 3mm to 25mm.
Q3: How accurate is the edging process? A3: The production line ensures high precision with a parallel difference of ≤0.2mm and a diagonal difference of ≤0.5/1000mm.
Q4: What control system does the machine use? A4: The machine utilizes a high-performance PLC controlling system combined with a user-friendly human-computer interface.
Q5: What is the warranty period for this equipment? A5: We provide an 18-month guarantee for the machine and a 2-year quality guaranty for specific non-consumable parts.
Q6: Is technical support available after purchase? A6: Yes, we offer 24-hour online technical support and provide comprehensive English manuals and video tutorials for operation and maintenance.
