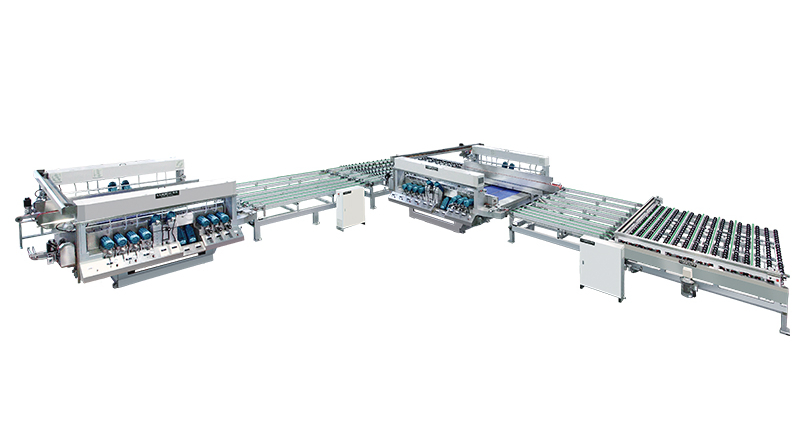

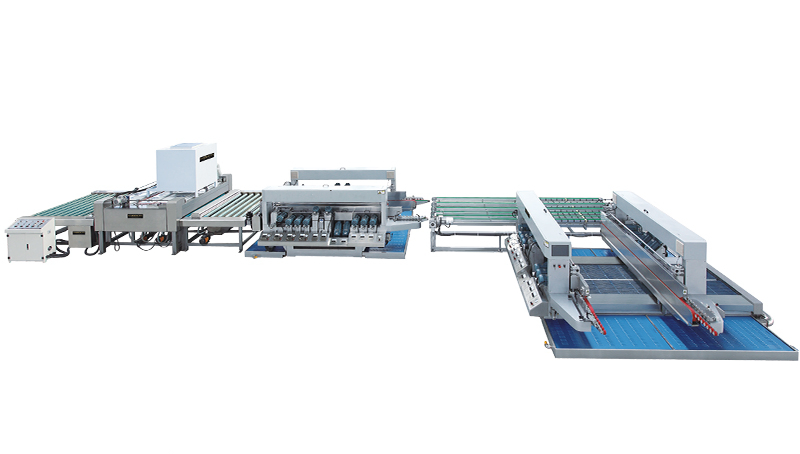

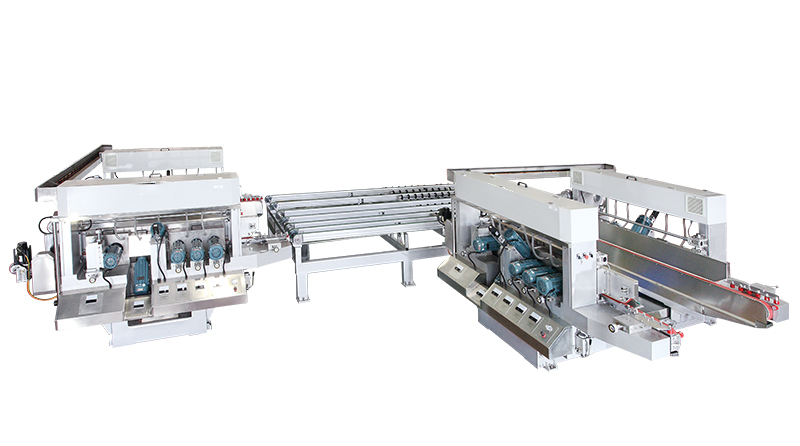

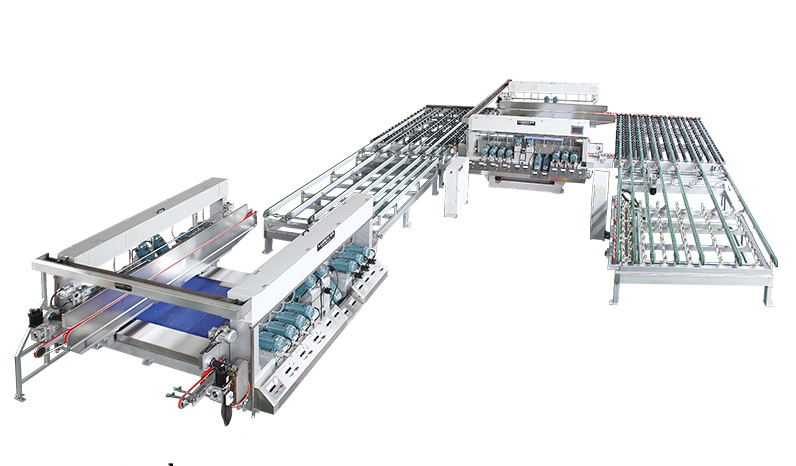

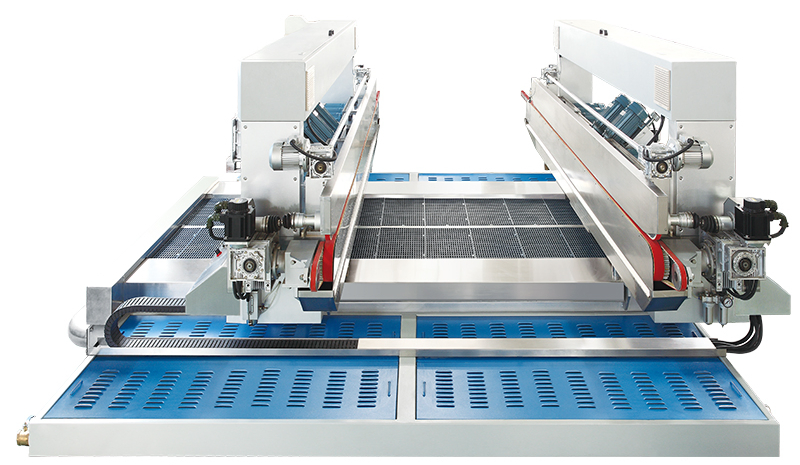

Fge-De 12 Motors High Speed PLC Control Intelligent Glass Double Edger Building Mirror Glass 2 Sides Edging Machine

1 / 5

Fge-De 12 Motors High Speed PLC Control Intelligent Glass Double Edger Building Mirror Glass 2 Sides Edging Machine

Customization:	Available
Certification:	CE
Processing Speed:	25-35m/Min

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

Fge-de

Processing Thickness

4-10mm

Warranty

12 Months

Delivery Date

15-30days

Type

Glass Edging Machine

Structure

Horizontal

Control System

PLC

Grinding Head Number

3 Spindles

Origin

China

Production Capacity

20set /Month

💎

FGE-HF2000 Glass Roller Seaming Machine

Professional High-Speed Processing: This machine is specifically designed for high-speed processing of hollow glass, architectural glass, doors, windows glass, white glass, and low-E glass.

Surface Protection: Uses rubber rob wheels to press and transmit glass, effectively avoiding scratches on film-coated or Low-E glass.
Intelligent Control: Features an automatic interface with PLC control and a fast-response servo system for precision glass transmission.
Ultra-High Speed: Achieving shuttle angle processing speeds of up to 35m/min.
Automatic Identification: Automatically detects glass size and positioning for continuous processing of different specifications without manual adjustment.

The system includes self-diagnostic functions to monitor job information and can be seamlessly integrated with horizontal drilling machines, washing machines, and steel furnaces to form a complete automatic glass processing production line.

📊

Technical Parameters

Machine Dimension	6570 * 4443 * 1800mm
Grinding Speed	25-35m/min
Max Processing Sizes	2000 * 3600mm
Min Processing Sizes	300 * 650mm
Glass Thickness Range	4-12mm
Chamfer Width	45 Degree
Worktable Height	900mm
Total Spindles	3 PCS
Total Power	14.5 KW
Total Weight	5 Tons

⚡

Working Capacity

Type	Chamfer Width (mm)	Grinding Speed (m/min)	1000*1000 size (pcs/hr)	2000*2000 size (pcs/hr)	1550*520 size (pcs/hr)
Single Side Arris	0-2	25-35	180-200	160-180	170-190

🔍

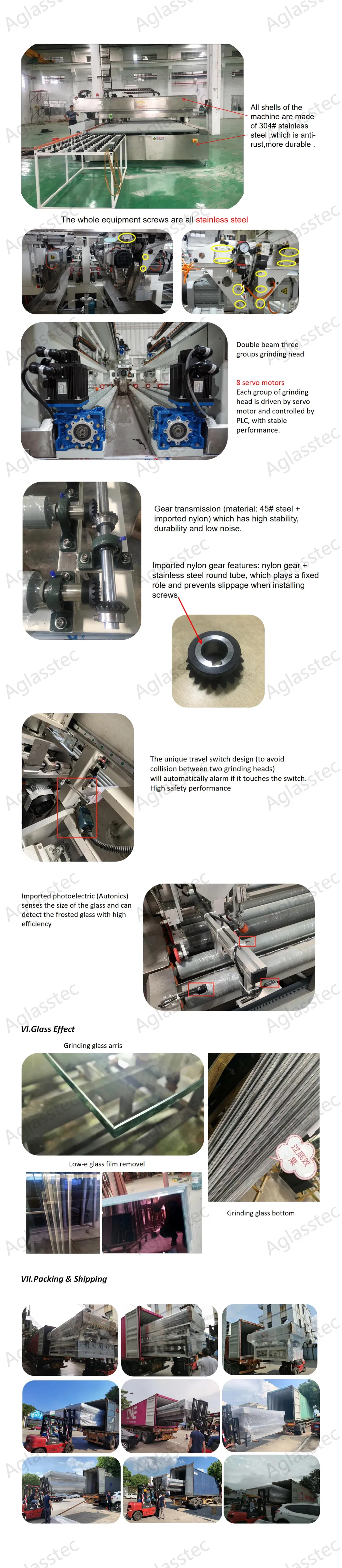

Machine Details

Frequently Asked Questions

What is the maximum glass size this machine can process?

The FGE-HF2000 can handle glass sizes up to 2000mm x 3600mm.

Is this machine compatible with Low-E glass?

Yes, the machine uses specialized rubber stick pressure rollers specifically to avoid scratches and effectively process Low-E glass without damaging the film.

What is the processing speed of the edging machine?

The machine offers a high-speed grinding capability of 25-35 meters per minute.

Does the machine require manual adjustment for different glass sizes?

No, the intelligent PLC control system and servo system provide automatic identification of glass size, allowing for continuous processing without manual intervention.

What kind of control system does the machine use?

It utilizes an advanced PLC control system with an intuitive automatic interface for intelligent and fast response.

What is the warranty period for the FGE-HF2000?

The machine comes with a standard 12-month warranty from the date of delivery.
