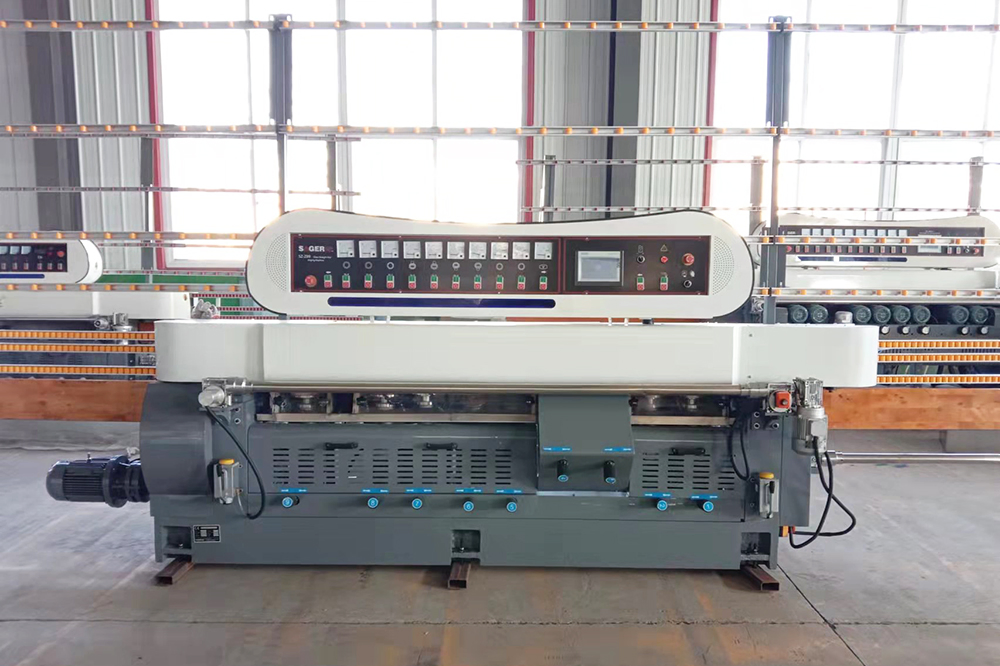

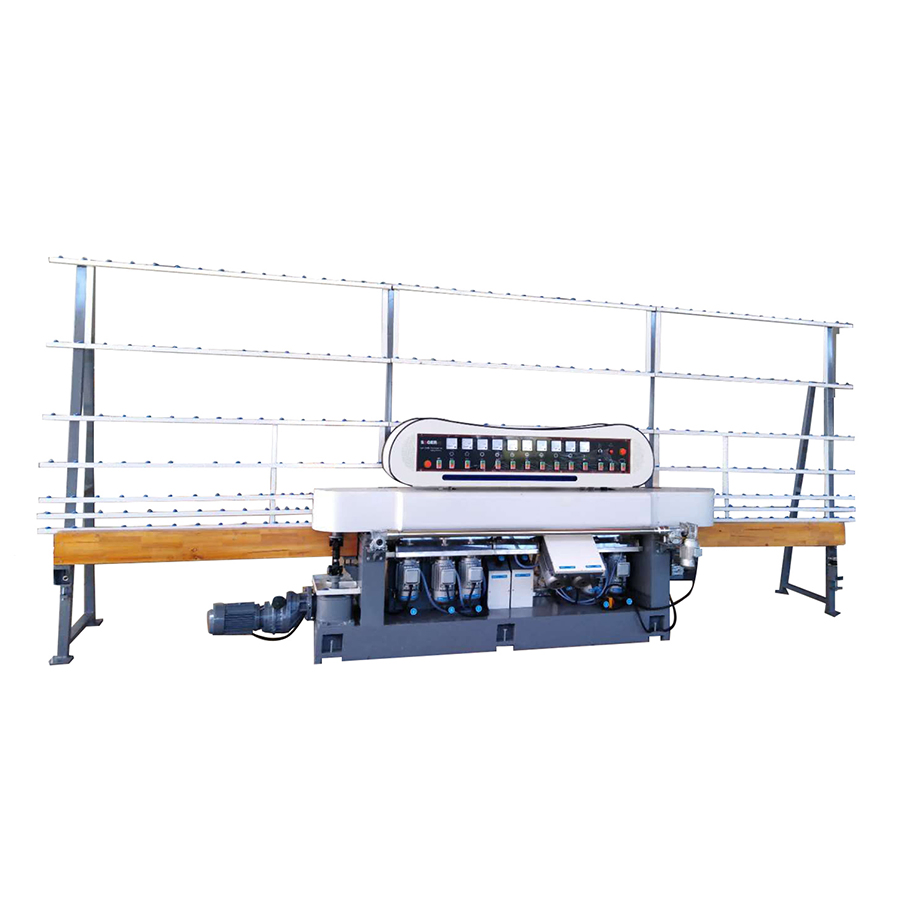

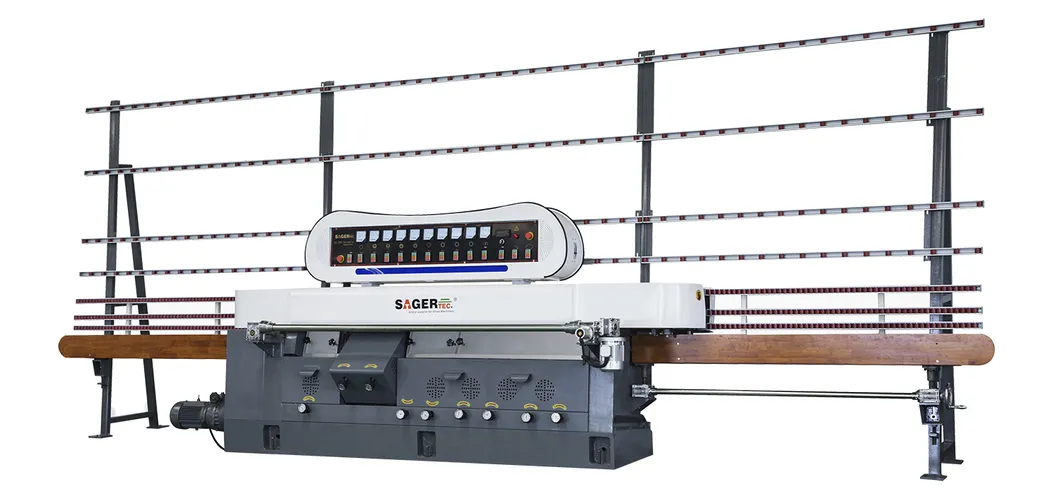

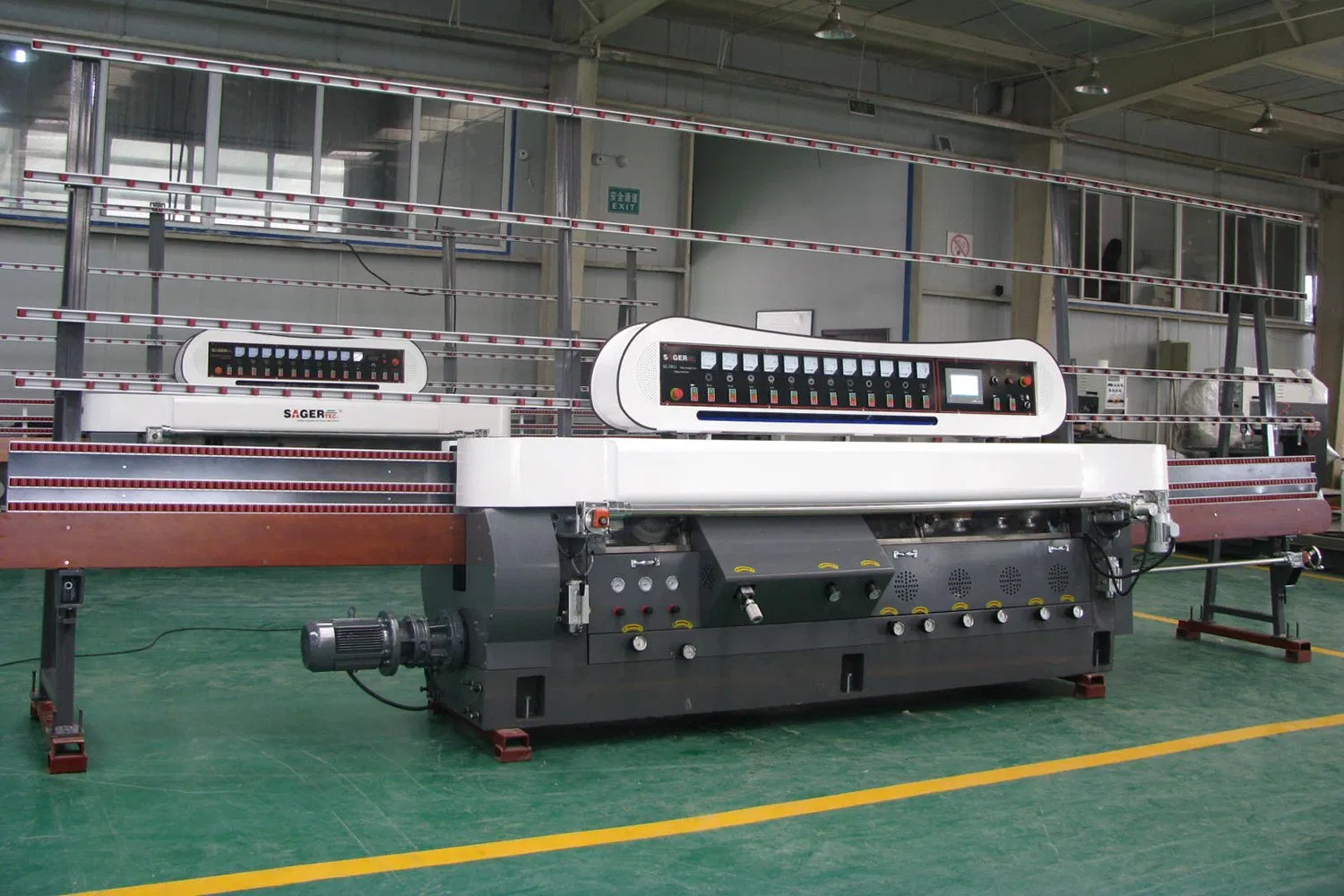

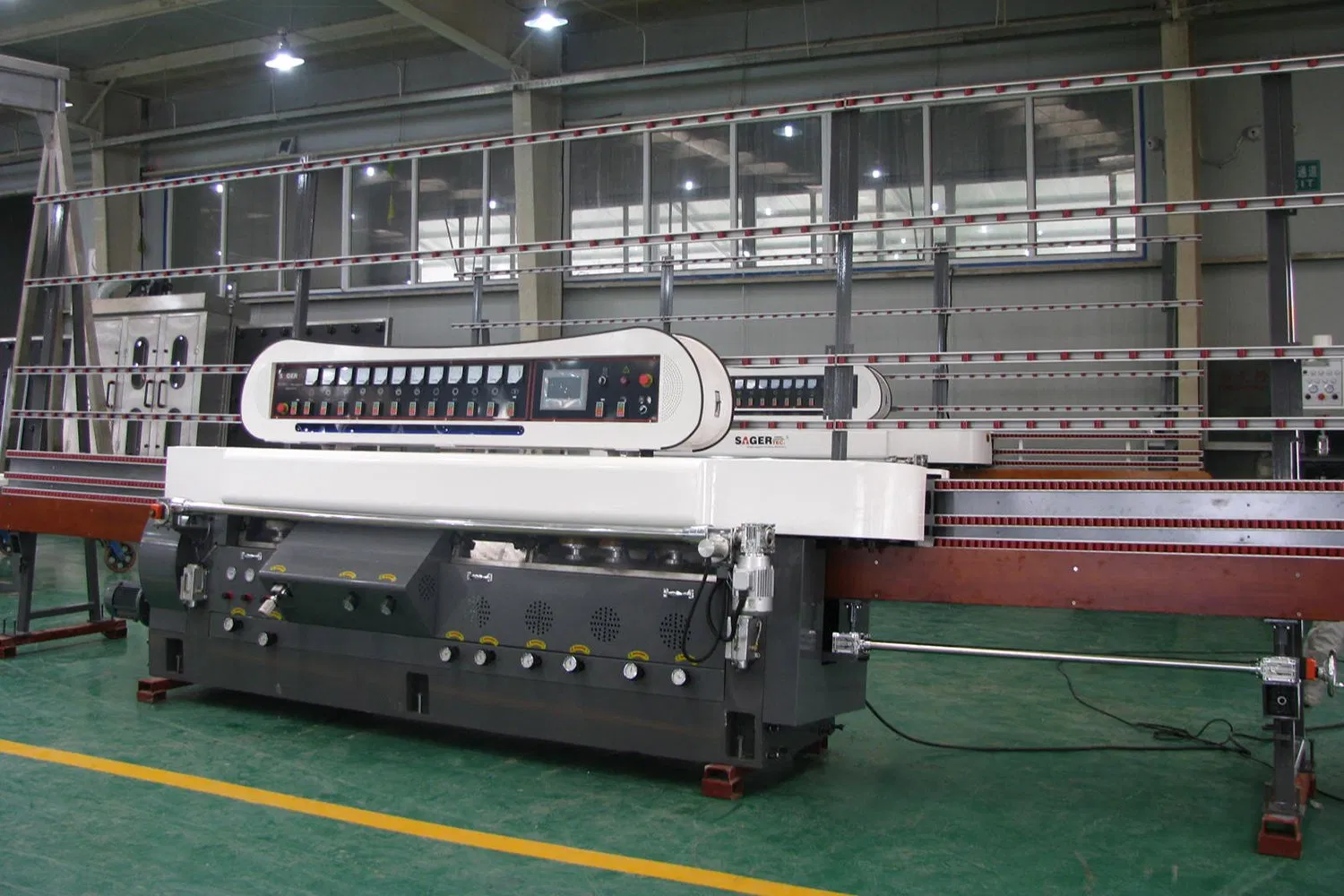

High speed Glass Straight-line flat bevel Multilevel Processing Edger Edging Polishing grinding machine

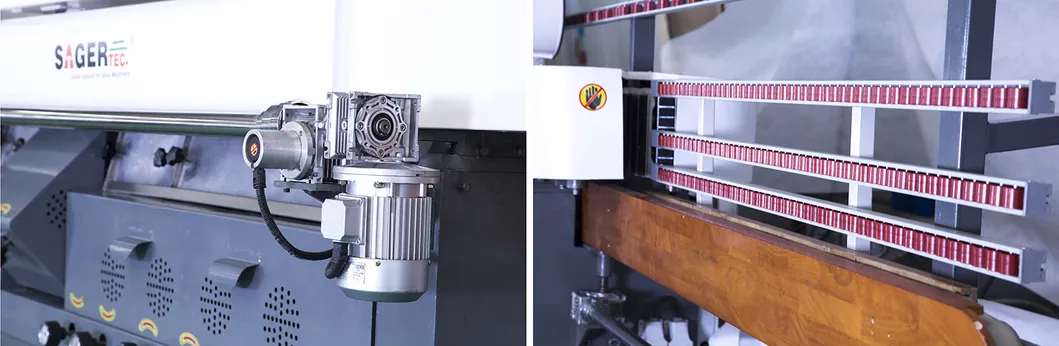

This equipment is designed for processing straight-line edges and 45-degree arrissing of glass sheets with various sizes and thicknesses. Equipped with precision spindles, the base is constructed from high-quality cast iron. Production speeds are adjustable via a step-less motor, while the input and output conveyors utilize timing belts to enhance transmission precision. It offers ease of operation and consistent high-level performance.

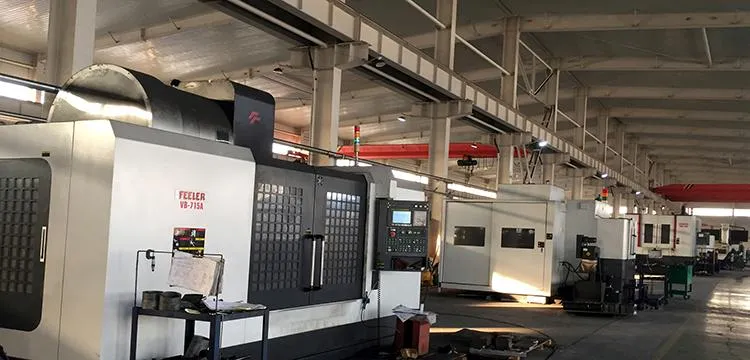

The machine is integrated with world-renowned reliable components, such as Siemens, ensuring the highest quality standards. All metal sheets are processed by laser cutting, and the main body is made of high-quality iron cast, processed by CNC gantry milling.
| Min. Glass Size | 80*80mm |
| Glass Thickness | 3-28mm |
| Processing Speed | 0.5-4.5 m/min |
| Installed Power | 21KW |
| No. of Spindles | 9 pcs |
| Dimension | 8500*1400*2500mm |
| Weight | 3500kg |
Established in 2008, we are a professional manufacturer and exporter concerned with the design, development, and production of glass processing machinery. Our main products include PVB glass laminating machines, EVA glass lamination furnaces, glass edge polishing machines, glass washing machines, and drilling machines.
With a professional R&D team and an experienced managing and after-sales service team, our global sales network reaches approximately 60 countries, including the USA, Germany, France, Italy, UK, Australia, Brazil, South Korea, Thailand, and the UAE.
