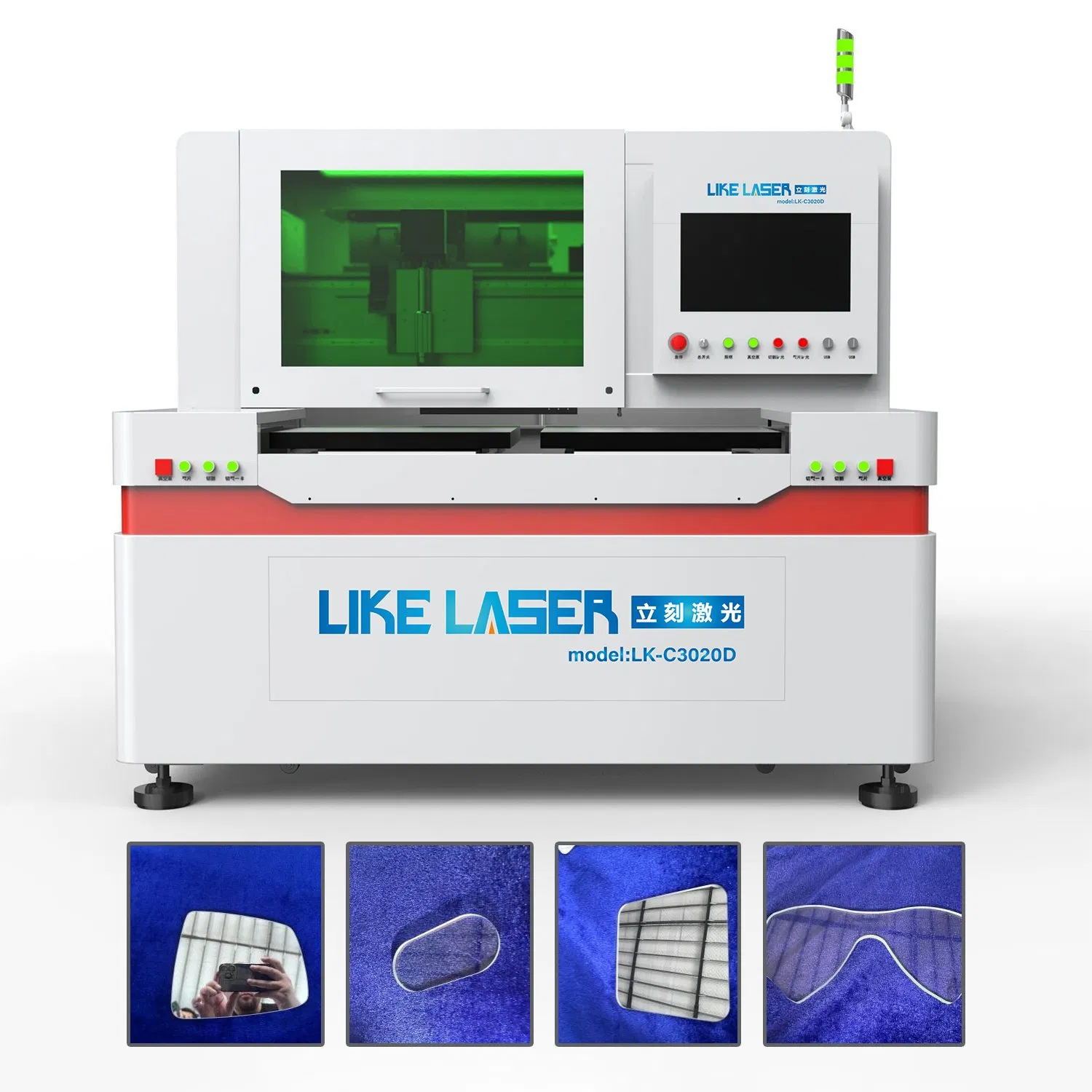

Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
1 / 5
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine
Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine

Likelaser CNC High Speed Mobile Tempered Gem Glass Sapphire Pico-Second Laser Cutting Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
LK-GC6070D
Application
Home Appliance, Petroleum Machinery, Agriculture, Aerospace, Automotive, Woodwork
Cooling System
Water Cooling
Laser Technology
PS/CO2
Applicable Material
Glass
Structure Type
Gantry Type
Laser Power
120W
Laser Lifetime
100,000h
Max Glass Thickness
20mm
Minimum Aperture
0.3mm
Engraving Speed
<8000mm/S
Certificate
CE

Product Description

The Picosecond Laser Glass Cutting Machine is a high-efficiency, automatic glass cutting solution. It integrates picosecond laser sources and RF CO2 laser technology to provide precision cutting for various industries.

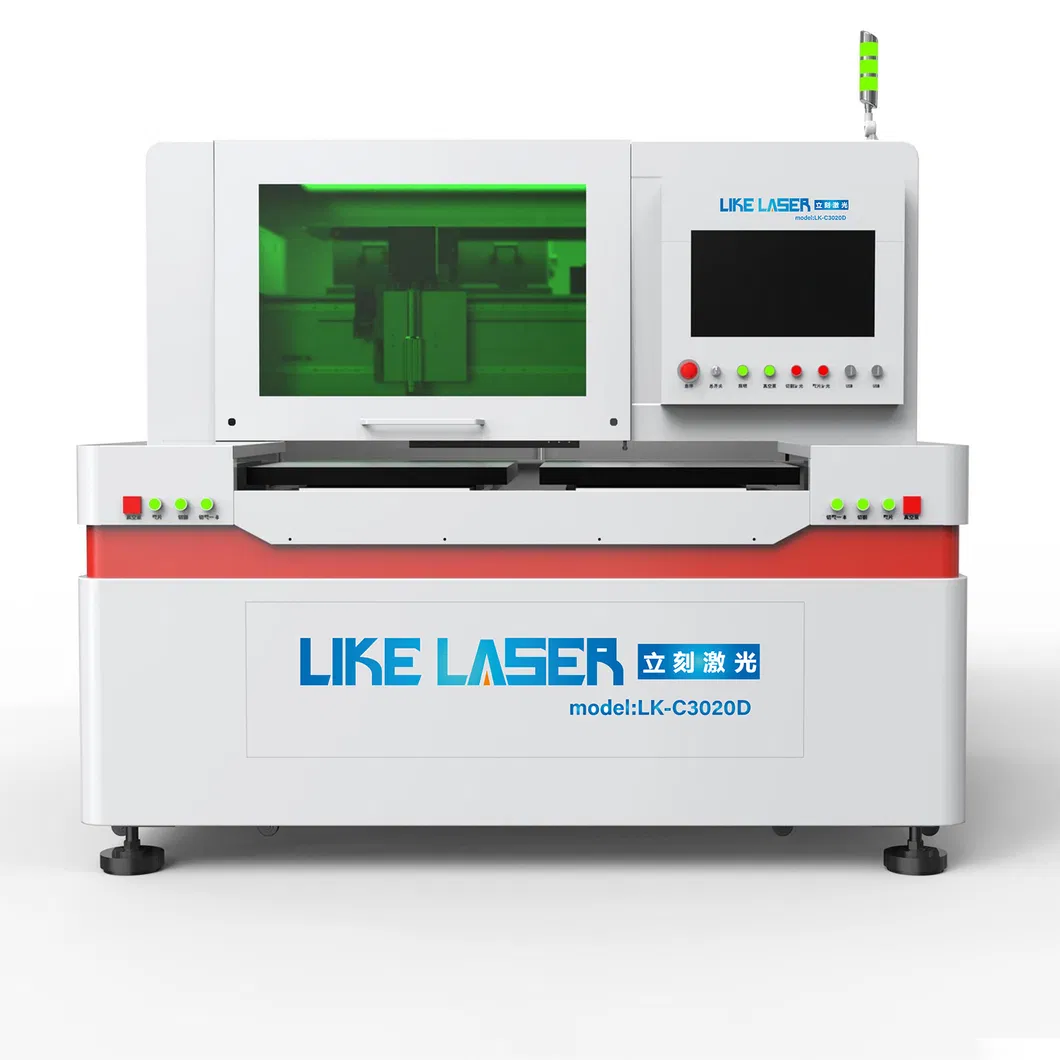

Laser Cutting Machine

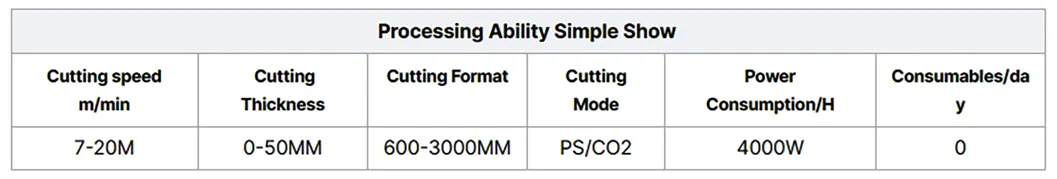

Laser Machine Details

🚀 Key Advantages

Ultra-fast glass laser cutting machine featuring a self-developed AI control system, high-end custom picosecond light source, and double drive linear motor. With a marble work surface, the system achieves accuracy up to ±2 microns.

  • Non-contact cutting: No consumables or pollution.
  • High efficiency: Cutting speed up to 15m/min.
  • Superior Quality: No edge collapse, no burrs, and low power consumption.
  • AI Control: Simplified operation with automatic processing.

Industrial Applications

  • Mobile Electronics: Phone glass cover plates, sapphire covers, and camera lenses.
  • Automotive: Rear view mirrors and curved glass cutting.
  • Optical Components: Filters, mirrors, and sapphire light strips (LED).
  • LCD Industry: Shaped LCD screen cutting and inverted R/U/C Angle processing.
  • Specialty Glass: High borosilicate, quartz glass, and bathroom mirrors.
Application 1

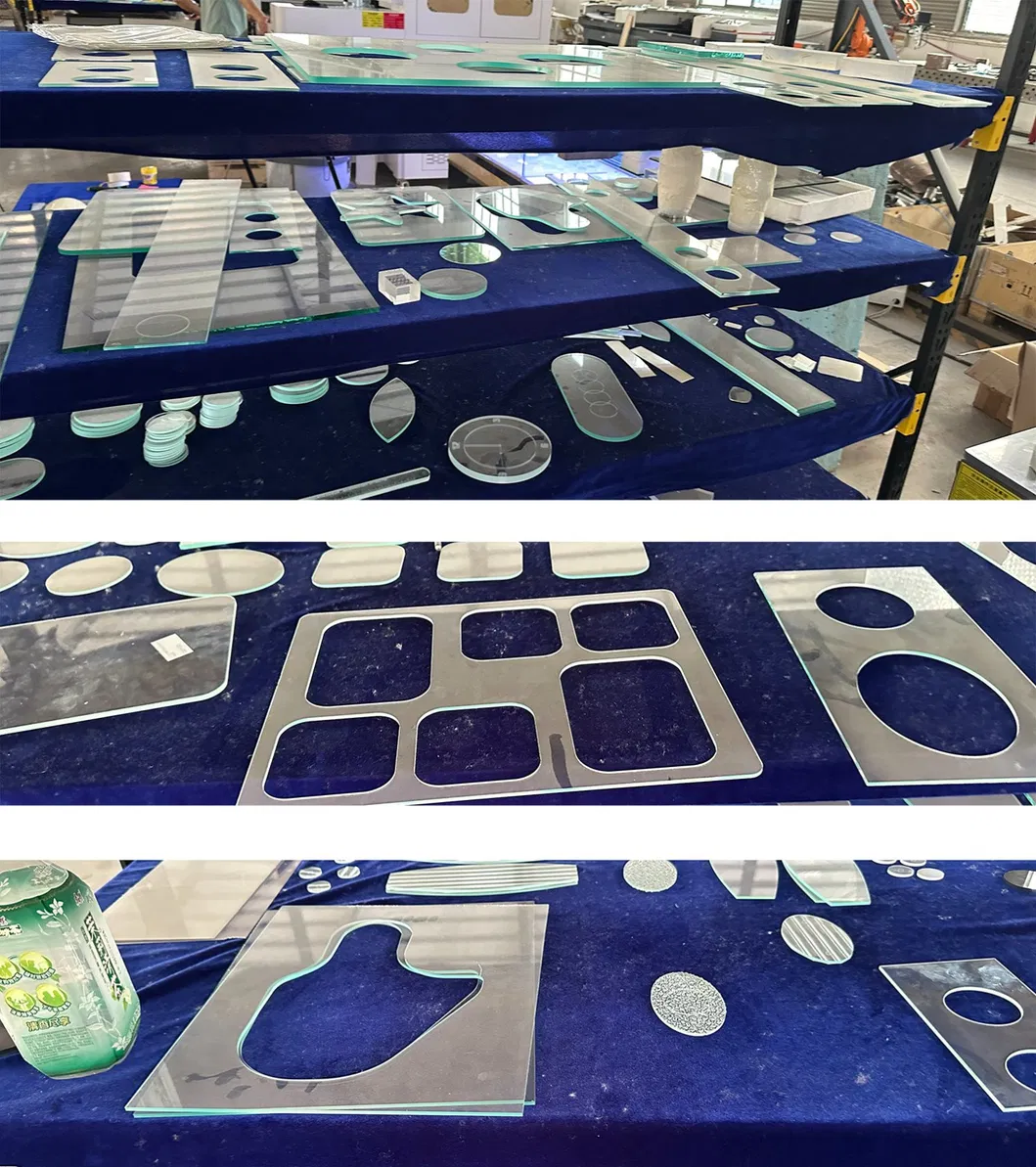

Application 2

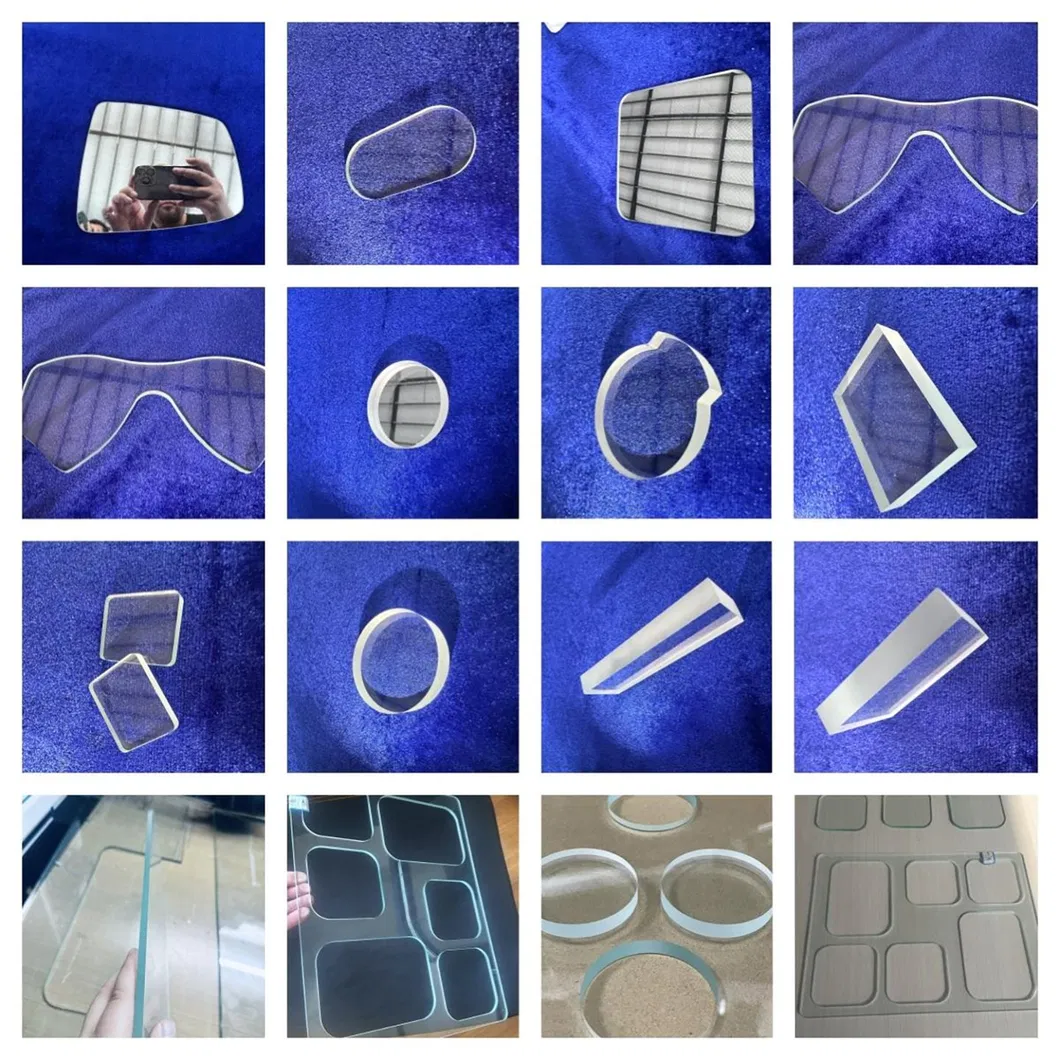

Application 3

Technical Parameters

Model Standard Size Workbench
LK-GC7060D700*600mm2
LK-GC8060D800*600mm2
LK-GC1380A1300*800mm1
LK-GC2010D2000*1000mm1
LK-GC3020A3000*2000mm1
Light Source Specifications Details
Laser TypePicosecond PulseWavelength: 1064nm, Beam Quality: M2<1.3
Pulse Length<10PSFrequency: 1Hz-1000kHz
Segmented SourceCO2Precision focusing <2um
CoolingWater CoolingHigh stability thermal management
Visual SystemCCD Camera5 million CCD with adjustable brightness

Packaging & Shipping

Packaging
Shipping

Quality Certificates

CE ISO Certificates

Frequently Asked Questions

Q1: What materials can this machine process?
The machine is designed for various types of glass including reinforced (tempered) and non-reinforced glass, sapphire glass, LCD glass, high borosilicate, and quartz glass.
Q2: What is the cutting accuracy of the laser system?
By utilizing a double-drive linear motor and AI control system, the machine achieves an incredible processing accuracy of up to ±2 microns.
Q3: How fast can the machine cut glass?
The laser glass cutting machine can reach speeds of up to 15 meters per minute, which is significantly higher than traditional CNC or water-jet methods.
Q4: Does the laser cutting process cause edge collapse?
No, one of the primary advantages of picosecond laser technology is that it provides a clean, non-contact cut with no edge collapse, burrs, or mechanical stress.
Q5: Is it suitable for cutting curved glass?
Yes, the machine supports cutting surface screens with single-sided or double-sided curves (optional configuration) for automotive and mobile device applications.
Q6: What cooling method is required for operation?
The system utilizes an industrial-grade water cooling method to ensure the laser source remains at a stable temperature during high-speed production.
