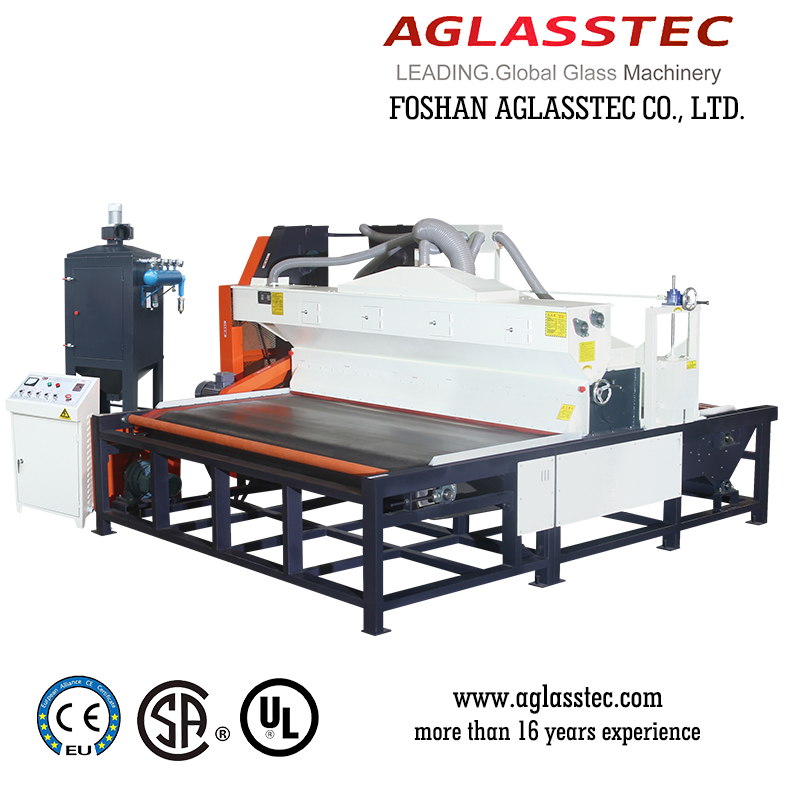

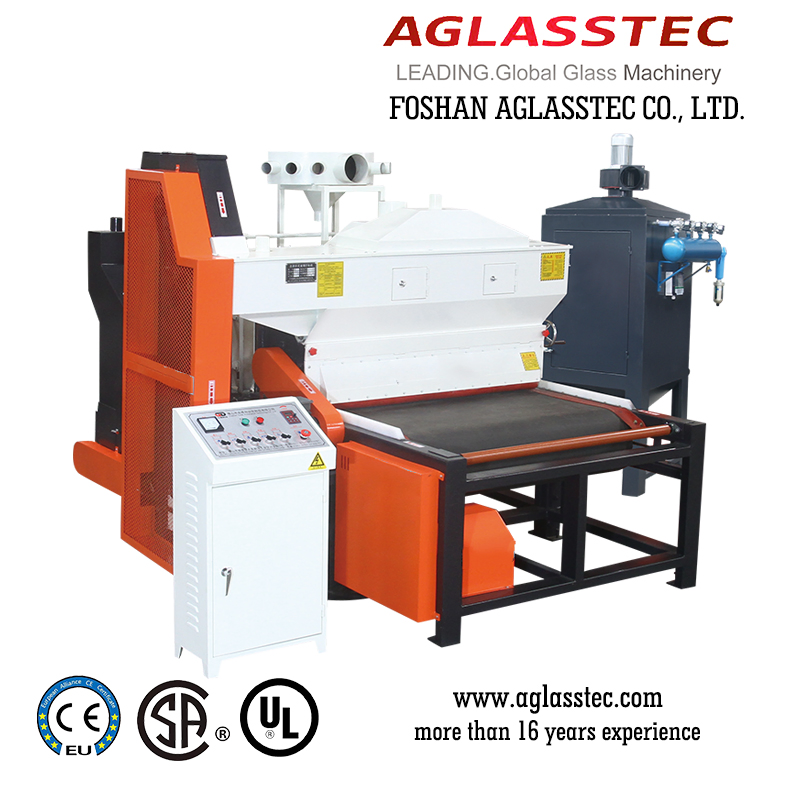

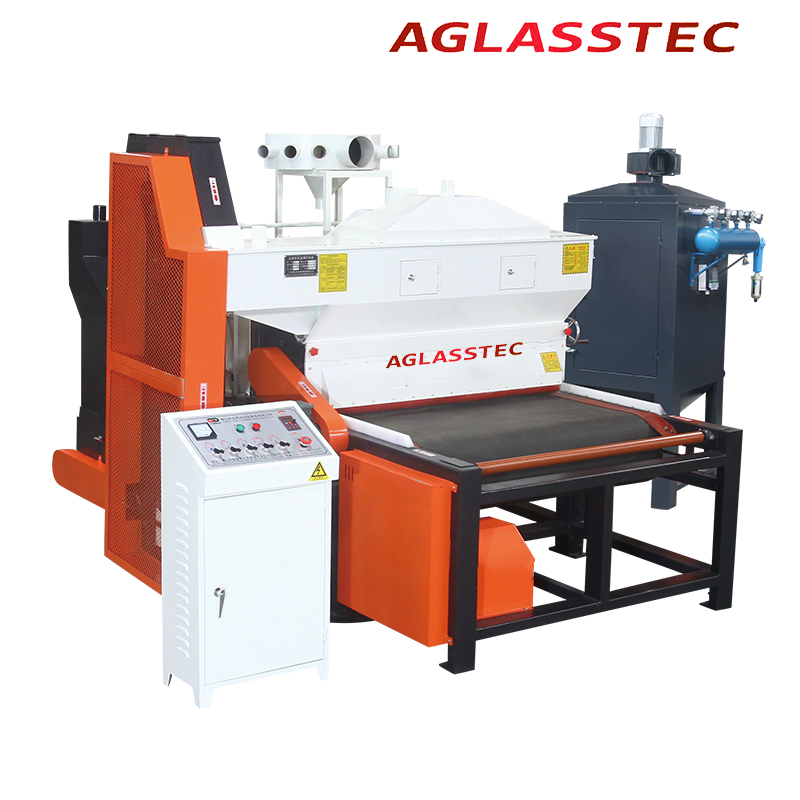

High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
1 / 5
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function
High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

High Speed Horizontal Glass Sandblasting/Frosting Machine with Electric Pulse Dust Remover Function

Customization: Available
Control System: Button Switch
Min.Glass Size: 200*200mm
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.:FGS-HS2000
Blades:8PCS Frosting/Sandblasting
Production Time:30 Days or Negotiable
Voltage:220V-600V (Customizable)
Application:Large Scale Sand Blasted Glass
Certification:CE, CCC
Structure:Horizontal
Max Glass Width:1900mm
Capacity:900 Set/Year
HS Code:8424300000
💡

Product Features

The electric box and machine body are separate. This independent electric box effectively protects electrical components and is convenient to place. The design allows for more working faces and convenient operation. The machine features a fingerprint-free aluminum panel finish, which is both beautiful and generous. Internal electrical components follow a reasonable layout for convenient installation and maintenance. Reliable Delixi electrical components ensure a long service life and easy conversion mediation for sand conveying speed.

  • Three faces on the upper side are convenient for handling work pieces.
  • Industry-leading working face length for easier operation.
  • Solid 40Cr main shaft (70mm to 110mm diameter) processed with heat treatment hardening and dynamic balancing.
  • Professional screw conveyor with 3.5mm wear-resistant materials (service life 5-8 years).
  • High-efficiency vacuum cleaner system (800*800*2200).
  • Cutter wheel with 45# steel and tension sleeve fixing for overall dynamic calm.
🛠️

System Configuration

Play Sand System:TWB bearings, 40Cr spindle, 8+5m acrylate
Sanding System:3MM plate body, casting pulley, durable belt brush
Lifting System:Double lifting sand tower, 3M full welded bucket
Main Motor:Siemens
Electrical Elements:Delixi Components
Blower:High-class first-tier brand
📊

Main Parameters

Item Description Unit Parameter (FGS-HS2000)
Thickness to be processedmm2-21
Max width of glassmm1900
Side column spacingmm2000
Loading speed frequencymm/min200-1200
Sand rotating bladespc8
Height of working platformmm800
Power of main motorKW7.1
Overall dimension (L×W×H)mm3600*2900*2000
Machine weightkg2400
Max processing speedM²/h180 (Theoretical) / 72 (Max glass size)
📷

Visual Display

Glass Sandblasting Machine View 1
Glass Sandblasting Machine View 2

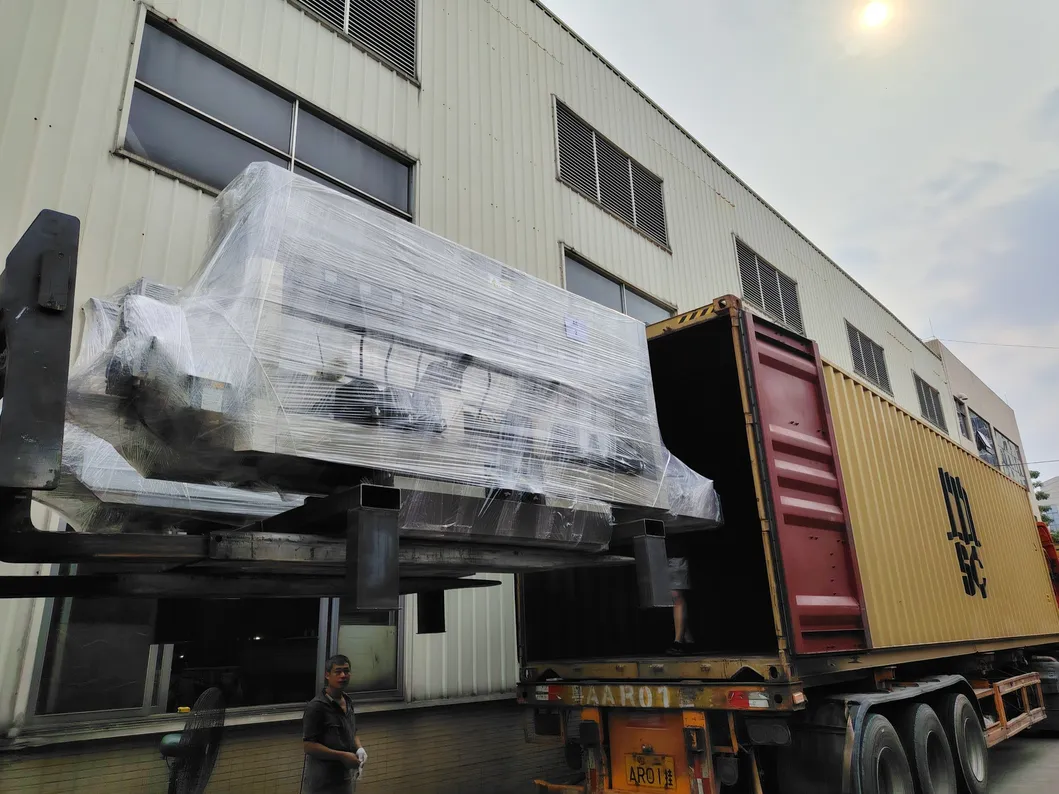

Glass Sandblasting Machine View 3

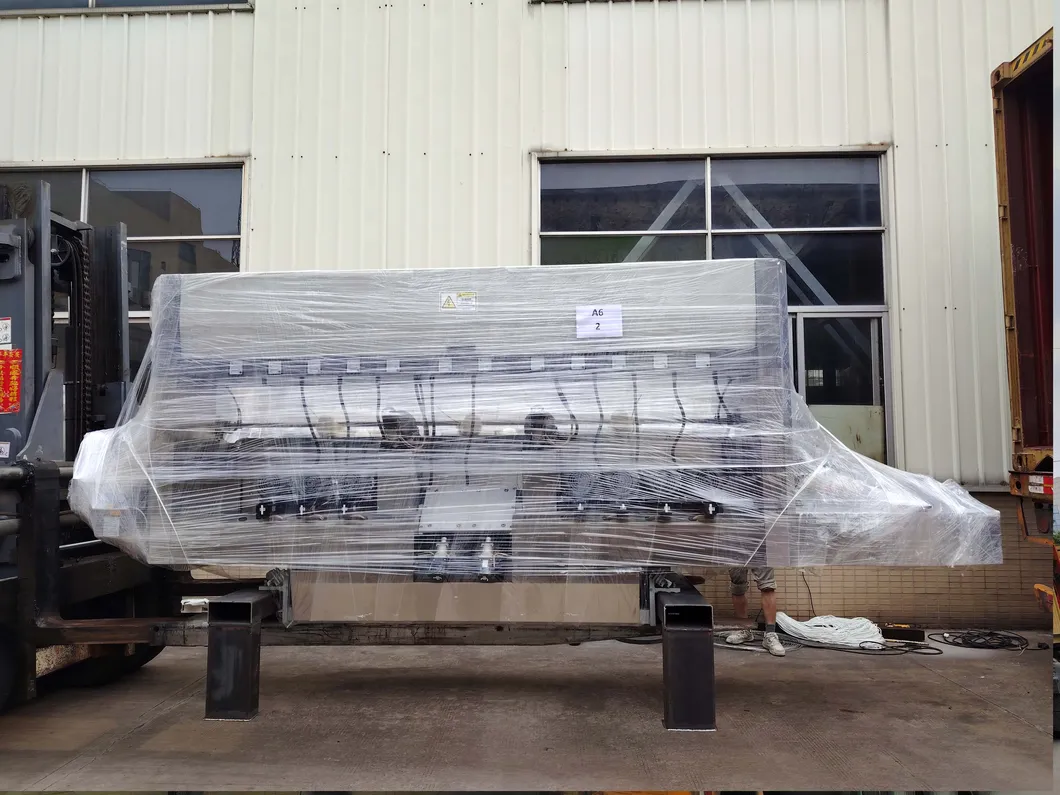

Glass Sandblasting Machine View 4
❓

Frequently Asked Questions

Q: What is the maximum glass width this machine can handle? A: The FGS-HS2000 model can process glass with a maximum width of 1900mm.
Q: Which brands are used for the main electrical components? A: The machine is equipped with world-class components, including Siemens main motors and Delixi electrical elements.
Q: What is the expected lifespan of the wear-resistant parts? A: The screw conveyor is made from professional mine wear-resistant materials and typically lasts between 5 to 8 years.

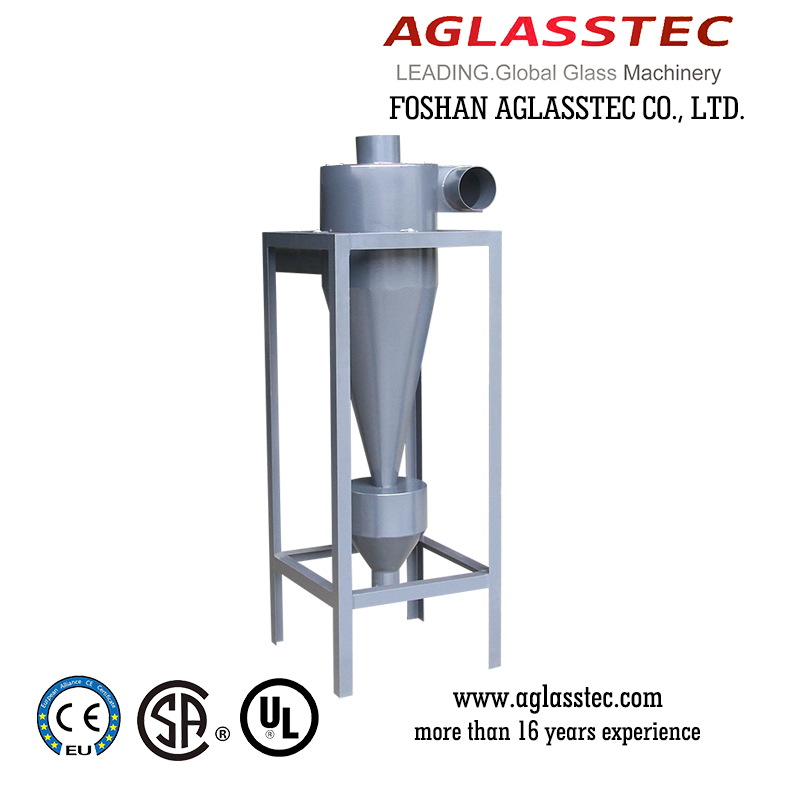

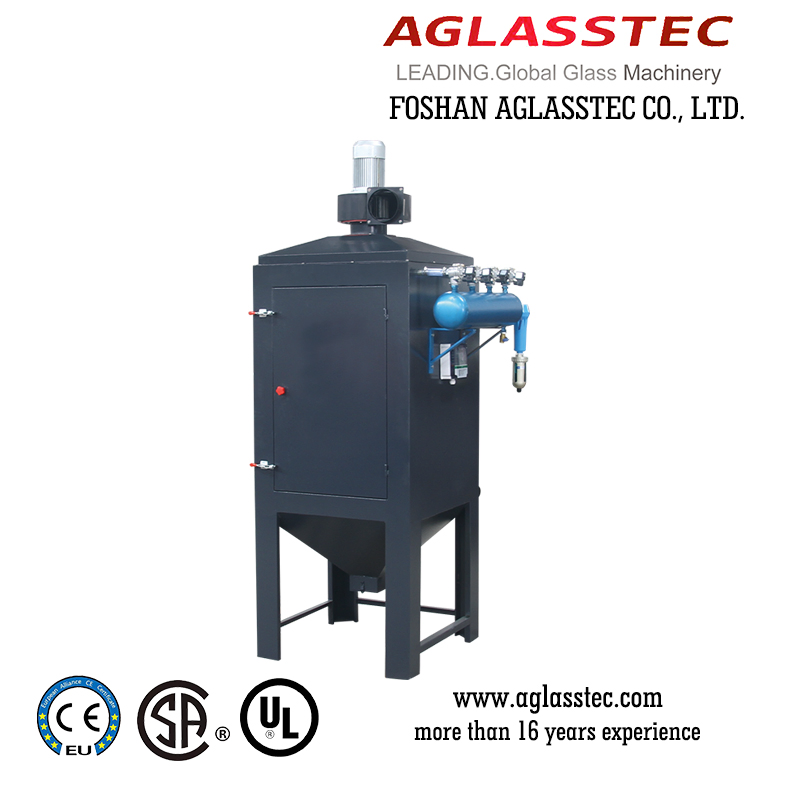

Q: Does the machine come with dust protection? A: Yes, it features a 3-layer dust-proof structure and an electric pulse dust remover function with a 800*800*2200 vacuum cleaner.
Q: Can the voltage be customized for different regions? A: Yes, the voltage can be customized to 220V, 380V, 415V, 440V, 480V, or 600V according to your specific requirements.
Q: What certifications does the sandblasting machine hold? A: This machine is fully certified with CE and CCC standards, ensuring safety and quality compliance.
