High Speed Glass Machine for 2500 Glass Four Sides Seaming Grinding Edging

Customization:	Available
Certification:	CE, ISO, FDA, UR, PCI, PDA
Warranty:	1 Year

Send Inquiry

Product Description

📊

Technical Specification

Model	AR-HF2500	Max. Glass Size	2500X3600mm
Min. Glass Size	350X650mm	Glass Thickness	2-12mm
Grinding Speed	15-35m/Min	Performance	6 PCS/Min
Power	16kw / 25kw	Structure	Horizontal
Control System	PLC with Servo Control	Inner Structure	3 Crossbeam, 4 Grinding Heads

💎

Key Advantages

⚙️

Manufacturing Excellence

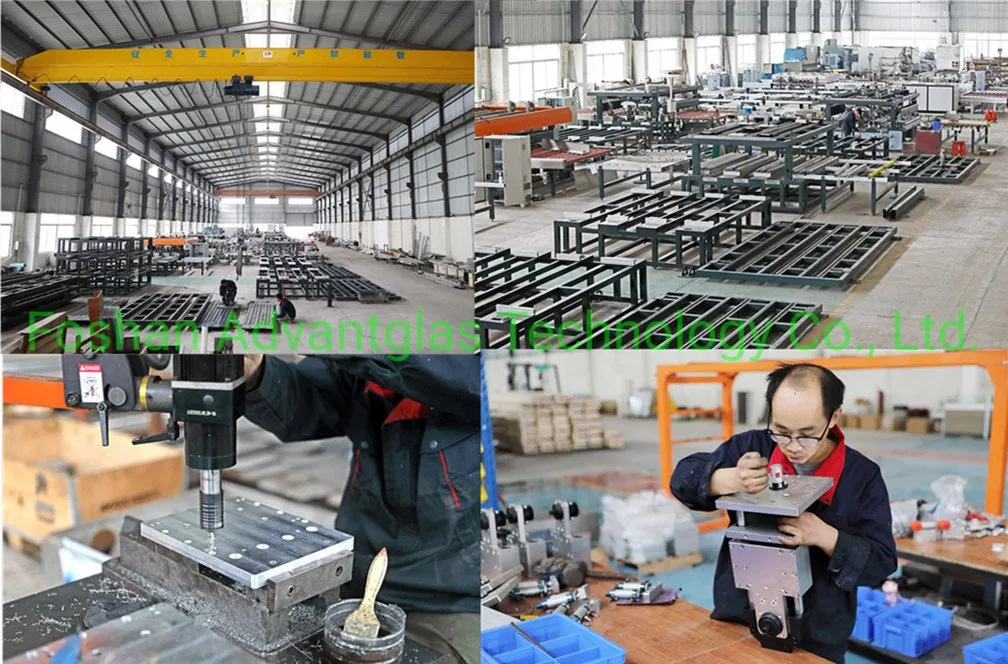

In-house machining workshop for components ensures strict quality control and reliable supply chain management.

🤖

Full Automation

Automatic width adjustment and size measurement. No manual input required, significantly reducing labor costs.

🛠️

Versatile Functions

Supports arris grinding, base face grinding, and Low-E film removal in one integrated system.

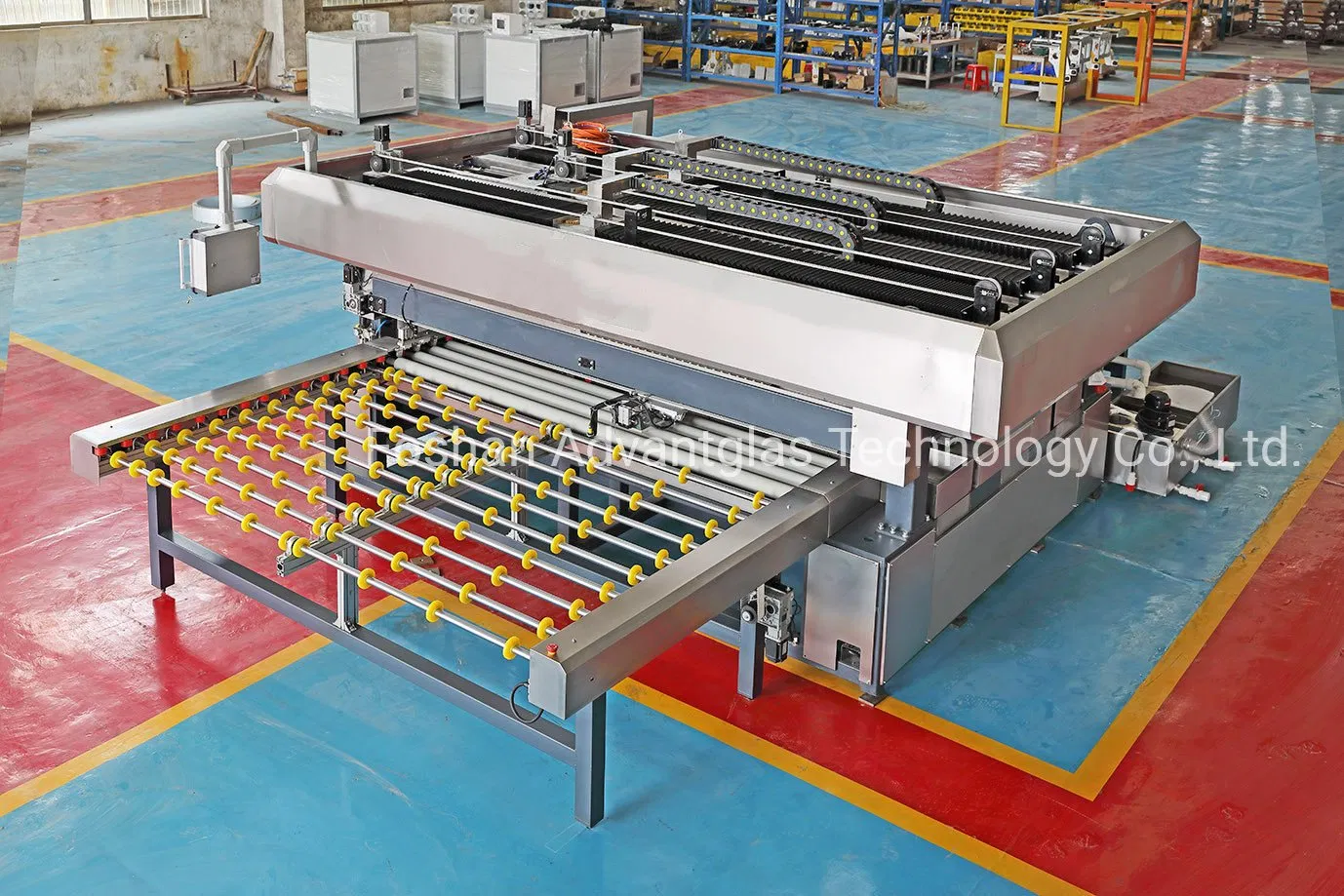

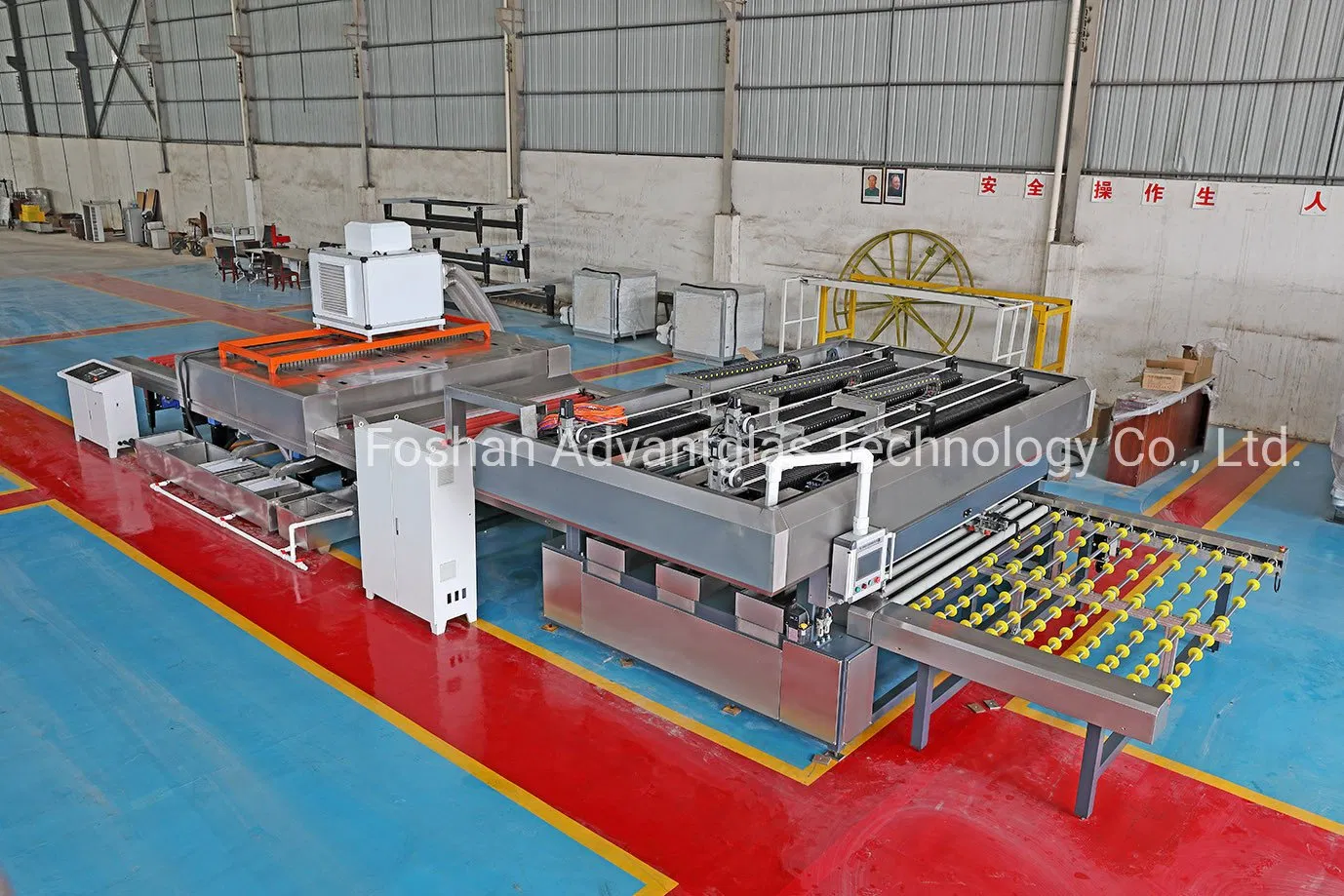

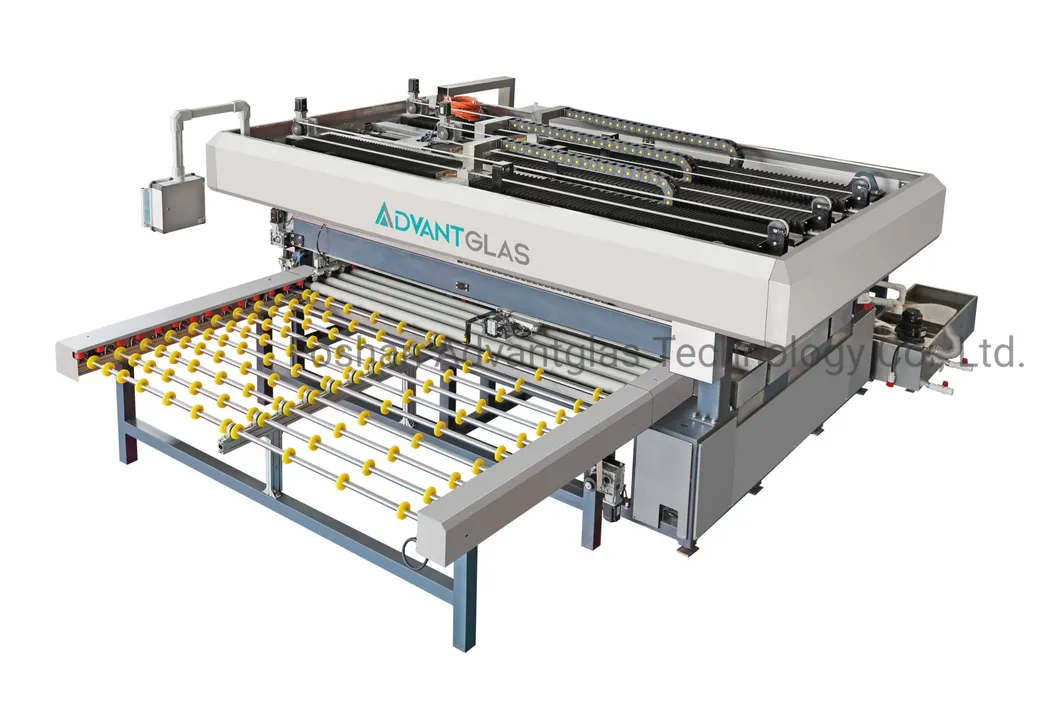

High speed glass machine for four sides seaming and edging

🔍

Advanced Features Comparison

Our Design

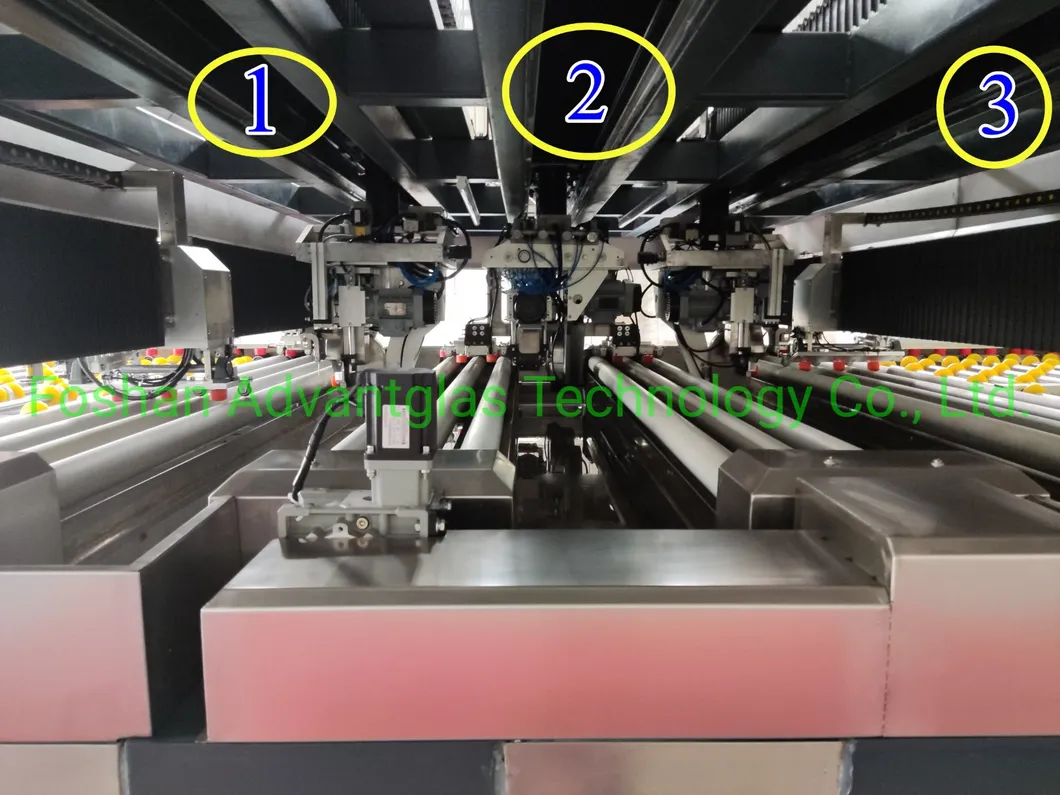

3 Crossbeams with 4 Grind-heads: Provides faster grinding speeds and higher tempering rates while reducing glass breakage.

Intelligence

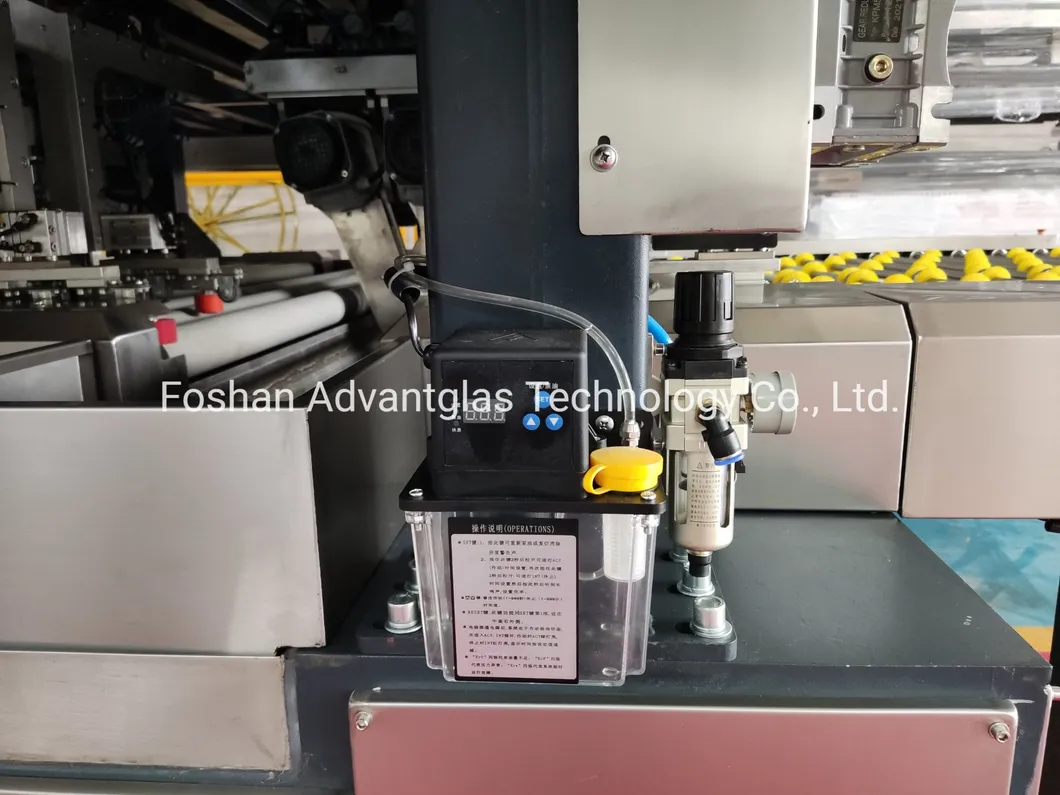

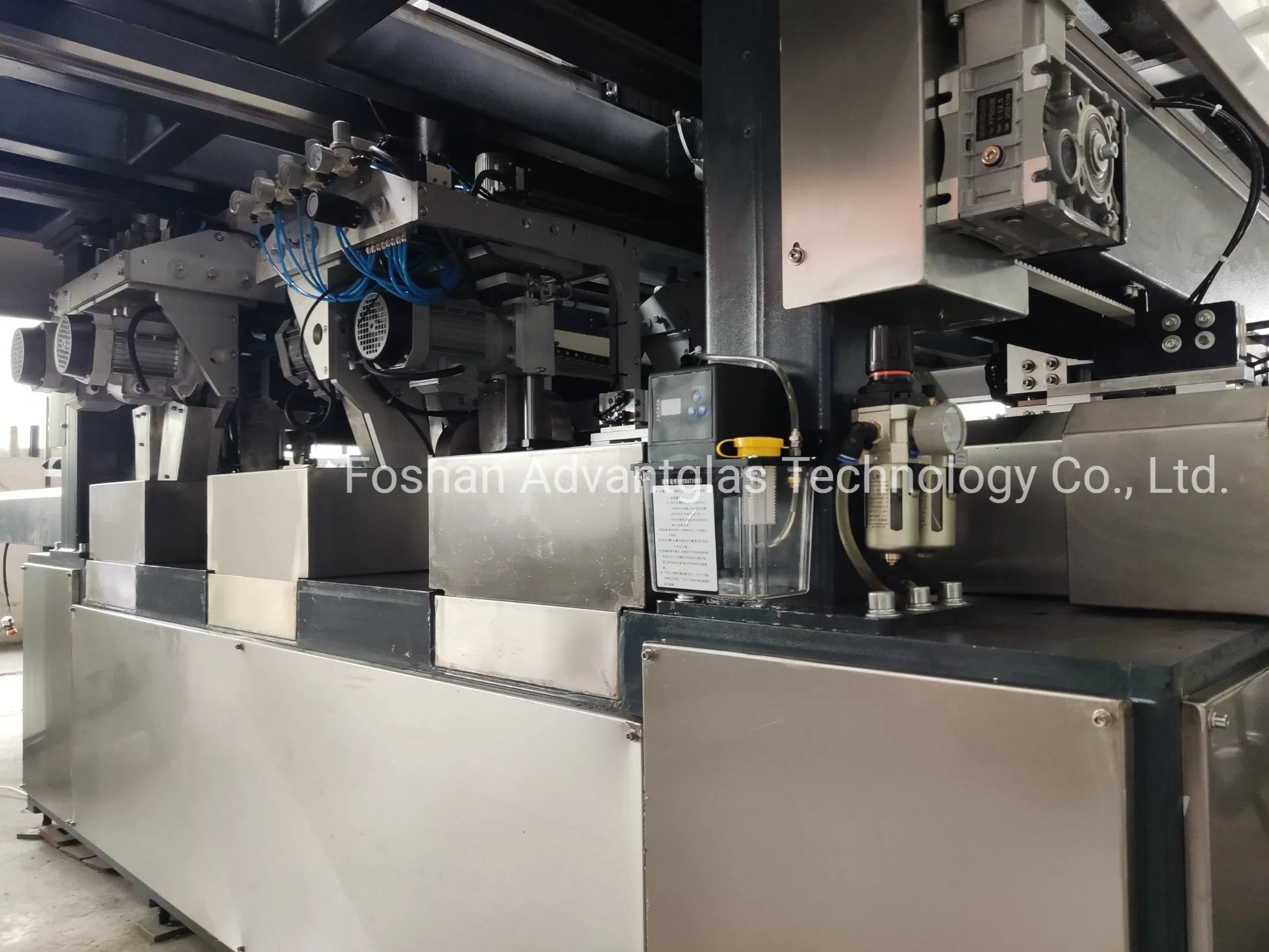

Automatic Lubrication: Includes lack-oil warning systems for convenient and maintenance-free operation.

Precision

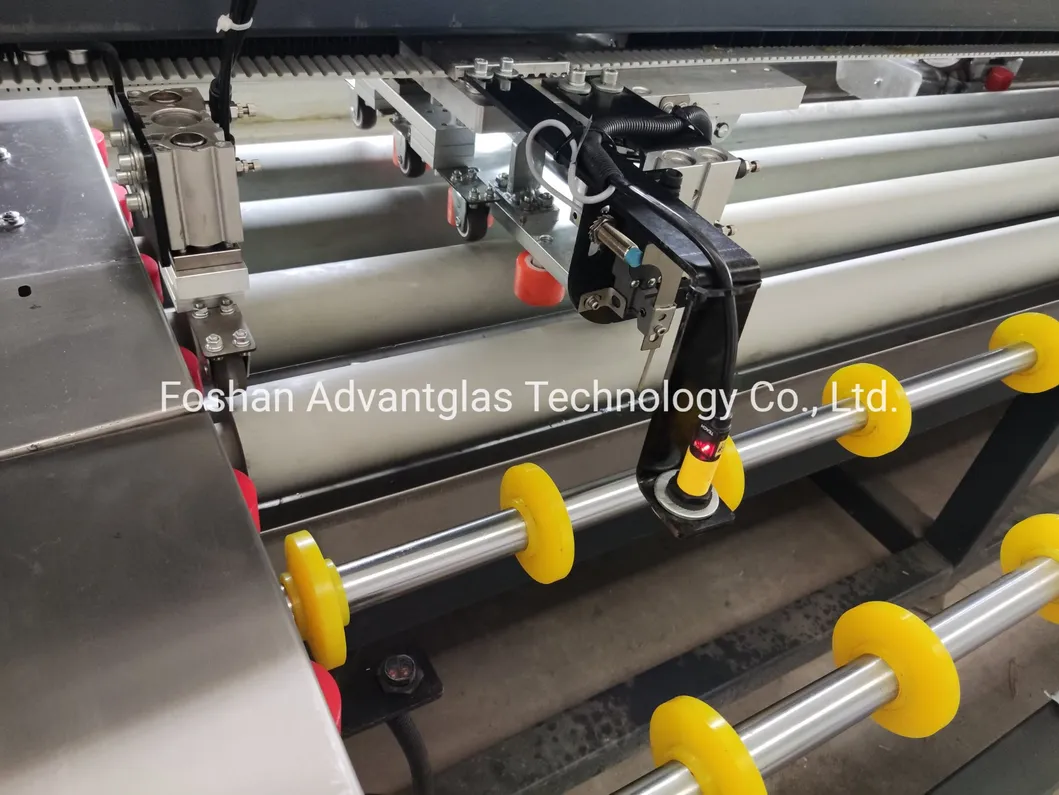

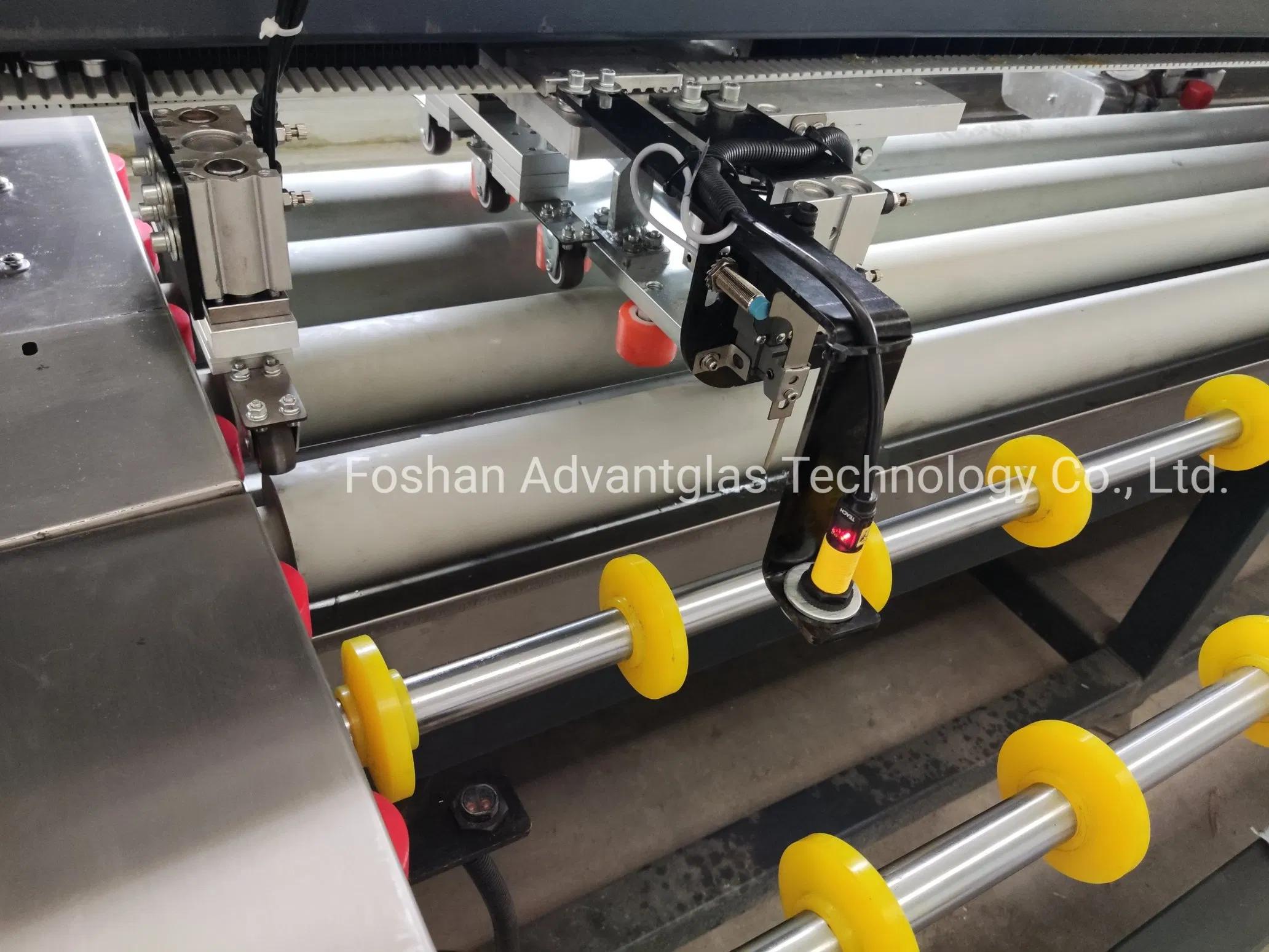

Imported Sensors: Utilizes high-precision detectors from world-famous brands for full intelligent glass detection.

Durability

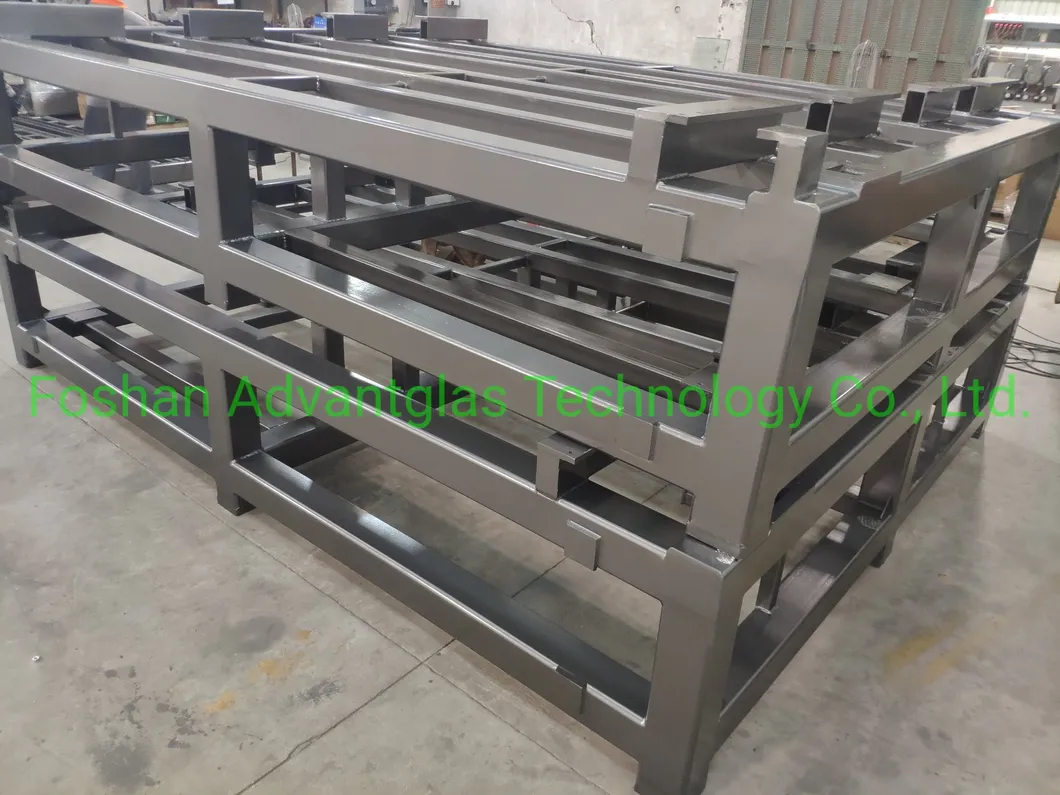

Heavy-Duty Base: 100*100 square steel bar with 5mm thickness for a long life-span without deformation.

📈

Production Capability

Automatic size measurement and thickness adjustment.
High efficiency: Produces 6 pieces of glass per minute.
Daily capacity: 1500~2000sqm per 8-hour shift.

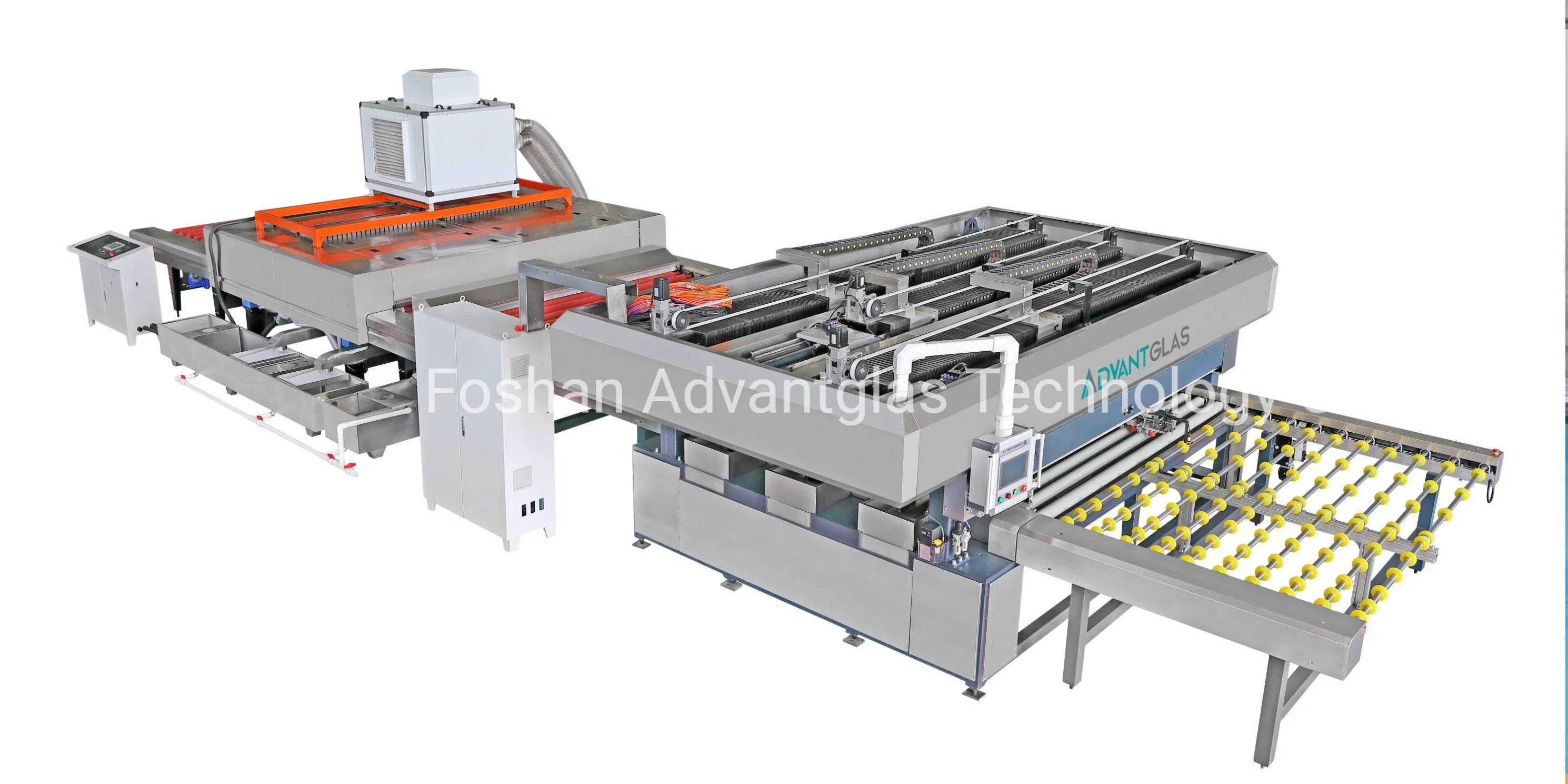

Optional connectivity to washing machines and load/unload tables for a full production line.
8 Servo motors control for high-precision motion and accuracy.

🚛

Packaging & Related Equipment

Frequently Asked Questions

What is the warranty period for the machine?

The machine comes with a twelve-month warranty. During this period, motors and appliances can be changed for free if any damage occurs.

How is the machine installed and what training is provided?

We offer three methods: Online face-to-face teaching, local technical partner support, or sending a technician directly from our facility to your location.

Is the machine assembly complex for new users?

No, the machine is separated into 3 main parts. Installation primarily involves setting the level and connecting the power.

What are the standard payment and delivery terms?

We accept T/T and L/C payments. Trade terms include FOB, CIF, and EXW. The typical total lead time including production and delivery is approximately 70 days.

How is the equipment protected during transport?

The machine is packed using cotton and waterproof plastic rollers to avoid impact, and secured with screws and belts to prevent swinging during transit.

Can the machine be integrated into an existing production line?

Yes, the machine is designed with optional connectivity for horizontal washing machines and automatic loading/unloading tables for intelligent manufacturing.
