Min Glass Specification
400 * 350mm
Cleaning Speed Range
1-20m/Min (3-19mm thickness)

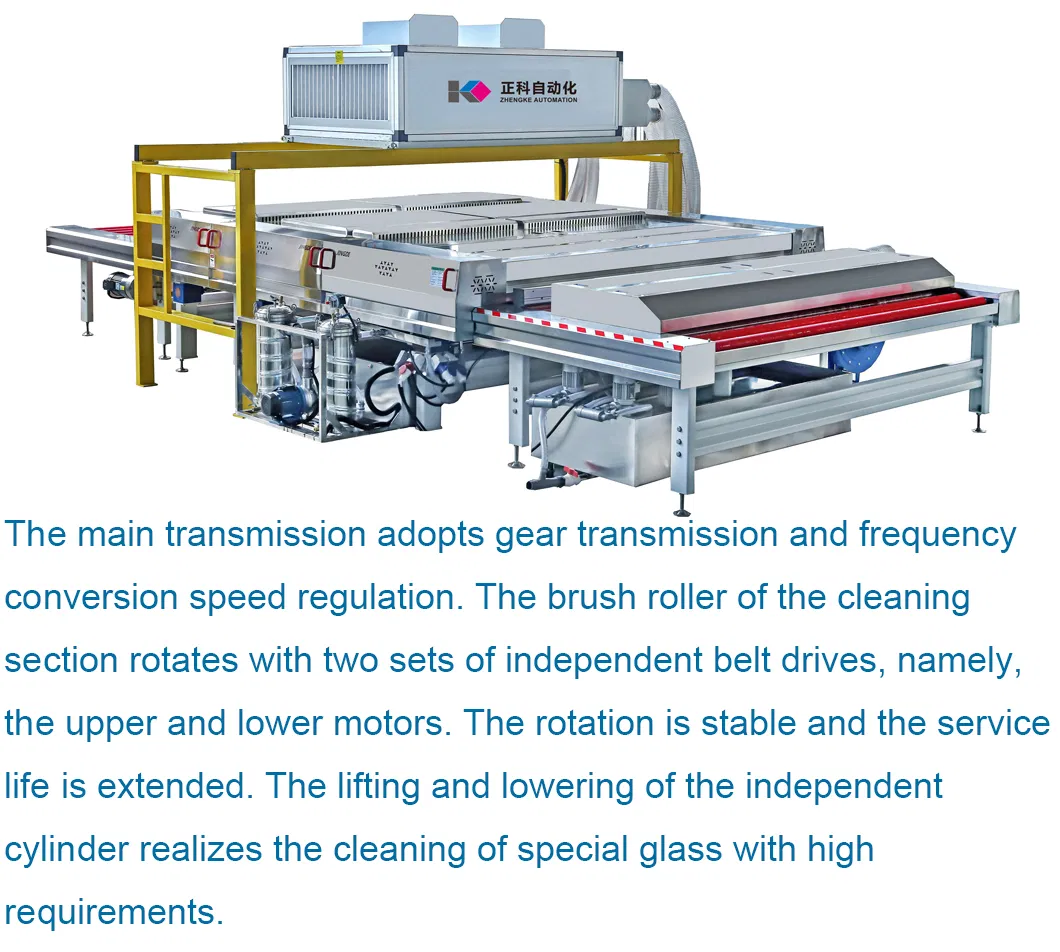

Transmission Adjustment
Frequency Control
Table Height
900mm (Adjustable)
Voltage/Frequency
380V/415V, 50Hz (Customized)
Water Source
Self Circulating Deionized Supplement
Control System
Industrial Computer
Warranty
One Year (Lifetime Service)
Transport Package
Wooden Box, Steel Frame
Dimensions
6500mm*3366mm*2800mm

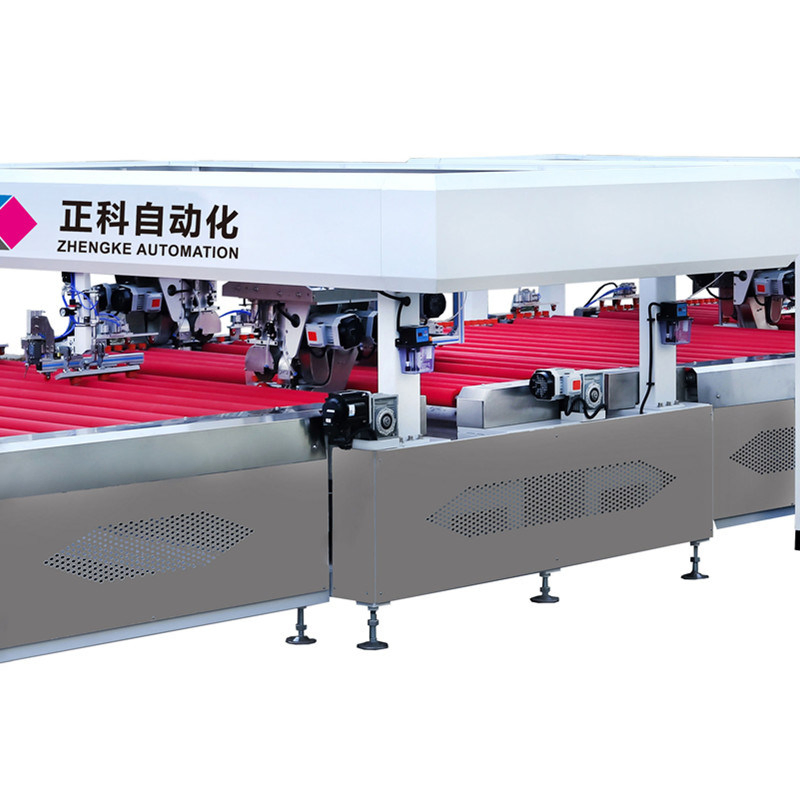

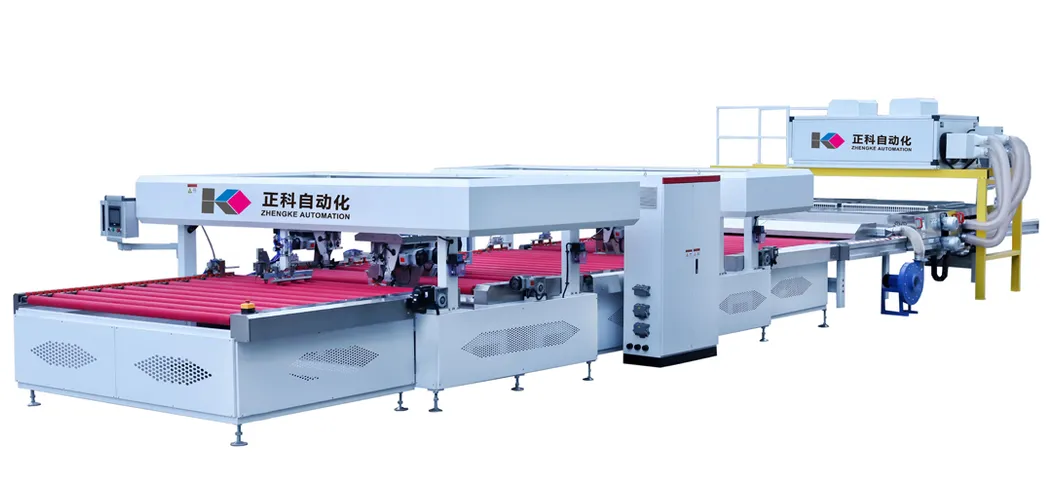

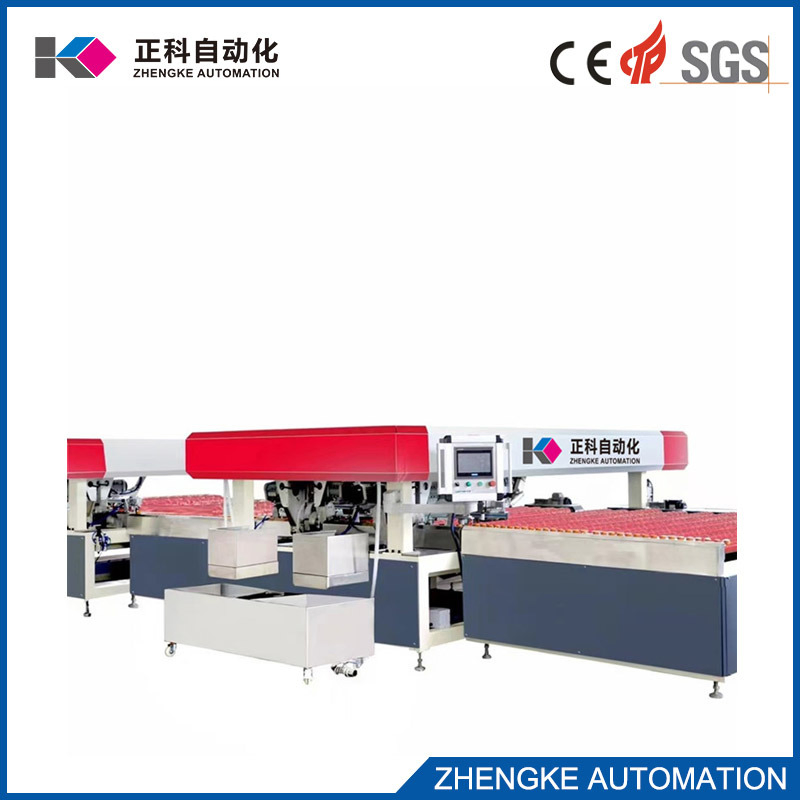

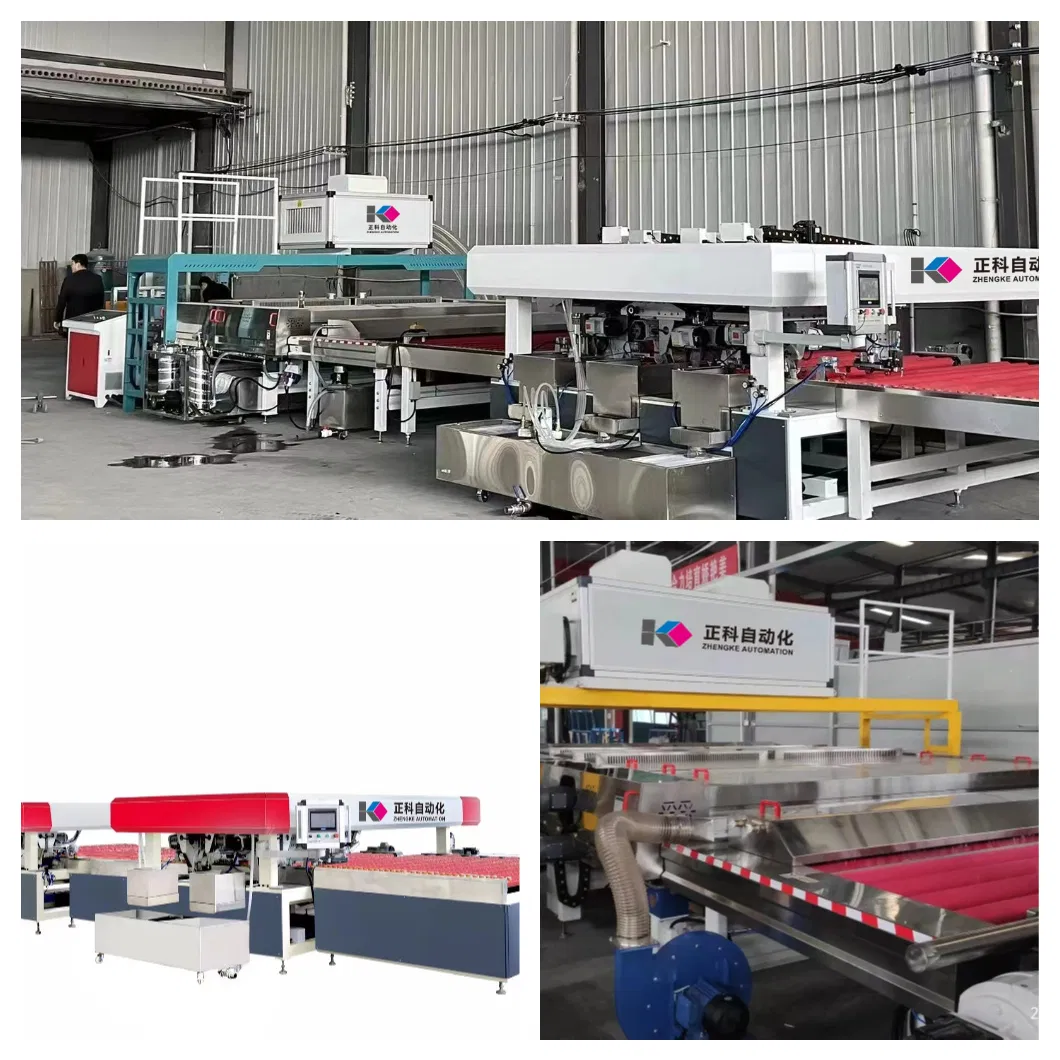

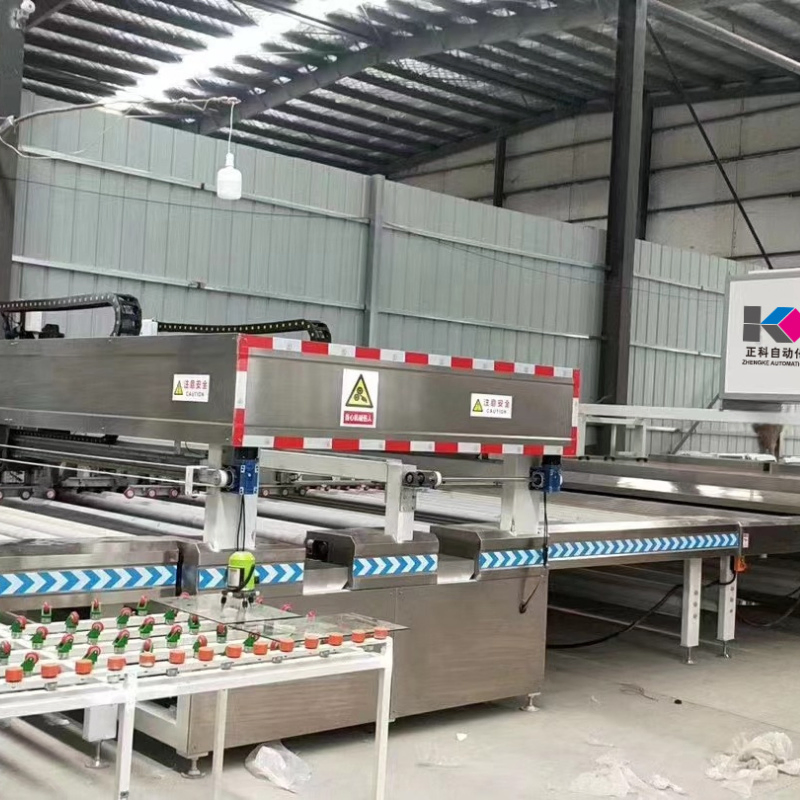

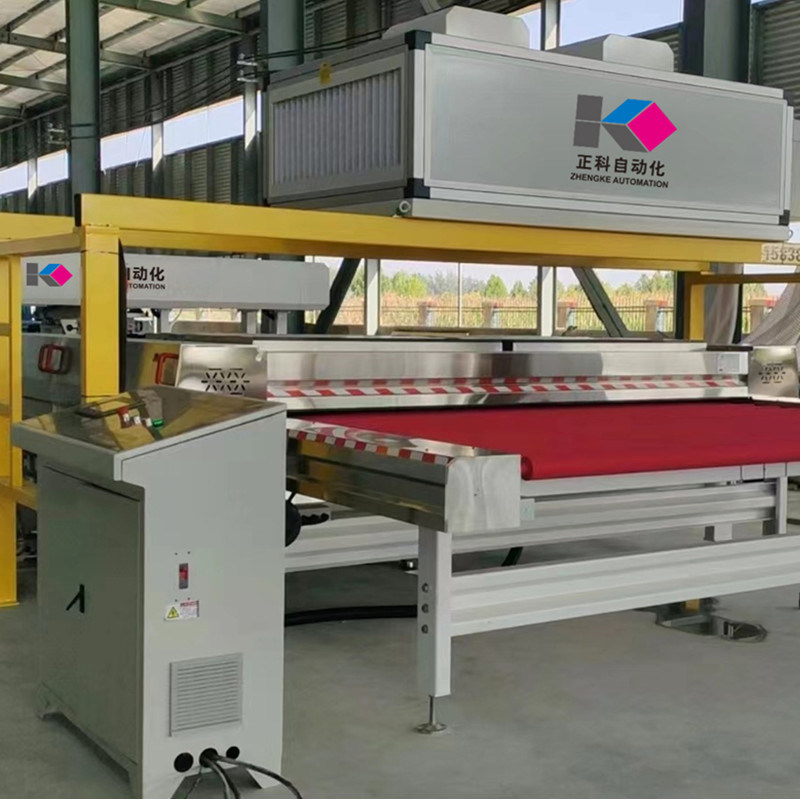

ZK2500-4 energy-saving glass horizontal four-sided grinding machine
01

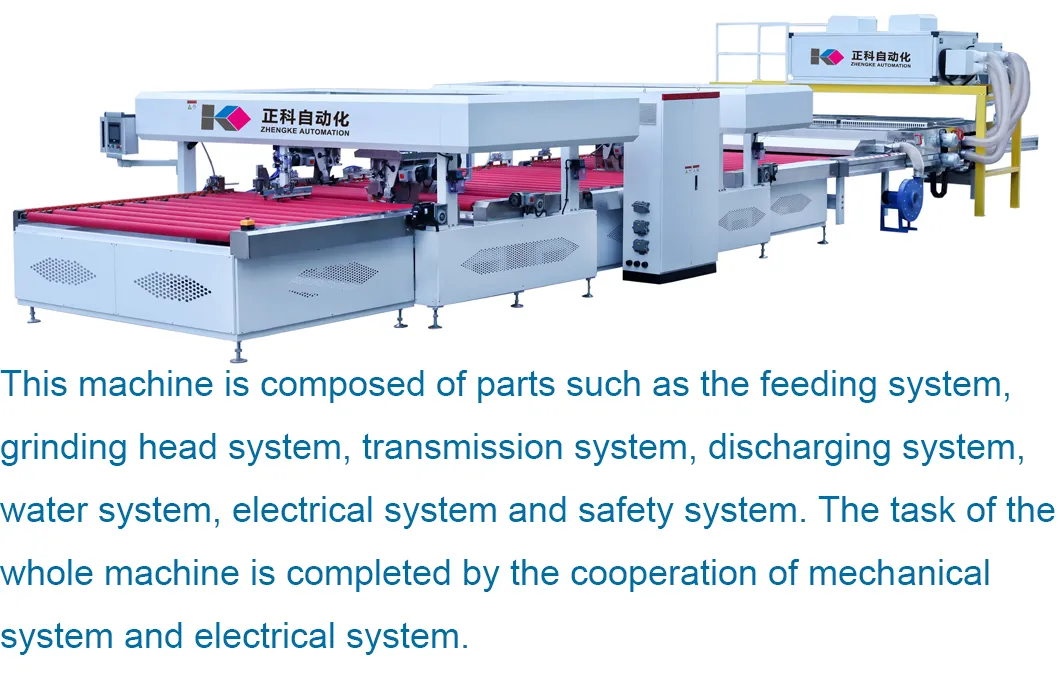

Composed of feeding, grinding head, transmission, discharging, water, electrical and safety systems, ensuring seamless mechanical cooperation.
02
Adopts advanced servo motion controller and bus communication mode for superior stability and anti-interference performance compared to traditional PLC.
03

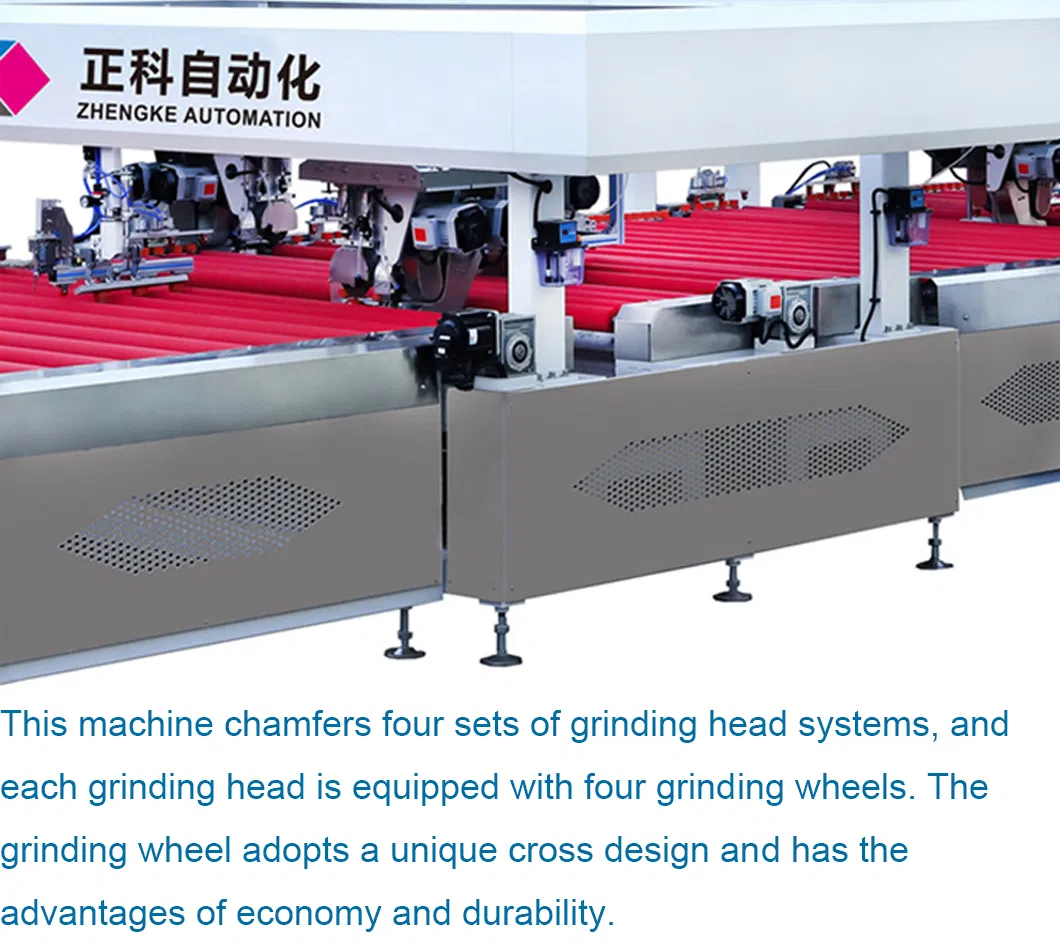

Equipped with four sets of grinding head systems, each with four grinding wheels using a unique cross design for economic durability.
04
Feeding section includes an industrial type frame with plastic sprayed parts, conveying roller tables, and positioning wheels.
05
Main frame is profile-welded, annealed, and precision gantry milled to ensure equipment stability and processing accuracy.
06
Discharge section features a stainless steel drain pan and precision conveying servo motor.
07

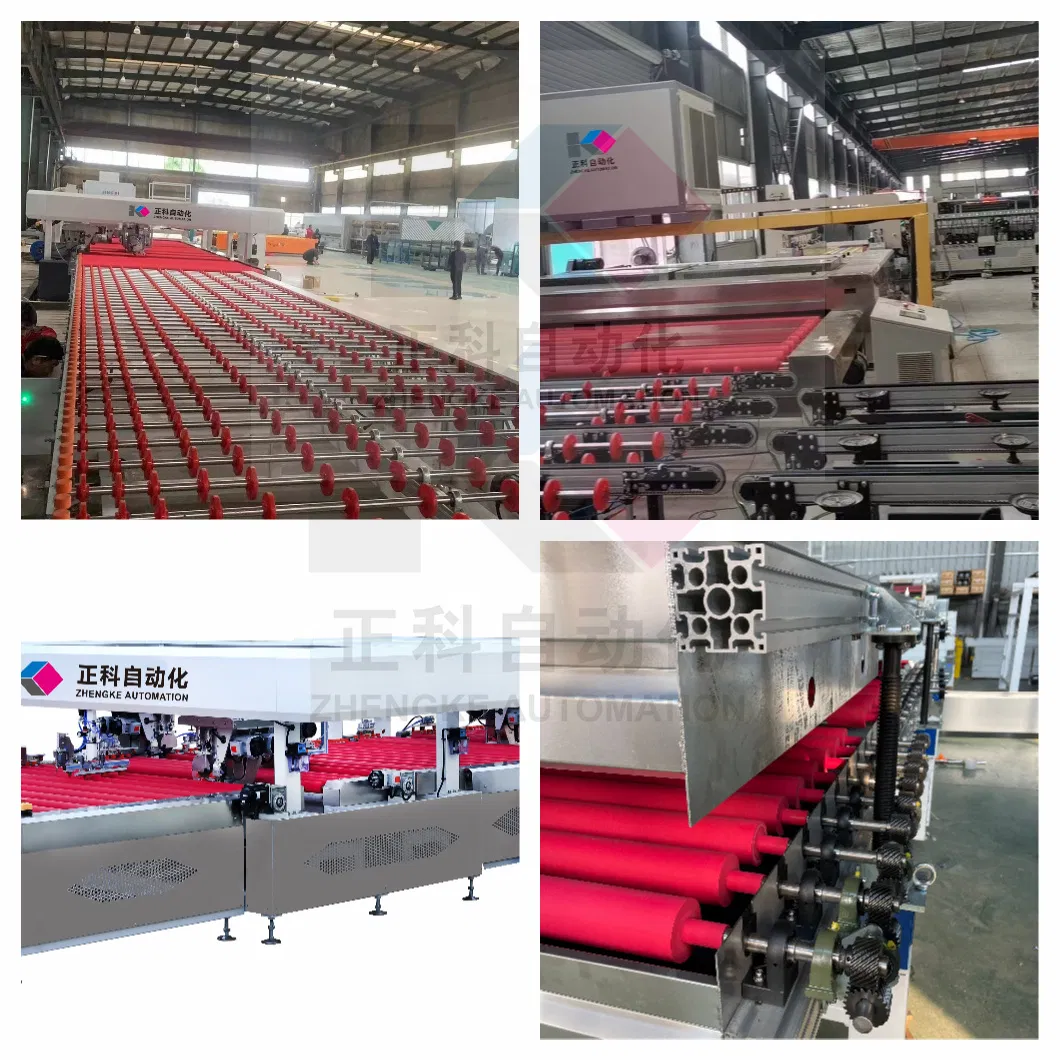

Wheel structure conveying system with positioning pressure wheel drive for reliable glass movement.
08

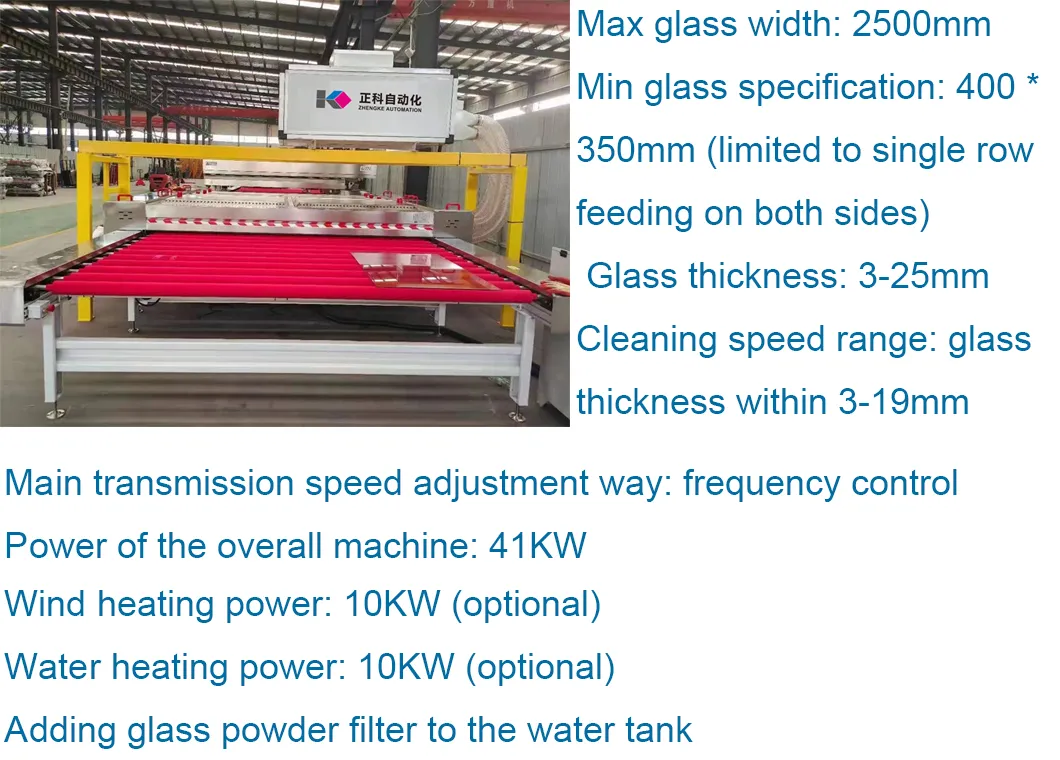

Automatic detection of glass size, providing high efficiency and convenience.
09
Advanced control system with self-diagnosis functions and alarm screen interface.
10
Motion guides for the grinding head are equipped with an advanced automatic oiling system.
11
Precision movement achieved via servo motors, high-precision diagonal racks, and linear guide rails.
SolutionsProfessional glass production solutions provided by an expert technical team.
Service24-hour online response team for all inquiries and messages.
QualityStrict quality testing and control systems ensure superior equipment performance.
CustomizationOEM & ODM services available for customized design, branding, and packaging.
PricingCompetitive direct-from-manufacturer pricing without middleman markups.

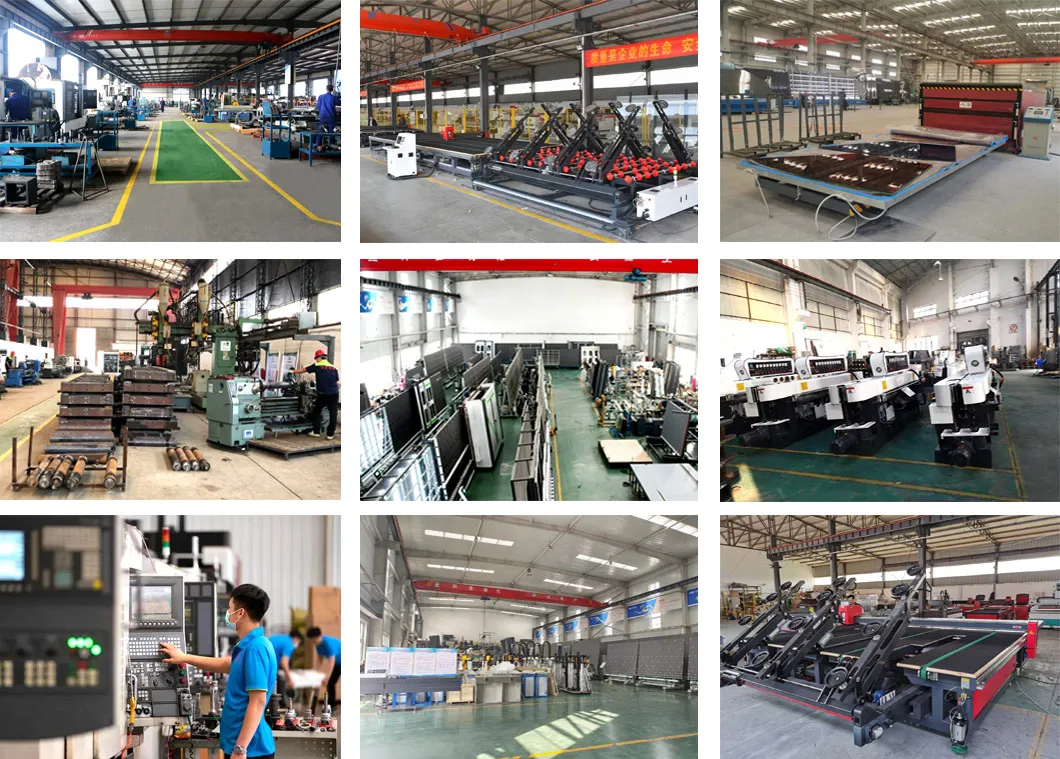

ProductionModern manufacturing space with advanced CNC tools and precision gantry milling.
❓ Frequently Asked Questions
What is the maximum glass width this machine can process?
The ZK-2500 model can handle a maximum glass width of 2500mm.
What is the range of glass thickness suitable for cleaning and grinding?
The machine is designed for glass thickness ranging from 3mm to 19mm, with a speed range of 1-20m/min.
How does the automatic size detection system work?
The machine features an integrated sensor system that automatically detects glass dimensions for faster and more efficient processing.
Is the water system energy-efficient?
Yes, it uses a self-circulating deionized water supplement system and includes a 10kw water heating power feature for optimized performance.
What kind of maintenance does the grinding head system require?
The grinding head motion guides are equipped with an advanced automatic oiling system to minimize manual maintenance and ensure smooth operation.
What are the power requirements and can they be customized?
The standard voltage is 380V or 415V at 50Hz, but both voltage and frequency can be customized according to local requirements.
