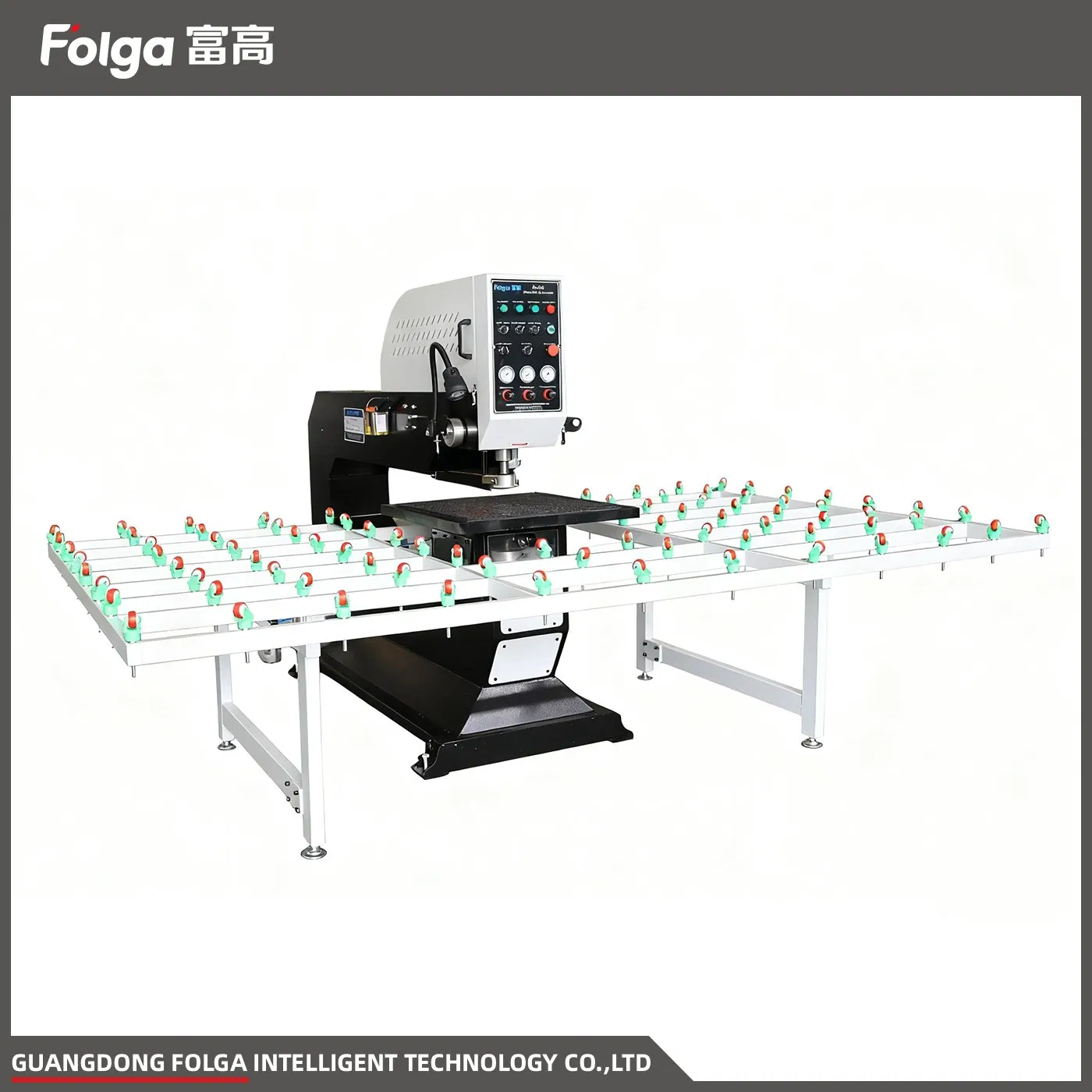

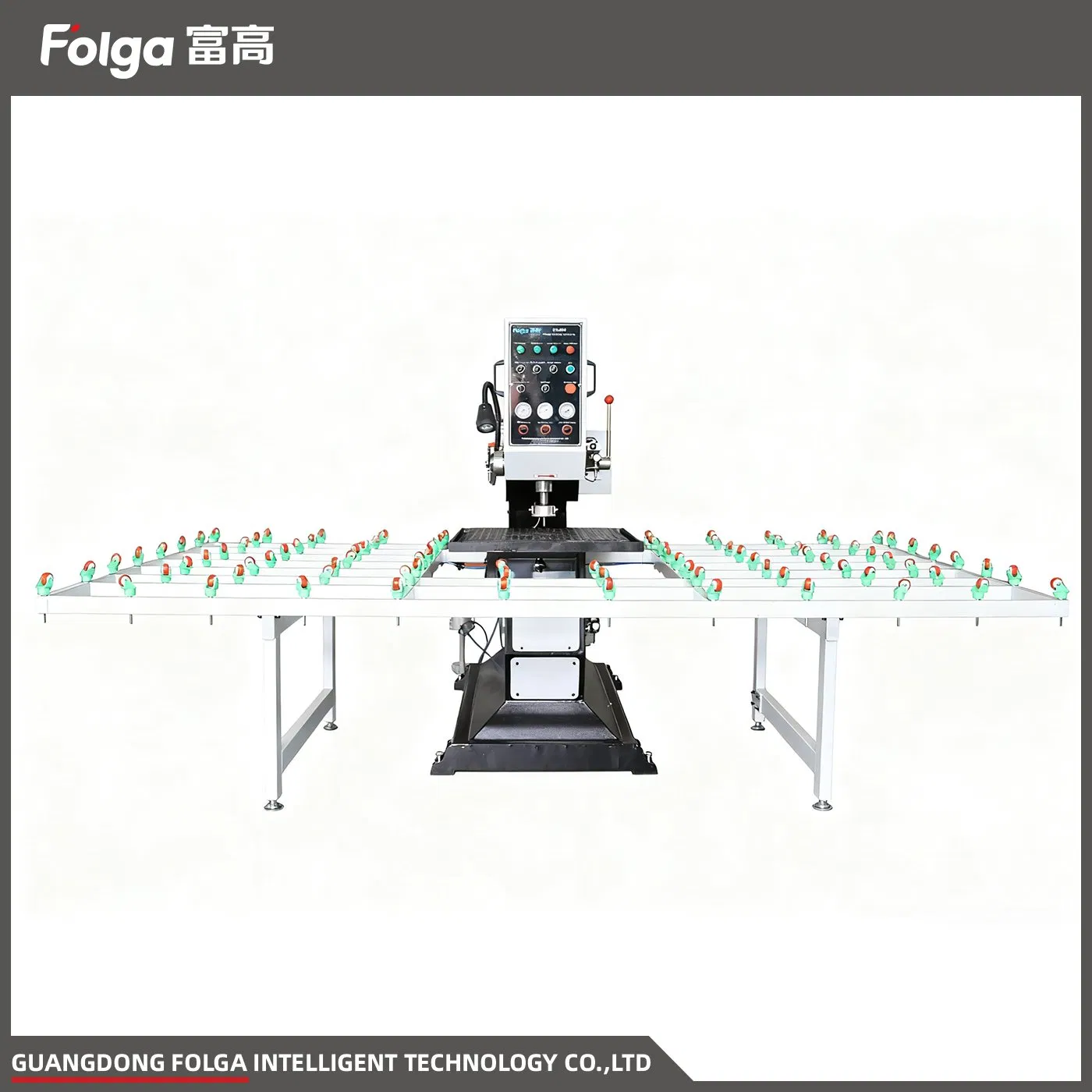

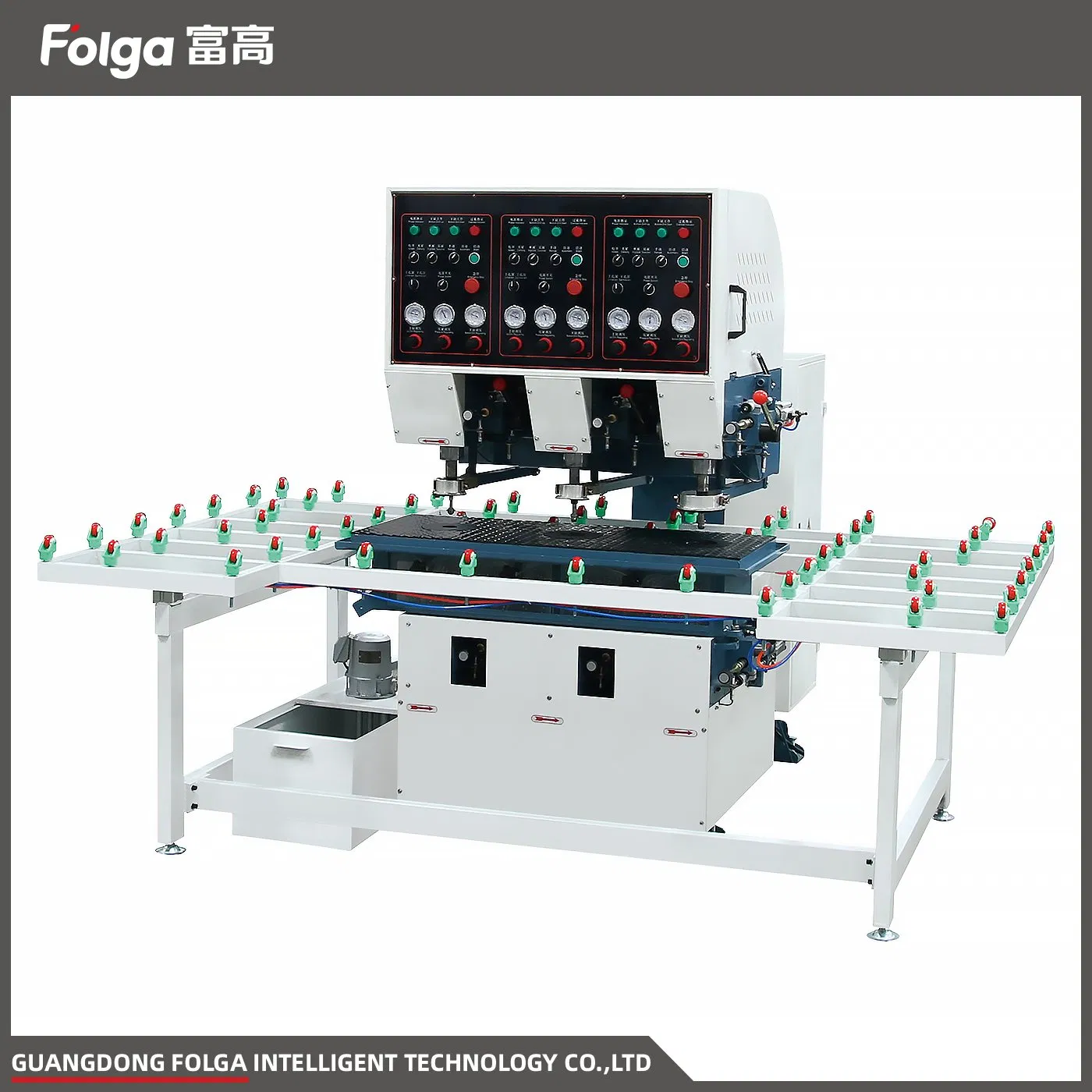

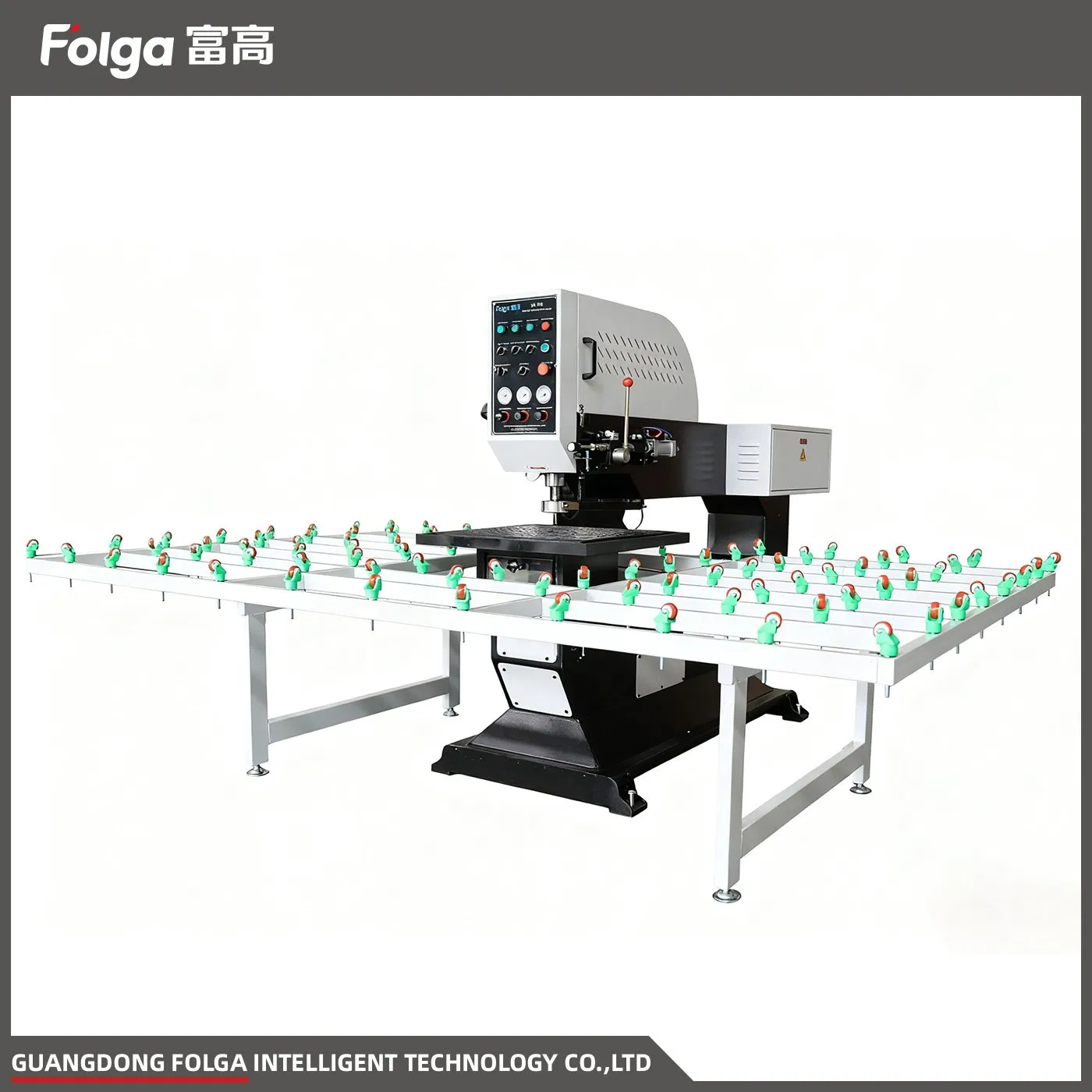

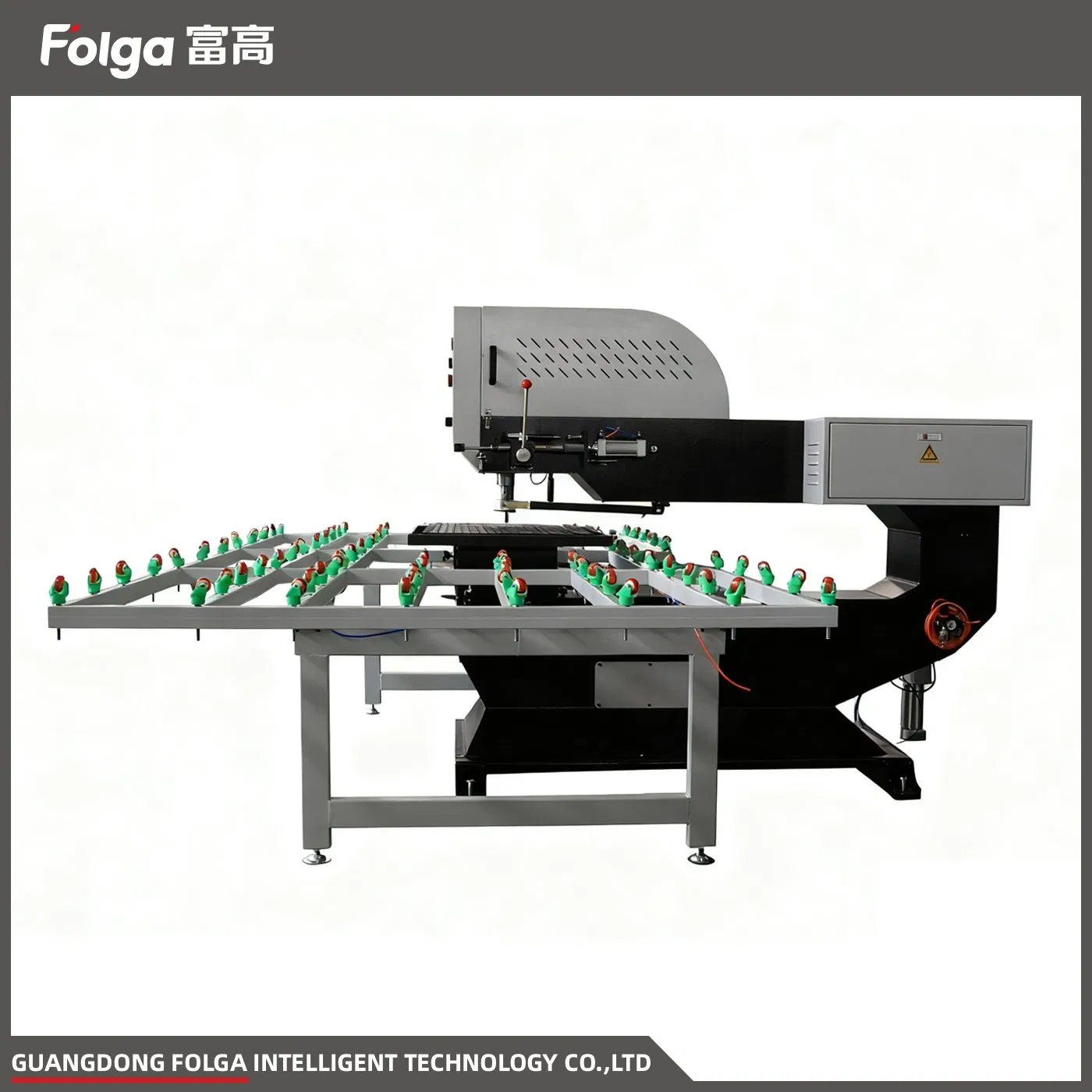

Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
1 / 5
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs
Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs

Horizontal High Speed Glass Drilling Machine for Accurate Holes and Designs

Customization: Available
Control System: PLC Control
Drilling Diameter: φ4 - 80mm
Send Inquiry

Product Description

i

Basic Specifications

Glass Thickness 3-20mm
Power Supply 380V/50Hz
Drill Spindle Center Distance 1200mm
Workbench Height 850mm
Processed Glass Thickness 4 - 19mm
Minimum Glass Size 100*100mm
Maximum Glass Size 2400*2600mm
Total Power 3.15 Kw
Weight 760kg
Floor Area 2500X2100mm
Origin China
✔

Product Description

Brief Introduction
The glass drilling machine is a professional and vital equipment for drilling holes on glass sheets. With excellent performance, a wide diameter of drilling bits, and enough space for lifting glasses, it is possible to process the large size glass. The worktable with proper height is easy for daily operation and maintenance. The lower drilling bit speed is controlled by pneumatic and hydraulic pressure, greatly improving stability and productivity. To maximize production efficiency, the drilling machine is ideal for batch orders or flow-line production.
Glass Drilling Machine Details 1
Glass Drilling Machine Details 2

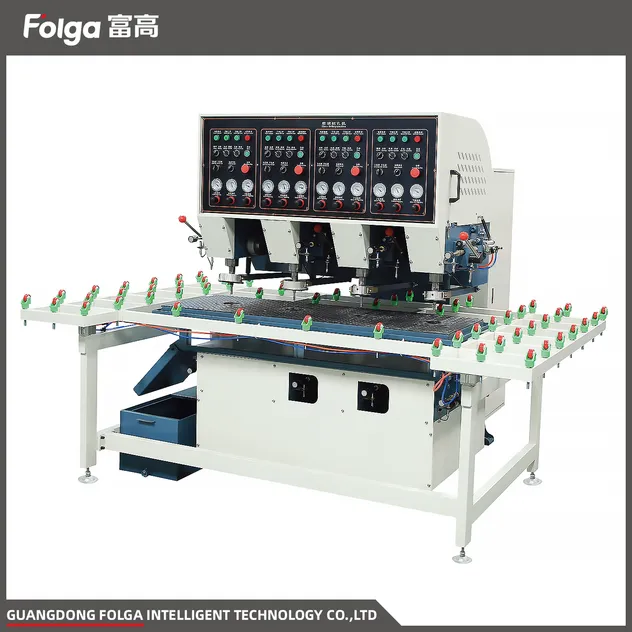

Glass Drilling Machine Details 3
⚙

Technical Parameters

Distance between drill spindle center and column1200mm
Worktable height850mm
Glass thickness3-20mm
Max. glass size2600mm*2400mm
Min. glass size100*100mm
Glass diameterφ4-210mm
Total power4.5kw
Dimension2600mm*2100mm*1700mm
Drilling error≤0.3 mm
Radial runout of spindle taper hole≤0.05 mm
Axial runout of spindle taper hole≤0.03 mm
High Speed Glass Drilling Machine Structure
Glass Processing Operation
Machine Dimensions and Accurate Design
?

Frequently Asked Questions

What are the main glass processing products available?
Main products include glass single edging machines, double edging machines, and seaming machines. Other available equipment includes washing machines, loading/unloading systems, irregular glass shaping machines, and drilling machines.
What is the manufacturing background of these machines?
With a history dating back to 2004, there is over 21 years of experience in manufacturing glass machinery, ensuring stable technology, quality, and reliable after-sales service.
Is on-site installation and training provided?
Yes, global installation services and on-site engineering support for training are available to ensure proper machine setup and operation.
Can machine sizes be customized for specific needs?
Yes, glass machine sizes can be customized based on specific requirements, including configurations for JUMBO glass processing.
What types of glass can be processed?
The machines are capable of processing all kinds of glass with various finishes, including shiny polishing or matte grinding, depending on your specific production needs.
How is technical support handled if a problem occurs?
Support is provided through an 8-hour initial response, followed by step-by-step troubleshooting from engineers within 24 hours. Spare parts can be dispatched quickly via Express services like DHL when required.
