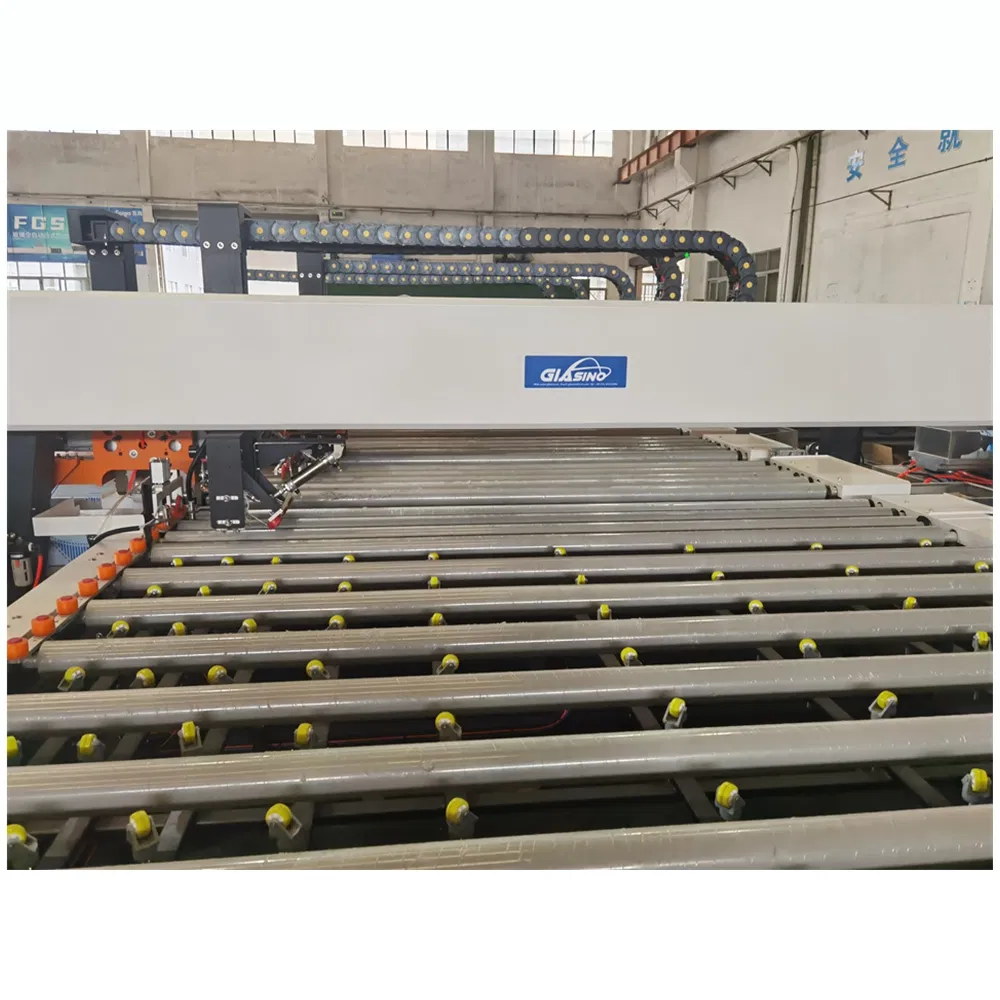

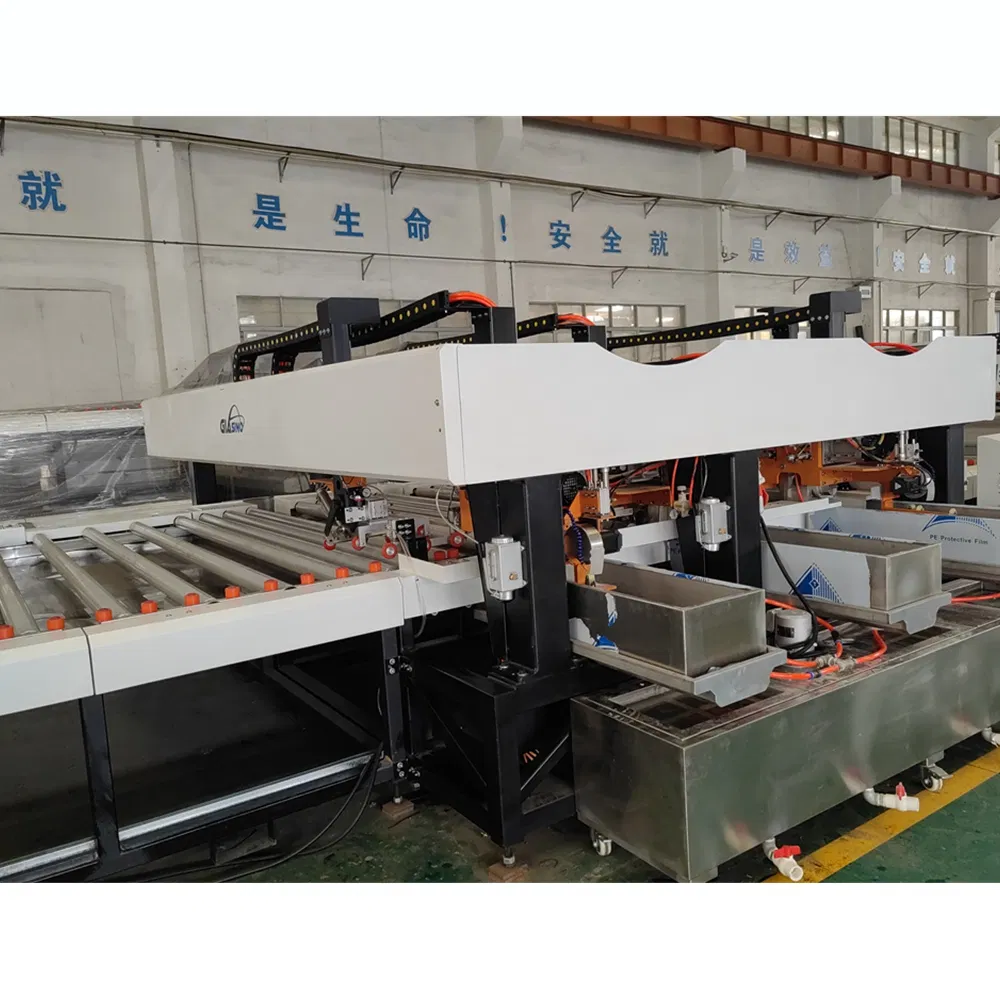

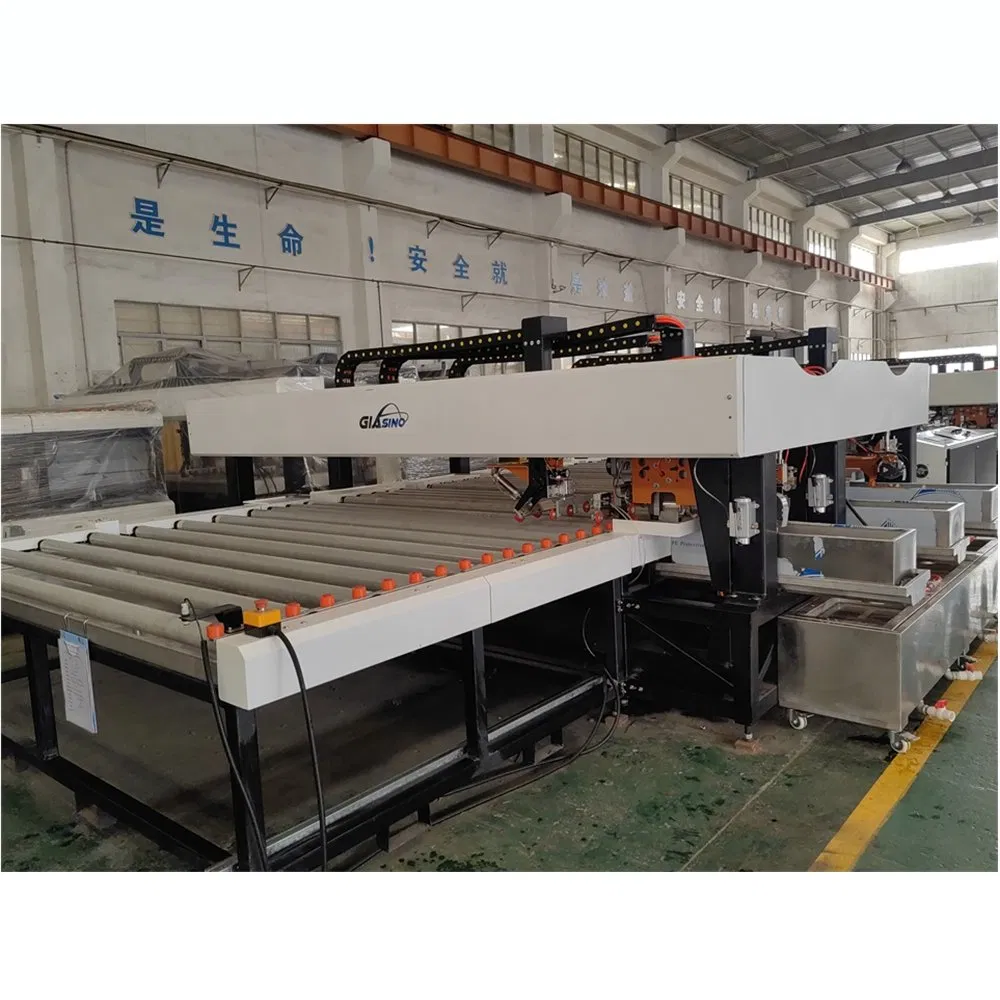

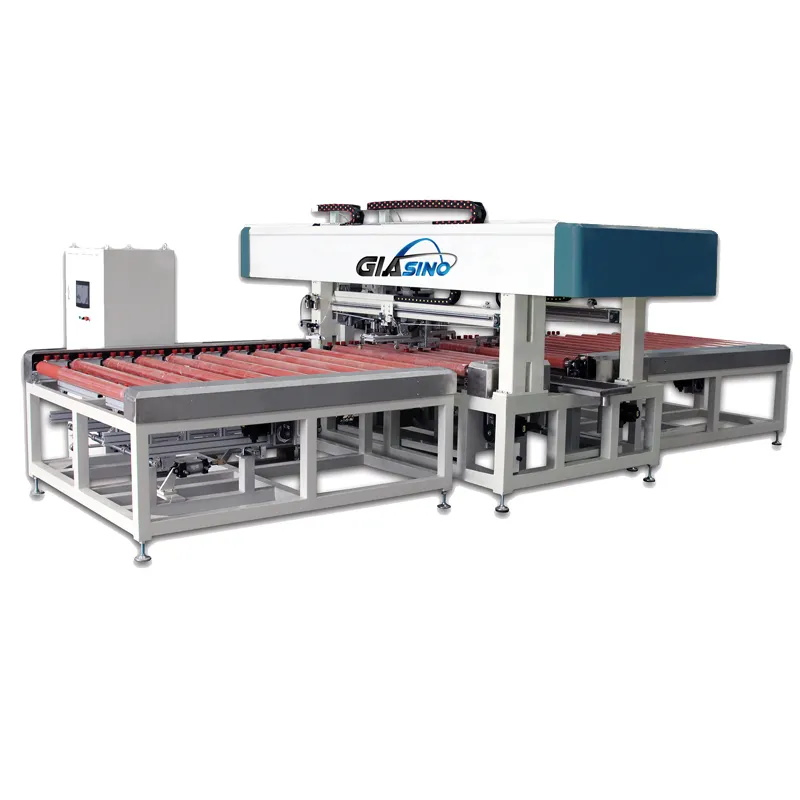

Manufacturer Hot Product High Speed Four-Sides Glass Straight Line Edging Machine

Customization:	Available
Certification:	CE
Processing Speed:	10-15 m/min

Basic Information

Model NO.

GS0825D

Processing Thickness

3-19 mm

Voltage

380V

Warranty

1 Year

Structure

Horizontal

Control System

PLC

Condition

New

Production Capacity

20 Sets

Product Description

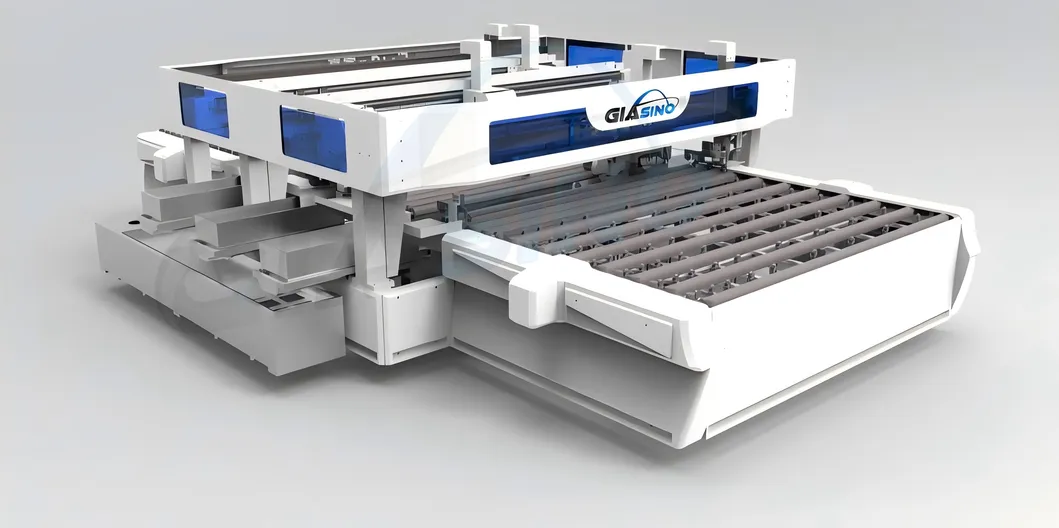

High Speed Four-Sides Glass Straight Line Edging Machine

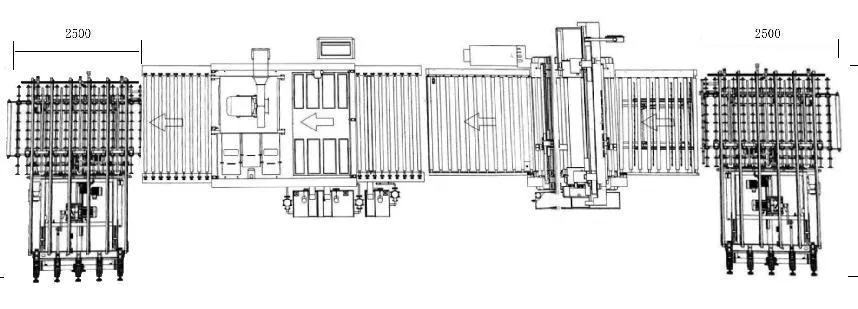

Glass Edging Line Connection: Compatible with Glass Washing Machine and Glass Loading Machine.

Product Features:

This horizontal four-side edger is a professional equipment for roughing rectangular original glass. It features economy, high efficiency, energy saving, and automatic identification of glass width and thickness.

It is especially suitable for processing large quantities of buildings, doors and windows, and hollow glass of different specifications. It can compose a production line with an automatic loading table and high-speed washing machine to realize automation, increasing processing speed and reducing labor costs.

PLC control, easy operation.
Recycle water system.
Glass size automatic identification.
Glass automatic location.
SUS304 model top quality stainless water tank.
8 servo motor and 8 axis link work system.
Self-diagnosis function.
High work efficiency and precision.

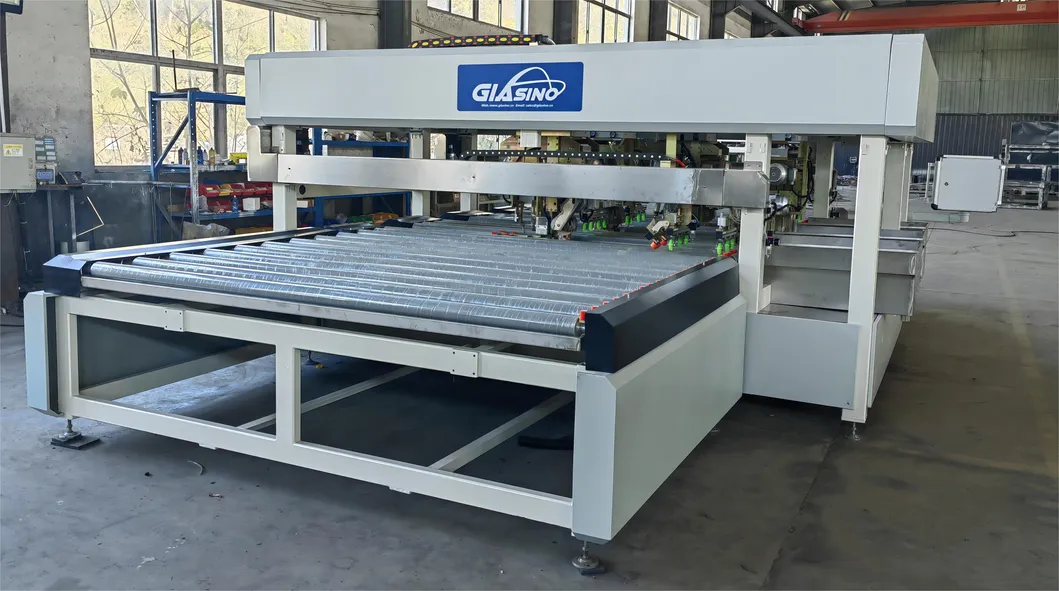

Detailed Photos

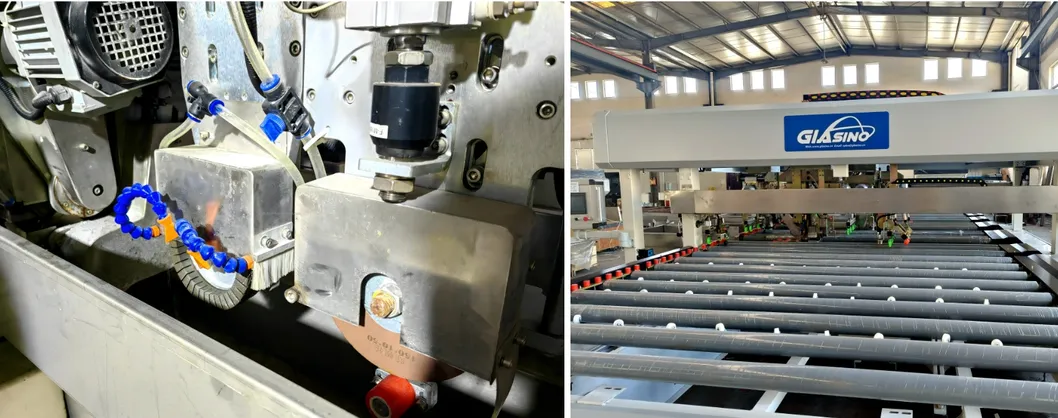

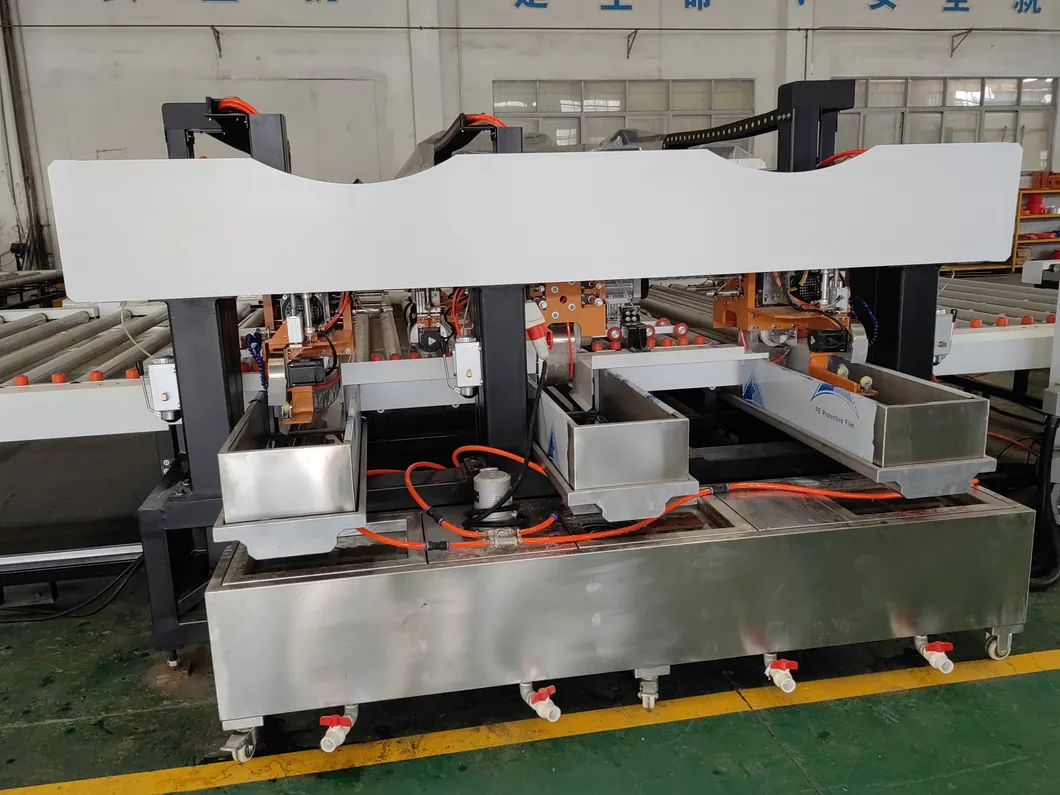

3 bridges and 4 sets wheel structure.

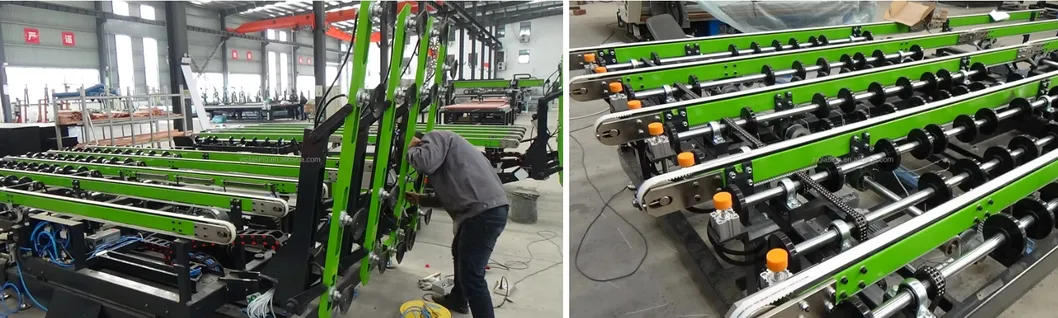

Optional automatic loading and unloading table.

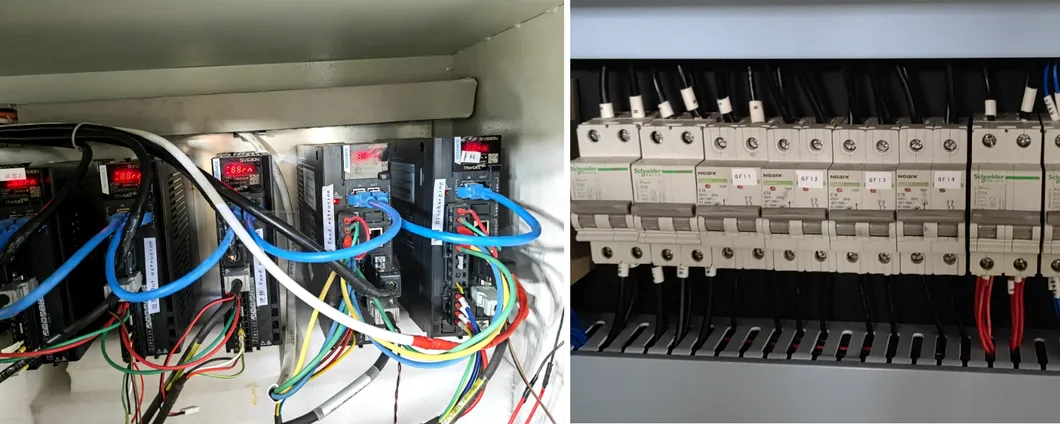

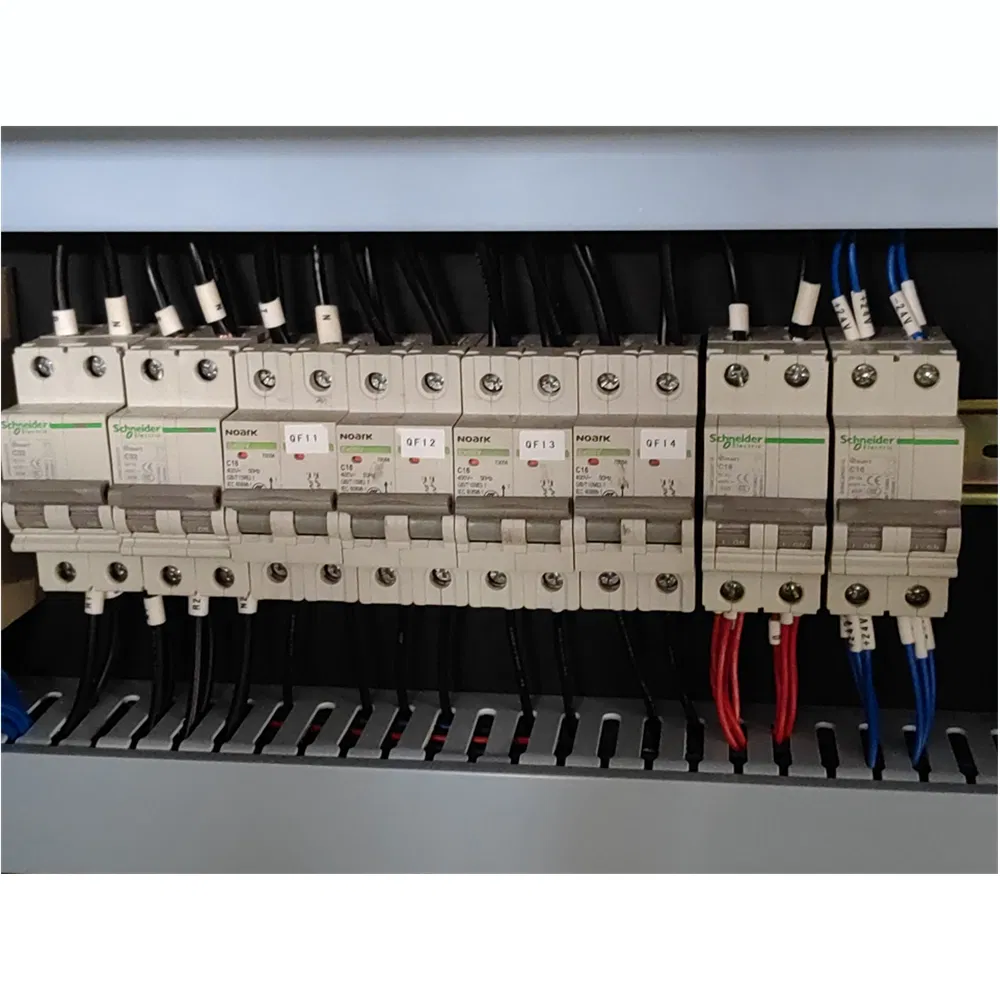

Servo drives and Electric Components.

Product Parameters

Spindles Qty	16
Processing speed	Bottom edge + Low-E + Arris: 1-35m/min Only Arris: 1-40m/min
Conveying speed	1-40m/min
Thickness	3-12mm
Max processing size	3000mm × 2500mm
Max.bottom margin grinding	0.1-0.5mm
Arris chamfer width	0.25-1mm
Voltage	380V/50Hz
Power (single machine)	23kw
Machine specification	6900mm × 4700mm
Total weight (single machine)	5300kg

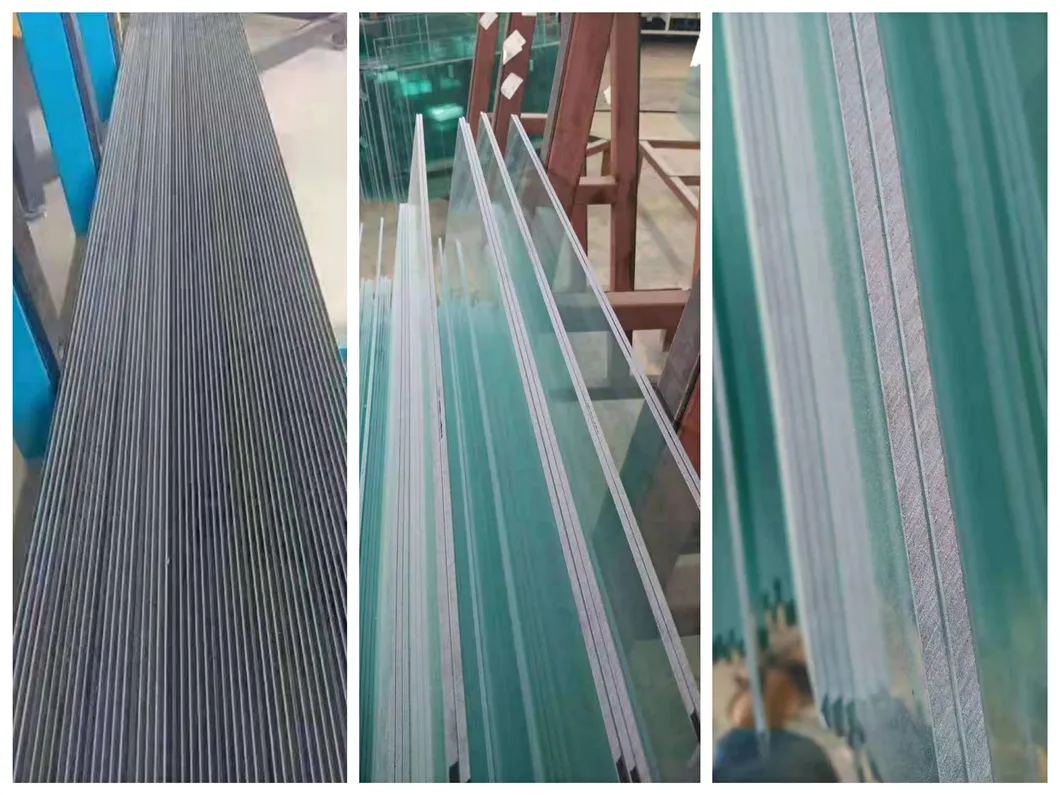

Working Samples

Packaging & Shipping

Production is arranged quickly after order confirmation with sea-worthy packaging for safe transit.

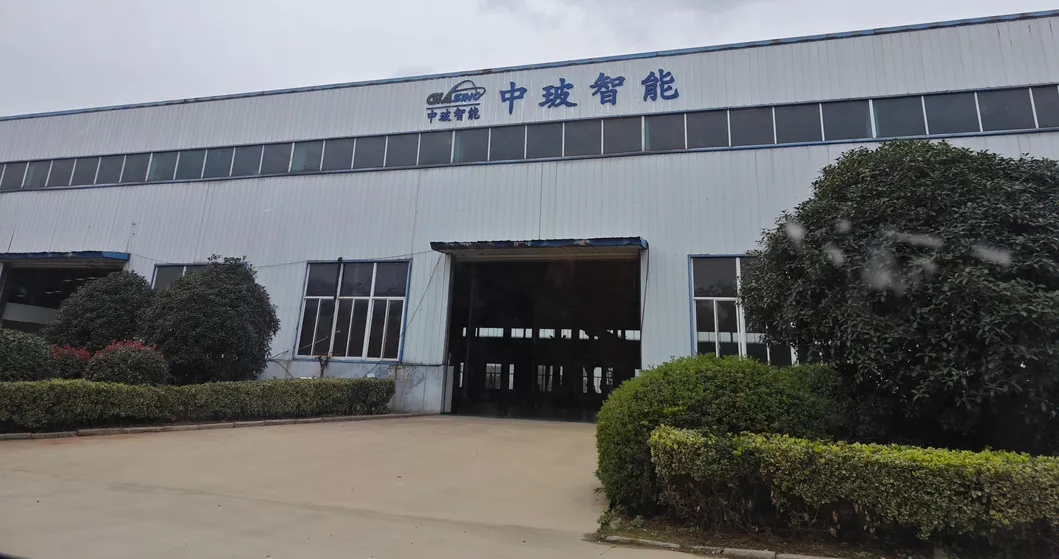

Profile

We are a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our main products include laminated glass cutting machines, automatic glass cutting lines, multifunctional glass cutting machines, insulating glass production lines, and automatic sealing machines.

We have obtained European CE certification, Switzerland SGS certification, and ISO 9001:2008 quality control system standards. Our focus remains on outstanding quality, satisfying service, and perpetual innovation to meet market needs through advanced technology.

Exhibition

We participate in exhibitions worldwide, establishing strong relationships with international customers.

Frequently Asked Questions

What types of glass can this edging machine process?

The machine is designed for rectangular original glass with thicknesses ranging from 3mm to 19mm, ideal for building glass, doors, windows, and hollow glass units.

How is the quality of the machinery guaranteed?

We perform pre-production sample checks and a final inspection before every shipment. All machines come with a one-year warranty and are built to CE and ISO standards.

Can the machine automatically adjust to different glass sizes?

Yes, the machine features automatic identification of glass width and thickness, allowing for efficient processing of different specifications without manual intervention.

What are the core technical advantages of your equipment?

Our machines utilize an 8-servo motor link work system, PLC control, and high-precision components, backed by over 20 years of design and production experience.

What kind of after-sales service do you provide?

We offer a professional after-sales service team, a one-year warranty, and support for multiple delivery terms (FOB, CIF, EXW, etc.) and payment methods to ensure a smooth partnership.

Does the machine support integration into a production line?

Absolutely. The edging machine can be connected with automatic loading tables and high-speed washing machines to create a fully automated production line.
