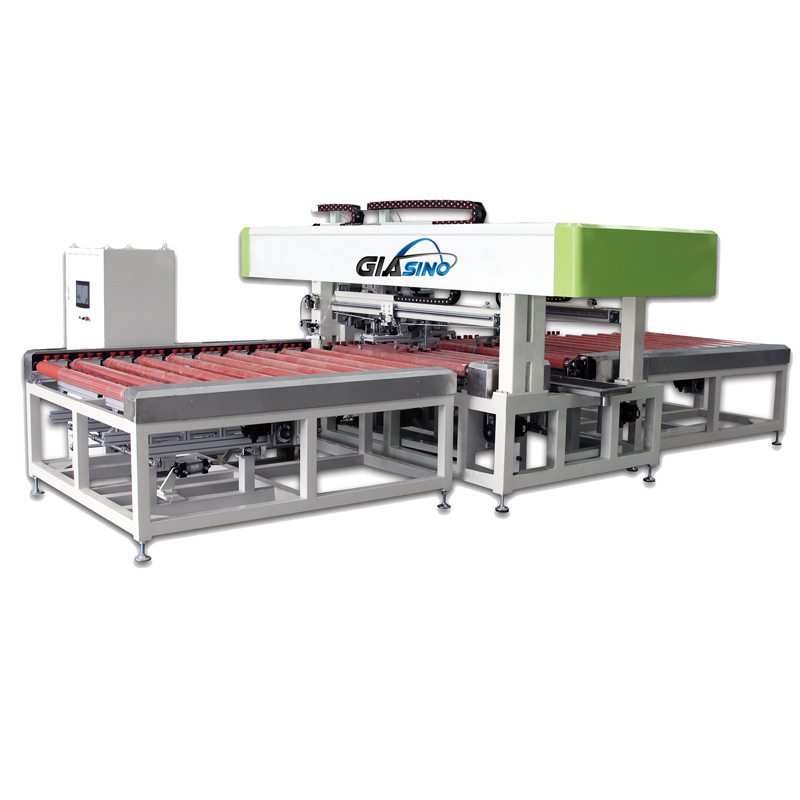

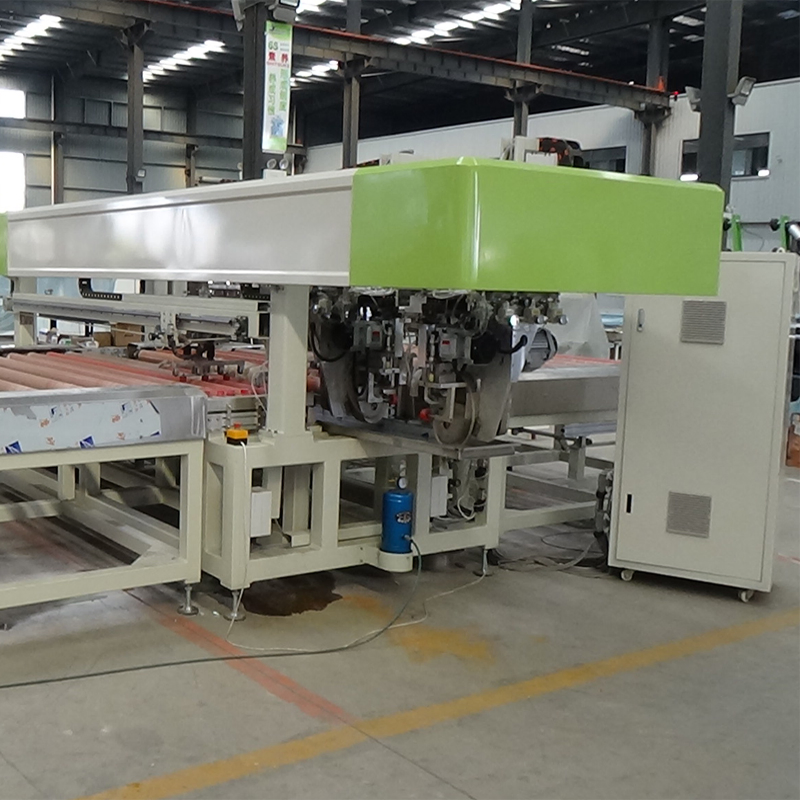

High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
1 / 5
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass
High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass

High Speed Durable Four Sides Glass Edger Arris Chamfering Seaming Edging Machine for Building Glass

Customization: Available
Certification: CE, ISO
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
GS26D
Type
Glass Edging Machine
Structure
Horizontal
Control System
PLC
Grinding Heads
4
Condition
New
After-sales
1 Year
Capacity
30 sets/Month

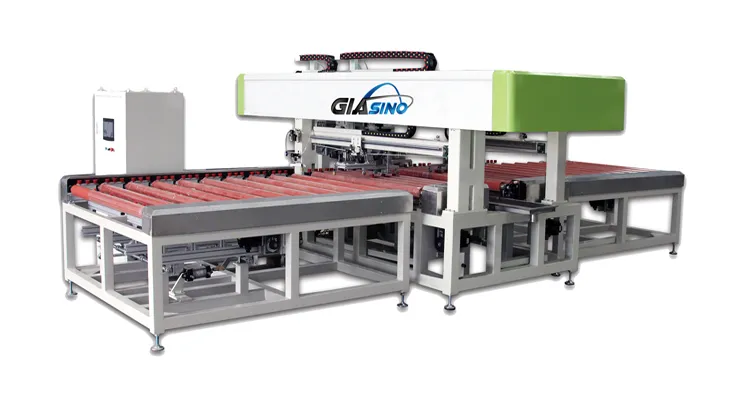

Automatic Glass Seaming Machine
Automatic Glass Seaming Machine

Main Characteristics

PLC control for easy operation and recycle water system
Automatic glass size identification and automatic location
SUS304 high-quality stainless steel water tank
8 servo motors and 8 axis link work system
Self-diagnosis function with high work efficiency and precision
Main Parts & Brands
Part Name Brand Origin
PLCMitsubishi/DeltaJapan
Touch ScreenWei LunJapan
Servo MotorDelta/EstunTaiwan
Linear GuidesPMITaiwan
Pneumatic ElementAirtacTaiwan
Technical Parameters
Max Glass LengthNo limited
Max Glass Width2500mm
Min Glass Size650*350mm
Glass Thickness4-8mm
Edging Size0.5-2mm
Edging Speed0-25m/min
Grinding Quantity2 Groups (2+2 wheels)
Dimension7500x5000*1600mm
Power12KW
Air Pressure0.6-0.8Mp
Equipment Display

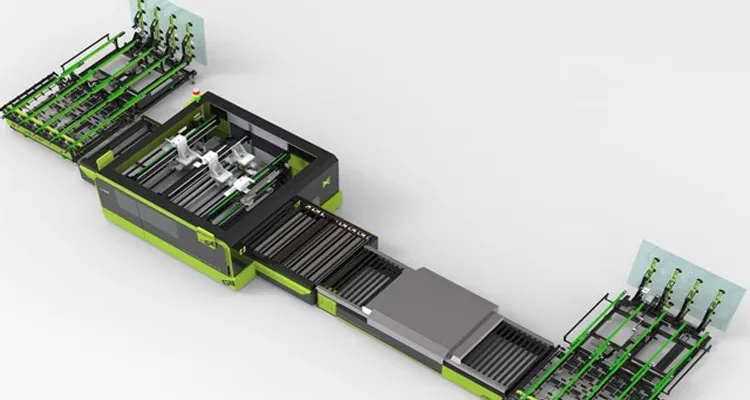

Glass Edger Detail

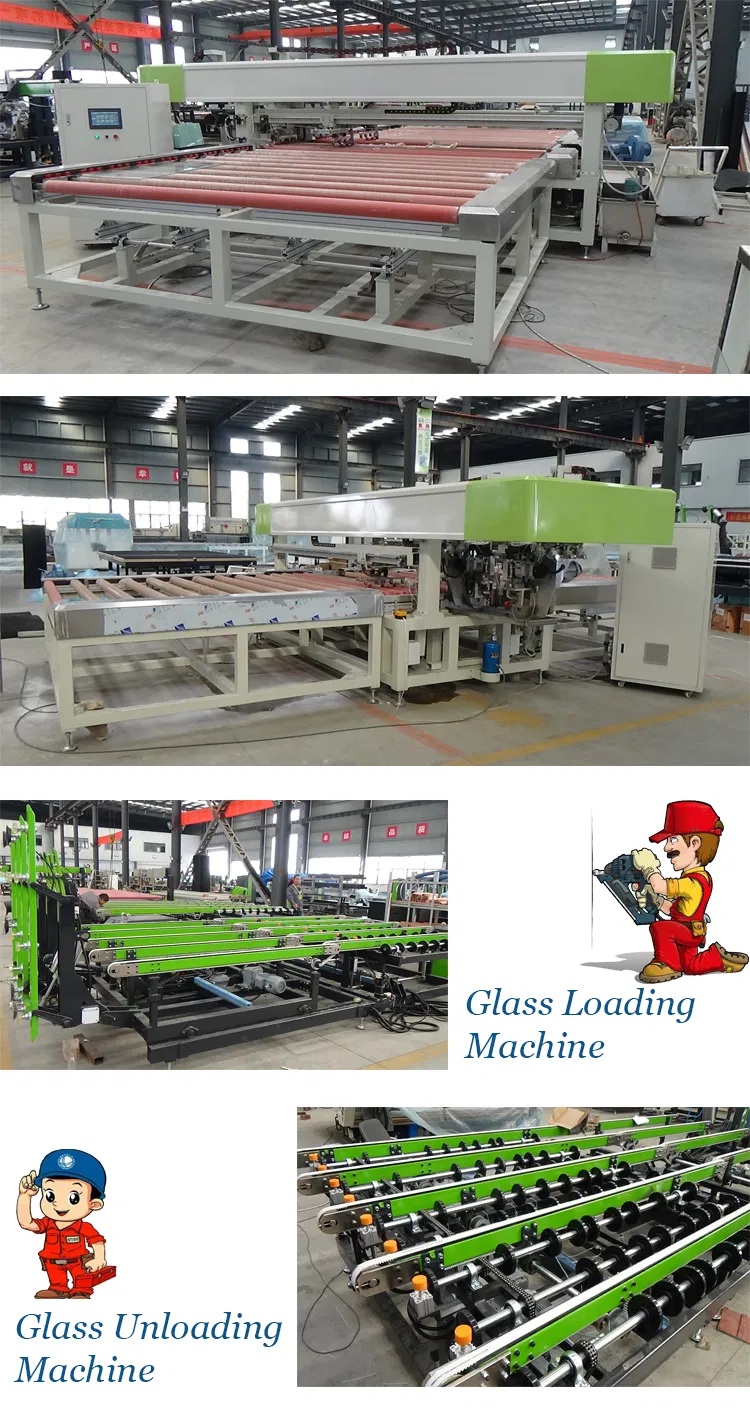

Glass Seaming Process

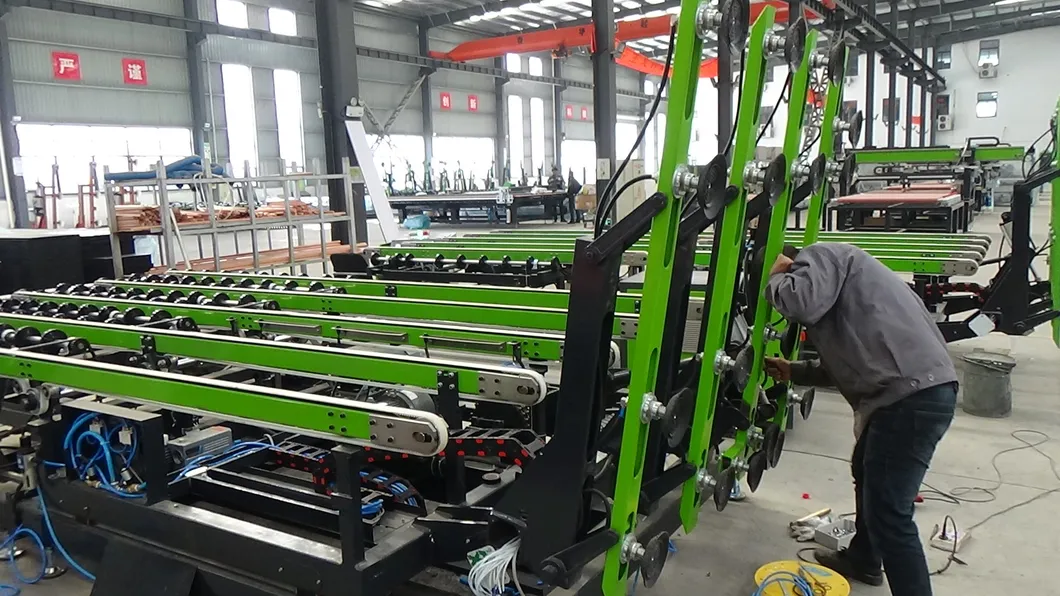

Machine Structure
Equipment Composition

The system is professionally engineered with eight core functional parts:

Frame Mechanism
Overturn Mechanism
Suction Cup Lifting Mechanism
Y-axis Walking Mechanism
Conveying Mechanism
Vacuum & Pneumatic Control
Conveying Correction Mechanism
Electrical Control System
Frequently Asked Questions
1. What is the maximum glass width this machine can process?
The machine can handle a maximum glass width of 2500mm, while the length is unlimited.
2. What type of control system is used?
The machine utilizes a high-precision PLC control system (Mitsubishi or Delta) with a touch screen interface for easy operation.
3. Does the machine support automatic glass identification?
Yes, it features automatic glass size identification and automatic glass location for high efficiency.
4. What is the thickness range for glass edging?
The machine is designed to process glass with a thickness ranging from 4mm to 8mm.
5. How many grinding wheels does the GS26D model have?
The machine is equipped with 2 groups of grinding wheels, totaling 4 wheels (2+2 configuration).
6. What is the working speed of the edging process?
The edging speed is adjustable and ranges from 0 to 25 meters per minute.
