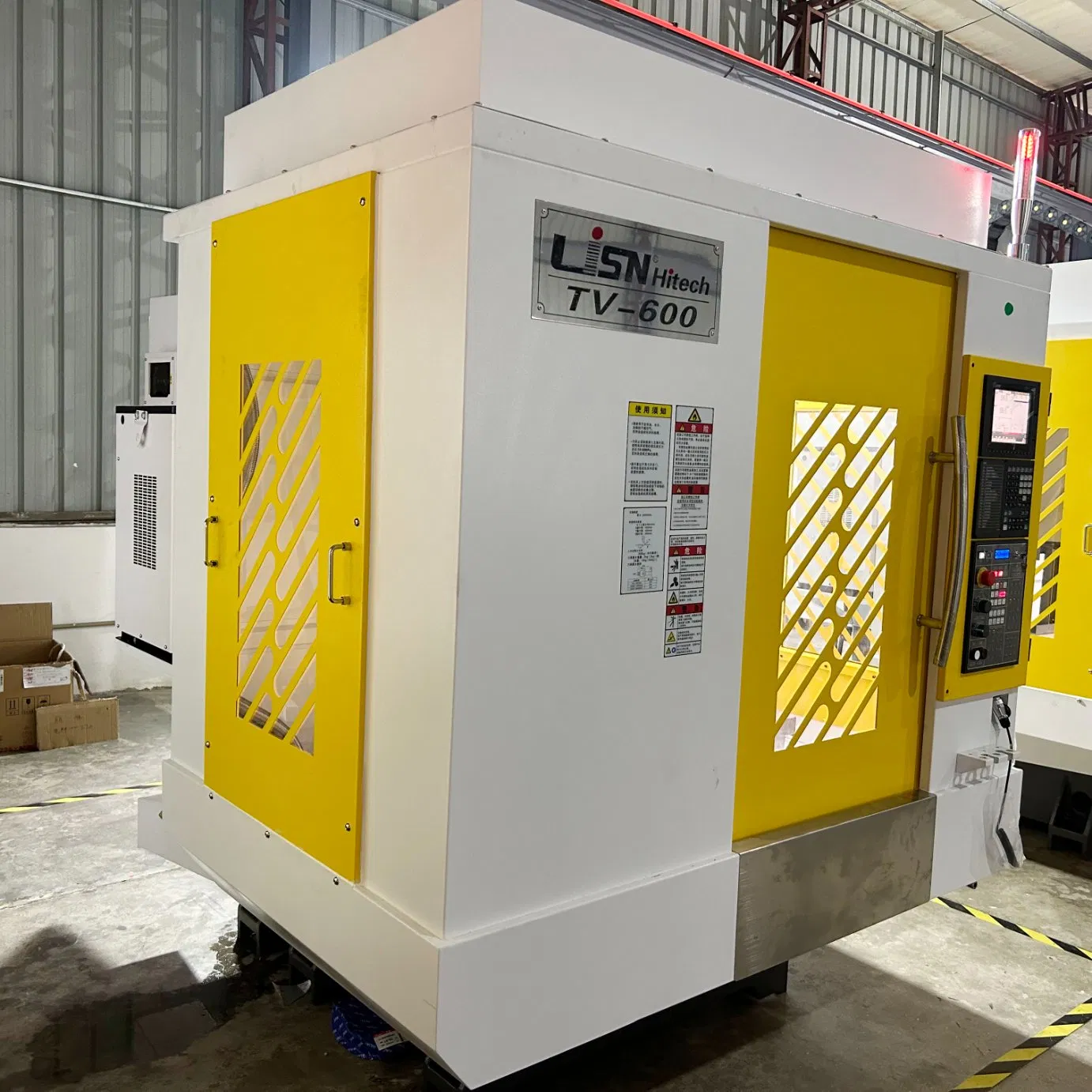

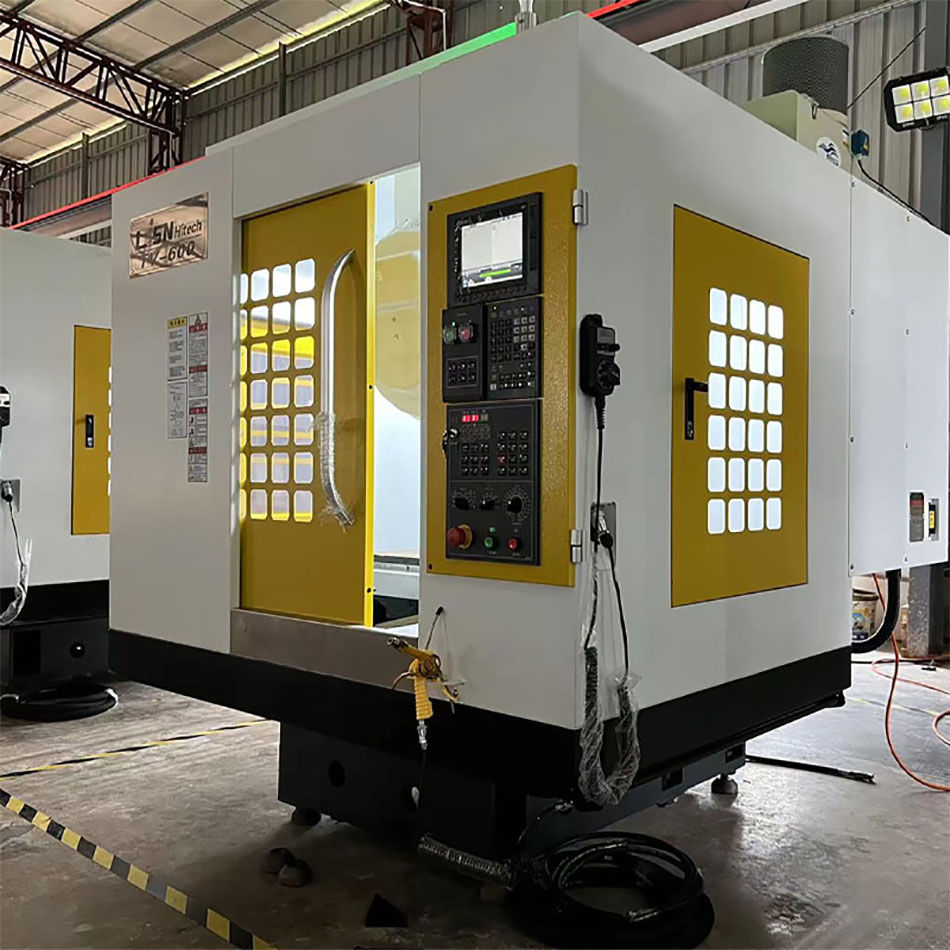

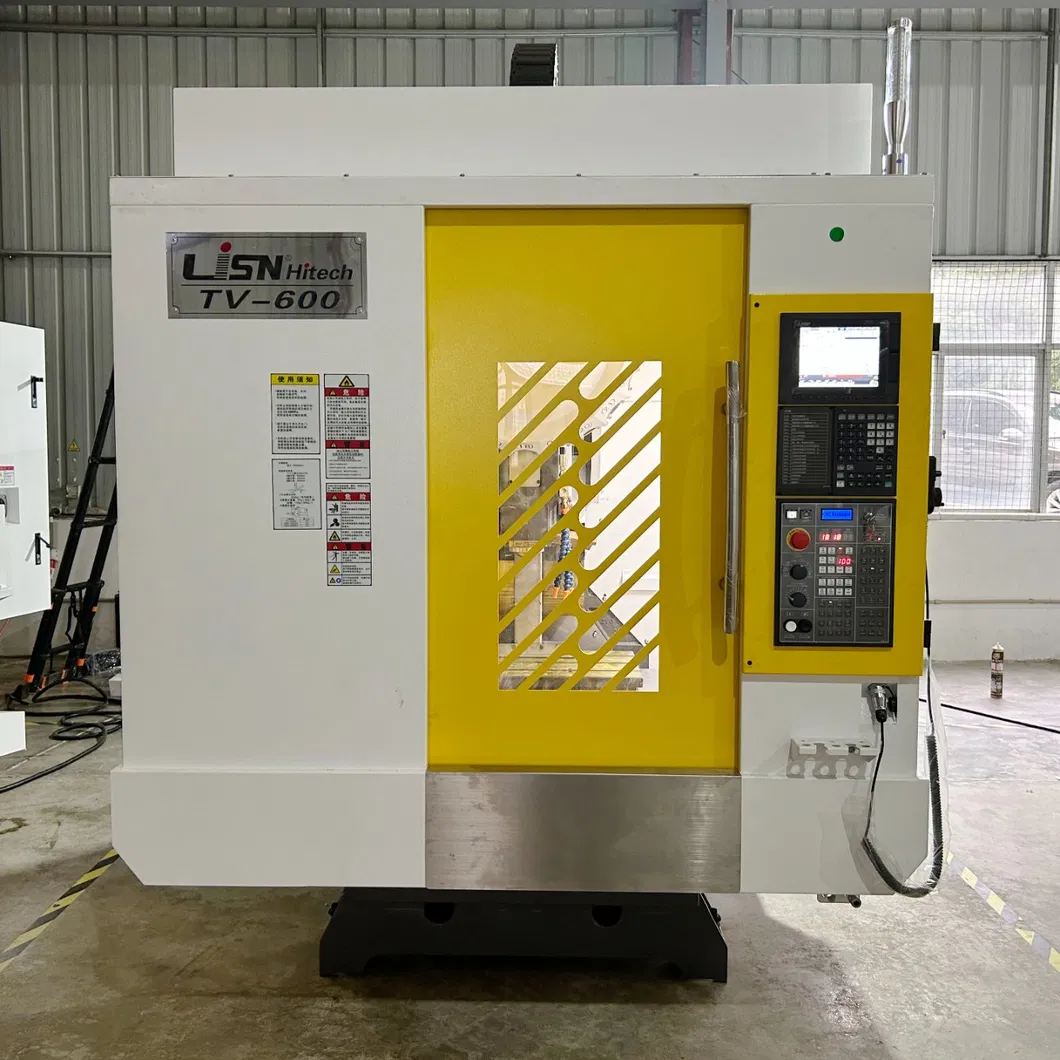

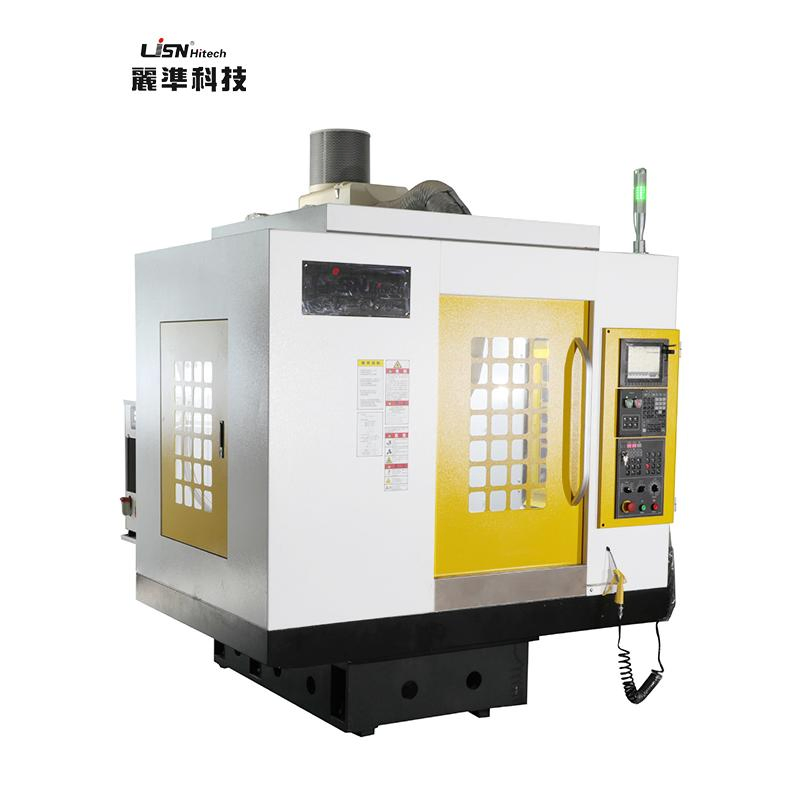

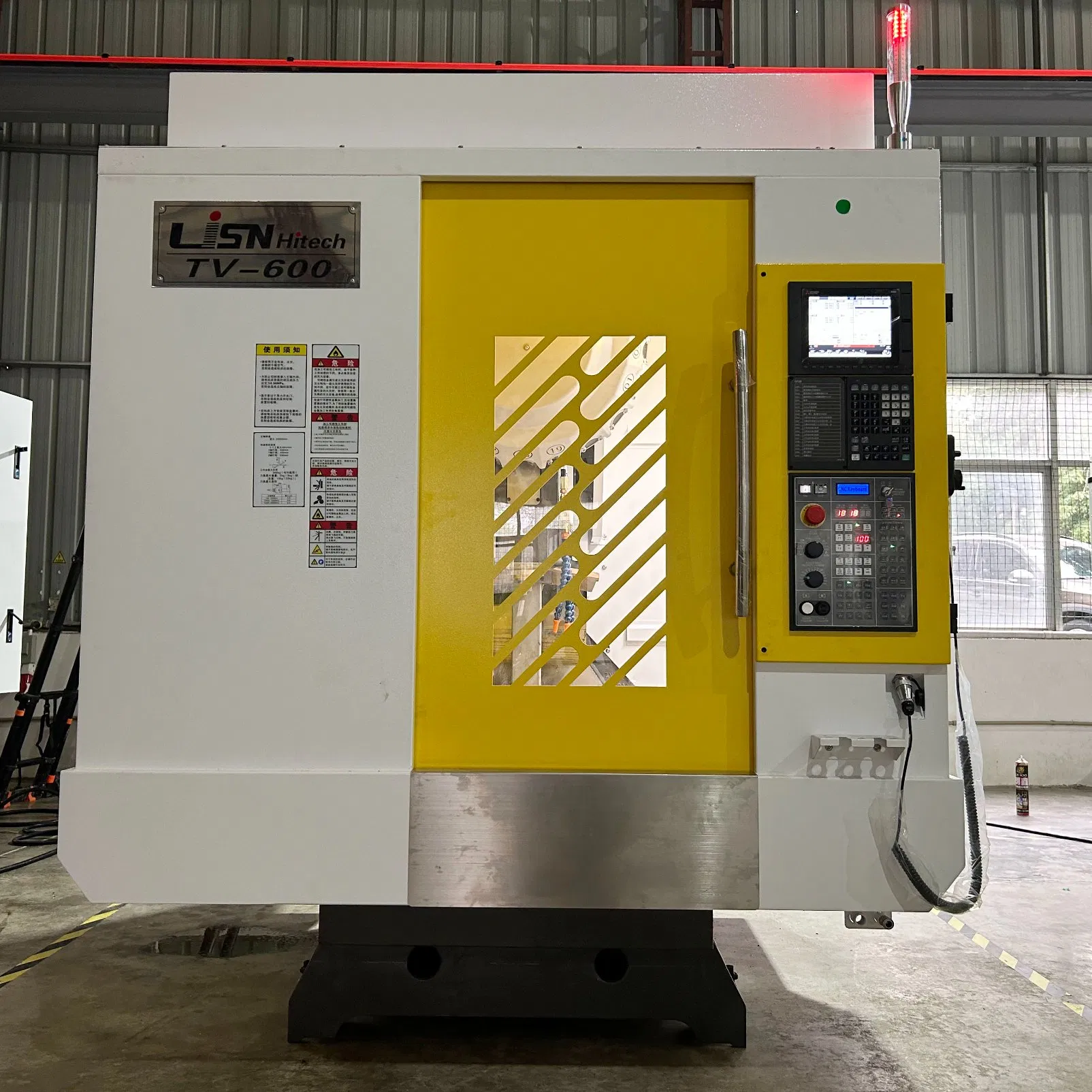

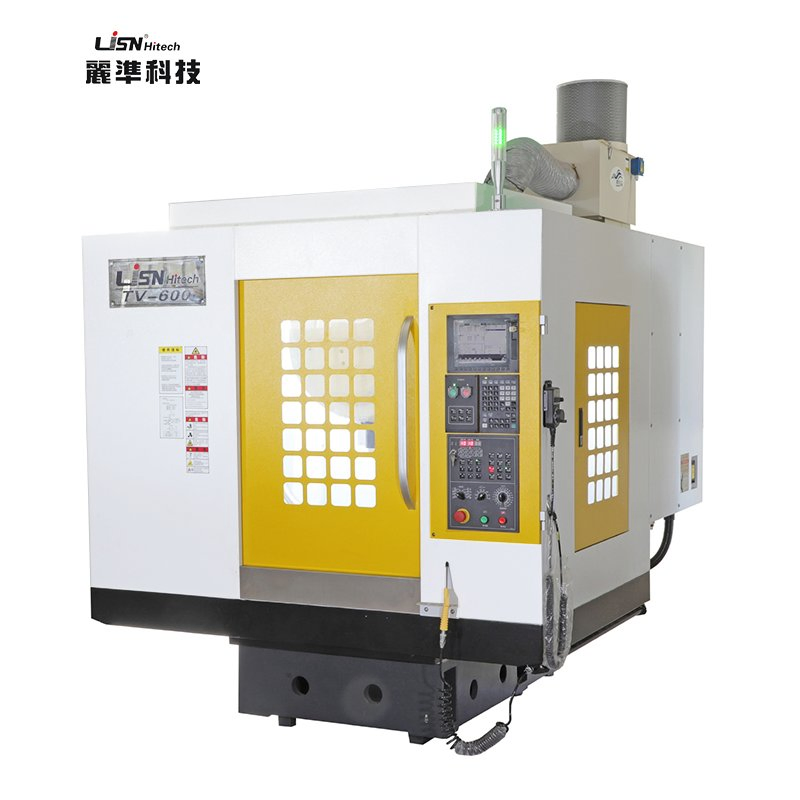

Experience unparalleled ease and safety with our machine's user-centric operation design. Our machine features an innovative box-shaped design at the back, supplemented by a spacious tank collecting box. The thoughtful human-centric space design, coupled with a generously wide operating door, ensures the effortless loading and unloading of workpieces. Equipped with an intuitive control panel, a convenient hand wheel, and a highly efficient base chip washing system, this machine optimizes every aspect of the operational process to boost productivity.
The spindle motor and spindle are ingeniously engineered for a direct connection, eliminating any noise and vibration issues that are common with belt-driven systems. The inclusion of a low-inertia spindle motor significantly enhances performance, allowing an acceleration from 0 to 20000RPM in just one second. Our advanced Thermal Isolated Direct Drive System effectively prevents heat transfer from the motor to the spindle, substantially reducing spindle temperature and enhancing operational stability.
| ITEM | UNITS | TV600 MODELS |
|---|---|---|

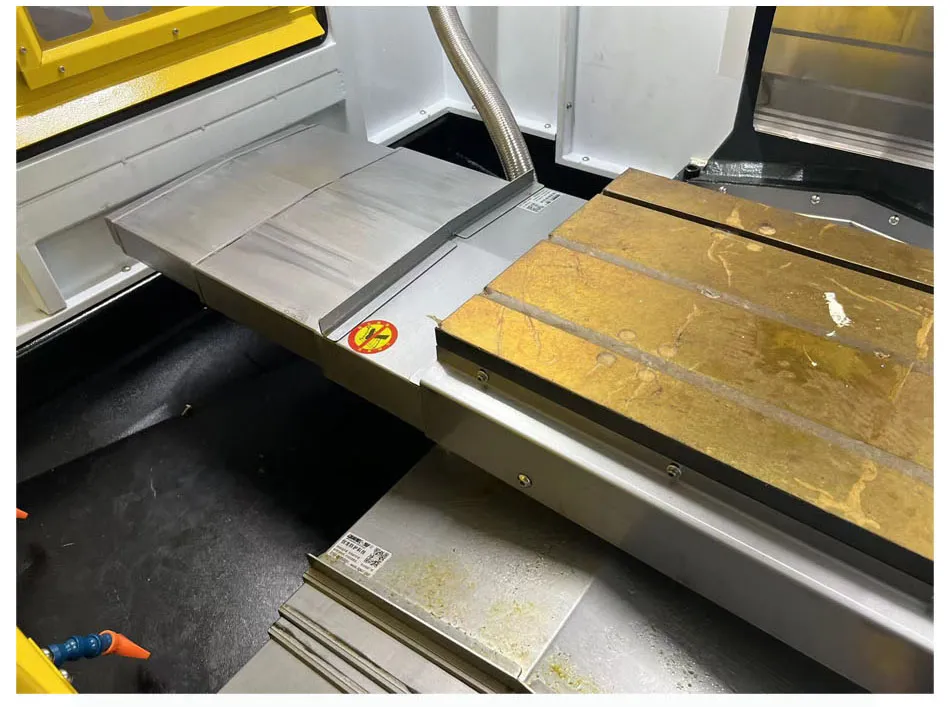

| WORKTABLE (WIDTH*LENGTH) | mm | 720x400 |
| DISTANCE BETWEEN T SLOTS | mm | 3x14x125 |
| MAX LOAD BEARING | kg | 200 |
| X/Y/Z AXIS TRAVEL | mm | 600/400/300 |
| DISTANCE FROM SPINDLE NOSE TO WORKBENCH | mm | 130-480 |
| SPINDLE HOLE TAPER | - | BT30 |
| SPINDLE SPEED RANGE | r/min | 20000 |
| TRANSMISSION OF SPINDLE BOX | - | Optional Belt/Direct |
| SPINDLE MOTOR POWER | kW | 3.7/5.5 (Mitsubishi) / 5.5/7.5 (Fanuc) |
| X/Y/Z RAPID FEED SPEED | m/min | 48/48/48 |
| MAX CUTTING FEED SPEED | mm/min | 1-20000 |

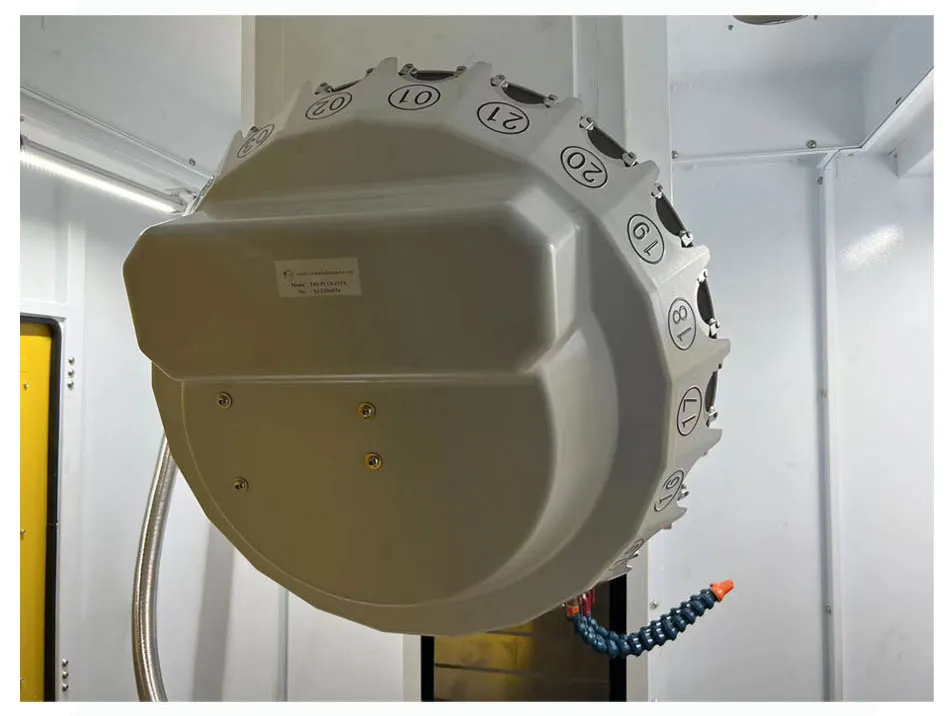

| TOOLS MAGAZINE CAPACITY | pcs | 21 |
| X/Y/Z POSITION ACCURACY | mm | ±0.005 |
| X/Y/Z RE-POSITION ACCURACY | mm | ±0.003 |
| MACHINE DIMENSION | mm | 1930x2450x2450 |
| MACHINE WEIGHT | kg | 3000 |
Includes Full Cover Shield, Self-lubrication System, Working and Warning Lights, Self-powered Electrical Shutoff System, Clean Air Gun, Water Tank, Transformer, along with Spindle Air Curtain and Dust Control System. Rigid Tapping / Worktable Cleaning Water Gun.
Enhance your machine with options like an NC rotary table (4 Axis), CTS, Tool Detection System, Automatic Tool Length Measurement and Damage Detection, 3 Axis Linear Scale, Disc Type Oil-Water Separator, Crawler Chips Remover, Direct Connection Spindle, and Spindle Oil Cooler.
