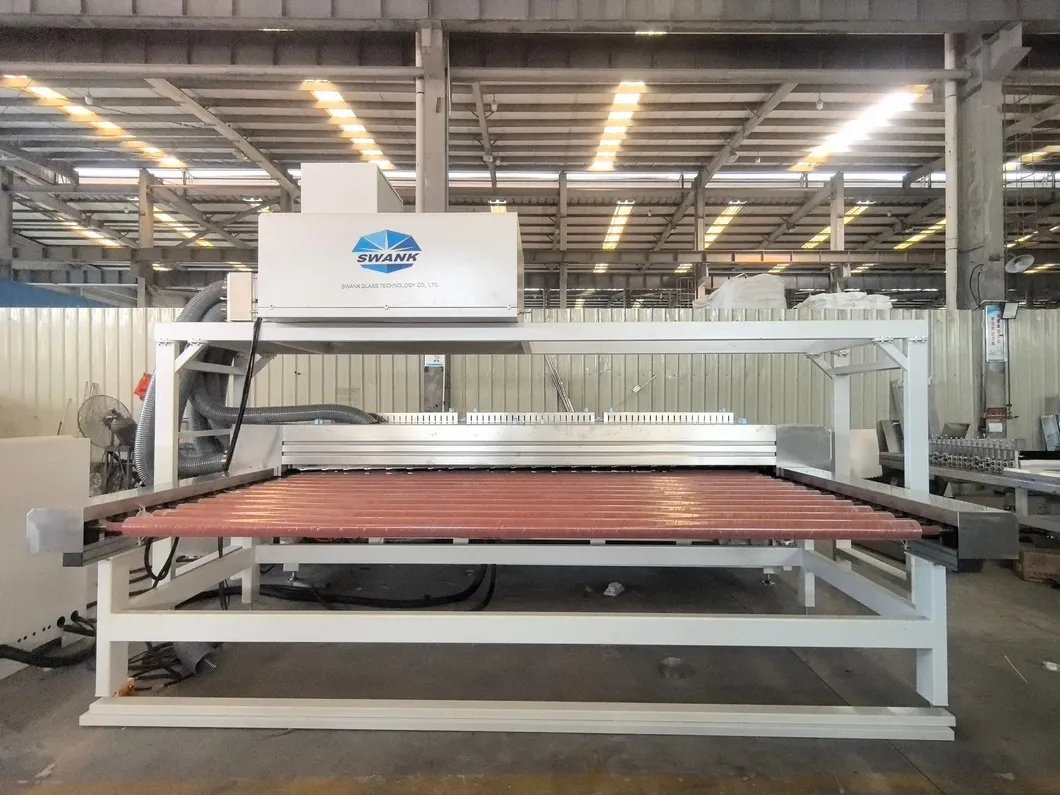

High Quality Big Size Glass Washing & Drying Machine

Customization:	Available
Certification:	CE, ISO
Type:	Glass Washing and Drying Machine

Send Inquiry

Product Description

📋

Basic Information

Model NO.

HG-QX3300

Structure

Horizontal

Control System

PLC

Machine Type

Horizontal Glass Washing Machine

Condition

New

Warranty

One Year

After-Sales

One Year

Origin

China

📦

Packaging & Delivery

Package Size

220.00cm * 200.00cm * 220.00cm

Gross Weight

800.000kg

Transport

by Sea

⚙️

Product Description

Core Configuration

Advanced Control: Utilizes PLC and Touch screen control for precise operation.
Cleaning System: Composed of three groups of six 160/180 diameter brushes. Includes soft brushes for Low-E and coated glass cleaning.
Drying Technology: Features two groups of four special inclined air knives and a fan with a wind heating device.

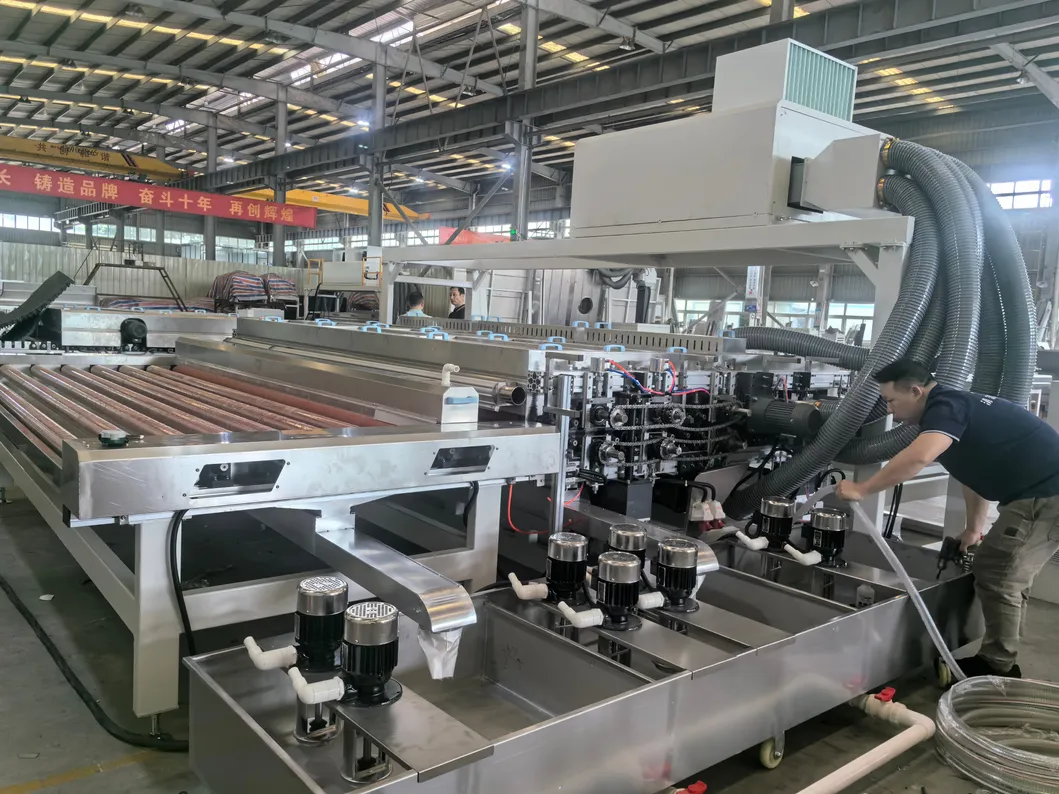

Water System: External movable large water tank with vertical pumps and stainless steel quick connectors. Includes dual filters for each tank.
Sturdy Frame: Constructed with a 100X100 aluminum alloy frame and stainless steel components for water contact parts.
Heating: Each tank features individual water heating and temperature control.
High-Pressure Pre-spray: Feed section includes a water basin and high-pressure pre-spray device with a stainless steel filter bucket.

Technical Specifications

Max Glass Width

3300 mm

Min Glass Width

450 mm

Feeding Speed

1.5 - 8 M/min (Frequency regulation)

Glass Thickness

3 - 25 mm

Power

52 KW

Table Height

900 ± 20 mm

Lifting Range

0 - 400 mm (Digital display)

Machine Weight

4850 KG

🛠️

Free Spare Parts List

No	Name	Specification	Q'ty
1	Installation Tools	-	1 Set
2	LED light	-	1 pc
3	Spray mouth	-	5 pcs
4	Dust/water-proof ring	-	4 pcs
5	Adjustable foot	-	12 pcs
6	Breaker	-	1 pc

📸

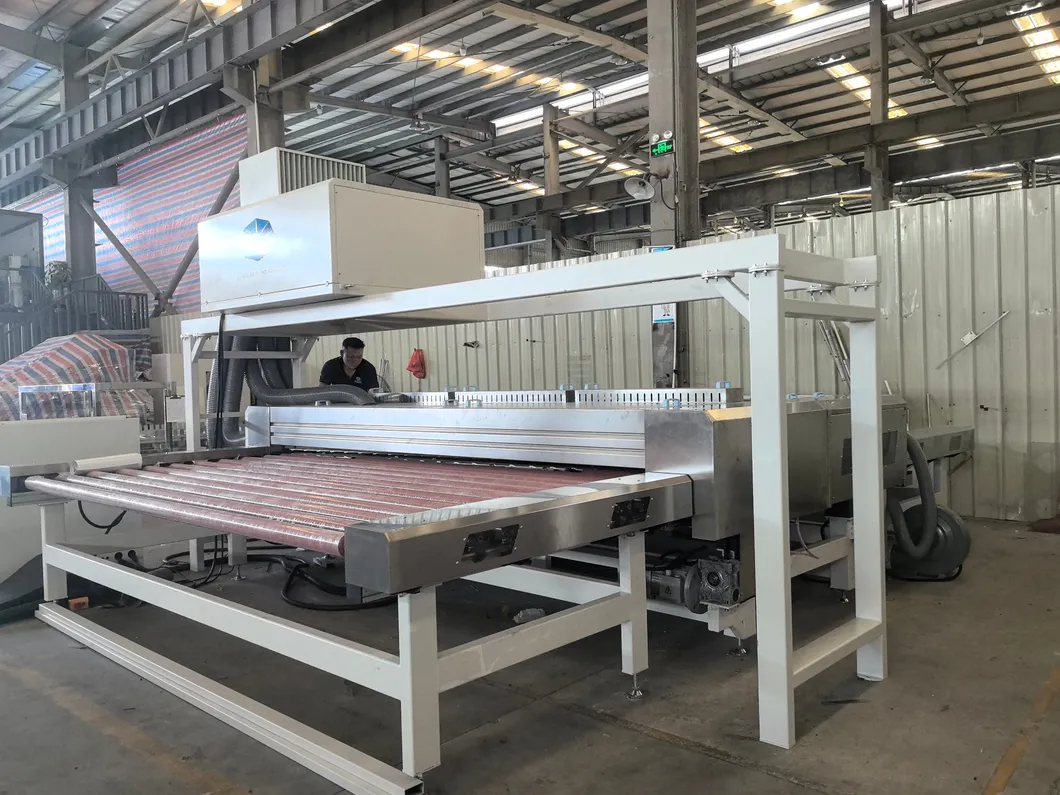

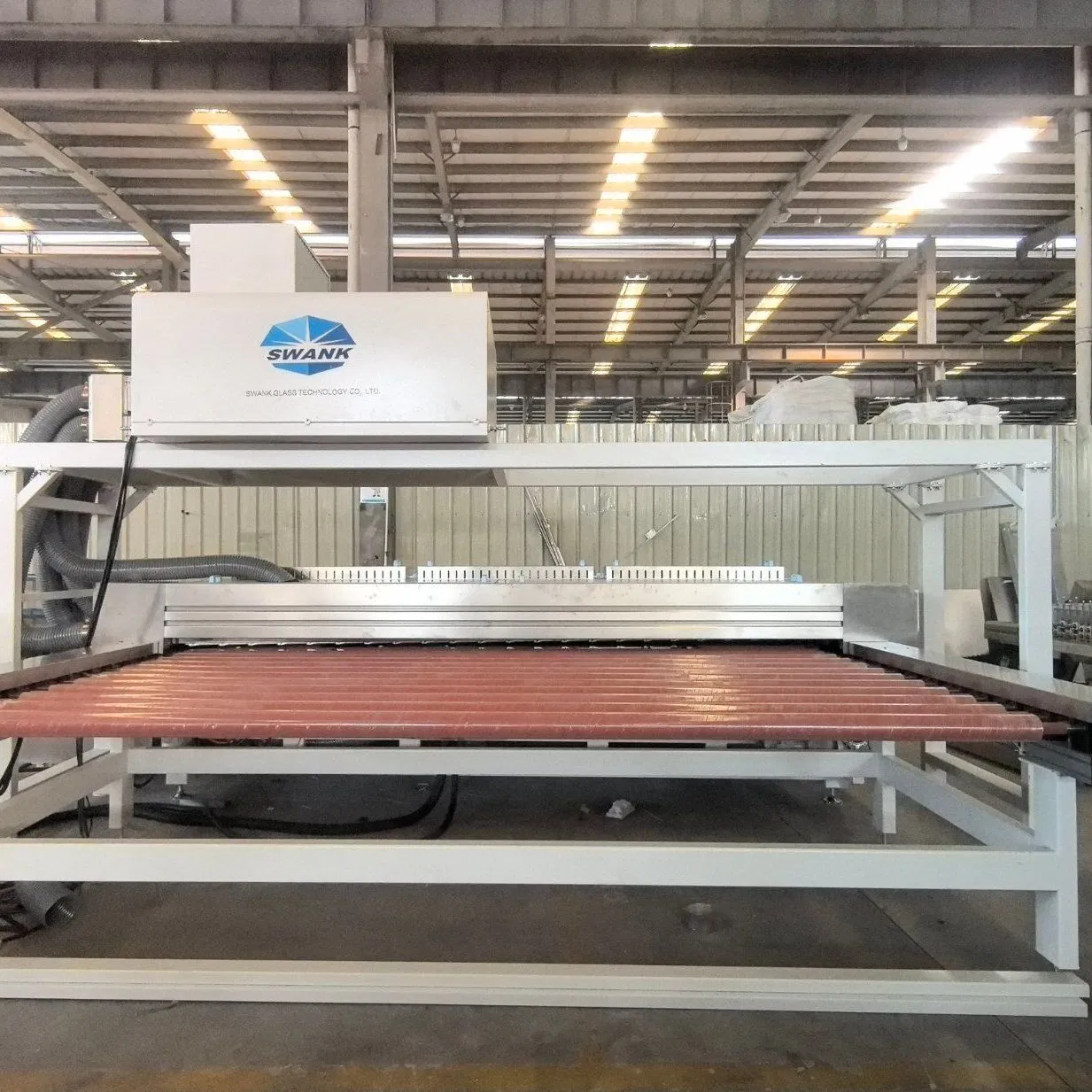

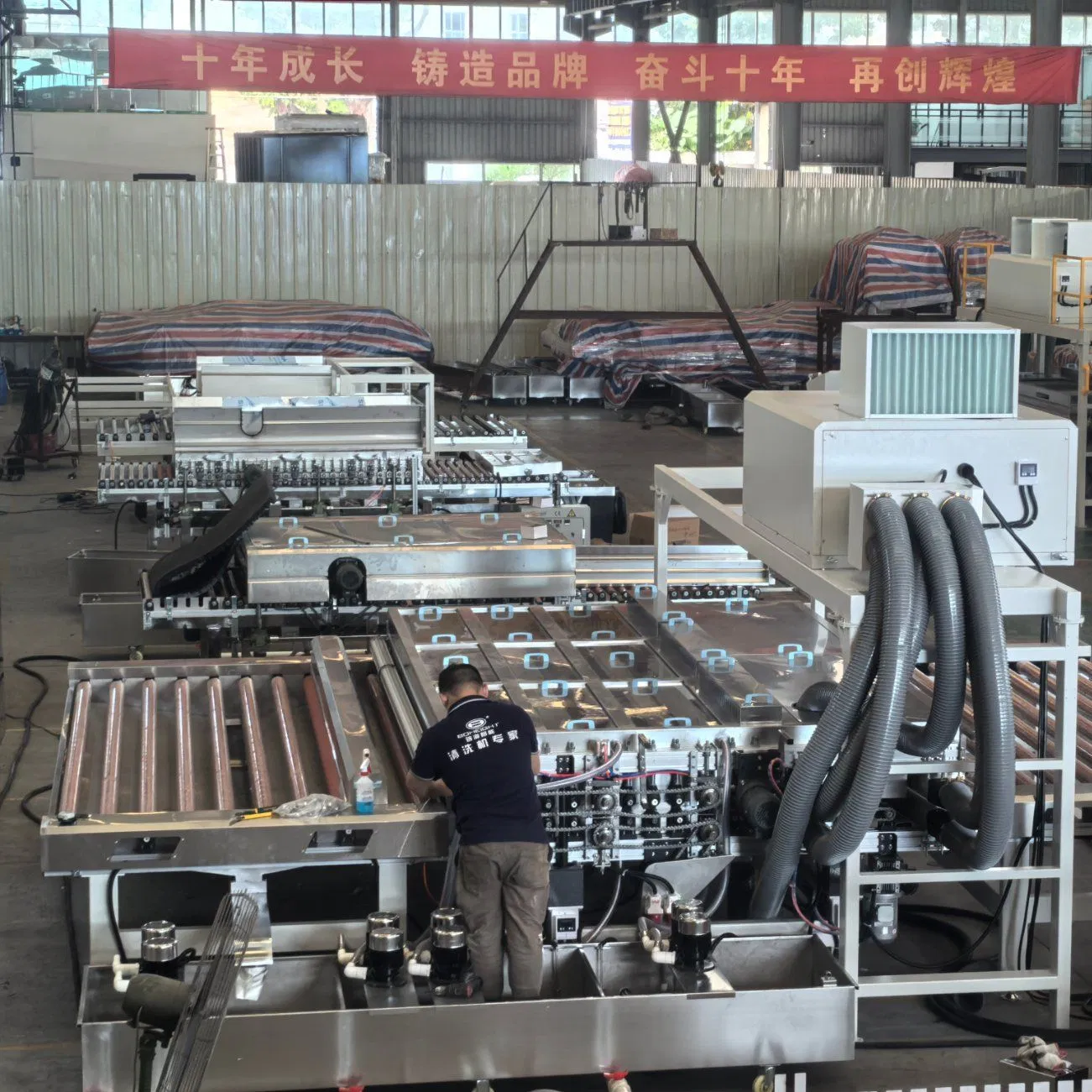

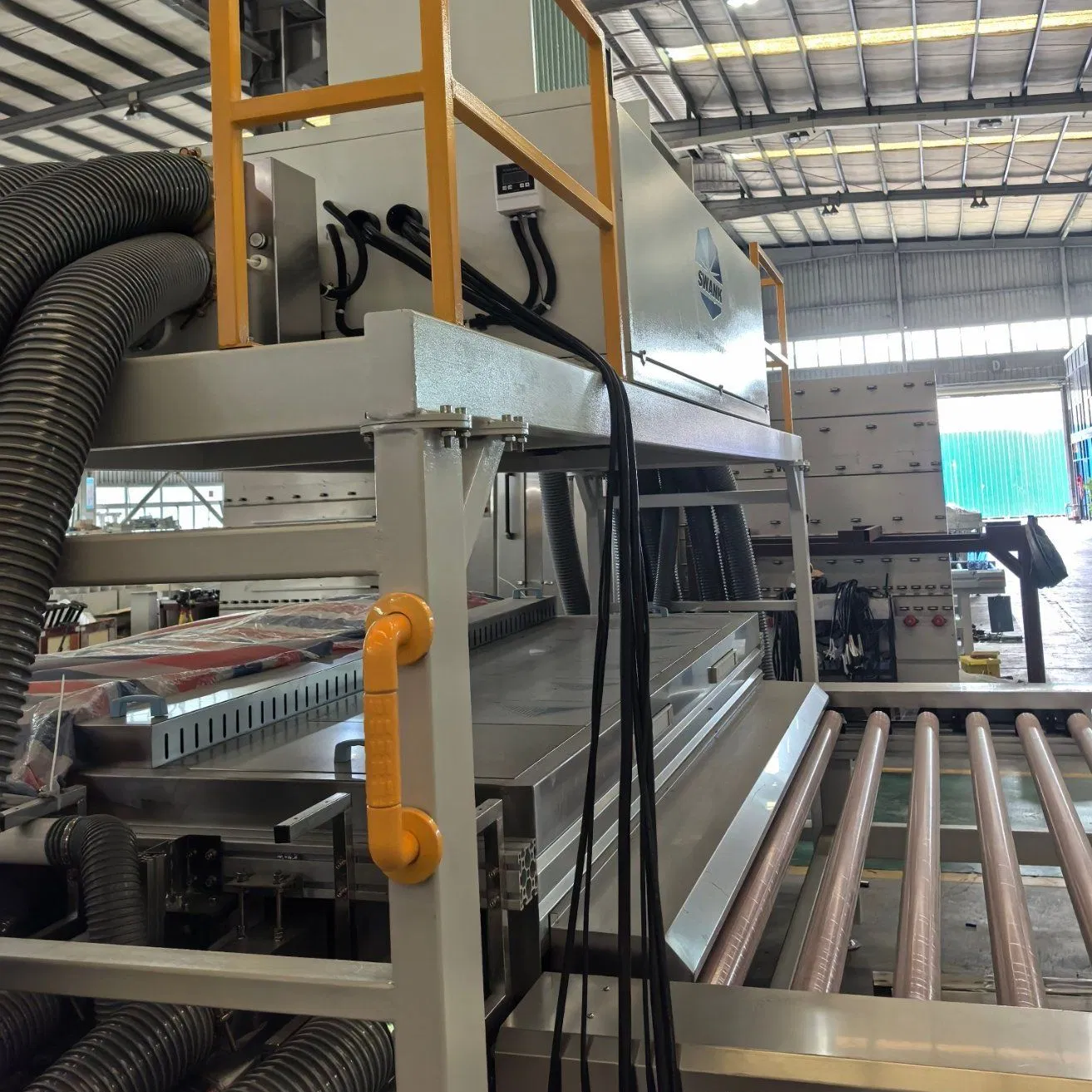

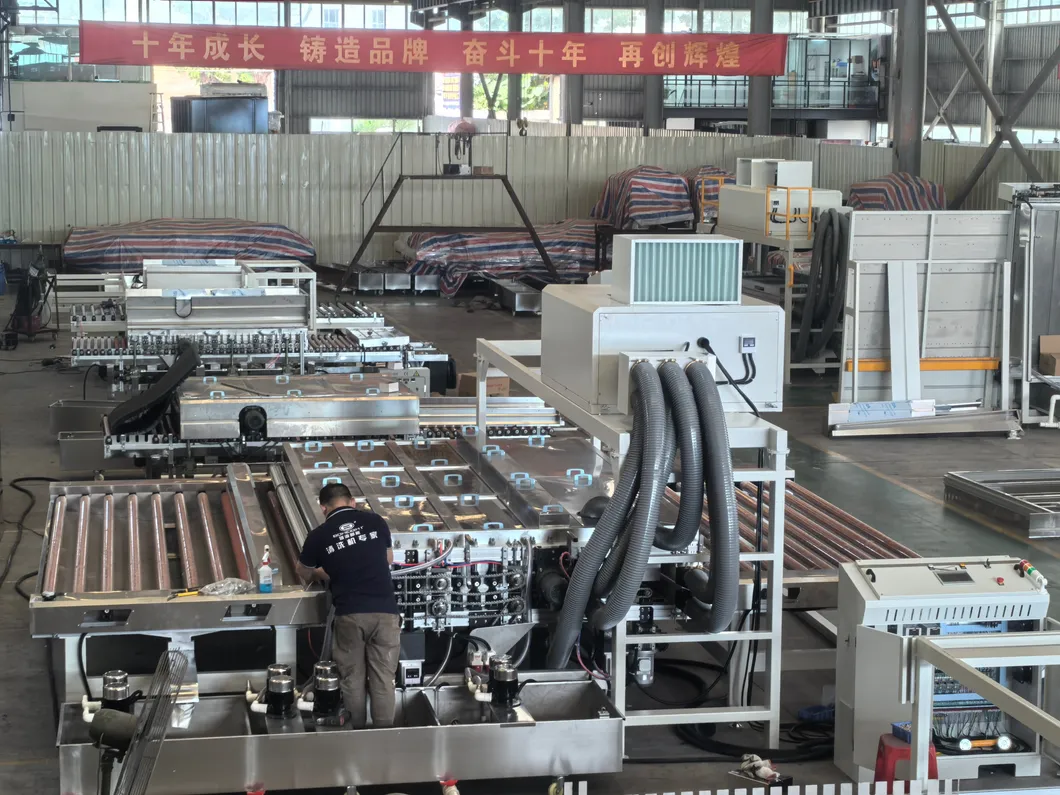

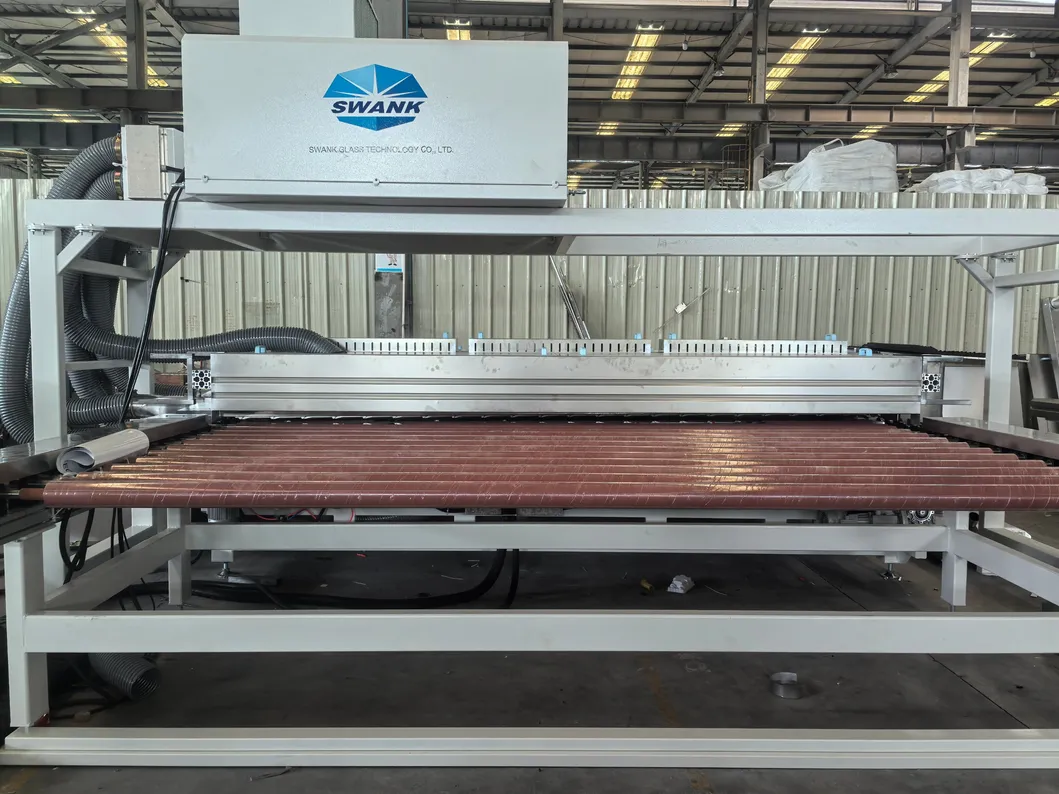

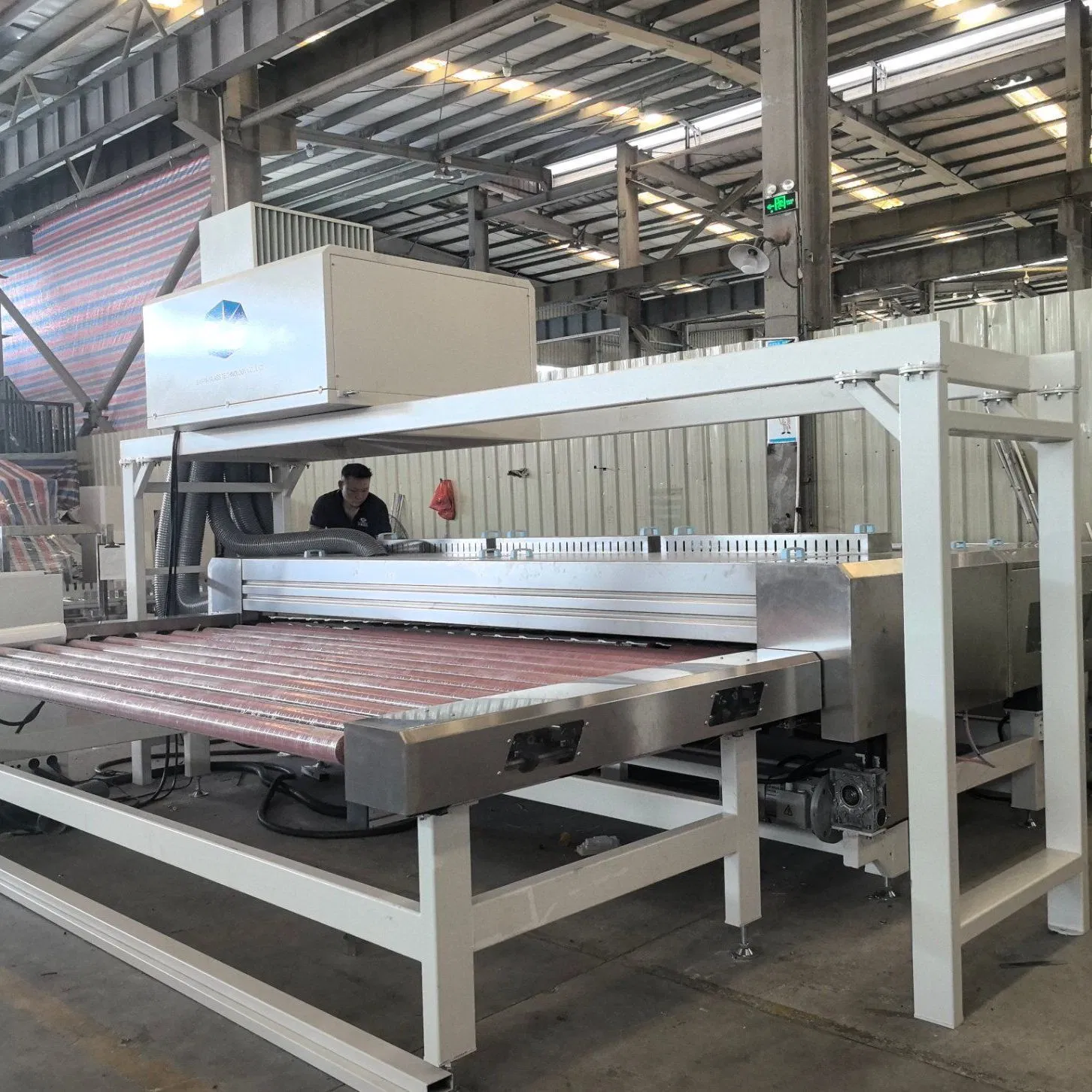

Product Showcase

❓

Frequently Asked Questions

What is the maximum glass width this machine can handle?

The HG-QX3300 can process glass with a maximum width of 3300 mm and a minimum width of 450 mm.

Can this machine wash Low-E or coated glass?

Yes, the washing section includes specialized soft brushes specifically designed for cleaning Low-E and coated glass without damaging the surface.

What kind of control system is installed?

The machine is equipped with a high-quality PLC and Touch Screen control system for easy operation and precise monitoring.

How does the drying system ensure the glass is completely dry?

It uses two groups of four special inclined air knives combined with a high-performance fan and a wind heating device to ensure rapid and thorough drying.

What thickness of glass is supported?

The machine supports a wide range of glass thicknesses, from 3 mm up to 25 mm.

Are there any height adjustments for the washing section?

Yes, the washing and drying sections feature electric lifting with a digital display, allowing for an adjustment range of 0-400 mm.
